Envisat Validation Workshop Atmospheric Chemistry Validation Team Ground-Based Measurements and Campaign Database Subgroup Comparison with MIPAS O 3 Profiles Thomas Blumenstock, IMK/FZK Karlsruhe, thomas. blumenstock@imk. fzk. de Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 1
Validation Team Projects involved: • AOID 158 • AOID 179 • AOID 191 • AOID 300 • AOID 360 • AOID 9003 Instruments involved: • GB MWR • GB LIDAR • GB FTIR • O 3 sondes Groundbased LIDAR Lauder, AOID 9003, Y. Meijer, D. Swart et al. O 3 sonde Uccle, AOID 300, H. Schets et al. NDSC, AOID 158, V. Soebijanta, J. -C. Lambert, Y. Calisesi, S. Godin, H. Claude et al. Ground-based FTIR Kiruna, AOID 191, A. Griesfeller, T. Blumenstock, F. Hase, U. Raffalski et al. LIDAR Andoya, AO 9073, 360 K. Stebel, G. Hansen, Y. Orsolini et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 2
Intercomparison of Ozone Profiles Groundbased FTIR Izana, AOID 191, A. Griesfeller, M. Schneider, T. Blumenstock, F. Hase et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 3

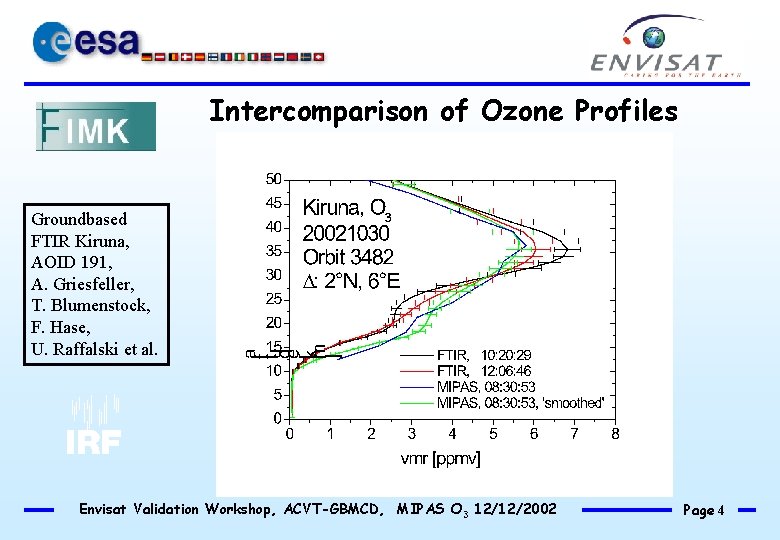

Intercomparison of Ozone Profiles Groundbased FTIR Kiruna, AOID 191, A. Griesfeller, T. Blumenstock, F. Hase, U. Raffalski et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 4
Intercomparison of Ozone Profiles Groundbased FTIR Kiruna, AOID 191, A. Griesfeller, T. Blumenstock, F. Hase, U. Raffalski et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 5
Intercomparison of Ozone Profiles Groundbased FTIR Kiruna, AOID 191, A. Griesfeller, T. Blumenstock, F. Hase, U. Raffalski et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 6
Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 7
Intercomparison of Ozone Profiles FTIR Kiruna (& Izana): Groundbased FTIR Kiruna, AOID 191, A. Griesfeller, T. Blumenstock, F. Hase, U. Raffalski et al. 7 (2) comparisons with MIPAS version 4. 53 (before Nov. 13) around 20 km: MIPAS vmr too low (up to 0. 8 ppmv) around 30 km: MIPAS vmr too large (up to 0. 8 ppmv) MIPAS columns (integr. prof. >16 km): ~ 10% too large altitude assignment: alt. shift of ~1. 5 km MIPAS VMR (p) agrees better than VMR (H) Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 8
Intercomparison of Ozone Profiles Groundbased LIDAR Lauder, AOID 9003, Y. Meijer, D. Swart et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 9
Intercomparison of Ozone Profiles Groundbased LIDAR Lauder, AOID 9003, Y. Meijer, D. Swart et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 10
Intercomparison of Ozone Profiles LIDAR O. H. P. S. Godin et al. (CNRS/SA) AOID 158, J. -C. Lambert, V. Soebijanta et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 11
Intercomparison of Ozone Profiles LIDAR O. H. P. S. Godin et al. (CNRS/SA) AOID 158, J. -C. Lambert, V. Soebijanta et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 12
Intercomparison of Ozone Profiles Groundbased LIDAR Andoya, AOID 9073, 360, K. Stebel, G. Hansen, Y. Orsolini et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 13
Intercomparison of Ozone Profiles Groundbased LIDAR Andoya, AOID 9073, 360, K. Stebel, G. Hansen, Y. Orsolini et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 14
Intercomparison of Ozone Profiles LIDAR Lauder : 7 comparisons with MIPAS version 4. 53 height assignment is reasonable good agreement O. H. P. / Alomar: 7 (6) comparisons with MIPAS version 4. 53 good agreement above ~20 km D altitude: 1 - 2 km Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 15
Intercomparison of Ozone Profiles O 3 sonde Uccle, AOID 300, H. Schets et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 16
Intercomparison of Ozone Profiles O 3 sonde Uccle, AOID 300, H. Schets et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 17
Intercomparison of Ozone Profiles O 3 sonde Hohenpeissenberg H. Claude (DWD) AOID 158, J. -C. Lambert, V. Soebijanta et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 18
Intercomparison of Ozone Profiles O 3 sonde Hohenpeissenberg H. Claude (DWD) AOID 158, J. -C. Lambert, V. Soebijanta et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 19

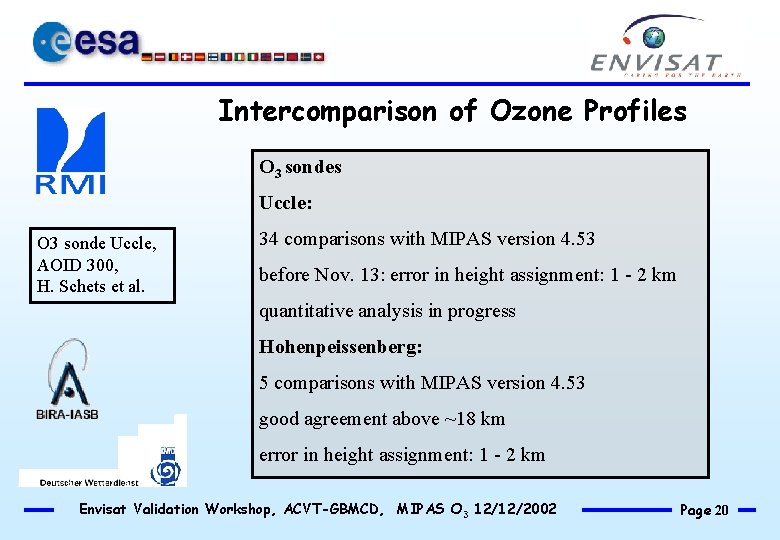

Intercomparison of Ozone Profiles O 3 sondes Uccle: O 3 sonde Uccle, AOID 300, H. Schets et al. 34 comparisons with MIPAS version 4. 53 before Nov. 13: error in height assignment: 1 - 2 km quantitative analysis in progress Hohenpeissenberg: 5 comparisons with MIPAS version 4. 53 good agreement above ~18 km error in height assignment: 1 - 2 km Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 20
Intercomparison of Ozone Profiles MWR Payerne Y. Calisesi et al. (MCH) AOID 158, J. -C. Lambert, V. Soebijanta et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 21

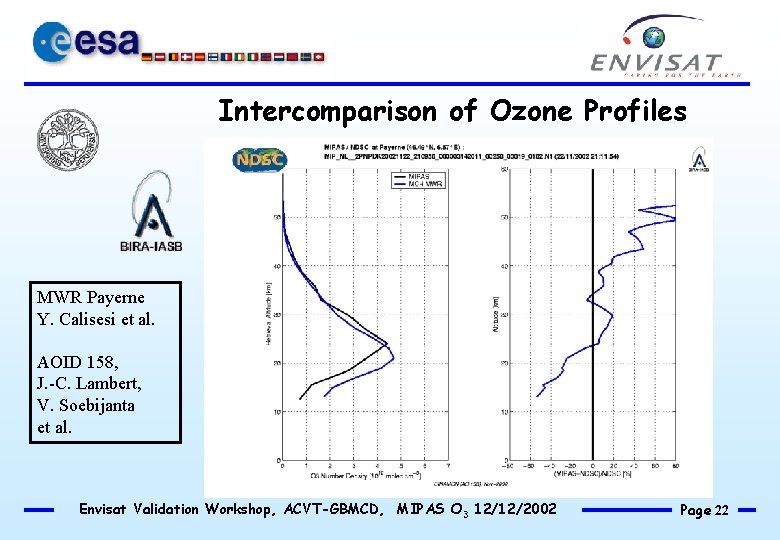

Intercomparison of Ozone Profiles MWR Payerne Y. Calisesi et al. AOID 158, J. -C. Lambert, V. Soebijanta et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 22
Intercomparison of Ozone Profiles 72 comparisons MWR Payerne Y. Calisesi et al. AOID 158, J. -C. Lambert, V. Soebijanta et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 23
Intercomparison of Ozone Profiles 38 comparisons MWR Payerne Y. Calisesi et al. AOID 158, J. -C. Lambert, V. Soebijanta et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 24
Intercomparison of Ozone Profiles MWR Payerne: 110 comparisons! with MIPAS version 4. 53 before Nov. 13: MWR Payerne Y. Calisesi (MCH) AOID 158, V. Soebijanta, J. -C. Lambert et al. agreement above ~22 km D altitude: 1 - 2 km after Nov. 13: significant improvement good agreement Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 25
Conclusion Comparisons with MIPAS 4. 53 (data from Oct. 24 onwards) using g. b. MWR, LIDAR, FTIR, and O 3 sondes before Nov. 13: D altitude: 1 - 2 km < 20 km: MIPAS vmr too low >25 km: MIPAS vmr too large after Nov. 13: O 3 sondes Uccle & MWR Payerne (110 comparisons !) : height assignment is reasonable much better agreement Quality of MIPAS O 3 profiles is quite promising Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 26
Outlook A quantitative validation has to be perfomed Data from MIPAS observations before Oct. 24 are needed More than 1000 files with O 3 profile data on CAL/VAL data base Topics to be addressed: • day / night differences • latitudinal dependence • coincidence criteria: influence of different time and geolocation • other MIPAS products (species) Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 27
Intercomparison of HNO 3 Profiles Groundbased FTIR Kiruna, AOID 191, A. Griesfeller, T. Blumenstock, F. Hase, U. Raffalski et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 28
Intercomparison of N 2 O Profiles Groundbased FTIR Kiruna, AOID 191, A. Griesfeller, T. Blumenstock, F. Hase, U. Raffalski et al. Envisat Validation Workshop, ACVT-GBMCD, MIPAS O 3 12/12/2002 Page 29
