Environmental Approval Requirements For Thermal Treatment of Biomass Projects Exploring Small Scale Biomass Fired Organic Rankine Cycle Technology as a Northern Ontario Energy Solution Confederation College – Thunder Bay – March 13, 2013 Prepared by: Mohsen Keyvani, P. Eng. Environmental Approvals Branch Ministry of the Environment Presented by: Steven Law, P. Eng. Standards Development Branch Ministry of the Environment

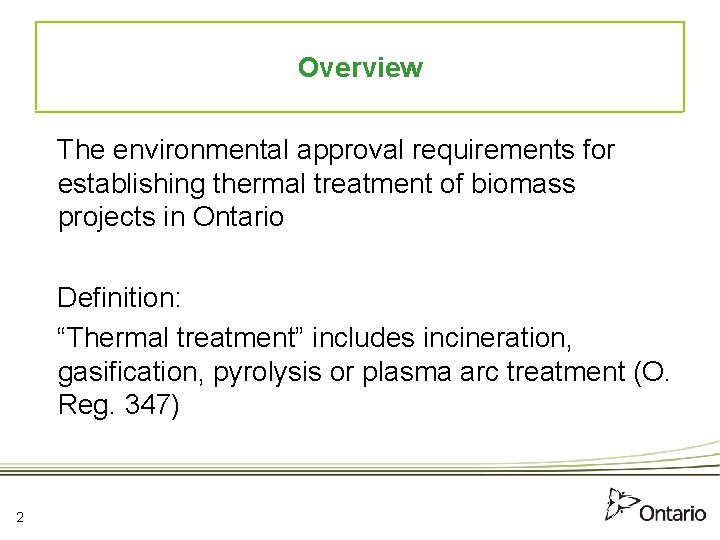

Overview The environmental approval requirements for establishing thermal treatment of biomass projects in Ontario Definition: “Thermal treatment” includes incineration, gasification, pyrolysis or plasma arc treatment (O. Reg. 347) 2

Why Environmental Approvals? All thermal treatment of biomass projects requiring approval under Ministry of the Environment’s legislation are carried out in accordance with the acts, applicable regulations, and guidelines administered by the MOE in order to ensure the protection, conservation, and wise management of the natural environment: air, water, and land 3

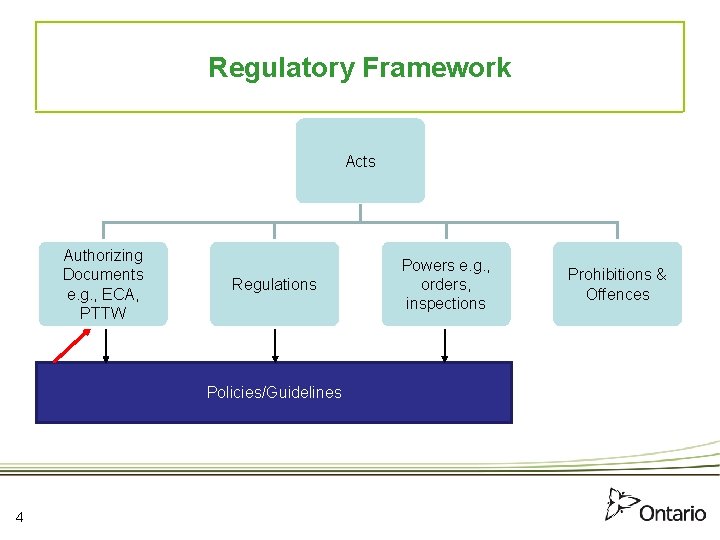

Regulatory Framework Acts Authorizing Documents e. g. , ECA, PTTW Regulations Policies/Guidelines 4 Powers e. g. , orders, inspections Prohibitions & Offences

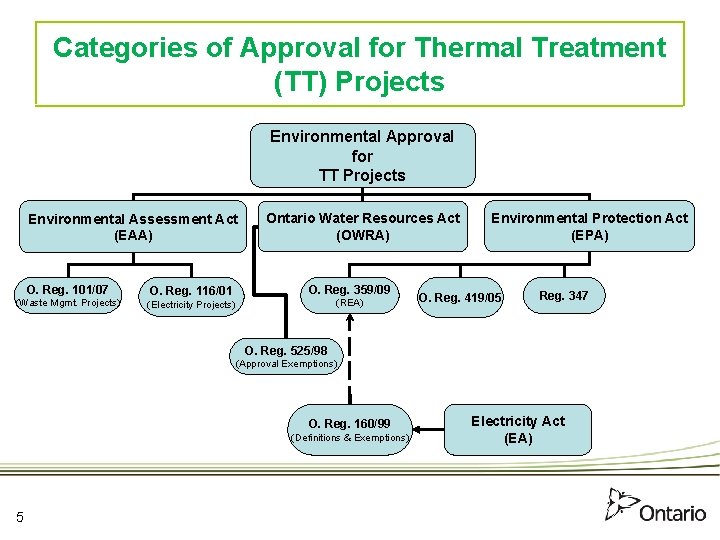

Categories of Approval for Thermal Treatment (TT) Projects Environmental Approval for TT Projects Environmental Assessment Act (EAA) O. Reg. 101/07 (Waste Mgmt. Projects) O. Reg. 116/01 Ontario Water Resources Act (OWRA) O. Reg. 359/09 (REA) (Electricity Projects) Environmental Protection Act (EPA) O. Reg. 419/05 Reg. 347 O. Reg. 525/98 (Approval Exemptions) O. Reg. 160/99 (Definitions & Exemptions) 5 Electricity Act (EA)

Environmental Approvals Required for: Ø 6 A project uses biomass to produce electricity (renewable energy generation facility)

RENEWABLE ENERGY APPROVAL (REA) 7

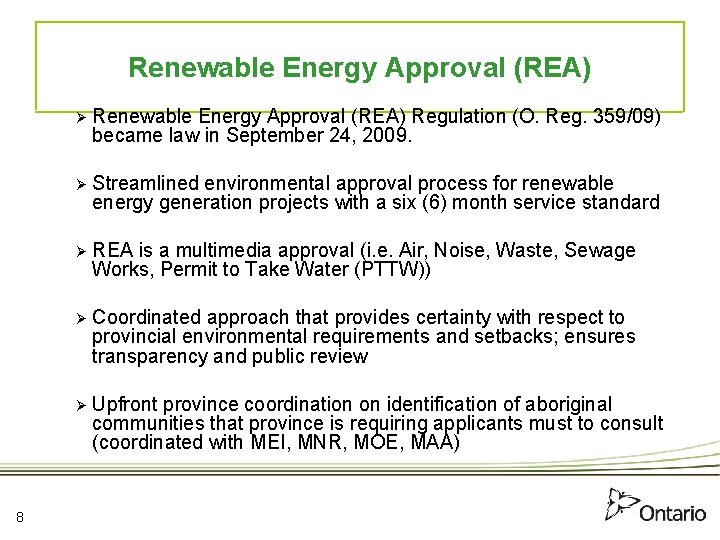

Renewable Energy Approval (REA) 8 Ø Renewable Energy Approval (REA) Regulation (O. Reg. 359/09) became law in September 24, 2009. Ø Streamlined environmental approval process for renewable energy generation projects with a six (6) month service standard Ø REA is a multimedia approval (i. e. Air, Noise, Waste, Sewage Works, Permit to Take Water (PTTW)) Ø Coordinated approach that provides certainty with respect to provincial environmental requirements and setbacks; ensures transparency and public review Ø Upfront province coordination on identification of aboriginal communities that province is requiring applicants must to consult (coordinated with MEI, MNR, MOE, MAA)

REA. . . Cont’d Definitions (Electricity Act-1998): 9 Ø “Renewable energy generation facility” is a facility that generates electricity from a renewable energy source Ø “Renewable energy source” means an energy source that is renewed by natural processes and includes wind, water, biomass, biogas, biofuel, solar energy, ….

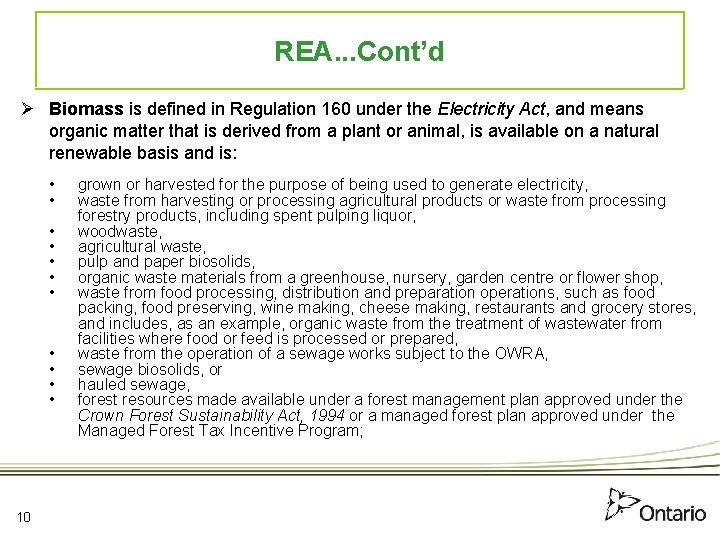

REA. . . Cont’d Ø Biomass is defined in Regulation 160 under the Electricity Act, and means organic matter that is derived from a plant or animal, is available on a natural renewable basis and is: • • • 10 grown or harvested for the purpose of being used to generate electricity, waste from harvesting or processing agricultural products or waste from processing forestry products, including spent pulping liquor, woodwaste, agricultural waste, pulp and paper biosolids, organic waste materials from a greenhouse, nursery, garden centre or flower shop, waste from food processing, distribution and preparation operations, such as food packing, food preserving, wine making, cheese making, restaurants and grocery stores, and includes, as an example, organic waste from the treatment of wastewater from facilities where food or feed is processed or prepared, waste from the operation of a sewage works subject to the OWRA, sewage biosolids, or hauled sewage, forest resources made available under a forest management plan approved under the Crown Forest Sustainability Act, 1994 or a managed forest plan approved under the Managed Forest Tax Incentive Program;

REA. . . Cont’d Ø Renewable energy generation facilities are not subject to the Planning Act, Environmental Assessment Act (EAA), and an Environmental Compliance Approval (ECA) but rather are covered by a Renewable Energy Approval (REA) Regulation O. Reg. 359/09 made under Part V. 0. 1 of the EPA Note: Guideline A-7 does NOT apply to a renewable energy generation facility because mixed municipal waste is not considered biomass 11

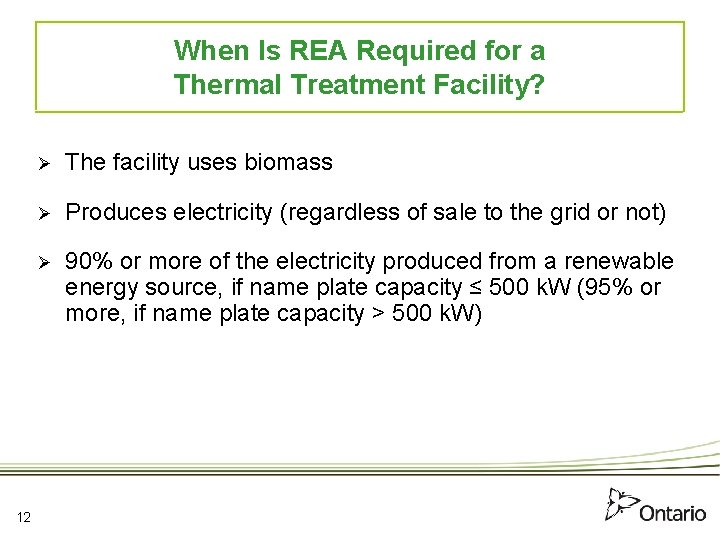

When Is REA Required for a Thermal Treatment Facility? 12 Ø The facility uses biomass Ø Produces electricity (regardless of sale to the grid or not) Ø 90% or more of the electricity produced from a renewable energy source, if name plate capacity ≤ 500 k. W (95% or more, if name plate capacity > 500 k. W)

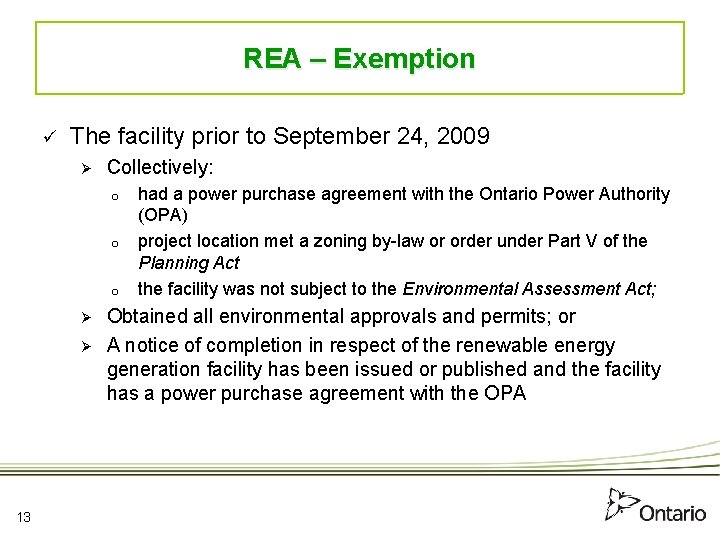

REA – Exemption ü The facility prior to September 24, 2009 Ø Collectively: o o o Ø Ø 13 had a power purchase agreement with the Ontario Power Authority (OPA) project location met a zoning by-law or order under Part V of the Planning Act the facility was not subject to the Environmental Assessment Act; Obtained all environmental approvals and permits; or A notice of completion in respect of the renewable energy generation facility has been issued or published and the facility has a power purchase agreement with the OPA

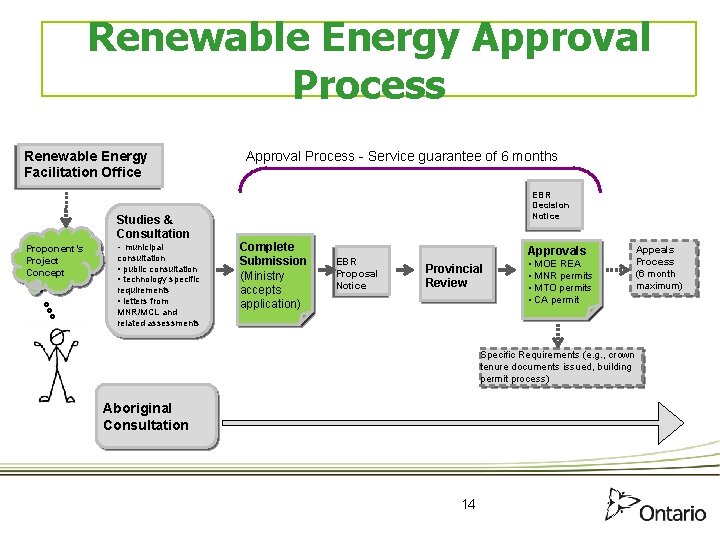

Renewable Energy Approval Process Renewable Energy Facilitation Office Studies & Consultation Proponent’s Project Concept • municipal consultation • public consultation • technology specific requirements • letters from MNR/MCL and related assessments Approval Process - Service guarantee of 6 months EBR Decision Notice Complete Submission (Ministry accepts application) EBR Proposal Notice Approvals Provincial Review • MOE REA • MNR permits • MTO permits • CA permit Specific Requirements (e. g. , crown tenure documents issued, building permit process) Aboriginal Consultation 14 Appeals Process (6 month maximum)

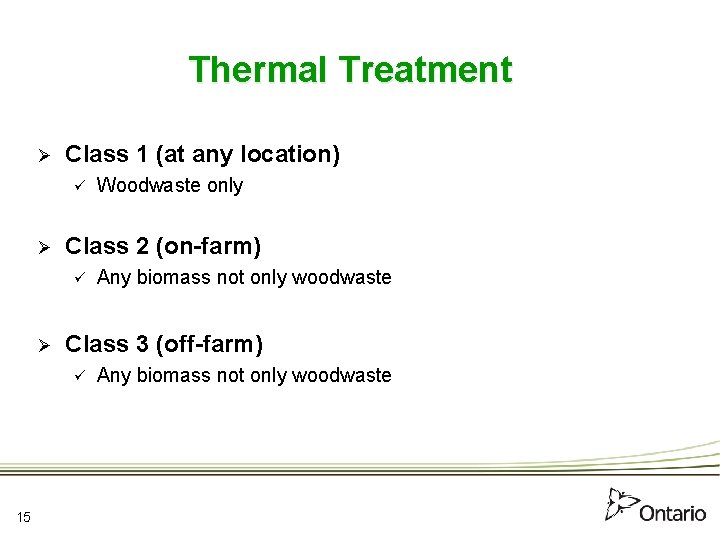

Thermal Treatment Ø Class 1 (at any location) ü Ø Class 2 (on-farm) ü Ø Any biomass not only woodwaste Class 3 (off-farm) ü 15 Woodwaste only Any biomass not only woodwaste

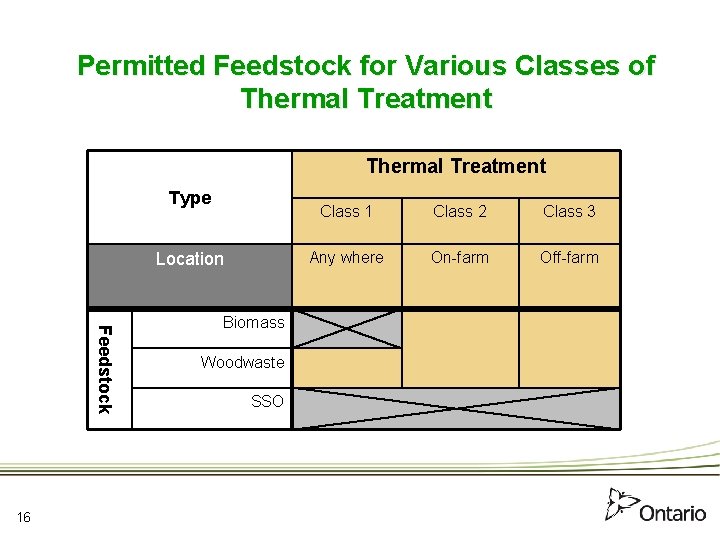

Permitted Feedstock for Various Classes of Thermal Treatment Type Location Feedstock 16 Biomass Woodwaste SSO Class 1 Class 2 Class 3 Any where On-farm Off-farm

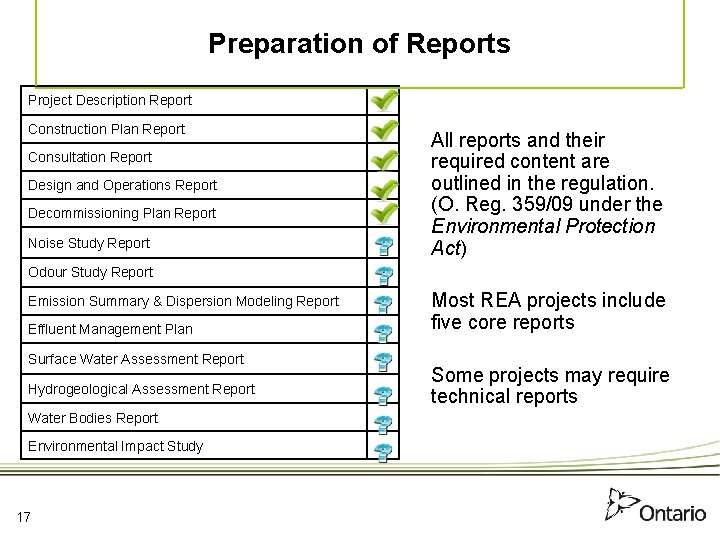

Preparation of Reports Project Description Report Construction Plan Report Consultation Report Design and Operations Report Decommissioning Plan Report Noise Study Report All reports and their required content are outlined in the regulation. (O. Reg. 359/09 under the Environmental Protection Act) Odour Study Report Emission Summary & Dispersion Modeling Report Effluent Management Plan Surface Water Assessment Report Hydrogeological Assessment Report Water Bodies Report Environmental Impact Study 17 Most REA projects include five core reports Some projects may require technical reports

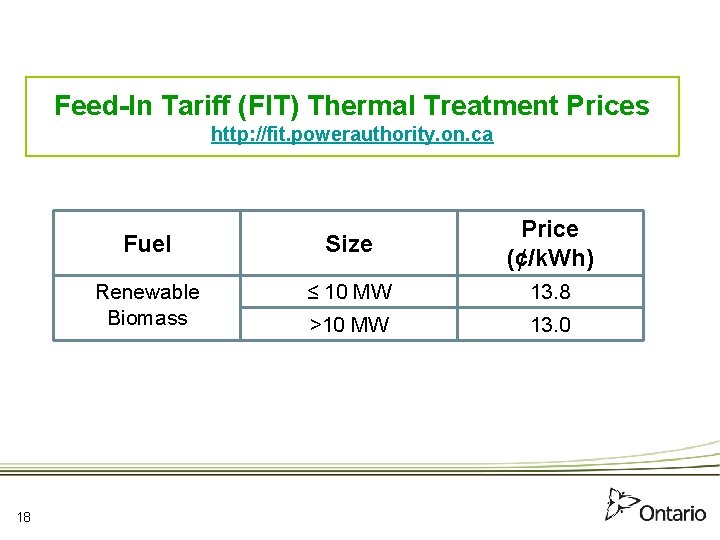

Feed-In Tariff (FIT) Thermal Treatment Prices http: //fit. powerauthority. on. ca 18 Fuel Size Price (¢/k. Wh) Renewable Biomass ≤ 10 MW 13. 8 >10 MW 13. 0

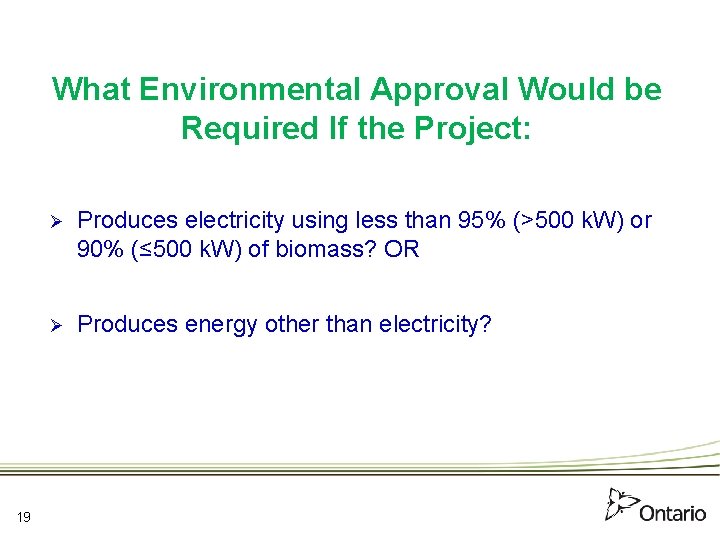

What Environmental Approval Would be Required If the Project: 19 Ø Produces electricity using less than 95% (>500 k. W) or 90% (≤ 500 k. W) of biomass? OR Ø Produces energy other than electricity?

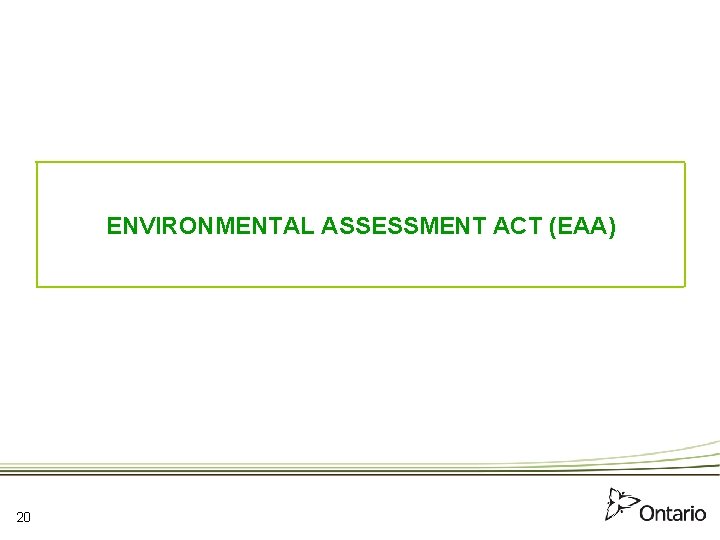

ENVIRONMENTAL ASSESSMENT ACT (EAA) 20

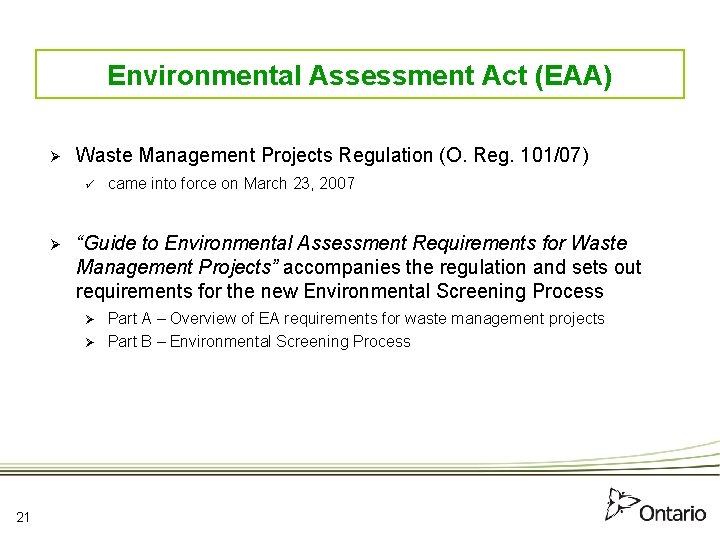

Environmental Assessment Act (EAA) Ø Waste Management Projects Regulation (O. Reg. 101/07) ü Ø “Guide to Environmental Assessment Requirements for Waste Management Projects” accompanies the regulation and sets out requirements for the new Environmental Screening Process Ø Ø 21 came into force on March 23, 2007 Part A – Overview of EA requirements for waste management projects Part B – Environmental Screening Process

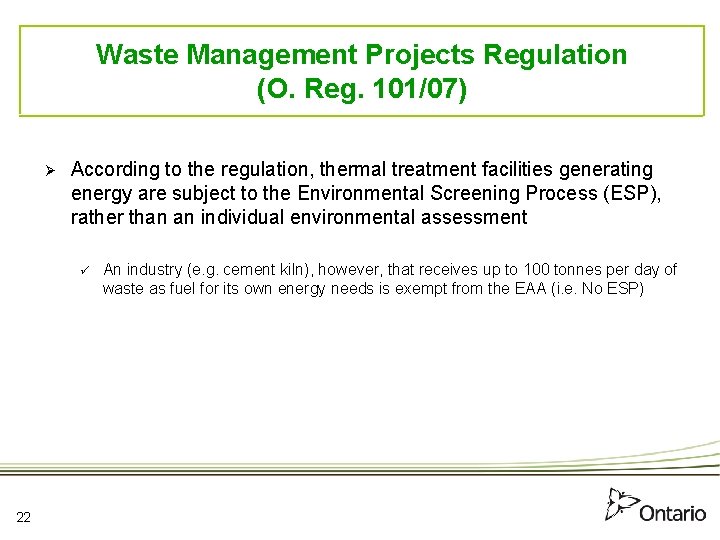

Waste Management Projects Regulation (O. Reg. 101/07) Ø According to the regulation, thermal treatment facilities generating energy are subject to the Environmental Screening Process (ESP), rather than an individual environmental assessment ü 22 An industry (e. g. cement kiln), however, that receives up to 100 tonnes per day of waste as fuel for its own energy needs is exempt from the EAA (i. e. No ESP)

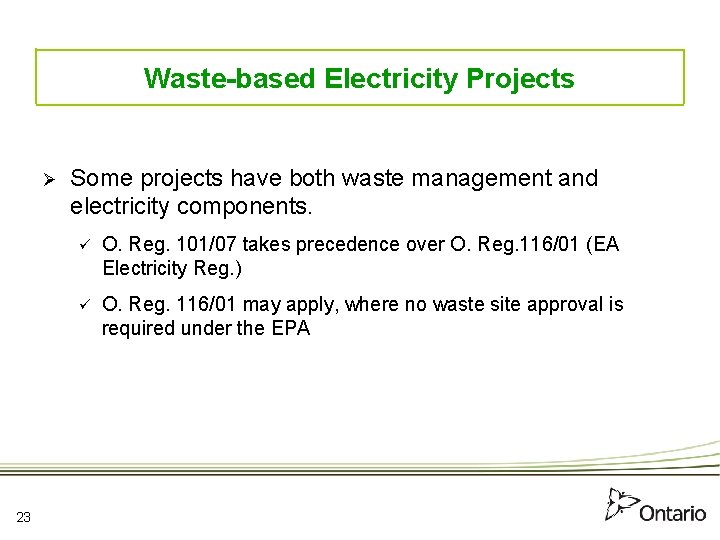

Waste-based Electricity Projects Ø 23 Some projects have both waste management and electricity components. ü O. Reg. 101/07 takes precedence over O. Reg. 116/01 (EA Electricity Reg. ) ü O. Reg. 116/01 may apply, where no waste site approval is required under the EPA

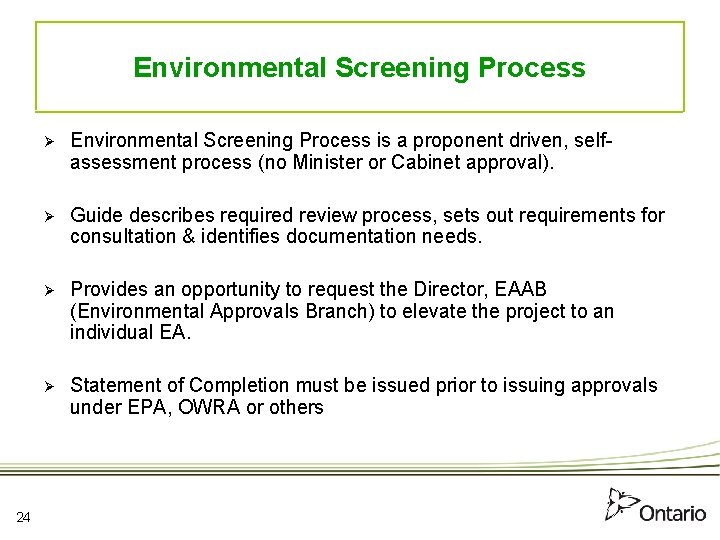

Environmental Screening Process 24 Ø Environmental Screening Process is a proponent driven, selfassessment process (no Minister or Cabinet approval). Ø Guide describes required review process, sets out requirements for consultation & identifies documentation needs. Ø Provides an opportunity to request the Director, EAAB (Environmental Approvals Branch) to elevate the project to an individual EA. Ø Statement of Completion must be issued prior to issuing approvals under EPA, OWRA or others

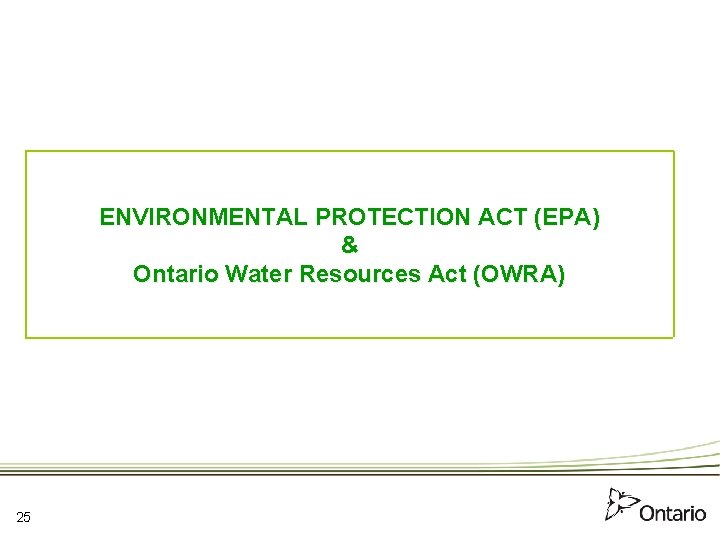

ENVIRONMENTAL PROTECTION ACT (EPA) & Ontario Water Resources Act (OWRA) 25

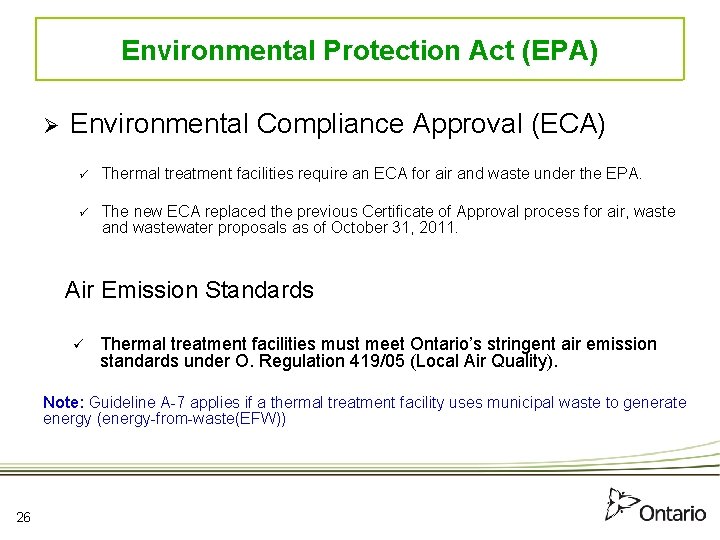

Environmental Protection Act (EPA) Ø Environmental Compliance Approval (ECA) ü Thermal treatment facilities require an ECA for air and waste under the EPA. ü The new ECA replaced the previous Certificate of Approval process for air, waste and wastewater proposals as of October 31, 2011. Air Emission Standards ü Thermal treatment facilities must meet Ontario’s stringent air emission standards under O. Regulation 419/05 (Local Air Quality). Note: Guideline A-7 applies if a thermal treatment facility uses municipal waste to generate energy (energy-from-waste(EFW)) 26

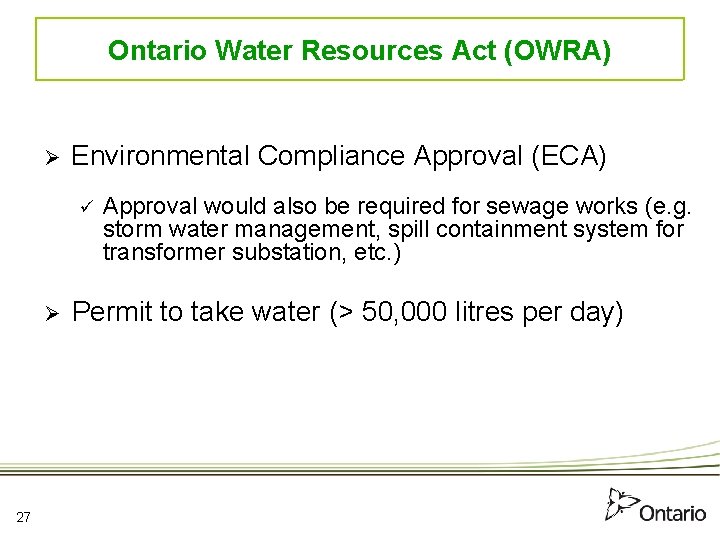

Ontario Water Resources Act (OWRA) Ø Environmental Compliance Approval (ECA) ü Ø 27 Approval would also be required for sewage works (e. g. storm water management, spill containment system for transformer substation, etc. ) Permit to take water (> 50, 000 litres per day)

Thank you Questions? 28

APPENDIX 29

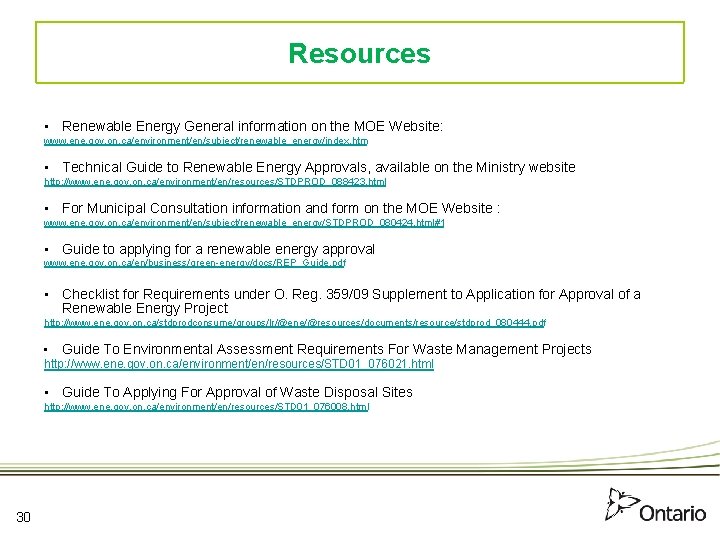

Resources • Renewable Energy General information on the MOE Website: www. ene. gov. on. ca/environment/en/subject/renewable_energy/index. htm • Technical Guide to Renewable Energy Approvals, available on the Ministry website http: //www. ene. gov. on. ca/environment/en/resources/STDPROD_088423. html • For Municipal Consultation information and form on the MOE Website : www. ene. gov. on. ca/environment/en/subject/renewable_energy/STDPROD_080424. html#1 • Guide to applying for a renewable energy approval www. ene. gov. on. ca/en/business/green-energy/docs/REP_Guide. pdf • Checklist for Requirements under O. Reg. 359/09 Supplement to Application for Approval of a Renewable Energy Project http: //www. ene. gov. on. ca/stdprodconsume/groups/lr/@ene/@resources/documents/resource/stdprod_080444. pdf • Guide To Environmental Assessment Requirements For Waste Management Projects http: //www. ene. gov. on. ca/environment/en/resources/STD 01_076021. html • Guide To Applying For Approval of Waste Disposal Sites http: //www. ene. gov. on. ca/environment/en/resources/STD 01_076008. html 30

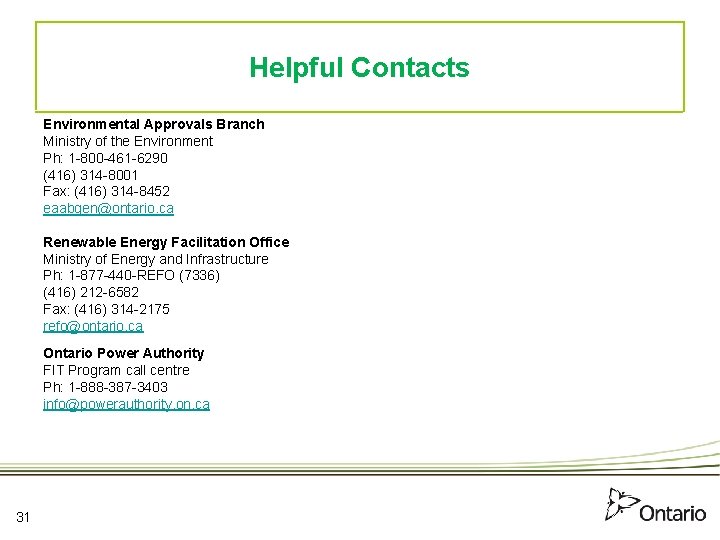

Helpful Contacts Environmental Approvals Branch Ministry of the Environment Ph: 1 -800 -461 -6290 (416) 314 -8001 Fax: (416) 314 -8452 eaabgen@ontario. ca Renewable Energy Facilitation Office Ministry of Energy and Infrastructure Ph: 1 -877 -440 -REFO (7336) (416) 212 -6582 Fax: (416) 314 -2175 refo@ontario. ca Ontario Power Authority FIT Program call centre Ph: 1 -888 -387 -3403 info@powerauthority. on. ca 31
