ENUM Austrian and VISIONng Demo ENUM Informational Update
- Slides: 26
ENUM Austrian and VISIONng Demo ENUM Informational Update ICANN 25. March 2003 Rudolf BRANDNER Richard STASTNY Siemens Tel: +49 172 273 9694 E-Mail: rudolf. brandner@siemens. com ÖFEG Tel: +43 664 420 4100 E-Mail: richard. stastny@oefeg. at Richard Stastny March 2003 1

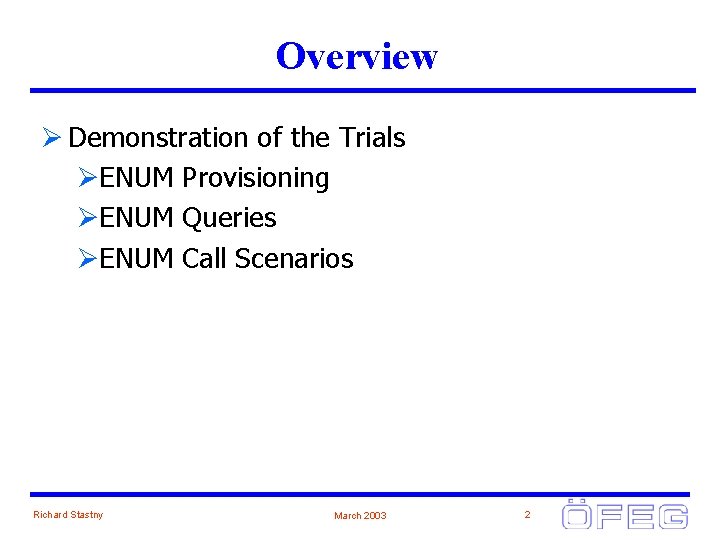

Overview Ø Demonstration of the Trials ØENUM Provisioning ØENUM Queries ØENUM Call Scenarios Richard Stastny March 2003 2
ENUM Provisioning and Query Ø ENUM Webpage http: //enum. nic. at Ø ENUM Query query via UK Siemens Roke Manor Ø Registration of an E. 164 number by an ENUM subscriber via the web-interface Ø Query of ENUM entries via the web-interface by ENUM subscriber Ø Modification of ENUM entries via the web-interface by ENUM subscriber Ø DNS-query of ENUM entries by ENUM User with ENUM client SW and launch of applications Ø Query of WHOIS data related to an E. 164 number Richard Stastny March 2003 3
ENUM Call Scenarios Ø Vo. IP Call Scenarios without ENUM Ø Vo. IP Call Scenarios with ENUM ØENUM Query by User ØENUM Query by Server Ø Calls to the PSTN Richard Stastny March 2003 4
The VISIONng Scenario ENUM * GK or SIP Server Internet GK GK "ENUM" GK VISIONng Backbone GW GK VISIONng GW +87810 xxx TDM Richard Stastny TDM March 2003 5

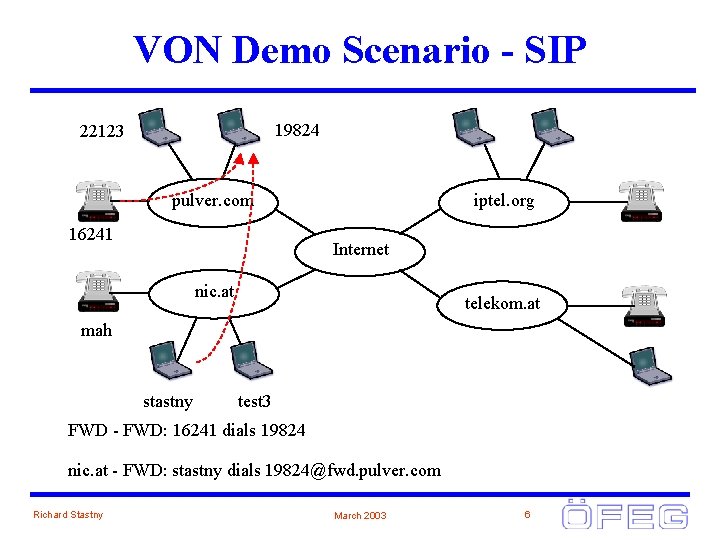

VON Demo Scenario - SIP 19824 22123 pulver. com 16241 iptel. org Internet nic. at telekom. at mah stastny test 3 FWD - FWD: 16241 dials 19824 nic. at - FWD: stastny dials 19824@fwd. pulver. com Richard Stastny March 2003 6

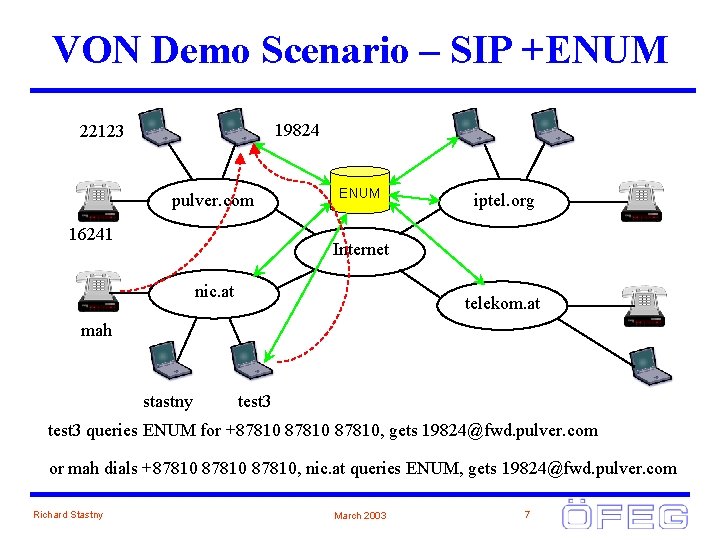

VON Demo Scenario – SIP +ENUM 19824 22123 pulver. com 16241 ENUM iptel. org Internet nic. at telekom. at mah stastny test 3 queries ENUM for +87810, gets 19824@fwd. pulver. com or mah dials +87810, nic. at queries ENUM, gets 19824@fwd. pulver. com Richard Stastny March 2003 7

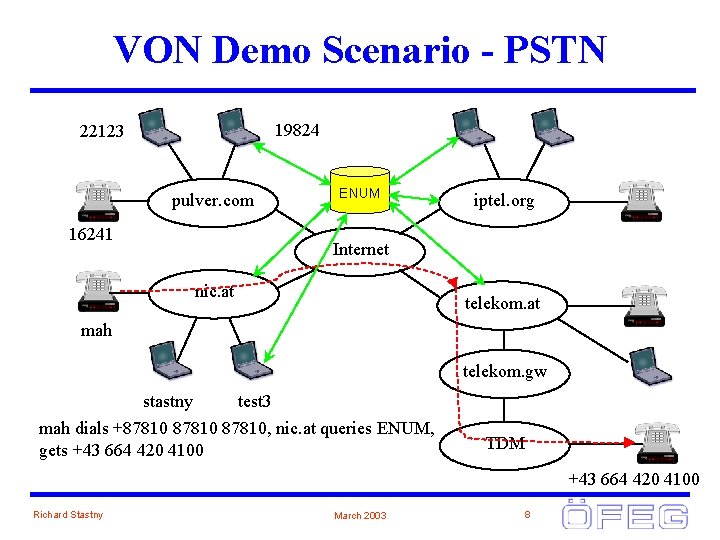

VON Demo Scenario - PSTN 19824 22123 pulver. com 16241 ENUM iptel. org Internet nic. at telekom. at mah telekom. gw stastny test 3 mah dials +87810, nic. at queries ENUM, gets +43 664 420 4100 TDM +43 664 420 4100 Richard Stastny March 2003 8
The END Thank you for your attention Any Questions? Richard Stastny March 2003 9
Austrian ENUM Trial Demo Backup Slides Richard Stastny March 2003 10
Content Ø Ø Ø Ø ENUM Trial Welcome Page ENUM Query via Siemens UK Roke Manor Telecom Austria Welcome page ENUM Subscriber Registration Reassurance e-mail for registration Validation using Phone Directory Structured E-Mail to Tier 1 Registry Confirmation e-mail to ENUM Subscriber Login ENUM Subscriber edits NAPTR ENUM Subscriber commits to ENUM User queries with ENUM Client ENUM User queries with (another) ENUM Client Austrian ENUM Webpage WHOIS query Richard Stastny March 2003 11
ENUM Website Richard Stastny March 2003 12

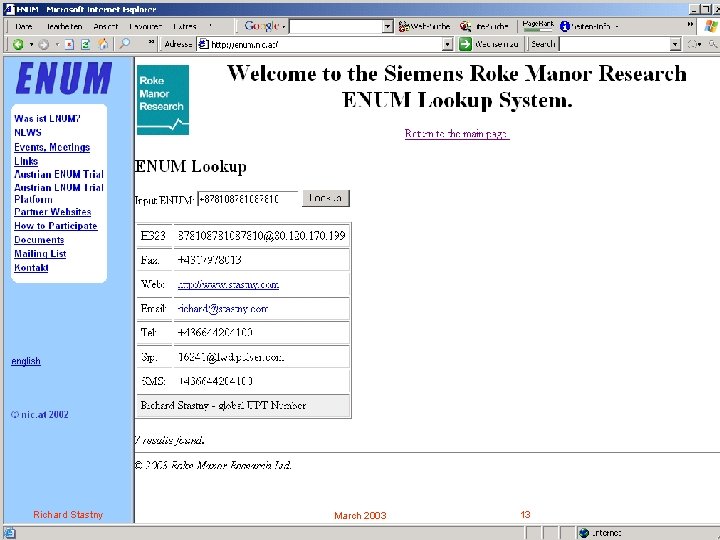

ENUM Website Richard Stastny March 2003 13
Telekom Austria Welcome page Richard Stastny March 2003 14
ENUM Subscriber Registration Richard Stastny March 2003 15

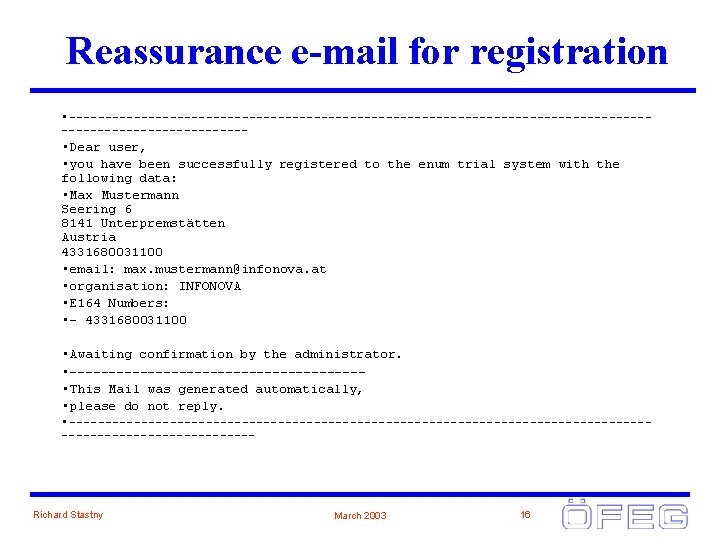

Reassurance e-mail for registration • ----------------------------------------------------- • Dear user, • you have been successfully registered to the enum trial system with the following data: • Max Mustermann Seering 6 8141 Unterpremstätten Austria 4331680031100 • email: max. mustermann@infonova. at • organisation: INFONOVA • E 164 Numbers: • - 4331680031100 • Awaiting confirmation by the administrator. • ------------------- • This Mail was generated automatically, • please do not reply. • ------------------------------------------------------ Richard Stastny March 2003 16
Validation using Phone Directory Richard Stastny March 2003 17
Structured e-mail to Tier 1 Registry (nic. at) • -----Original Message----From: ENUM System Notifier [mailto: enumtrial@infonova. com] Sent: Mon 25/11/2002 14: 20 To: Administrator Cc: Subject: ENUM-ANTRAG 0. 0. 1. 1. 3. 0. 0. 8. 6. 1. 3. 3. 4. e 164. arpa ============== Version: 164. 0 (Bitte Versionsnummer NIEMALS loeschen) ============== DOMAIN OBJECT domain: 0. 0. 1. 1. 3. 0. 0. 8. 6. 1. 3. 3. 4. e 164. arpa descr: [organisation]: INFONOVA descr: [name]: Max Mustermann descr: [street address]: Musterstrasse 4 descr: [postal code]: 8541 descr: [city]: Graz descr: [country]: Austria descr: [phone]: 031680031100 descr: [e-mail]: max. mustermann@hotmail. at admin-c: tech-c: zone-c: nserver: remarks: registrar-id: mnt-by: ENUM-TRIAL-AT-MNT Richard Stastny source: ENUM-TRIAL-AT March 2003 18
Confirmation Mail to ENUM Subscriber with Login Information • -------------------------------------------- • Dear Max Mustermann, • your request for registration was confirmed by the enum system. • Your userdata is: • ========= • User ID: 000784 • Password: lu 788 dca 794 • ------------------- • This Mail was generated automatically, • please do not reply. • -------------------------------------------------------------------------------- Richard Stastny March 2003 19
ENUM Subscriber Login Richard Stastny March 2003 20
ENUM Subscriber edits NAPTR Richard Stastny March 2003 21

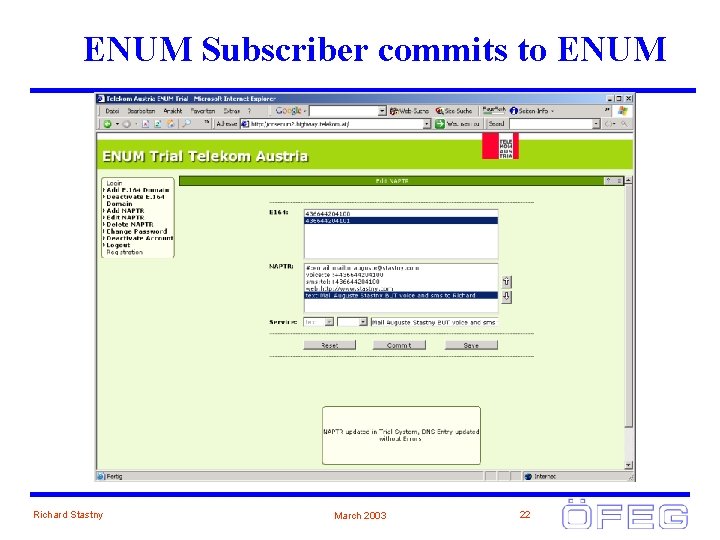

ENUM Subscriber commits to ENUM Richard Stastny March 2003 22
ENUM User queries with ENUM Client Richard Stastny March 2003 23
ENUM User queries with Enum Client Richard Stastny March 2003 24
ENUM Website Richard Stastny March 2003 25

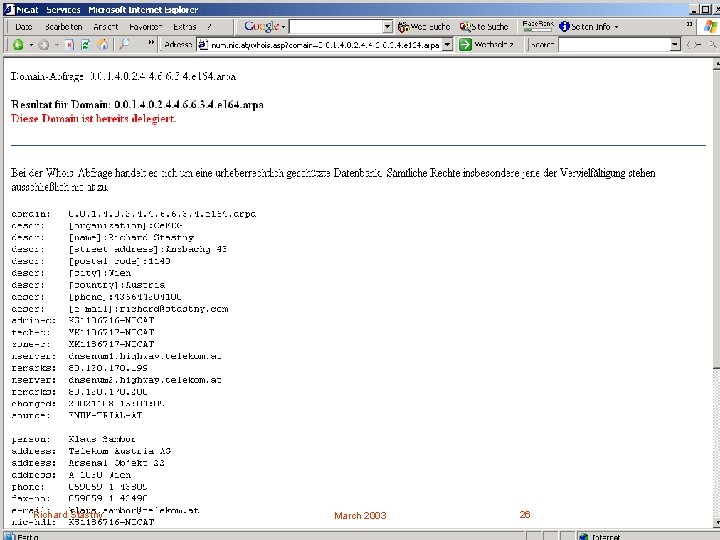

ENUM User queries with Enum Client Richard Stastny March 2003 26
