Entropy in the Real World Engines A heat

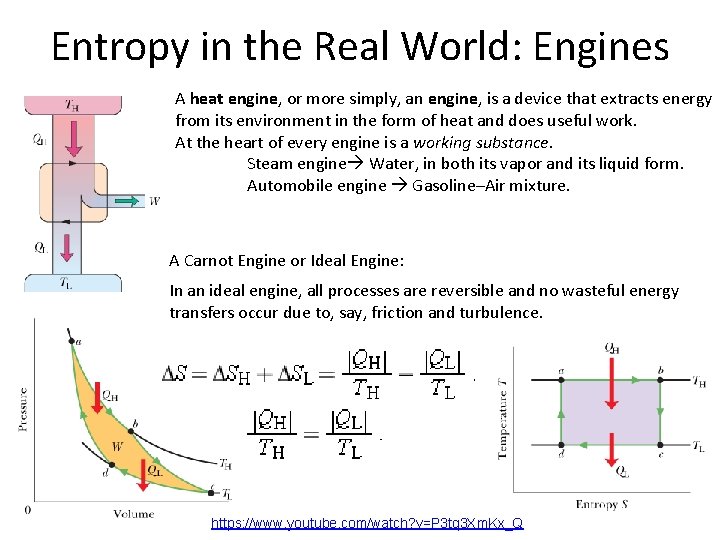

Entropy in the Real World: Engines A heat engine, or more simply, an engine, is a device that extracts energy from its environment in the form of heat and does useful work. At the heart of every engine is a working substance. Steam engine Water, in both its vapor and its liquid form. Automobile engine Gasoline–Air mixture. A Carnot Engine or Ideal Engine: In an ideal engine, all processes are reversible and no wasteful energy transfers occur due to, say, friction and turbulence. https: //www. youtube. com/watch? v=P 3 tq 3 Xm. Kx_Q

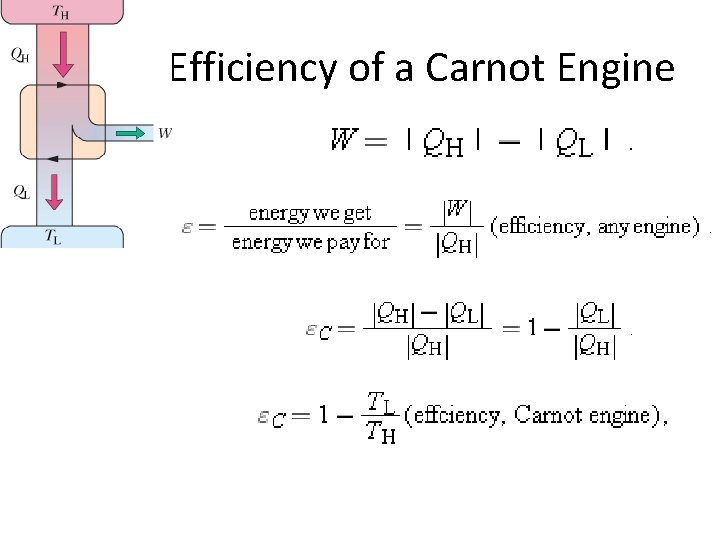

Efficiency of a Carnot Engine

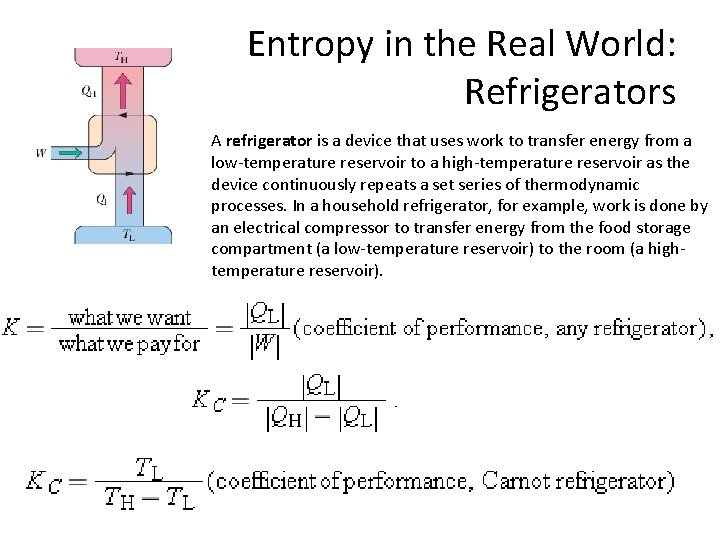

Entropy in the Real World: Refrigerators A refrigerator is a device that uses work to transfer energy from a low-temperature reservoir to a high-temperature reservoir as the device continuously repeats a set series of thermodynamic processes. In a household refrigerator, for example, work is done by an electrical compressor to transfer energy from the food storage compartment (a low-temperature reservoir) to the room (a hightemperature reservoir).

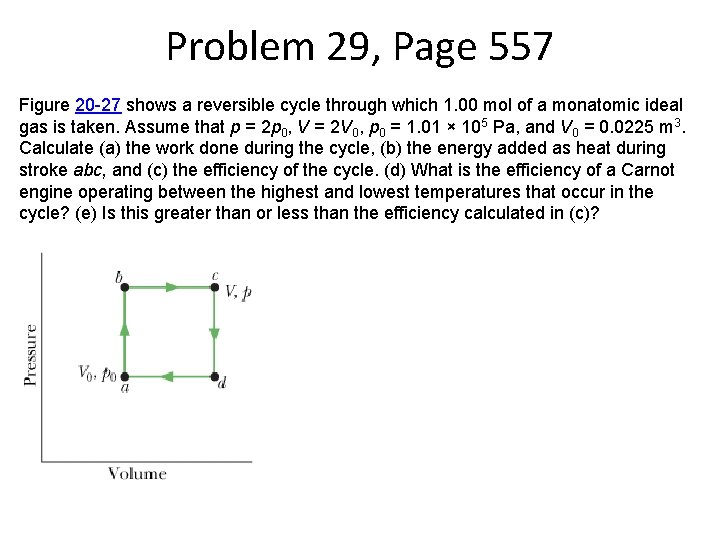

Problem 29, Page 557 Figure 20 -27 shows a reversible cycle through which 1. 00 mol of a monatomic ideal gas is taken. Assume that p = 2 p 0, V = 2 V 0, p 0 = 1. 01 × 105 Pa, and V 0 = 0. 0225 m 3. Calculate (a) the work done during the cycle, (b) the energy added as heat during stroke abc, and (c) the efficiency of the cycle. (d) What is the efficiency of a Carnot engine operating between the highest and lowest temperatures that occur in the cycle? (e) Is this greater than or less than the efficiency calculated in (c)?
