Entity Relationship Diagrams Basic Elements and Rules

Introduction to Entity. Relationship (E-R) Modeling o Notation uses three main constructs n n n o Entity-Relationship (E-R) Diagram n 10. 2 Data entities Relationships Attributes A detailed, logical representation of the entities, associations and data elements for an organization or business

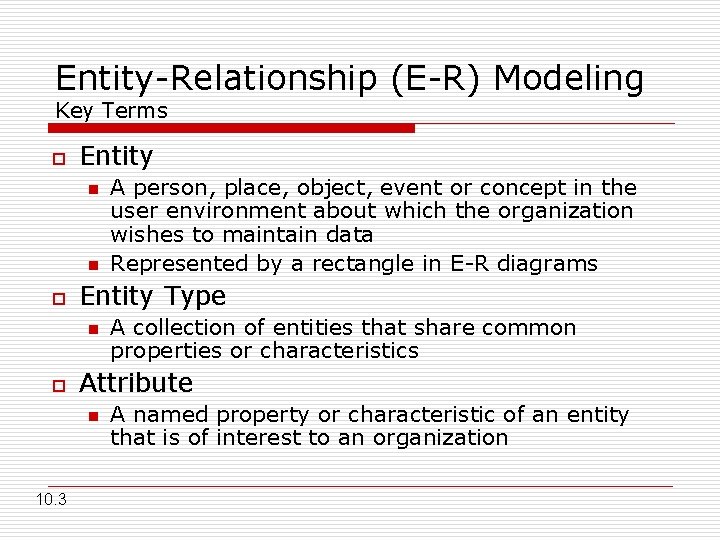

Entity-Relationship (E-R) Modeling Key Terms o Entity n n o Entity Type n o A collection of entities that share common properties or characteristics Attribute n 10. 3 A person, place, object, event or concept in the user environment about which the organization wishes to maintain data Represented by a rectangle in E-R diagrams A named property or characteristic of an entity that is of interest to an organization

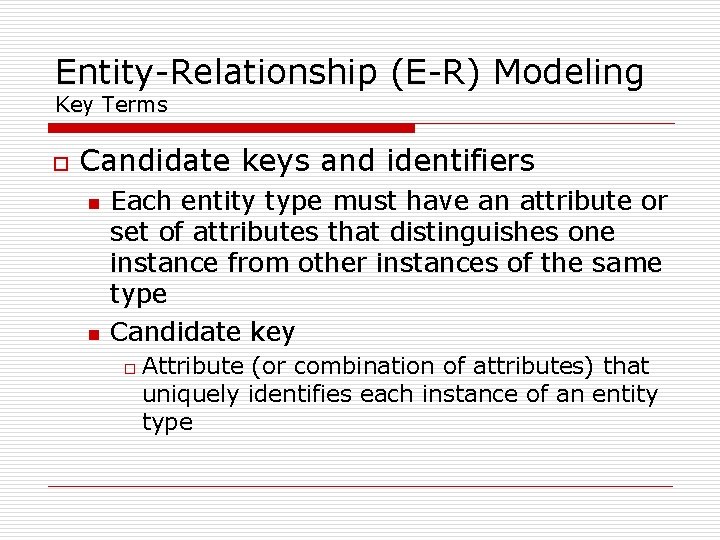

Entity-Relationship (E-R) Modeling Key Terms o Candidate keys and identifiers n n Each entity type must have an attribute or set of attributes that distinguishes one instance from other instances of the same type Candidate key o Attribute (or combination of attributes) that uniquely identifies each instance of an entity type

Examples o Identify a few entity types, instances, attributes and candidate keys for: n n n De. Paul Campus Connect Registration System Illinois Bureau of Motor Vehicles System Amazon. com Product Information System

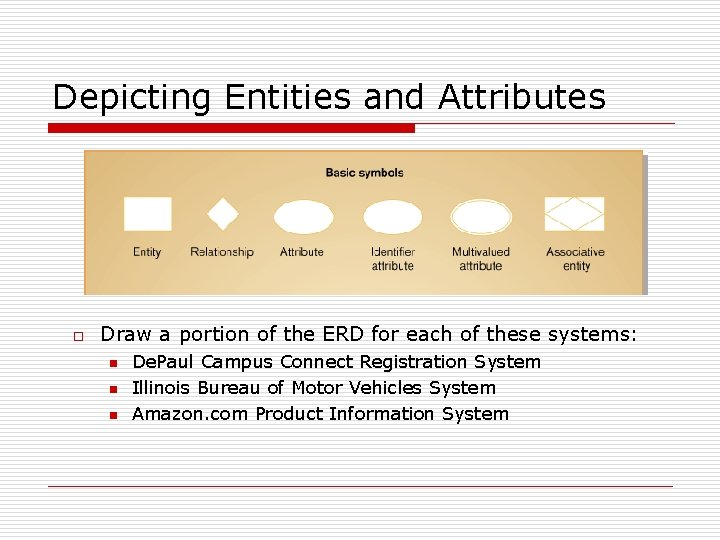

Depicting Entities and Attributes o Draw a portion of the ERD for each of these systems: n n n De. Paul Campus Connect Registration System Illinois Bureau of Motor Vehicles System Amazon. com Product Information System

Conceptual Data Modeling and the E-R Diagram o Goal n o Capture as much of the meaning of the data as possible o If you know the rules of normalization, referential integrity, foreign keys, etc. , this is good but not as important now. It is much more important to get the organizational data model correct, i. e. to understand the actual data requirements for the organization. Result n A better design that is scalable and easier to maintain

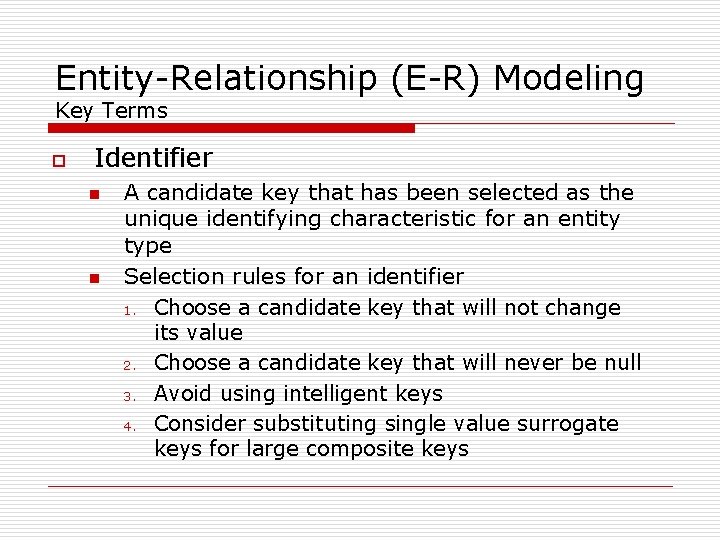

Entity-Relationship (E-R) Modeling Key Terms o Identifier n n A candidate key that has been selected as the unique identifying characteristic for an entity type Selection rules for an identifier 1. Choose a candidate key that will not change its value 2. Choose a candidate key that will never be null 3. Avoid using intelligent keys 4. Consider substituting single value surrogate keys for large composite keys

Entity-Relationship (E-R) Modeling Key Terms o Relationship n n n An association between the instances of one or more entity types that is of interest to the organization Association indicates that an event has occurred or that there is a natural link between entity types Relationships are always labeled with verb phrases

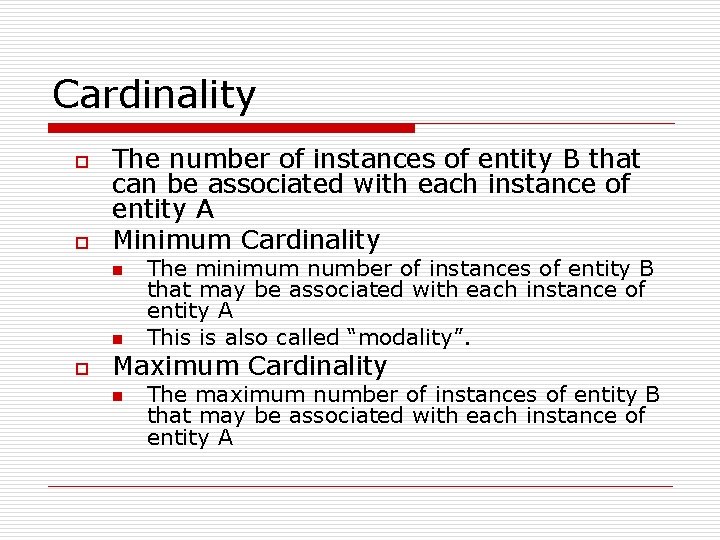

Cardinality o o The number of instances of entity B that can be associated with each instance of entity A Minimum Cardinality n n o The minimum number of instances of entity B that may be associated with each instance of entity A This is also called “modality”. Maximum Cardinality n The maximum number of instances of entity B that may be associated with each instance of entity A

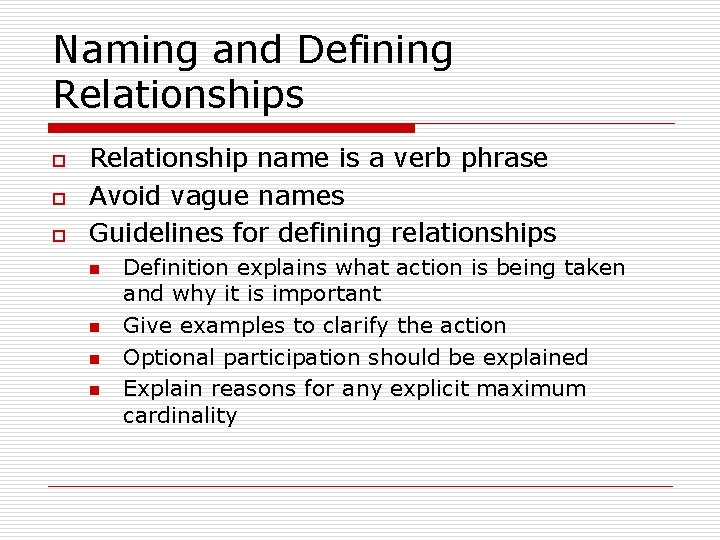

Naming and Defining Relationships o o o Relationship name is a verb phrase Avoid vague names Guidelines for defining relationships n n Definition explains what action is being taken and why it is important Give examples to clarify the action Optional participation should be explained Explain reasons for any explicit maximum cardinality

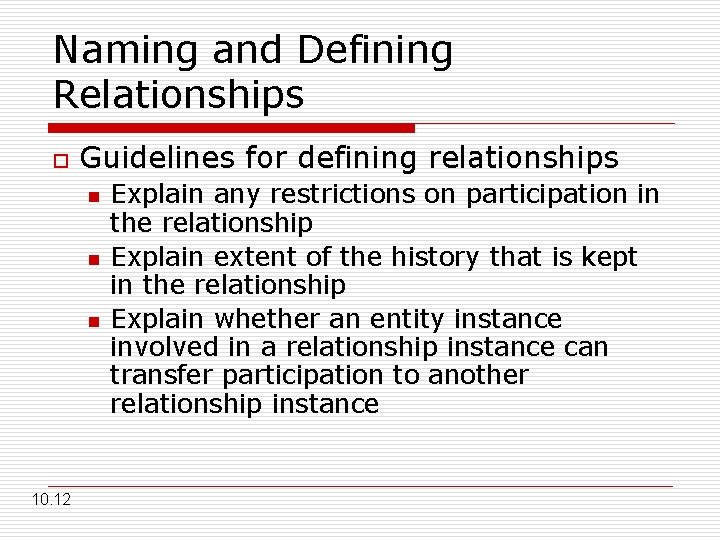

Naming and Defining Relationships o Guidelines for defining relationships n n n 10. 12 Explain any restrictions on participation in the relationship Explain extent of the history that is kept in the relationship Explain whether an entity instance involved in a relationship instance can transfer participation to another relationship instance
