Enterprise Service Bus Customized company message broker Arriving
Enterprise Service Bus • Customized company message broker – Arriving SOA requests • Using TCP/IP, SOAP, JMS, FTP etc. protocol – Wrapped by ESB layer – To provide web based inputs to an organisations legacy business process orchestration technology • Something of a “buzz” word Spring 2017 (c) Ian Davis 1
Asynchronous Messaging • Peer-to-Peer – Peers talk to other Peers one at a time – May expect synchronous or asynchronous response – Asynchronous handled by a callback (new thread) • Publish-Subscribe (one to many messaging) – Provider communicates with Topics – Subscribers dynamically subscribe to Topics (Implicit Invocation / Observer design Pattern) – Topics may be organised hierarchically – Topics forward messages to subtopics/servers Spring 2017 (c) Ian Davis 2
Application Servers • Client/Browser Side (Not part of server) – HTML, Javascript, Ajax • Web Tier (e. g. Apache, Tomcat) – Receives requests – Invokes web server-hosted components • JSP (Java Server Pages), ASP, PHP, etc. – Invokes business component tier » Java. Beans, . NET, CORBA – Invokes Enterprise Information Systems Tier » My. SQL, Backend Mainframe, etc Spring 2017 (c) Ian Davis 3
Enterprise Java. Beans (EJB) • Top layer is a Java Virtual Machine • This hosts components – Session Beans (Synchronous) • Stateless (consecutive requests to any instance) • Stateful (caller binds to one specific instance for life) – Message-driven Beans (Asynchronous) • No explicit reply Spring 2017 (c) Ian Davis 4
Mobile Architecture Spring 2017 (c) Ian Davis 5

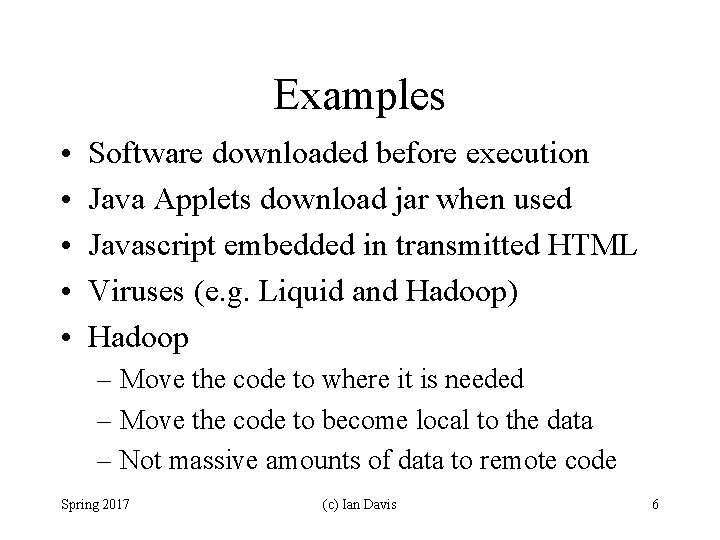

Examples • • • Software downloaded before execution Java Applets download jar when used Javascript embedded in transmitted HTML Viruses (e. g. Liquid and Hadoop) Hadoop – Move the code to where it is needed – Move the code to become local to the data – Not massive amounts of data to remote code Spring 2017 (c) Ian Davis 6
Message Oriented Choices – Delivery: Best effort, Persistent, Transactional • UDP , TCP/IP, Message Queues – Blocking / Non-Blocking / Asynchronous Sockets • Blocking good for simple connection (layered) • Non-Blocking more flexible since no waiting (layered) – Eg: Cancel attempt to connect, switch to different web page • Asynchronous efficient/elegant/scales well (event driven) – Keep track of connection state – not every connection – Interface: Sockets, RPC, HTTP, SOA, Ajax, Stream Spring 2017 (c) Ian Davis 7
Representational State Transfer (Re. ST) • URL + Parameters returns Document – Leverages Standard Web Technology • GET/POST/PUT Built on top of Email – Stateless • Except for Cookies and/or Session – Server indicates cacheability • AJAX – Small document transfers while viewing Spring 2017 (c) Ian Davis 8
Throughout the HTTP standardization process, I was called on to defend the design choices of the Web. That is an extremely difficult thing to do within a process that accepts proposals from anyone on a topic that was rapidly becoming the center of an entire industry. I had comments from well over 500 developers, many of whom were distinguished engineers with decades of experience, and I had to explain everything from the most abstract notions of Web interaction to the finest details of HTTP syntax. That process honed my model down to a core set of principles, properties, and constraints that are now called REST Roy Fielding on his 2000 Ph. D thesis Spring 2017 (c) Ian Davis 9
RESTful Web Services • Web services only uses HTTP as a transport layer (to fool firewalls) • Representational State Transfer (REST) – Resources identified by a URL – Message passing mechanism • • Spring 2017 GET (Parameters follow URL) POST (Parameters body of HTTP message) PUT (Upload to a named URL) DELETE (Delete now/later something at named URL) (c) Ian Davis 10
Re. ST Constraints • • • Client/Server → Parallel evolution (Adaptable) Stateless → Scalable Cacheable → Efficient Layered → Transparency Mobile Apps → Powerful Uniform Interface → Usable Wikipedia Spring 2017 (c) Ian Davis 11
Uniform Interface • Identification of all universal resources – Naming of things (conceptual separation) – URL / URI • Manipulation of resources – Client read, change or delete a named resource • Self descriptive messages – Nothing is assumed by the server (Extensible) • Hypermedia (Resources explain themselves) • Circumvents Firewalls by using HTTP port Spring 2017 (c) Ian Davis 12
Get versus Post • GET → Retrieve Parameterized URL – Visible so bad for sensitive data – Can be changed which is bad for security – Can be cached, bookmarked, in history – Length restrictions on parameterization • POST → Send data to the server in email – Hidden so better for sensitive data (but not safe) – Can’t be cached, bookmarked or remembered – No length restrictions Spring 2017 (c) Ian Davis 13
Semantic Web • Effort to give XML entities real semantics – Namespaces disambiguate entity names – XMLSchema types the contents of an entity – RDF describes semantic information as graph • Resource Description Framework – RDFS uses RDF to describe objects – OWL defines ontological relationships (isa/hasa) – SPARQL permits queries about semantics Spring 2017 (c) Ian Davis 14
Service-oriented Architecture (Web Services) • Fix interoperability problems – Vendors agree on standards for application integration – This provides interoperability across hardware, software, companies and infrastructures • Provide internet-scale distributed systems – Vendors agree on standards for distributed computing Spring 2017 (c) Ian Davis 15
SOA design considerations • Boundaries are explicit – Crossing process, machine, trust expensive • Services are autonomous – Can change code, language, machine transparently – But must preserve backwards compatibility • Services simply receive messages and reply – Not objects, no interfaces, inheritance etc. • Client/server policy part of connecting design – Things like message reliability, security, encodings Spring 2017 (c) Ian Davis 16
