Enterprise Browser Versions Internet Explorer 8 Internet Explorer

Enterprise Browser Versions Internet Explorer 8 Internet Explorer 9 Internet Explorer 7 Internet Explorer 6 Windows Vista Windows XP Internet Explorer 10 Internet Explorer 11 Windows 8. 1 Windows 7

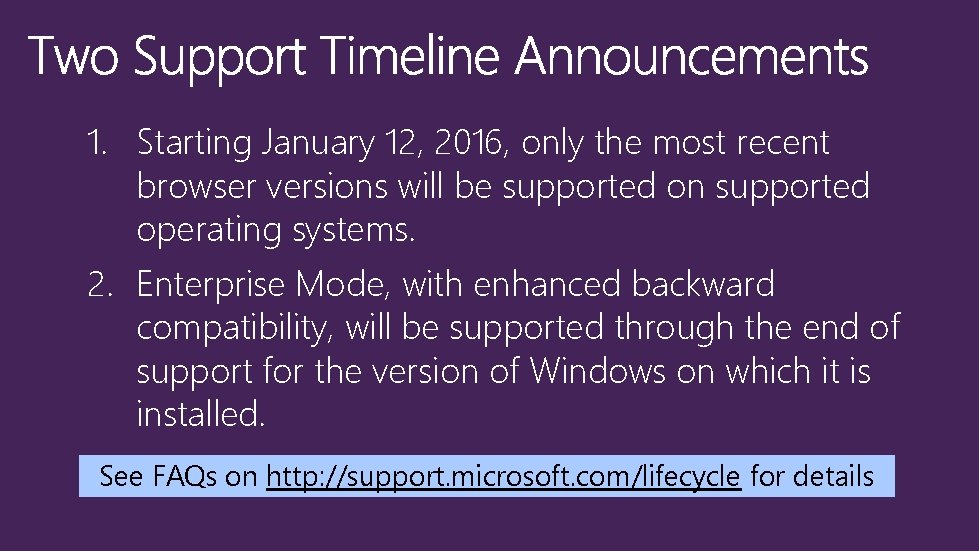

1. Starting January 12, 2016, only the most recent browser versions will be supported on supported operating systems. 2. Enterprise Mode, with enhanced backward compatibility, will be supported through the end of support for the version of Windows on which it is installed. See FAQs on http: //support. microsoft. com/lifecycle for details

Enterprise Mode for Internet Explorer 11 provides improved Internet Explorer 8 compatibility for Windows 7 and Windows 8. 1. By making it easier to upgrade to the latest version of Internet Explorer, Microsoft is helping customers stay up-to-date with the latest software, services, and devices. Legacy Web Apps

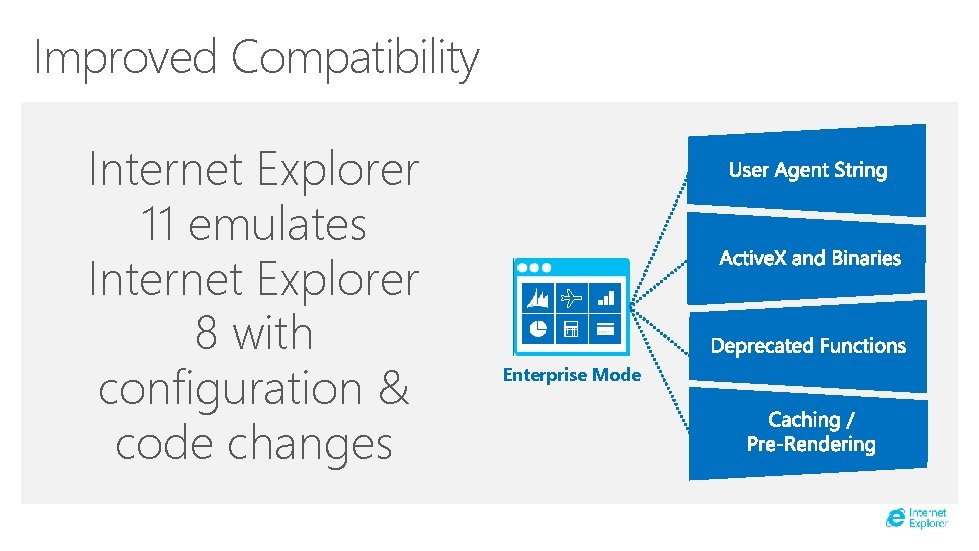

Improved Compatibility Internet Explorer 11 emulates Internet Explorer 8 with configuration & code changes Enterprise Mode

Enterprise Mode Management Easy-to-use Group Policies and Registry Keys • “Let users turn on and use Enterprise Mode from the Tools menu” • “Use the Enterprise Mode IE website list” HKLMSOFTWAREPoliciesMicrosoftInternet ExplorerMainEnterprise. Mode Enable the Tools menu: “Enable” = “” or “{URL}{: port}” Enable the XML site list: “Site. List” = “{File Path or URL}”

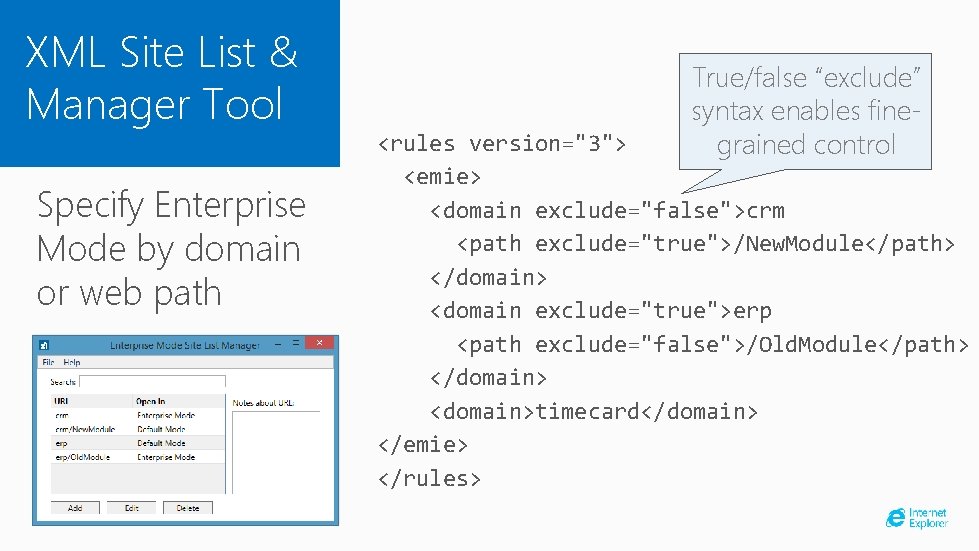

XML Site List & Manager Tool Specify Enterprise Mode by domain or web path True/false “exclude” syntax enables finegrained control <rules version="3"> <emie> <domain exclude="false">crm <path exclude="true">/New. Module</path> </domain> <domain exclude="true">erp <path exclude="false">/Old. Module</path> </domain> <domain>timecard</domain> </emie> </rules>

Easier Web App Testing & Remediation 1. Pilot users test web apps, using Enterprise Mode as needed 2. Optionally, when Enterprise Mode is turned on or off, a collection point can be notified Enterprise Mode Web Apps Pilot Users Collection Point IT Site List XML File 3. Crowd-sourced submissions can be evaluated for inclusion in the Enterprise Mode Site List

Seamless Web Browsing Internet Explorer 11 switches modes dynamically Internet Explorer 11 Enterprise Mode Site List et S on licy i t ca Po o t L roup s i L G a i v Edge Mode Windows 8. 1 or Windows 7

Enterprise Mode Demo

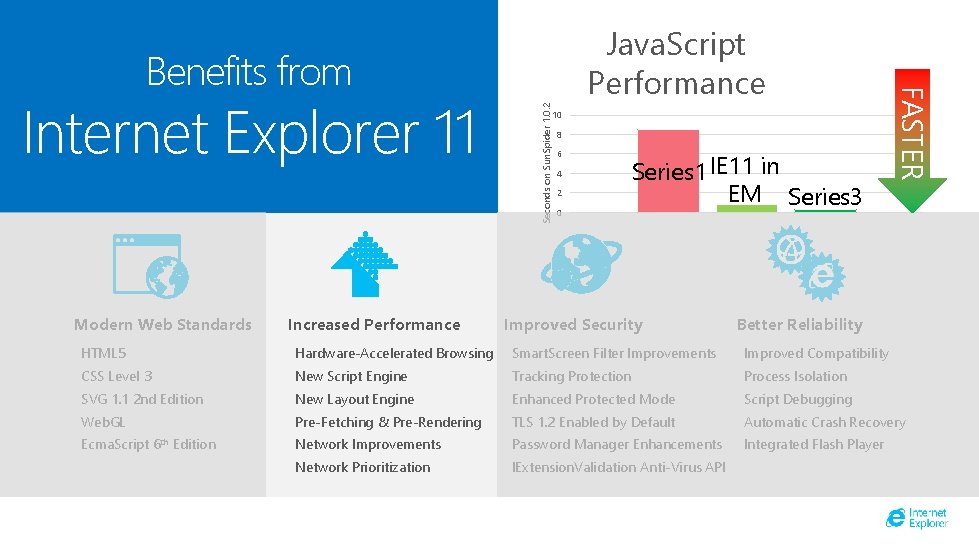

Internet Explorer 11 Modern Web Standards Increased Performance Seconds on Sun. Spider 1. 0. 2 Benefits from 10 8 6 4 2 0 Series 1 IE 11 in EM Series 3 Improved Security FASTER Java. Script Performance Better Reliability HTML 5 Hardware-Accelerated Browsing Smart. Screen Filter Improvements Improved Compatibility CSS Level 3 New Script Engine Tracking Protection Process Isolation SVG 1. 1 2 nd Edition New Layout Engine Enhanced Protected Mode Script Debugging Web. GL Pre-Fetching & Pre-Rendering TLS 1. 2 Enabled by Default Automatic Crash Recovery Ecma. Script 6 th Edition Network Improvements Password Manager Enhancements Integrated Flash Player Network Prioritization IExtension. Validation Anti-Virus API

Enterprise Mode Proof of Concept Pilot participant industries: Piloted with Top Enterprise Customers from October, 2013 to March, 2014 • • • Energy Entertainment Financial Services Healthcare Manufacturing • • • Media Pharmaceuticals Professional Services Public Sector Telecommunications Pilot participant countries: • • • Australia Belgium Canada Denmark France Germany • • • Italy Japan Netherlands Portugal Sweden Switzerland • • • UAE United Kingdom United States Russia South Africa

Early Pilot Observations Microsoft commissioned Forrester Consulting to study the value of upgrading to Internet Explorer 11 on Windows 7. Early pilot customer observations include: • The migration to IE 11 is much easier than previous upgrades. • Testing and deployment efforts are significantly reduced. • Support takes less effort, and user productivity is improved. Forrester Consulting will continue to track these customers as they deploy Internet Explorer 11 with Enterprise Mode, to complete this Total Economic Impact study. Forrester’s TEI methodology includes evaluating benefits, costs, flexibility, and risks.

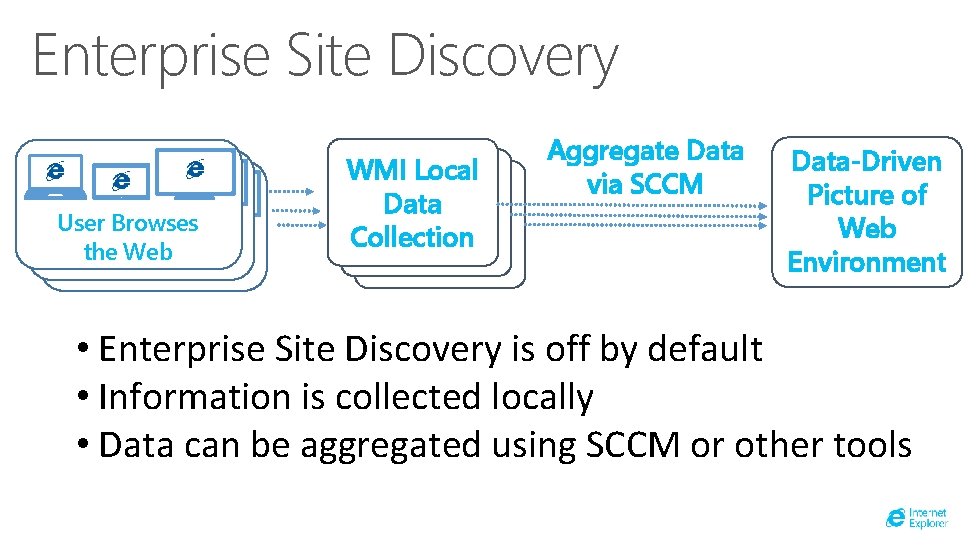

Enterprise Site Discovery User Browses User browses the Users browse the. Web Web WMI Local Data Collection Aggregate Data via SCCM Data-Driven Picture of Web Environment • Enterprise Site Discovery is off by default • Information is collected locally • Data can be aggregated using SCCM or other tools

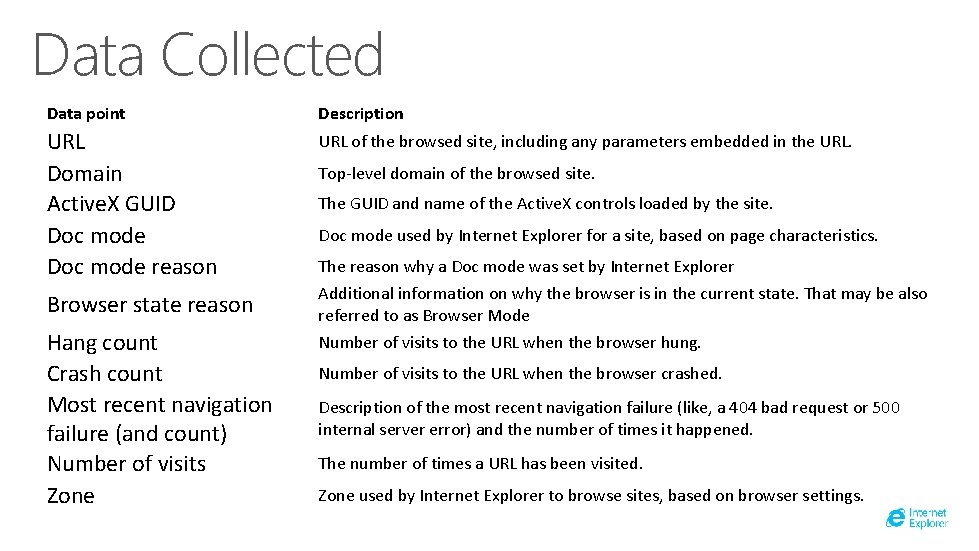

Data Collected Data point Description URL Domain Active. X GUID Doc mode reason URL of the browsed site, including any parameters embedded in the URL. Browser state reason Additional information on why the browser is in the current state. That may be also referred to as Browser Mode Hang count Crash count Most recent navigation failure (and count) Number of visits Zone Number of visits to the URL when the browser hung. Top-level domain of the browsed site. The GUID and name of the Active. X controls loaded by the site. Doc mode used by Internet Explorer for a site, based on page characteristics. The reason why a Doc mode was set by Internet Explorer Number of visits to the URL when the browser crashed. Description of the most recent navigation failure (like, a 404 bad request or 500 internal server error) and the number of times it happened. The number of times a URL has been visited. Zone used by Internet Explorer to browse sites, based on browser settings.

Enterprise Site Discovery • Enterprise Site Discovery “hooks” shipped in September for Internet Explorer 11 • Documentation published in October • Enterprise Site Discovery Toolkit includes System Center Configuration Manager scripts, sample queries

Enterprise Mode Site List Update • Support for all Document Modes • Managed via Enterprise Mode Site List Manager • Overrides X-UA-Compatible Meta-Tag • Released in November

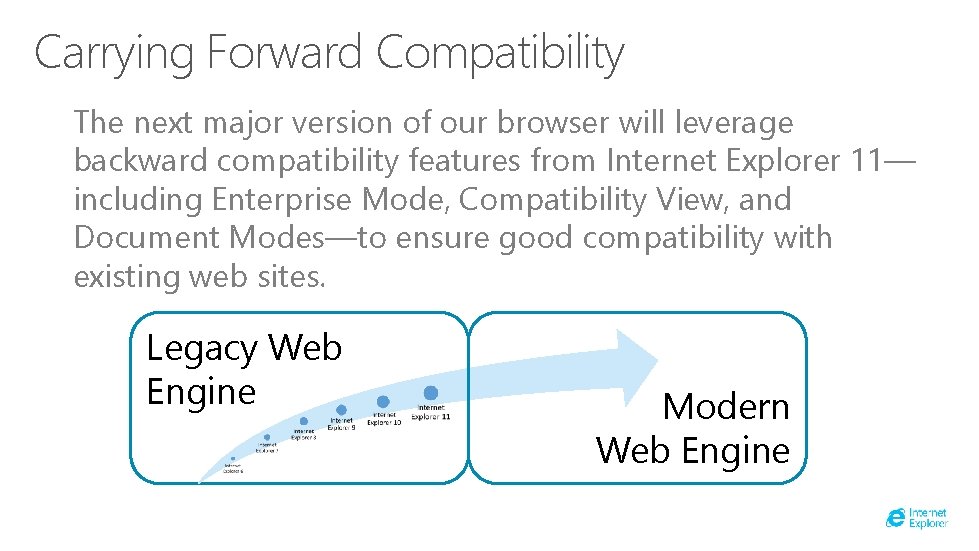

Carrying Forward Compatibility The next major version of our browser will leverage backward compatibility features from Internet Explorer 11— including Enterprise Mode, Compatibility View, and Document Modes—to ensure good compatibility with existing web sites. Legacy Web Engine Modern Web Engine

Customer Guidance Upgrade to Modern Standards Upgrading apps to modern web standards is still the best long-term solution. Leverage Backward Compatibility Leveraging browser backward compatibility can be a cost-effective solution. Using an outdated Internet Explorer? Start evaluating Internet Explorer 11. Microsoft is continuing to improve compatibility with today’s websites and legacy web apps. It is easier than ever before to upgrade and stay up-to-date.

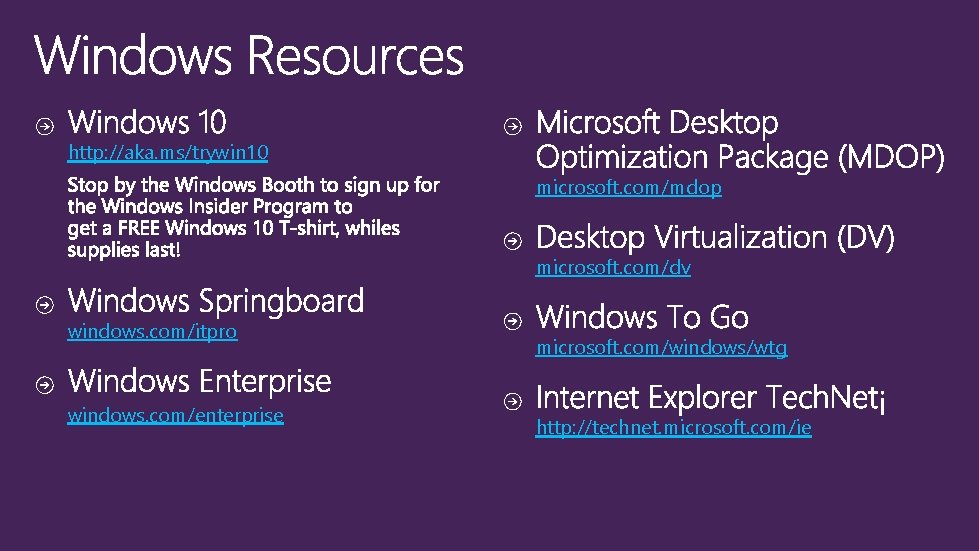

http: //aka. ms/trywin 10 microsoft. com/mdop microsoft. com/dv windows. com/itpro windows. com/enterprise microsoft. com/windows/wtg http: //technet. microsoft. com/ie
