ENT 363/4 Machine Vision Systems (Core Course) Lecture 2 Introduction to Machine Vision From wikipedia: Machine vision (MV) is the technology and methods used to provide imaging-based automatic inspection and analysis for such applications as automatic inspection, process control, and robot guidance in industry. “The scope of MV is broad”. 1 of Mechatronic Engineering School Ai. COS Research Group
WHY? Interest in image processing stems from two principle application areas: Ø improvement / enhancement of pictorial information for human interpretation do you have example in mind? Ø Processing of image data for storage, transmission, and representation for autonomous machine perception. which is why we learn this course! 2 School of Mechatronic Engineering Ai. COS Research Group

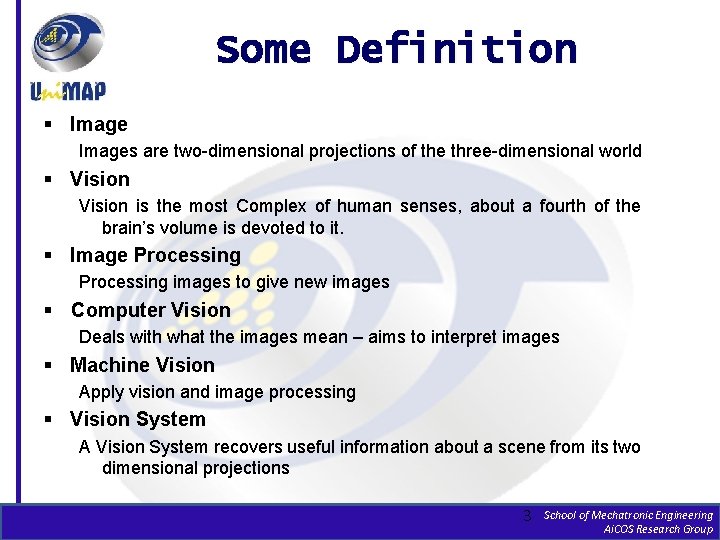

Some Definition § Images are two-dimensional projections of the three-dimensional world § Vision is the most Complex of human senses, about a fourth of the brain’s volume is devoted to it. § Image Processing images to give new images § Computer Vision Deals with what the images mean – aims to interpret images § Machine Vision Apply vision and image processing § Vision System A Vision System recovers useful information about a scene from its two dimensional projections 3 School of Mechatronic Engineering Ai. COS Research Group

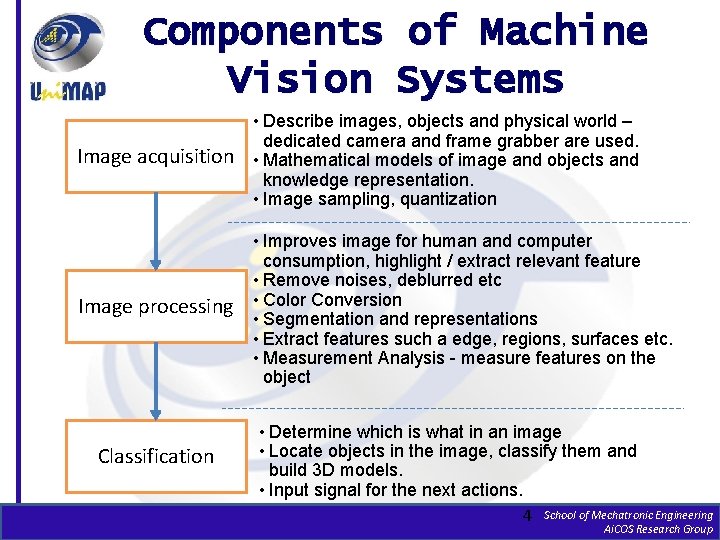

Components of Machine Vision Systems Image acquisition • Describe images, objects and physical world – dedicated camera and frame grabber are used. • Mathematical models of image and objects and knowledge representation. • Image sampling, quantization Image processing • Improves image for human and computer consumption, highlight / extract relevant feature • Remove noises, deblurred etc • Color Conversion • Segmentation and representations • Extract features such a edge, regions, surfaces etc. • Measurement Analysis - measure features on the object Classification • Determine which is what in an image • Locate objects in the image, classify them and build 3 D models. • Input signal for the next actions. 4 School of Mechatronic Engineering Ai. COS Research Group
& Classification A more detailed components in Machine Vision System Source: http: //www. roboticsbible. com/machine-vision-system. html 5 School of Mechatronic Engineering Ai. COS Research Group
Applications of Machine Vision Systems Ø Autonomous Vehicles Ø The Human Face Ø Industrial Inspection Ø Medical Images Ø Remote Sensing Ø Surveillance Ø Transport Ø And so other many applications!! 7 School of Mechatronic Engineering Ai. COS Research Group
The Human Face Head Modeling Face Recognition 8 School of Mechatronic Engineering Ai. COS Research Group

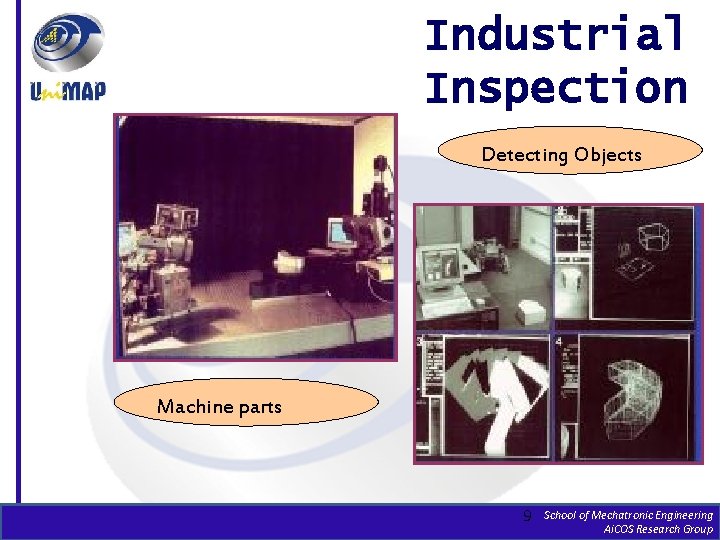

Industrial Inspection Detecting Objects Machine parts 9 School of Mechatronic Engineering Ai. COS Research Group
Medical Images Chromosomes Brain MRI 10 School of Mechatronic Engineering Ai. COS Research Group

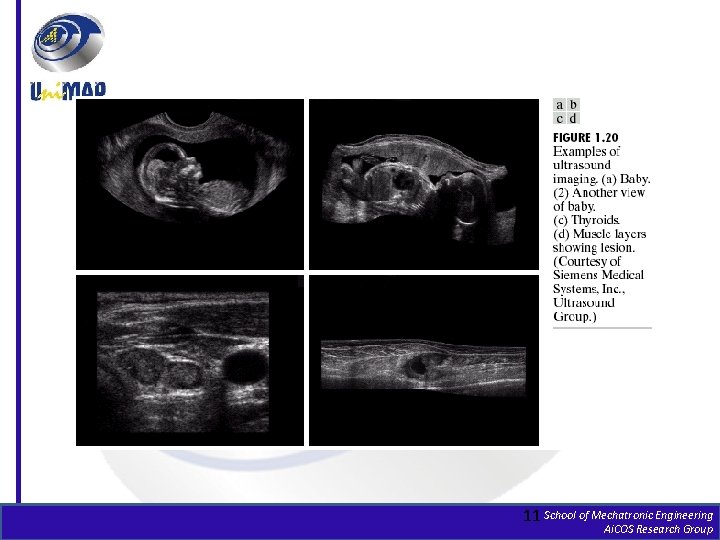

11 School of Mechatronic Engineering Ai. COS Research Group
Remote Sensing Land Management Crop Classification 12 School of Mechatronic Engineering Ai. COS Research Group

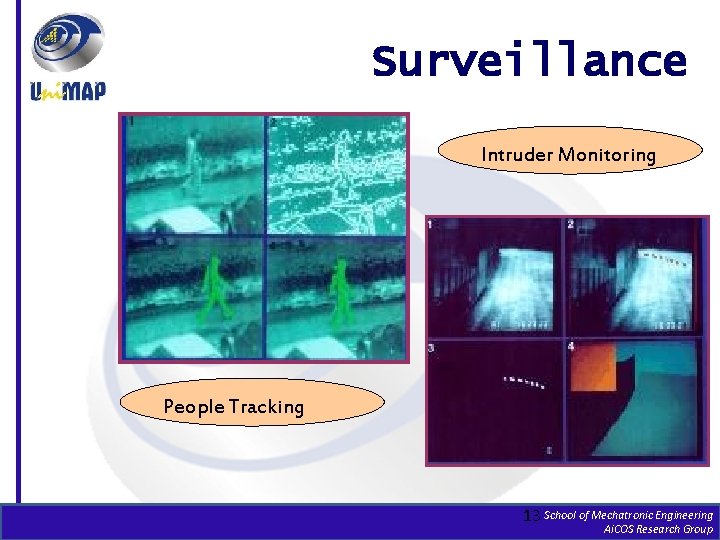

Surveillance Intruder Monitoring People Tracking 13 School of Mechatronic Engineering Ai. COS Research Group

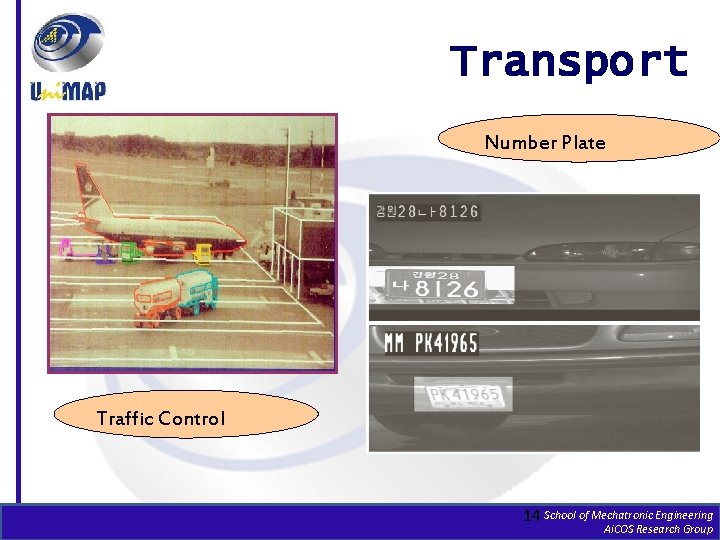

Transport Number Plate Traffic Control 14 School of Mechatronic Engineering Ai. COS Research Group

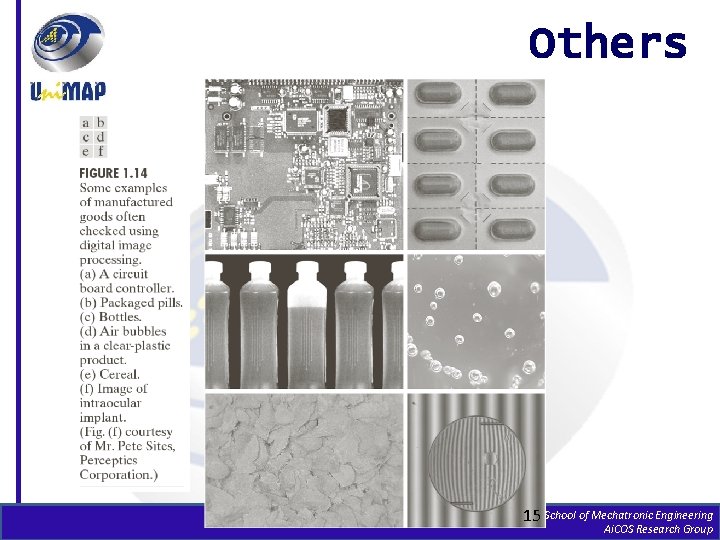

Others 15 School of Mechatronic Engineering Ai. COS Research Group

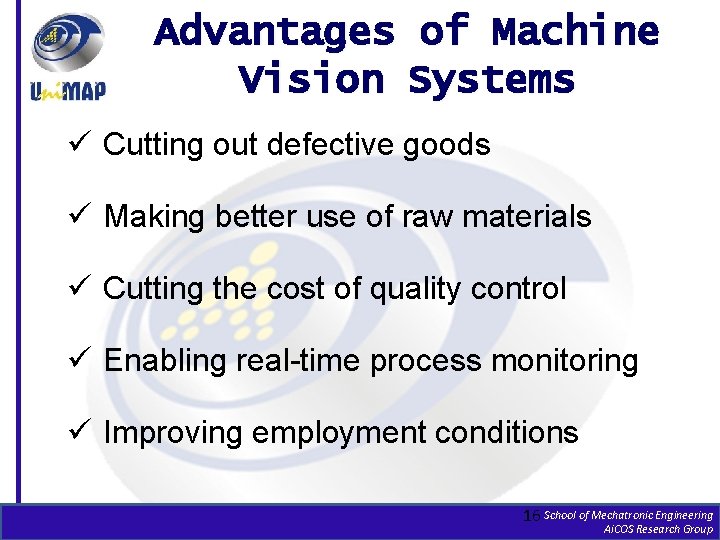

Advantages of Machine Vision Systems ü Cutting out defective goods ü Making better use of raw materials ü Cutting the cost of quality control ü Enabling real-time process monitoring ü Improving employment conditions 16 School of Mechatronic Engineering Ai. COS Research Group
