EnSpm transposable element system of maize Enhancer EnSuppressormutator

En/Spm transposable element system of maize Enhancer (En)/Suppressor-mutator (Spm) 13 bp perfect terminal inverted repeat P ATG 8. 3 kb tnp. D tnp. A Makes a 3 -bp footprints (target site duplication)

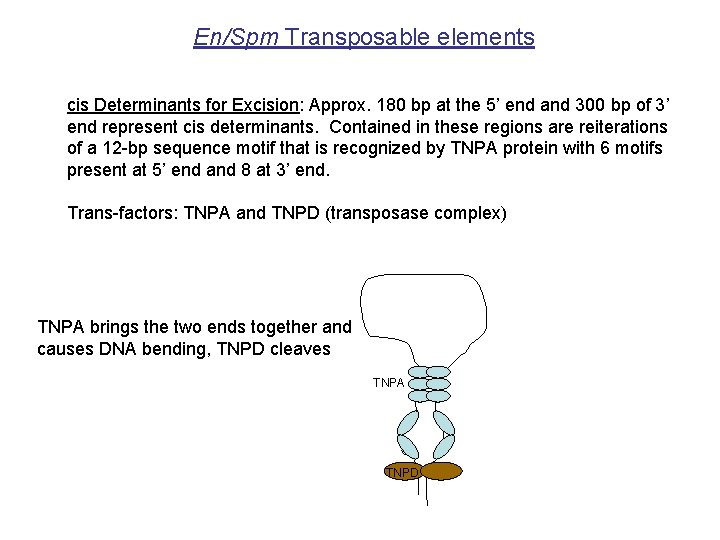

En/Spm Transposable elements cis Determinants for Excision: Approx. 180 bp at the 5’ end and 300 bp of 3’ end represent cis determinants. Contained in these regions are reiterations of a 12 -bp sequence motif that is recognized by TNPA protein with 6 motifs present at 5’ end and 8 at 3’ end. Trans-factors: TNPA and TNPD (transposase complex) TNPA brings the two ends together and causes DNA bending, TNPD cleaves TNPA TNPD

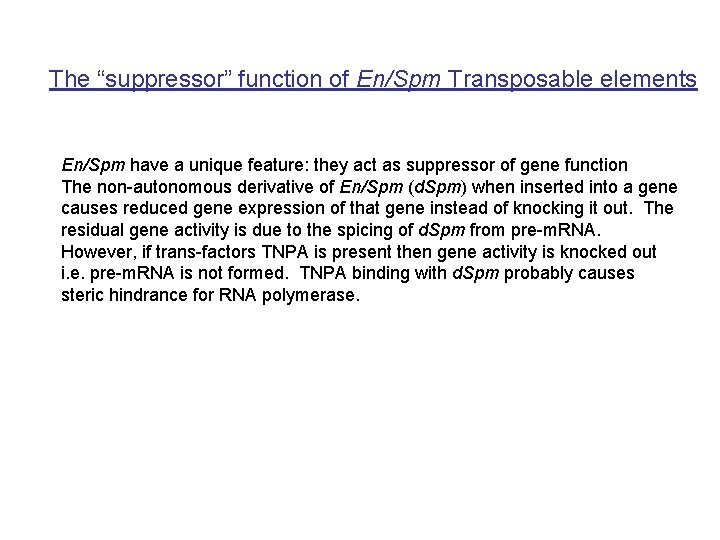

The “suppressor” function of En/Spm Transposable elements En/Spm have a unique feature: they act as suppressor of gene function The non-autonomous derivative of En/Spm (d. Spm) when inserted into a gene causes reduced gene expression of that gene instead of knocking it out. The residual gene activity is due to the spicing of d. Spm from pre-m. RNA. However, if trans-factors TNPA is present then gene activity is knocked out i. e. pre-m. RNA is not formed. TNPA binding with d. Spm probably causes steric hindrance for RNA polymerase.

Mutator Transposable element system of maize Mutator (Mu) trait was first identified by Robertson (1978) as a heritable high forward-mutation rate exhibited by maize lines. Many of these de novo mutations exhibited somatic instability, primarily apparent reversion to wildtype. This phenomenon was found to be associated with Mu transposable elements. Autonomous Mu. DR element (4942 -bp): 200 -bp TIR, create 9 -bp target site duplication. P TIR 2. 8 -kb RNA (823 aa peptide) 1 -kb RNA (207 aa peptide) Both proteins tightly bind to TIRs P TIR

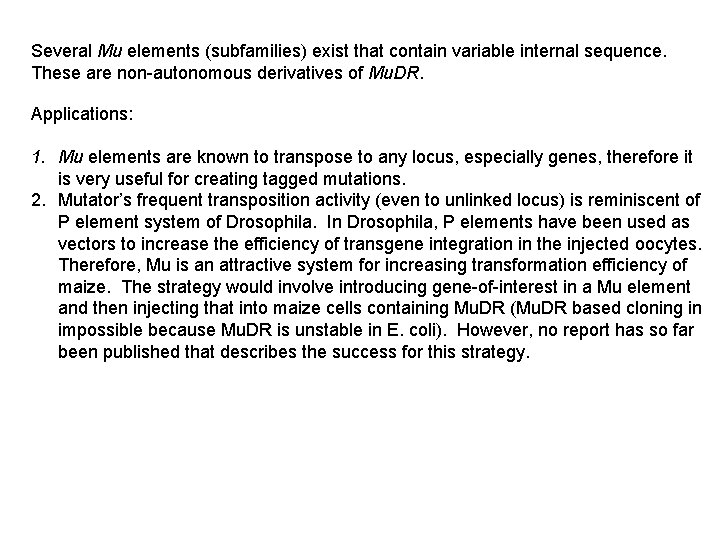

Several Mu elements (subfamilies) exist that contain variable internal sequence. These are non-autonomous derivatives of Mu. DR. Applications: 1. Mu elements are known to transpose to any locus, especially genes, therefore it is very useful for creating tagged mutations. 2. Mutator’s frequent transposition activity (even to unlinked locus) is reminiscent of P element system of Drosophila. In Drosophila, P elements have been used as vectors to increase the efficiency of transgene integration in the injected oocytes. Therefore, Mu is an attractive system for increasing transformation efficiency of maize. The strategy would involve introducing gene-of-interest in a Mu element and then injecting that into maize cells containing Mu. DR (Mu. DR based cloning in impossible because Mu. DR is unstable in E. coli). However, no report has so far been published that describes the success for this strategy.
