ENPCOM European network for the promotion of the Covenant of Mayors Censimento e monitoraggio dei consumi energetici e comportamento dei cittadini Controllo Energetico dei Consumi degli Edifici Monitoraggio dei consumi energetici, analisi delle criticità, strategie di risparmio Dott. Ing. Antonio MAZZON Energy Manager Pisa 27 -30 Gennaio 2014
Obiettivo di riduzione della CO 2: 400. 000 ton/anno Potenziale di riduzione CO 2 del PAES: 553. 671 ton/anno.
Area 1 – Risparmio energetico e sviluppo delle fonti rinnovabili Azione 4: Promozione dell’attività e delle funzioni degli Energy Manager – PROCESSO DI MIGLIORAMENTO CONTINUO
Regione Siciliana DDG 413 del 04/10/2013 - Patto dei Sindaci
Regione Siciliana DDG 413 del 04/10/2013 - Patto dei Sindaci

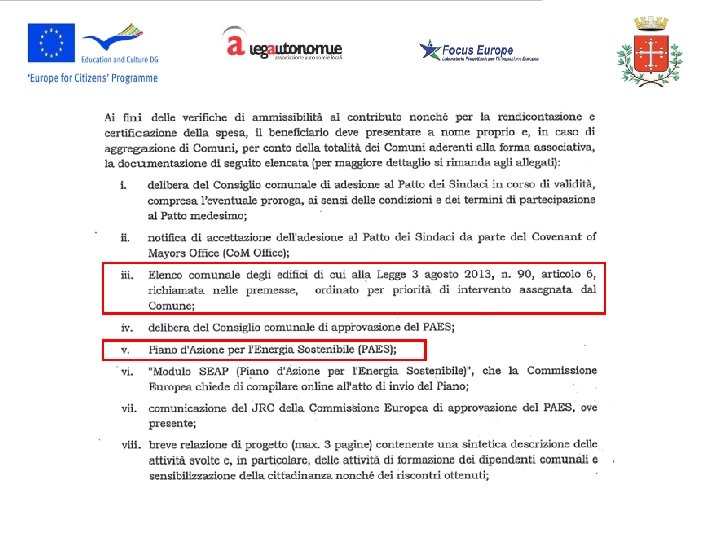

Regione Siciliana DDG 413 del 04/10/2013 - Patto dei Sindaci Elenco comunale degli edifici di cui alla Legge 3 agosto 2013, n. 90, articolo 6, richiamata nelle premesse, ordinato per priorità di intervento assegnata dal Comune. Art. 6 Legge 3 agosto 2013, n. 90 6. Nel caso di edifici utilizzati da pubbliche amministrazioni e aperti al pubblico con superficie utile totale superiore a 500 m 2, ove l'edificio non ne sia gia' dotato, e' fatto obbligo al proprietario o al soggetto responsabile della gestione, di produrre l'attestato di prestazione energetica entro 180 ( centottanta ) giorni dalla data di entrata in vigore della presente disposizione e di affiggere l'attestato di prestazione energetica con evidenza all'ingresso dell'edificio stesso o in altro luogo chiaramente visibile al pubblico. A partire dal 9 luglio 2015, la soglia di 500 m 2 di cui sopra, e' abbassata a 250 m 2.

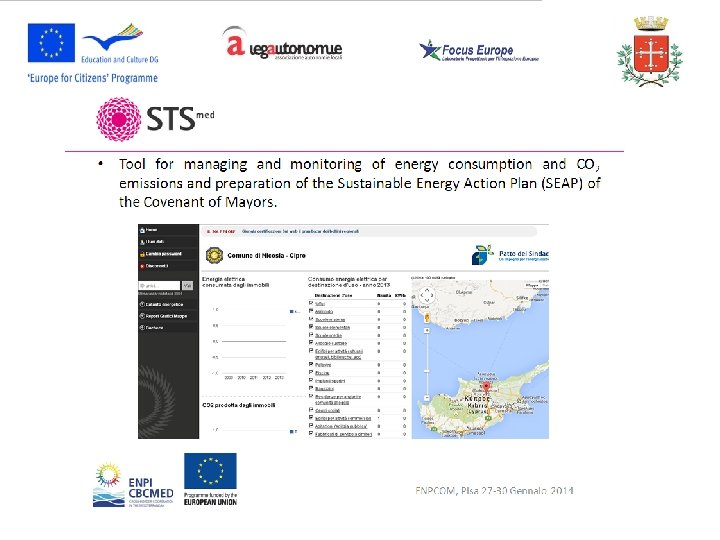

• The Cadastre Energy section contains the catalogue of administrative, geometric, thermo-physical and energetic data about municipal building , street lighting and other.

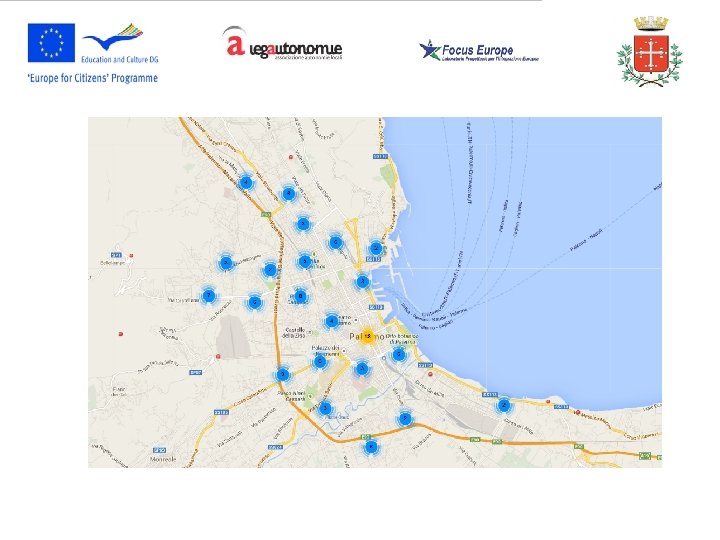

The MAP section allows you to locate the building or facility using the functions of Google Maps. The first location is done automatically on the basis of the address indicated in the window GENERAL DATA.
This dialog box (General data) shows data referring the description and use of the building, the property, the number of users, the name of the person who entered the data.

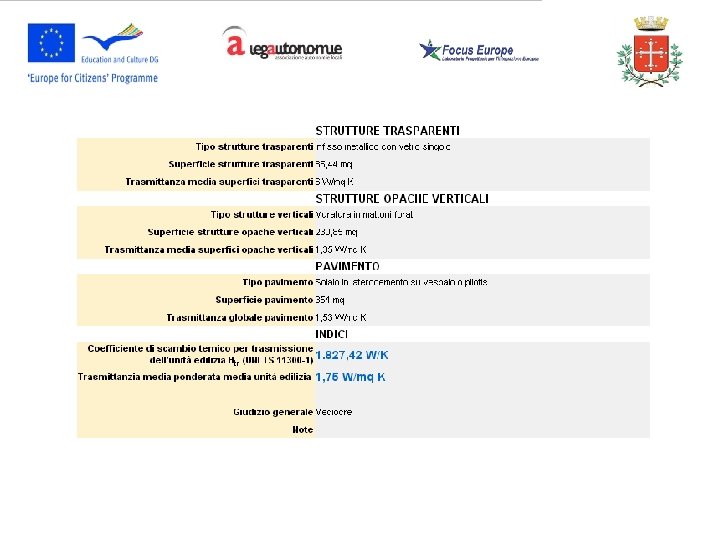

This dialog box is used to store the geometric and thermal data of the building: wall, roof, floor, windows.
This dialog box is used to store the geometric and electrical data of the photovoltaic system.
This dialog box is used to store the data of heat and cool generator.
Energy audits are carried out on all municipal schools in order to identify the number and types of fixtures.
The cadastre energy allows you to store data from any light source and determine the total electrical power consumption and alleged.
This figure shows the dialog box to store the energy consumptions printed on the bills (electricity and heat).
For each counter, you can build a complete database of electrical consumption. The figure shows the billing period, the POD (Point of Delivery) number, the electrical consumptions (k. Wh), and related costs.
The figure shows the annual consumption of electricity of individual users, identified by its own POD number. It is possible to identify the greater electrical energy consumption.
This figure shows an analysis carried out about the consumption of municipal school buildings. You can read informations regarding the number of users and the surface of the schools, in order to calculate energy indicators (k. Wh per users)
The graph shows that three schools have a specific consumption k. Wh per user (80 -95 k. Wh / user) approximately double that of other (30 -50 k. Wh / user) and therefore it would be appropriate to assess the possible energy saving measures to be taken.
Score is calculated based on the estimate of the conditions of preservation and maintenance for each building
Vengono individuati gli edifici su cui intervenire prioritariamente in base ai consumi energetici specifici e al grado di conservazione e manutenzione.
Other tools are used to calculate the NPV (Net Present Value) and Payback Time of the investment.
Grazie per l’attenzione
