Enlargement Negative Higher GCSE Questions AQA These questions

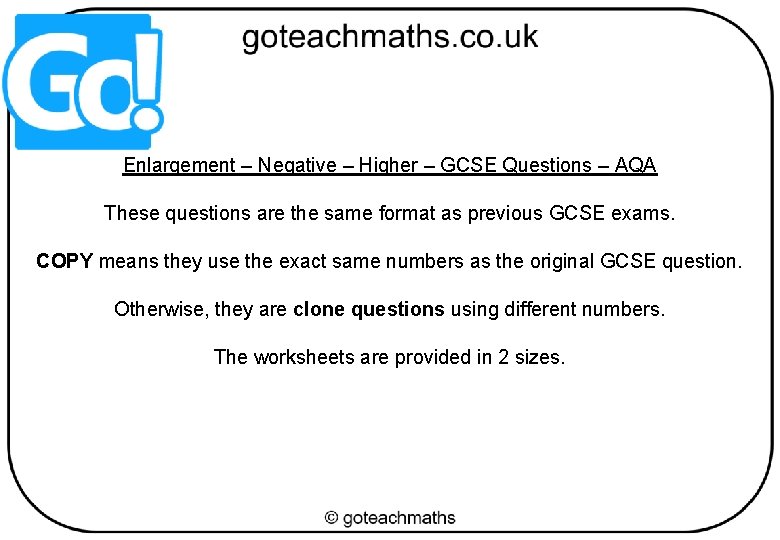

Enlargement – Negative – Higher – GCSE Questions – AQA These questions are the same format as previous GCSE exams. COPY means they use the exact same numbers as the original GCSE question. Otherwise, they are clone questions using different numbers. The worksheets are provided in 2 sizes.

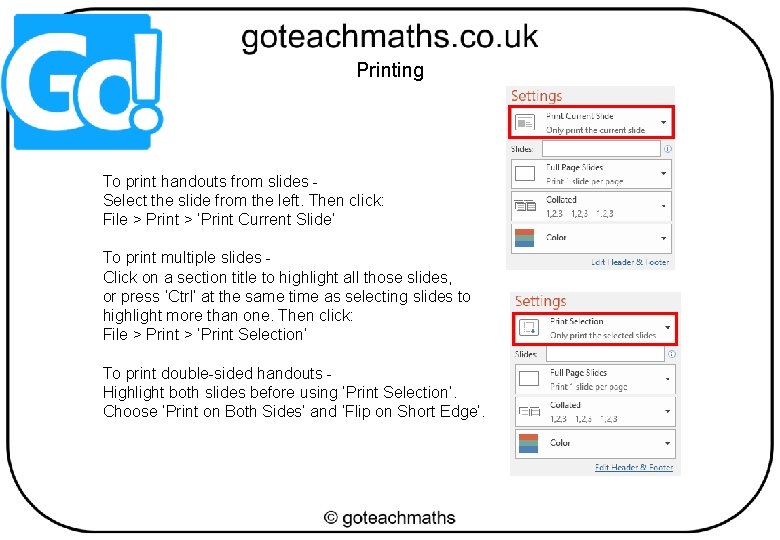

Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

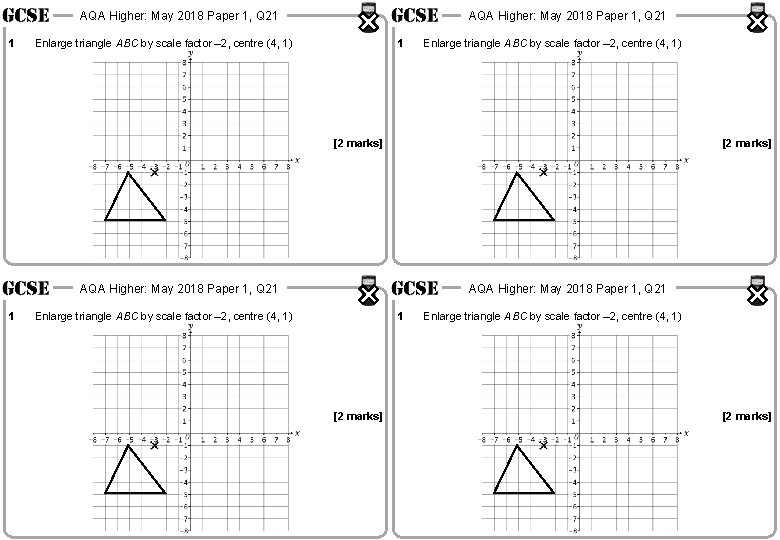

AQA Higher: May 2018 Paper 1, Q 21 1 AQA Higher: May 2018 Paper 1, Q 21 Enlarge triangle ABC by scale factor – 2, centre (4, 1) [2 marks] AQA Higher: May 2018 Paper 1, Q 21 1 AQA Higher: May 2018 Paper 1, Q 21 Enlarge triangle ABC by scale factor – 2, centre (4, 1) 1 [2 marks] Enlarge triangle ABC by scale factor – 2, centre (4, 1) [2 marks]

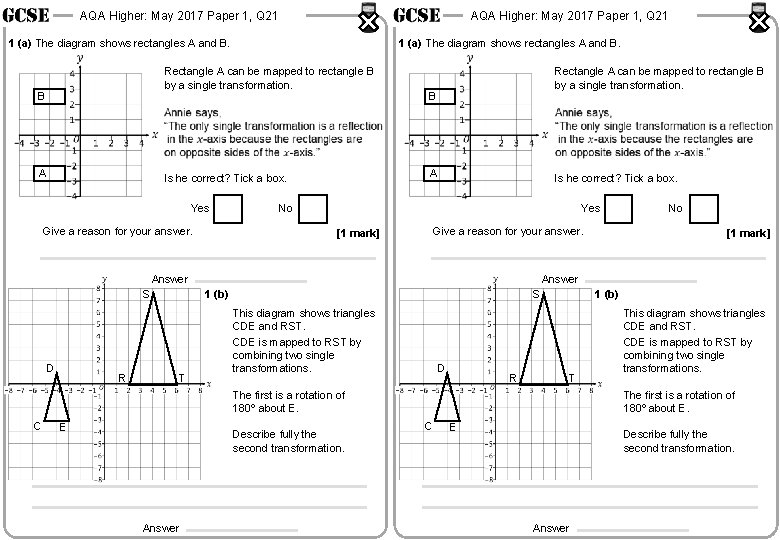

AQA Higher: May 2017 Paper 1, Q 21 1 (a) The diagram shows rectangles A and B. Rectangle A can be mapped to rectangle B by a single transformation. B A Give a reason for your answer. B A Is he correct? Tick a box. Yes Rectangle A can be mapped to rectangle B by a single transformation. Is he correct? Tick a box. No Yes Give a reason for your answer. [1 mark] Answer D R T 1 (b) S This diagram shows triangles CDE and RST. CDE is mapped to RST by combining two single transformations. D R T The first is a rotation of 180º about E. C E Describe fully the second transformation. Answer [1 mark] Answer 1 (b) S No This diagram shows triangles CDE and RST. CDE is mapped to RST by combining two single transformations. The first is a rotation of 180º about E. C E Describe fully the second transformation. Answer

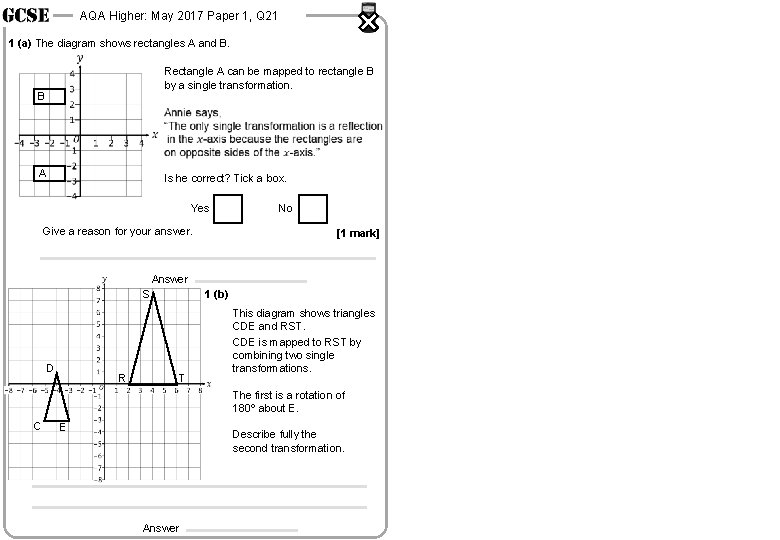

AQA Higher: May 2017 Paper 1, Q 21 1 (a) The diagram shows rectangles A and B. Rectangle A can be mapped to rectangle B by a single transformation. B A Is he correct? Tick a box. Yes Give a reason for your answer. No [1 mark] Answer 1 (b) S D R T This diagram shows triangles CDE and RST. CDE is mapped to RST by combining two single transformations. The first is a rotation of 180º about E. C E Describe fully the second transformation. Answer

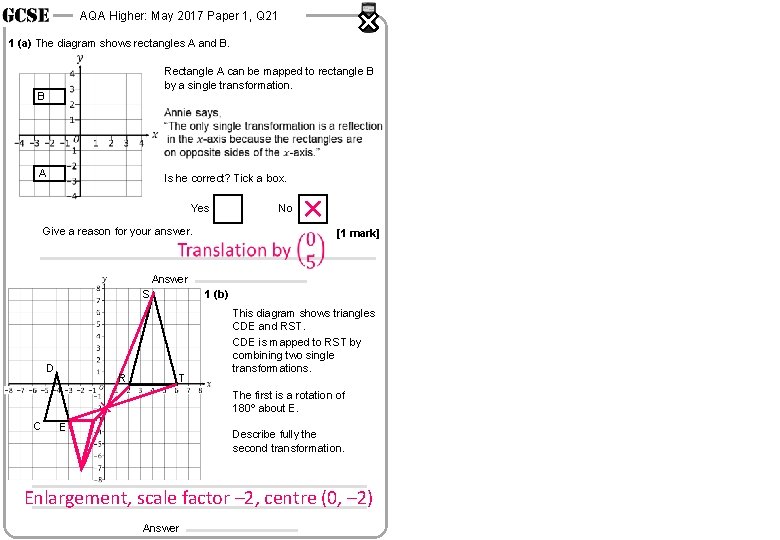

AQA Higher: May 2017 Paper 1, Q 21 1 (a) The diagram shows rectangles A and B. Rectangle A can be mapped to rectangle B by a single transformation. B A Is he correct? Tick a box. Yes Give a reason for your answer. No × [1 mark] Answer 1 (b) S D R T This diagram shows triangles CDE and RST. CDE is mapped to RST by combining two single transformations. The first is a rotation of 180º about E. C E Describe fully the second transformation. Enlargement, scale factor – 2, centre (0, – 2) Answer
