Enhancing protection for the most valuable assets of

Enhancing protection for the most valuable assets of the Knowledge Economy

Electrical Infrastructure The Tier IV Advantage

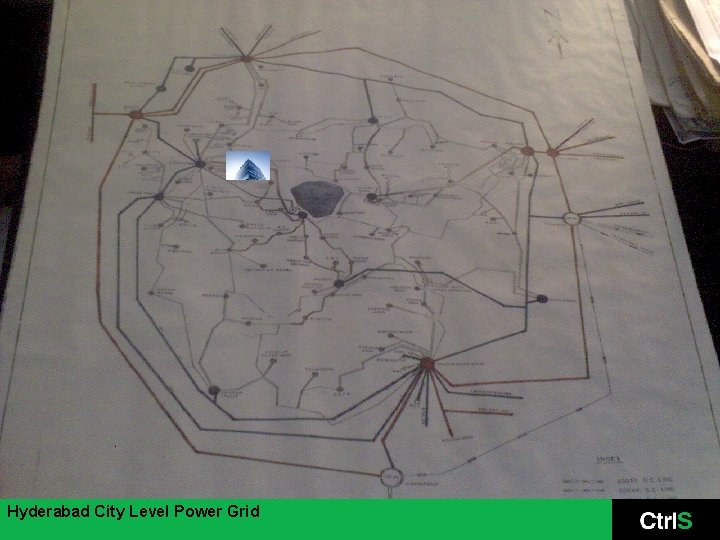

Hyderabad City Level Power Grid

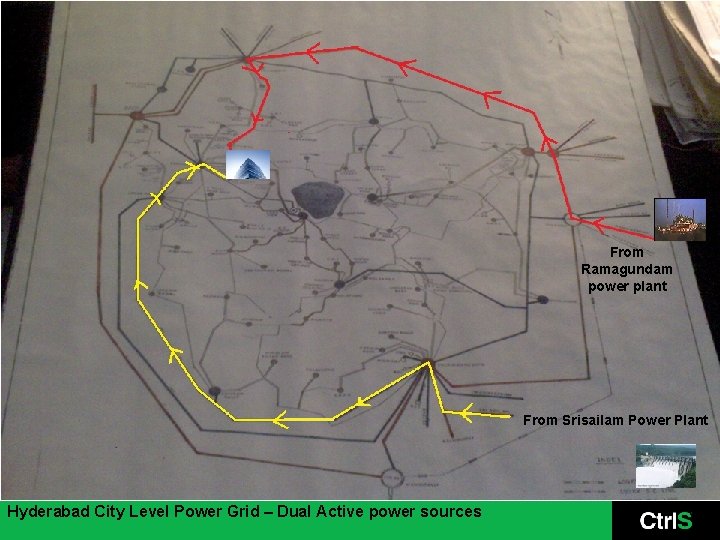

From Ramagundam power plant From Srisailam Power Plant Hyderabad City Level Power Grid – Dual Active power sources

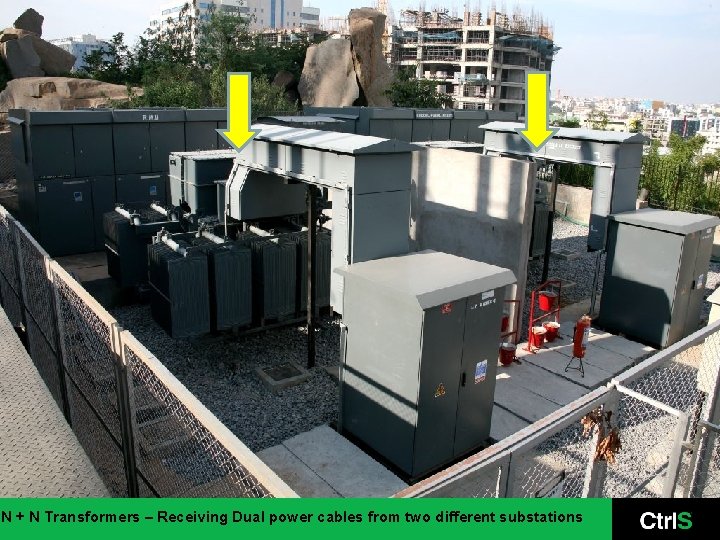

N + N Transformers – Receiving Dual power cables from two different substations

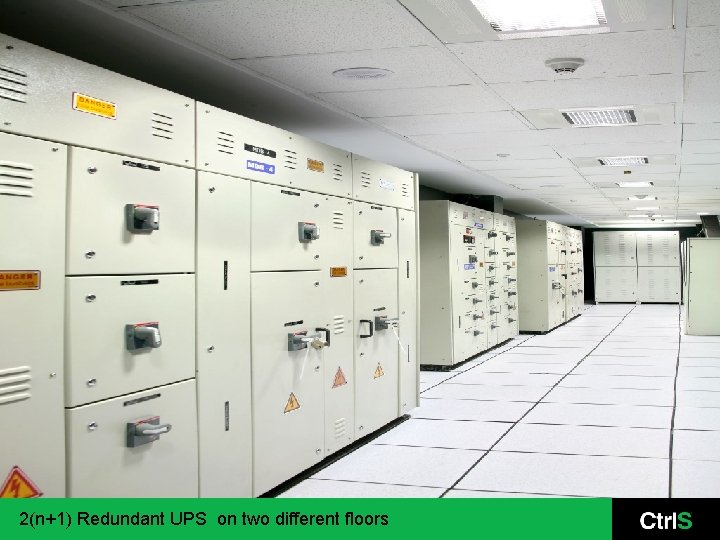

2(n+1) Redundant UPS on two different floors

Dual Power Connectivity up to the rack level eliminating single point of failure

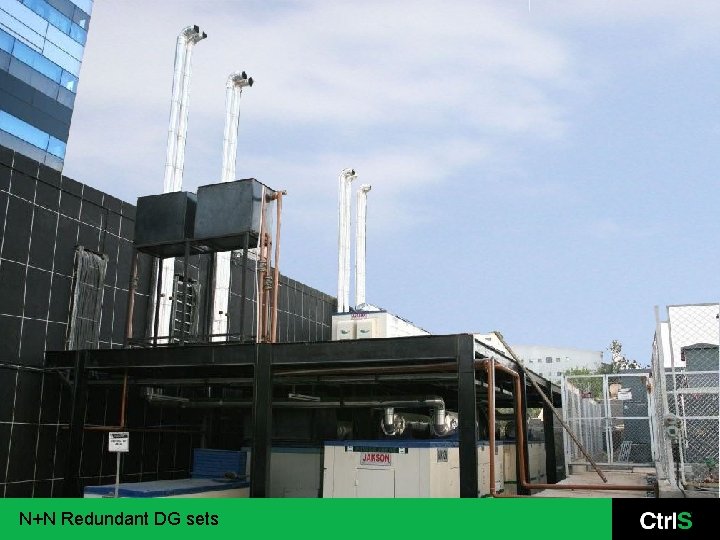

N+N Redundant DG sets

HSD Tanks -Diesel Reservoir which runs for 7 days on full load

Security The Six Zone Security Advantage

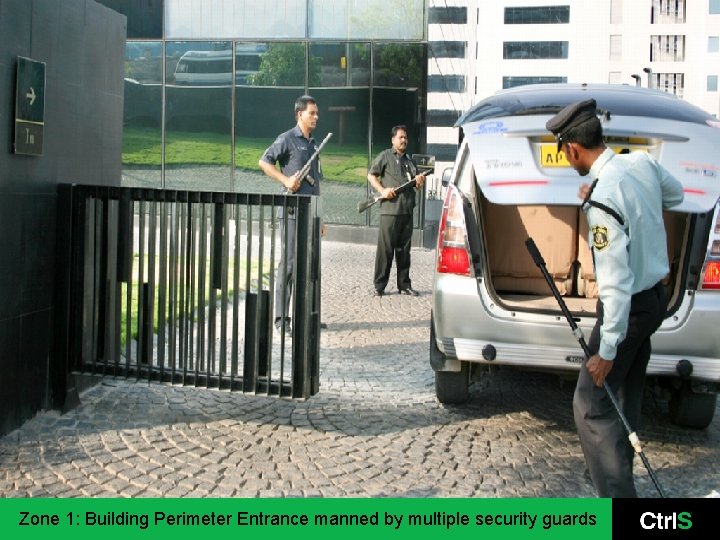

Zone 1: Building Perimeter Entrance manned by multiple security guards

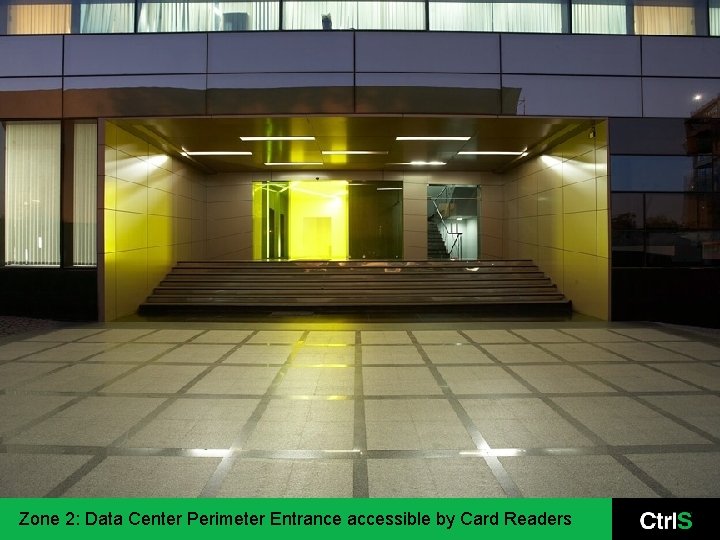

Zone 2: Data Center Perimeter Entrance accessible by Card Readers

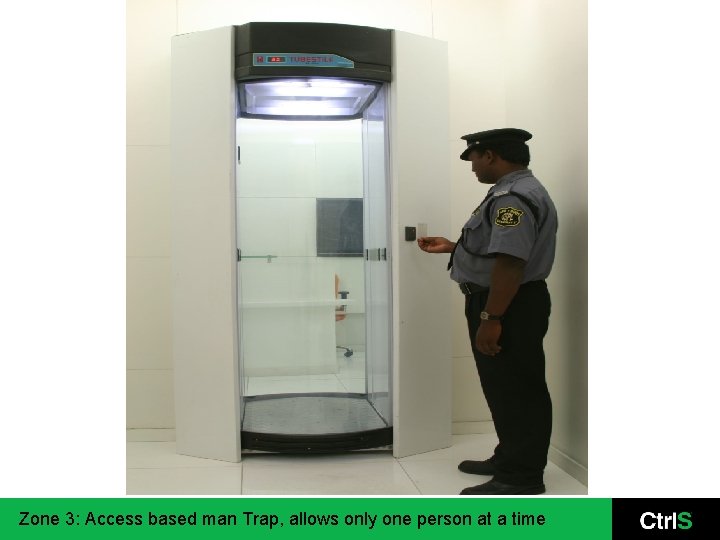

Zone 3: Access based man Trap, allows only one person at a time

Zone 4: Another view of the data center lobby

Zone 5: Biometric secured entrance to the main data center area

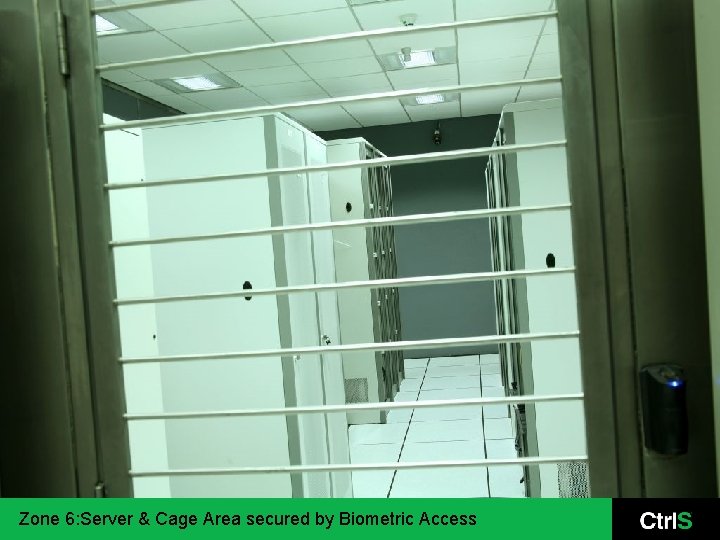

Zone 6: Server & Cage Area secured by Biometric Access

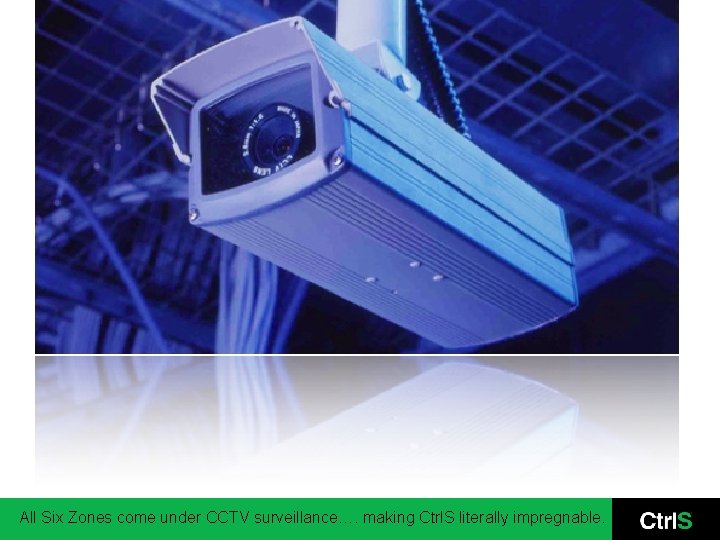

All Six Zones come under CCTV surveillance…. making Ctrl. S literally impregnable.

HVAC Systems Precision Based Cooling

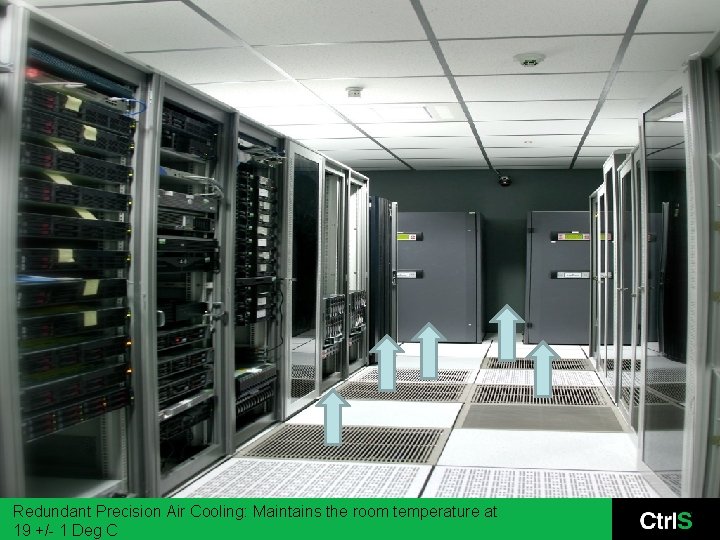

Redundant Precision Air Cooling: Maintains the room temperature at 19 +/- 1 Deg C

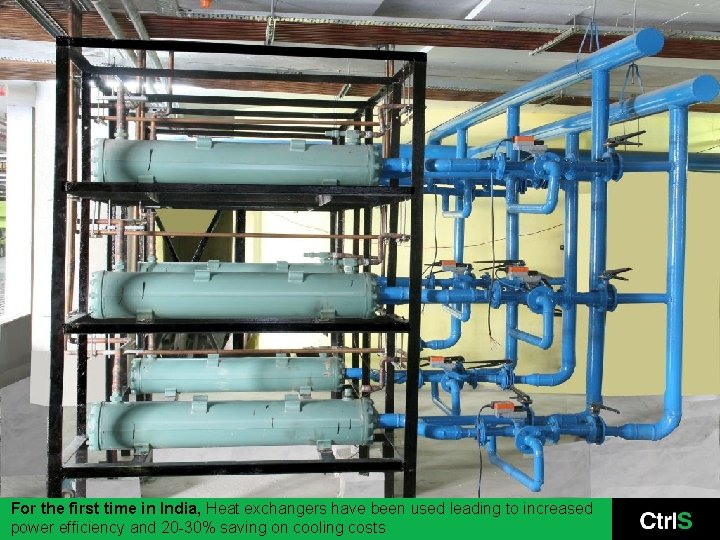

Heat Exchangers For the first time in India, Heat exchangers have been used leading to increased power efficiency and 20 -30% saving on cooling costs

Fire Detection & Suppression Fire !!! What is it ? ? ?

Detects fire 3 -4 Minutes before any smoke is visible to the naked eye

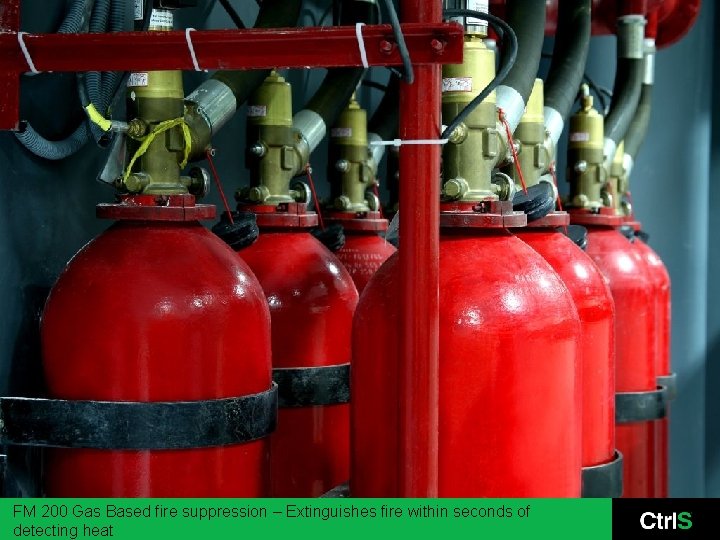

FM 200 Gas Based fire suppression – Extinguishes fire within seconds of detecting heat

FS 120 fire Rated Partition walls ensure high levels of safety for your IT infrastructure

BMS Room monitors all the automated systems 24 X 7 and ensures prompt action

Network & Connectivity The Carrier Neutral Advantage

Reliance Tata Tele VSNL Ctrl. S BSNL Airtel All Major Telco’s connect to our data center thereby giving customers the freedom to choose their service provider and more importantly providing unmatched redundancy

All Major Telco’s connect to our data center thereby giving customers the freedom to choose their service provider and more importantly providing unmatched redundancy

Dual Active path for network eliminating any possibility of downtime

Other Control Systems

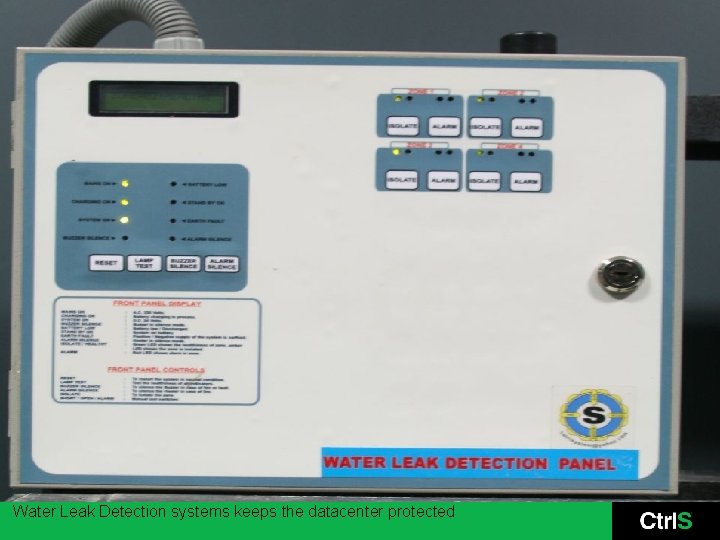

Water Leak Detection systems keeps the datacenter protected

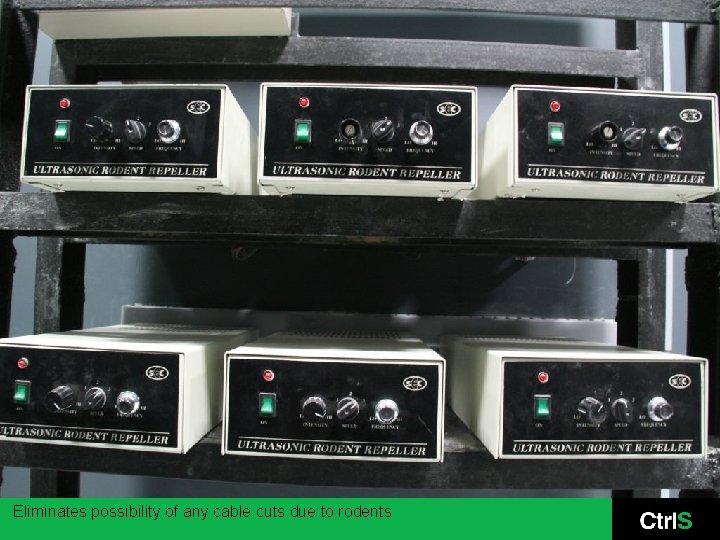

Eliminates possibility of any cable cuts due to rodents

marketing@ctrls. in THANK YOU
