Recap - Parari 2015 This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Parari 2015 Only option was Pit Burn method for SAA and Pyrotechnic EO. Three options were assessed, with the requirements of: - 3 Safe Environmentally compliant (EPA Clean Air Regulation 2010) SAA disposal capability Bonuses - Pyrotechnic disposal, increases total disposal capacity, reduces manpower requirements EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Recap - Parari 2015 cont EOD Solutions – TRADS 20 was selected. Pyrotechnic Furnace option added. 4 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. TRADS Overview Afterburner SAA Burn Tank 5 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line Heat Exchanger Pyro Burn Tank Filters ID Fan

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. TRADS Overview Afterburner Cyclone SAA Burn Tank Heat Exchanger Filters Induced Draught Fan Safety Relief Valve Pyro Burn Tank ID Fan generates negative pressure differential drawing off-gas and air through the system Over-spec 6 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Building the Filter Casing and SAA Furnace 7 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Building the Filter Vessel 8 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Building the Afterburner 9 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Building the SAA and Pyro Furnaces 10 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Building the Waste Treatment System 11 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Testing at Cranfield Ordnance Test & Evaluation Centre 12 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

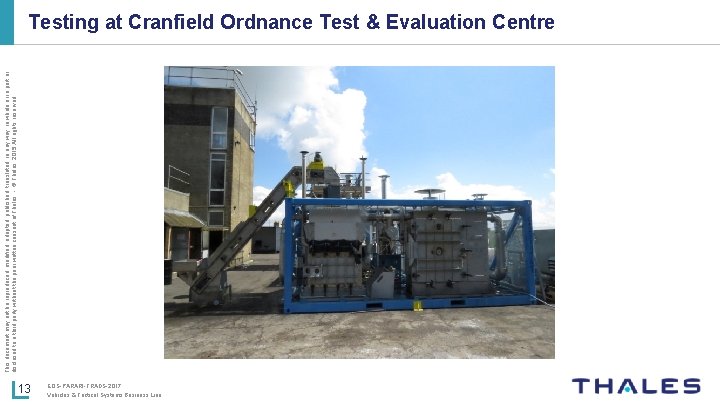

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Testing at Cranfield Ordnance Test & Evaluation Centre 13 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Small Arms Ammunition Disposal Before 14 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line After

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Pyrotechnic EO Disposal Before 15 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line After

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Combustion Analysis 16 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Pyrotechnic Feed System 17 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Emissions Testing 18 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Emissions Testing 19 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

Environmental Compliance This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Compliant to NSW EPA Limits (EPA Clean Air Regulation 2010) Defence Environmental Compliance Certificate (operating at EO Depot Myambat) Compliant to EU Waste Incineration Directive (2000) 20 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Installation at EO Depot Myambat 21 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Final Install at EO Depot Myambat 22 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

Efficiency Improvements This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. With TRADS we can now process: 75, 000 -100, 000 rounds of SAA per day compared to approximately 50, 000 rounds of SAA a day for pit burns. Using 2 people per day instead of 6. Reduced environmental impact. Able to operate safely and predictably during periods of High Fire Danger or adverse weather conditions. 23 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

Design Improvements This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Manual Handling improvements: - Built to a specification which we gave to EOD Solutions for minimal manual handling for every process. - Waste removal tools designed (SAA Removal Jig). - Lead waste system. Filter waste removed using vacuum system to reduce exposure to workers. Minor changes to the conveyor system to improve feed reliability. Lead health monitoring, protective equipment and disposal tracking. Changed design to treat diesel burner exhaust. Safety railings added to steps and top of furnaces. 24 EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line

Next Steps This document may not be reproduced, modified, adapted, published, translated, in any way, in whole or in part or disclosed to a third party without the prior written consent of Thales - © Thales 2015 All rights reserved. Running trials to confirm items are suitable which have unusual characteristics or are untested. - 25 High temperature items High impulse items Very Low NEQ HE items Items with irritants EOS-PARARI-TRADS-2017 Vehicles & Tactical Systems Business Line
