ENGN 103 ENGINEERING DRAWING LECTURE 3 SCALE When
- Slides: 56
ENGN 103 ENGINEERING DRAWING LECTURE 3
SCALE • When the object is bigger than the size of drawing sheet, it is drawn at reduced scale. • Therefore, scale is the ration of actual object and the size shown on the drawing. The scales are designated as: • SCALE 1: X for reduced scale (X is the ratio) • SCALE X: 1 for enlarged scale • SCALE 1: 1 for full size • Standard recommended ratios are multiples of 2, 5 and 10 as: • Enlargement: 50: 1, 20: 1, 10: 1, 5: 1, 2: 1 • Reduction: 1: 2, 1: 10, 1: 20, 1: 50, 1: 100, 1: 200, 1: 500, 1: 1000, 1: 2000, 1: 5000
GEOMETRICAL CONSTRUCTION • To bisect a line • To divide a line into a number of equal parts • To divide a line in a given proportion • To bisect an angle • To find the center of an arc • To inscribe a circle in a triangle. • To draw the circumscribing circle of a triangle.

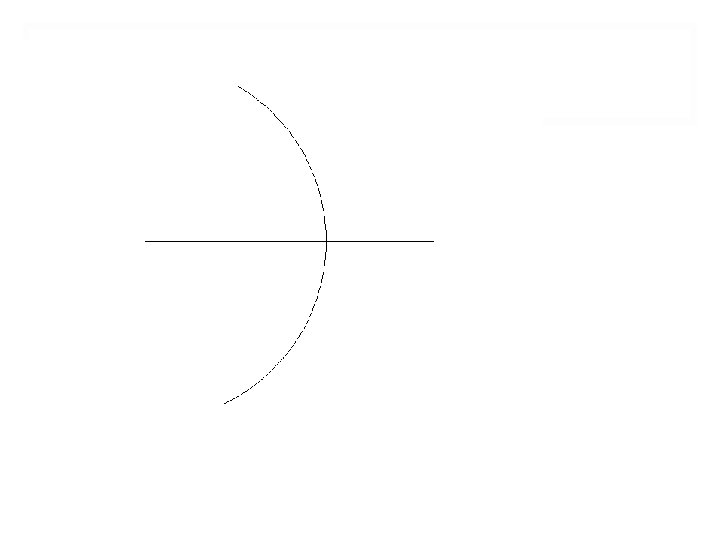

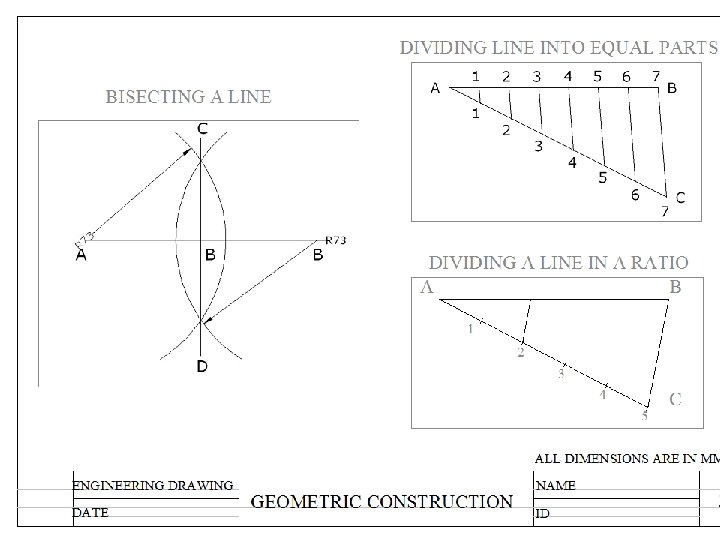

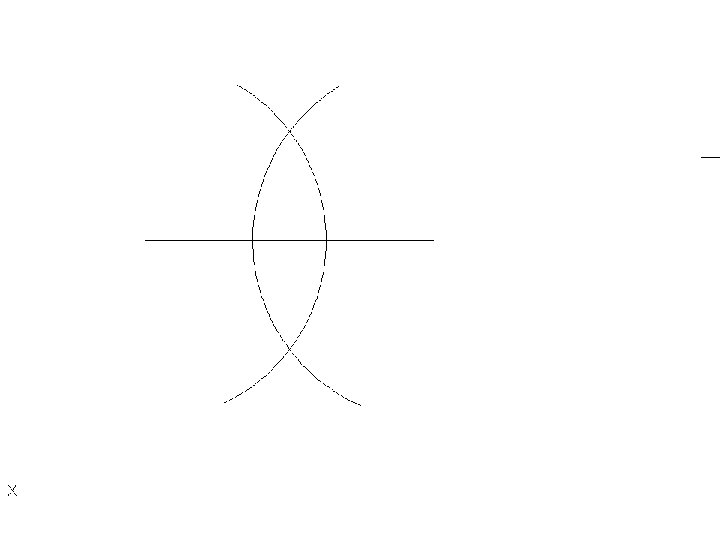

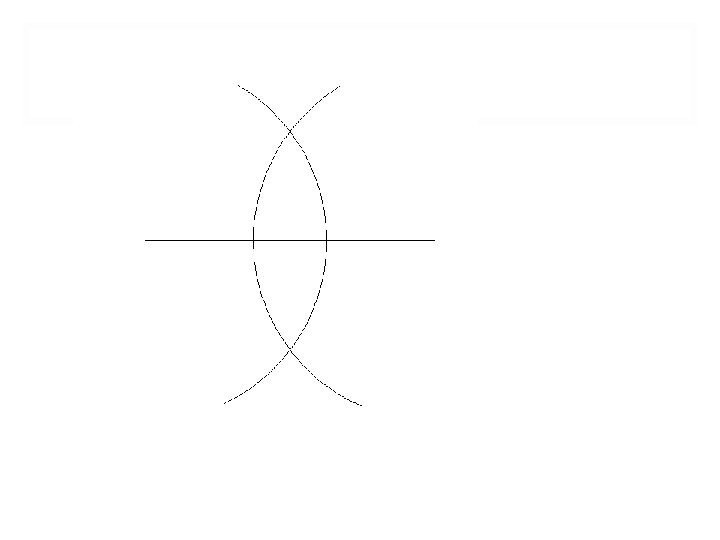

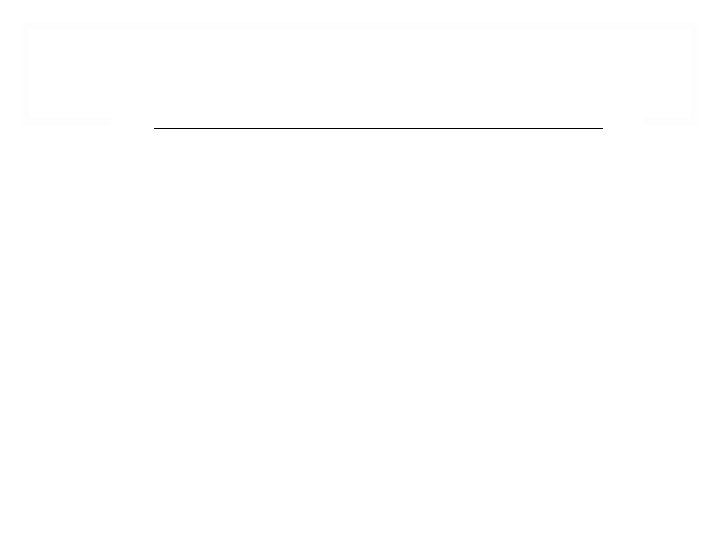

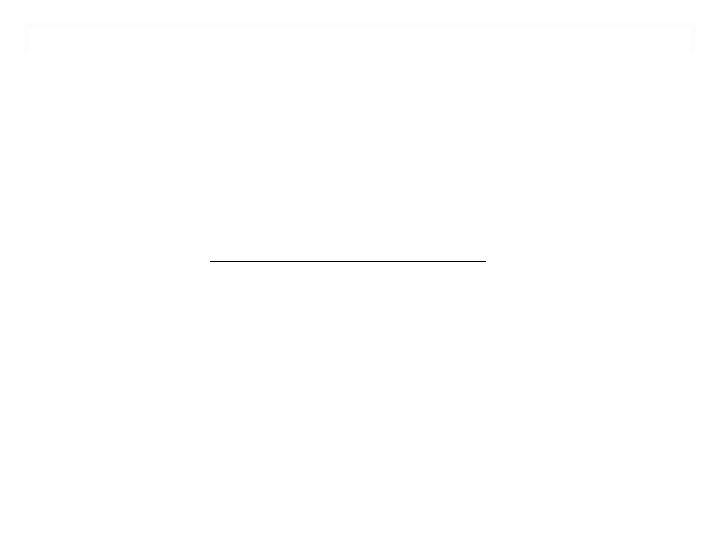

• To bisect a line • Draw the given line AB, with centers A and B and radius R greater than half of AB, draw arcs to intersect a t C and D. Join CD, when E will be the mid point of the line. Also CD will be perpendicular to AB

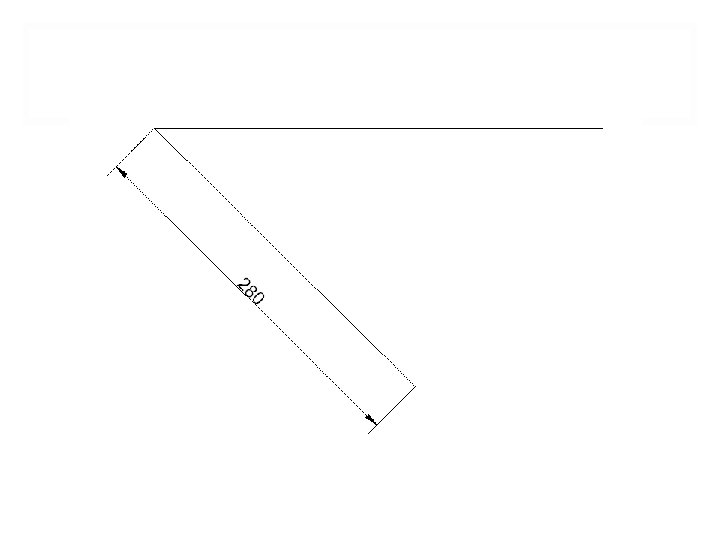

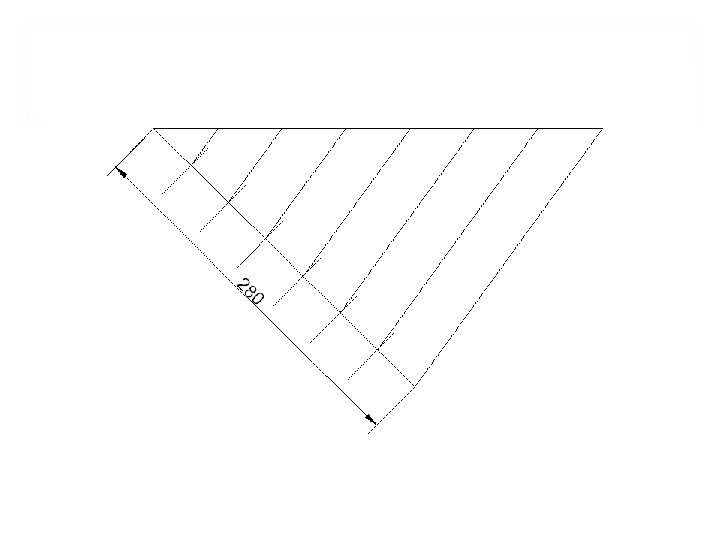

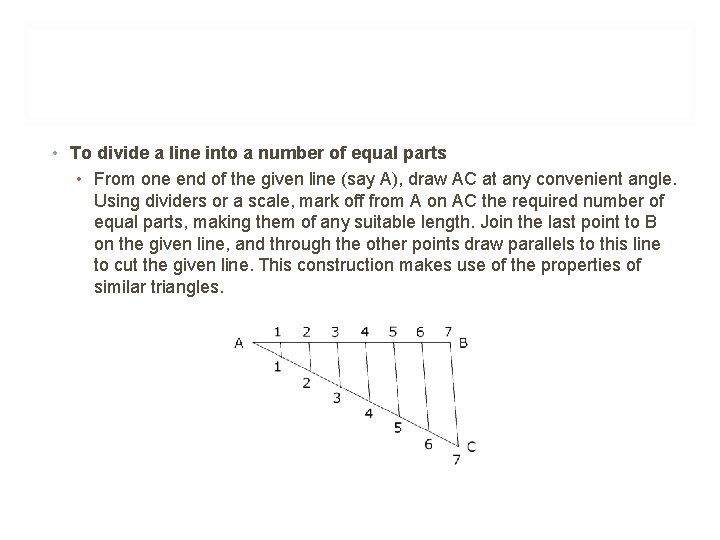

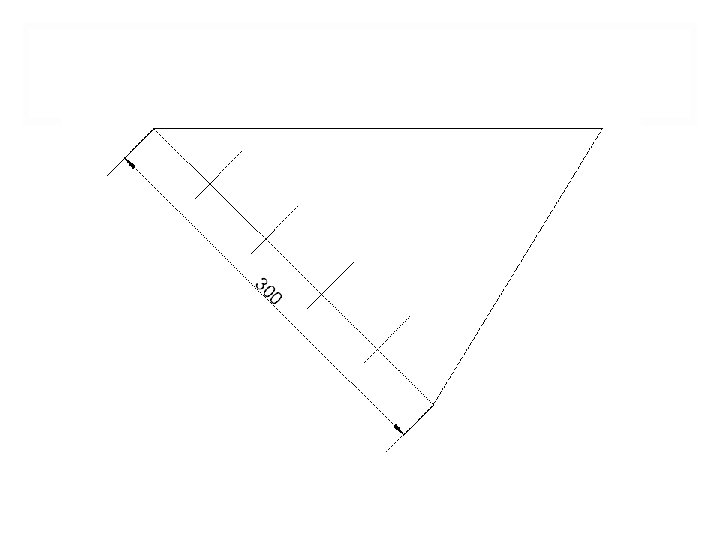

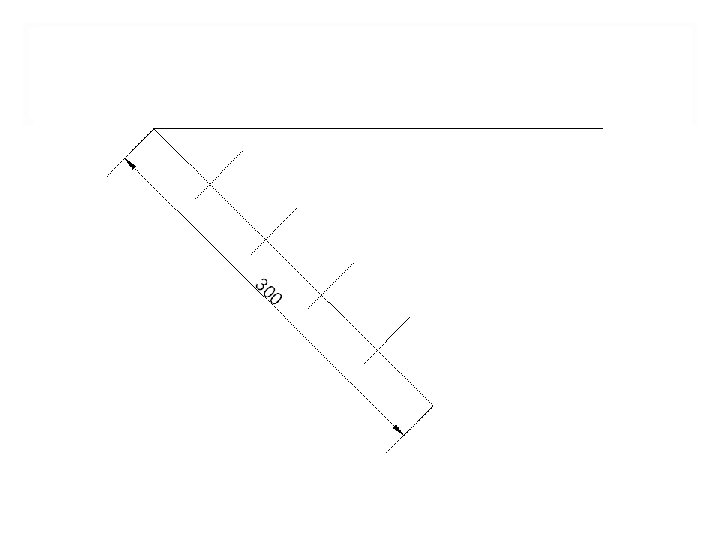

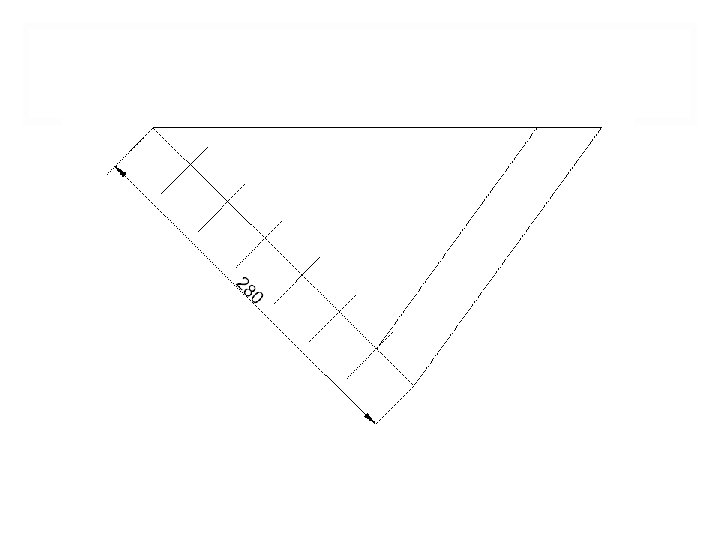

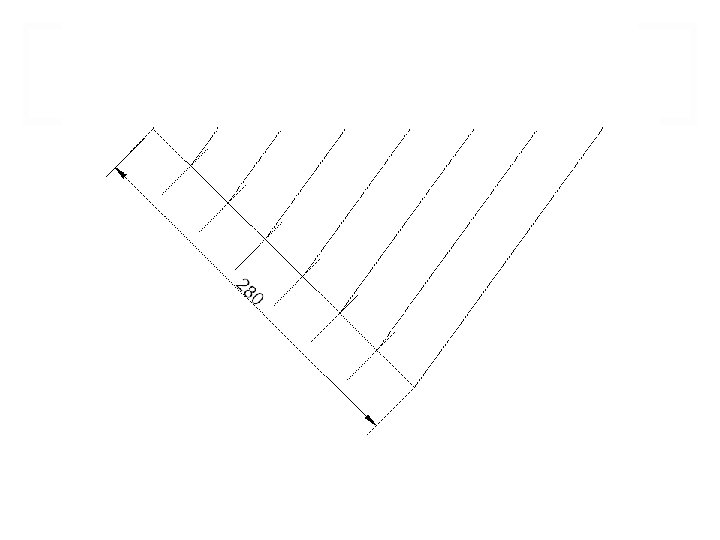

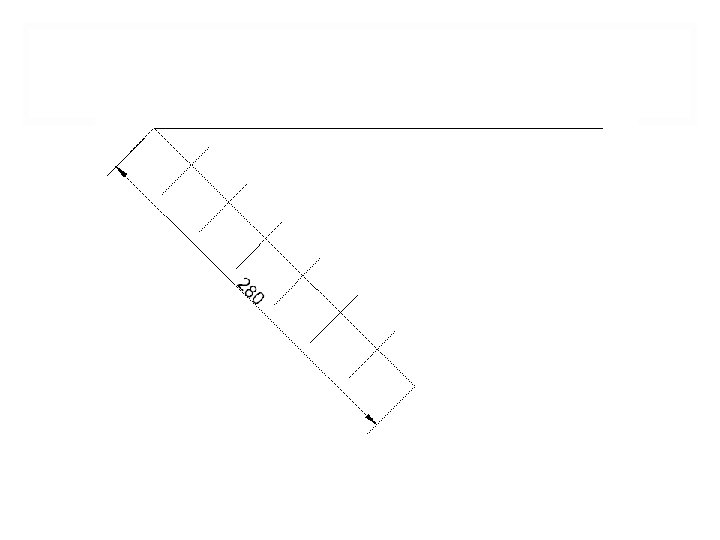

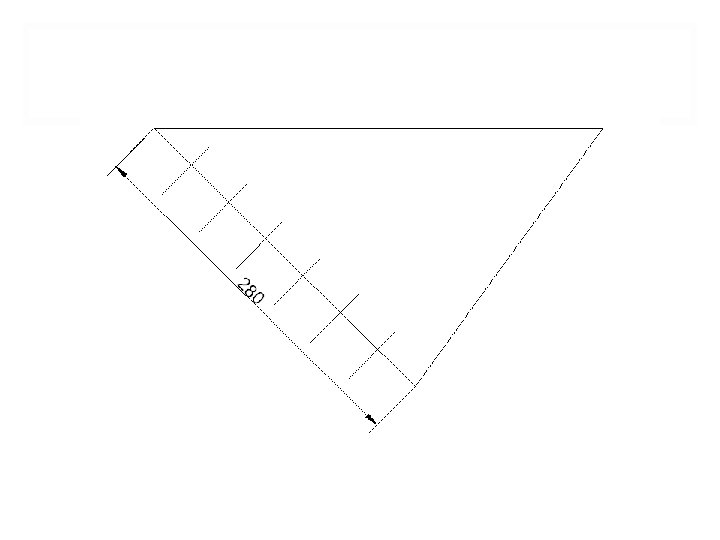

• To divide a line into a number of equal parts • From one end of the given line (say A), draw AC at any convenient angle. Using dividers or a scale, mark off from A on AC the required number of equal parts, making them of any suitable length. Join the last point to B on the given line, and through the other points draw parallels to this line to cut the given line. This construction makes use of the properties of similar triangles.

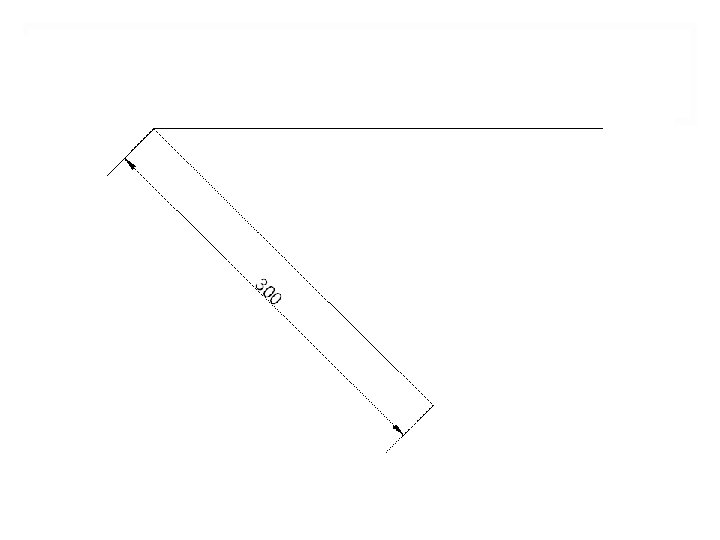

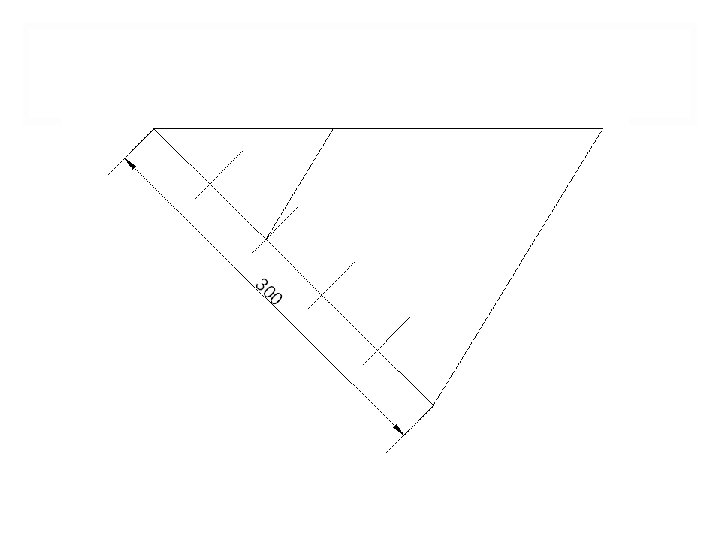

• To divide a line in a given proportion • Suppose the proportion to be 2 : 3. using the previous construction, proceed as if to divide the line into 5 parts (2 plus 3) but only draw a line through point 2 on AD. Then AB will be divided in the required proportion.

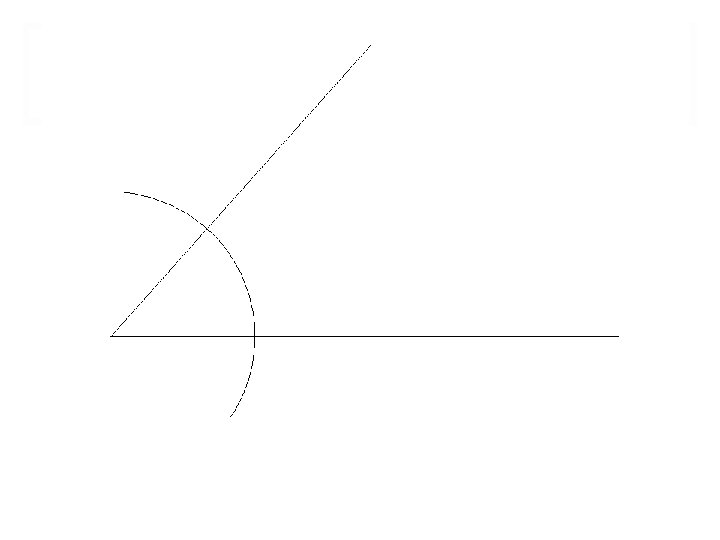

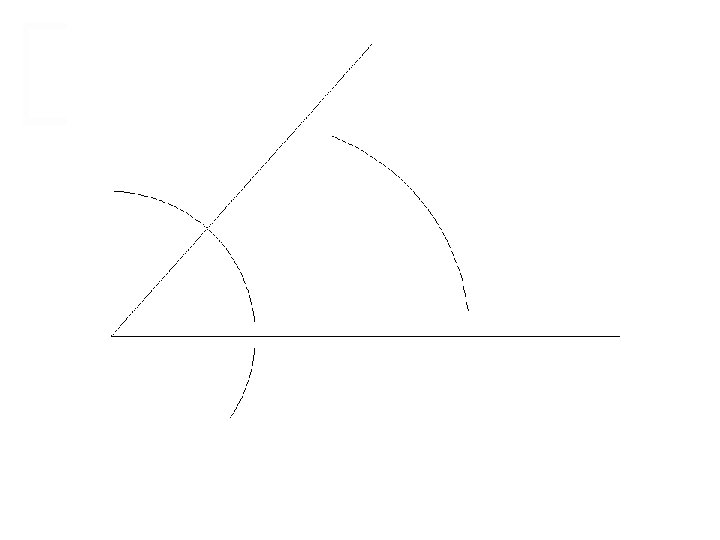

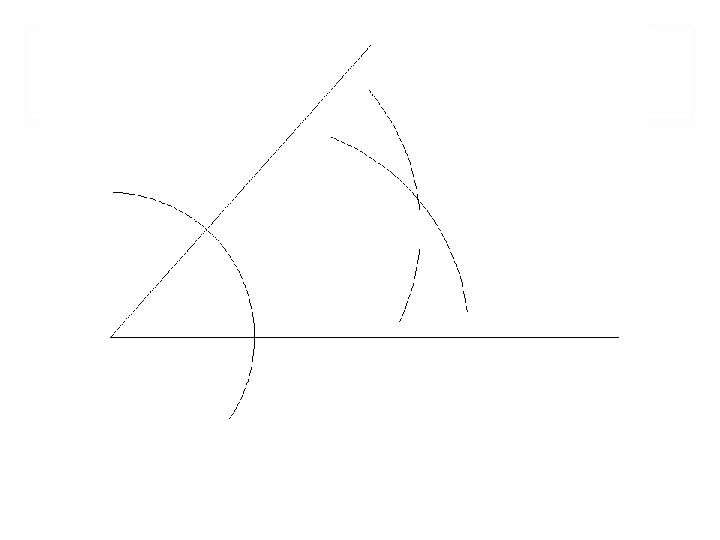

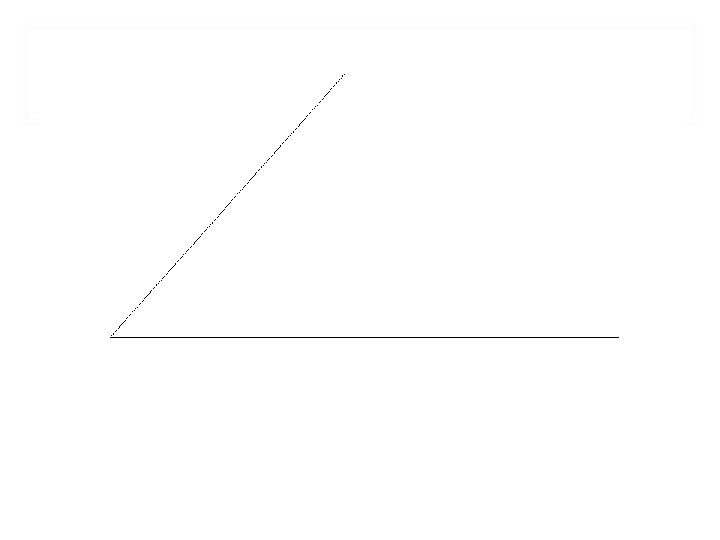

• To bisect an angle • Draw the given angle ABC and from the apex B draw an arc of radius R to cut AB and CD at D and E. R may be any convenient radius. With D and E as centers and radius R’, draw two arcs to meet F. Again, R’ may be any convenient radius. Join FB to bisect the angle.

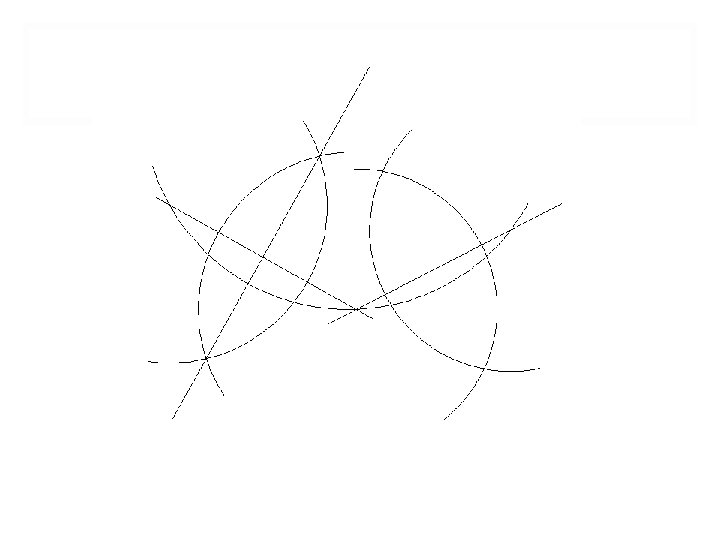

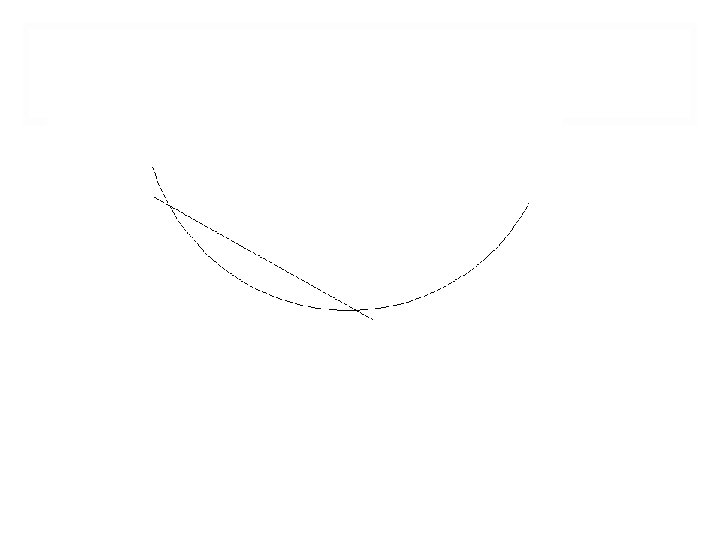

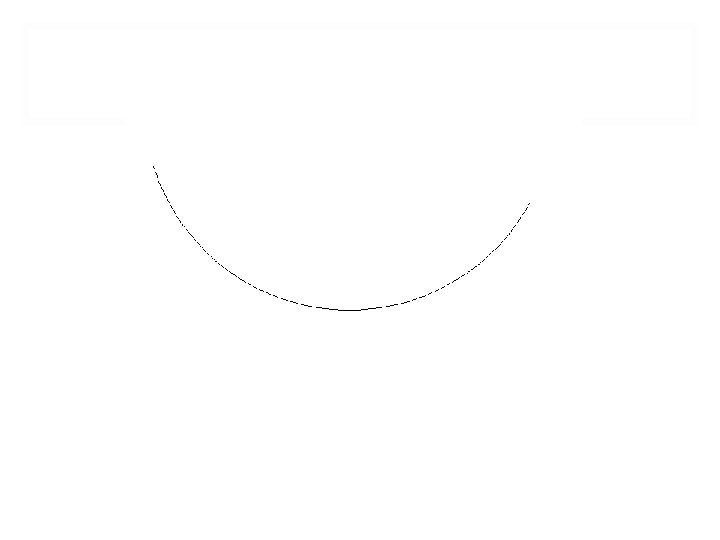

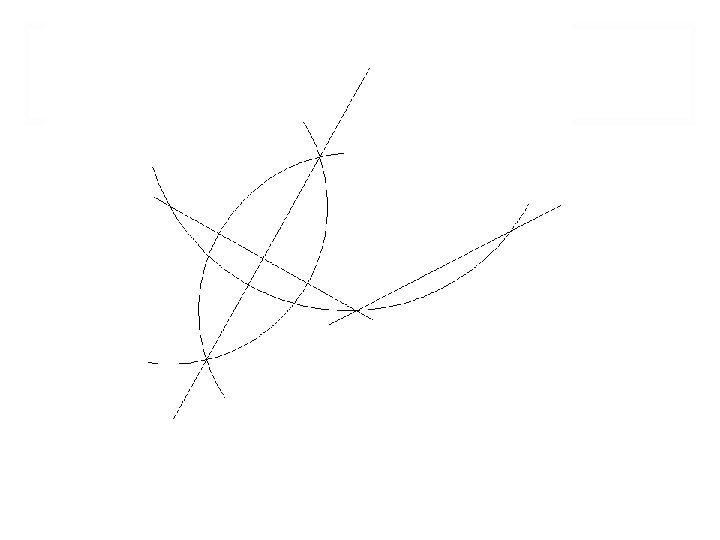

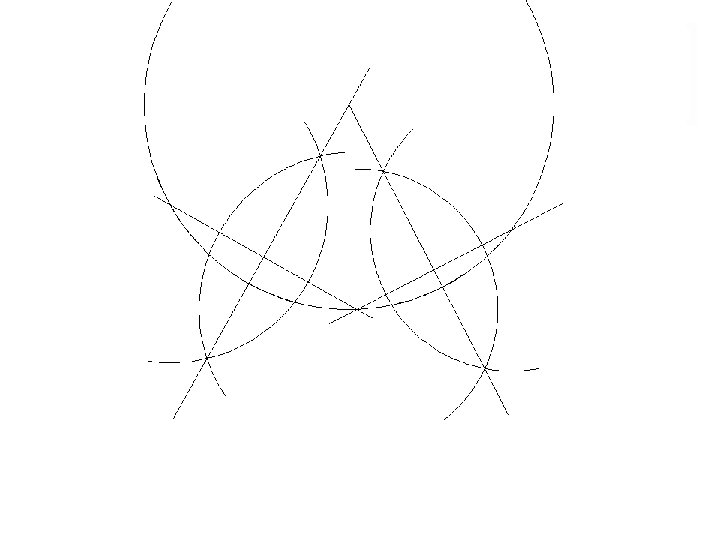

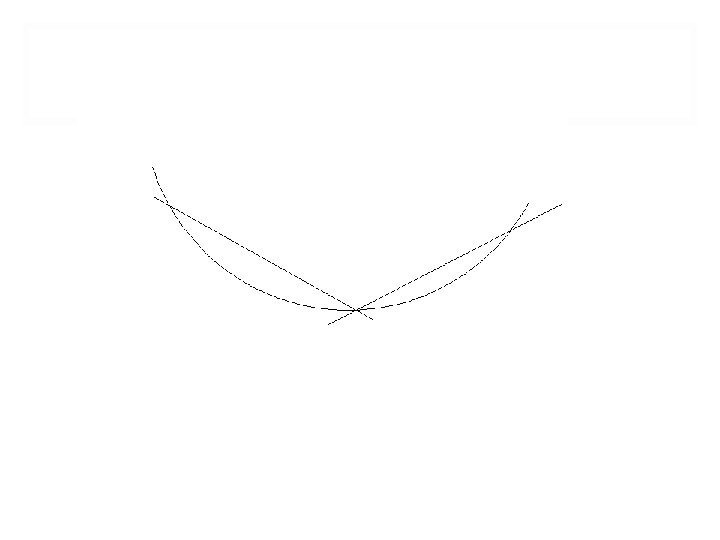

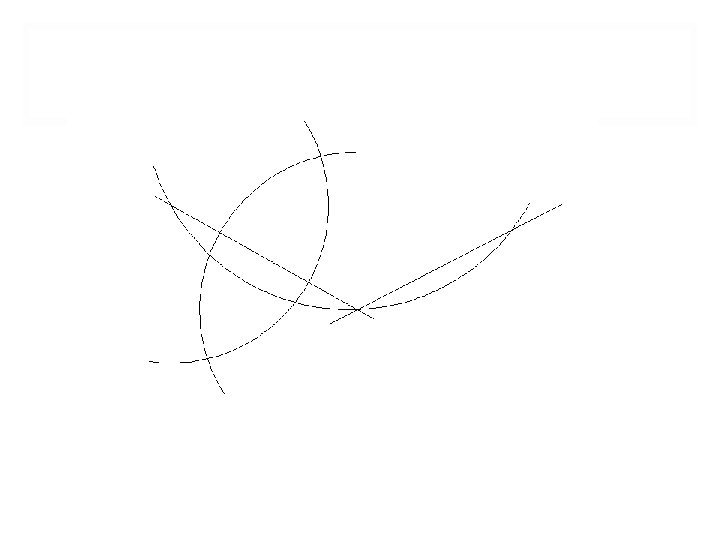

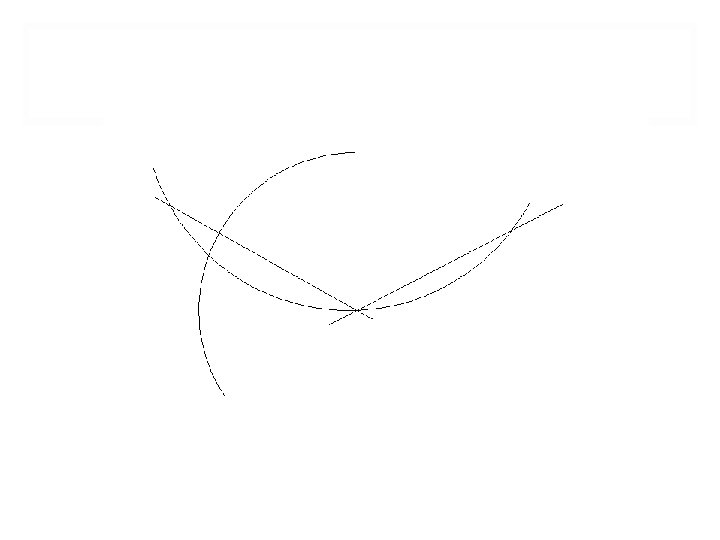

• To find the center of an arc • Select three points, A, B and C on the arc and join AB and BC. Bisect these lines and produce the bisectors to meet at O. O is the center of the arc.

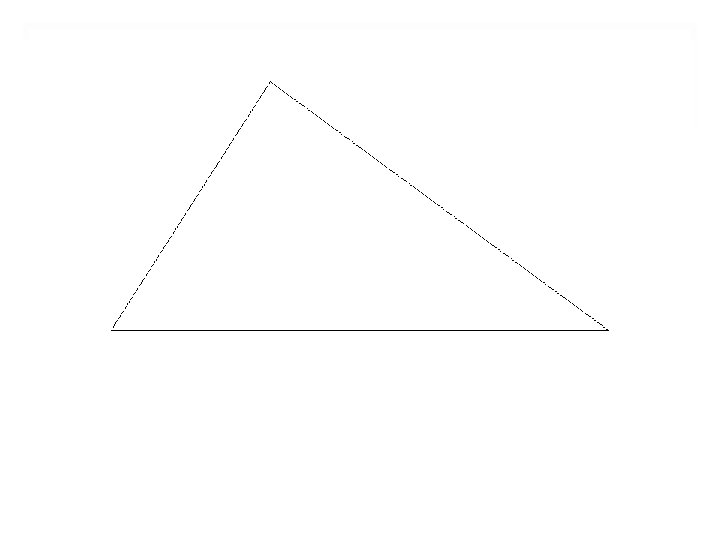

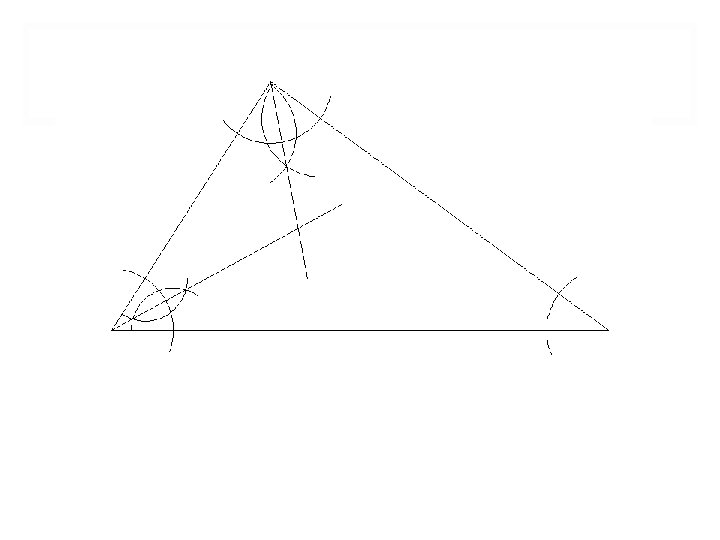

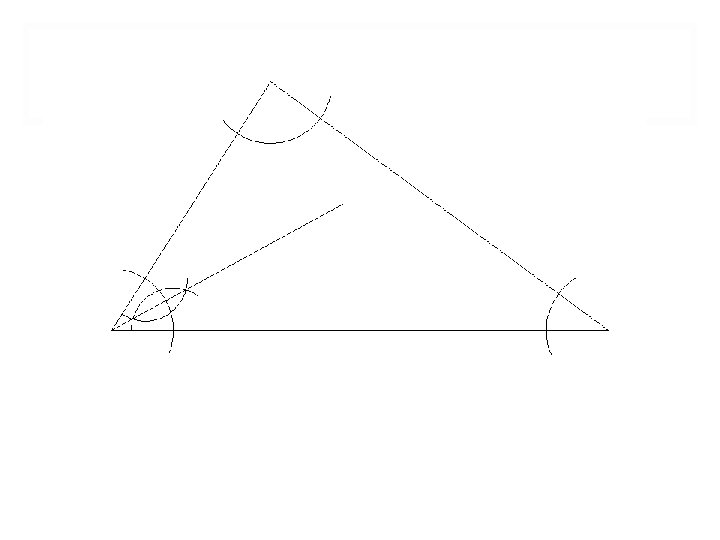

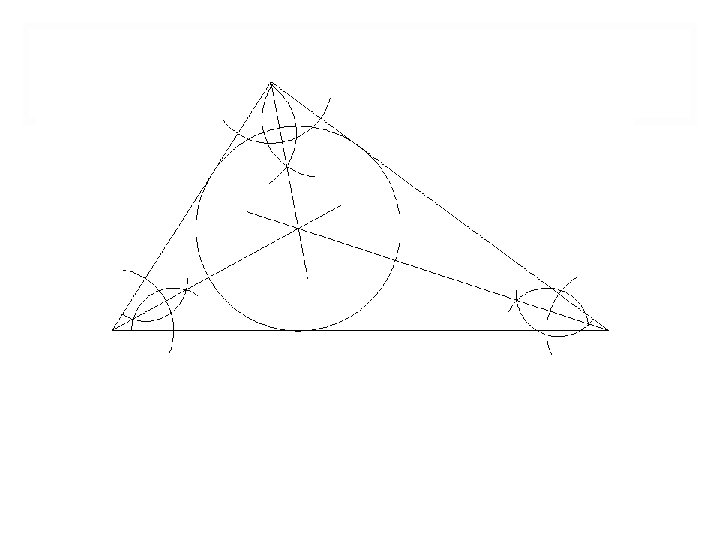

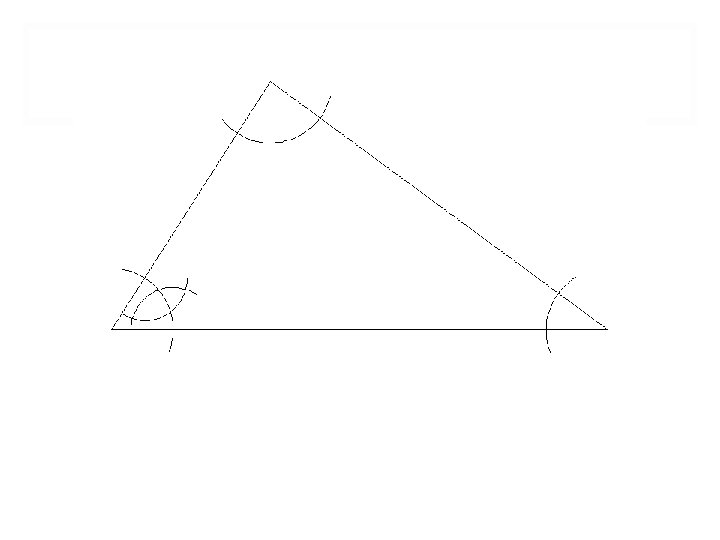

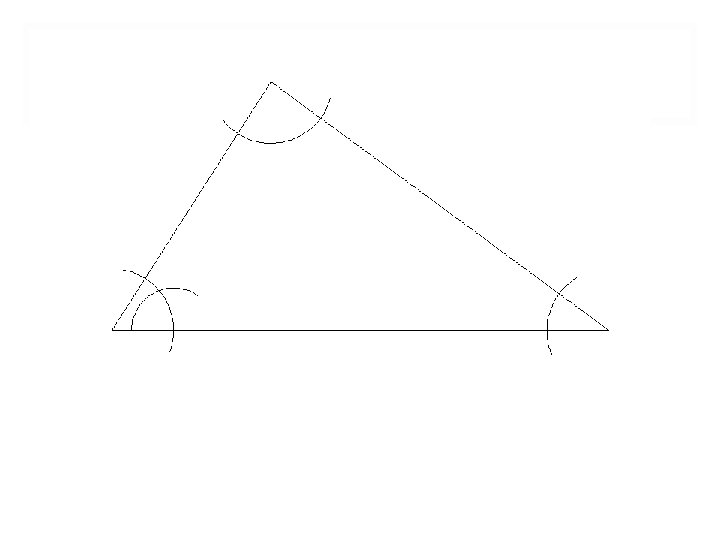

• To inscribe a circle in a triangle. • Draw the given triangle ABC and bisect an two angles. Produce the bisectors to intersect at O, which is the center of the inscribe circle.

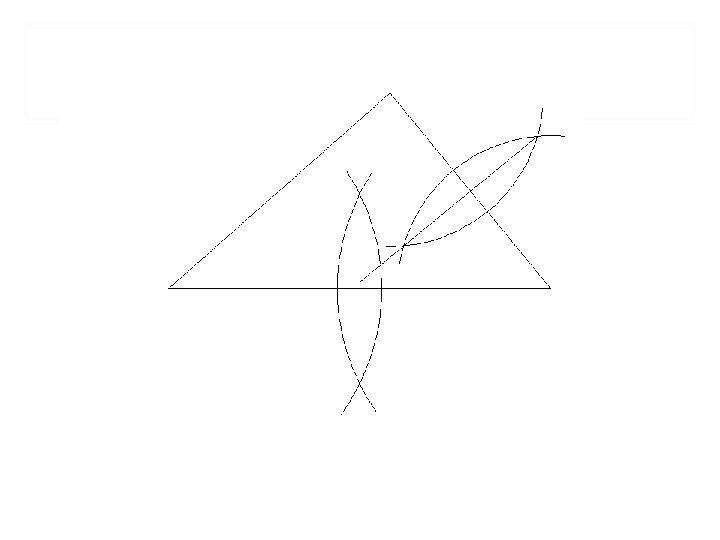

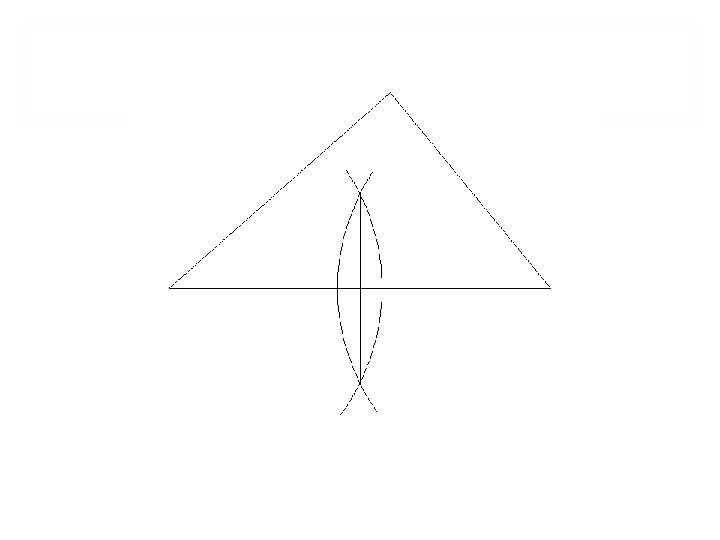

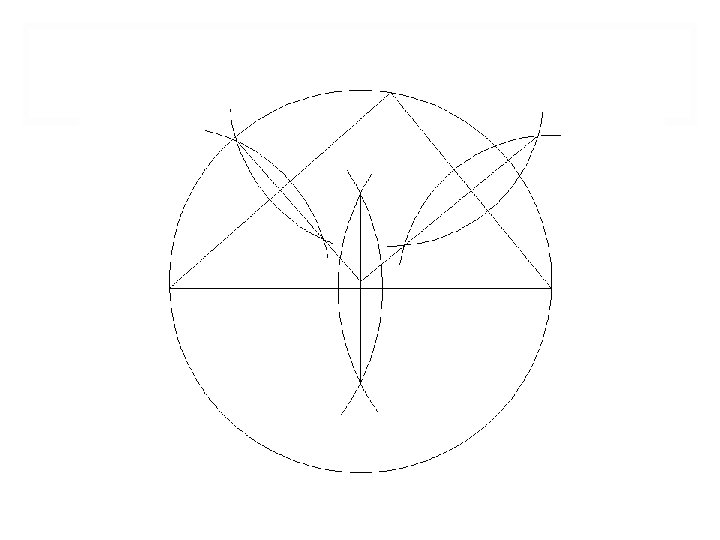

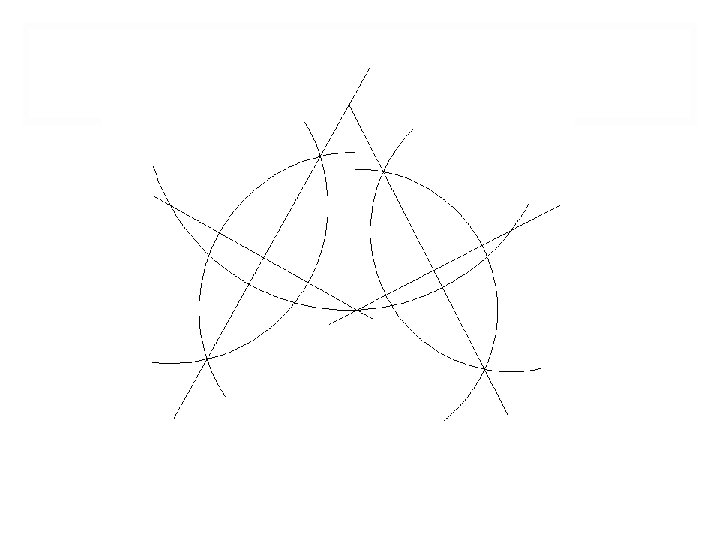

• To draw the circumscribing circle of a triangle. • Draw the given triangle ABC. Bisect any two of the sides and produce the bisectors to intersect at O. O is the center of the circumscribing circle.
