ENGINES VEHICLE HEAVY EQUIPMENT SAFETY INSPECTION CHECKLIST OF

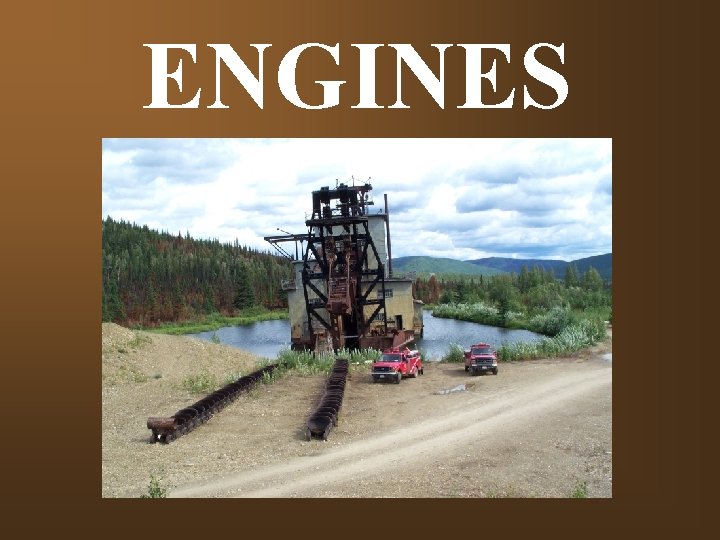

ENGINES

VEHICLE / HEAVY EQUIPMENT SAFETY INSPECTION CHECKLIST OF 296

ADDITIONAL FORMS

ADDITIONAL FORMS

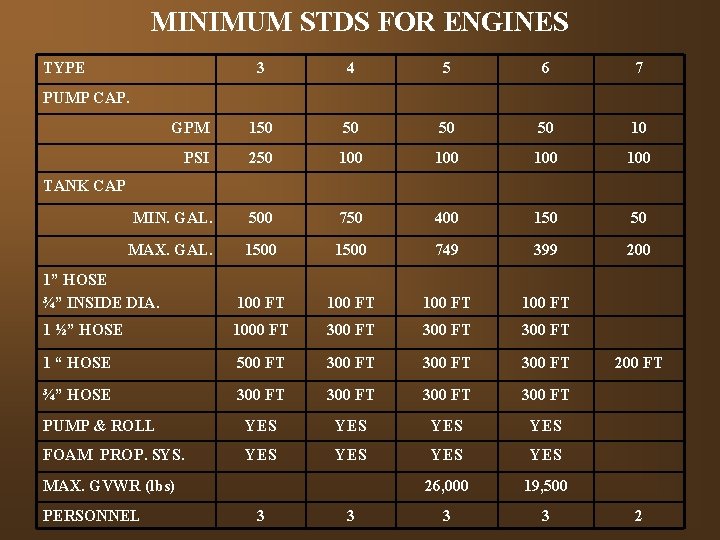

MINIMUM STDS FOR ENGINES TYPE 3 4 5 6 7 GPM 150 50 10 PSI 250 100 100 MIN. GAL. 500 750 400 150 50 MAX. GAL. 1500 749 399 200 1” HOSE ¾” INSIDE DIA. 100 FT 1 ½” HOSE 1000 FT 300 FT 1 “ HOSE 500 FT 300 FT ¾” HOSE 300 FT PUMP & ROLL YES YES FOAM PROP. SYS. YES YES 26, 000 19, 500 3 3 PUMP CAP. TANK CAP MAX. GVWR (lbs) PERSONNEL 3 3 200 FT 2

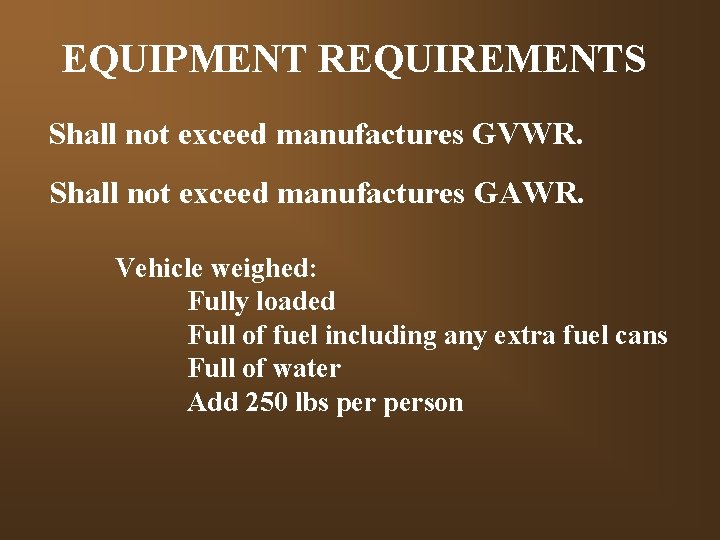

EQUIPMENT REQUIREMENTS Shall not exceed manufactures GVWR. Shall not exceed manufactures GAWR. Vehicle weighed: Fully loaded Full of fuel including any extra fuel cans Full of water Add 250 lbs person

Four wheel drive: Type 6 – Required Type 3, 4, &5 - Optional Tires: Load rating All season or mud & snow tread Minimum tread depths Spare tire

BACKUP ALARM

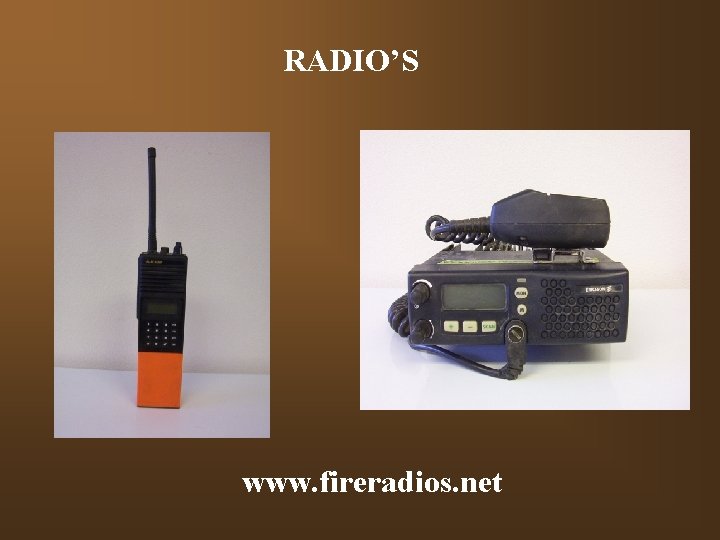

RADIO’S www. fireradios. net

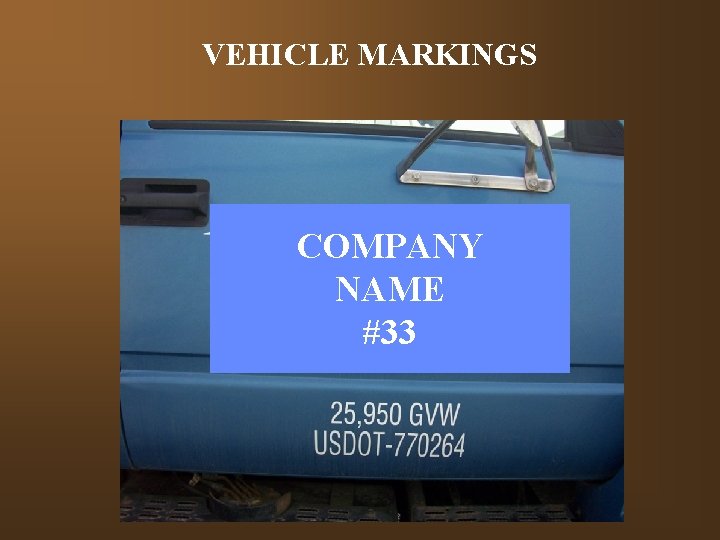

VEHICLE MARKINGS COMPANY NAME #33

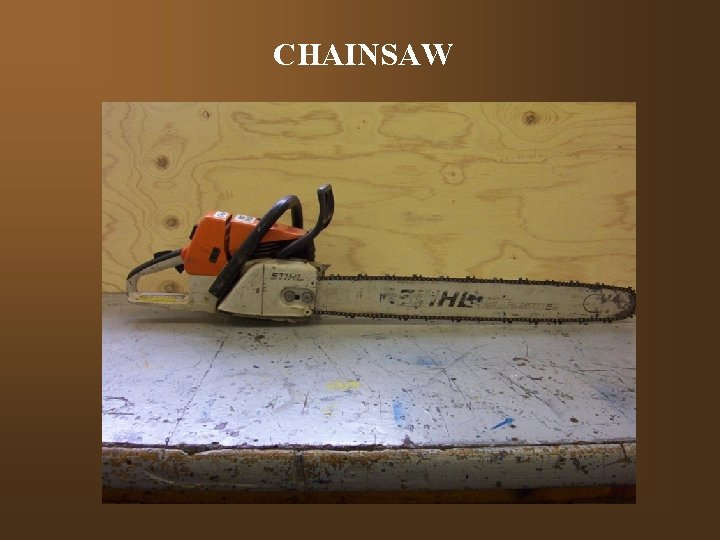

CHAINSAW

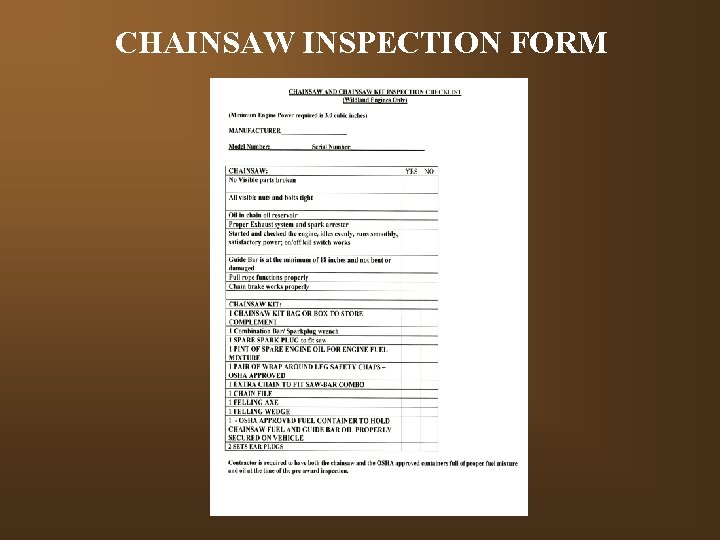

CHAINSAW INSPECTION FORM

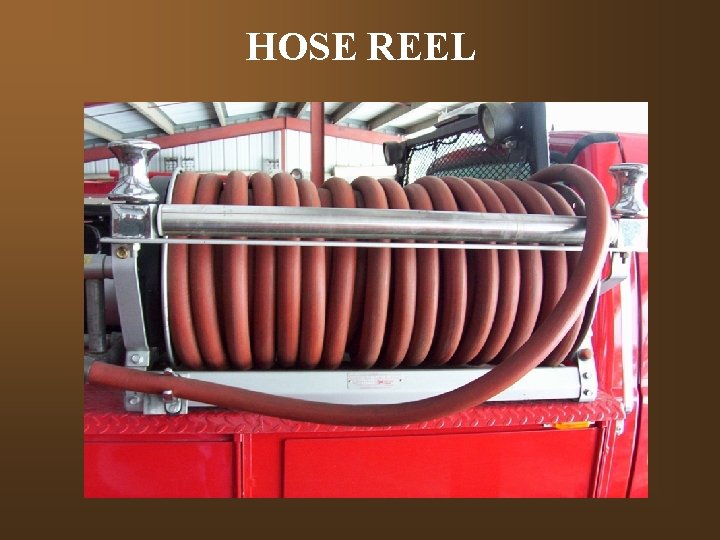

HOSE REEL

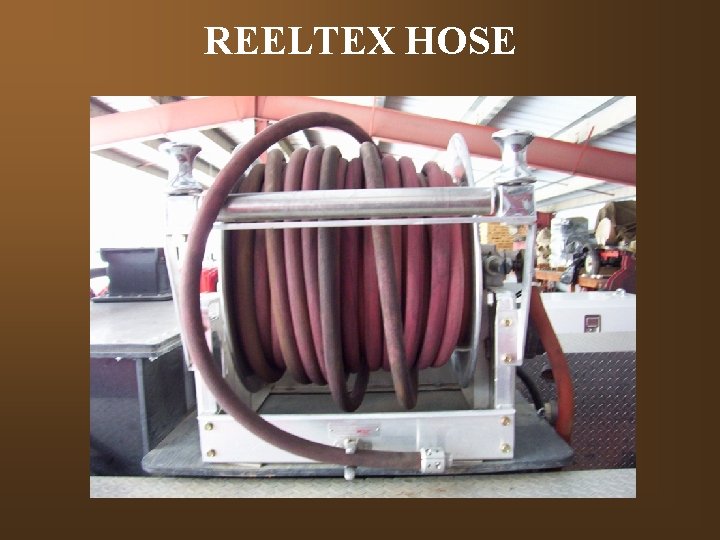

REELTEX HOSE

BAFFLING

TANK SECUREMENT

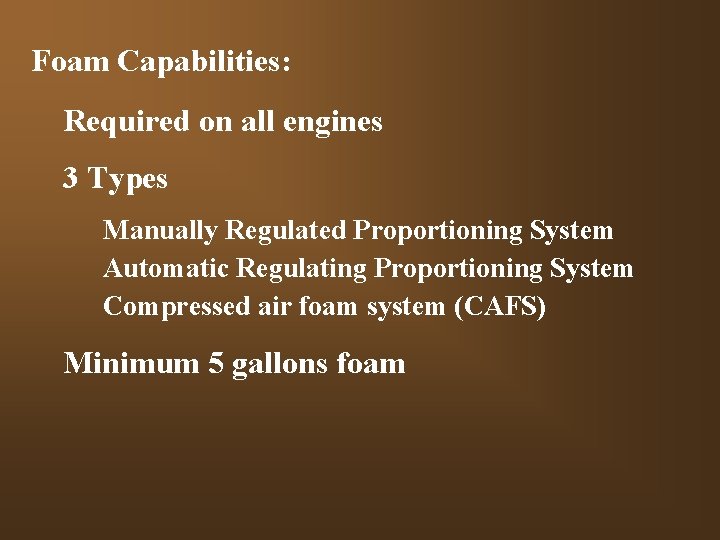

Foam Capabilities: Required on all engines 3 Types Manually Regulated Proportioning System Automatic Regulating Proportioning System Compressed air foam system (CAFS) Minimum 5 gallons foam

MANUALLY REGULATED PROPORTIONING SYSTEM A proportioning system that requires manual adjustment to maintain the proportioning ratio when there is a change of flow or pressure through the foam proportioner. Typical manually regulated foam systems include: Suction side proportioner In-line eductor Around-the- Pump Proportioner Direct injection manually regulated proportioners Examples: Blizzard Wizard Scotty Foam Inductor Foam Flo

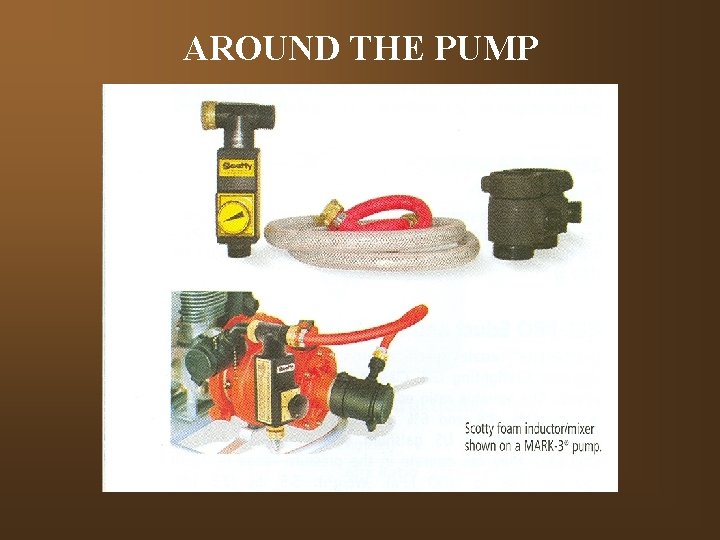

AROUND THE PUMP

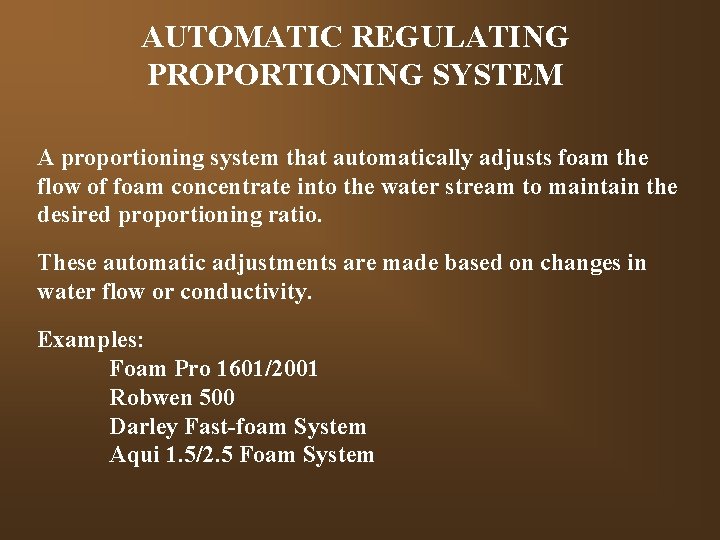

AUTOMATIC REGULATING PROPORTIONING SYSTEM A proportioning system that automatically adjusts foam the flow of foam concentrate into the water stream to maintain the desired proportioning ratio. These automatic adjustments are made based on changes in water flow or conductivity. Examples: Foam Pro 1601/2001 Robwen 500 Darley Fast-foam System Aqui 1. 5/2. 5 Foam System

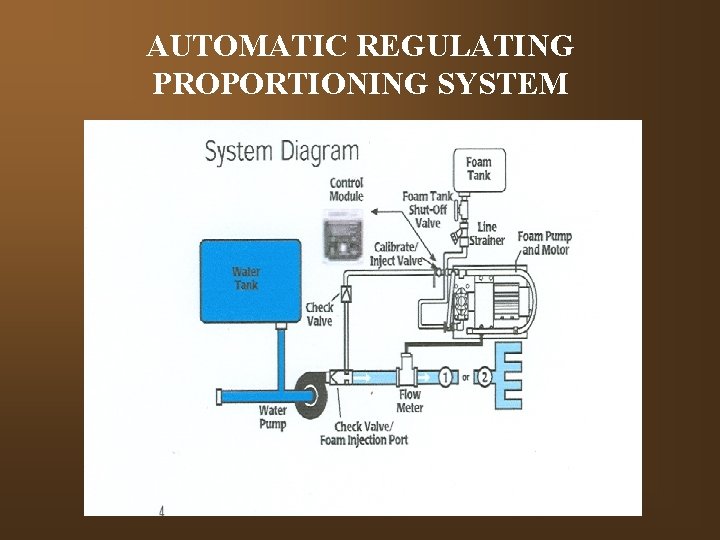

AUTOMATIC REGULATING PROPORTIONING SYSTEM

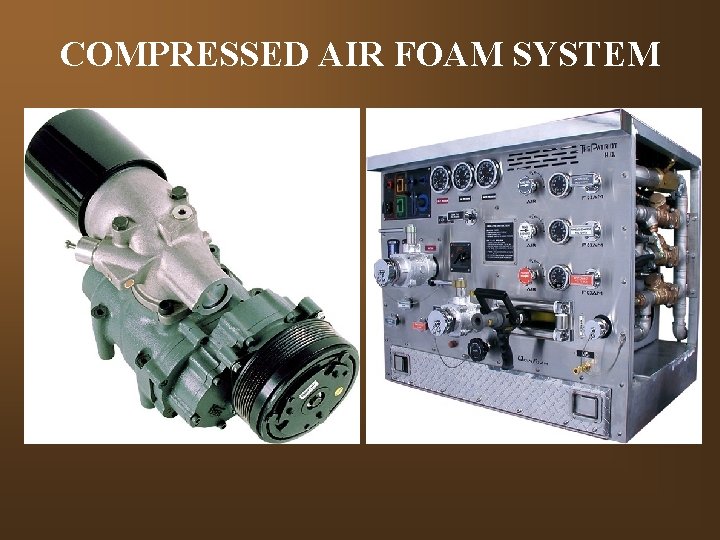

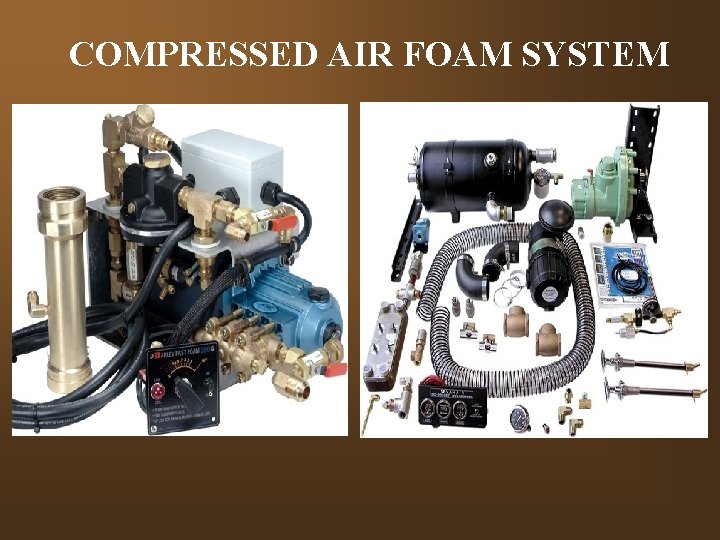

COMPRESSED AIR FOAM SYSTEM

COMPRESSED AIR FOAM SYSTEM

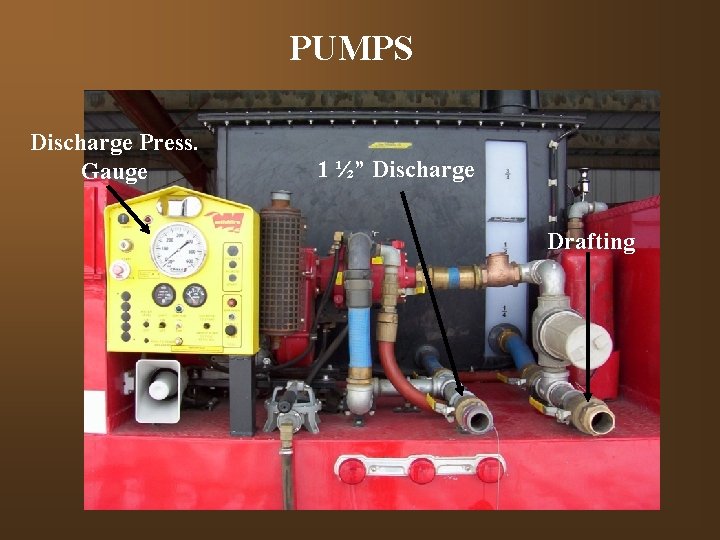

PUMPS Discharge Press. Gauge 1 ½” Discharge Drafting

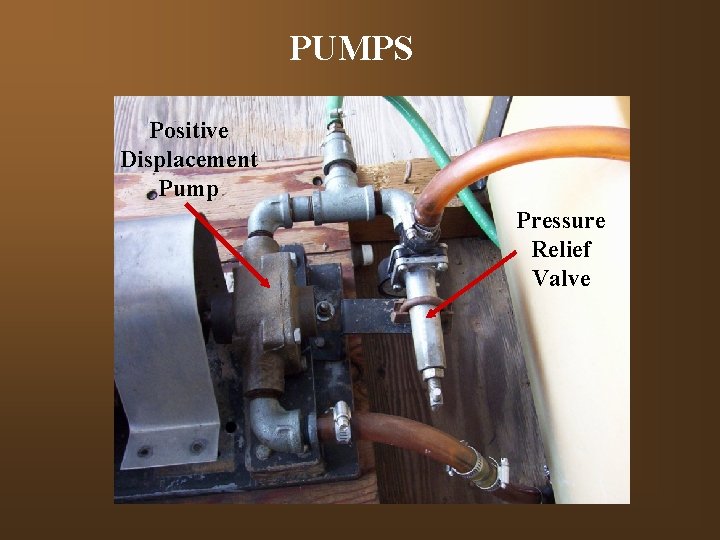

PUMPS Positive Displacement Pump Pressure Relief Valve

PUMP TEST KIT

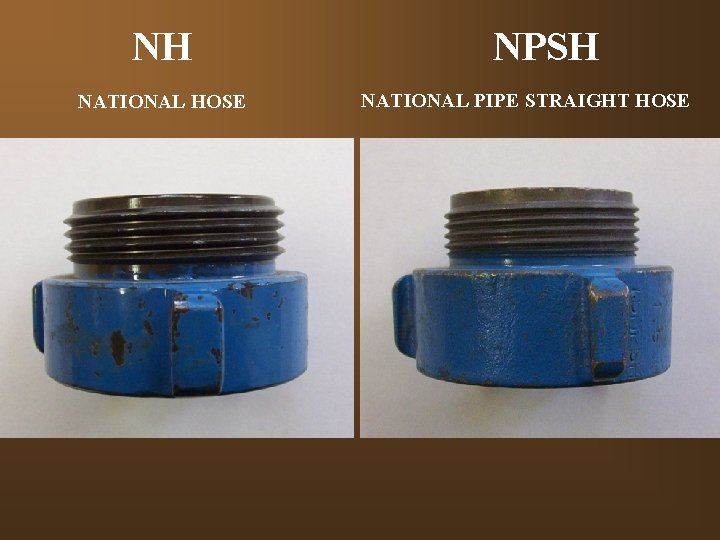

NH NATIONAL HOSE NPSH NATIONAL PIPE STRAIGHT HOSE

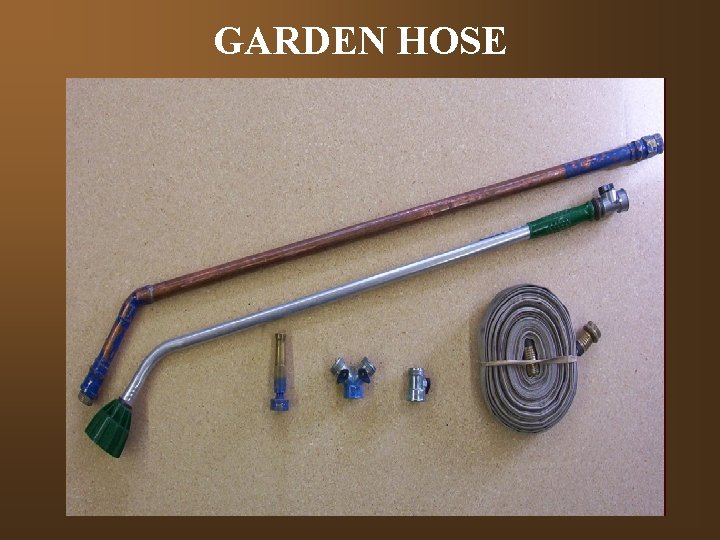

GARDEN HOSE

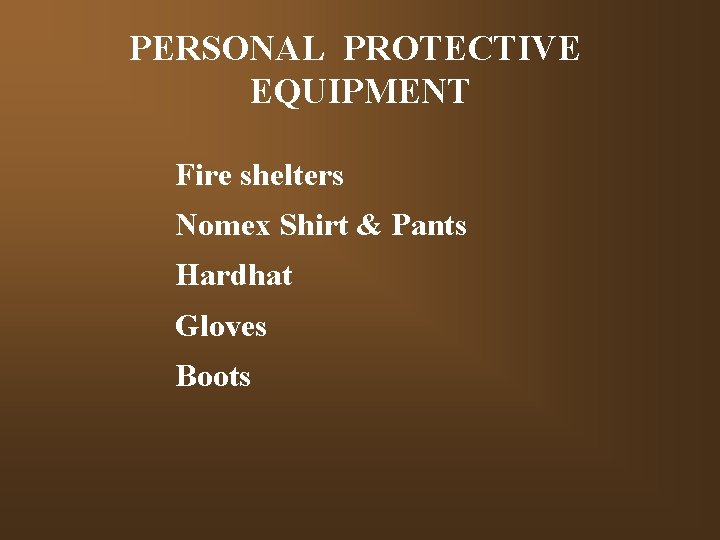

PERSONAL PROTECTIVE EQUIPMENT Fire shelters Nomex Shirt & Pants Hardhat Gloves Boots

OTHER PERSONAL EQUIPMENT REQUIRED Eye Protection Hearing Protection Headlamp Line Gear
