Engineering Education Methodology on Intelligent Control (Fuzzy Logic and Fuzzy Control) M. Yamakita Dept. of Mechanical and Control Systems Eng. Tokyo Inst. Of Tech. 11/22/2020 1
Natural Reasoning IF he/she is Tall, THEN his/her foot is Big. IF his/her foot is Big, THEN his/her shoe’s are Expensive. IF he is Tall, THEN his shoe’s are Expensive. IF he/she is Tall, THEN his/her foot is Big. Mr. Smith is Tall. Mr. Smith’s foot is Big. 11/22/2020 2
Crisp Expert System Inference (Reasoning) Condition part (Antecedent part) Conclusion (Operation part) A → B B → C A → C Formal Logic IF A THEN B IF B THEN C IF A THEN C Implication operator Hypothetical Syllogism 11/22/2020 A → B A B IF A THEN B A is true B is true Modus Ponens 3
Crisp Logic Tall 181cm (] Mr. A (] Mrs. B 170cm 177cm Short 11/22/2020 ( 4
IF he is Tall, THEN his foot is Big. Mrs. B is Tall. Mrs. B’s foot is Big. Mr. A is Very-Tall. × Mr. A is Very-Tall. Mr. A’s foot is Very-Big. Natural Reasoning 11/22/2020 5
Fuzzy Logic (Fuzzy Inference) B’ A’ A → B A’ B’ A → B IF A THEN B A’ is true B’ is true A → B B → C IF A THEN B IF B THEN C A’ → C’ IF A’ THEN C’ A → B A’ B’ B → C B’ A’ → C’ 11/22/2020 6
How To Realize Fuzzy Inference ? Introduction of membership function ! We consider a member of a set as well as the degree of the membership. Degree of property 100% 50% 30% ) 170 11/22/2020 Tall 180 190 Very Tall x Height 7
Representation of Fuzzy Set 1.Countable Set 2. Uncountable Set 11/22/2020 8
Example 1. Countable Case Membership Function 1. 0 0. 5 170 11/22/2020 Tall 180 190 Very Tall x Height 9
1. Uncountable Case Membership Function 1. 0 0. 5 170 11/22/2020 Tall 180 190 Very Tall x Height 10
Fuzzy Set Operations 1. Implication 2. Union 3. Intersection 4. Compliment 11/22/2020 11
Fuzzy Relation Definition [Fuzzy Relation] Let assume that X and Y are sets. Fuzzy relation R of X and Y is a fuzzy subset of X x Y as In general, 11/22/2020 fuzzy relation R of is 12
Composition of Relations Definition [Composition of Fuzzy Relations] Let R and S are fuzzy relations, i. e. , Composition of fuzzy relations, R and S, is a fuzzy set defined by R X If A is a fuzzy set and R is a fuzzy relation, 11/22/2020 S Z Y is 13

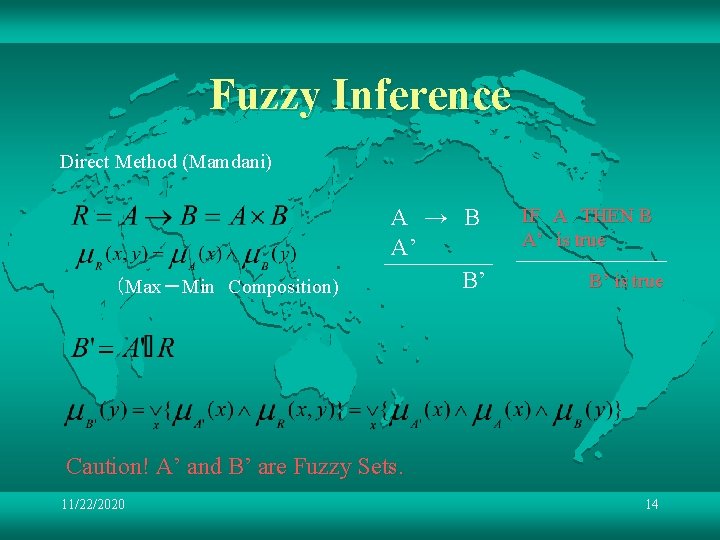

Fuzzy Inference Direct Method (Mamdani) (Max-Min Composition) A → B A’ B’ IF A THEN B A’ is true B’ is true Caution! A’ and B’ are Fuzzy Sets. 11/22/2020 14
If he/she is tall then his/her foot is big. He is very tall. If he/she is tall then his/her foot is big. He is 178 cm tall. A’ is not fuzzy set or Defuzzy value 11/22/2020 A=Tall B=Big A’=Very Tall A=Tall B=Big A’=178 B’ is still Fuzzy Set 15
Fuzzy Control Rules A 1 and y is = B 1 then z is C 1 Rule 2 : If x is A 2 and y is = B 2 then z is C 2 Rule 1 : If x is . Rule n : If x is Input x is Output o A 11/22/2020 . A nand y is = B n and y is then z is C n o B 16
Defuzzication Control Input is Number Defuzzication If x and y are defuzzy values, 11/22/2020 17 This operation is sometimes replaced by x (multiplication)
Triangular Membership Function NB NM NS ZO PS PM PB 1 -1 Example R 1: If x is NS, and y is PS, then z is PS R 2: If x is ZO, and y is ZO, then z is ZO NS PS PS R 1 PS ZO ZO ZO R 2 11/22/2020 18
Simplification NS PS PS R 1 PS ZO ZO ZO R 2 Further Simplification (Height Method) NS PS PS R 1 PS ZO ZO ZO R 2 11/22/2020 19
TS(Takegaki-Sugeno)Model 1. 2. 3. Singleton Fuzzifier Product Inference Weighted Average Deffuzifier PM PS PS R 3 PS PS PS R 4 11/22/2020 20
References 1. 2. 3. S. Murakami: Fuzzy Control , Vol. 22, Computer and Application’s Mook, Corona Pub. (1988) in Japanese K. Hirota: Fuzzy !? , Inter AI (Aug, 88 -June, 90) in Japanese S. S. Farinwata et. Ed. : Fuzzy Control, Wiley (2000) 11/22/2020 21
