Engineering Surveying Civil Engineering Architecture Unit 4 Site

Engineering Surveying Civil Engineering & Architecture Unit 4 Site Planning

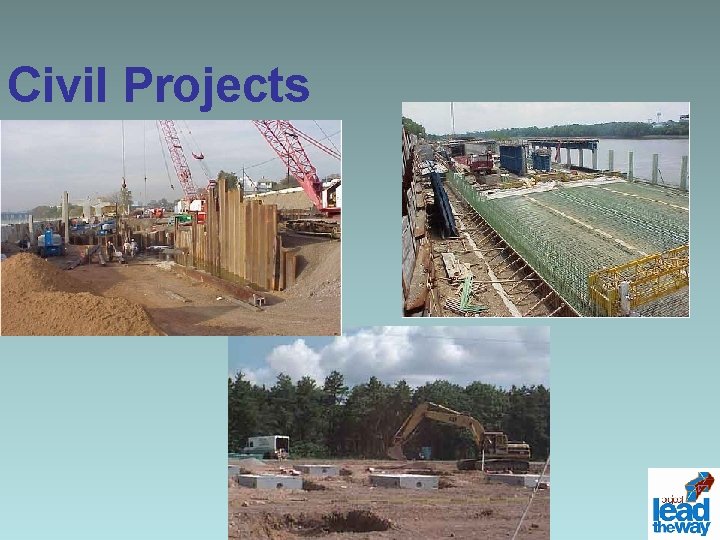

Civil Projects

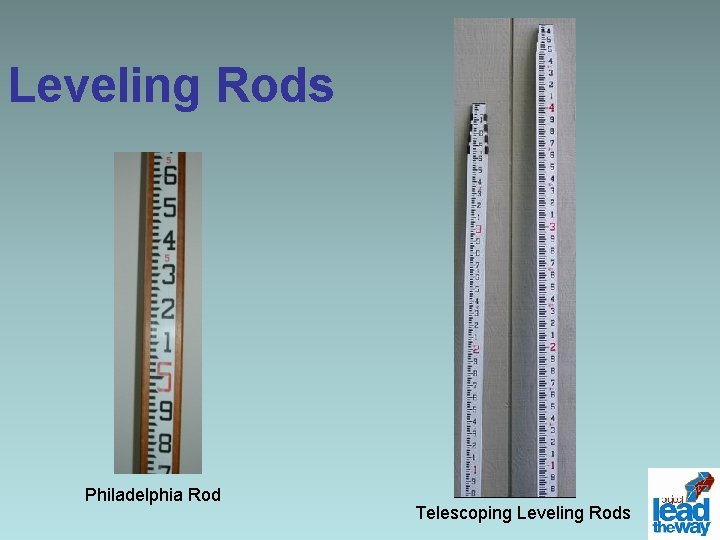

Leveling Rods Philadelphia Rod Telescoping Leveling Rods

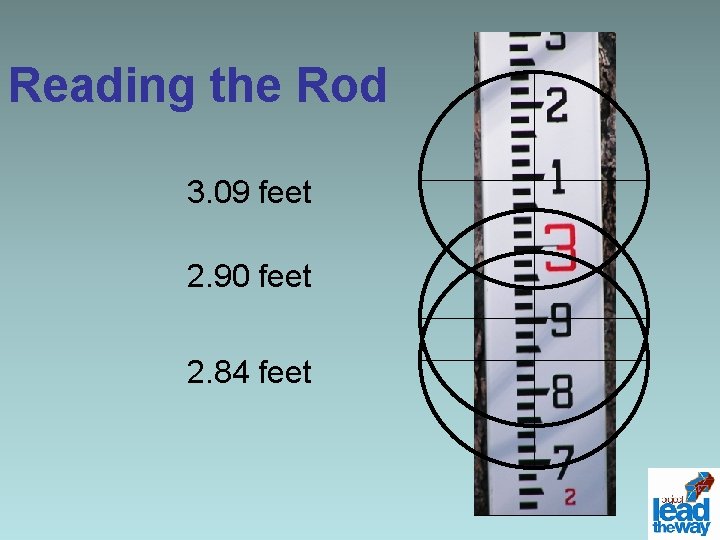

Reading the Rod 3. 09 feet 2. 90 feet 2. 84 feet

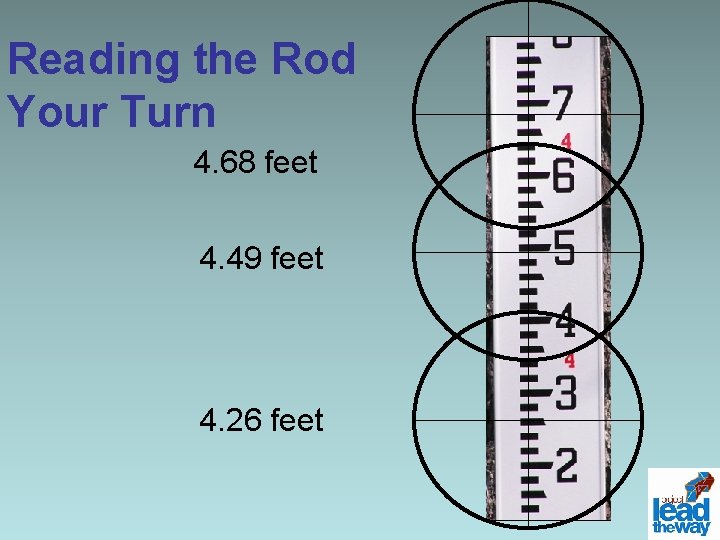

Reading the Rod Your Turn 4. 68 feet 4. 49 feet 4. 26 feet

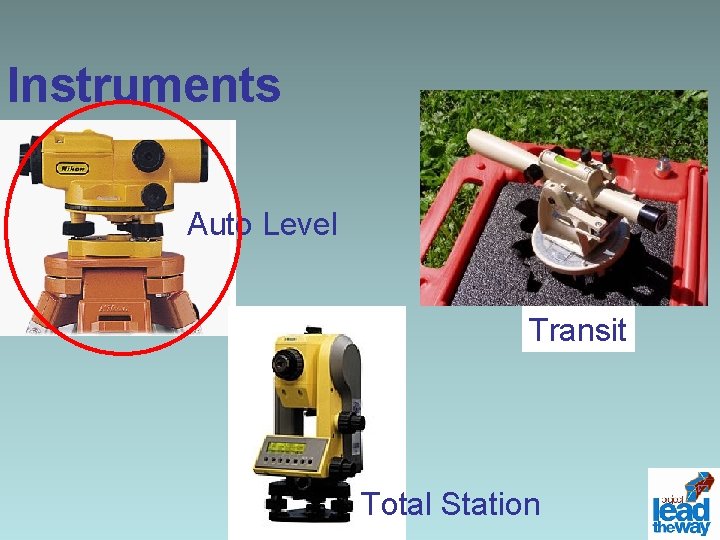

Instruments Auto Level Transit Total Station

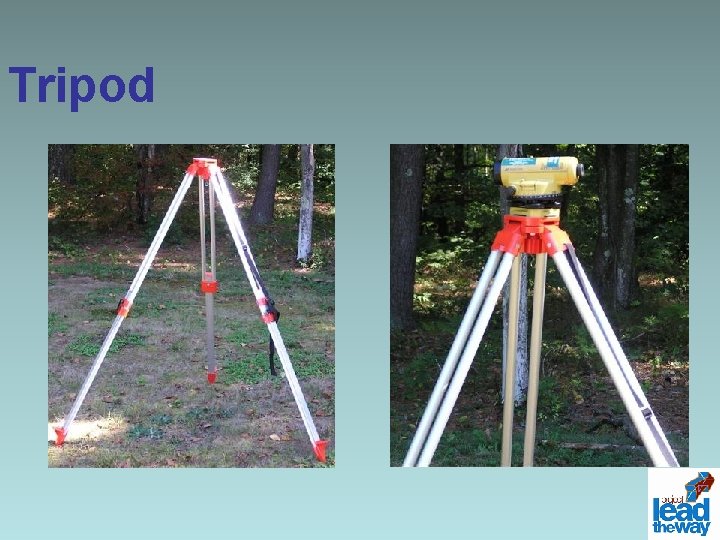

Tripod

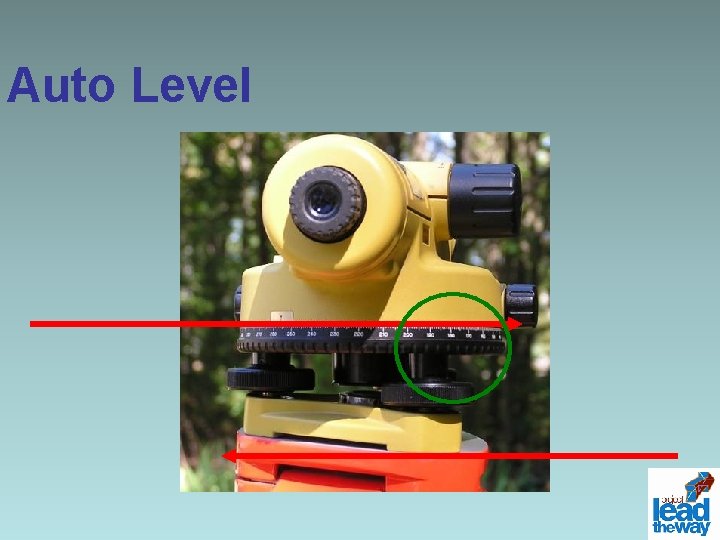

Auto Level

Set up and Stabilize Tripod

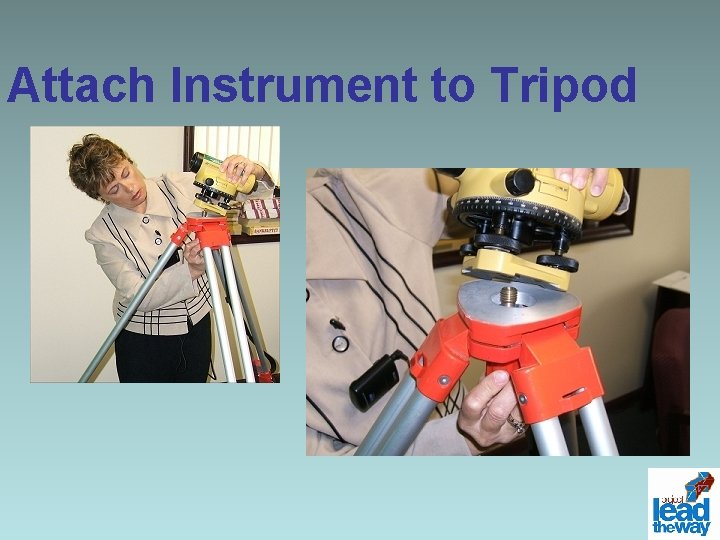

Attach Instrument to Tripod

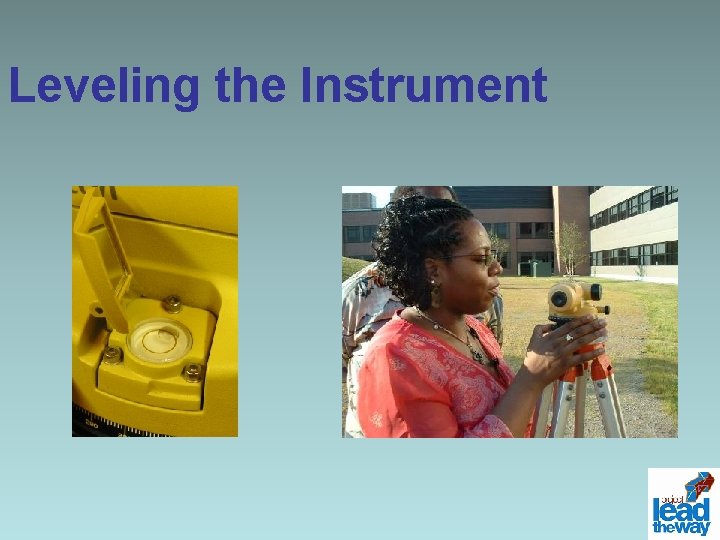

Leveling the Instrument

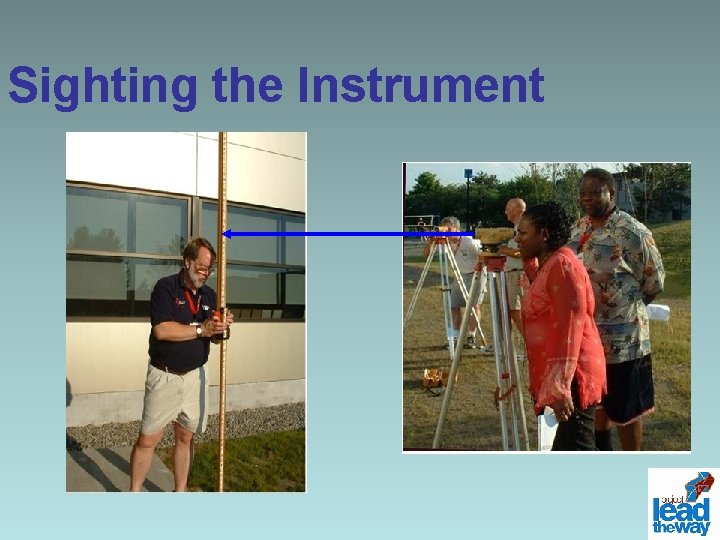

Sighting the Instrument

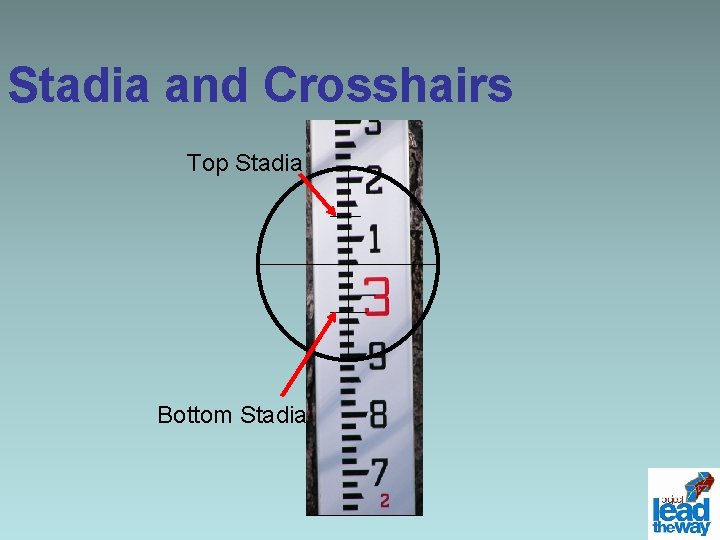

Stadia and Crosshairs Top Stadia Bottom Stadia

Surveyor’s Field Notes

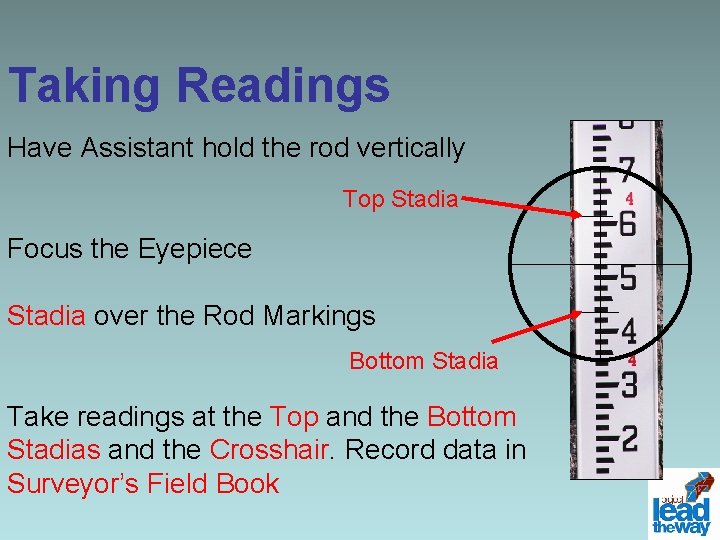

Taking Readings Have Assistant hold the rod vertically Top Stadia Focus the Eyepiece Stadia over the Rod Markings Bottom Stadia Take readings at the Top and the Bottom Stadias and the Crosshair. Record data in Surveyor’s Field Book

Terms 1 Benchmark (BM): a permanent, marked point of known elevation Temporary Benchmark (TBM): a semipermanent point of established elevation used on the specific job Point of Reference (POR): Either the benchmark or the Temporary Benchmark chosen for this job

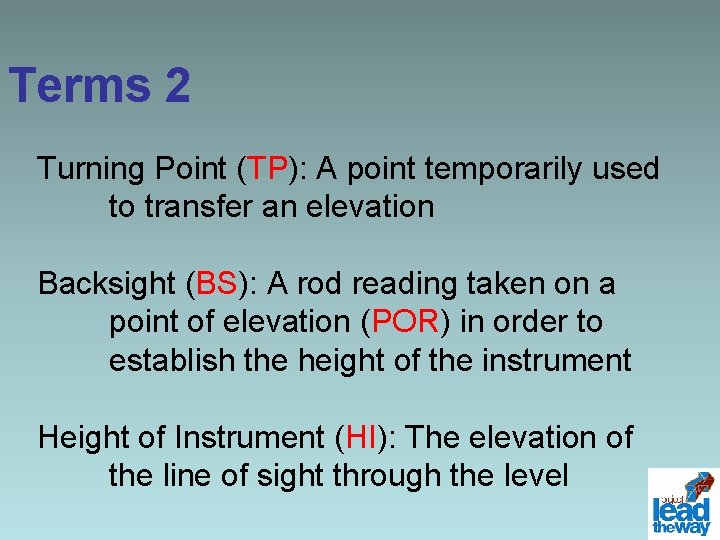

Terms 2 Turning Point (TP): A point temporarily used to transfer an elevation Backsight (BS): A rod reading taken on a point of elevation (POR) in order to establish the height of the instrument Height of Instrument (HI): The elevation of the line of sight through the level

Terms 3 Foresight (FS): A rod reading taken from a turning point, or a point of reference to an identified point to establish elevation

Approximating Angles

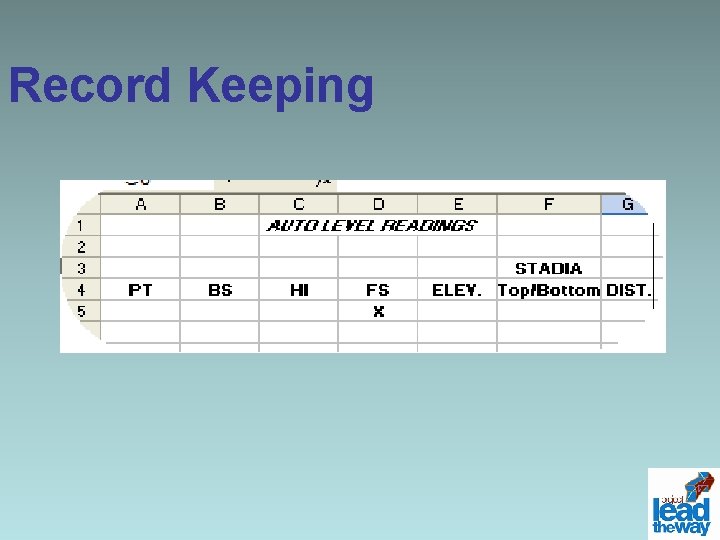

Record Keeping

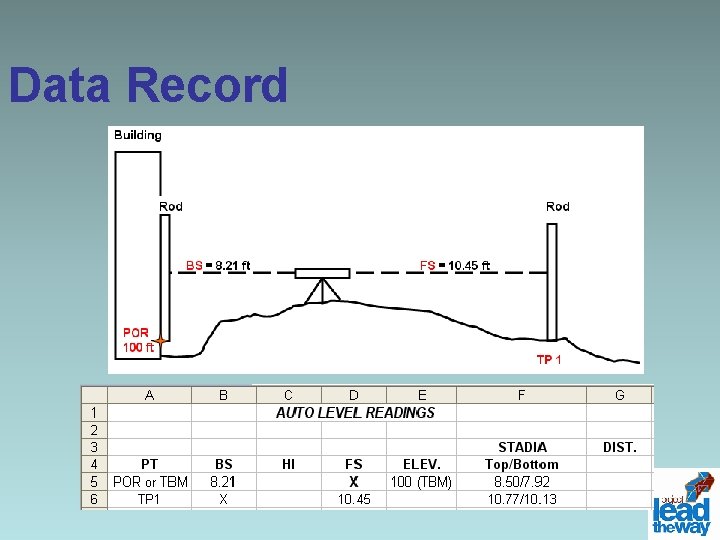

Data Record

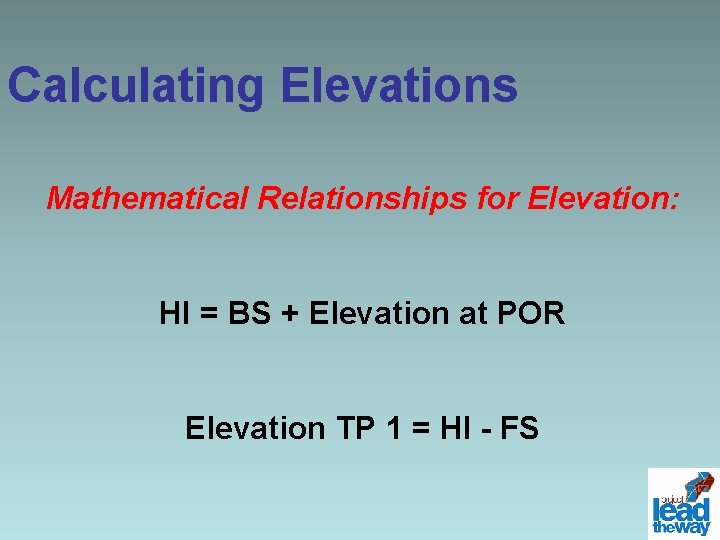

Calculating Elevations Mathematical Relationships for Elevation: HI = BS + Elevation at POR Elevation TP 1 = HI - FS

Calculating Elevations

ONLY AN APPROXIMATION! Horizontal Distance Using Stadia Horizontal distance = (Top Stadia – Bottom Stadia) x Stadia Ratio Distance from POR to TP = (8. 50 -7. 92) x 100 = 58 ft Distance from TP to TP 1 = (10. 77 -10. 13)x 100 = 64 ft
