Engineering of Computer-Based Systems Dr. Perry Alexander Associate Professor alex@ittc. ukans. edu http: //www. ittc. ukans. edu/~alex Information and Telecommunications Technology Center The University of Kansas
Applied Formal Methods Using Modeling to Develop Reliable Systems A Problem to solve, but how? First, define the problem. . . Mathematics defines precisely x: T • P(x) / Q(x) / R(x). . . …then, design the solution, . . . Mathematical Modeling predicts behaviors x: T • P(x)=> z: T • Q(x, z). . . …build all the pieces. . . {P 1(x)}C 1{Q 1(x, z)}, {P 2(x)}C 2{Q 2(x, z Mathematics defines the pieces …and assemble the system. . . Ip(x)=>Ic(x) / Oc(x, z)=>Op(x Mathematics defines correctness A Great Computer-Based System Information and Telecommunications Technology Center The University of Kansas 2

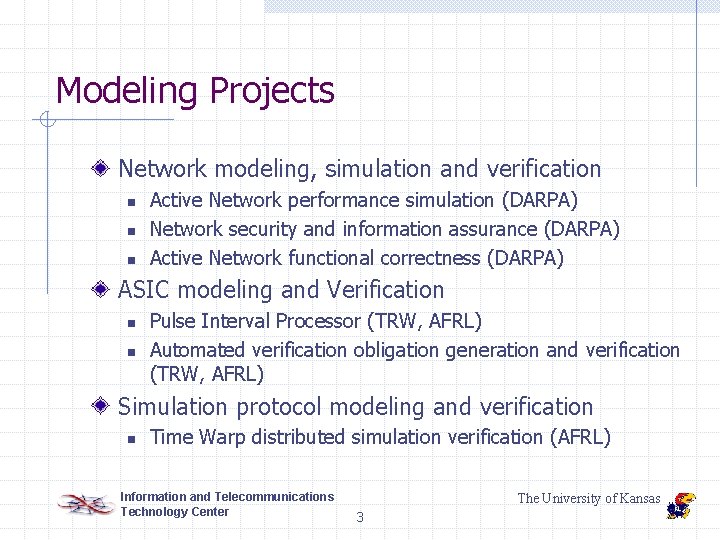

Modeling Projects Network modeling, simulation and verification n Active Network performance simulation (DARPA) Network security and information assurance (DARPA) Active Network functional correctness (DARPA) ASIC modeling and Verification n n Pulse Interval Processor (TRW, AFRL) Automated verification obligation generation and verification (TRW, AFRL) Simulation protocol modeling and verification n Time Warp distributed simulation verification (AFRL) Information and Telecommunications Technology Center The University of Kansas 3
Systems Level Design Integrating information from multiple domains into design decision making P=10 u. W+5 u. W+. . . Architecture x of CPU is begin x <= fir(y); wait for x’event end x; X <= F(y) after 5 us Fu nc er w Po tio n ing m i T Packa ging Reliabilit Cost Information and Telecommunications Technology Center y The University of Kansas 4
Systems Level Design Projects Rosetta language design and tool support n n n Systems level modeling language (Aver. Star, VHDL International, AFRL, DARPA, NASA) Automated Test Vector Generation (TRW, AFRL) Mechanical system redesign demonstration (AFRL) Bluetooth demonstration project ongoing (Texas Instruments, Aver. Star) Language Standardization to begin next year http: //www. sldl. org VSPEC and VHDL modeling and verification n n Pulse Interval Processor modeling and verification (TRW, AFRL) Common Signal Processor modeling (TRW, AFRL) Information and Telecommunications Technology Center The University of Kansas 5
Architecture and Component Reuse IP Reuse of existing software and hardware components Input Component • Define components and their interconnections in an architecture • Verify the high level architecture • Find component instances • Use formal methods to match components • Use formal methods to adapt components • Component reuse with confidence! Component Information and Telecommunications Technology Center Output The University of Kansas 6
Component Reuse and Retrieval Component reuse system n n Retrieval and reuse of VSPEC annotated VHDL designs (DARPA) Retrieval and reuse of Rosetta annotated system components (EDAptive Computing, DARPA) Legacy component and replacement n Retrieval and reuse of components based on match with existing legacy systems (EDAptive Computing, ONR) Information and Telecommunications Technology Center The University of Kansas 7
Other Activities… Commercialization efforts n n Rosetta – Accellera, Texas Instruments, Averstar and many others… Component Retrieval and Reuse – EDAptive Computing, TRW and others… Vice Chair, IEEE Engineering of Computer-Based Systems Engineering TC Member, IEEE Design Automation Standards Committee Chair, Accellera SLDL Language Subcommittee Member, DARPA 21 st Century Engineering Consortium on Formal Methods Education Information and Telecommunications Technology Center The University of Kansas 8
