Engineering Mathematics Complex Variables Applications Chapter 3 wszhengieee

Engineering Mathematics Complex Variables & Applications Chapter 3 郑伟诗 wszheng@ieee. org, http: //sist. sysu. edu. cn/~zhwshi/

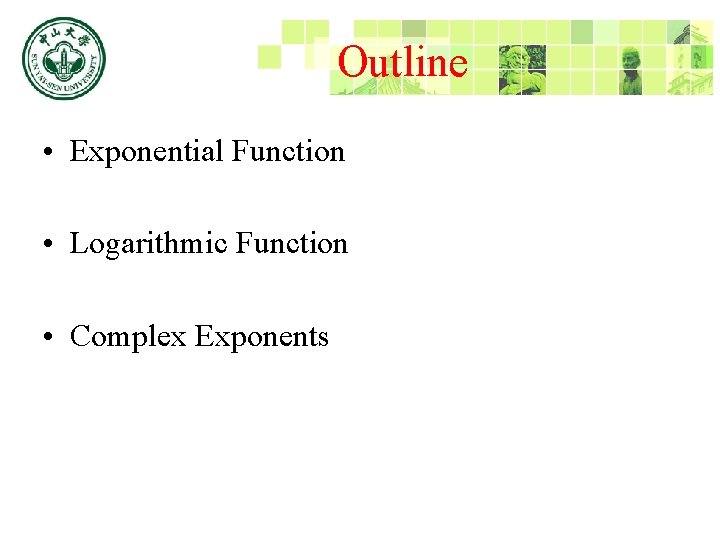

Outline • Exponential Function • Logarithmic Function • Complex Exponents

Exponential Function Definition: Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 3 3

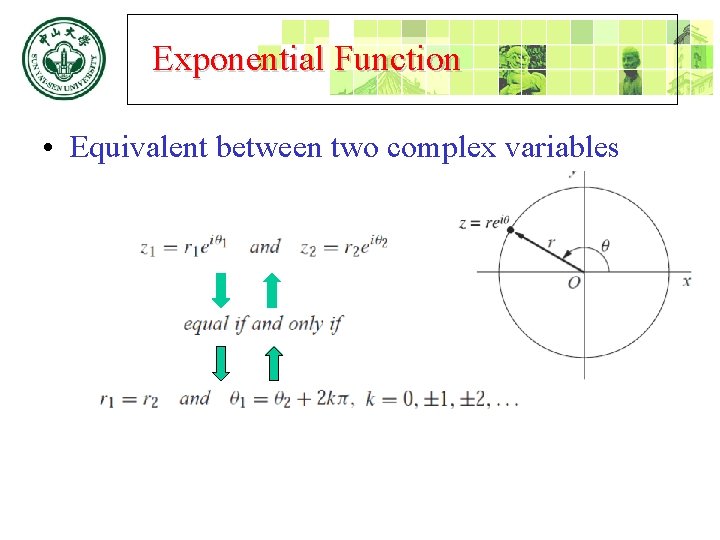

Exponential Function • Equivalent between two complex variables

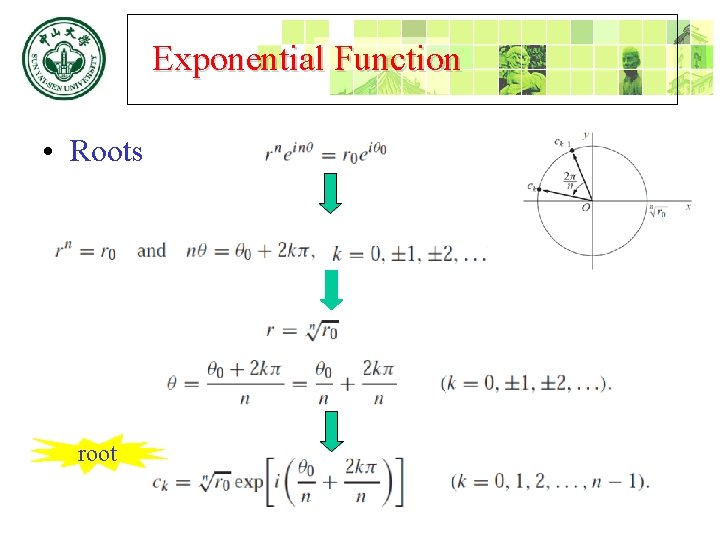

Exponential Function • Roots root

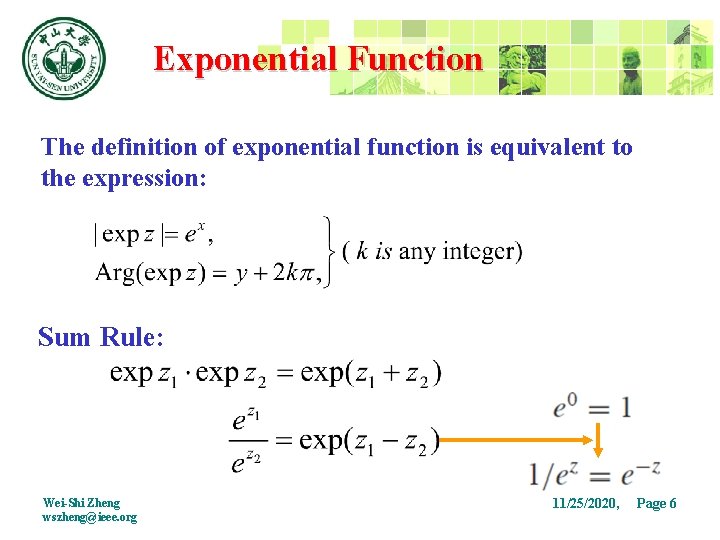

Exponential Function The definition of exponential function is equivalent to the expression: Sum Rule: Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 6 6

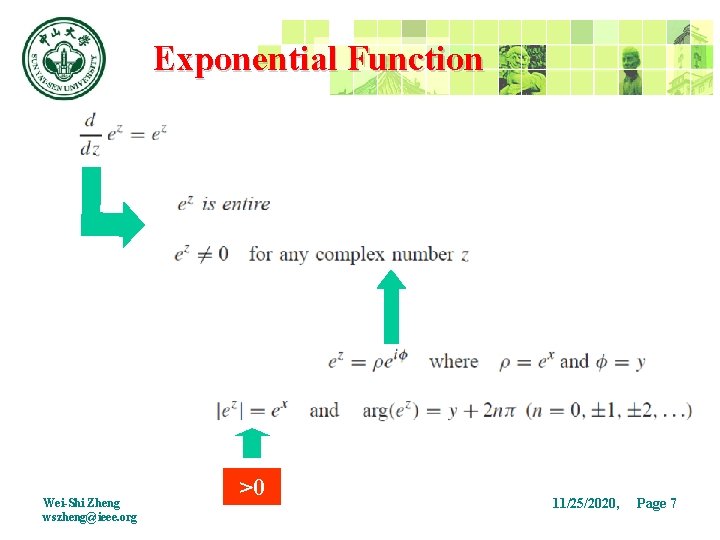

Exponential Function Wei-Shi Zheng wszheng@ieee. org >0 11/25/2020, Page 7

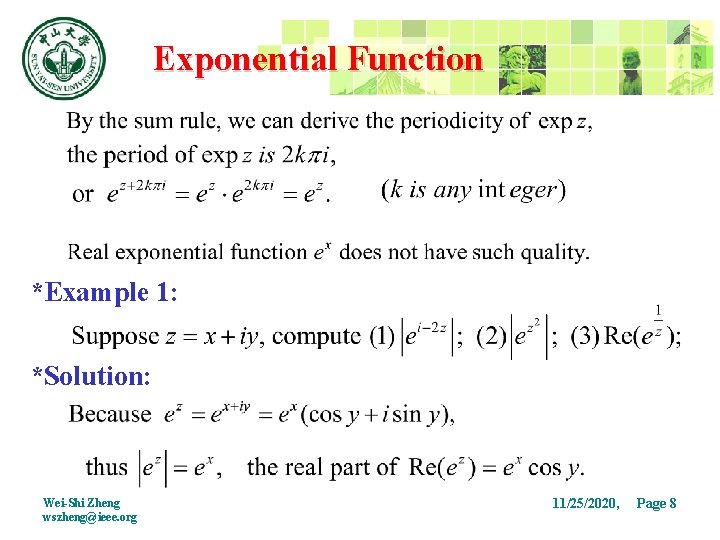

Exponential Function *Example 1: *Solution: Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 8

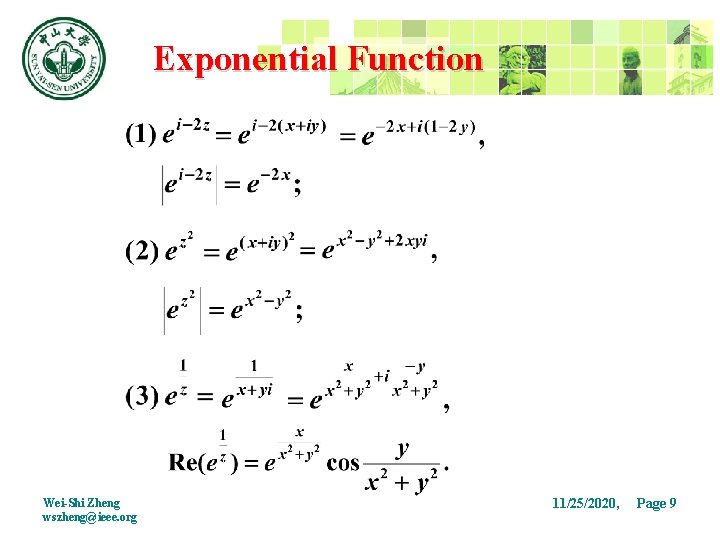

Exponential Function Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 9 9

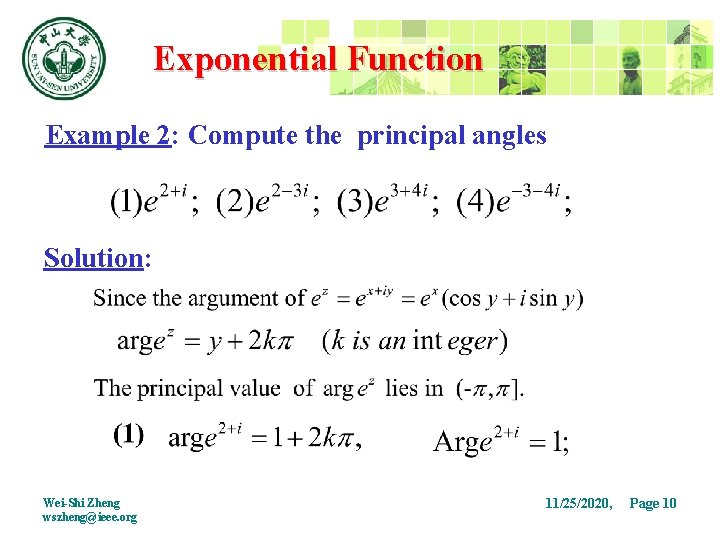

Exponential Function Example 2: Compute the principal angles Give the principal value of argument: Solution: Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 10 10

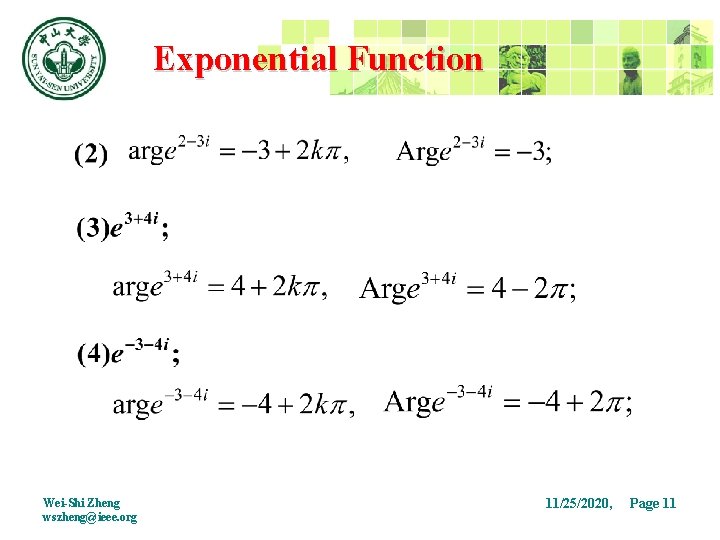

Exponential Function Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 11 11

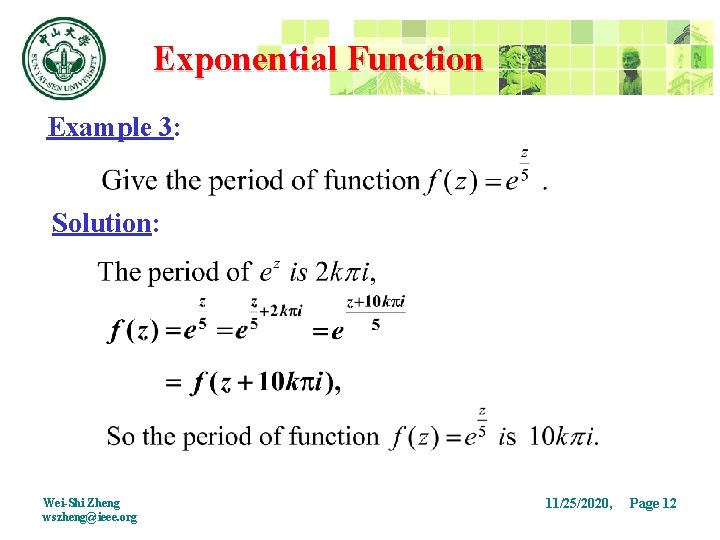

Exponential Function Example 3: Solution: Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 12

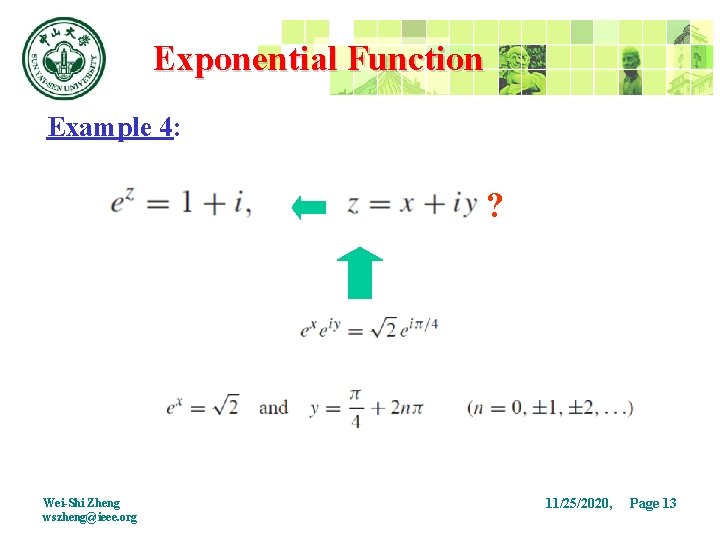

Exponential Function Example 4: ? Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 13

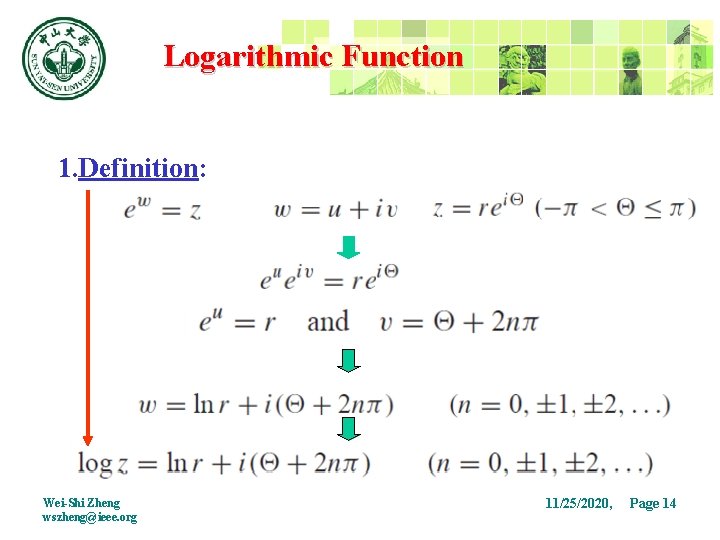

Logarithmic Function 1. Definition: Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 14 14

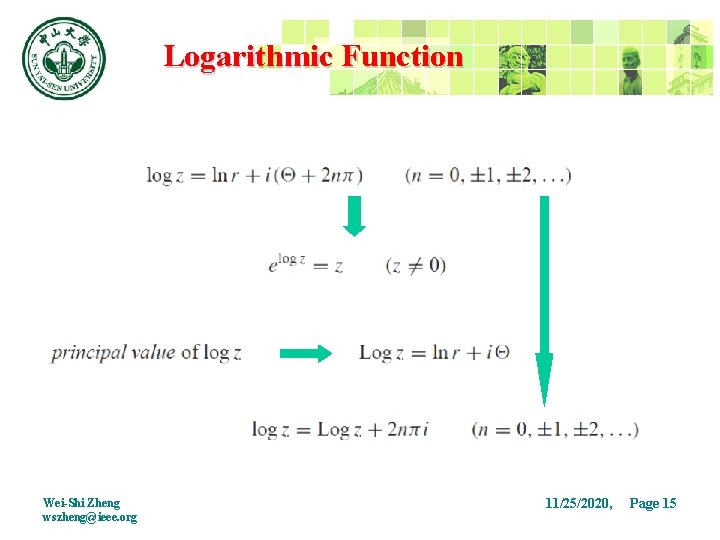

Logarithmic Function Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 15

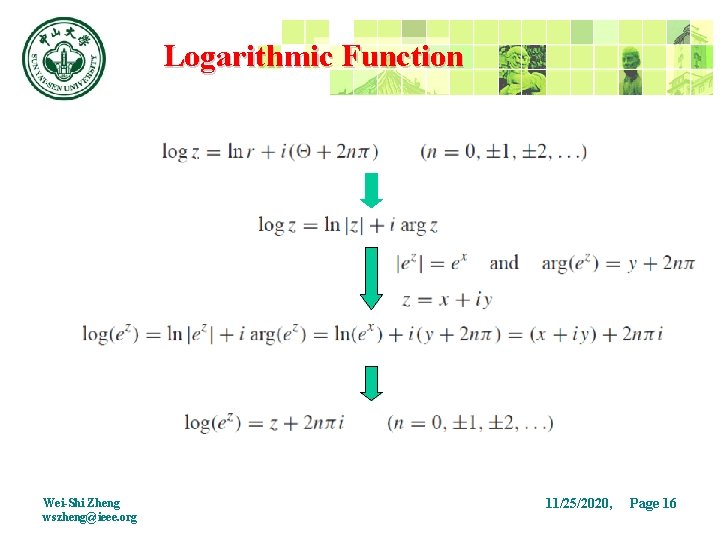

Logarithmic Function Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 16

Logarithmic Function Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 17

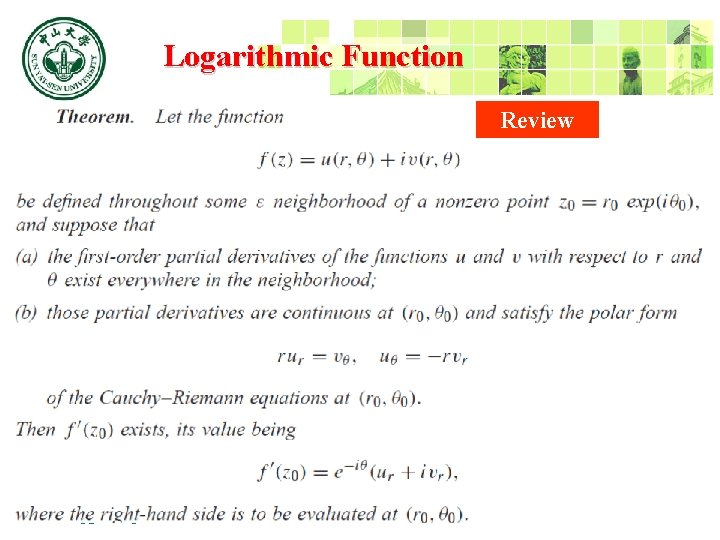

Logarithmic Function Review Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 18

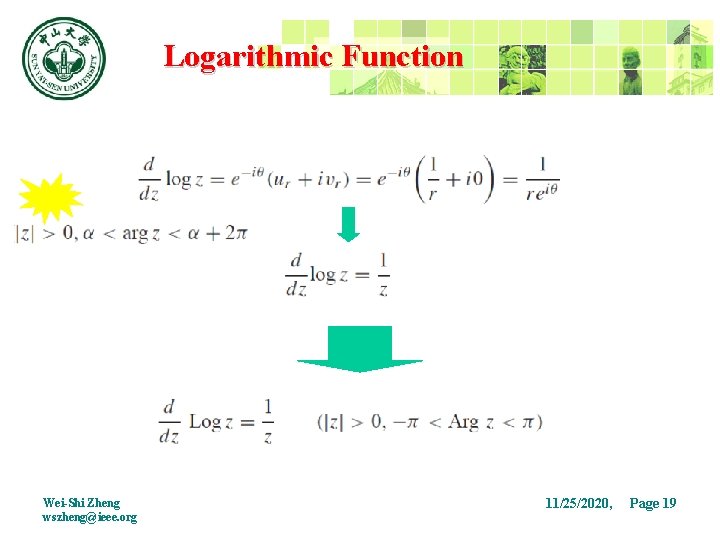

Logarithmic Function Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 19

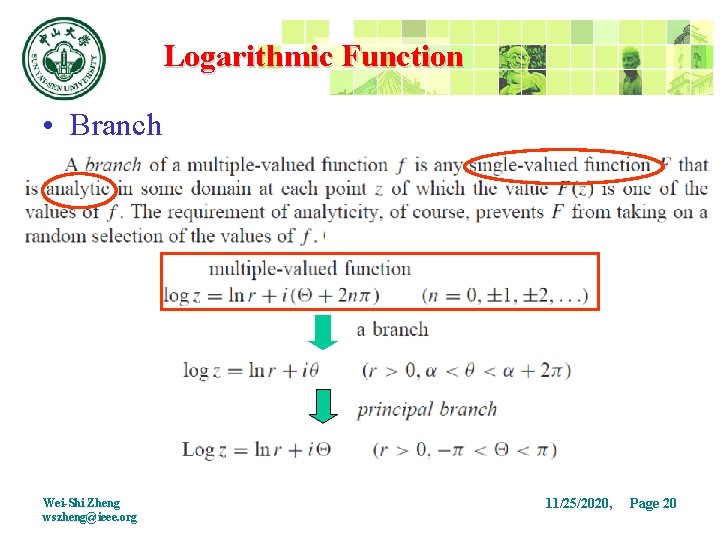

Logarithmic Function • Branch Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 20

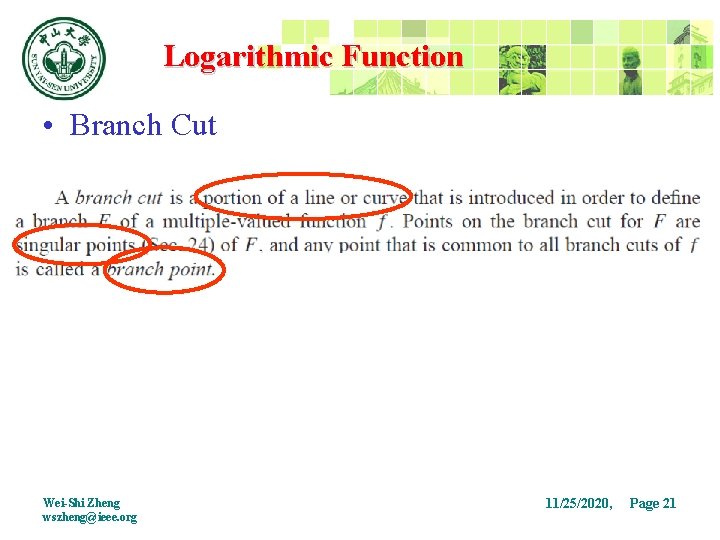

Logarithmic Function • Branch Cut Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 21

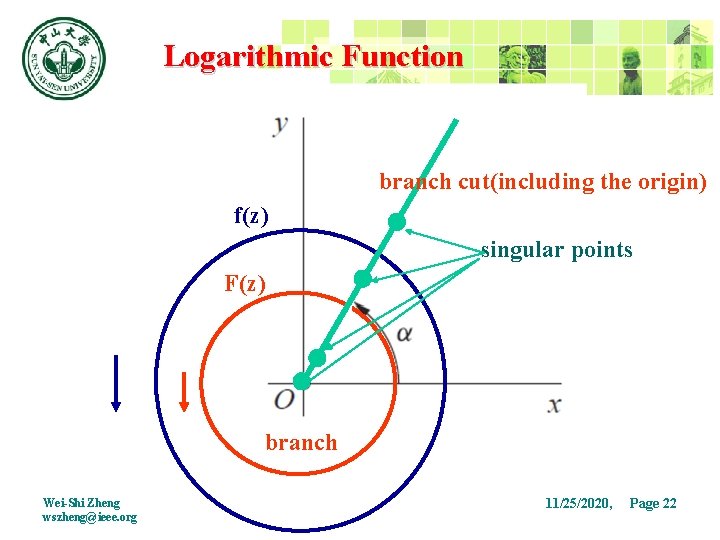

Logarithmic Function branch cut(including the origin) f(z) singular points F(z) branch Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 22

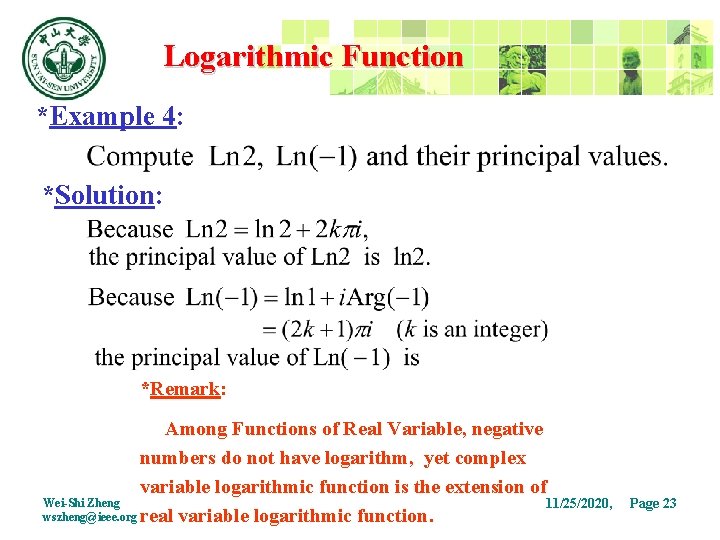

Logarithmic Function *Example 4: *Solution: *Remark: Among Functions of Real Variable, negative numbers do not have logarithm, yet complex variable logarithmic function is the extension of Wei-Shi Zheng 11/25/2020, wszheng@ieee. org real variable logarithmic function. Page 23 23

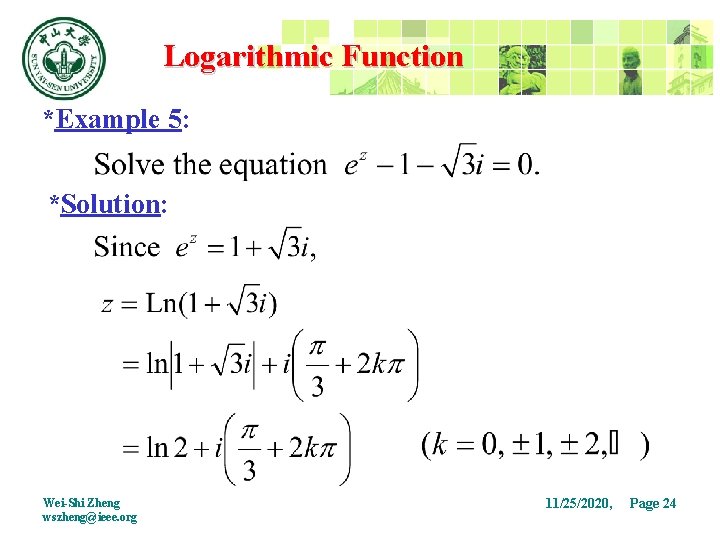

Logarithmic Function *Example 5: *Solution: Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 24 24

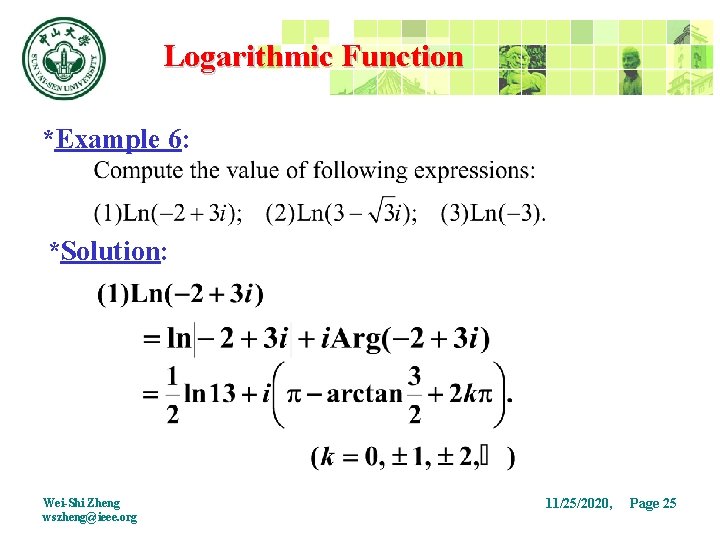

Logarithmic Function *Example 6: *Solution: Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 25 25

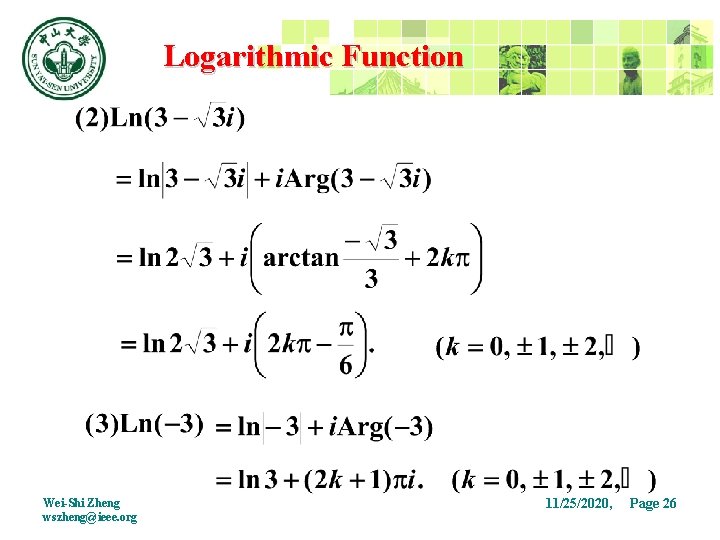

Logarithmic Function Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 26 26

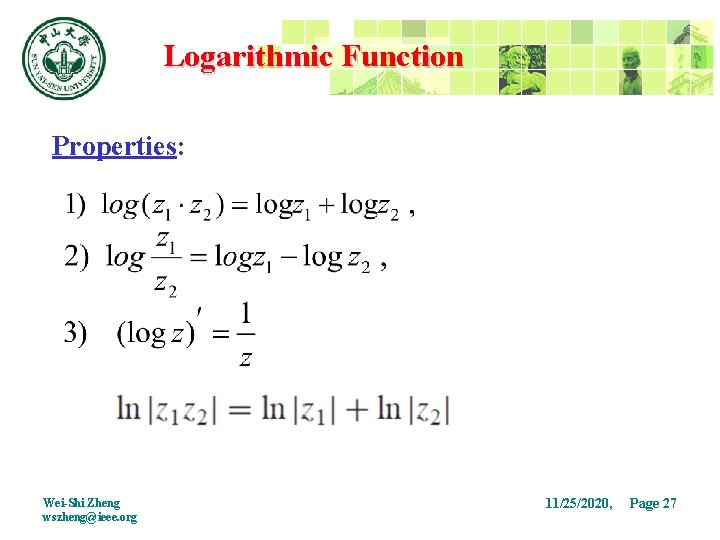

Logarithmic Function Properties: Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 27 27

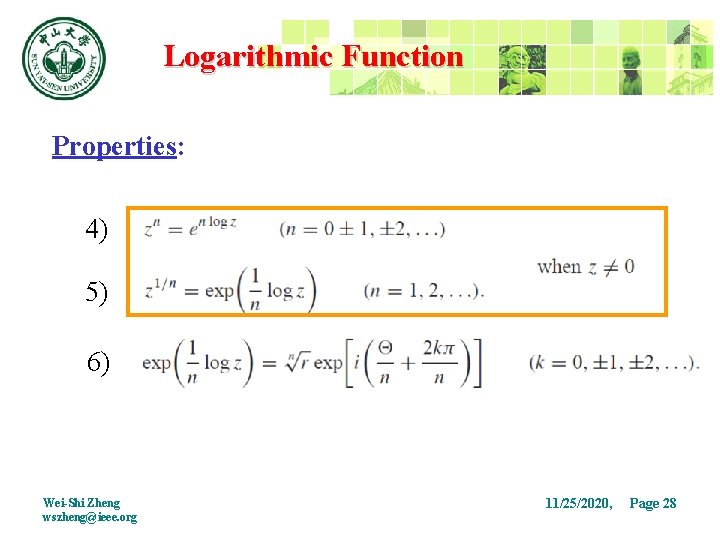

Logarithmic Function Properties: 4) 5) 6) Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 28 28

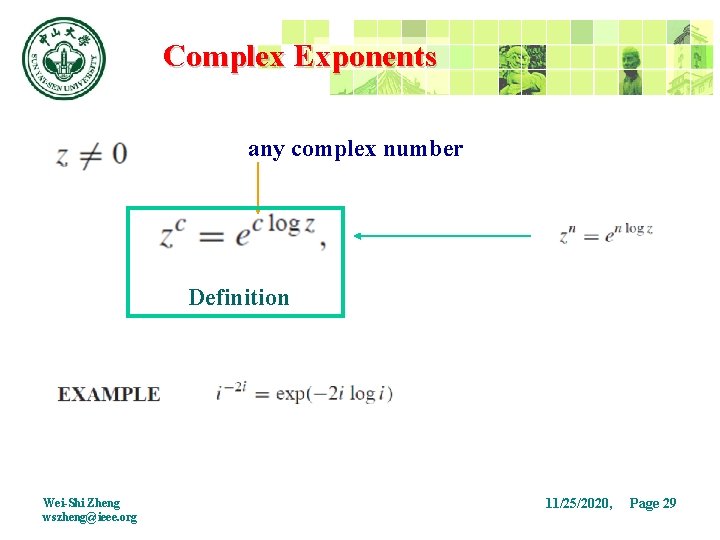

Complex Exponents any complex number Definition Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 29

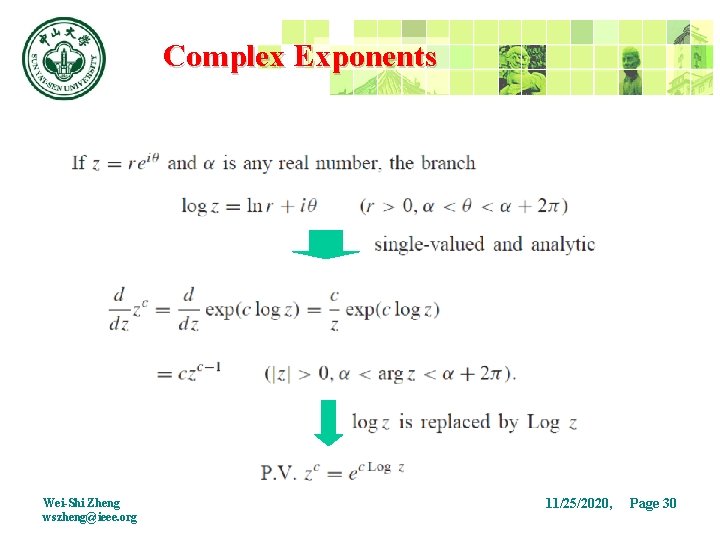

Complex Exponents Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 30

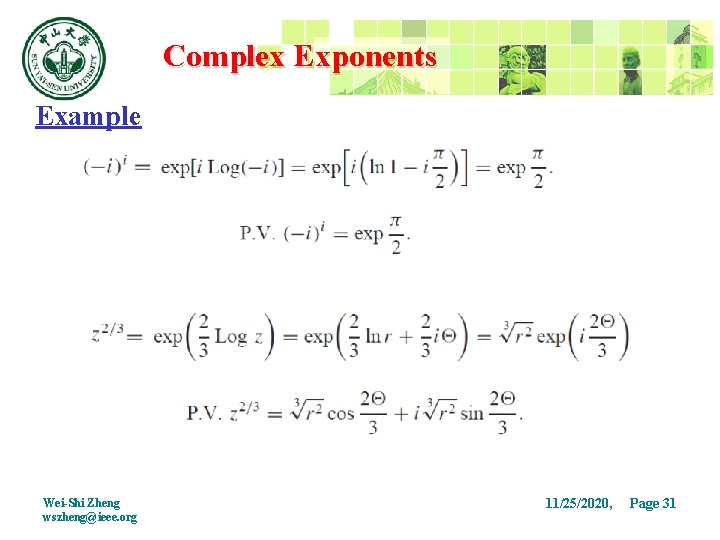

Complex Exponents Example Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 31

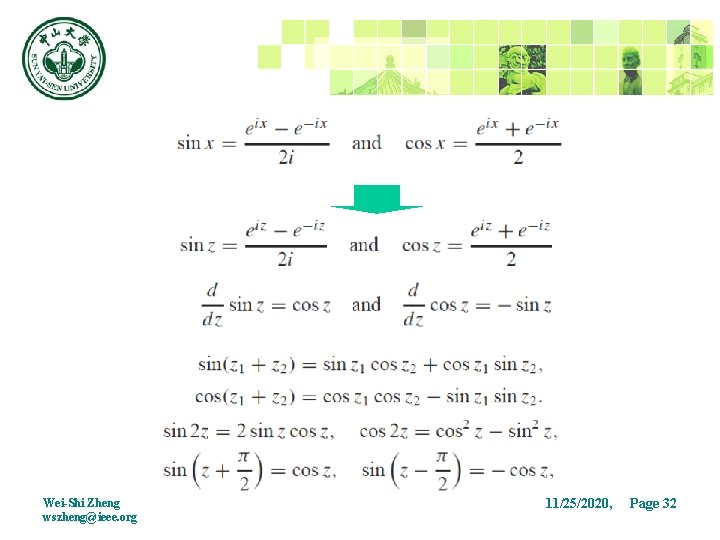

Wei-Shi Zheng wszheng@ieee. org 11/25/2020, Page 32
