Engineering History: What cool & useful things have engineers done in the past? Fall 2012 Lecture # 4 1

A video introduction: • History of Engineering -You. Tube • TED--why is X unknown 2

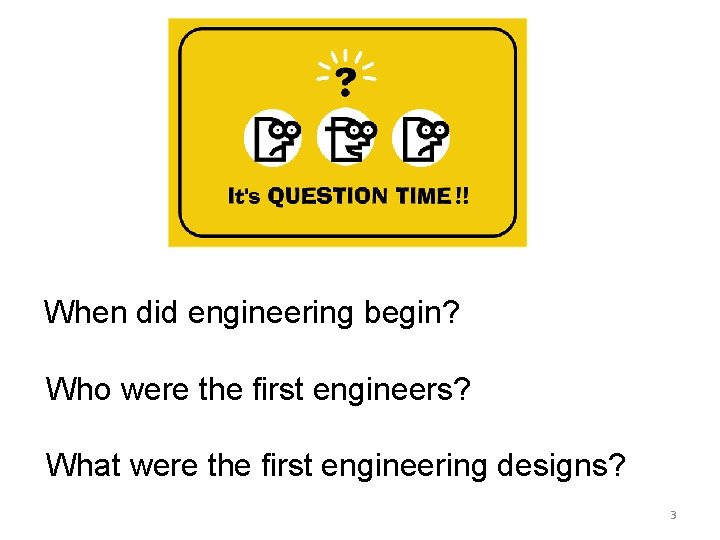

When did engineering begin? Who were the first engineers? What were the first engineering designs? 3

Word engineering comes from “ingenuity” • It has been pretty well agreed that the words 'ingenuity' and 'engineering' in English and 'ingéniosité' and 'ingénierie' in French are linked to the same Latin word-root and that the verb 'to engineer' means 'to be ingenious. ' So the kinds of things engineers have done have been generally ingenious. And the word 'engine' means 'an ingenious and useful device. ' 4

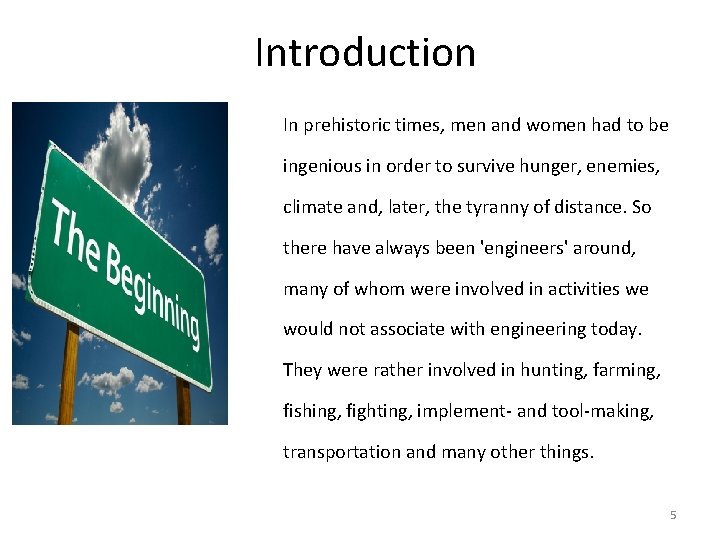

Introduction In prehistoric times, men and women had to be ingenious in order to survive hunger, enemies, climate and, later, the tyranny of distance. So there have always been 'engineers' around, many of whom were involved in activities we would not associate with engineering today. They were rather involved in hunting, farming, fishing, fighting, implement- and tool-making, transportation and many other things. 5

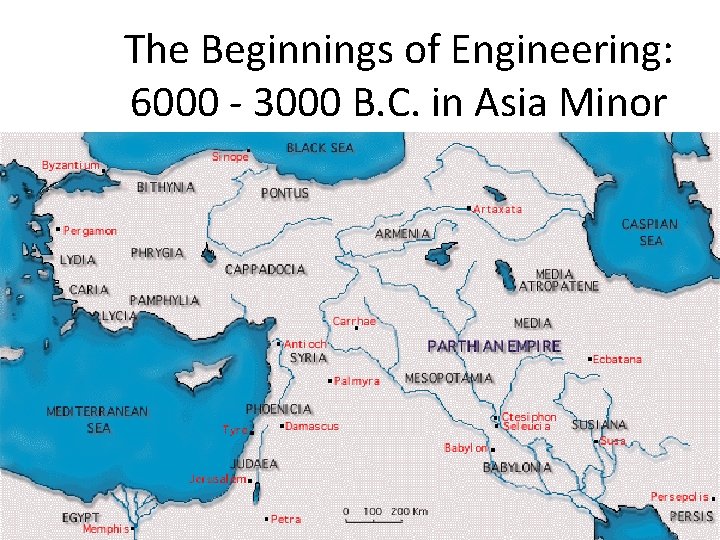

The Beginnings of Engineering: 6000 - 3000 B. C. in Asia Minor 6

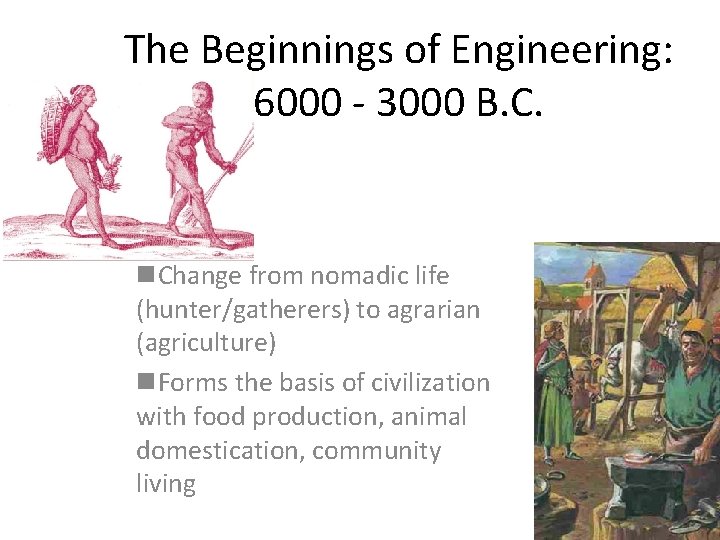

The Beginnings of Engineering: 6000 - 3000 B. C. n. Change from nomadic life (hunter/gatherers) to agrarian (agriculture) n. Forms the basis of civilization with food production, animal domestication, community living 7

The Beginnings of Engineering: 6000 - 3000 B. C. Early Achievement Progression in this Era n. People discovered methods of producing fire at will n. People discovered how to use rocks as tools n. People learn how to shape soft metals into tools n. Mixing different kinds of metals could make better tools 8

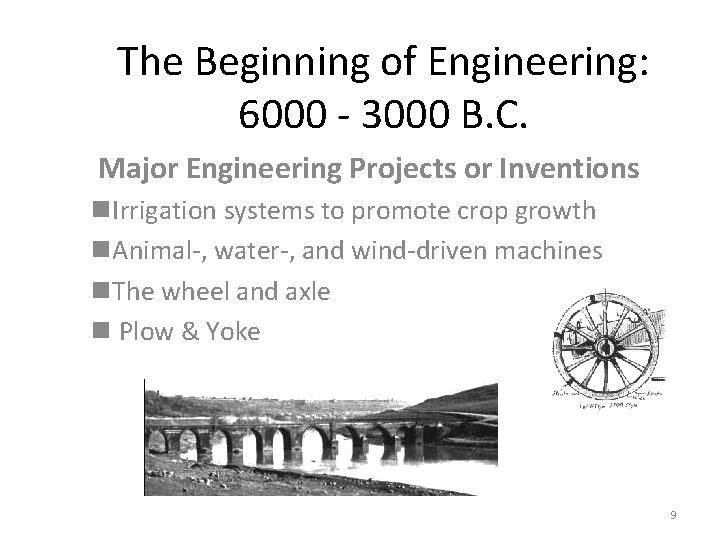

The Beginning of Engineering: 6000 - 3000 B. C. Major Engineering Projects or Inventions n. Irrigation systems to promote crop growth n. Animal-, water-, and wind-driven machines n. The wheel and axle n Plow & Yoke 9

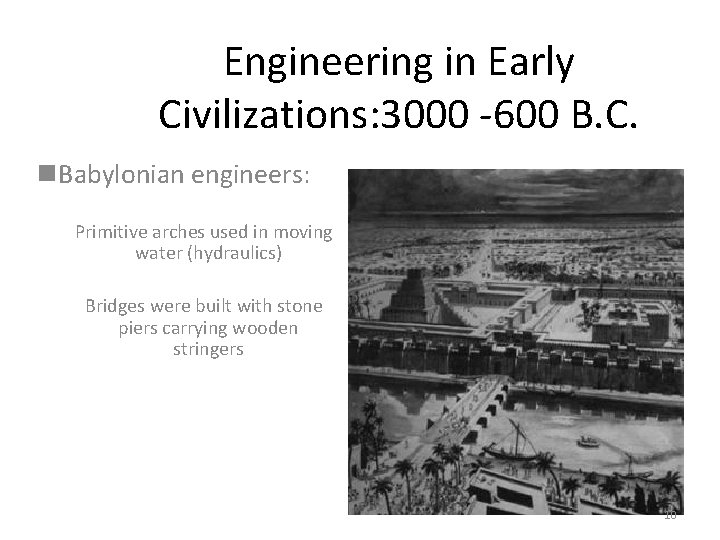

Engineering in Early Civilizations: 3000 -600 B. C. n. Babylonian engineers: Primitive arches used in moving water (hydraulics) Bridges were built with stone piers carrying wooden stringers 10

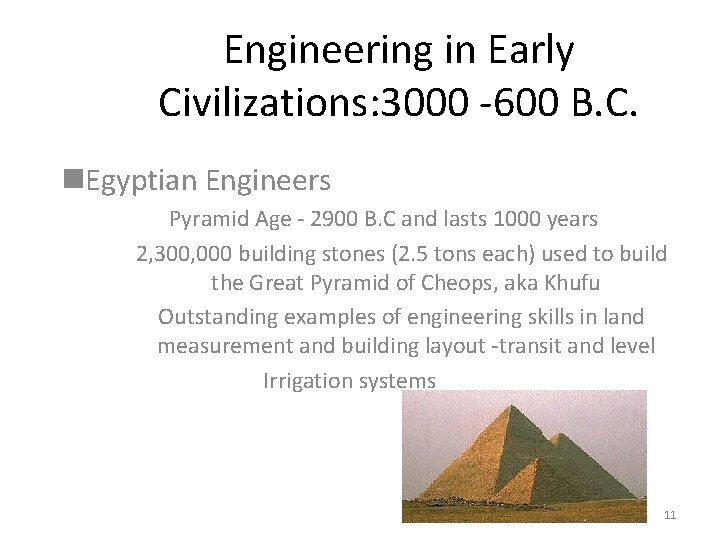

Engineering in Early Civilizations: 3000 -600 B. C. n. Egyptian Engineers Pyramid Age - 2900 B. C and lasts 1000 years 2, 300, 000 building stones (2. 5 tons each) used to build the Great Pyramid of Cheops, aka Khufu Outstanding examples of engineering skills in land measurement and building layout -transit and level Irrigation systems 11

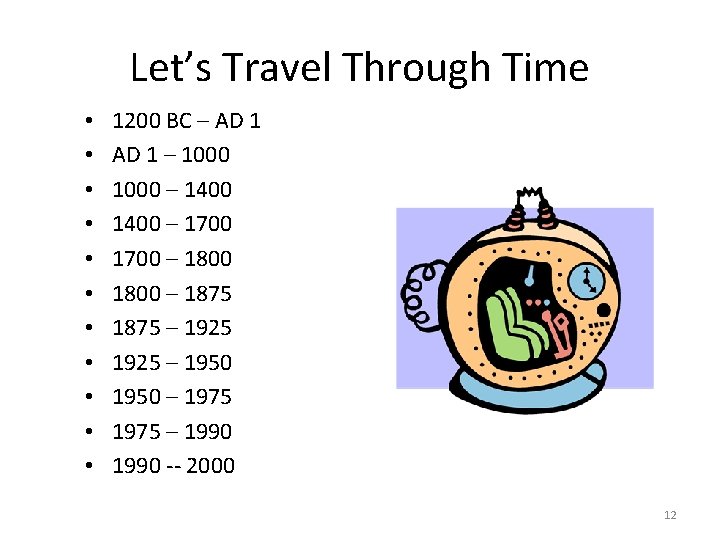

Let’s Travel Through Time • • • 1200 BC – AD 1 – 1000 – 1400 – 1700 – 1800 – 1875 – 1925 – 1950 – 1975 – 1990 -- 2000 12

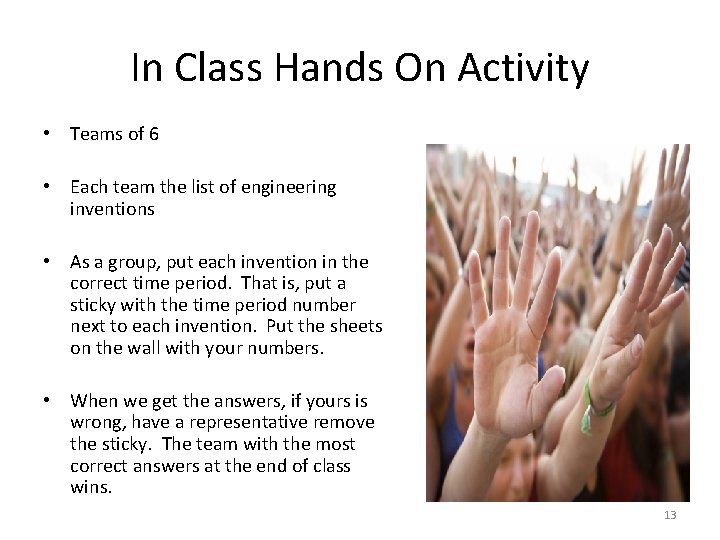

In Class Hands On Activity • Teams of 6 • Each team the list of engineering inventions • As a group, put each invention in the correct time period. That is, put a sticky with the time period number next to each invention. Put the sheets on the wall with your numbers. • When we get the answers, if yours is wrong, have a representative remove the sticky. The team with the most correct answers at the end of class wins. 13

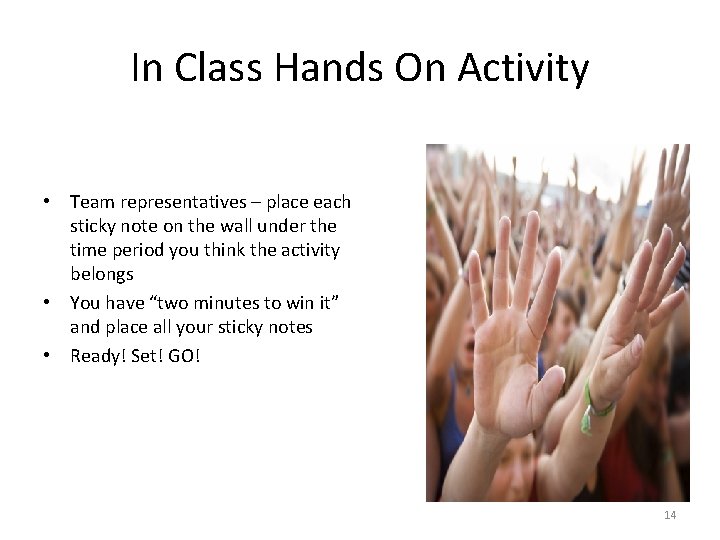

In Class Hands On Activity • Team representatives – place each sticky note on the wall under the time period you think the activity belongs • You have “two minutes to win it” and place all your sticky notes • Ready! Set! GO! 14

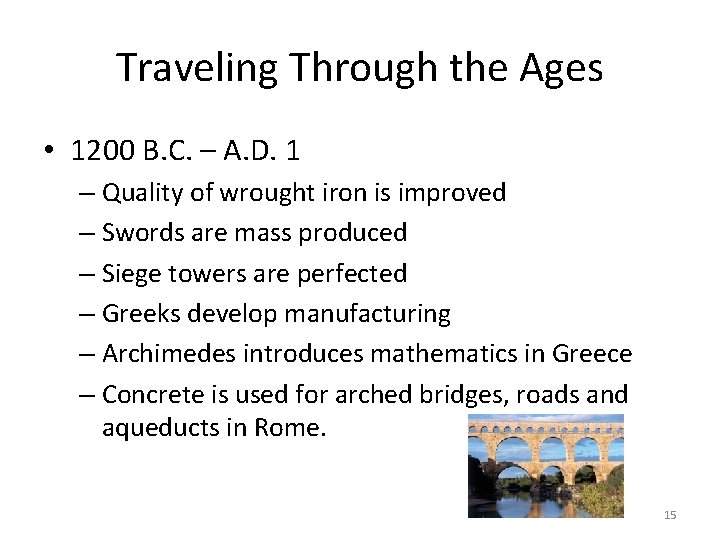

Traveling Through the Ages • 1200 B. C. – A. D. 1 – Quality of wrought iron is improved – Swords are mass produced – Siege towers are perfected – Greeks develop manufacturing – Archimedes introduces mathematics in Greece – Concrete is used for arched bridges, roads and aqueducts in Rome. 15

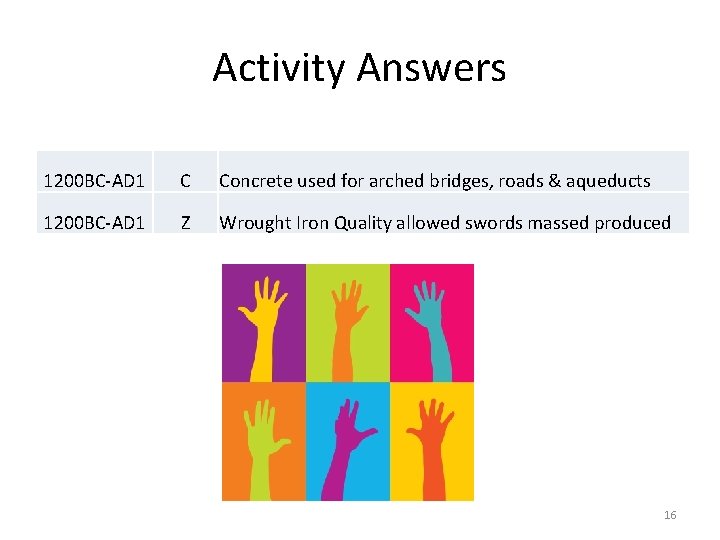

Activity Answers 1200 BC-AD 1 C Concrete used for arched bridges, roads & aqueducts 1200 BC-AD 1 Z Wrought Iron Quality allowed swords massed produced 16

Traveling Through the Ages: A. D. 1 -1000 • Chinese further develop the study of mathematics • Gunpowder is perfected • Abacus calculating machine introduced to Europe from the Orient • Cotton and silk manufactured 17

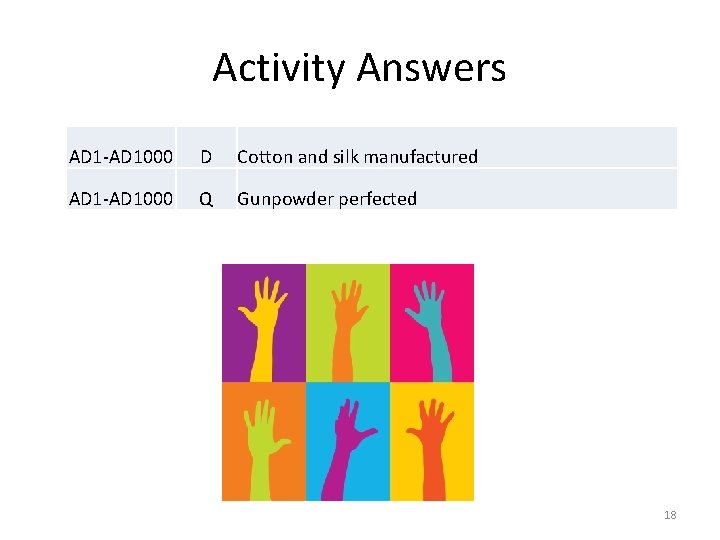

Activity Answers AD 1 -AD 1000 D Cotton and silk manufactured AD 1 -AD 1000 Q Gunpowder perfected 18

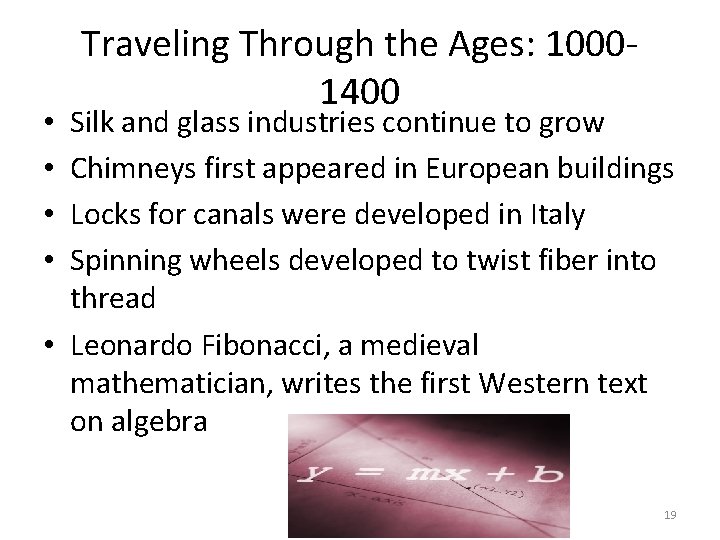

Traveling Through the Ages: 10001400 Silk and glass industries continue to grow Chimneys first appeared in European buildings Locks for canals were developed in Italy Spinning wheels developed to twist fiber into thread • Leonardo Fibonacci, a medieval mathematician, writes the first Western text on algebra • • 19

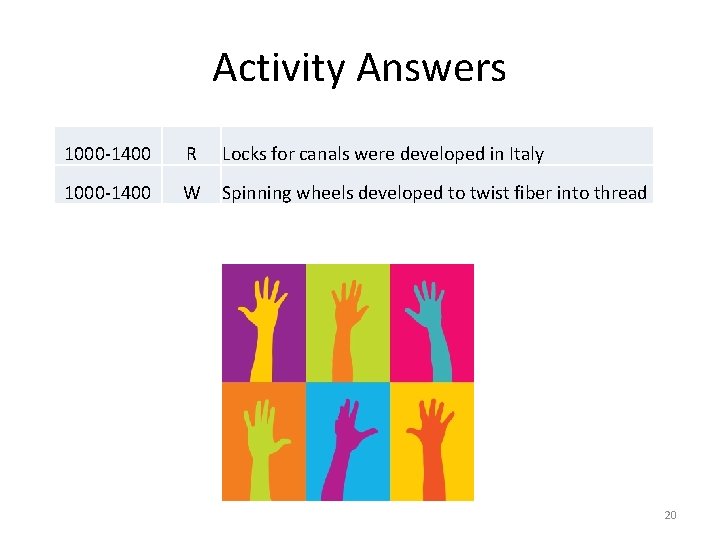

Activity Answers 1000 -1400 R Locks for canals were developed in Italy 1000 -1400 W Spinning wheels developed to twist fiber into thread 20

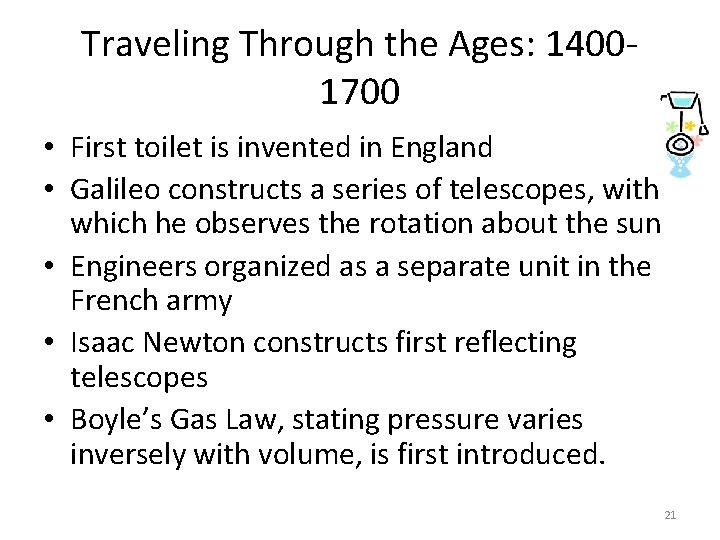

Traveling Through the Ages: 14001700 • First toilet is invented in England • Galileo constructs a series of telescopes, with which he observes the rotation about the sun • Engineers organized as a separate unit in the French army • Isaac Newton constructs first reflecting telescopes • Boyle’s Gas Law, stating pressure varies inversely with volume, is first introduced. 21

Activity Answers 1400 -1700 L First reflecting telescopes 1400 -1700 N First toilet is invented 22

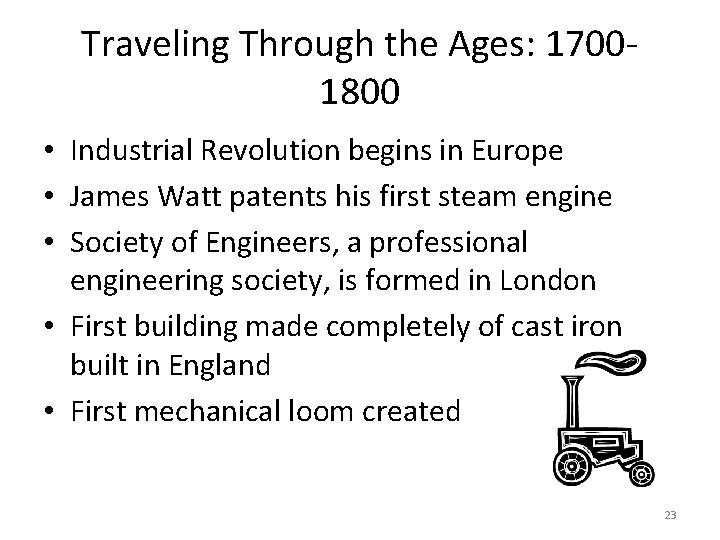

Traveling Through the Ages: 17001800 • Industrial Revolution begins in Europe • James Watt patents his first steam engine • Society of Engineers, a professional engineering society, is formed in London • First building made completely of cast iron built in England • First mechanical loom created 23

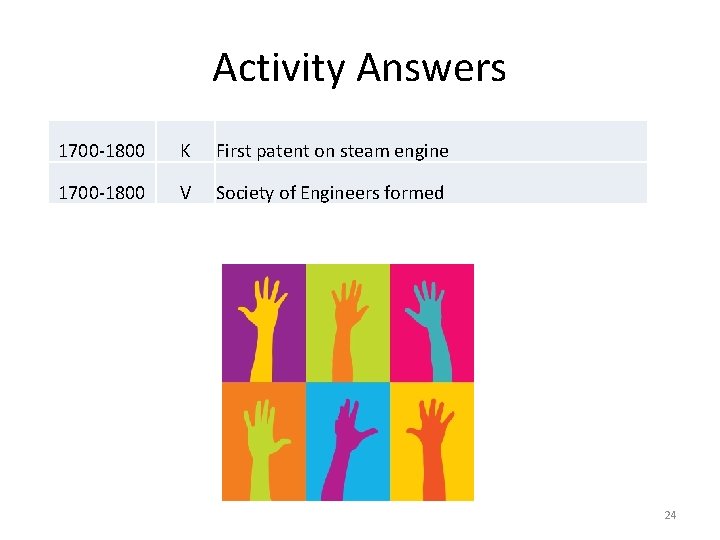

Activity Answers 1700 -1800 K First patent on steam engine 1700 -1800 V Society of Engineers formed 24

Traveling Through the Ages: 18001875 • First railroad locomotive is designed and manufactured • Italy’s Volta developed the first battery • Single wire telegraph line is developed • Reinforced concrete is first used • First synthetic plastic material is created • First oil well drilled in Pennsylvania • Typewriter is perfected • There were 70 engineering schools in the US • Compressed-air refrigeration plant built in Paris 25

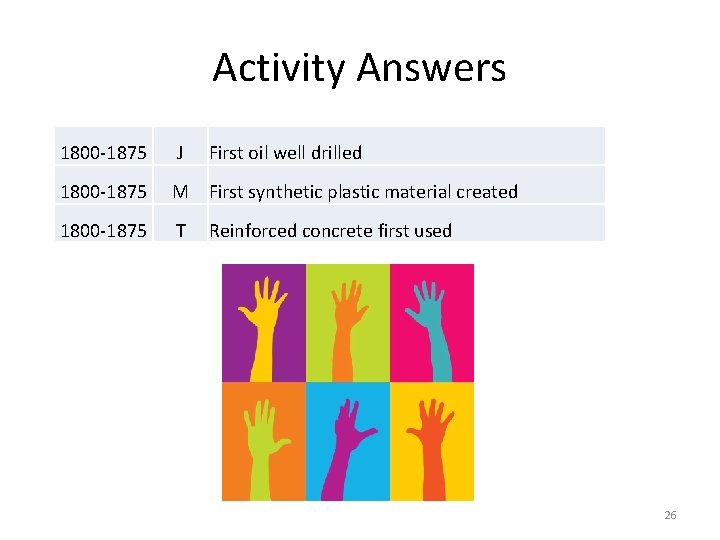

Activity Answers 1800 -1875 J First oil well drilled 1800 -1875 M First synthetic plastic material created 1800 -1875 T Reinforced concrete first used 26

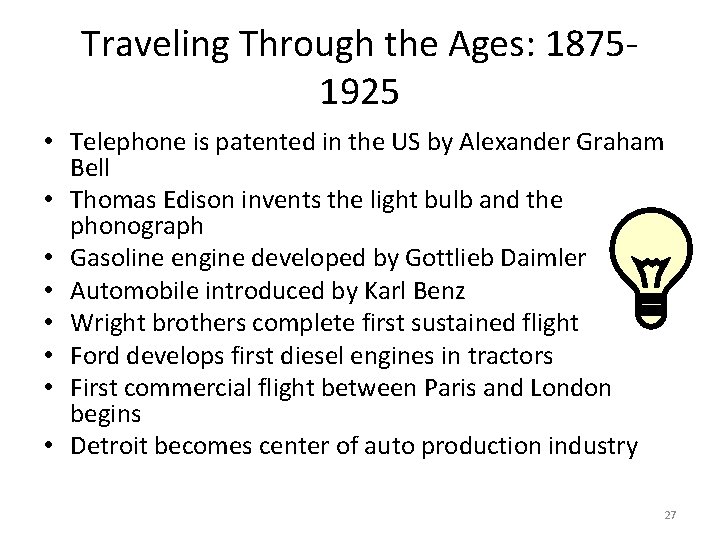

Traveling Through the Ages: 18751925 • Telephone is patented in the US by Alexander Graham Bell • Thomas Edison invents the light bulb and the phonograph • Gasoline engine developed by Gottlieb Daimler • Automobile introduced by Karl Benz • Wright brothers complete first sustained flight • Ford develops first diesel engines in tractors • First commercial flight between Paris and London begins • Detroit becomes center of auto production industry 27

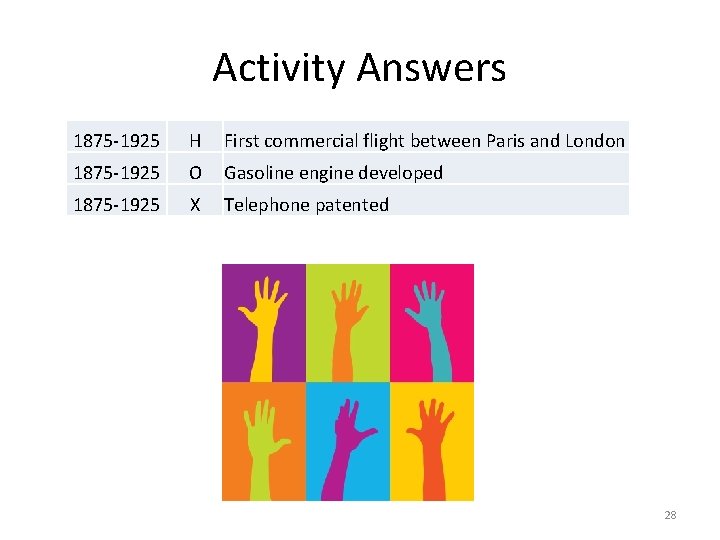

Activity Answers 1875 -1925 H First commercial flight between Paris and London 1875 -1925 O Gasoline engine developed 1875 -1925 X Telephone patented 28

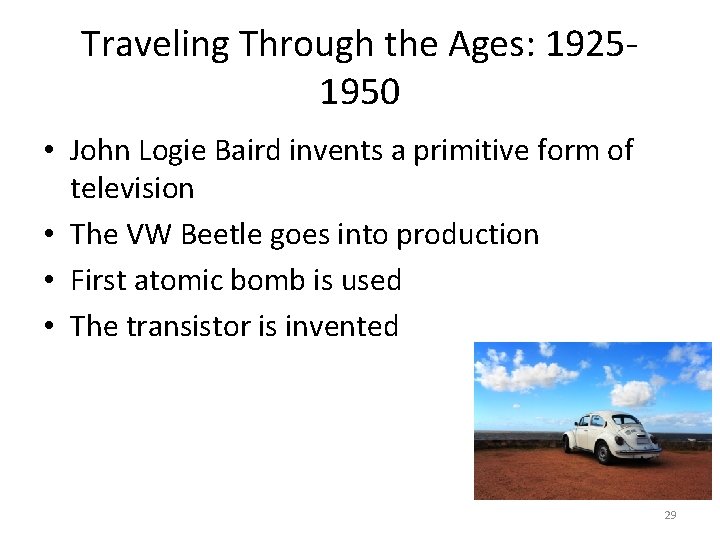

Traveling Through the Ages: 19251950 • John Logie Baird invents a primitive form of television • The VW Beetle goes into production • First atomic bomb is used • The transistor is invented 29

Activity Answers 1925 -1950 G First atomic bomb used 1925 -1950 S Primitive form of TV invented 1925 -1950 Y Transistor invented 30

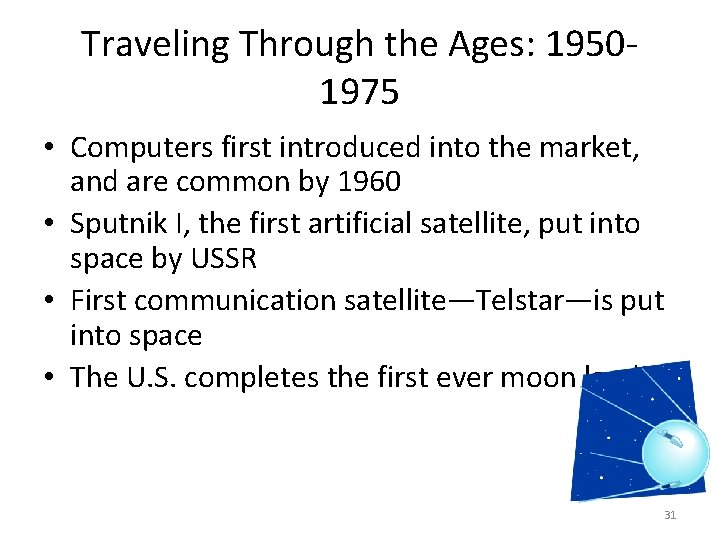

Traveling Through the Ages: 19501975 • Computers first introduced into the market, and are common by 1960 • Sputnik I, the first artificial satellite, put into space by USSR • First communication satellite—Telstar—is put into space • The U. S. completes the first ever moon landing 31

Activity Answers 1950 -1975 B Computer first introduced into market 1950 -1975 F First artificial satellite put into space 1950 -1975 I First ever moon landing by US 32

Traveling Through the Ages: 19751990 • The Concord is first used for supersonic flight between Europe and the U. S. • Columbia space shuttle is reused for space travel • First artificial heart is successfully implanted 33

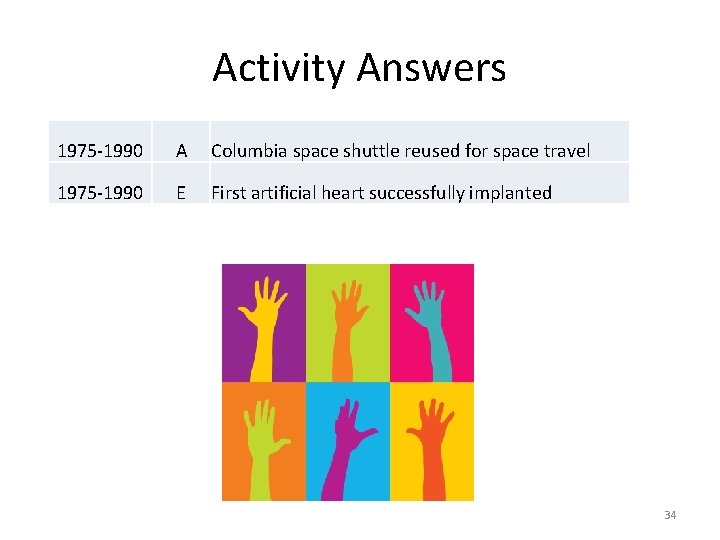

Activity Answers 1975 -1990 A Columbia space shuttle reused for space travel 1975 -1990 E First artificial heart successfully implanted 34

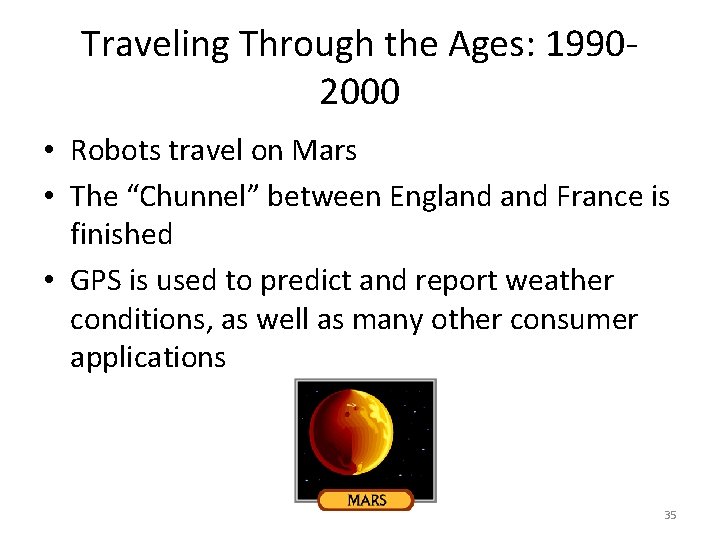

Traveling Through the Ages: 19902000 • Robots travel on Mars • The “Chunnel” between England France is finished • GPS is used to predict and report weather conditions, as well as many other consumer applications 35

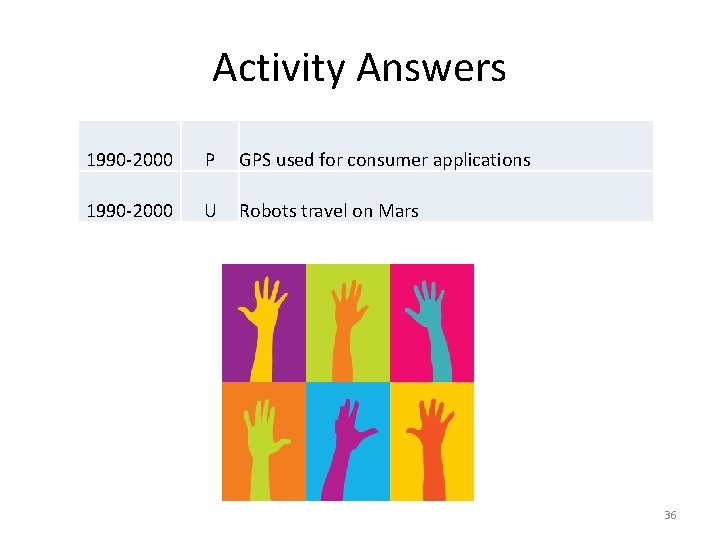

Activity Answers 1990 -2000 P GPS used for consumer applications 1990 -2000 U Robots travel on Mars 36

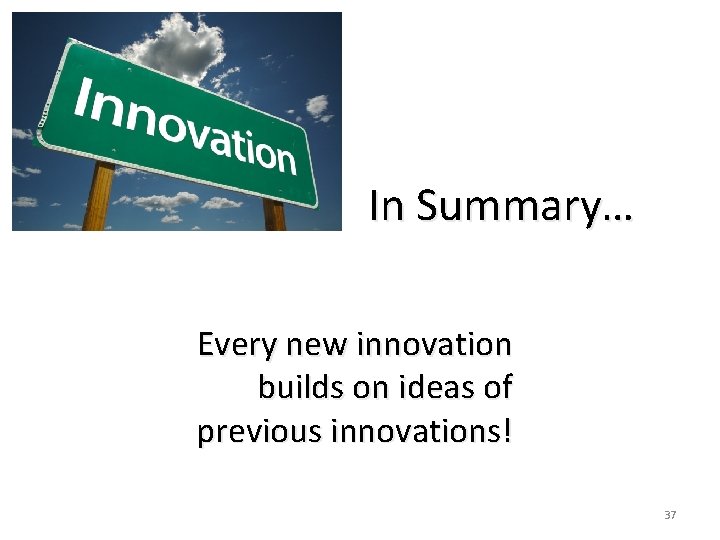

In Summary… Every new innovation builds on ideas of previous innovations! 37

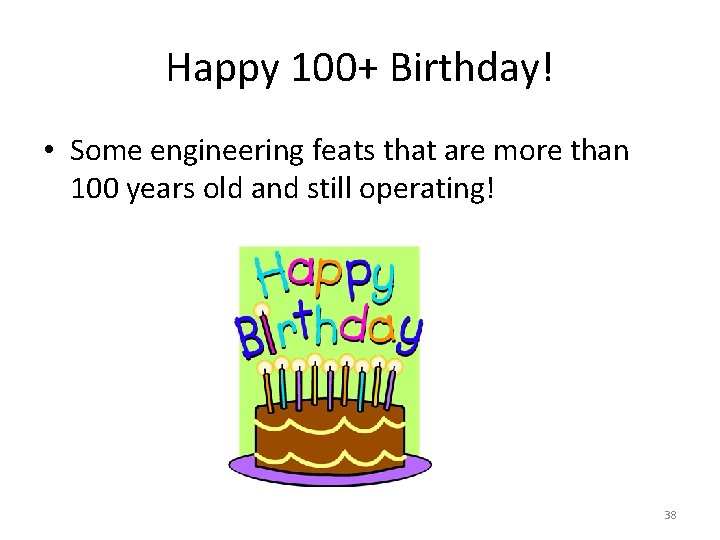

Happy 100+ Birthday! • Some engineering feats that are more than 100 years old and still operating! 38

Giant Ferris Wheel • • Vienna Austria 1897 Wheel diameter: 200 ft Height above ground: 21 ft Speed of rotation: ¾ meter per second 30 cabins and 120 wheel spokes Built as part of the Golden Jubilee celebrations for Emperor Franz Josef 39

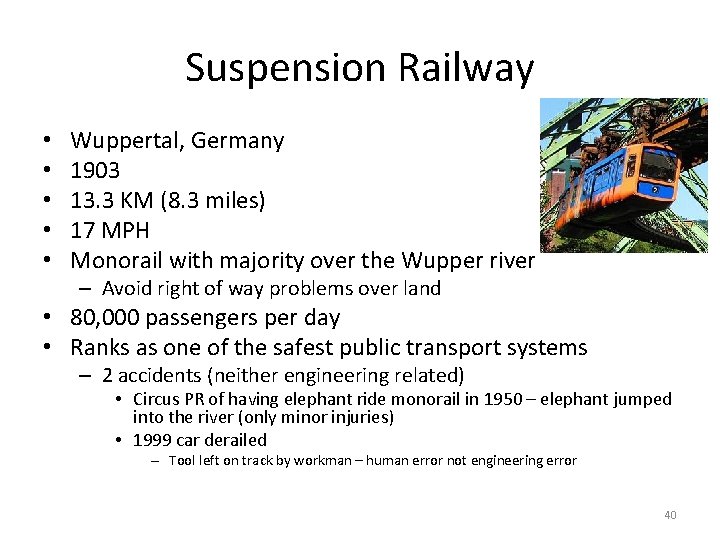

Suspension Railway • • • Wuppertal, Germany 1903 13. 3 KM (8. 3 miles) 17 MPH Monorail with majority over the Wupper river – Avoid right of way problems over land • 80, 000 passengers per day • Ranks as one of the safest public transport systems – 2 accidents (neither engineering related) • Circus PR of having elephant ride monorail in 1950 – elephant jumped into the river (only minor injuries) • 1999 car derailed – Tool left on track by workman – human error not engineering error 40

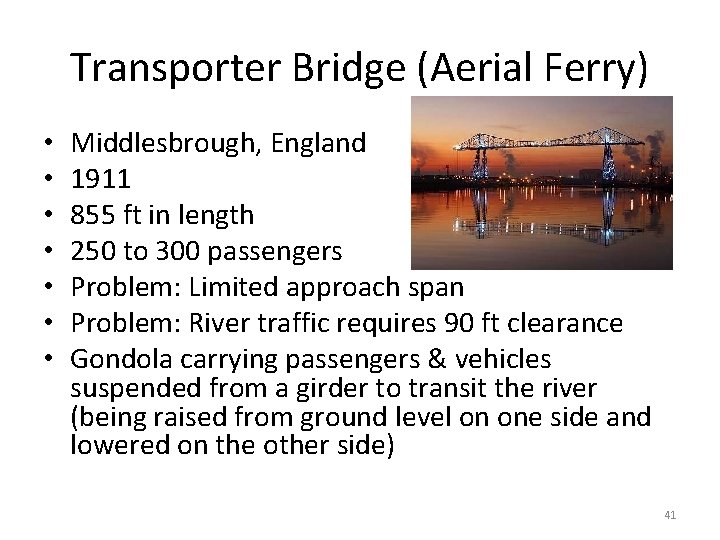

Transporter Bridge (Aerial Ferry) • • Middlesbrough, England 1911 855 ft in length 250 to 300 passengers Problem: Limited approach span Problem: River traffic requires 90 ft clearance Gondola carrying passengers & vehicles suspended from a girder to transit the river (being raised from ground level on one side and lowered on the other side) 41

You are part of the next 100 years!!! 2112 42

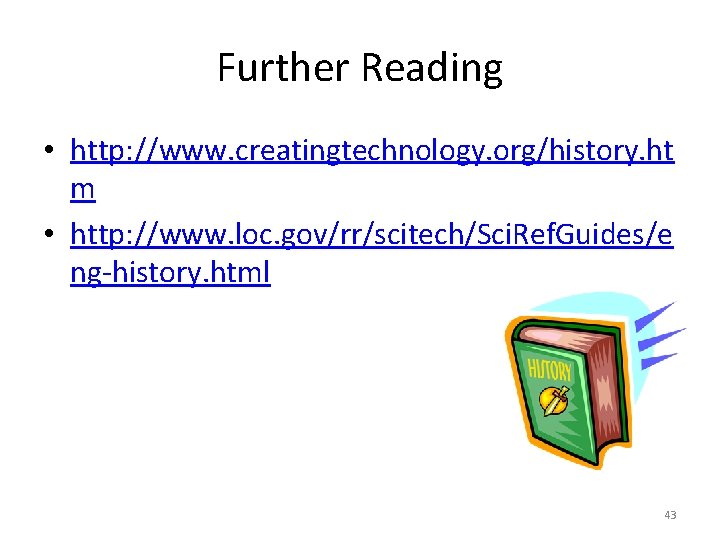

Further Reading • http: //www. creatingtechnology. org/history. ht m • http: //www. loc. gov/rr/scitech/Sci. Ref. Guides/e ng-history. html 43

44

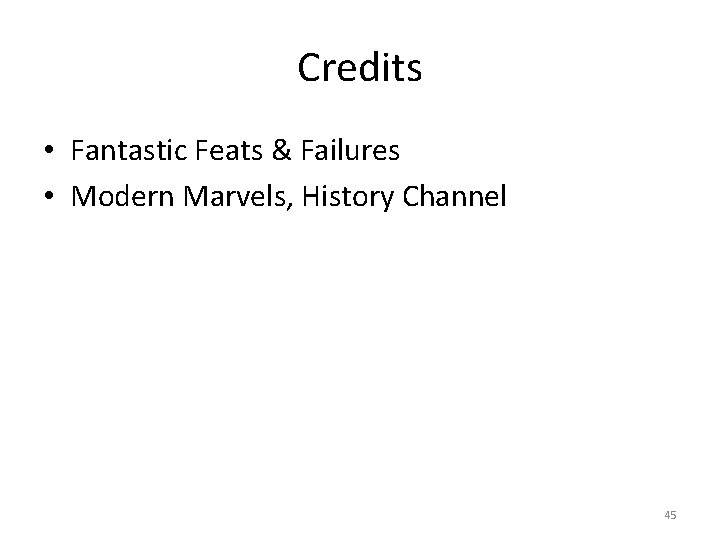

Credits • Fantastic Feats & Failures • Modern Marvels, History Channel 45
