Engineering Graphics Lecture Notes UNIT – 2 “PROJECTION OF PLANES” I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

Engineering Graphics Lecture Notes TYPES OF PLANE FIGURES SQUARE RECTANGLE TRIANGLE CIRCLE TRAPEZOID PARALLELOGRAM PENTAGON HEXAGON DIAMOND

Engineering Graphics Lecture Notes TYPES OF PLANES PERPENDICULAR PLANES Planes which are perpendicular to one of the principal planes of projection and inclined or parallel to the other OBLIQUE PLANES Planes inclined to both the reference planes TRACE OF PLANE HORIZONTAL TRACE The intecsection line of the plane surface with H. P VERTICAL TRACE The intecsection line of the plane surface with V. P I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

Engineering Graphics Lecture Notes PROJECTION OF PLANE PERPENDICULAR TO V. P AND PARALLEL TO H. P I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

Engineering Graphics Lecture Notes EXAMPLE: An equilateral triangle ABC of 50 mm side has its plane parallel to H. P and side AB parallel to V. P Draw its projections when the corner C is 15 mm from H. P and 45 mm from the V. P I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

Engineering Graphics Lecture Notes PROJECTION OF PLANE PERPENDICULAR TO H. P AND PARALLEL TO V. P I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

Engineering Graphics Lecture Notes EXAMPLE: An equilateral triangle ABC of 50 mm side is parallel to and 15 mm in front of V. P, its base AB is parallel to and 75 mm above H. P, Draw the projections of the triangle when the corner is near the H. P I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

Engineering Graphics Lecture Notes PROJECTION OF PLANE PERPENDICULAR TO BOTH H. P AND V. P I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

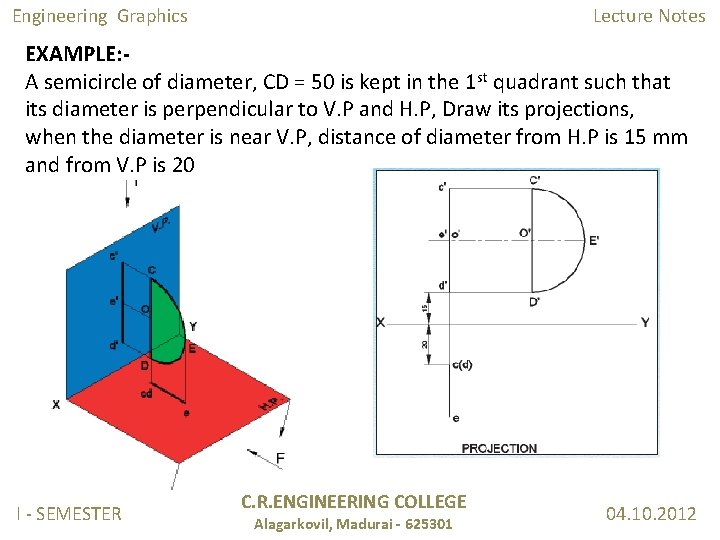

Engineering Graphics Lecture Notes EXAMPLE: A semicircle of diameter, CD = 50 is kept in the 1 st quadrant such that its diameter is perpendicular to V. P and H. P, Draw its projections, when the diameter is near V. P, distance of diameter from H. P is 15 mm and from V. P is 20 I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

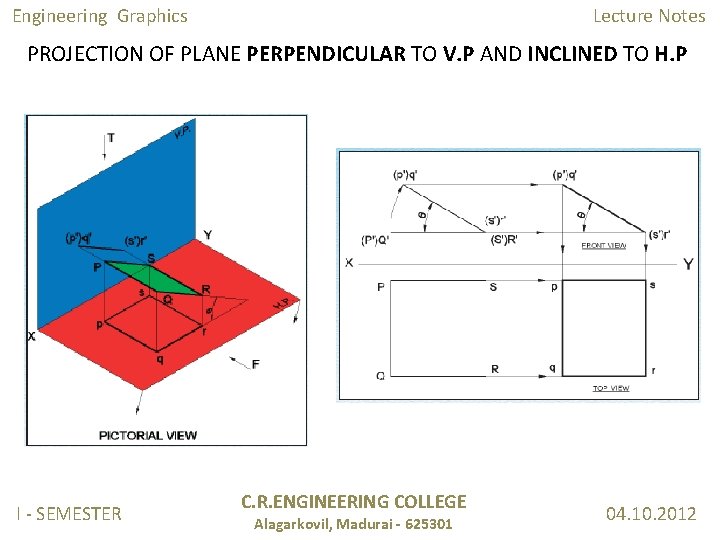

Engineering Graphics Lecture Notes PROJECTION OF PLANE PERPENDICULAR TO V. P AND INCLINED TO H. P I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

Engineering Graphics Lecture Notes EXAMPLE: A thin horizontal plate of 15 mm sides is inclined at 45° to the H. P and perpendicular to V. P, two of its parallel edges is parallel to V. P, the plate is 10 mm above H. P and 15 mm infront of V. P I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

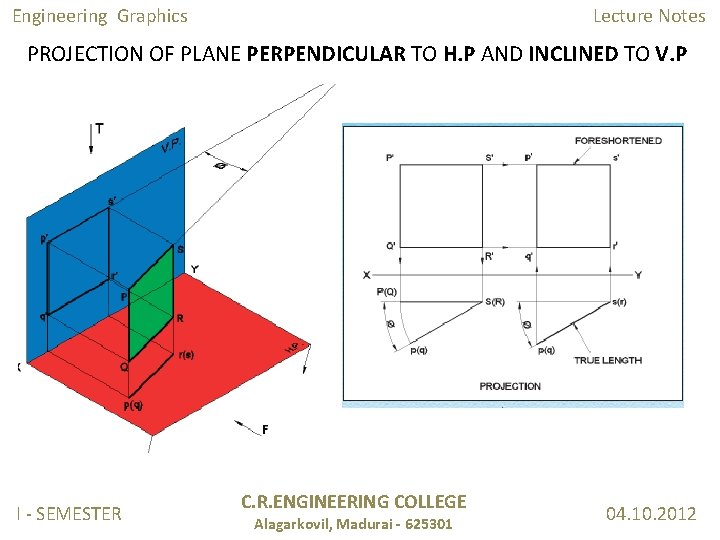

Engineering Graphics Lecture Notes PROJECTION OF PLANE PERPENDICULAR TO H. P AND INCLINED TO V. P I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

Engineering Graphics Lecture Notes EXAMPLE: Draw the projections of a circular lamina of 30 mm diameter. The lamina is inclined a an angle of 45° to V. P I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

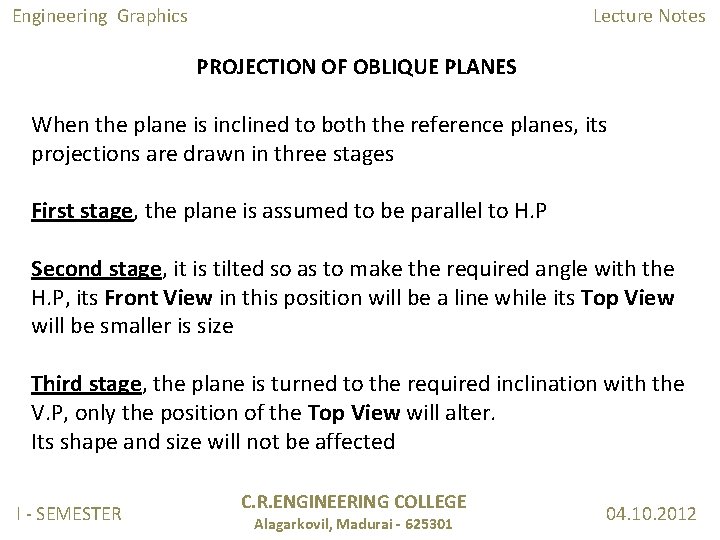

Engineering Graphics Lecture Notes PROJECTION OF OBLIQUE PLANES When the plane is inclined to both the reference planes, its projections are drawn in three stages First stage, the plane is assumed to be parallel to H. P Second stage, it is tilted so as to make the required angle with the H. P, its Front View in this position will be a line while its Top View will be smaller is size Third stage, the plane is turned to the required inclination with the V. P, only the position of the Top View will alter. Its shape and size will not be affected I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012

Engineering Graphics Lecture Notes EXAMPLE: Draw the projections of a regular hexagon of 20 mm side, having one of its sides in the H. P and inclined at 45° to the V. P; and its surface making an angle of 30° with the H. P I - SEMESTER C. R. ENGINEERING COLLEGE Alagarkovil, Madurai - 625301 04. 10. 2012
