Engineering for Health Olaf Diegel Subtractive Manufacturing 101

Engineering for Health Olaf Diegel

Subtractive Manufacturing 101 You want to make a sphere. . . The really old way: Take a block of material and carve it out The more modern way: Generate 3 D model • Generate CNC program • Machine away unwanted material • If possible, recycle waste •

Additive Manufacturing 101 l l l Generate a 3 D model Software slices the 3 D model into thin slices Machine builds it layer by layer

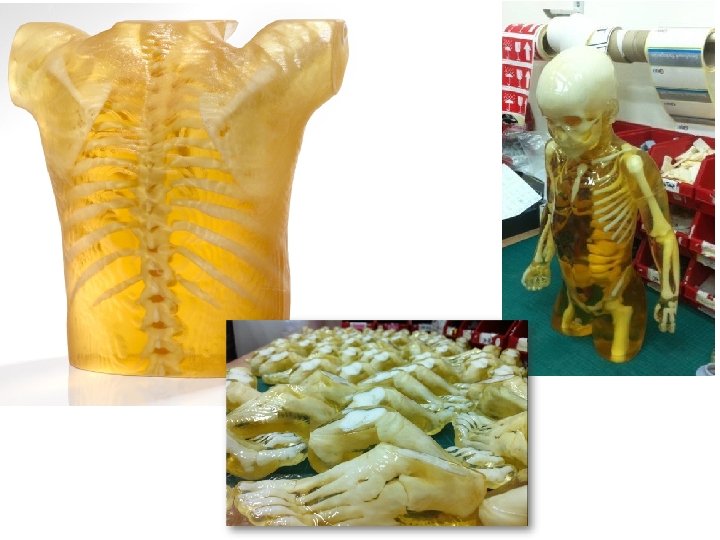

Medical Applications Hip socket, Ala Ortho, Italy, made on Arcam machine Laser Sintered Hearing Aids, EOS/Materialise

Dental Crowns and Bridges, EOS

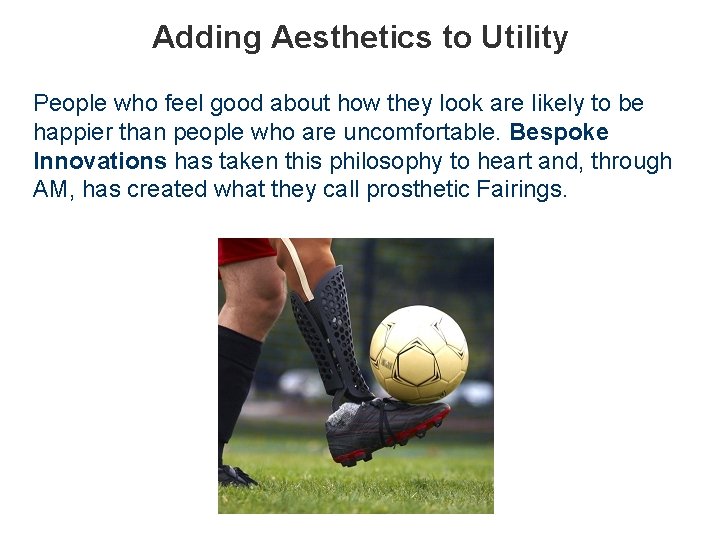

Adding Aesthetics to Utility People who feel good about how they look are likely to be happier than people who are uncomfortable. Bespoke Innovations has taken this philosophy to heart and, through AM, has created what they call prosthetic Fairings.

Beauty and the beak

Know your baby before its born… Tomohiro Kinoshita , of FASOTEC, the company offering the 'Shape of an Angel' model, even offers parents a miniature version which could be a 'nice adornment to a mobile phone strap or key chain. '

Bio. Printing CBS Evening News

Food Printers MIT Media Lab

Fab. Cafe in the Shibuya, Tokyo offers custom-printed chocolate, that resemble a customer’s face. It’s done with 3 D printing technology “Eat Your Face Machine” (EYFM) is a 3 D printer developed by David Carr and the MIT Media Lab

Home Manufacturing Old toothbrush Customization: • Bristle hardness • Colour • Handle Style and shape • Etc. New toothbrush Laser scanner to input personalized data Home 3 D Printer But will this just lead every Joe Bloggs producing badly designed products?

That’s all folks… “I have seen the future, and it works. . . ” Lincoln Steffens
