Engineering Drawing ENGN 103 1 Engineering drawing ENGN

  • Slides: 32
Download presentation
Engineering Drawing ENGN 103 1 Engineering drawing ENGN 103

Engineering Drawing ENGN 103 1 Engineering drawing ENGN 103

A Machined Block Figure 1 2 Engineering drawing ENGN 103

A Machined Block Figure 1 2 Engineering drawing ENGN 103

Isometric Drawing • The representation of the object in figure 2 is called an

Isometric Drawing • The representation of the object in figure 2 is called an isometric drawing. This is one of a family of three-dimensional views called pictorial drawings. • In an isometric drawing, the object's vertical lines are drawn vertically, and the horizontal lines in the width and depth planes are shown at 30 degrees to the horizontal. Figure 2 - An Isometric Drawing 3 Engineering drawing ENGN 103

Orthographic or Multi-view Drawing • Any engineering drawing should show everything: • However, if

Orthographic or Multi-view Drawing • Any engineering drawing should show everything: • However, if the object is complicated, it would not be visible using a single isometric drawing. In order to get a more complete view of the object, an orthographic projection may be used MULTI-VIEW DRAWING 4 Engineering drawing ENGN 103

MULTI-VIEW DRAWING 5 Engineering drawing ENGN 103

MULTI-VIEW DRAWING 5 Engineering drawing ENGN 103

1 st Angle Projection MULTI-VIEW DRAWING 3 rd Angle Projection 6 Engineering drawing ENGN

1 st Angle Projection MULTI-VIEW DRAWING 3 rd Angle Projection 6 Engineering drawing ENGN 103

MULTI-VIEW DRAWING 7 Engineering drawing ENGN 103

MULTI-VIEW DRAWING 7 Engineering drawing ENGN 103

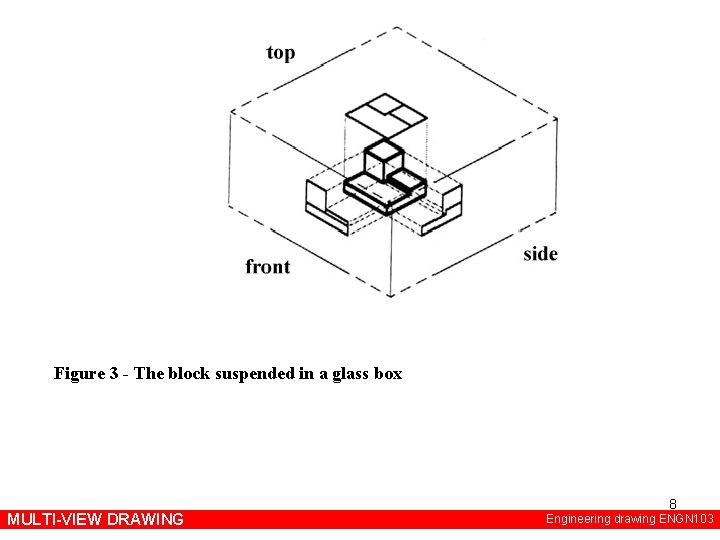

Figure 3 - The block suspended in a glass box MULTI-VIEW DRAWING 8 Engineering

Figure 3 - The block suspended in a glass box MULTI-VIEW DRAWING 8 Engineering drawing ENGN 103

MULTI-VIEW DRAWING 9 Engineering drawing ENGN 103

MULTI-VIEW DRAWING 9 Engineering drawing ENGN 103

Figure 4 - The creation of an orthographic multiview drawing MULTI-VIEW DRAWING 10 Engineering

Figure 4 - The creation of an orthographic multiview drawing MULTI-VIEW DRAWING 10 Engineering drawing ENGN 103

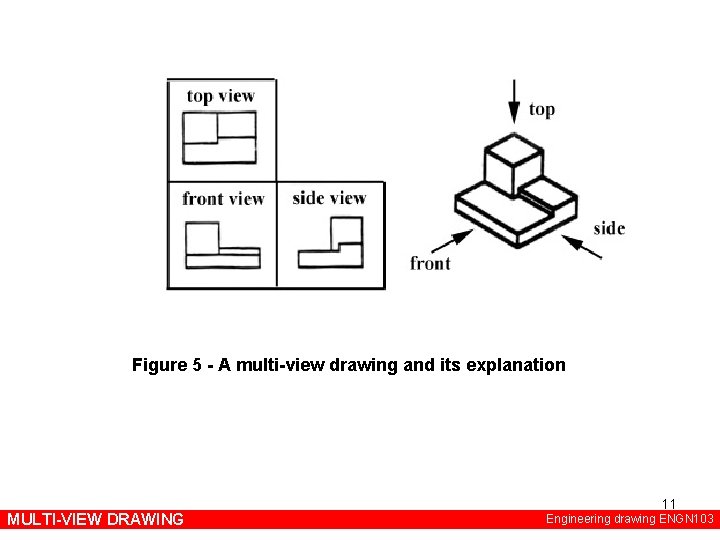

Figure 5 - A multi-view drawing and its explanation MULTI-VIEW DRAWING 11 Engineering drawing

Figure 5 - A multi-view drawing and its explanation MULTI-VIEW DRAWING 11 Engineering drawing ENGN 103

Dimensioning Figure 7 - An isometric view with dimensions MULTI-VIEW DRAWING 12 Engineering drawing

Dimensioning Figure 7 - An isometric view with dimensions MULTI-VIEW DRAWING 12 Engineering drawing ENGN 103

EXERCISE 5 B Orthographic MULTI-VIEW DRAWING NO 5 B 13 Engineering drawing ENGN 103

EXERCISE 5 B Orthographic MULTI-VIEW DRAWING NO 5 B 13 Engineering drawing ENGN 103

Reference: http: //pergatory. mit. edu/2. 007/Resources/drawings/index. html#drawingtools Ministry of Manpower Directorate General of Tech

Reference: http: //pergatory. mit. edu/2. 007/Resources/drawings/index. html#drawingtools Ministry of Manpower Directorate General of Tech Education Manual Architecture Drawing: Rendow Yee. MULTI-VIEW DRAWING 14 Engineering drawing ENGN 103

PLAN 15

PLAN 15

LEFT VIEW 16

LEFT VIEW 16

RIGHT VIEW 17

RIGHT VIEW 17

RIGHT VIEW 18

RIGHT VIEW 18

RIGHT VIEW 19

RIGHT VIEW 19

RIGHT VIEW 20

RIGHT VIEW 20

RIGHT VIEW 45° 21

RIGHT VIEW 45° 21

RIGHT VIEW 22

RIGHT VIEW 22

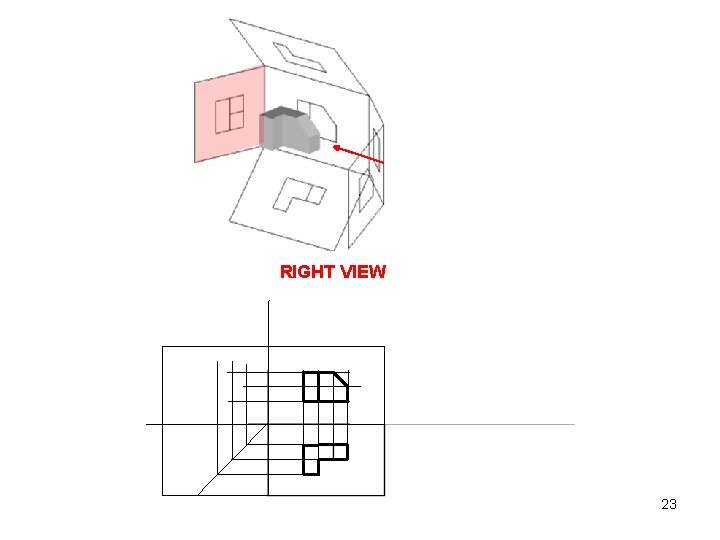

RIGHT VIEW 23

RIGHT VIEW 23

RIGHT VIEW 24

RIGHT VIEW 24

LEFT VIEW 25

LEFT VIEW 25

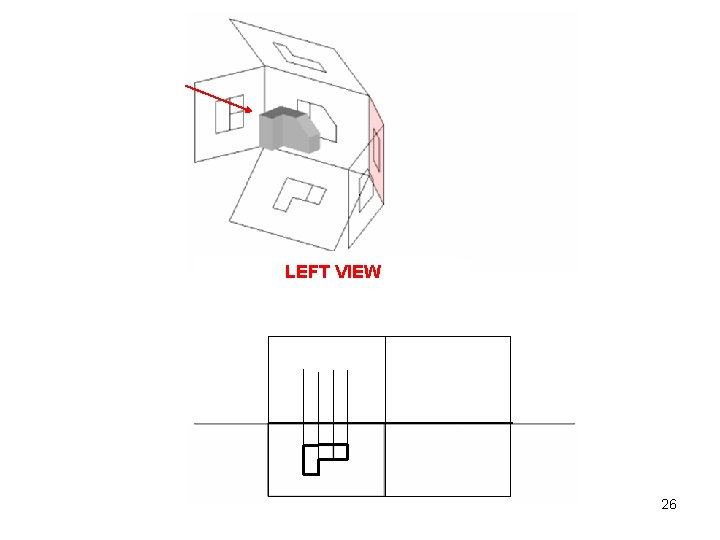

LEFT VIEW 26

LEFT VIEW 26

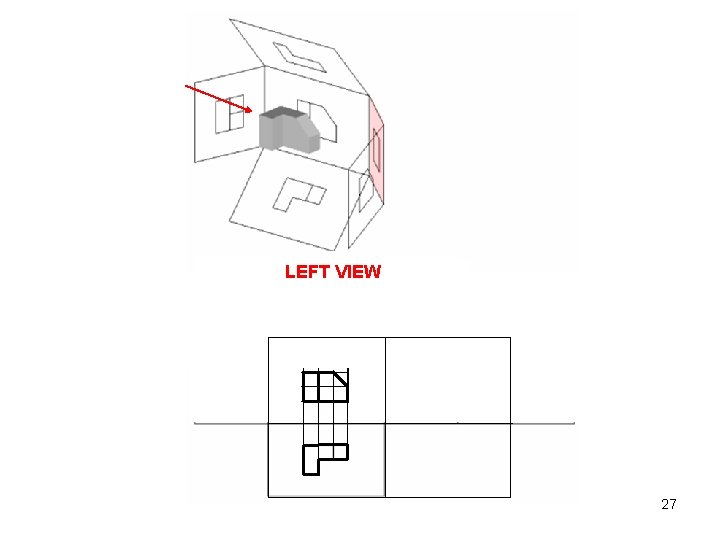

LEFT VIEW 27

LEFT VIEW 27

LEFT VIEW 28

LEFT VIEW 28

LEFT VIEW 45° 29

LEFT VIEW 45° 29

LEFT VIEW 30

LEFT VIEW 30

LEFT VIEW 31

LEFT VIEW 31

LEFT VIEW 32

LEFT VIEW 32
