ENGINEERING DRAWING B Tech I YEAR I SEM

ENGINEERING DRAWING B. Tech I -YEAR -I SEM (CE 151 AD) Prepared By: Mr. ALAMODI USAMA BIN ABDUL AZIZ Assistant Professor Department of Civil Engineering 1

Orthographic Drawing

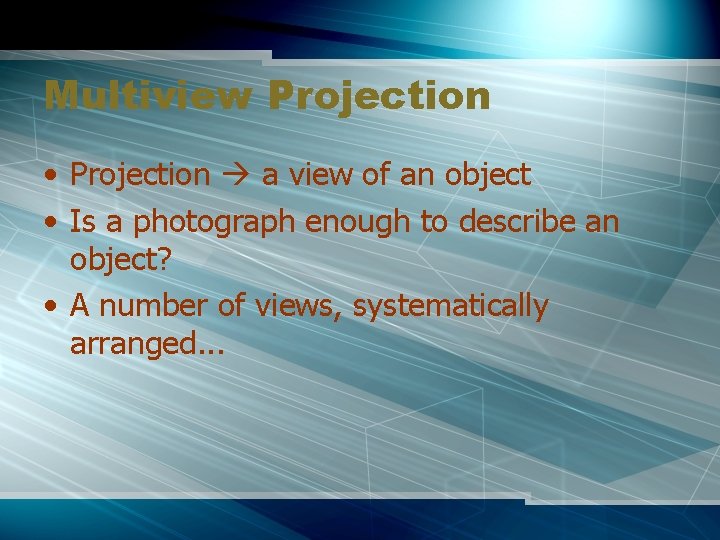

Multiview Projection • Projection a view of an object • Is a photograph enough to describe an object? • A number of views, systematically arranged. . .

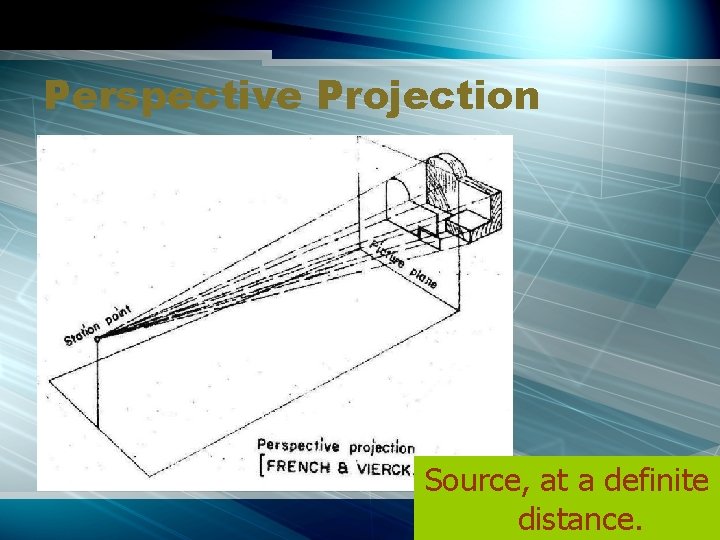

Perspective Projection Source, at a definite distance.

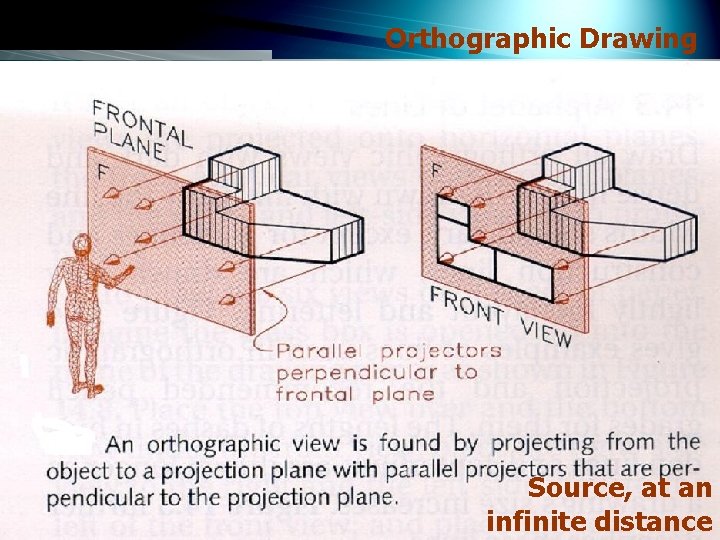

Orthographic Drawing Source, at an infinite distance

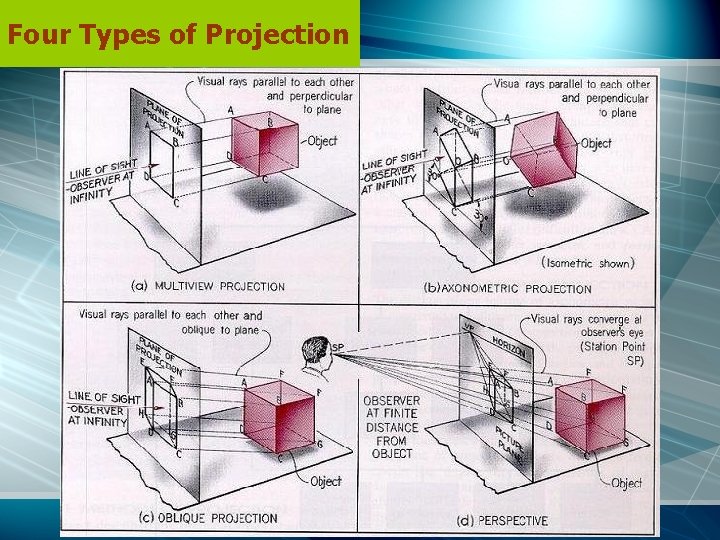

Four Types of Projection

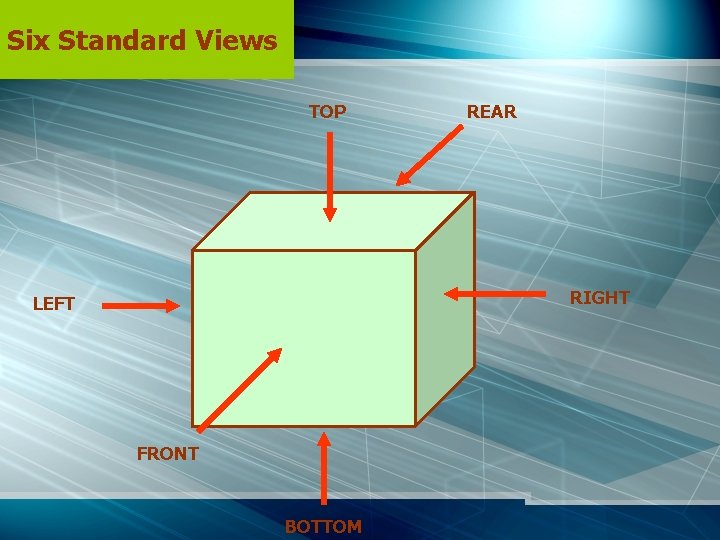

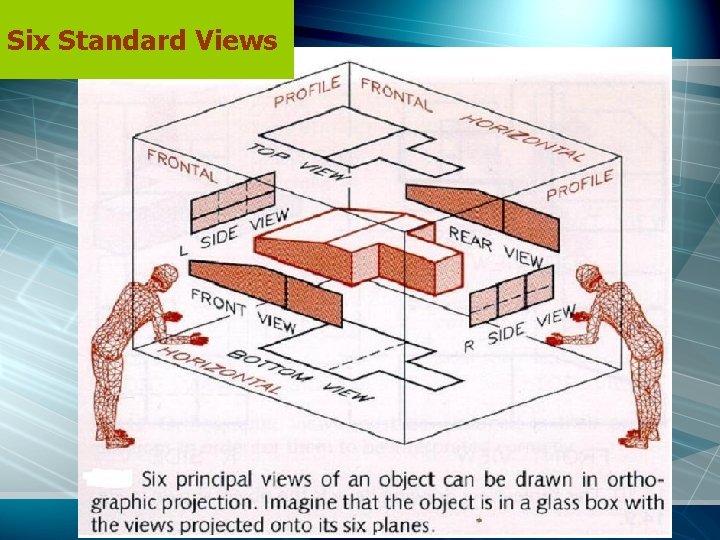

Six Standard Views TOP REAR RIGHT LEFT FRONT BOTTOM

Six Standard Views

Six Standard Views

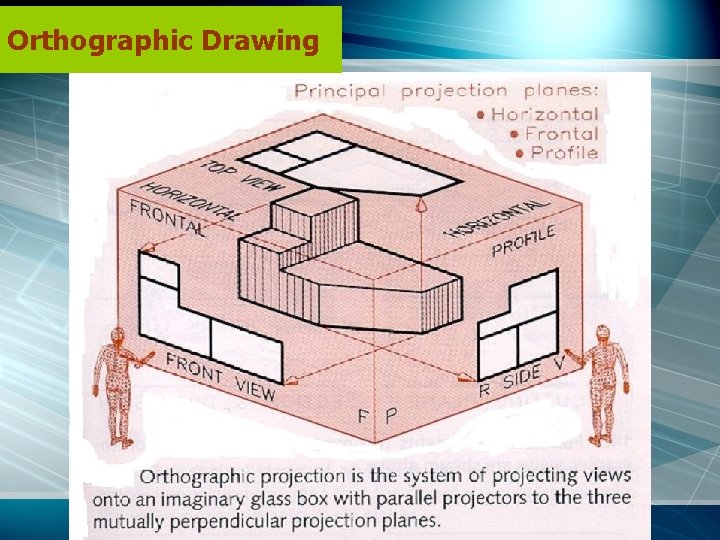

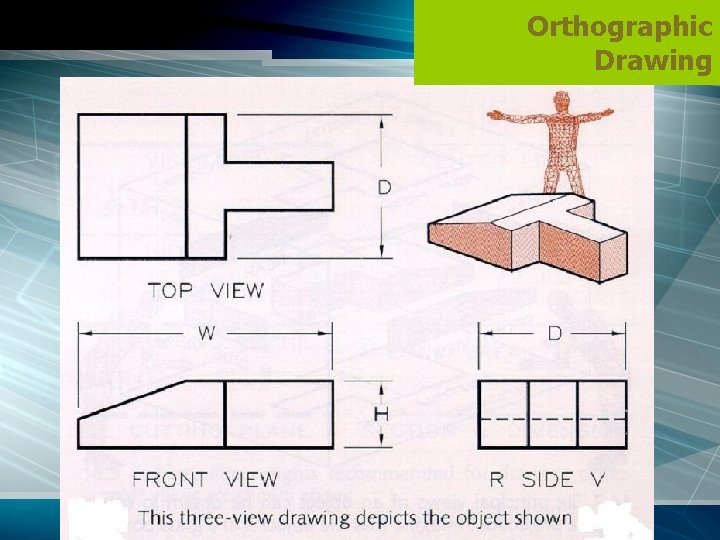

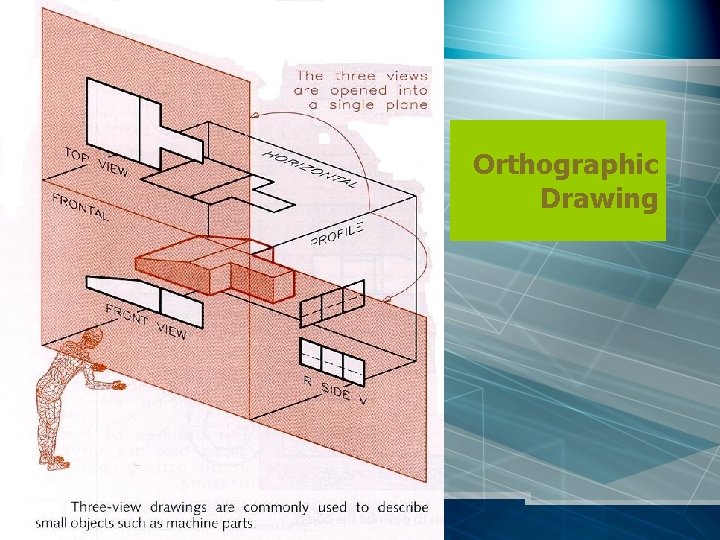

Orthographic Drawing

Orthographic Drawing

Orthographic Drawing

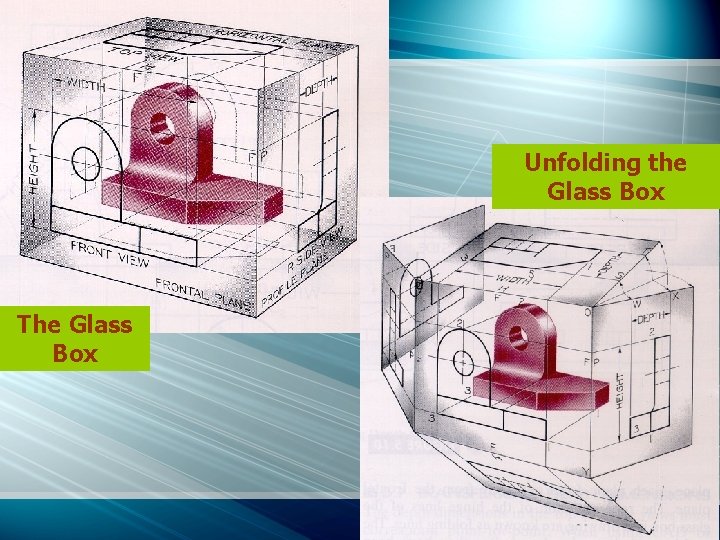

Unfolding the Glass Box The Glass Box

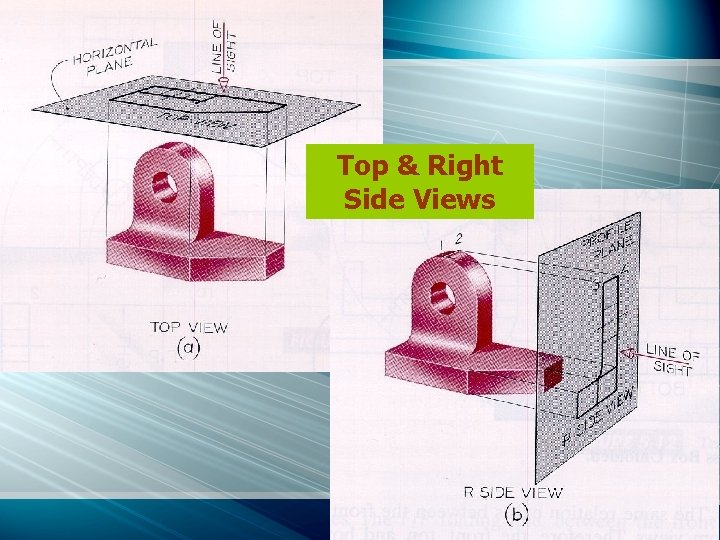

Top & Right Side Views

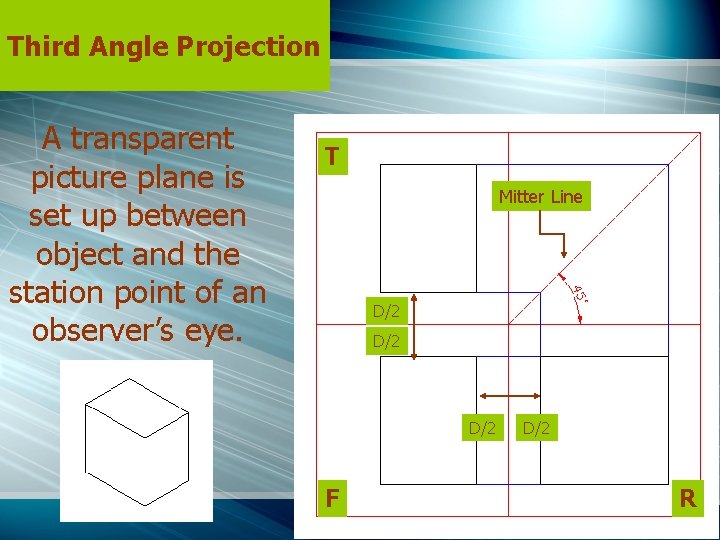

Third Angle Projection A transparent picture plane is set up between object and the station point of an observer’s eye. T Mitter Line D/2 D/2 F D/2 R

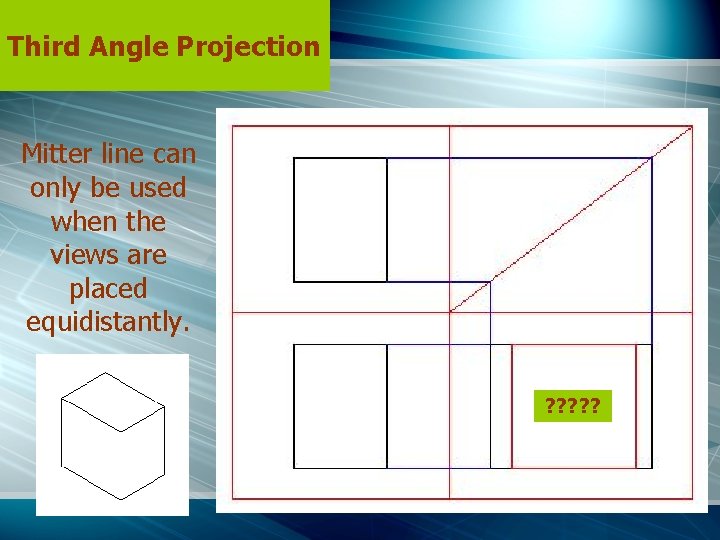

Third Angle Projection Mitter line can only be used when the views are placed equidistantly. ? ? ?

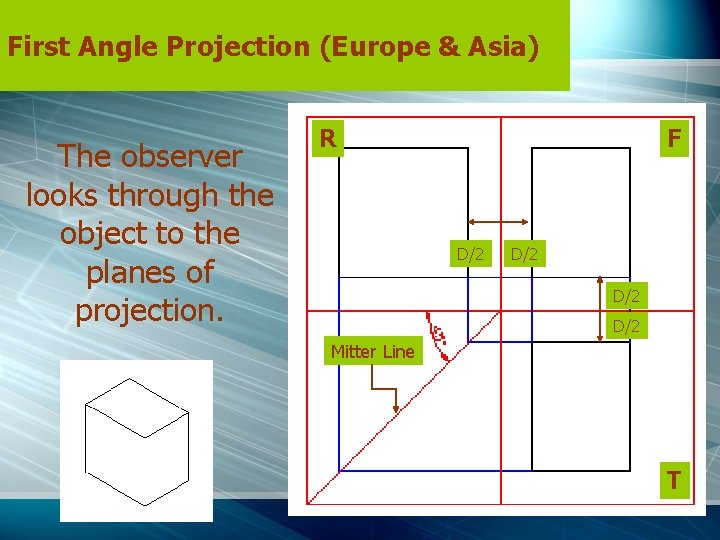

First Angle Projection (Europe & Asia) The observer looks through the object to the planes of projection. R F D/2 D/2 Mitter Line T

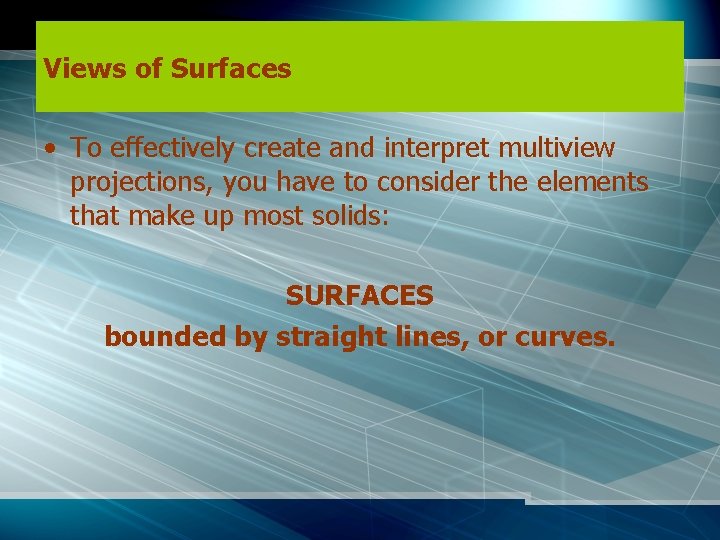

Views of Surfaces • To effectively create and interpret multiview projections, you have to consider the elements that make up most solids: SURFACES bounded by straight lines, or curves.

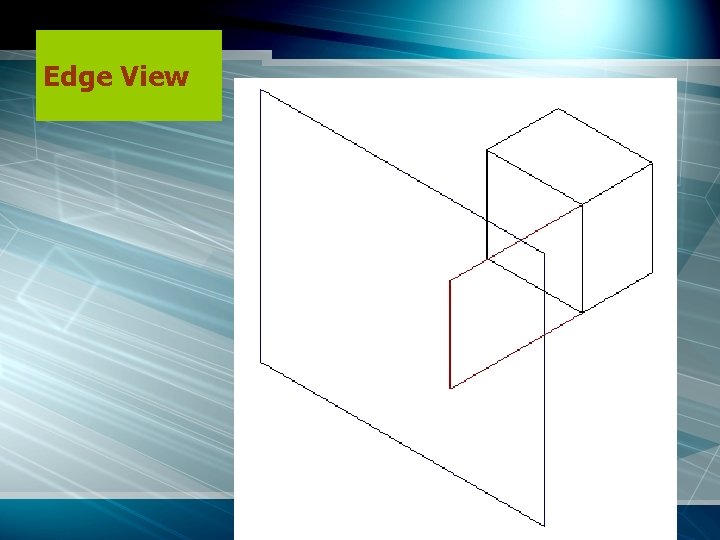

Edge View

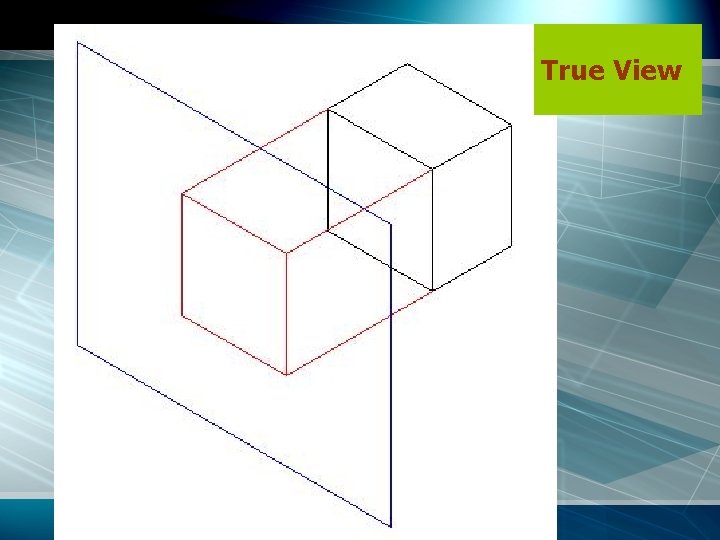

True View

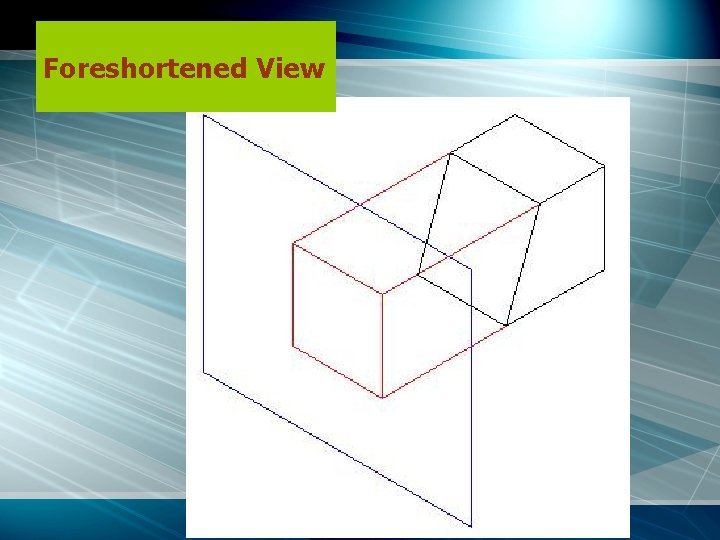

Foreshortened View

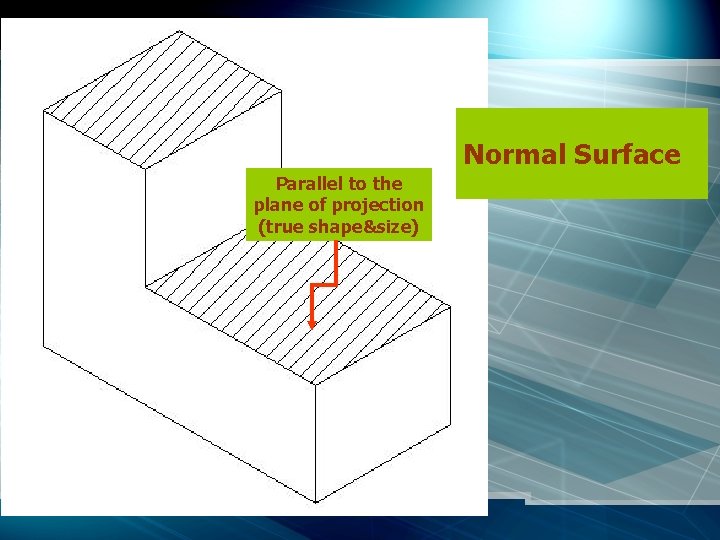

Normal Surface Parallel to the plane of projection (true shape&size)

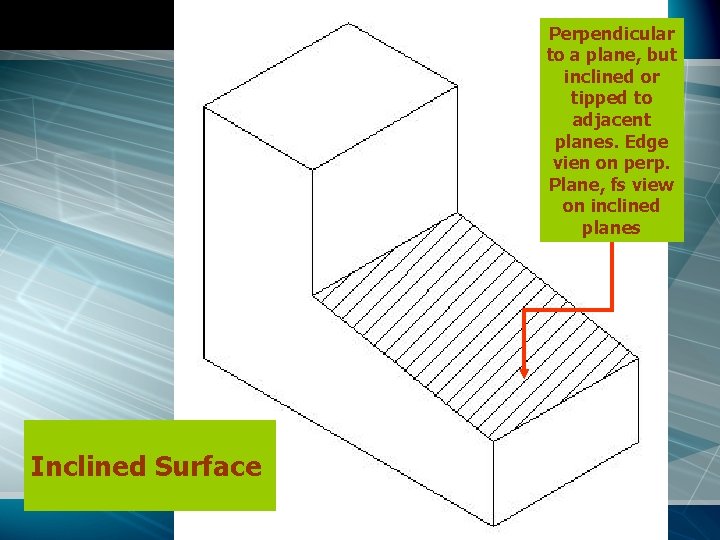

Perpendicular to a plane, but inclined or tipped to adjacent planes. Edge vien on perp. Plane, fs view on inclined planes Inclined Surface

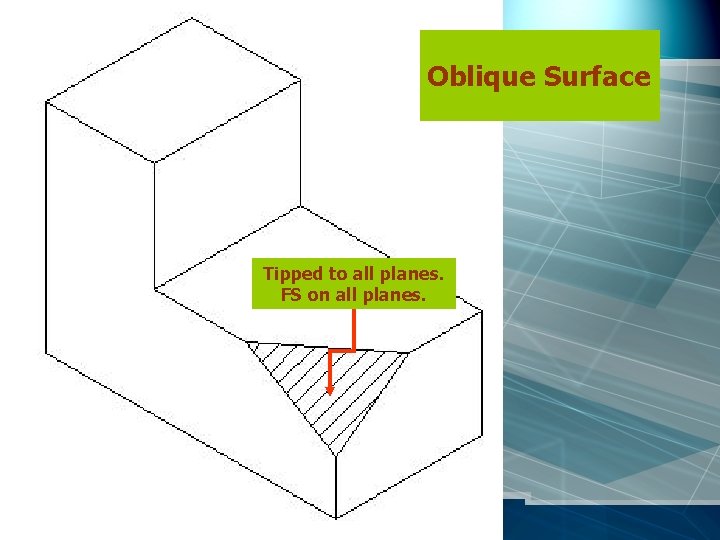

Oblique Surface Tipped to all planes. FS on all planes.

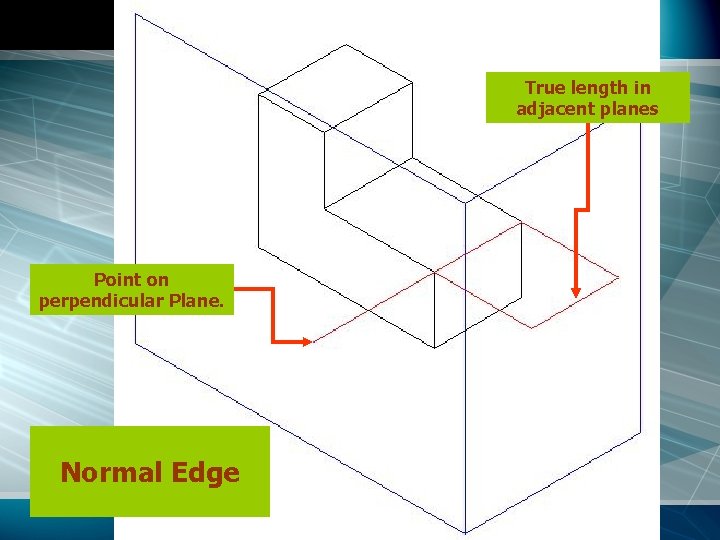

True length in adjacent planes Point on perpendicular Plane. Normal Edge

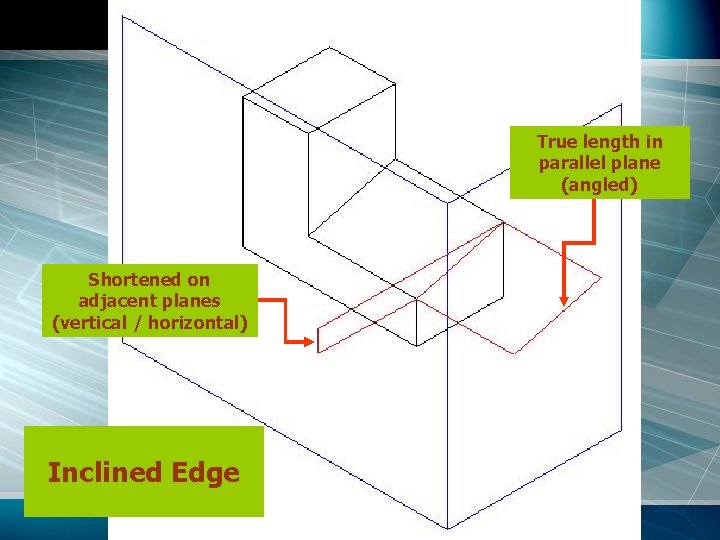

True length in parallel plane (angled) Shortened on adjacent planes (vertical / horizontal) Inclined Edge

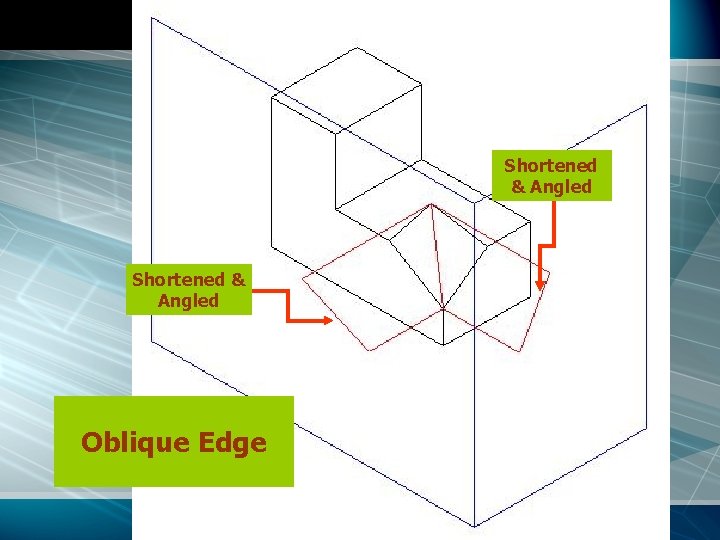

Shortened & Angled Oblique Edge

Angles

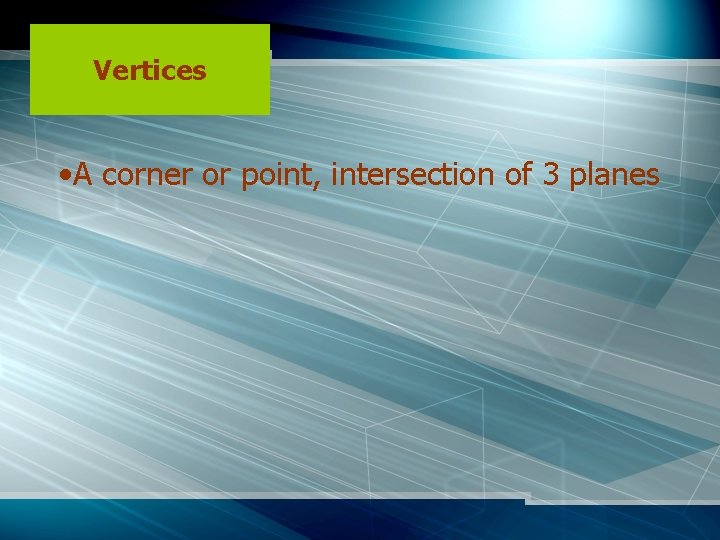

Vertices • A corner or point, intersection of 3 planes

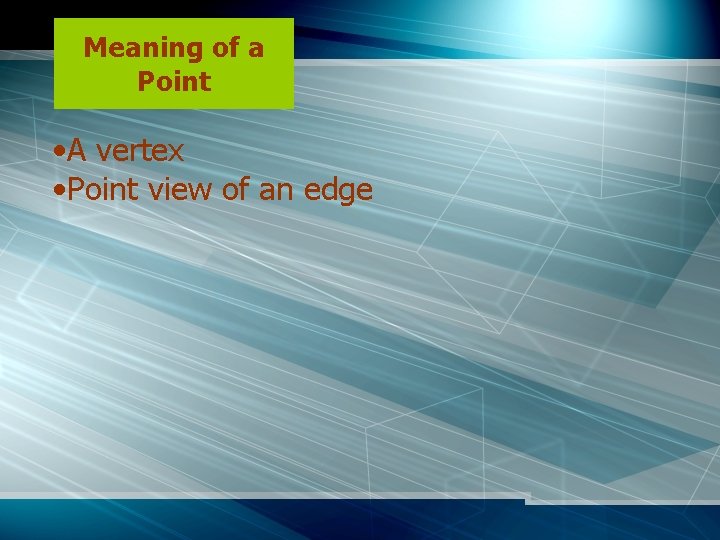

Meaning of a Point • A vertex • Point view of an edge

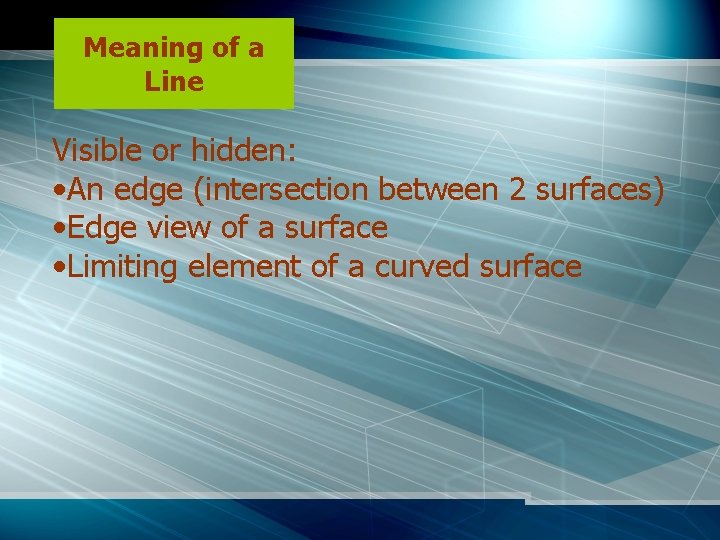

Meaning of a Line Visible or hidden: • An edge (intersection between 2 surfaces) • Edge view of a surface • Limiting element of a curved surface

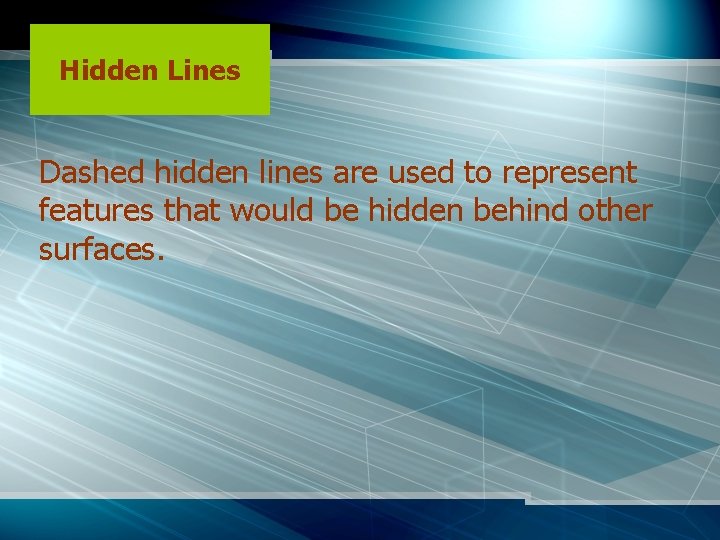

Hidden Lines Dashed hidden lines are used to represent features that would be hidden behind other surfaces.

Center Lines Used to indicate symmetrical axes of circles

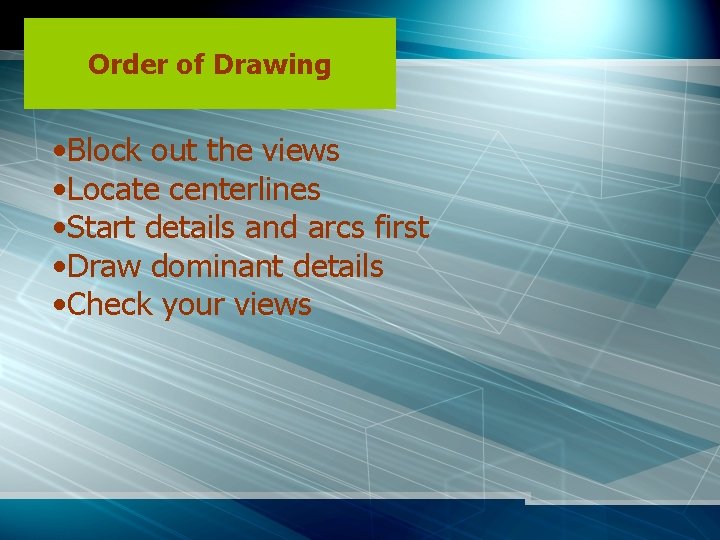

Order of Drawing • Block out the views • Locate centerlines • Start details and arcs first • Draw dominant details • Check your views

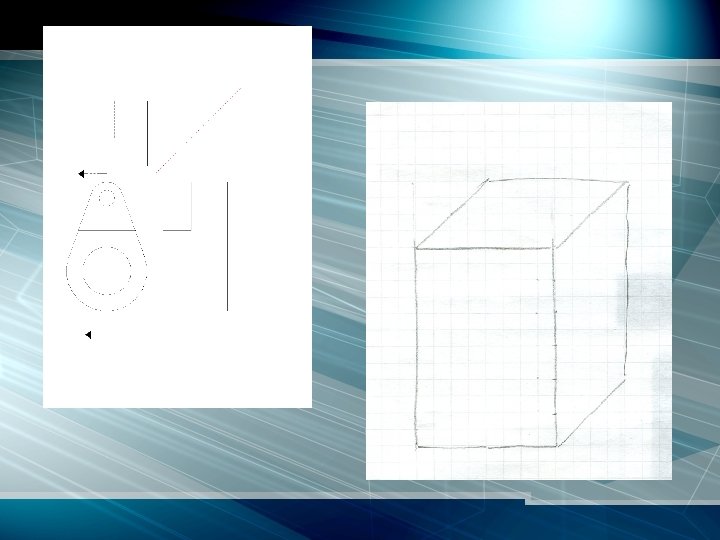

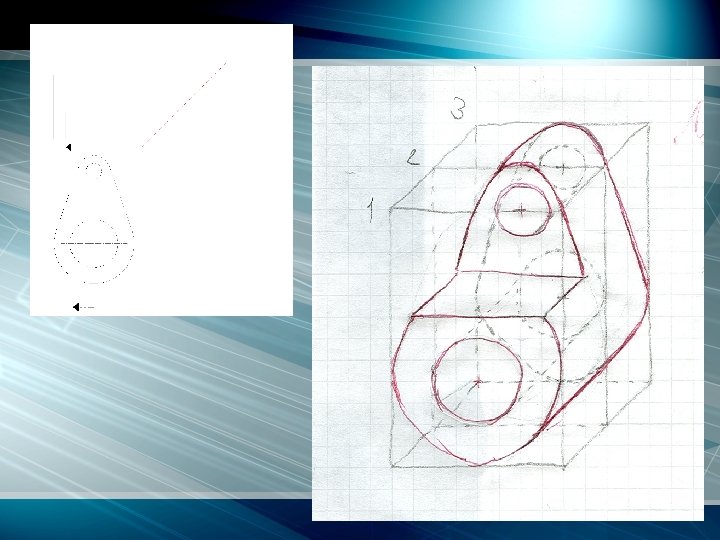

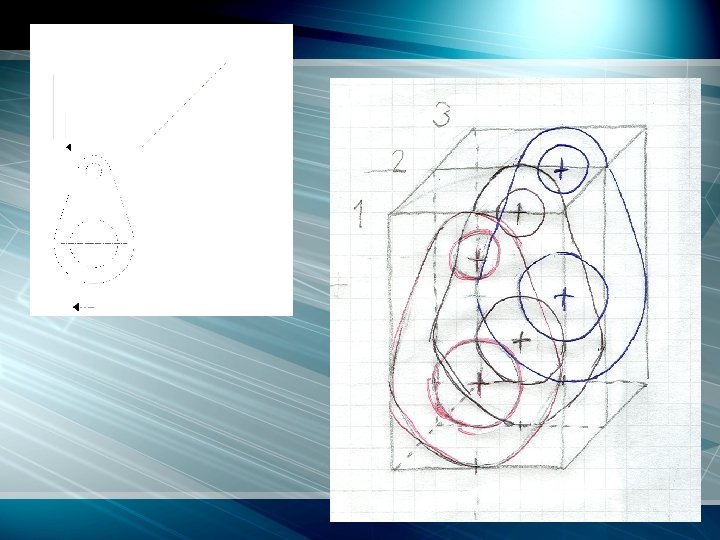

Now : Guess the object. .

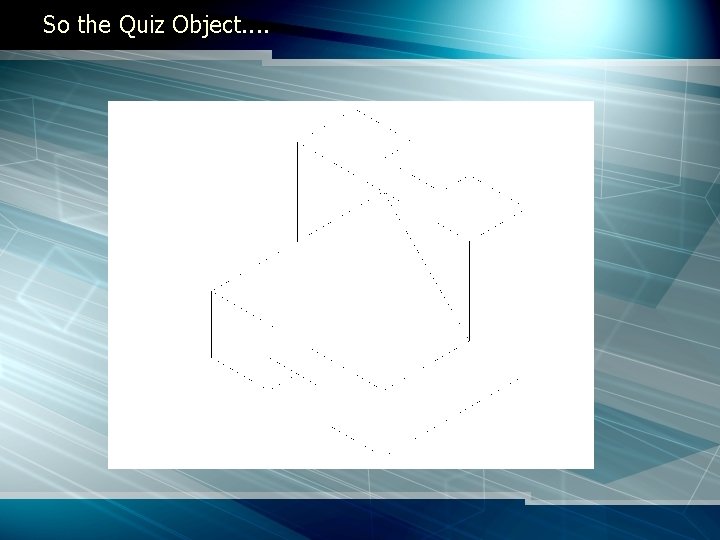

So the Quiz Object. .

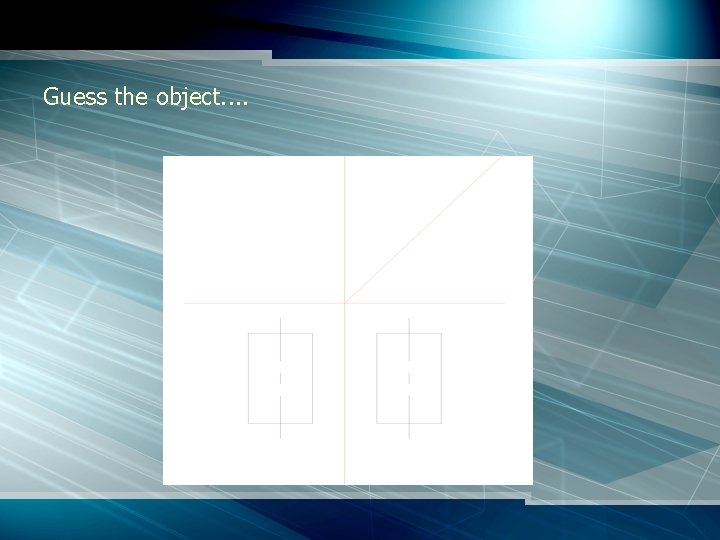

Guess the object. .

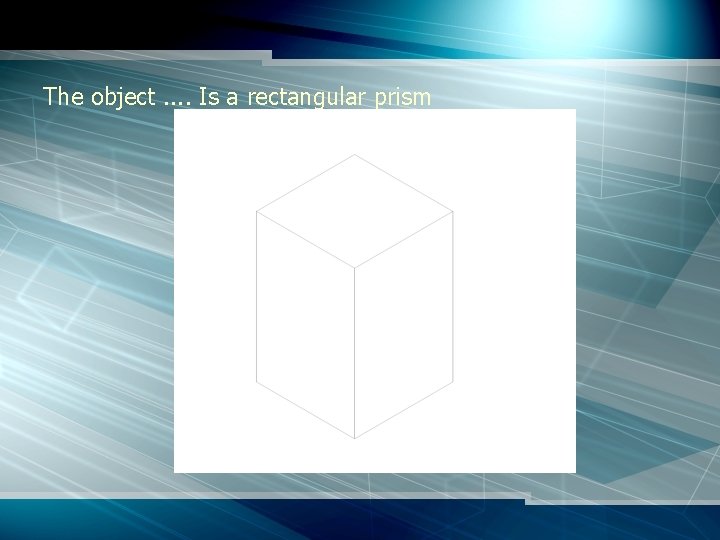

The object. . Is a rectangular prism

Guess the object. .

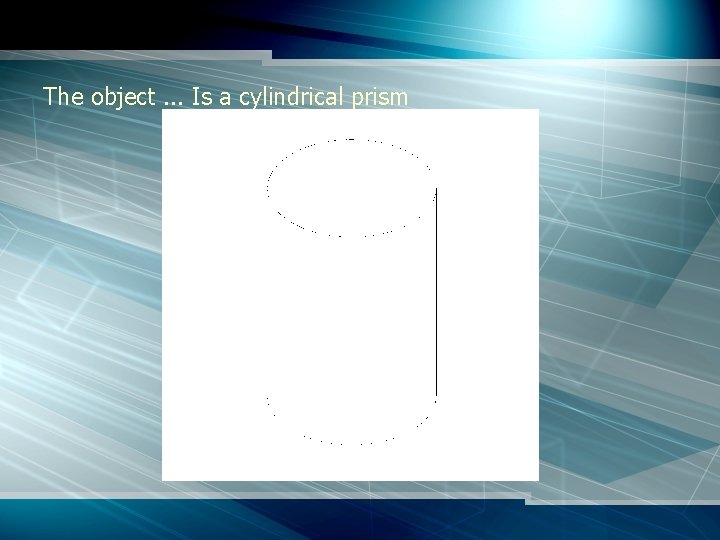

The object. . . Is a cylindrical prism

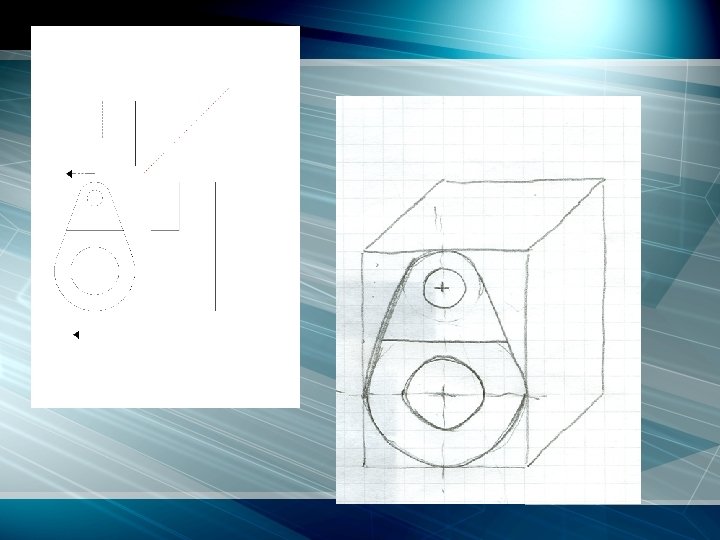

Third Angle Projection. . .

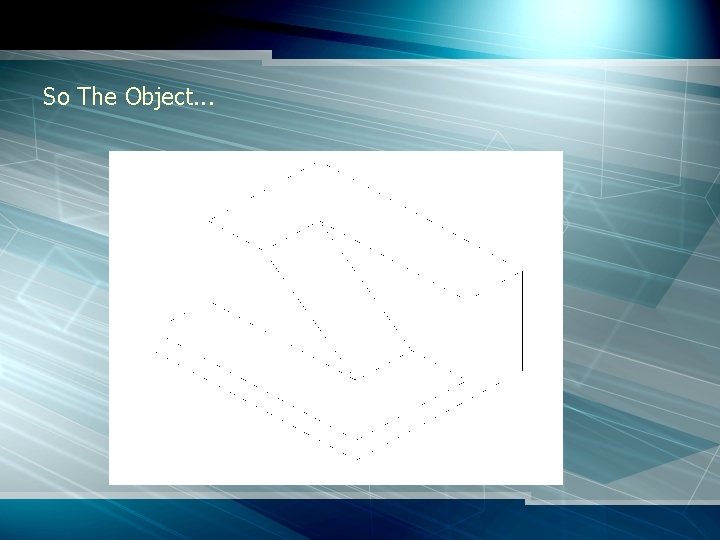

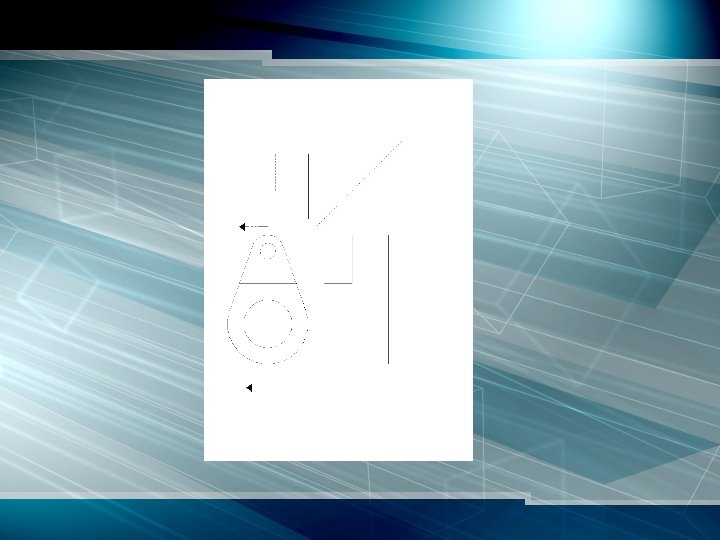

So The Object. . .
