Engineering Design Considerations Emerging Midrange Systems C Mayo

Engineering Design Considerations Emerging Mid-range Systems C. Mayo Tabb Jr. Sr. 3 -phase Regional Manager Spring 2016 PROPRIETARY INFORMATION: The information contained in this presentation is the property of Emerson Network Power and is subject to change without notice. Except as specifically authorized in writing by Emerson Network Power, the holder of this presentation shall keep all information contained herein confidential and shall protect same in whole or in part from disclosure and dissemination to all third parties.

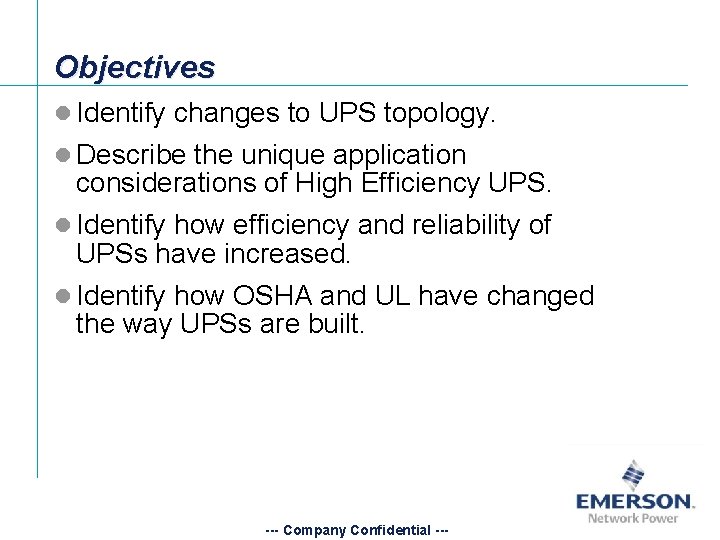

Objectives l Identify changes to UPS topology. l Describe the unique application considerations of High Efficiency UPS. l Identify how efficiency and reliability of UPSs have increased. l Identify how OSHA and UL have changed the way UPSs are built. --- Company Confidential ---

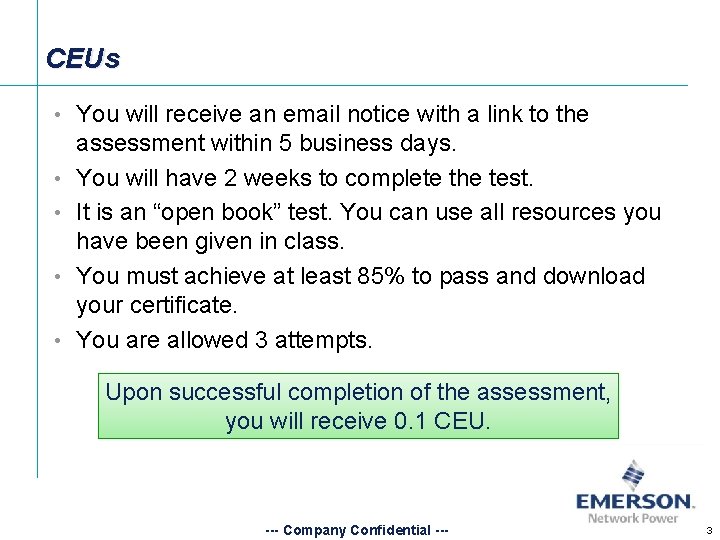

CEUs • You will receive an email notice with a link to the • • assessment within 5 business days. You will have 2 weeks to complete the test. It is an “open book” test. You can use all resources you have been given in class. You must achieve at least 85% to pass and download your certificate. You are allowed 3 attempts. Upon successful completion of the assessment, you will receive 0. 1 CEU. --- Company Confidential --- 3

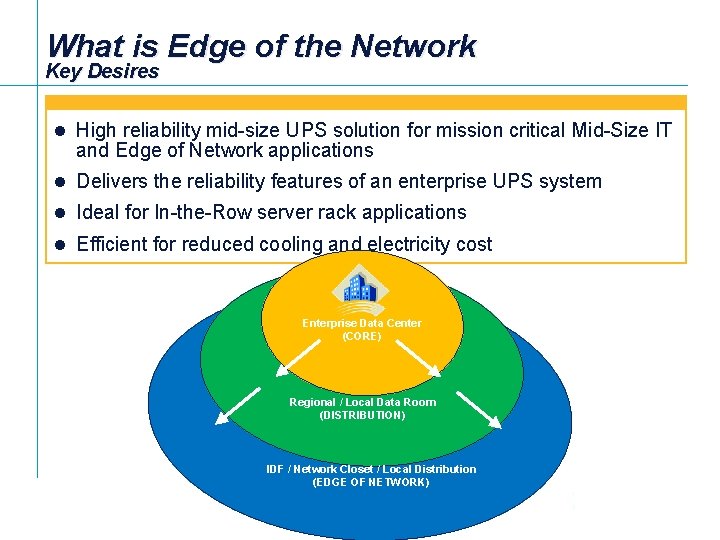

What is Edge of the Network Key Desires l High reliability mid-size UPS solution for mission critical Mid-Size IT and Edge of Network applications l Delivers the reliability features of an enterprise UPS system l Ideal for In-the-Row server rack applications l Efficient for reduced cooling and electricity cost Enterprise Data Center (CORE) Regional / Local Data Room (DISTRIBUTION) IDF / Network Closet / Local Distribution (EDGE OF NETWORK) --- Company Confidential ---

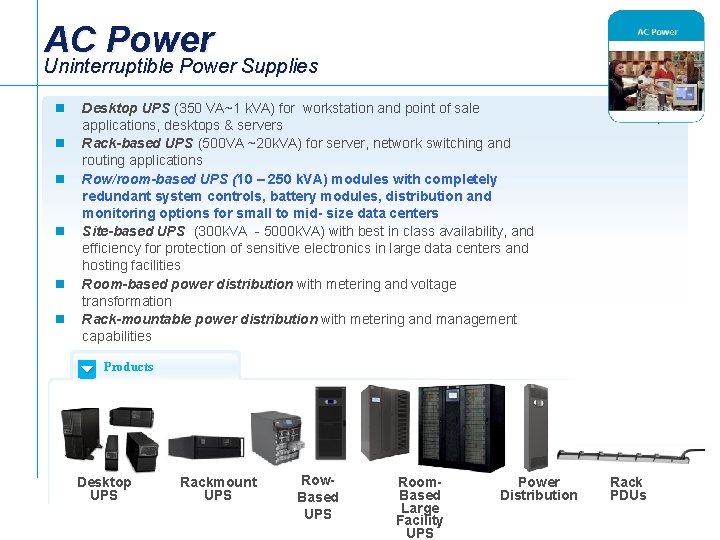

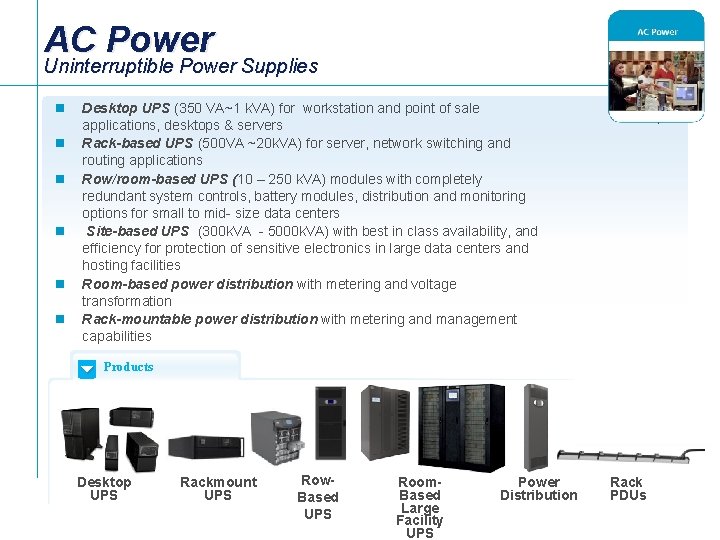

AC Power Uninterruptible Power Supplies n n n Desktop UPS (350 VA~1 k. VA) for workstation and point of sale applications, desktops & servers Rack-based UPS (500 VA ~20 k. VA) for server, network switching and routing applications Row/room-based UPS (10 – 250 k. VA) modules with completely redundant system controls, battery modules, distribution and monitoring options for small to mid- size data centers Site-based UPS (300 k. VA - 5000 k. VA) with best in class availability, and efficiency for protection of sensitive electronics in large data centers and hosting facilities Room-based power distribution with metering and voltage transformation Rack-mountable power distribution with metering and management capabilities Products Row- Room- Based Large UPS Facility --- Company Confidential --UPS © 2012 Emerson Electric Co. All rights reserved. Proprietary Information 5 Desktop UPS Rackmount UPS Power Distribution Rack PDUs

AC Power Uninterruptible Power Supplies n n n Desktop UPS (350 VA~1 k. VA) for workstation and point of sale applications, desktops & servers Rack-based UPS (500 VA ~20 k. VA) for server, network switching and routing applications Row/room-based UPS (10 – 250 k. VA) modules with completely redundant system controls, battery modules, distribution and monitoring options for small to mid- size data centers Site-based UPS (300 k. VA - 5000 k. VA) with best in class availability, and efficiency for protection of sensitive electronics in large data centers and hosting facilities Room-based power distribution with metering and voltage transformation Rack-mountable power distribution with metering and management capabilities Products Row- Room- Based Large UPS Facility --- Company Confidential --UPS © 2012 Emerson Electric Co. All rights reserved. Proprietary Information 6 Desktop UPS Rackmount UPS Power Distribution Rack PDUs

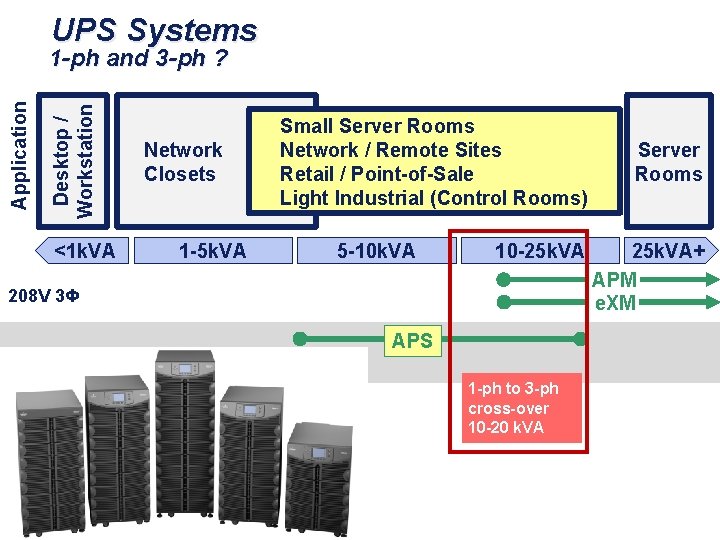

UPS Systems Desktop / Workstation Application 1 -ph and 3 -ph ? <1 k. VA Network Closets 1 -5 k. VA Small Server Rooms Network / Remote Sites Retail / Point-of-Sale Light Industrial (Control Rooms) 5 -10 k. VA 10 -25 k. VA 208 V 3Φ APS 208 V 1Φ 120 V 1Φ GXT 4 1 -ph to 3 -ph cross-over 10 -20 k. VA Server Rooms 25 k. VA+ APM e. XM

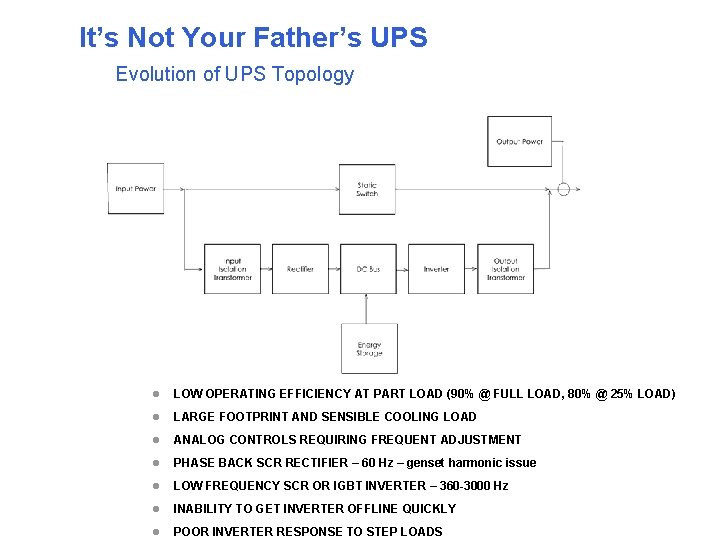

It’s Not Your Father’s UPS Evolution of UPS Topology l LOW OPERATING EFFICIENCY AT PART LOAD (90% @ FULL LOAD, 80% @ 25% LOAD) l LARGE FOOTPRINT AND SENSIBLE COOLING LOAD l ANALOG CONTROLS REQUIRING FREQUENT ADJUSTMENT l PHASE BACK SCR RECTIFIER – 60 Hz – genset harmonic issue l LOW FREQUENCY SCR OR IGBT INVERTER – 360 -3000 Hz l INABILITY TO GET INVERTER OFFLINE QUICKLY l POOR INVERTER RESPONSE TO STEP LOADS

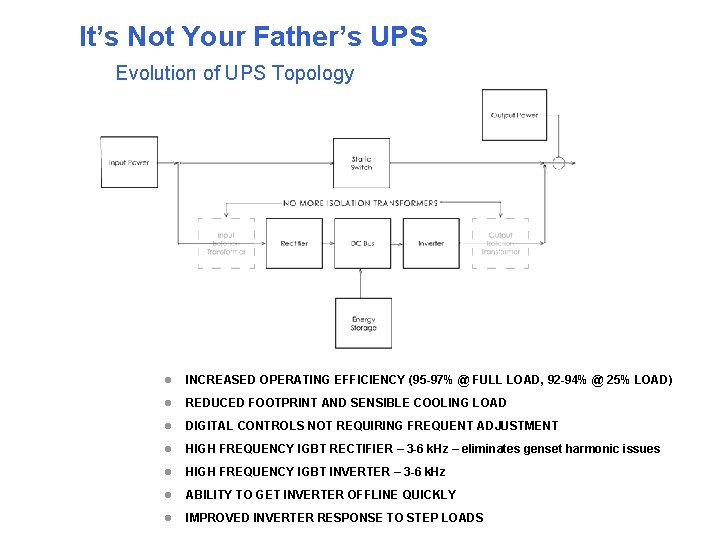

It’s Not Your Father’s UPS Evolution of UPS Topology l INCREASED OPERATING EFFICIENCY (95 -97% @ FULL LOAD, 92 -94% @ 25% LOAD) l REDUCED FOOTPRINT AND SENSIBLE COOLING LOAD l DIGITAL CONTROLS NOT REQUIRING FREQUENT ADJUSTMENT l HIGH FREQUENCY IGBT RECTIFIER – 3 -6 k. Hz – eliminates genset harmonic issues l HIGH FREQUENCY IGBT INVERTER – 3 -6 k. Hz l ABILITY TO GET INVERTER OFFLINE QUICKLY l IMPROVED INVERTER RESPONSE TO STEP LOADS

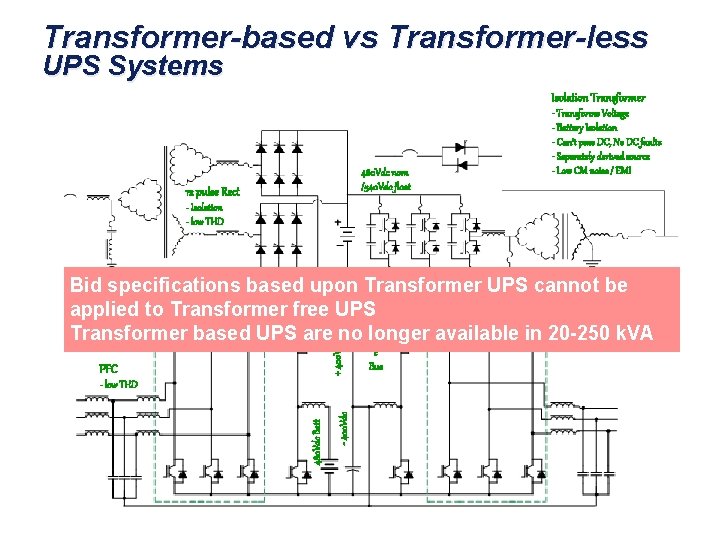

Transformer-based vs Transformer-less UPS Systems Isolation Transformer 480 Vdc nom /540 Vdc float 12 pulse Rect - Transforms Voltage - Battery Isolation - Can’t pass DC, No DC faults - Separately derived source - Low CM noise / EMI - Isolation - low THD + 400 Vdc Bid specifications based upon Transformer UPS cannot be applied to Transformer free UPS Transformer based UPS are no longer available in 20 -250 k. VA 800 Vd PFC - 400 Vdc 480 Vdc Batt - low THD c Bus

Efficient Operation & High-Density Design

Efficient Operation & High-Density Design Transformer-free topology with up to 95. 4% at 208 v and 97% at 480 V efficiency in double conversion mode and 98% in Eco mode – latest 3 level rectifierinverter for max efficiency Tested, proven design – offers a modular architecture that engineers and customers trust for fault tolerant operation High capacity and unity power factor in a smaller footprint – provides more usable power, best space utilization, and reduced installation costs k. W=k. VA ENERGY STAR Qualified UL 1778 5 th Edition --- Company Confidential --- UL 1778 5 TH Edition

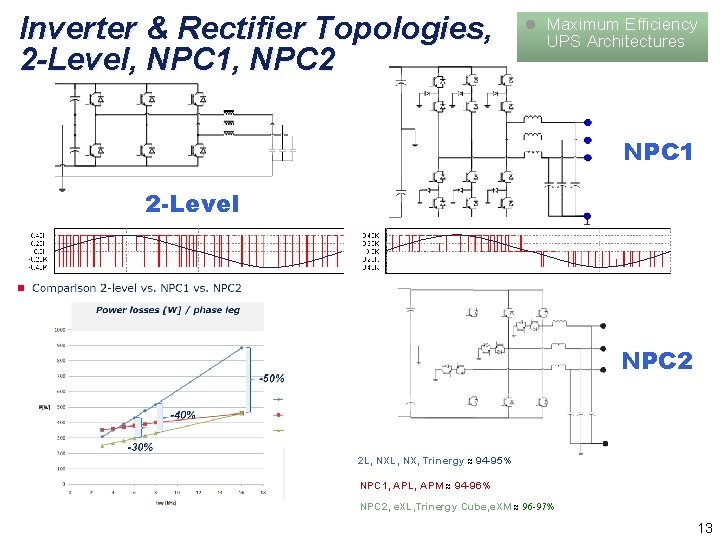

Inverter & Rectifier Topologies, 2 -Level, NPC 1, NPC 2 l Maximum Efficiency UPS Architectures NPC 1 2 -Level NPC 2 2 L, NX, Trinergy ≈ 94 -95% NPC 1, APL, APM ≈ 94 -96% NPC 2, e. XL, Trinergy Cube, e. XM ≈ 96 -97% 13

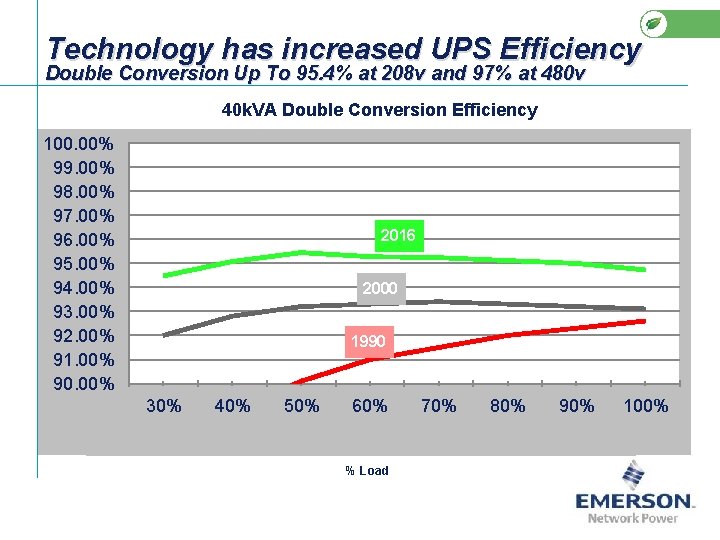

Technology has increased UPS Efficiency Double Conversion Up To 95. 4% at 208 v and 97% at 480 v 40 k. VA Double Conversion Efficiency 100. 00% 99. 00% 98. 00% 97. 00% 96. 00% 95. 00% 94. 00% 93. 00% 92. 00% 91. 00% 90. 00% 2016 2000 1990 30% Eaton 9390 40% 50% 60% Liebert e. XM 70% 80% 90% 100% APC Smart UPS VT (30 k. VA) % Load --- Company Confidential ---

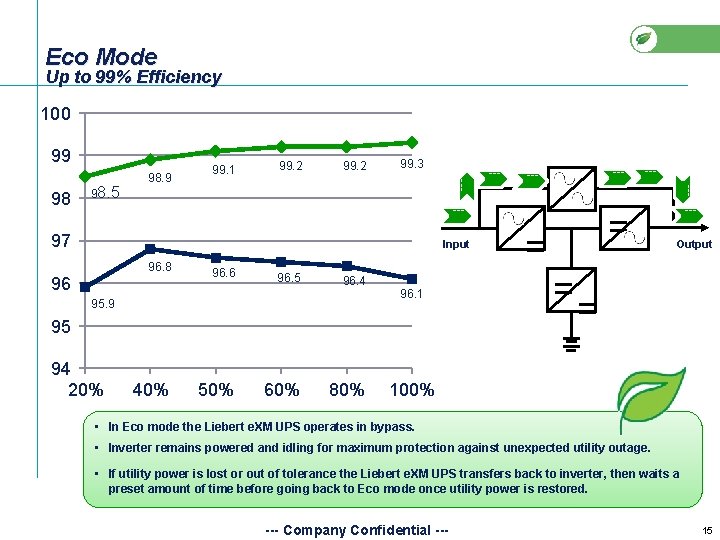

Eco Mode Up to 99% Efficiency In case of utility failure UPS will transfer the load from utility to online mode and vise versa within <2 ms ( in sync condition ) 100 98. 5 99. 2 99. 3 --- 97 Input 96. 8 96 96. 5 96. 4 95. 9 96. 1 95 94 20% 40% 50% 60% 80% --- --- = = = --- 98 98. 9 99. 1 --- 99 --Output = 100% • In Eco mode the Liebert e. XM UPS operates in bypass. • Inverter remains powered and idling for maximum protection against unexpected utility outage. • If utility power is lost or out of tolerance the Liebert e. XM UPS transfers back to inverter, then waits a preset amount of time before going back to Eco mode once utility power is restored. --- Company Confidential --- 15

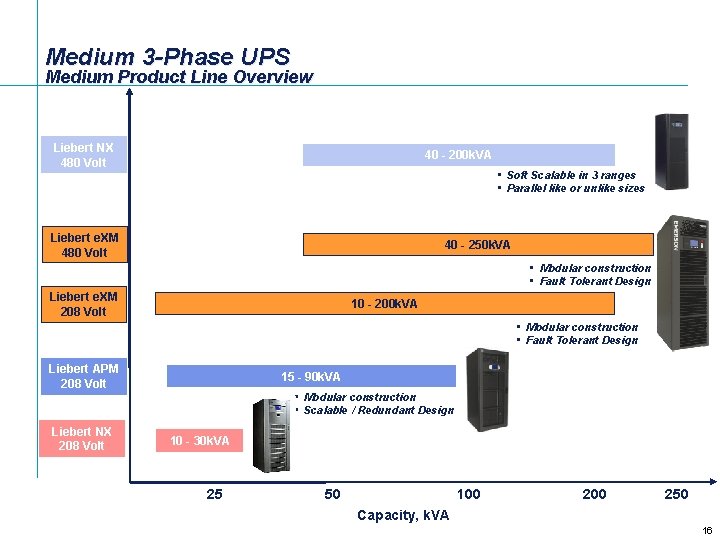

Medium 3 -Phase UPS Medium Product Line Overview Liebert NX 480 Volt 40 - 200 k. VA • Soft Scalable in 3 ranges • Parallel like or unlike sizes Liebert e. XM 480 Volt 40 - 250 k. VA • Modular construction • Fault Tolerant Design Liebert e. XM 208 Volt 10 - 200 k. VA • Modular construction • Fault Tolerant Design Liebert APM 208 Volt 15 - 90 k. VA • Modular construction • Scalable / Redundant Design Liebert NX 208 Volt 10 - 30 k. VA 25 50 Capacity, k. VA --- Company Confidential --- 100 250 16

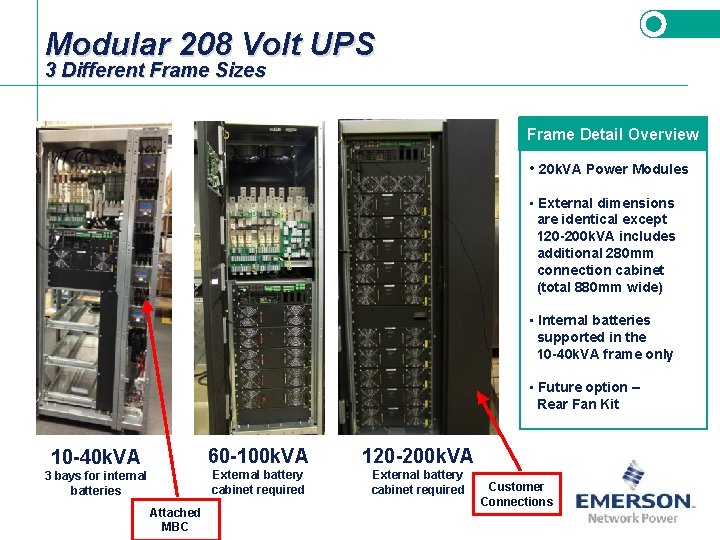

Modular 208 Volt UPS 3 Different Frame Sizes Frame Detail Overview • 20 k. VA Power Modules • External dimensions are identical except 120 -200 k. VA includes additional 280 mm connection cabinet (total 880 mm wide) • Internal batteries supported in the 10 -40 k. VA frame only • Future option – Rear Fan Kit 10 -40 k. VA 60 -100 k. VA 120 -200 k. VA 3 bays for internal batteries External battery cabinet required Attached MBC --- Company Confidential --- Customer Connections

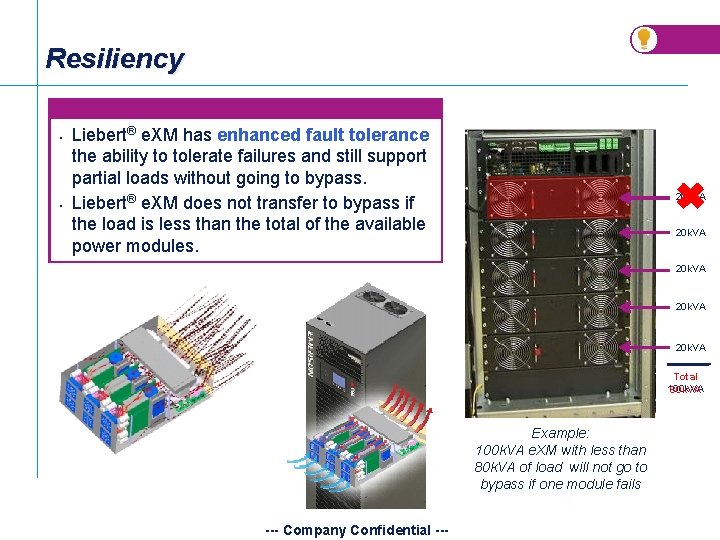

Resiliency • • Liebert® e. XM has enhanced fault tolerance the ability to tolerate failures and still support partial loads without going to bypass. Liebert® e. XM does not transfer to bypass if the load is less than the total of the available power modules. 20 k. VA Total 100 k. VA 80 k. VA Example: 100 k. VA e. XM with less than 80 k. VA of load will not go to bypass if one module fails --- Company Confidential ---

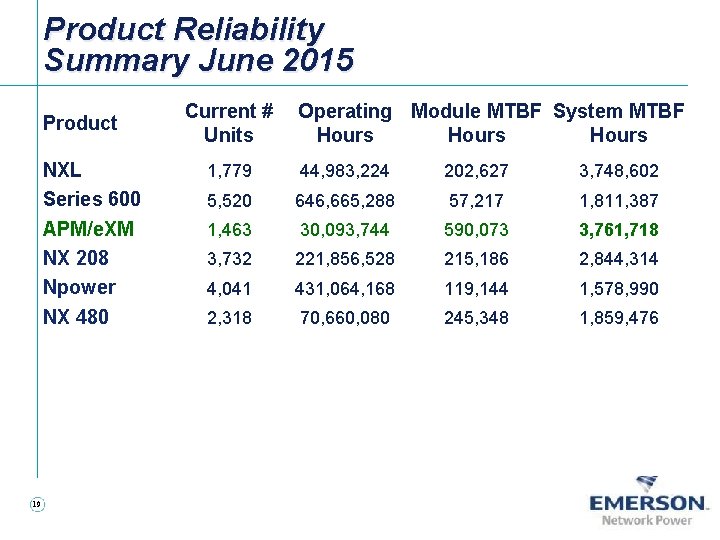

Product Reliability Summary June 2015 Product NXL Series 600 APM/e. XM NX 208 Npower NX 480 19 Current # Operating Module MTBF System MTBF Units Hours 1, 779 44, 983, 224 202, 627 3, 748, 602 5, 520 646, 665, 288 57, 217 1, 811, 387 1, 463 30, 093, 744 590, 073 3, 761, 718 3, 732 221, 856, 528 215, 186 2, 844, 314 4, 041 431, 064, 168 119, 144 1, 578, 990 2, 318 70, 660, 080 245, 348 1, 859, 476

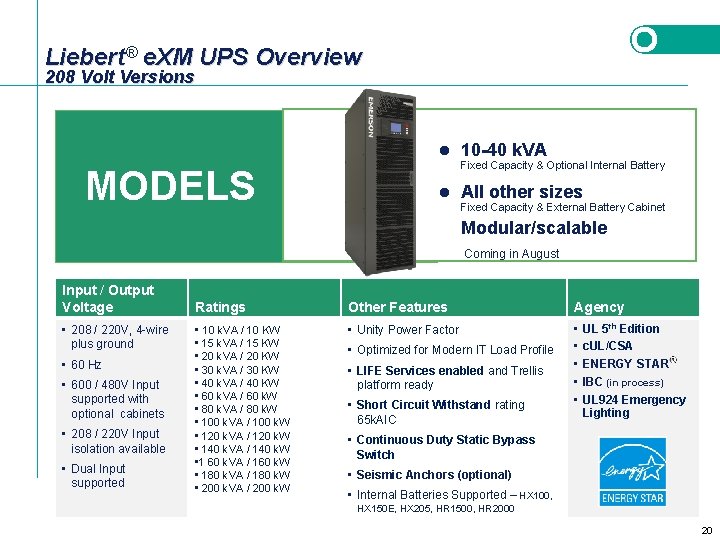

Liebert® e. XM UPS Overview 208 Volt Versions l 10 -40 k. VA Fixed Capacity & Optional Internal Battery MODELS l All other sizes Fixed Capacity & External Battery Cabinet Modular/scalable Coming in August Input / Output Voltage • 208 / 220 V, 4 -wire plus ground • 60 Hz • 600 / 480 V Input supported with optional cabinets • 208 / 220 V Input isolation available • Dual Input supported Ratings Other Features • 10 k. VA / 10 KW • Unity Power Factor • 15 k. VA / 15 KW • 20 k. VA / 20 KW • 30 k. VA / 30 KW • 40 k. VA / 40 KW • 60 k. VA / 60 k. W • 80 k. VA / 80 k. W • 100 k. VA / 100 k. W • 120 k. VA / 120 k. W • 140 k. VA / 140 k. W • 1 60 k. VA / 160 k. W • 180 k. VA / 180 k. W • 200 k. VA / 200 k. W • Optimized for Modern IT Load Profile • LIFE Services enabled and Trellis platform ready • Short Circuit Withstand rating 65 k. AIC Agency • • • UL 5 th Edition c. UL/CSA ENERGY STAR IBC (in process) UL 924 Emergency Lighting • Continuous Duty Static Bypass Switch • Seismic Anchors (optional) • Internal Batteries Supported – HX 100, HX 150 E, HX 205, HR 1500, HR 2000 --- Company Confidential --- 20

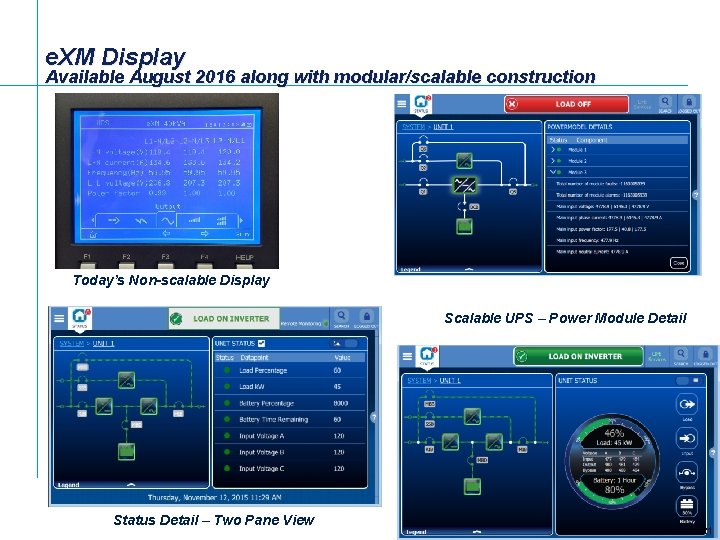

e. XM Display Available August 2016 along with modular/scalable construction Today’s Non-scalable Display Scalable UPS – Power Module Detail Status Detail – Two Pane View --- Company Confidential --- 21

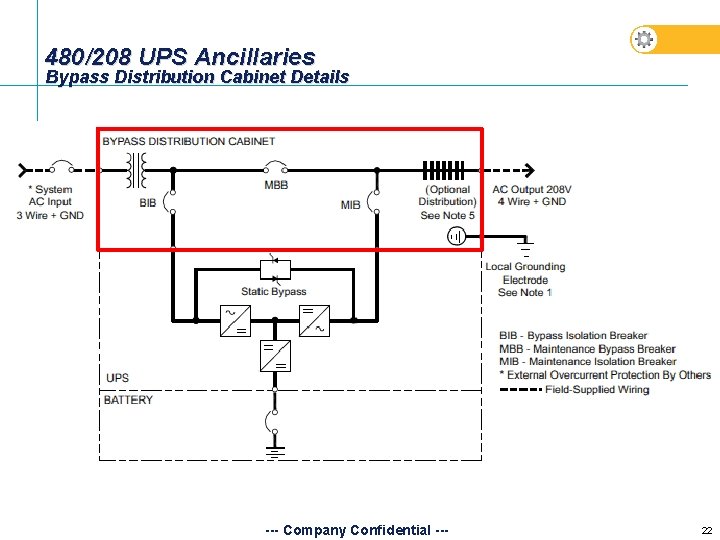

480/208 UPS Ancillaries Bypass Distribution Cabinet Details --- Company Confidential --- 22

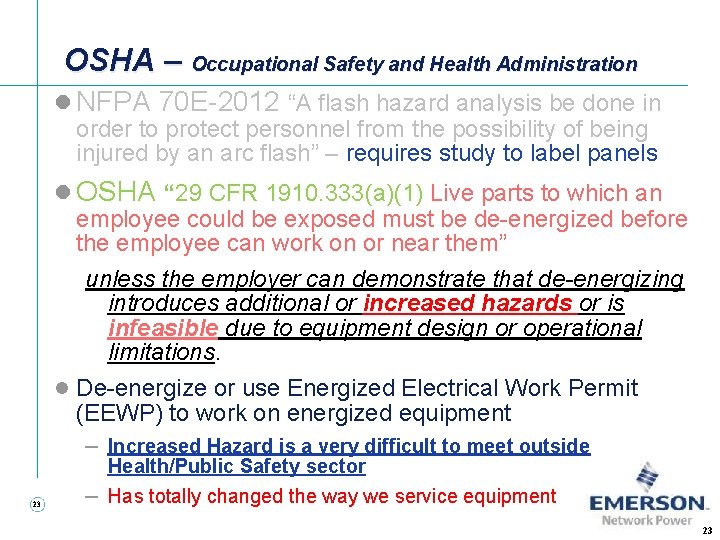

OSHA – Occupational Safety and Health Administration l NFPA 70 E-2012 “A flash hazard analysis be done in order to protect personnel from the possibility of being injured by an arc flash” – requires study to label panels l OSHA “ 29 CFR 1910. 333(a)(1) Live parts to which an employee could be exposed must be de-energized before the employee can work on or near them” unless the employer can demonstrate that de-energizing introduces additional or increased hazards or is infeasible due to equipment design or operational limitations. l De-energize or use Energized Electrical Work Permit (EEWP) to work on energized equipment – Increased Hazard is a very difficult to meet outside 23 – Health/Public Safety sector Has totally changed the way we service equipment 23

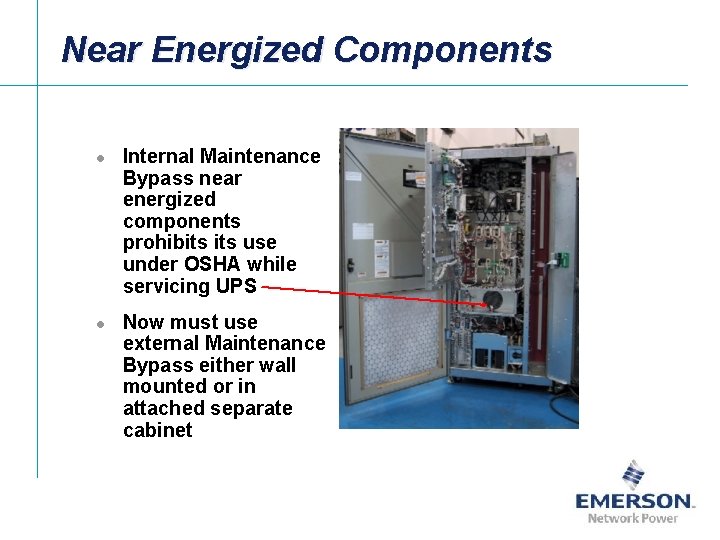

Near Energized Components l l Internal Maintenance Bypass near energized components prohibits use under OSHA while servicing UPS Now must use external Maintenance Bypass either wall mounted or in attached separate cabinet --- Company Confidential ---

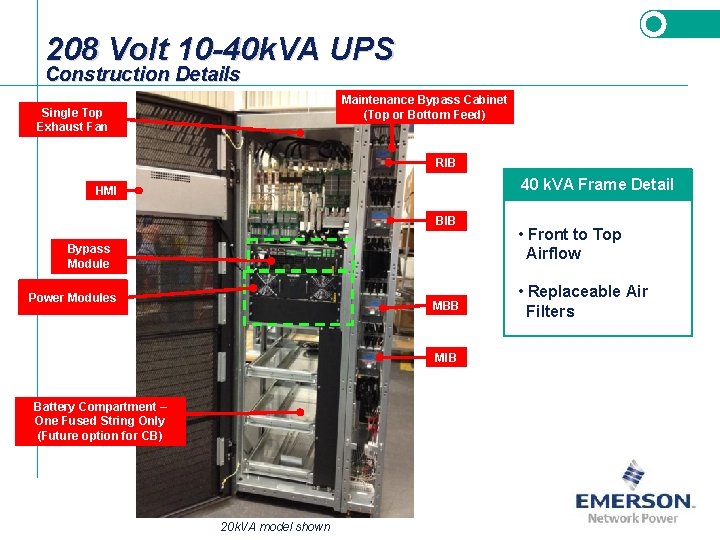

208 Volt 10 -40 k. VA UPS Construction Details Single Top Exhaust Fan Maintenance Bypass Cabinet (Top or Bottom Feed) RIB 40 k. VA Frame Detail HMI BIB Bypass Module Power Modules MBB MIB Battery Compartment – One Fused String Only (Future option for CB) 20 k. VA model shown --- Company Confidential --- • Front to Top Airflow • Replaceable Air Filters

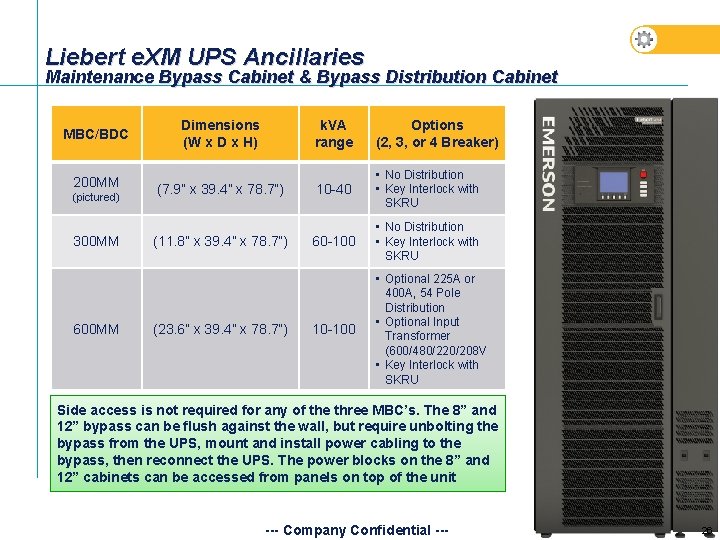

Liebert e. XM UPS Ancillaries Maintenance Bypass Cabinet & Bypass Distribution Cabinet MBC/BDC 200 MM (pictured) 300 MM 600 MM Dimensions (W x D x H) (7. 9” x 39. 4” x 78. 7”) (11. 8” x 39. 4” x 78. 7”) (23. 6” x 39. 4” x 78. 7”) k. VA range Options (2, 3, or 4 Breaker) 10 -40 • No Distribution • Key Interlock with SKRU 60 -100 • No Distribution • Key Interlock with SKRU 10 -100 • Optional 225 A or 400 A, 54 Pole Distribution • Optional Input Transformer (600/480/220/208 V • Key Interlock with SKRU Side access is not required for any of the three MBC’s. The 8” and 12” bypass can be flush against the wall, but require unbolting the bypass from the UPS, mount and install power cabling to the bypass, then reconnect the UPS. The power blocks on the 8” and 12” cabinets can be accessed from panels on top of the unit --- Company Confidential --- 26

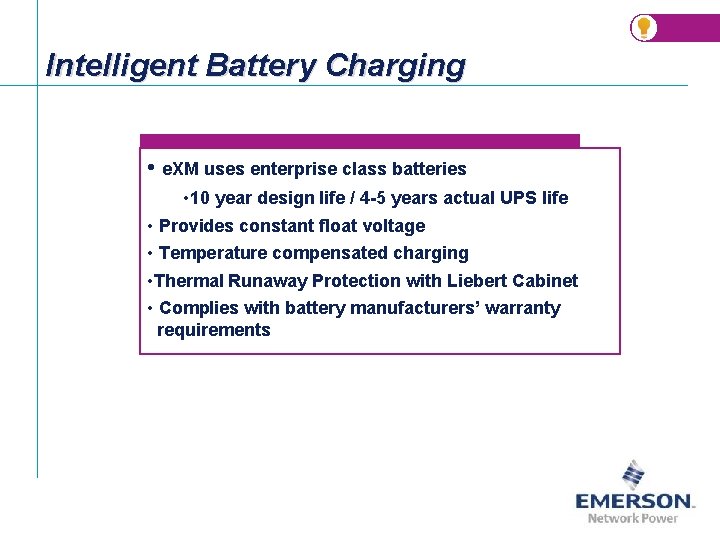

Intelligent Battery Charging • e. XM uses enterprise class batteries • 10 year design life / 4 -5 years actual UPS life • Provides constant float voltage • Temperature compensated charging • Thermal Runaway Protection with Liebert Cabinet • Complies with battery manufacturers’ warranty requirements --- Company Confidential ---

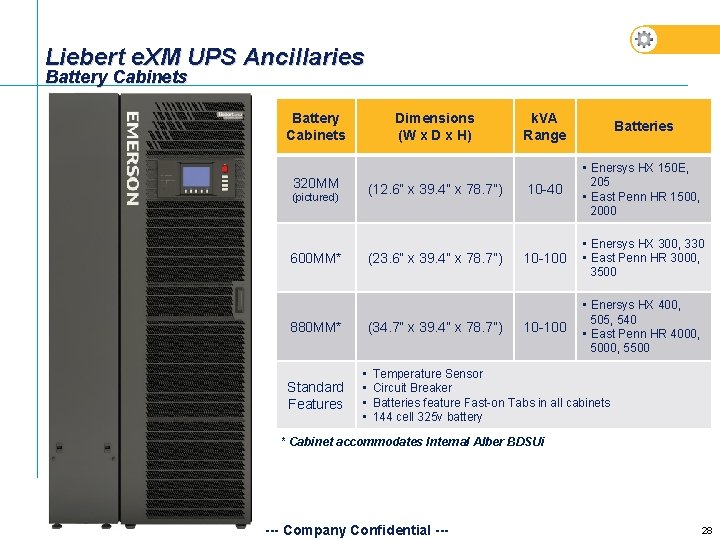

Liebert e. XM UPS Ancillaries Battery Cabinets Dimensions (W x D x H) • 320 MM* (12. 6 W) (pictured) 320 MM (pictured) • 600 MM (23. 6” W) (12. 6” x 39. 4” x 78. 7”) • 880 MM (34. 65” W) 600 MM* 880 MM* Standard Features (23. 6” x 39. 4” x 78. 7”) (34. 7” x 39. 4” x 78. 7”) • • k. VA Range Batteries 10 -40 • Enersys HX 150 E, 205 • East Penn HR 1500, 2000 10 -100 • Enersys HX 300, 330 • East Penn HR 3000, 3500 10 -100 • Enersys HX 400, 505, 540 • East Penn HR 4000, 5500 Temperature Sensor Circuit Breaker Batteries feature Fast-on Tabs in all cabinets 144 cell 325 v battery * Cabinet accommodates Internal Alber BDSUi --- Company Confidential --- 28

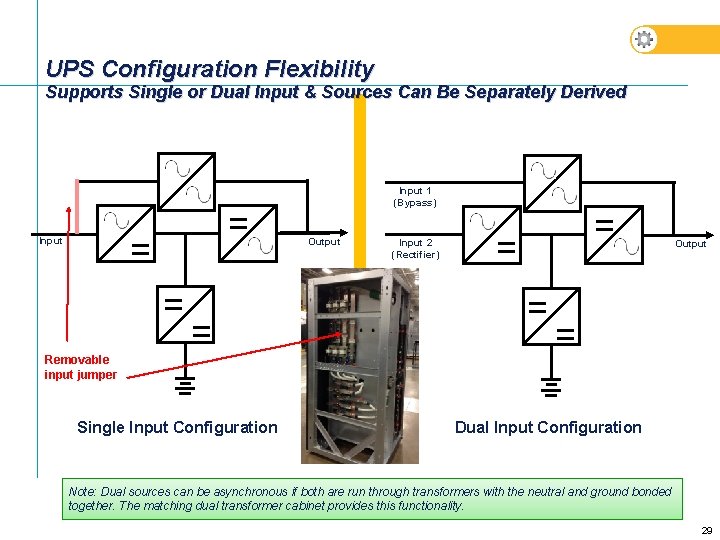

UPS Configuration Flexibility Supports Single or Dual Input & Sources Can Be Separately Derived = = Input 1 (Bypass) = Output Input 2 (Rectifier) = = Removable input jumper Single Input Configuration Output = Dual Input Configuration Note: Dual sources can be asynchronous if both are run through transformers with the neutral and ground bonded together. The matching dual transformer cabinet provides this functionality. --- Company Confidential --- 29

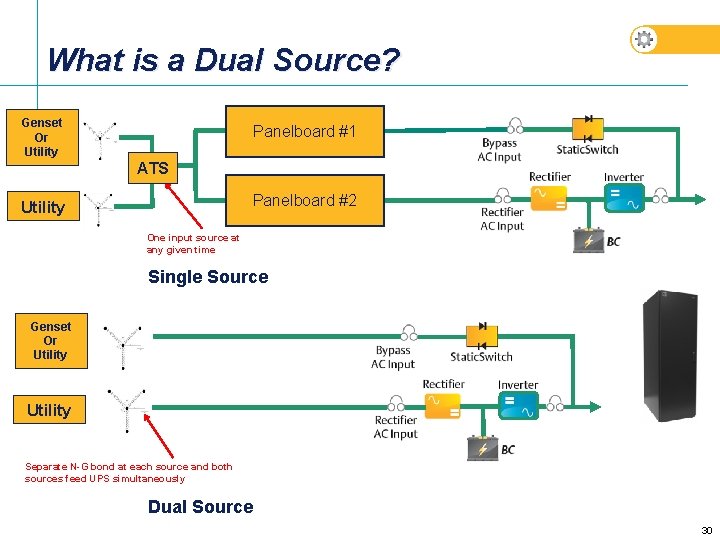

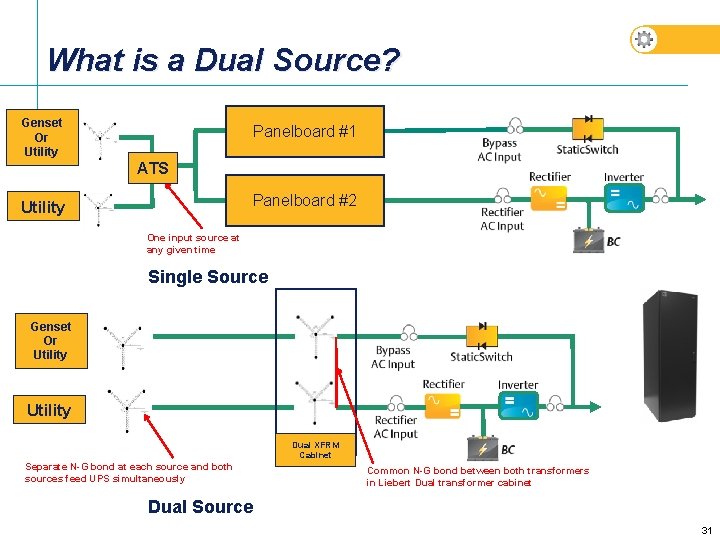

What is a Dual Source? Genset Or Utility Panelboard #1 ATS Panelboard #2 Utility One input source at any given time Single Source Genset Or Utility Separate N-G bond at each source and both sources feed UPS simultaneously Dual Source --- Company Confidential --- 30

What is a Dual Source? Genset Or Utility Panelboard #1 ATS Panelboard #2 Utility One input source at any given time Single Source Genset Or Utility Dual XFRM Cabinet Separate N-G bond at each source and both sources feed UPS simultaneously Common N-G bond between both transformers in Liebert Dual transformer cabinet Dual Source --- Company Confidential --- 31

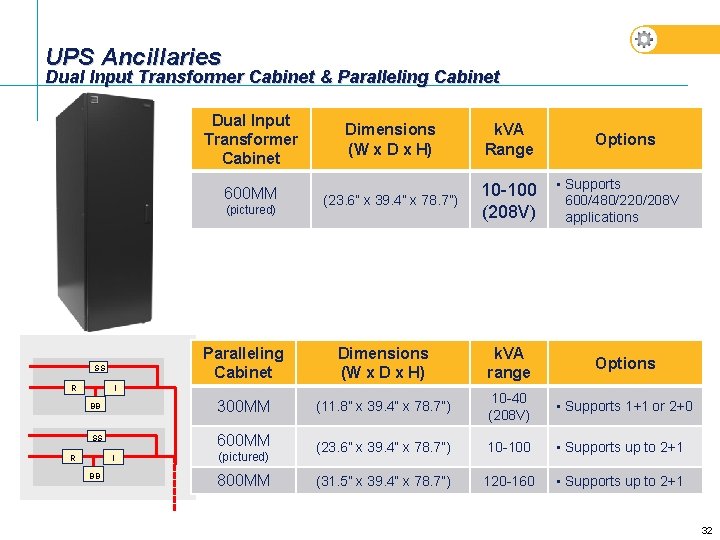

UPS Ancillaries Dual Input Transformer Cabinet & Paralleling Cabinet Dual Input Transformer Cabinet 600 MM (pictured) Dimensions (W x D x H) k. VA Range (23. 6” x 39. 4” x 78. 7”) 10 -100 (208 V) Options • Supports 600/480/220/208 V applications Paralleling Cabinet Dimensions (W x D x H) k. VA range Options BB 300 MM (11. 8” x 39. 4” x 78. 7”) 10 -40 (208 V) • Supports 1+1 or 2+0 SS 600 MM (23. 6” x 39. 4” x 78. 7”) 10 -100 • Supports up to 2+1 (31. 5” x 39. 4” x 78. 7”) 120 -160 • Supports up to 2+1 SS R I BB (pictured) 800 MM --- Company Confidential --- 32

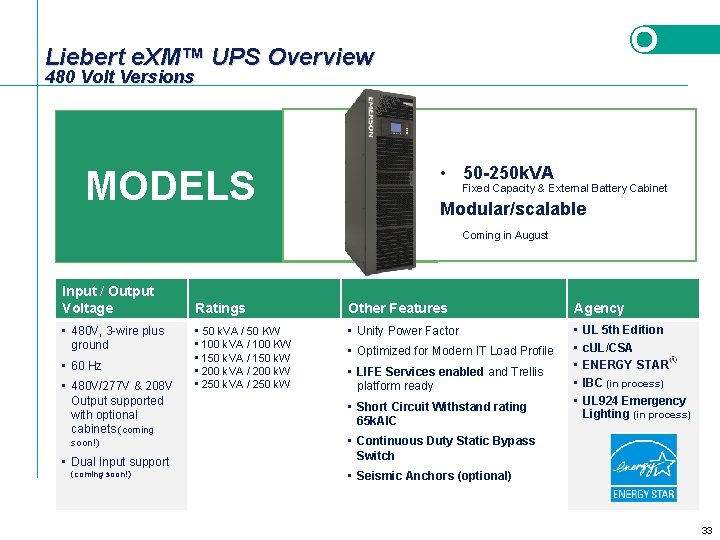

Liebert e. XM™ UPS Overview 480 Volt Versions MODELS • 50 -250 k. VA Fixed Capacity & External Battery Cabinet Modular/scalable Coming in August Input / Output Voltage • 480 V, 3 -wire plus ground • 60 Hz • 480 V/277 V & 208 V Output supported with optional cabinets (coming soon!) • Dual Input support (coming soon!) Ratings Other Features Agency • 50 k. VA / 50 KW • Unity Power Factor • • • 100 k. VA / 100 KW • 150 k. VA / 150 k. W • 200 k. VA / 200 k. W • 250 k. VA / 250 k. W • Optimized for Modern IT Load Profile • LIFE Services enabled and Trellis platform ready • Short Circuit Withstand rating 65 k. AIC UL 5 th Edition c. UL/CSA ENERGY STAR IBC (in process) UL 924 Emergency Lighting (in process) • Continuous Duty Static Bypass Switch • Seismic Anchors (optional) --- Company Confidential --- 33

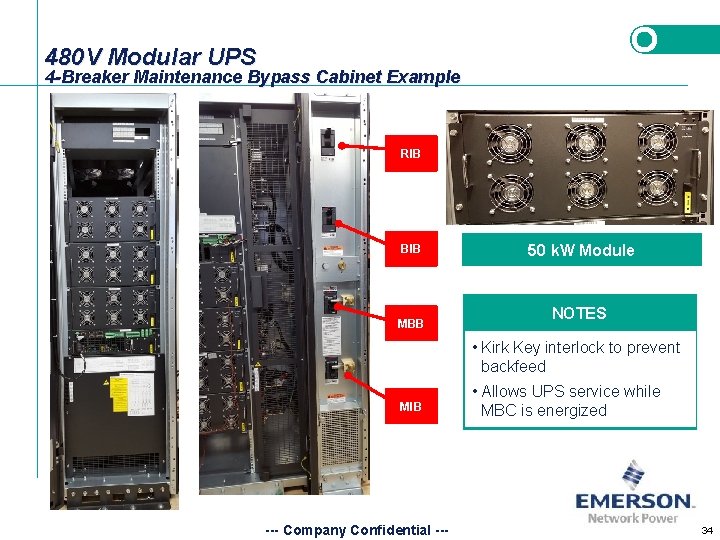

480 V Modular UPS 4 -Breaker Maintenance Bypass Cabinet Example RIB BIB MBB 50 k. W Module NOTES • Kirk Key interlock to prevent backfeed MIB --- Company Confidential --- • Allows UPS service while MBC is energized 34

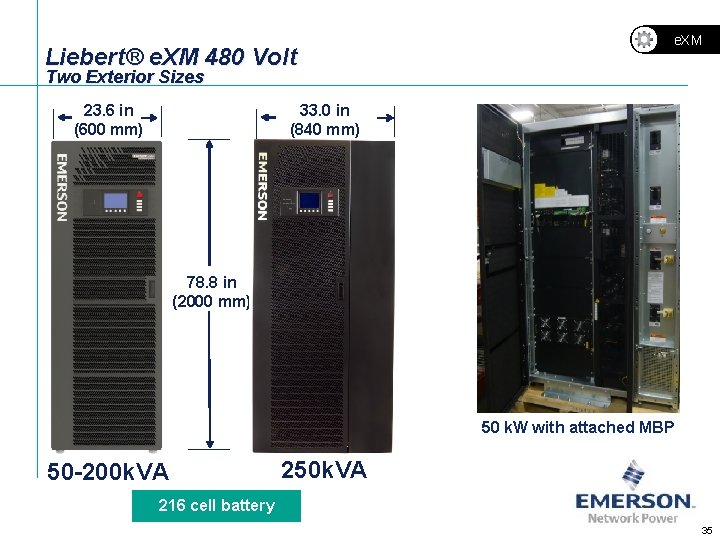

Liebert® e. XM 480 Volt e. XM Two Exterior Sizes 23. 6 in (600 mm) 33. 0 in (840 mm) 78. 8 in (2000 mm) 50 k. W with attached MBP 250 k. VA 50 -200 k. VA 216 cell battery --- Company Confidential --- 35

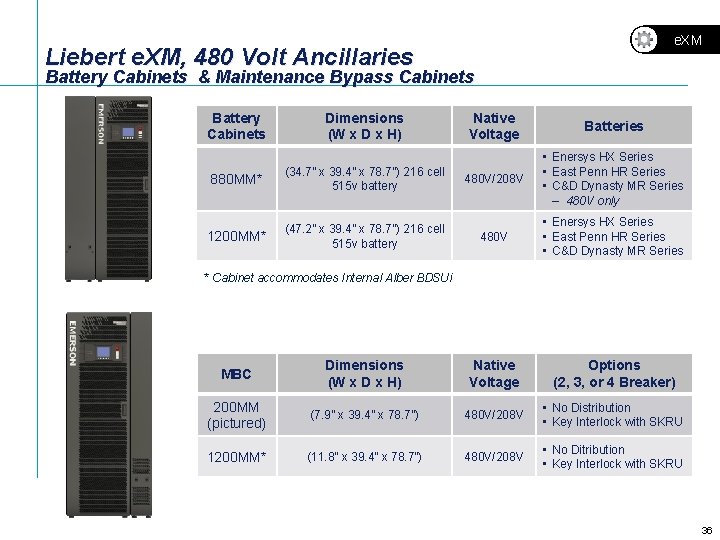

e. XM Liebert e. XM, 480 Volt Ancillaries Battery Cabinets & Maintenance Bypass Cabinets Battery Cabinets Dimensions (W x D x H) 880 MM* (34. 7” x 39. 4” x 78. 7”) 216 cell 515 v battery 1200 MM* (47. 2” x 39. 4” x 78. 7”) 216 cell 515 v battery Native Voltage Batteries 480 V/208 V • Enersys HX Series • East Penn HR Series • C&D Dynasty MR Series – 480 V only 480 V • Enersys HX Series • East Penn HR Series • C&D Dynasty MR Series * Cabinet accommodates Internal Alber BDSUi MBC Dimensions (W x D x H) Native Voltage Options (2, 3, or 4 Breaker) 200 MM (pictured) (7. 9” x 39. 4” x 78. 7”) 480 V/208 V • No Distribution • Key Interlock with SKRU 1200 MM* (11. 8” x 39. 4” x 78. 7”) 480 V/208 V • No Ditribution • Key Interlock with SKRU --- Company Confidential --- 36

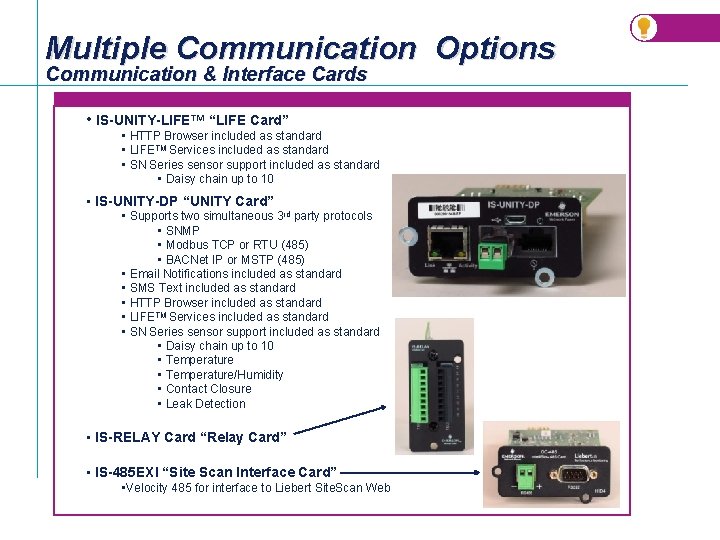

Multiple Communication Options Communication & Interface Cards • IS-UNITY-LIFE™ “LIFE Card” • HTTP Browser included as standard • LIFETM Services included as standard • SN Series sensor support included as standard • Daisy chain up to 10 • IS-UNITY-DP “UNITY Card” • Supports two simultaneous 3 rd party protocols • SNMP • Modbus TCP or RTU (485) • BACNet IP or MSTP (485) • Email Notifications included as standard • SMS Text included as standard • HTTP Browser included as standard • LIFETM Services included as standard • SN Series sensor support included as standard • Daisy chain up to 10 • Temperature/Humidity • Contact Closure • Leak Detection • IS-RELAY Card “Relay Card” • IS-485 EXI “Site Scan Interface Card” • Velocity 485 for interface to Liebert Site. Scan Web --- Company Confidential ---

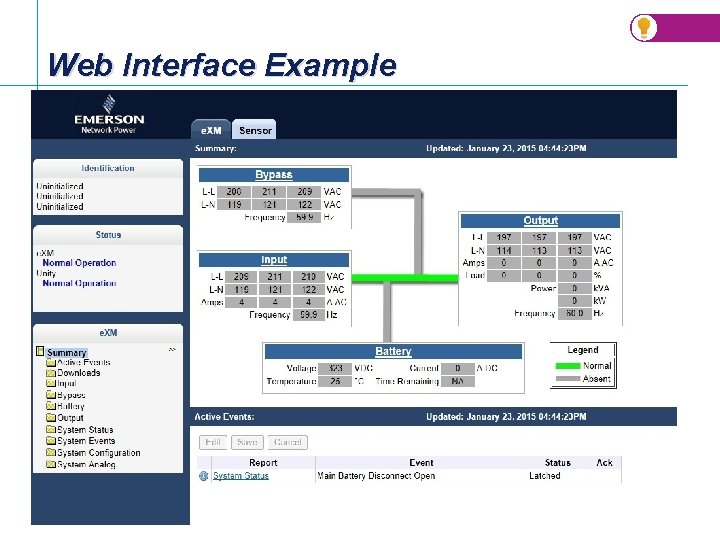

Web Interface Example --- Company Confidential ---

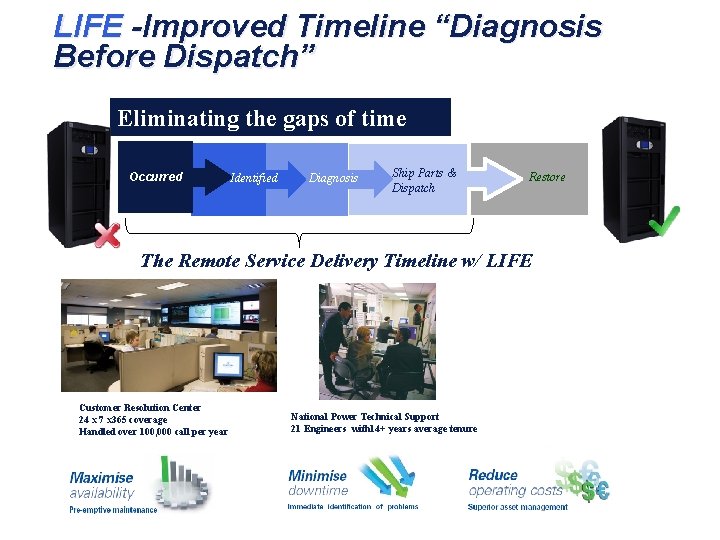

LIFE -Improved Timeline “Diagnosis Before Dispatch” Eliminating the gaps of time Occurred Identified Diagnosis Ship Parts & Dispatch Restore The Remote Service Delivery Timeline w/ LIFE Customer Resolution Center 24 x 7 x 365 coverage Handled over 100, 000 call per year National Power Technical Support 21 Engineers with 14+ years average tenure

THANK YOU C. Mayo Tabb Jr. Sr. 3 -phase Regional Manager Mayo. Tabb@Emerson. com --- Company Confidential ---
