Engineering 181 Oral Presentation Product Microsoft Kinect Team

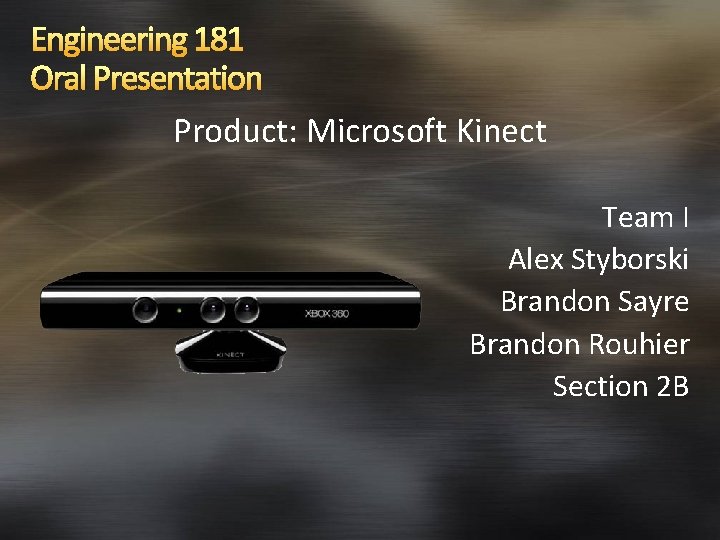

Engineering 181 Oral Presentation Product: Microsoft Kinect Team I Alex Styborski Brandon Sayre Brandon Rouhier Section 2 B

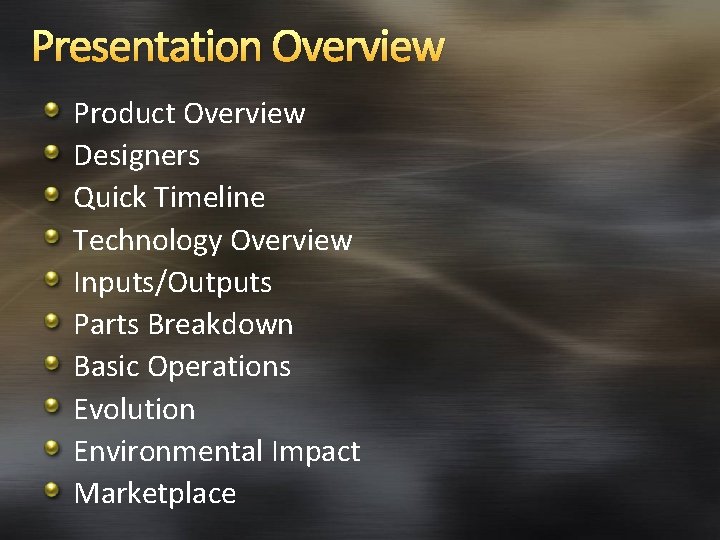

Presentation Overview Product Overview Designers Quick Timeline Technology Overview Inputs/Outputs Parts Breakdown Basic Operations Evolution Environmental Impact Marketplace

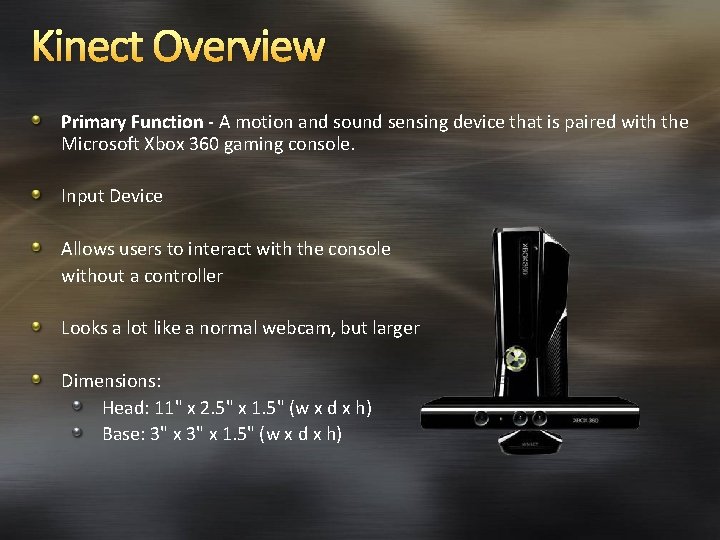

Kinect Overview Primary Function - A motion and sound sensing device that is paired with the Microsoft Xbox 360 gaming console. Input Device Allows users to interact with the console without a controller Looks a lot like a normal webcam, but larger Dimensions: Head: 11" x 2. 5" x 1. 5" (w x d x h) Base: 3" x 1. 5" (w x d x h)

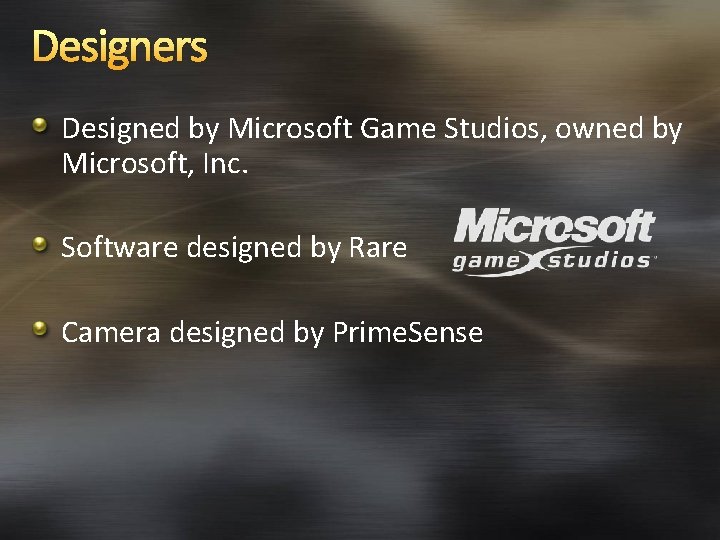

Designers Designed by Microsoft Game Studios, owned by Microsoft, Inc. Software designed by Rare Camera designed by Prime. Sense

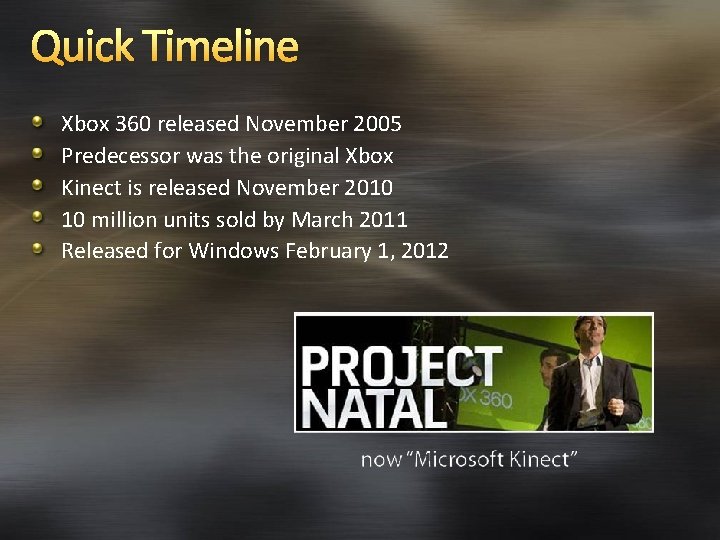

Quick Timeline Xbox 360 released November 2005 Predecessor was the original Xbox Kinect is released November 2010 10 million units sold by March 2011 Released for Windows February 1, 2012

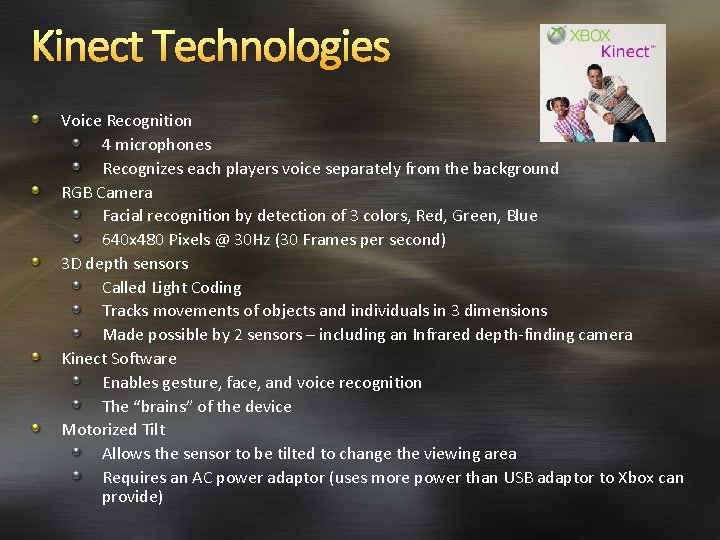

Kinect Technologies Voice Recognition 4 microphones Recognizes each players voice separately from the background RGB Camera Facial recognition by detection of 3 colors, Red, Green, Blue 640 x 480 Pixels @ 30 Hz (30 Frames per second) 3 D depth sensors Called Light Coding Tracks movements of objects and individuals in 3 dimensions Made possible by 2 sensors – including an Infrared depth-finding camera Kinect Software Enables gesture, face, and voice recognition The “brains” of the device Motorized Tilt Allows the sensor to be tilted to change the viewing area Requires an AC power adaptor (uses more power than USB adaptor to Xbox can provide)

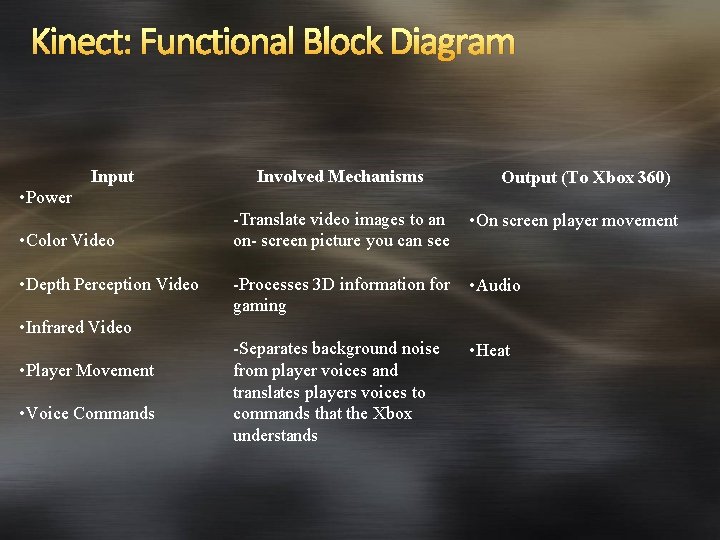

Kinect: Functional Block Diagram Input Involved Mechanisms • Power • Color Video • Depth Perception Video Output (To Xbox 360) -Translate video images to an on- screen picture you can see • On screen player movement -Processes 3 D information for gaming • Audio -Separates background noise from player voices and translates players voices to commands that the Xbox understands • Heat • Infrared Video • Player Movement • Voice Commands

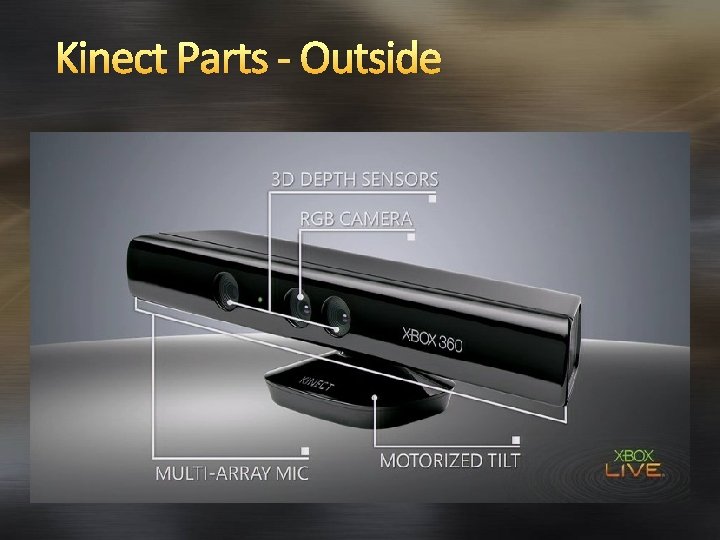

Kinect Parts - Outside

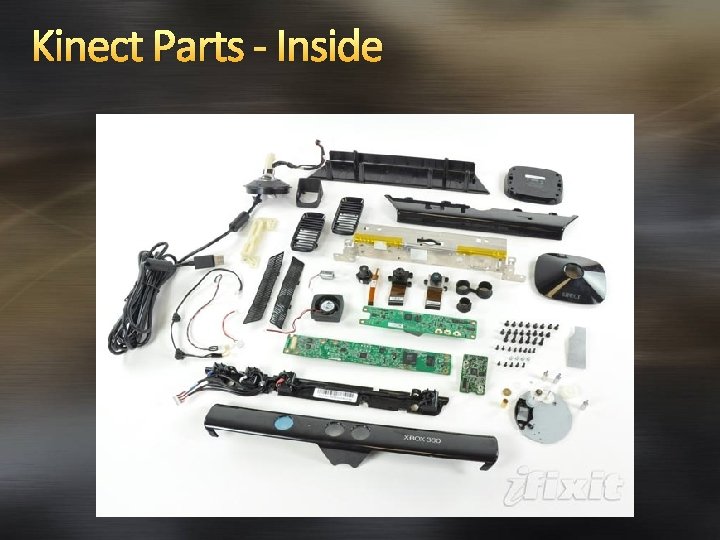

Kinect Parts - Inside

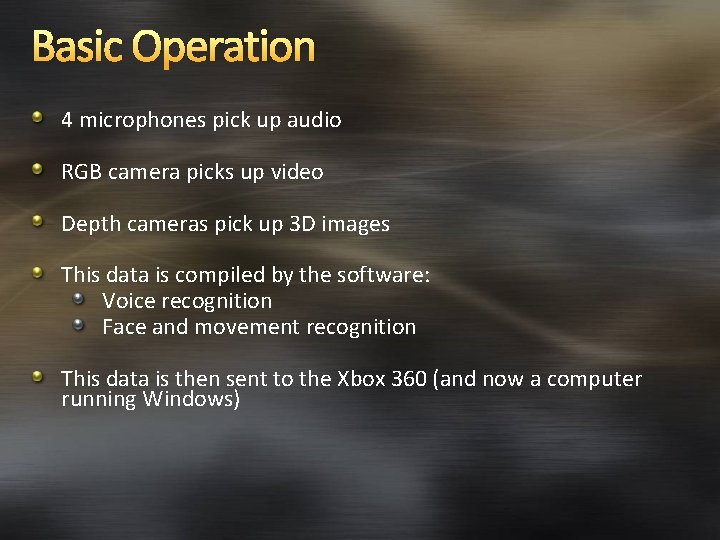

Basic Operation 4 microphones pick up audio RGB camera picks up video Depth cameras pick up 3 D images This data is compiled by the software: Voice recognition Face and movement recognition This data is then sent to the Xbox 360 (and now a computer running Windows)

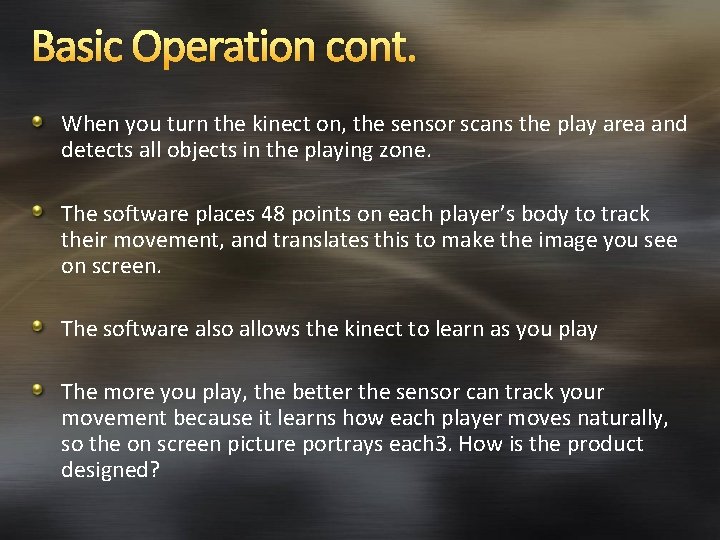

Basic Operation cont. When you turn the kinect on, the sensor scans the play area and detects all objects in the playing zone. The software places 48 points on each player’s body to track their movement, and translates this to make the image you see on screen. The software also allows the kinect to learn as you play The more you play, the better the sensor can track your movement because it learns how each player moves naturally, so the on screen picture portrays each 3. How is the product designed?

Basic Operation - Diagram

Evolution Kinect was a first generation device Kinect 2? Better Image Processing Better Voice Processing Emotion State Of Players All Speculation

Environment Impacts Develop safe and stainable products Conserve, Reuse, Recycle Low Energy Input Microsoft's Overall Commitment

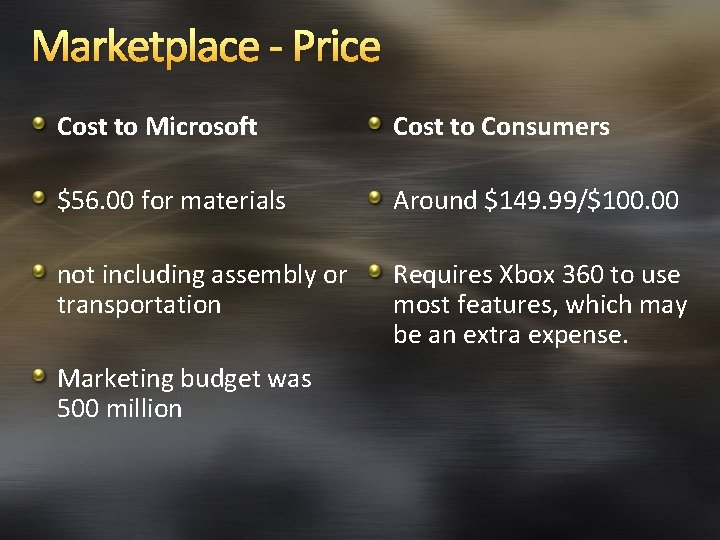

Marketplace - Price Cost to Microsoft Cost to Consumers $56. 00 for materials Around $149. 99/$100. 00 not including assembly or transportation Requires Xbox 360 to use most features, which may be an extra expense. Marketing budget was 500 million

Marketplace – Who the product is for Xbox 360 primarily marketed to boys and teenagers Kinect marketed to everyone Vast majority of Kinect games are designed for all ages. Not just for games

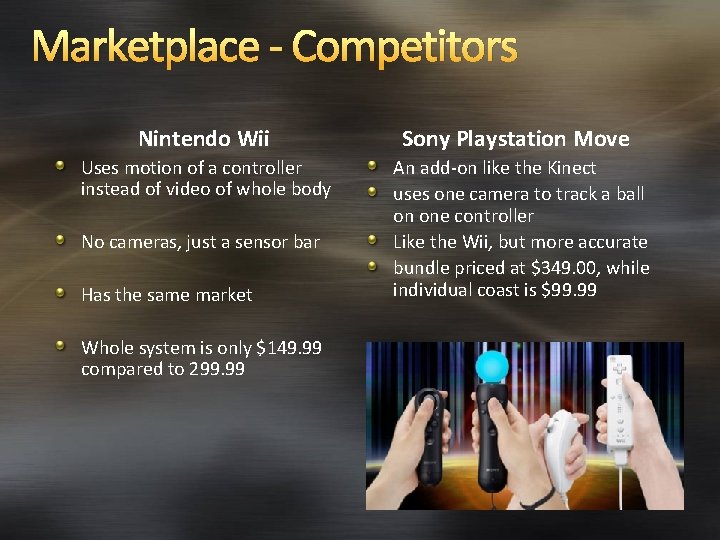

Marketplace - Competitors Nintendo Wii Sony Playstation Move Uses motion of a controller instead of video of whole body An add-on like the Kinect uses one camera to track a ball on one controller Like the Wii, but more accurate bundle priced at $349. 00, while individual coast is $99. 99 No cameras, just a sensor bar Has the same market Whole system is only $149. 99 compared to 299. 99

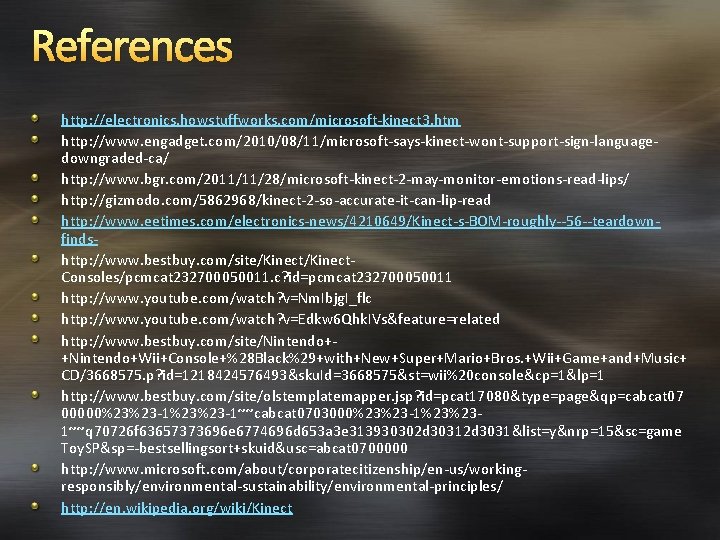

References http: //electronics. howstuffworks. com/microsoft-kinect 3. htm http: //www. engadget. com/2010/08/11/microsoft-says-kinect-wont-support-sign-languagedowngraded-ca/ http: //www. bgr. com/2011/11/28/microsoft-kinect-2 -may-monitor-emotions-read-lips/ http: //gizmodo. com/5862968/kinect-2 -so-accurate-it-can-lip-read http: //www. eetimes. com/electronics-news/4210649/Kinect-s-BOM-roughly--56 --teardownfindshttp: //www. bestbuy. com/site/Kinect. Consoles/pcmcat 232700050011. c? id=pcmcat 232700050011 http: //www. youtube. com/watch? v=Nm. Ibjg. I_flc http: //www. youtube. com/watch? v=Edkw 6 Qhk. IVs&feature=related http: //www. bestbuy. com/site/Nintendo++Nintendo+Wii+Console+%28 Black%29+with+New+Super+Mario+Bros. +Wii+Game+and+Music+ CD/3668575. p? id=1218424576493&sku. Id=3668575&st=wii%20 console&cp=1&lp=1 http: //www. bestbuy. com/site/olstemplatemapper. jsp? id=pcat 17080&type=page&qp=cabcat 07 00000%23%23 -1~~cabcat 0703000%23%23 -1%23%231~~q 70726 f 63657373696 e 6774696 d 653 a 3 e 313930302 d 3031&list=y&nrp=15&sc=game Toy. SP&sp=-bestsellingsort+skuid&usc=abcat 0700000 http: //www. microsoft. com/about/corporatecitizenship/en-us/workingresponsibly/environmental-sustainability/environmental-principles/ http: //en. wikipedia. org/wiki/Kinect
