Engineering 1182 Basic Isometric Sketching and Coded Plans

• Engineering 1182 Basic Isometric Sketching and Coded Plans Chapter 2 of Text College of Engineering Education Innovation Center

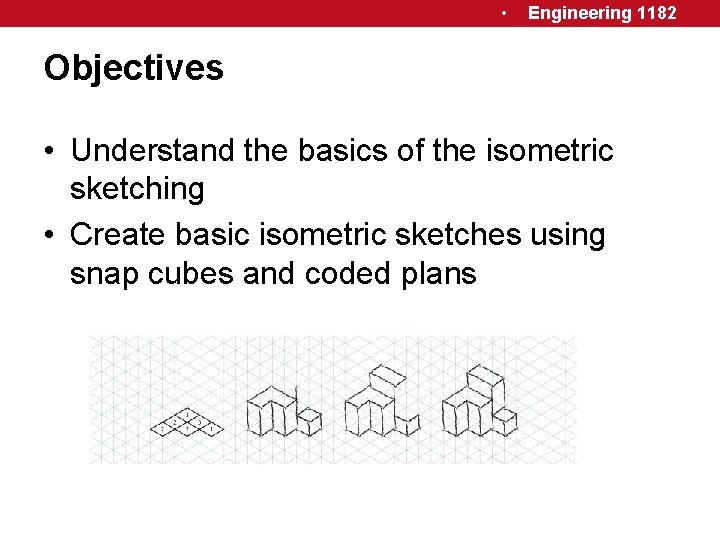

• Engineering 1182 Objectives • Understand the basics of the isometric sketching • Create basic isometric sketches using snap cubes and coded plans

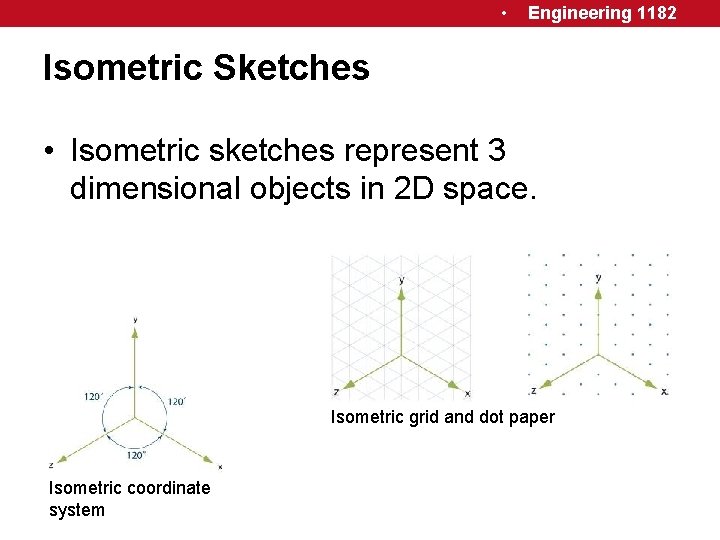

• Engineering 1182 Isometric Sketches • Isometric sketches represent 3 dimensional objects in 2 D space. Isometric grid and dot paper Isometric coordinate system

• Engineering 1182 Isometric Sketches • Isometric sketches are made as if you’re looking down the diagonal of a cube. Diagonal of the cube End view of the diagonal • Note that when we look down on the cube like this, the right angles appear distorted. • The square sides of the cube now look like parallelograms.

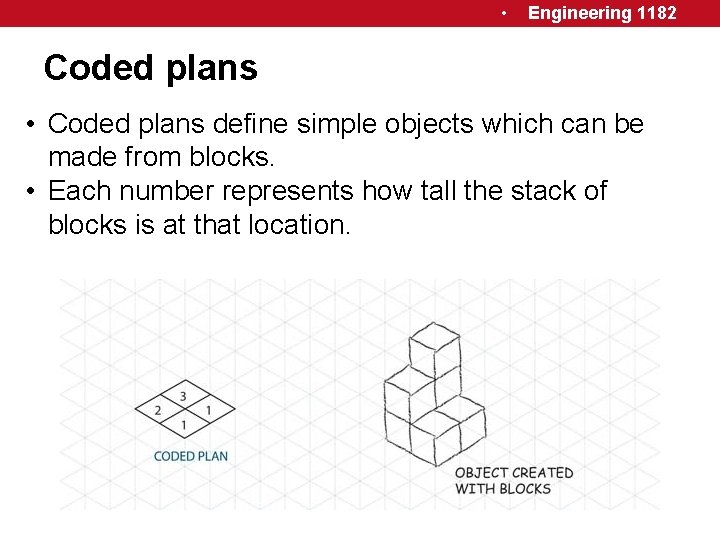

• Engineering 1182 Coded plans • Coded plans define simple objects which can be made from blocks. • Each number represents how tall the stack of blocks is at that location.

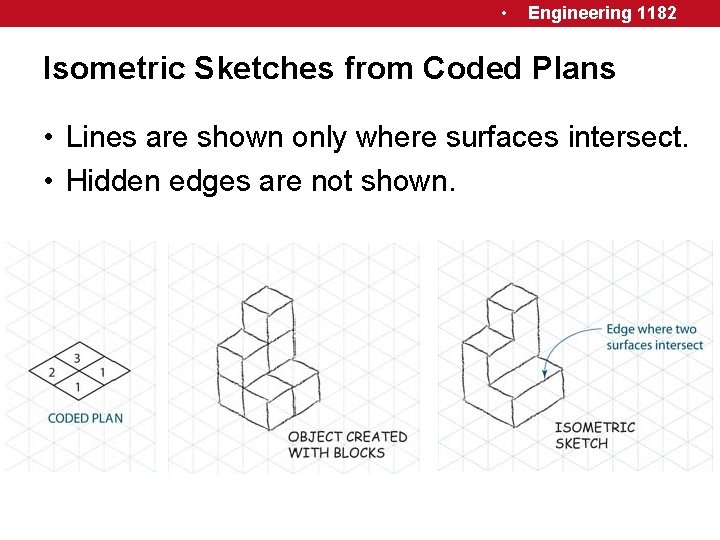

• Engineering 1182 Isometric Sketches from Coded Plans • Lines are shown only where surfaces intersect. • Hidden edges are not shown.

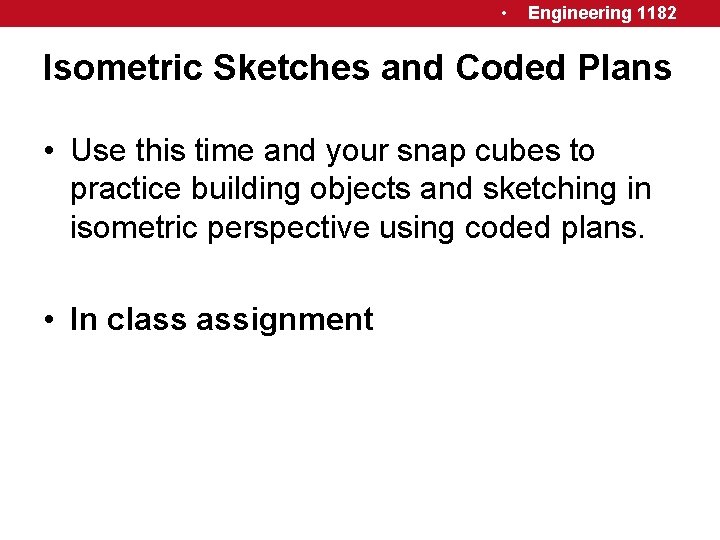

• Engineering 1182 Isometric Sketches and Coded Plans • Use this time and your snap cubes to practice building objects and sketching in isometric perspective using coded plans. • In class assignment
