Engineer Training XL 1500 Safety System Confidential Engineer
- Slides: 19
Engineer Training XL 1500 Safety System Confidential
Engineer Training Standard Requirements Both the machine and the Safety System are designed to meet the following standards: q CE - European Standard q UL - American Standard Confidential XL 1500 Safety System 2
Engineer Training Safety Loop on the Machine The safety system on the machine is based on a 24 VDC 1. 24 v loop comes from the 24 v P. S. 2. The loop passes through the head carriage E. S sensors (on the head carriage frame) right and left E. S, rear E. S laser relay and to the pneumatic panel. 3. The loop continues to the Over flow board and to the Ink system relay. 4. Ink board receives the 24 vdc and operate the ink system. 5. The Rip 2 CCB receives the 24 vdc and transfers it to the motion controller. Confidential XL 1500 Safety System 3
Engineer Training Safety Loop on the Machine (Cont. ) 6. The loop passes through the free fall service switch, if it’s in Service position – the drivers shut down and the loop continues to the laser Assy and making a shortcut between pins 14 and 21. 7. If the service switch in not in Service position – the loop continues and the +24 vdc passes to the K 3 contactor inside the PDU. 8. Together with the – 24 v, it comes directly from the 24 v P. S, enabling the K 3 contactor and the motion system to work. 9. A signal comes out from the PDU (K 3 contactor) to the motion controller, which, in turn, gives a signal if there is an emergency interrupt. 10. Right and left limit switches close a loop on the motion controller (inputs only – pins 2 and 10 on J 5) – if the loop is open – Print will not be performed. Confidential XL 1500 Safety System 4
Engineer Training Safety Hazards in the Machine 1. Motion system 2. Pneumatic system 3. Heating system 4. Ink system All the above mentioned elements halt, shutdown or are released when an E. S circuit is activated. Confidential XL 1500 Safety System 5
Engineer Training Safety Hazards in the Machine (Cont. ) 1. Motion system q Head carriage movement 2 m/sec q Y-shaft movement with Pressure Roller q Z-shaft movement with Teflon Pressure Roller q T-rollers movement Confidential XL 1500 Safety System 6
Engineer Training Safety Hazards in the Machine (Cont. ) 2. Pneumatic system q Roller pressure up and down movement. q Z-shaft up and down movement. q Teflon pressure roll and z-shaft in free-fall mode. Confidential XL 1500 Safety System 7

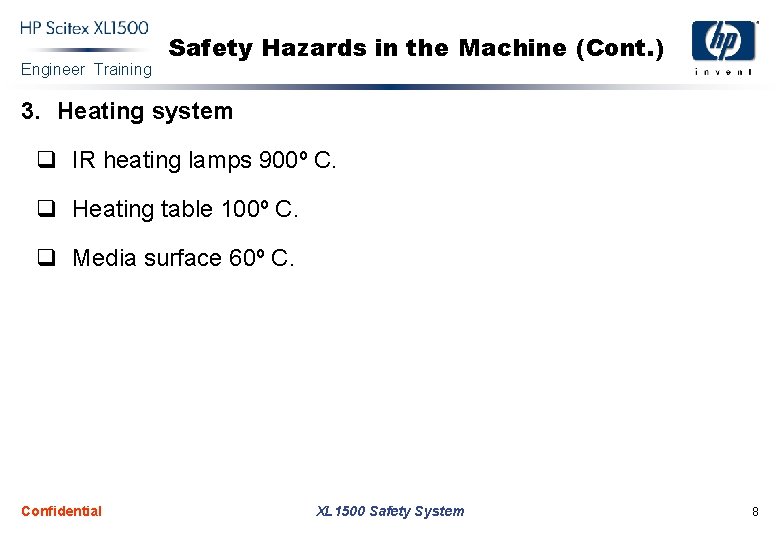

Engineer Training Safety Hazards in the Machine (Cont. ) 3. Heating system q IR heating lamps 900º C. q Heating table 100º C. q Media surface 60º C. Confidential XL 1500 Safety System 8
Engineer Training Safety Hazards in the Machine (Cont. ) 4. Ink system q Ink pumps continue to work even in case of leakage. All the above described elements halt, shutdown or are released when an E. S circuit is activated. Confidential XL 1500 Safety System 9

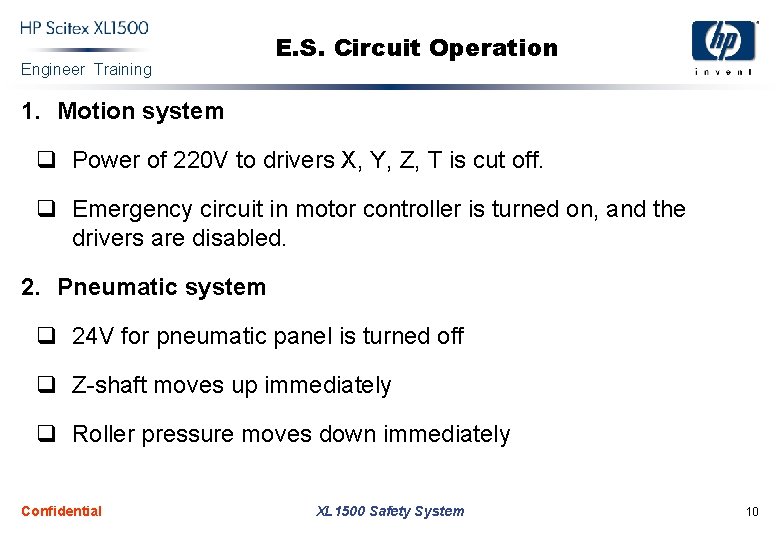

Engineer Training E. S. Circuit Operation 1. Motion system q Power of 220 V to drivers X, Y, Z, T is cut off. q Emergency circuit in motor controller is turned on, and the drivers are disabled. 2. Pneumatic system q 24 V for pneumatic panel is turned off q Z-shaft moves up immediately q Roller pressure moves down immediately Confidential XL 1500 Safety System 10
Engineer Training E. S. Circuit Operation 3. Heating system q Power for IR heating lamps is cut off 4. Ink system q 24 V for ink pumps is cut off Confidential XL 1500 Safety System 11

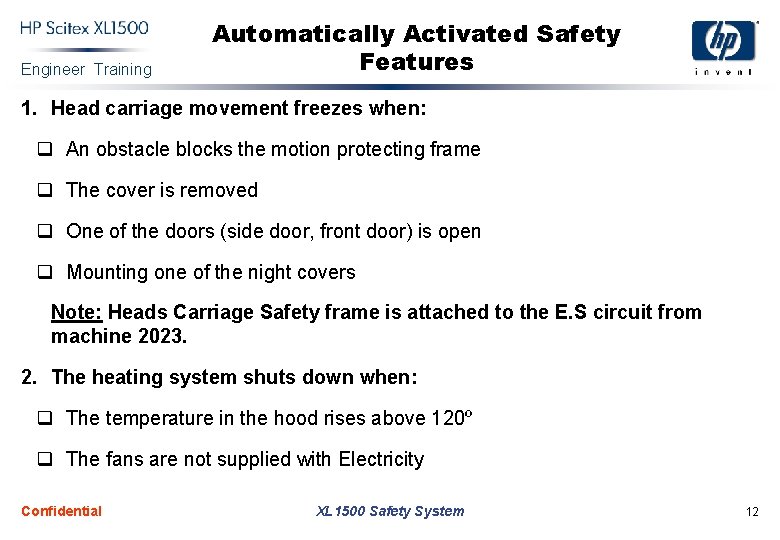

Engineer Training Automatically Activated Safety Features 1. Head carriage movement freezes when: q An obstacle blocks the motion protecting frame q The cover is removed q One of the doors (side door, front door) is open q Mounting one of the night covers Note: Heads Carriage Safety frame is attached to the E. S circuit from machine 2023. 2. The heating system shuts down when: q The temperature in the hood rises above 120º q The fans are not supplied with Electricity Confidential XL 1500 Safety System 12
Engineer Training Mechanical Safety Features Z shaft Two pins block the shaft from moving down. Confidential XL 1500 Safety System 13
Engineer Training Confidential SYSTEM DIAGRAM XL 1500 Safety System 14

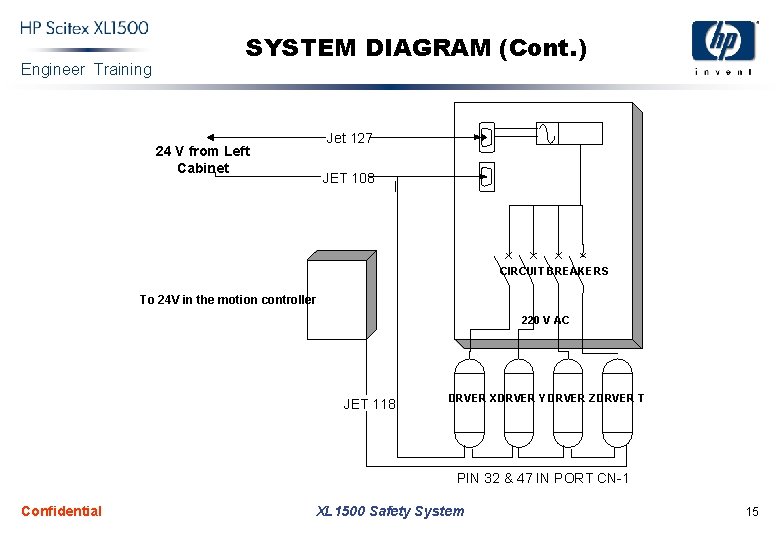

Engineer Training SYSTEM DIAGRAM (Cont. ) Jet 127 24 V from Left Cabinet JET 108 CIRCUIT BREAKERS To 24 V in the motion controller 220 V AC JET 118 DRVER XDRVER Y DRVER ZDRVER T PIN 32 & 47 IN PORT CN-1 Confidential XL 1500 Safety System 15
JET 131 Engineer Training SYSTEM DIAGRAM (Cont. ) MOTION CONTROLLER MOTION ADAPTER P. D. U INFRA RED HEATING ELEMENTS 3 PHASE 230 V AC Confidential XL 1500 Safety System 16
SYSTEM DIAGRAM Engineer Training FRONT DOOR SWITCH SIDE DOOR SWITCH COVER SWITCH 2 Driver X COVER SWITCH 1 COMMAND LINE JET 132 NIGHT COVER SWITCH CCB Board JET 121 SOFTWARE Confidential RIGHT LIMIT SWITCH JET 150 LEFT LIMIT SWITCH JET 151 HEAD CARRIAGE XL 1500 Safety System MOTION CONTROLLER 17

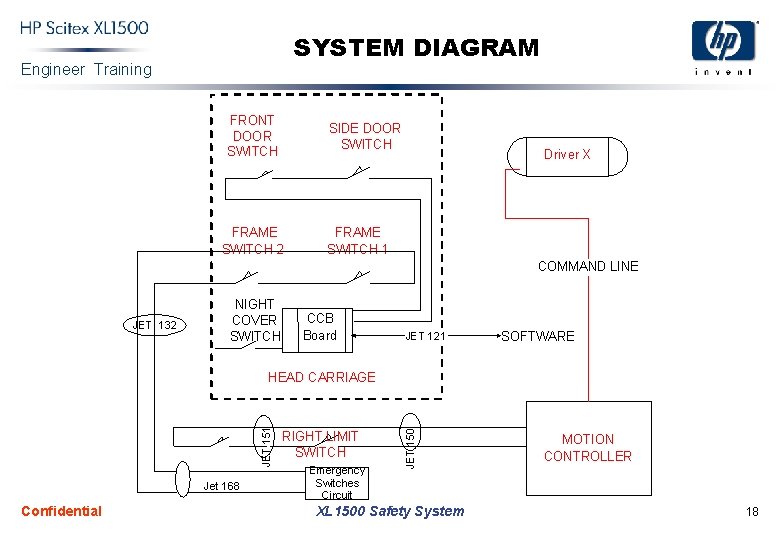

SYSTEM DIAGRAM Engineer Training FRONT DOOR SWITCH SIDE DOOR SWITCH FRAME SWITCH 2 Driver X FRAME SWITCH 1 COMMAND LINE JET 132 NIGHT COVER SWITCH CCB Board JET 121 SOFTWARE Jet 168 Confidential RIGHT LIMIT SWITCH Emergency Switches Circuit JET 150 JET 151 HEAD CARRIAGE XL 1500 Safety System MOTION CONTROLLER 18
Engineer Training SAFETY SYSTEM TAKE CARE & BEWARE Confidential XL 1500 Safety System 19
