ENGINE OVERALL LAYOUT CROSSSECTIONAL EXAMPLE GE 90 115

ENGINE OVERALL LAYOUT

CROSS-SECTIONAL EXAMPLE: GE 90 -115 B Compressor Nozzle Fan Turbine Inlet • • Combustor Why does this engine look the way that it does? How does this engine push an airplane forward, i. e. how does it generate thrust? What are major components and design parameters? How can we characterize performance and compare with other engines?

EXAMPLE OF MILITARY ENGINE: TURBOJET OR LOW-BYPASS RATIO TURBOFAN Extreme Temperature Environment Compressor Combustor Turbine Afterburner

MAJOR GAS TURBINE ENGINE COMPONENTS 1. Inlet: – Continuously draw air into engine through inlet – Slows, or diffuses, to compressor 2. Compressor / Fan: – Compresses air – Generally two, or three, compressors in series – Raises stagnation temperature and pressure (enthalpy) of flow – Work is done on the air 3. Combustor/Burner: – Combustion or burning processes – Adds fuel to compressed air and burns it – Converts chemical to thermal energy – Process takes place at relatively constant pressure

MAJOR GAS TURBINE ENGINE COMPONENTS 4. Turbine: – Generally two or three turbines in series – Turbine powers, or drives, the compressor – Air is expanded through turbine (P & T ↓) – Work is done by the air on the blades – Use some of that work to drive compressor – Next: • Expand in a nozzle – Convert thermal to kinetic energy (turbojet) – Burning may occur in duct downstream of turbine (afterburner) • Expand through another turbine – Use this extracted work to drive a fan (turbofan) 5. Nozzle: – Flow is ejected back into the atmosphere, but with increased momentum – Raises velocity of exiting mass flow

2. COMPRESSORS: WHERE IN ENGINE? PW 2000 Fan Compressor Purpose of fan is to increase efficiency of turbojet engine Much of air bypasses core of engine

TURBOFAN ENGINES Engine Core

TURBOFAN ENGINES Bypass Air Core Air Bypass Ratio, B, a: Ratio of by pass air flow rate to core flow rate Example: Bypass ratio of 6: 1 means that air volume flowing through fan and bypassing core engine is six times air volume flowing through core

TRENDS TO BIGGER ENGINES 1958: Boeing 707, United States' first commercial jet airliner Similar to PWJT 4 A: T=17, 000 lbf, a ~ 1 1995: Boeing 777, FAA Certified PW 4000 -112: T=100, 000 lbf , a ~ 6

HOW LARGE IS THE 777 -300 ENGINE? 11 ft 7 in (3. 53 m) 11 ft 3 in (3. 43 m) Engine is largest and most powerful turbofan built (11 ft 3 in (3. 43 m) in diameter) In this case, 737 cabin is a mere 3% wider than 777 engine

2 SPOOL DEVICE: PW 2000 Low Pressure Compressor (wlow) High Pressure Compressor (whigh)

3. COMBUSTOR (BURNERS): LOCATION Commercial PW 4000 Combustor Military F 119 -100 Afterburner

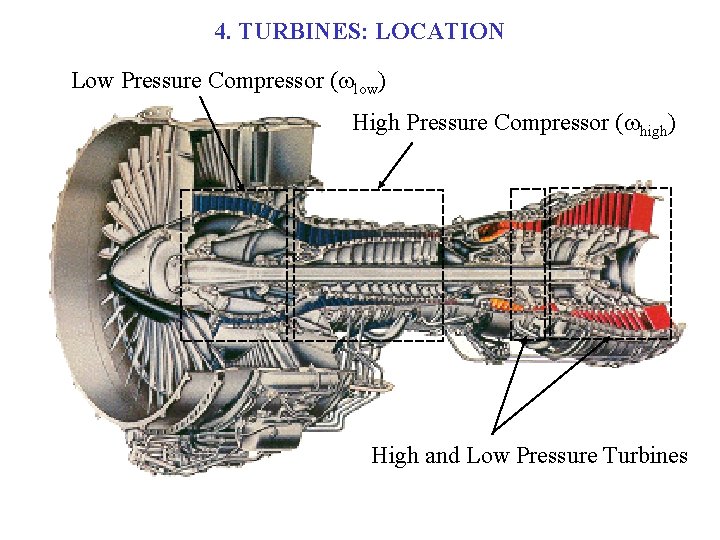

4. TURBINES: LOCATION Low Pressure Compressor (wlow) High Pressure Compressor (whigh) High and Low Pressure Turbines

NOISE SUPPRESSION

5. NOZZLES: PW 119 (F 22 ENGINE)

MILITARY ENGINES: P&W F 119

AFTERBURNER TESTING

COMMERCIAL AND MILITARY ENGINES (APPROX. SAME THRUST, APPROX. CORRECT RELATIVE SIZES) GE CFM 56 for Boeing 737 T~30, 000 lbf, a ~ 5 P&W 119 for F- 22, T~35, 000 lbf, a ~ 0. 3

THRUST VS. PROPULSIVE EFFICIENCY Important for both fighter and commercial aircraft T/W usually more important for military aircraft (maneuverability) Conflict Large mass flow means high W Fighter → DV Extremely important for commercial aircraft, much less so for fighter Efficiency critical for commercial Low DV, high mass flow

ENGINE STATION NUMBERING CONVENTION 2. 0 -2. 5: Fan 0: Far Upstream 1: Inlet 3: Combustor 2. 5+: Compressor 4: Turbine 5: Nozzle One of most important parameters is TT 4: Turbine Inlet Temperature Performance of gas turbine engine ↑ with increasing TT 4 ↑

MAE 4261 REPRESENTATION OF AN ENGINE Freestream 0 Combustor Inlet 1 Compressor 2 3 Turbine 4 Nozzle 5

TYPICAL PRESSURE DISTRIBUTION THROUGH ENGINE

Supplemental Slides: Special Engines and Special Features

FUEL CONSUMPTION TREND • U. S. airlines, hammered by soaring oil prices, will spend $5 billion more on fuel this year or even a greater sum, draining already thin cash reserves • Airlines are among the industries hardest hit by high oil prices, which have jumped 38 percent in just 12 months. • Airline stocks fell at the open of trading as a spike in crude-oil futures weighed on the sector Fuel Burn JT 8 D PW 4084 JT 9 D Future Turbofan PW 4052 NOTE: No Numbers 1950 1960 1970 1980 1990 Year 2000 2010 2020

AIRCRAFT AND ENGINE NOISE

SR-71: J-58 TURBO RAMJET

X-51

LAND-BASED POWER GENERATION

LARGEST GAS TURBINE ENGINE: SGT 5 -8000 H • Power 340 MW • Extrapolated mass flow based on SGT 100 -SGT 1000 series: 900 kg/s • Average of SGT 100 -SGT 1000, Assume pc: 15 • Assumed tc (isentropic, g=1. 35): 2 • Assume 24 burners (consistent with SGT 5 -series) • Combustor total CFM: 216, 000 • CFM per burner: 9, 000 • Full-scale, single-burner testing can be accomplished http: //www. powergeneration. siemens. com/en/products/gasturbinesseries/largescale/sgt 5_8000 h/index. cfm • Trends: – If combustor inlet temperature is lower, CFM is lower – If combustor inlet pressure is higher, CFM is lower

GE 9 H: HOW LARGE IS THE DEVICE?

BOEING 747 -400 AT TOUCHDOWN

BOEING 747 -400 AT ROLLOUT Thrust Reverse on Landing

SIMPLE THRUST REVERSE MODEL: HOMEWORK #2 y a x Thrust Reverser Vane

TWO OTHER LAYOUTS UDF: Unducted Fan Concept http: //www. aerospaceweb. org/question/propulsion/q 0067. shtml GTF: Geared Turbofan http: //www. flug-revue. rotor. com/FRHeft 07/FRH 0710/FR 0710 a. htm

HIGH EFFICIENCY TURBINE ENGINE (HETE) FTT 50 FTA 30 1 ft • Ideal and non-ideal cycle analysis • Combustor scaling with Da (tflow/tchem), catalyst, porous metal • Detailed component design (variable stators, electric generator, spin test rig, altitude test rig)

MICRO TURBOMACHINERY 1 cm

EXAMPLES OF GAS TURBINE COMPONENTS Example of Film-Cooled 1 st Turbine Blade Cooling Holes • Why film cooling? – Turbine inlet temperatures > melting temperatures of turbine blade materials • Air provides a thin, cool, insulating blanket along external surface of turbine blade

RAMJETS AND SCRAMJETS

SCRAMJET PROPULSION: X-43 MACH 10!

X-43 A DETAILS

NASA'S X-43 A SCRAMJET BREAKS SPEED RECORD • “NASA's X-43 A research vehicle screamed into the record books again Tuesday, demonstrating an air-breathing engine can fly at nearly 10 times the speed of sound. Preliminary data from the scramjet-powered research vehicle show its revolutionary engine worked successfully at nearly Mach 9. 8, or 7, 000 mph, as it flew at about 110, 000 feet. ” • “NASA's X-43 A scramjet program successfully smashed its own world speed record for aircraft by flying at nearly 10 times the speed of sound. The flight proves its radical, air-breathing engine can function at speeds of nearly 12, 000 kilometers per hour. ” • “Aviation history was made today as NASA successfully flew its experimental X 43 A research vehicle, a forerunner of craft that could well offer alternate access to space in the future. ”

AIRCRAFT ENGINE BASICS • All aircraft engines are HEAT ENGINES – Utilize thermal energy derived from combustion of fossil fuels to produce mechanical energy in form of kinetic energy of an exhaust jet – Momentum excess of exhaust jet over incoming airflow produces thrust • Thrust = Force = Time Rate Change of Momentum • In studying these devices we will employ two types of modeling 1. Fluid Mechanic • Relate changes in pressure, temperature and velocity of air to physical characteristics of engine 2. Thermodynamic (Cycle Analysis) • Thermal → mechanical energy from thermal is studied using thermodynamics • Study change in thermodynamic state of air as passed through engine • Geometry of engine NOT important, but rather processes are important

THERMODYANMICS: BRAYTON CYCLE MODEL

ENGINE SURGE EVENT Surge: Violent reverse flow situation: Burning combustion gases driven upstream through compressor and out of engine Usually accompanied by downstream fire Engine must maintain structural integrity and be able to be shut down

ENGINE TESTING: BIRD STRIKE http: //100. rolls-royce. com/facts/view. jsp? id=215 http: //www. aviationexplorer. com/a 6_engine_ingestion. htm

Supplemental Slides: Aircraft Engine Manufacturers

AIRCRAFT ENGINE MANUFACTURERS 3 Major Aircraft Manufacturers in World Today (Commercial and Military) 1. Pratt and Whitney (USA) 2. General Electric (USA) 3. Rolls Royce (GB) • Applications for Gas Turbines – Commercial and Military Aircraft Engines, Helicopters – Chemical Rocket Engines – Industrial (marine turbines, yachts, assault ships, etc. ) – Power Plants • Interesting Note: – Companies sell product at a $$ loss – Profit is made many years later on refurbishment, spare parts, maintenance

COMMERCIAL AIRCRAFT ENGINES: JT 8 D Engine Models JT 8 D-7/7 A JT 8 D-9/9 A JT 8 D-15/15 A JT 8 D-17/17 A JT 8 D-17 R/17 AR JT 8 D-217 C JT 8 D-219 Airplanes Powered Boeing 727 Boeing 737 -100/-200 Mc. Donnell Douglas DC-9 Boeing MD-80

COMMERCIAL AIRCRAFT ENGINES: JT 8 D • • • P&W introduced JT 8 D to commercial aviation in February 1964 (Boeing's 727 -100) 8 models of JT 8 D standard engine family cover thrust range from 14, 000 to 17, 400 pounds and power 727, 737, and DC-9 aircraft More than 11, 800 JT 8 D standard engines produced, over one-half billion hours of service operation. New Program emphasis is on compliance with noise regulations For -200 models, a new low-emissions combustion system, or E-Kit, has been FAR 25 certified. Reduces NOx by 25 percent, unburned hydrocarbons by 99 percent and smoke by 52 percent relative to current models The -200 is also the exclusive power for the Super 27 re-engining program, in which Pratt & Whitney, in cooperation with Goodrich Aerostructures, is offering 727 operators a solution to achieve Stage 3/Chapter 3 compliance with improved performance. Involves replacing two outboard engines with new JT 8 D-217 C/219 models and adding noise suppression equipment. The Super 27 can increase range up to 1, 200 nautical miles and permits carrying up to 30 more passengers or up to 10, 000 pounds in additional cargo. Engine Characteristics – Fan tip diameter: 39. 9 - 49. 2 in – Length, flange to flange: 120. 0 - 154. 1 in – Takeoff thrust: 14, 000 - 21, 700 lb – Bypass ratio: 0. 96 - 1. 74 – Overall pressure ratio: 15. 4 - 21. 0 – Fan pressure ratio: 1. 92 - 2. 21

COMMERCIAL ENGINES: P&W 4000 SERIES

COMMERCIAL ENGINES: P&W 4000 SERIES P&W 94 inch • Engine Models – PW 4052 – PW 4056 – PW 4060 – PW 4062 A – PW 4152 – PW 4156 A – PW 4156 – PW 4158 – PW 4460 – PW 4462 • Airplanes Powered – Boeing 747 -400 – Boeing 767 -200/-300 – Boeing MD-11 – Airbus A 300 -600 – Airbus A 310 -300 P&W 100 inch • Engine Models – PW 4164 – PW 4168 A • Airplanes Powered – Airbus A 330 -300 – Airbus A 330 -200 P&W 112 inch • Engine Models – PW 4074 – PW 4077 D – PW 4084 D – PW 4090 – PW 4098 • Airplanes Powered – Boeing 777 -200/-300

P&W 4000 SERIES: 94 INCH FAN • • • Pratt & Whitney's PW 4000 94 -inch fan model is the first in a family of high-thrust aircraft engines Certified thrust ranging from 52, 000 to 62, 000 pounds, it powers the Airbus A 310 -300 and A 300 -600 aircraft and Boeing 747 -400, 767 -200/300 and MD-11 aircraft. For twin -engine aircraft, the PW 4000 is approved for 180 -minute ETOPS (Extended-range Twin-engine Operations). Entered service in 1987. Advanced, service-proven technologies, such as single-crystal superalloy materials and its Full-Authority Digital Electronic Control (FADEC) for superior fuel economy and reliability. The engine's attractiveness is further enhanced by excellent performance retention, long on-wing times and low maintenance costs. Meets all current and anticipated emissions and noise regulations with margin. For a further reduction in emissions, especially NOx, TALON (Technology for Advanced Low NOx) combustor technology is now available as an option. Derived from the 112 inch fan model, TALON has segmented, replaceable liner panels for maintainability and air blast fuel nozzles for excellent fuel atomization and mixing Engine Characteristics – Fan tip diameter: 94 in – Length, flange to flange: 132. 7 in – Takeoff thrust: 52, 000 - 62, 000 lb – Flat rated temperature: 86 or 92° F – Bypass ratio: 4. 8 to 5. 1 – Overall pressure ratio: 27. 5 to 32. 3 – Fan pressure ratio: 1. 65 - 1. 80

P&W 4000 SERIES: 100 INCH FAN • PW 4000 100 -inch fan engine is first derivative model in PW 4000 family. Developed specifically for Airbus Industrie's A 330 twinjet, certified from 64, 500 to 68, 600 pounds of thrust. • PW 4168 features the industry's lightest weight and most advanced nacelle. Incorporates a number of service-proven technologies in materials, aerodynamics and controls to enhance performance, reliability and durability. The engine was the first in aviation history to qualify for ETOPS (Extended-range Twin-engine Operations) prior to entering service. It is now approved for 180 -minute ETOPS. Meets all present and anticipated noise and exhaust emissions regulations. • PW 4000 100 -inch engines have accumulated more than three million hours of revenue service and are the leading engine on the A 330 • Engine Characteristics – Fan tip diameter: 100 in – Length, flange to flange: 163. 1 in – Takeoff thrust: 64, 500 - 68, 600 lb – Bypass ratio: 5. 1 – Overall pressure ratio: 32. 0 – Fan pressure ratio: 1. 75

P&W 4000 SERIES: 112 INCH FAN • • • PW 4000 112 -inch fan engine is second derivative model in PW 4000 engine family. The PW 4084, certified at 86, 760 pounds thrust, was the launch engine for Boeing's 777 super twinjet. It entered service in June 1995 with United Airlines, already qualified for 180 -minute ETOPS (Extended-range Twin-engine Operations). First engine to operate with approval for 207 -minute ETOPS. The PW 4090, certified at 91, 790 pounds of thrust, entered service on the Boeing 777 -200 ER airplane in March 1997. The most recent model, the PW 4098, was certified in July 1998. The PW 4098, at 99, 040 pounds of thrust, is available for 777 -200 ER and 777 -300 models. For transportability, the engine can be shipped in a 747 F as a complete engine. Also, the fan case is easily separated from the engine's core for split shipment without disturbing the bearing compartments. Engine Characteristics – Fan tip diameter: 112 in – Length, flange to flange: 191. 7 in – Takeoff thrust: 74, 000 - 98, 000 lb – Bypass ratio: 5. 8 to 6. 4 – Overall pressure ratio: 34. 2 - 42. 8 – Fan pressure ratio: 1. 70 - 1. 80

GE 90 FAMILY: MOST POWERFUL ENGINES IN WORLD • GE Aircraft Engines was specified by Boeing to develop a 115, 000 pound-thrust GE 90 derivative engine for all longer-range 777 -200 LR and -300 ER derivatives. • Derivative engine represents the successful culmination of GE's strategy in the early 1990 s to build a new centerline engine for the Boeing 777 family. Since its initial testing, the GE 90 -115 B has set numerous aviation records including reaching a sustained record 122, 965 lbs. of thrust during initial ground testing at GE's outdoor test facility

P&W / G. E. GP 7000 FAMILY

WORLD’S LARGEST PASSENGER AIRLINER: A 380 -800 Wing span 79. 8 m (261 ft 10 in), length 73 m (239 ft 6 in). Height 24, 1 m (79 ft 1 in)

P&W / G. E. GP 7000 DETAILS AND SPECIFICATIONS • Joint effort between Pratt & Whitney and General Electric • GP 7000 is derived from some of the most successful widebody engine programs in aviation history (GE 90 and PW 4000 families) – Industry leading ETOPS reliability from service entry – Over 250 million hours of performance – Built on GE 90 core and PW 4000 low spool, but with many new technologies – Best of GE Aircraft Engines and Pratt & Whitney technologies • Two-spool simplicity for reliability and maintainability • Best payload capability, performance and performance retention. • Quietest and lowest emissions in its class. • Engine Characteristics – Fan tip diameter: 116 in – Length, flange to flange: 187 in – Takeoff thrust: 70, 000 lb – Flat rated temperature: 86° F – Bypass ratio: 8. 7

FUEL CONSUMPTION TREND • U. S. airlines, hammered by soaring oil prices, will spend $5 billion more on fuel this year or even a greater sum, draining already thin cash reserves • Airlines are among the industries hardest hit by high oil prices, which have jumped 38 percent in just 12 months. • Airline stocks fell at the open of trading Tuesday as a spike in crude-oil futures weighed on the sector Fuel Burn JT 8 D PW 4084 JT 9 D Future Turbofan PW 4052 NOTE: No Numbers 1950 1960 1970 1980 1990 Year 2000 2010 2020

MILITARY ENGINES: P&W F 100

P&W F 100 DETAILS AND SPECIFICATIONS • • Powers all current F-15 figher aircraft and F-16 fighter aircraft in 21 countries. More than 6, 900 engines produced and over 16 million flight hours. F 100 -PW-229 is the most mature Increased Performance Engine (IPE) available and is the engine of choice for air forces worldwide. It is the only IPE engine operationally matured in both the F-15 E and F-16 Block 52 aircraft. Using technology developed from the F 119 and F 135 engine programs for the F/A-22 Raptor and F-35 Joint Strike Fighter, the current production PW-229 incorporates modern turbine materials, cooling management techniques, compressor aerodynamics and electronic controls. In addition to offering the most technologically advanced IPE available, Pratt & Whitney offers a comprehensive range of maintenance management programs and engine overhaul services to meet all customer requirements. These programs provide customers with low-cost maintenance solutions and superb operational readiness. Engine Characteristics – Thrust: 23, 770 - 29, 160 lb – Weight: 3, 740 lb – Length: 191 in – Inlet Diameter: 34. 8 in – Maximum Diameter: 46. 5 in – Bypass Ratio: 0. 36 – Overall Pressure Ratio: 32 to 1

MILITARY ENGINES: P&W F 119

P&W F 119 DETAILS AND SPECIFICATIONS • • • P&W F 119 turbofan engine. In the 35, 000 pound thrust class, engine is a dual spool, counter -rotating turbofan that enables aircraft operation at supersonic speeds for extended periods. F 119 is equipped with a number of advanced technologies. Three-stage fan has shroudless titanium fan blades and is powered by a single-stage low-pressure turbine. The engine's core has an aerodynamically efficient six-stage compressor driven by a single-stage highpressure turbine featuring the next generation of single-crystal superalloy blades with improved cooling management. Robust, but compact, high-pressure compressor features integrally bladed rotor disks for improved durability and three-dimensionally designed airfoils. Convergent/divergent nozzle vectors thrust 20 degrees either up or down. Nozzle position management is automatically controlled by the full-authority digital electronic control (FADEC), which controls hundreds of other engine and aircraft operating parameters. F/A-22 full operational capability is expected in 2005. Engine Characteristics – Type: Twin-Spool, Augmented Turbofan – Thrust: 35, 000 Pound Thrust Class – Engine control: Full-Authority Digital Electronic Control – Compression system: Twin Spool/Counter Rotating/Axial Flow/Low Aspect Ratio – Combustor: Annular – Turbine: Axial Flow/Counter-Rotating – Nozzle: Two Dimensional Vectoring Convergent/Divergent

JSF ENGINE CONCEPTS: VSTOL

A GOOD PLACE FOR MARKET NEWS Singapore Airlines places US$7. 35 bln Boeing order August 25, 2004 04: 13: 57 (ET) SINGAPORE, Aug 25 (Reuters) - Singapore Airlines Ltd. ((SIAL. SI)), the world's second-largest airline by market value, said on Wednesday it had ordered 31 Boeing Co (BA, Trade) long-range 777 -300 ERs worth about US$7. 35 billion in a fleet renewal programme. The aircraft will be powered by engines from General Electric Co (GE, Trade), Asia's most profitable airline said. The national carrier had asked airframe manufacturers Boeing Co (BA, Trade) and Airbus SAS ((EAD. DE))((EAD. PA)) to bid for new plane orders it may place later this year. Boeing, the No. 2 maker of jetliners, is in a dogfight for market share with No. 1 Airbus. The planes will cover the medium-haul and regional needs of the 57 percent government-owned airline over the coming years.

ONLINE REFERENCES • • • http: //www. aircraftenginedesign. com/enginepics. html http: //www. pratt-whitney. com/ http: //www. geae. com/education/engines 101/ http: //www. ueet. nasa. gov/Student. Site/engines. html http: //www. aeromuseum. org/Education/Lessons/How. Plane. Fly. html http: //www. nasm. si. edu/exhibitions/gal 109/NEWHTF/HTF 532. HTM http: //www. aircav. com/histturb. html http: //inventors. about. com/library/inventors/bljjetenginehistory. htm http: //inventors. about. com/library/inventors/blenginegasturbine. htm http: //www. gas-turbines. com/primer. htm

SIEMENS POWER GENERATION: ORLANDO • • • The SGT-300 Industrial Gas Turbine for Power Generation (ISO) 7. 90 MW(e) The SGT-300 is available with a Dry Low Emissions (DLE) combustion system, providing extremely low NOx levels with gas and liquid fuels and a full dual fuel capability. The SGT-300 design is uniquely simple, employing a single twin bearing rotor with heavy duty casings. This allows full site maintenance to be carried out. The generator set package is very compact, providing a small footprint and a high power-to-weight ratio. The single-shaft configuration provides excellent load acceptance and rejection characteristics, allowing robust and reliable operation in all applications. • SGT-800 Industrial Gas Turbine – 45 MW • The SGT-800 combines reliable, robust industrial design with the high efficiency and low emission levels of the latest turbine technology. It allows you to implement rapid, low-cost solutions for combined heat and power production. Moreover, it's environmentally sound, compact and easy to install. • Designed for continuous, heavy-duty operation, the SGT-800 is the obvious choice where reliability, environmental concerns and low life-cycle costs are key factors. In combined cycle installations, this turbine affords very competitive life-cycle costs. It also offers high efficiency in simple cycle operation. And its powerful heat production capability in cogeneration installations makes it the ideal choice for the process industry.
