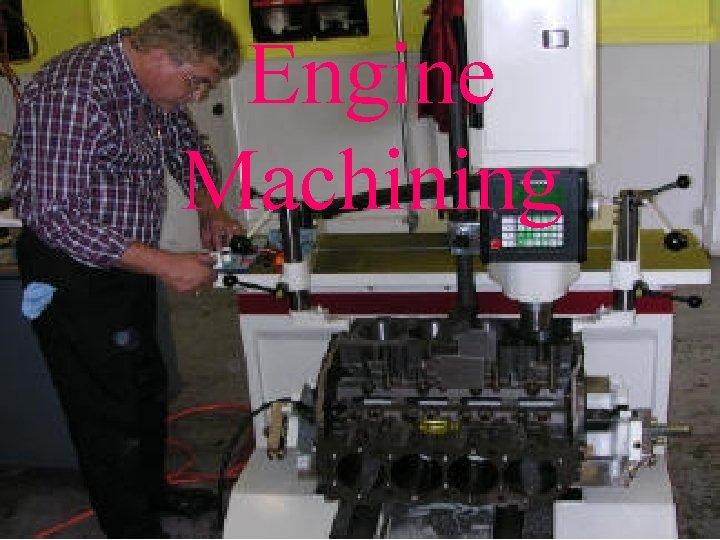

Engine Machining Decking the Block The deck of

Engine Machining

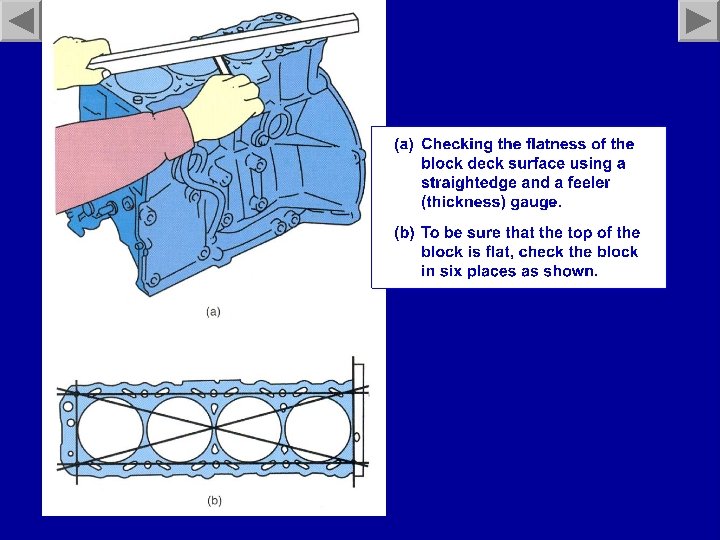

Decking the Block • The deck of the block should not be warped to insure a sufficient head gasket seal. • Concurrently, block deck should be parallel to the main bearing bores. • Block deck is checked with a straightedge and a feeler gauge at six different positions, check manufacturers specifications.

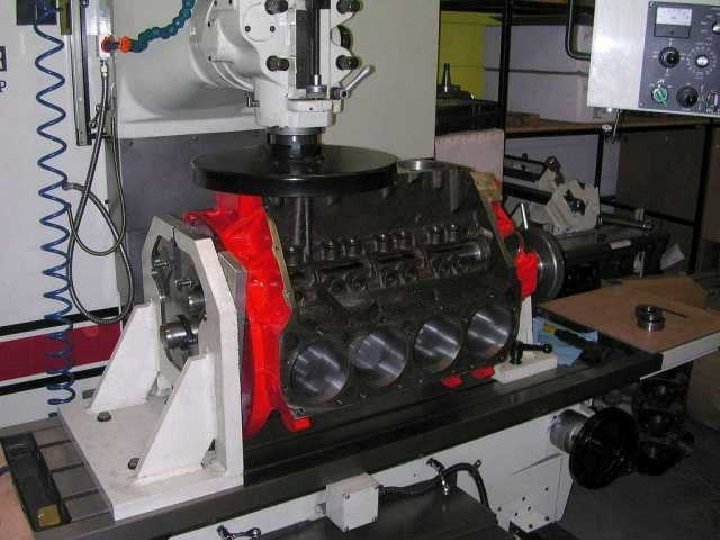

Decking the Block • A block that has been “decked” will have it’s surface(s) sanded parallel with the crank bore. Pg. 446 – Decking the block will raise static compression.

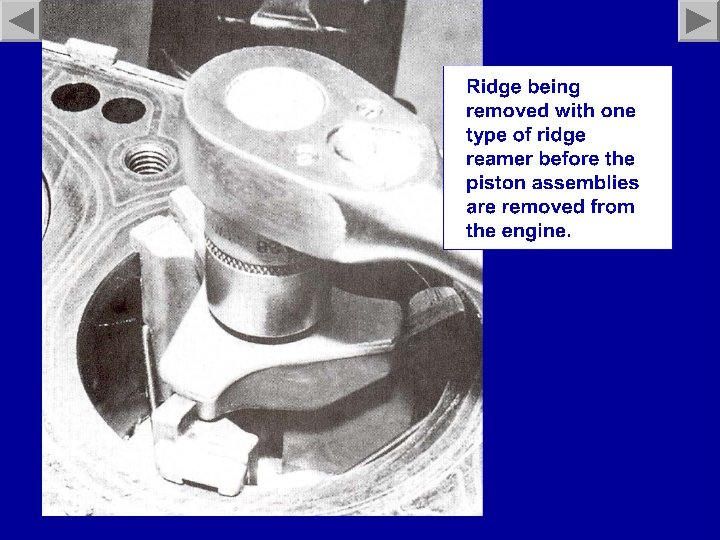

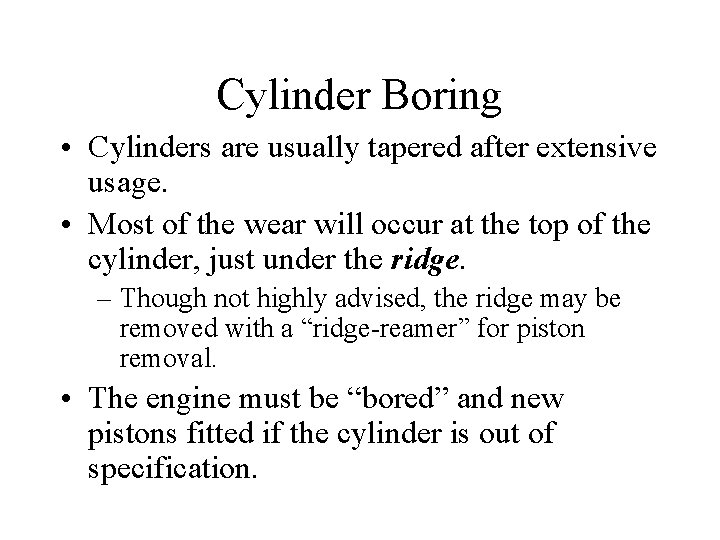

Cylinder Boring • Cylinders are usually tapered after extensive usage. • Most of the wear will occur at the top of the cylinder, just under the ridge. – Though not highly advised, the ridge may be removed with a “ridge-reamer” for piston removal. • The engine must be “bored” and new pistons fitted if the cylinder is out of specification.

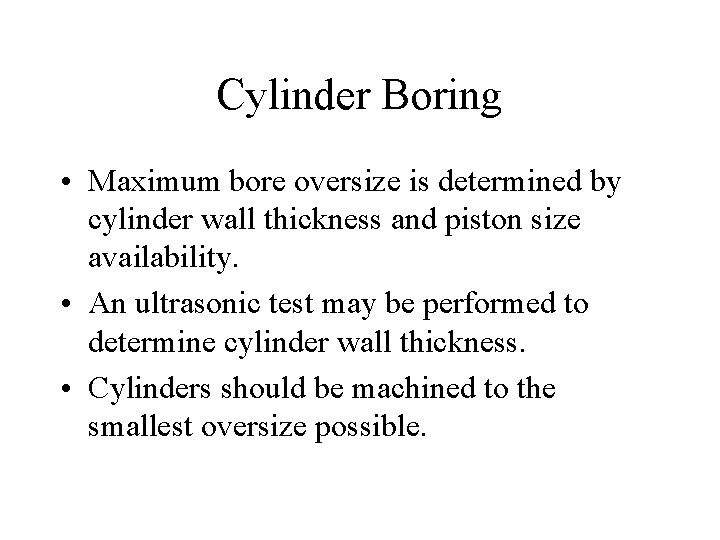

Cylinder Boring • Maximum bore oversize is determined by cylinder wall thickness and piston size availability. • An ultrasonic test may be performed to determine cylinder wall thickness. • Cylinders should be machined to the smallest oversize possible.

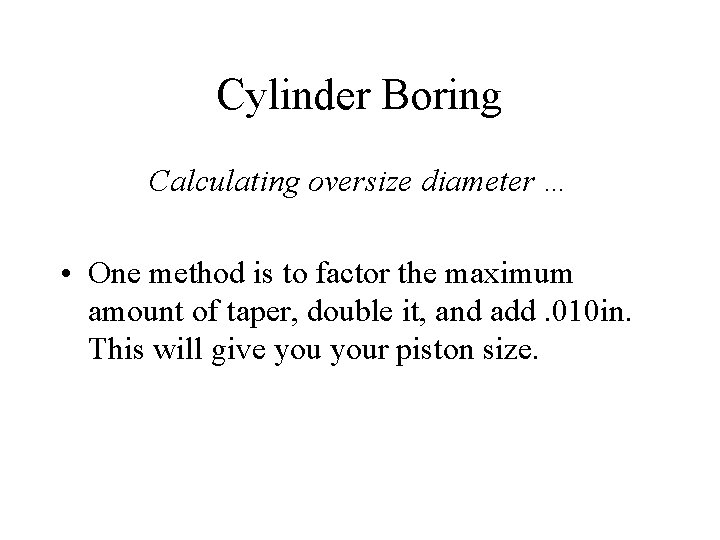

Cylinder Boring Calculating oversize diameter … • One method is to factor the maximum amount of taper, double it, and add. 010 in. This will give your piston size.

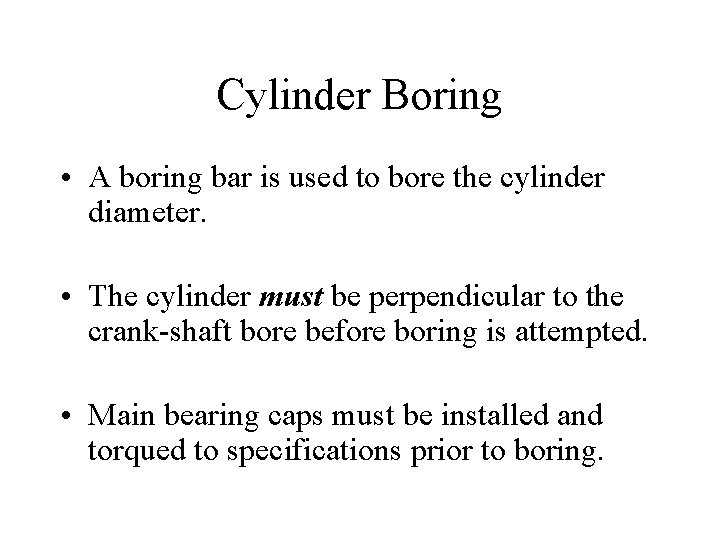

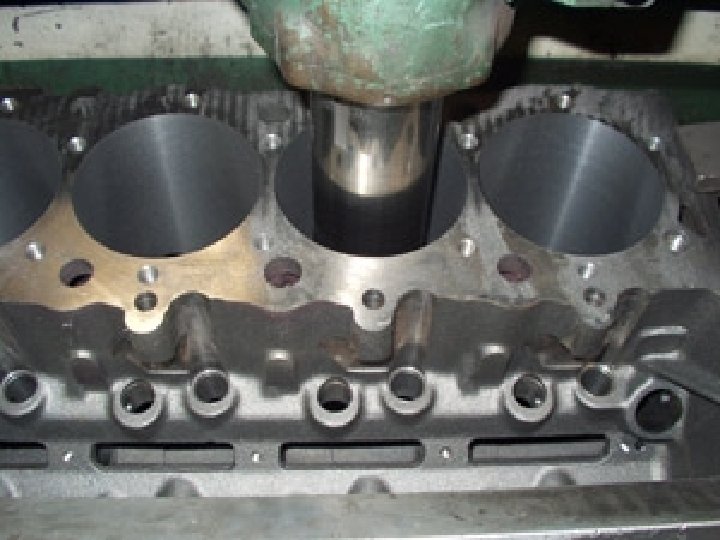

Cylinder Boring • A boring bar is used to bore the cylinder diameter. • The cylinder must be perpendicular to the crank-shaft bore before boring is attempted. • Main bearing caps must be installed and torqued to specifications prior to boring.

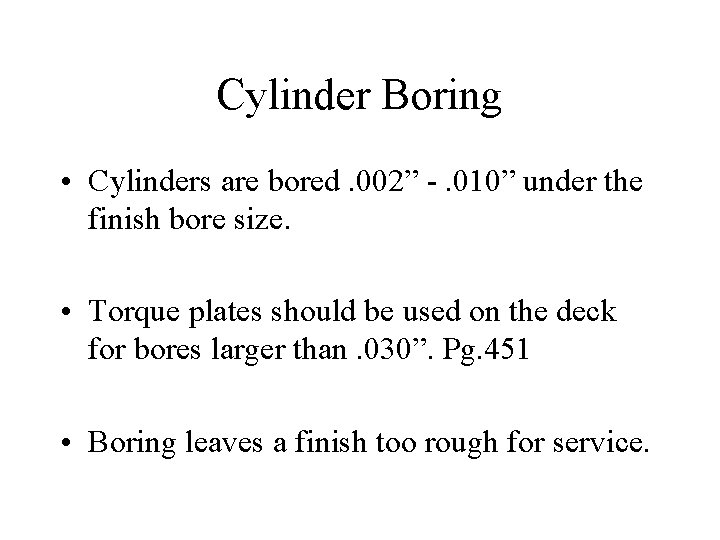

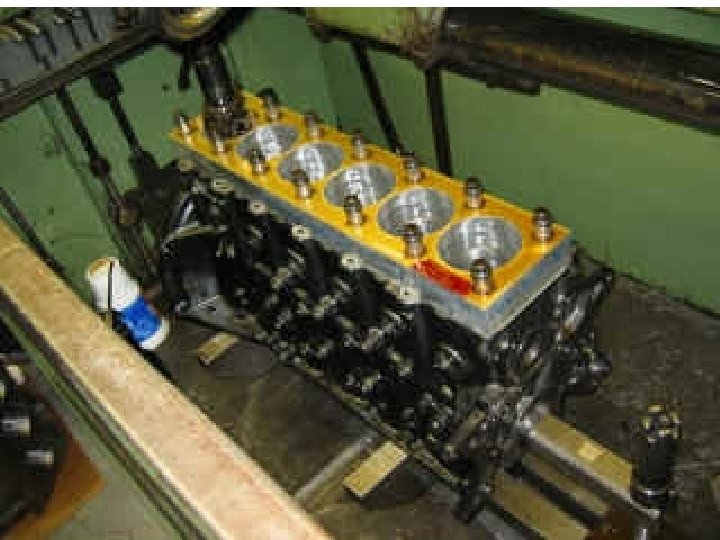

Cylinder Boring • Cylinders are bored. 002” -. 010” under the finish bore size. • Torque plates should be used on the deck for bores larger than. 030”. Pg. 451 • Boring leaves a finish too rough for service.

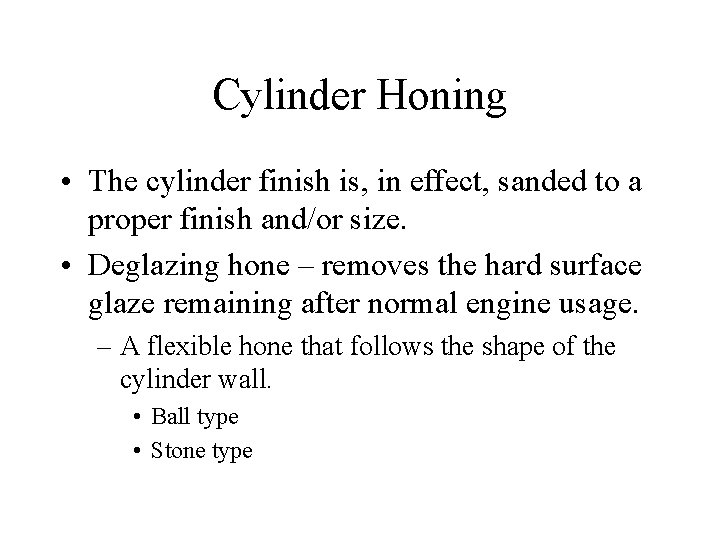

Cylinder Honing • The cylinder finish is, in effect, sanded to a proper finish and/or size. • Deglazing hone – removes the hard surface glaze remaining after normal engine usage. – A flexible hone that follows the shape of the cylinder wall. • Ball type • Stone type

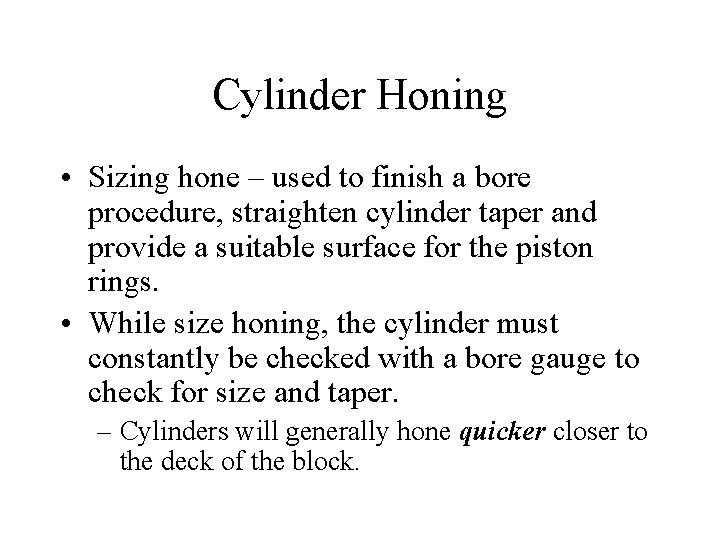

Cylinder Honing • Sizing hone – used to finish a bore procedure, straighten cylinder taper and provide a suitable surface for the piston rings. • While size honing, the cylinder must constantly be checked with a bore gauge to check for size and taper. – Cylinders will generally hone quicker closer to the deck of the block.

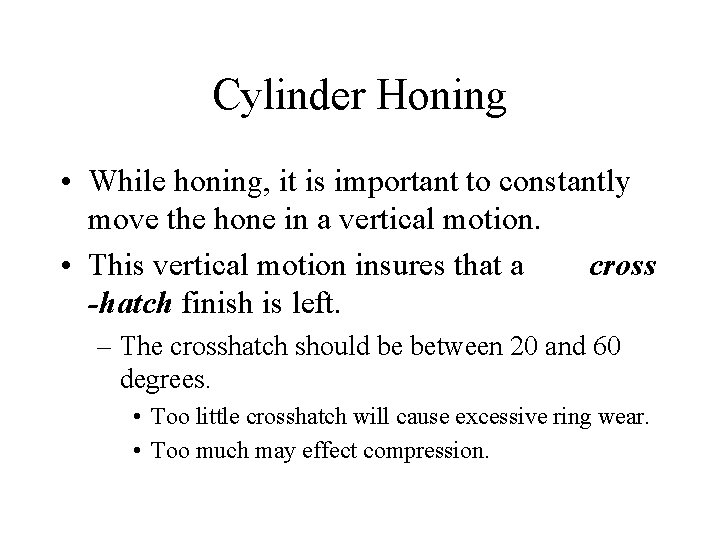

Cylinder Honing • While honing, it is important to constantly move the hone in a vertical motion. • This vertical motion insures that a cross -hatch finish is left. – The crosshatch should be between 20 and 60 degrees. • Too little crosshatch will cause excessive ring wear. • Too much may effect compression.

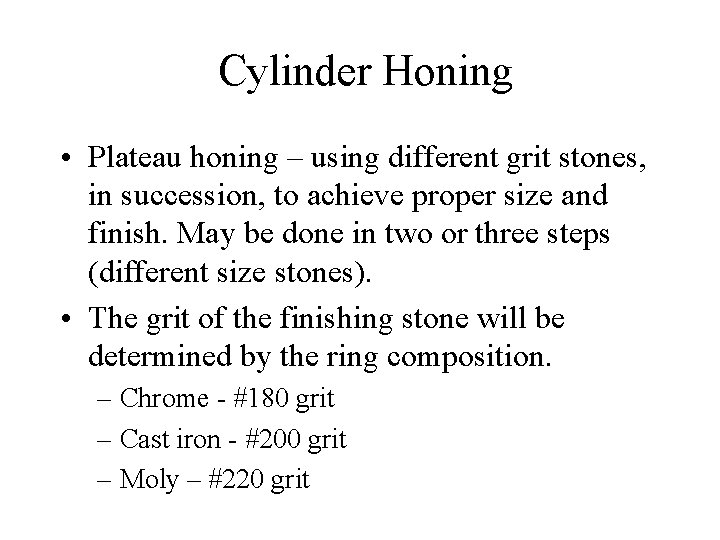

Cylinder Honing • Plateau honing – using different grit stones, in succession, to achieve proper size and finish. May be done in two or three steps (different size stones). • The grit of the finishing stone will be determined by the ring composition. – Chrome - #180 grit – Cast iron - #200 grit – Moly – #220 grit

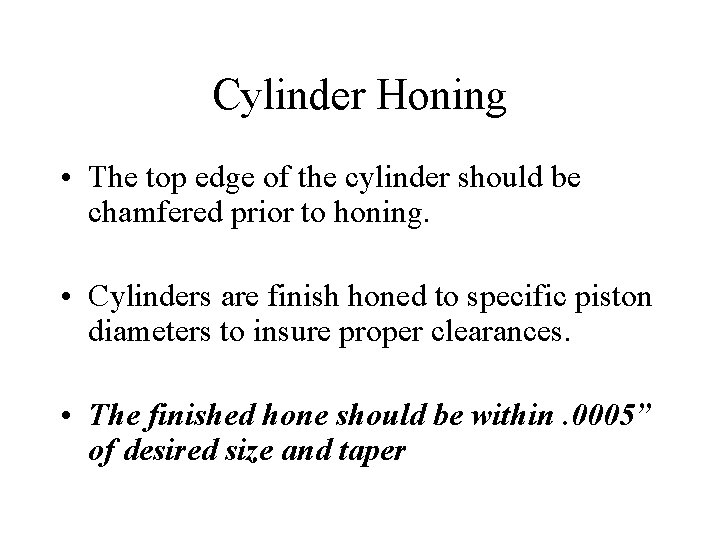

Cylinder Honing • The top edge of the cylinder should be chamfered prior to honing. • Cylinders are finish honed to specific piston diameters to insure proper clearances. • The finished hone should be within. 0005” of desired size and taper

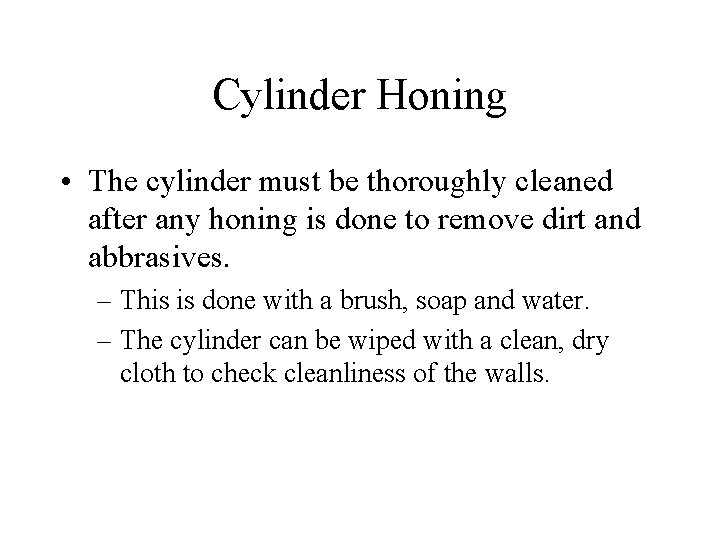

Cylinder Honing • The cylinder must be thoroughly cleaned after any honing is done to remove dirt and abbrasives. – This is done with a brush, soap and water. – The cylinder can be wiped with a clean, dry cloth to check cleanliness of the walls.

Lifter Bore Honing • Lifter bores are deglazed with a finishing stone to remove wear patterns.

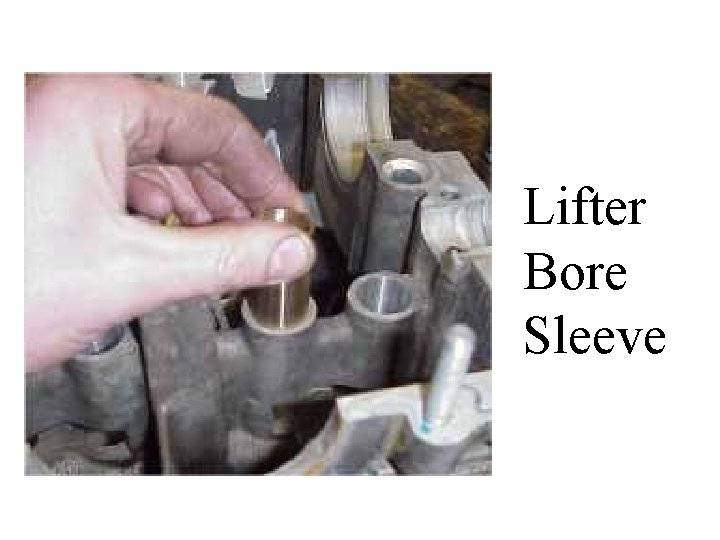

Lifter Bore Sleeve

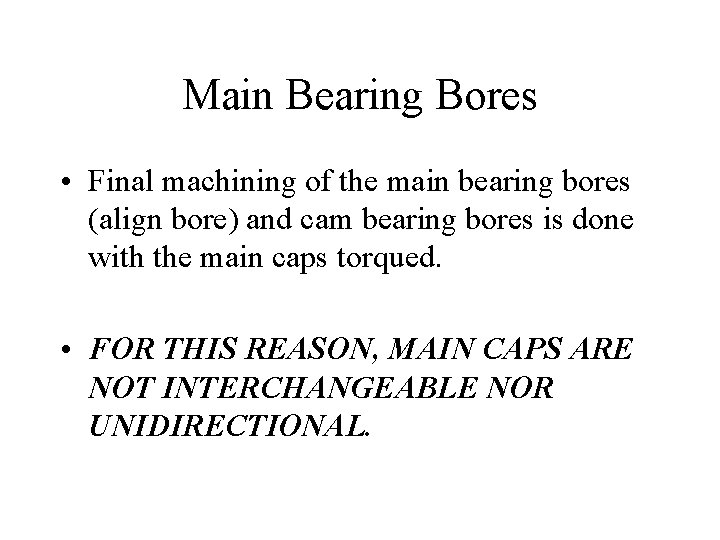

Main Bearing Bores • Final machining of the main bearing bores (align bore) and cam bearing bores is done with the main caps torqued. • FOR THIS REASON, MAIN CAPS ARE NOT INTERCHANGEABLE NOR UNIDIRECTIONAL.

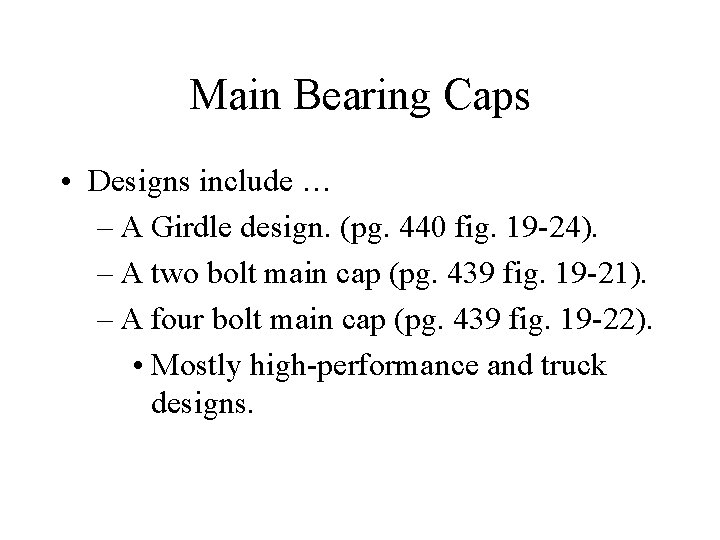

Main Bearing Caps • Designs include … – A Girdle design. (pg. 440 fig. 19 -24). – A two bolt main cap (pg. 439 fig. 19 -21). – A four bolt main cap (pg. 439 fig. 19 -22). • Mostly high-performance and truck designs.

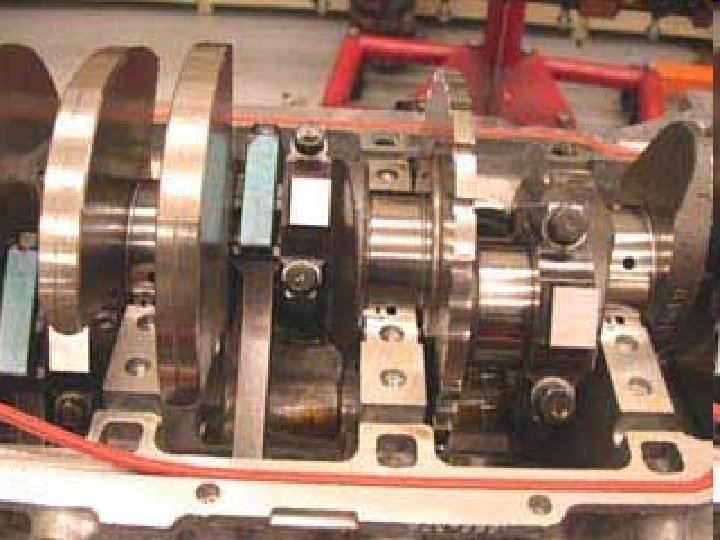

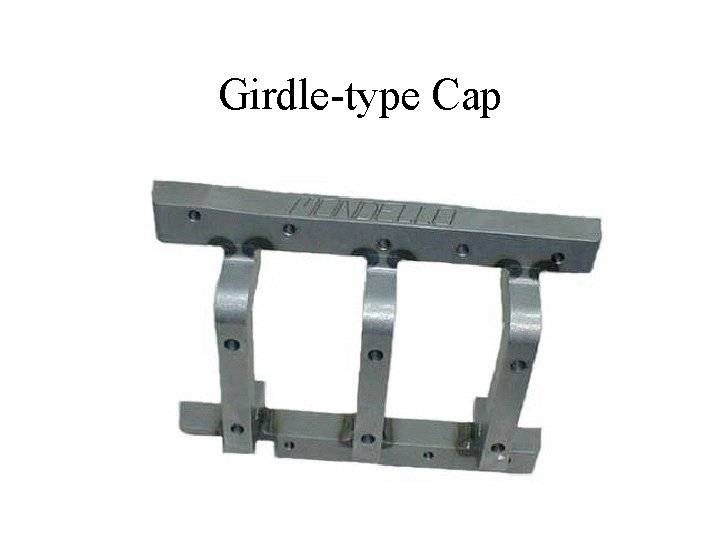

Girdle-type Cap

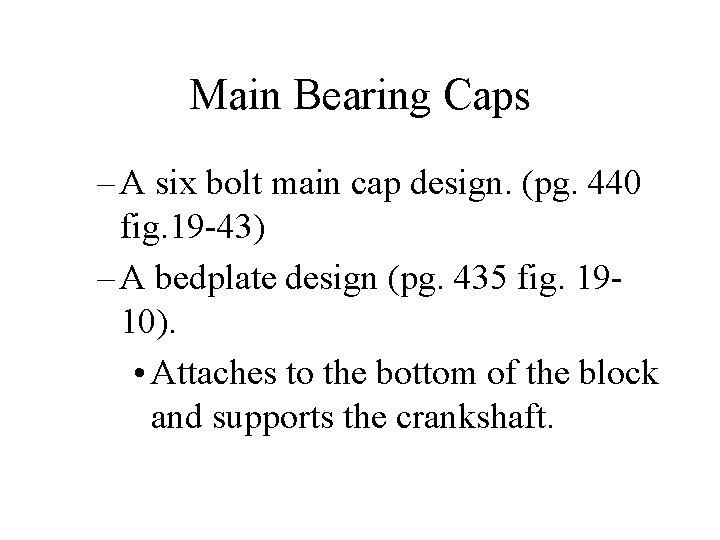

Main Bearing Caps – A six bolt main cap design. (pg. 440 fig. 19 -43) – A bedplate design (pg. 435 fig. 1910). • Attaches to the bottom of the block and supports the crankshaft.

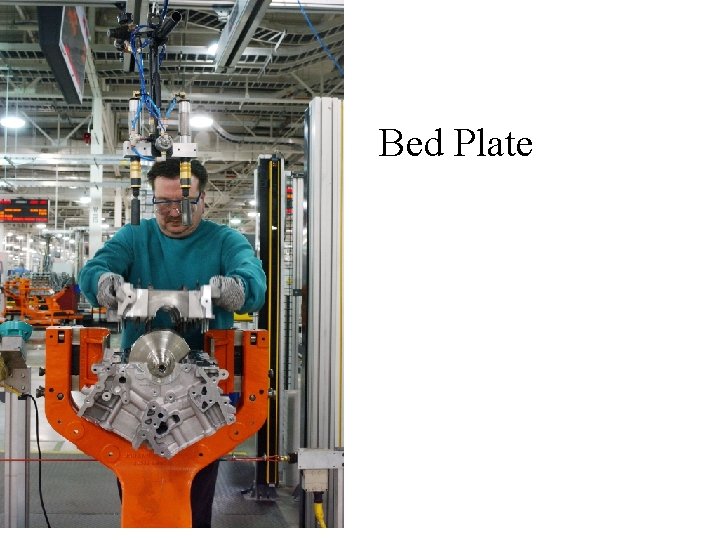

Bed Plate

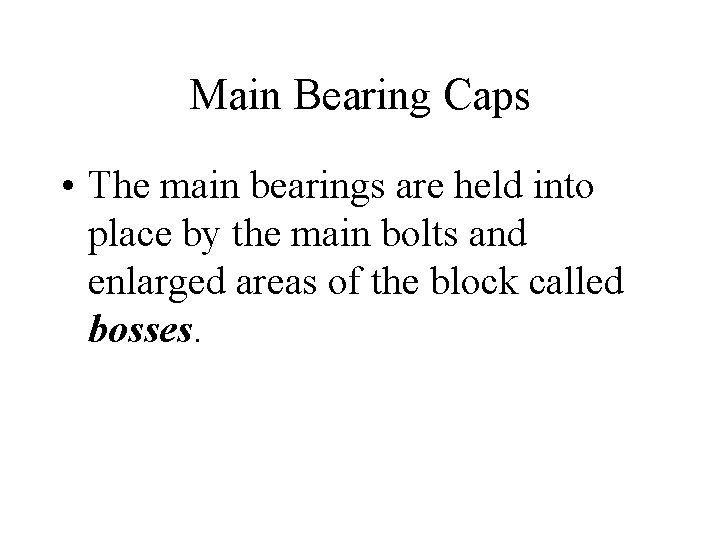

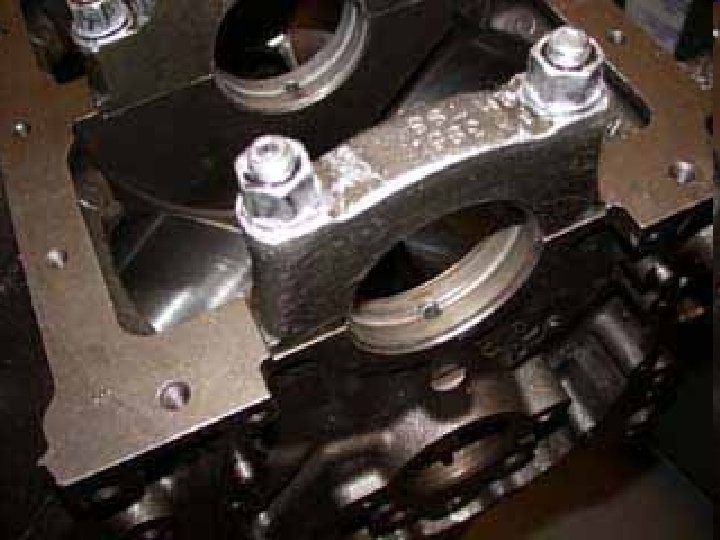

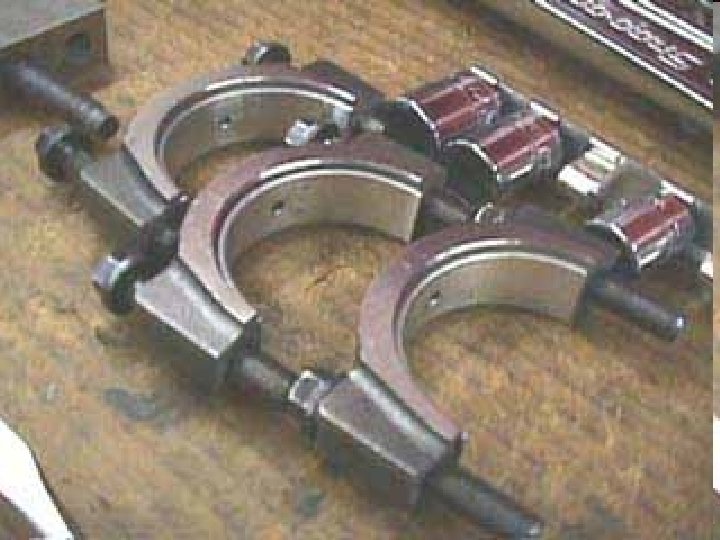

Main Bearing Caps • The main bearings are held into place by the main bolts and enlarged areas of the block called bosses.

Main Bearing Bores • M. B. B. s may elongate over time and become egg-shaped (pg. 441 fig. 19. 27). – This out-of-round can be checked with a bore gauge in 3 different positions. 0. 0005 variance is considered acceptable. • The main bearing bore not contained within the cap is called the saddle. – The saddle will be part of the engine block in most cases.

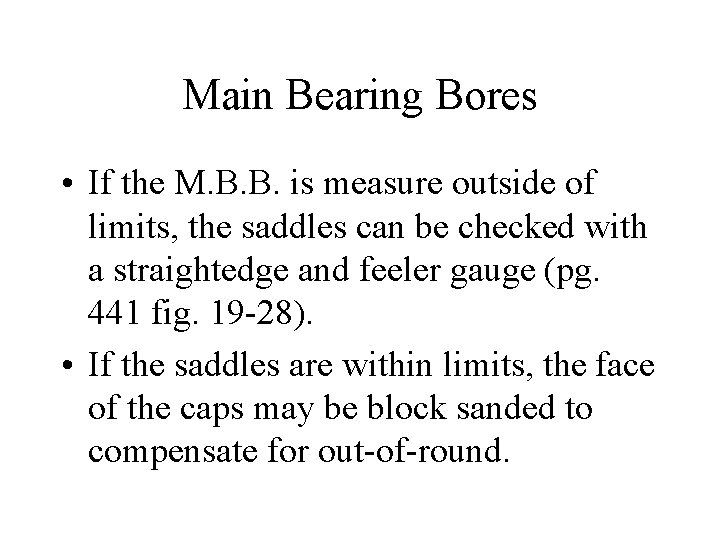

Main Bearing Bores • If the M. B. B. is measure outside of limits, the saddles can be checked with a straightedge and feeler gauge (pg. 441 fig. 19 -28). • If the saddles are within limits, the face of the caps may be block sanded to compensate for out-of-round.

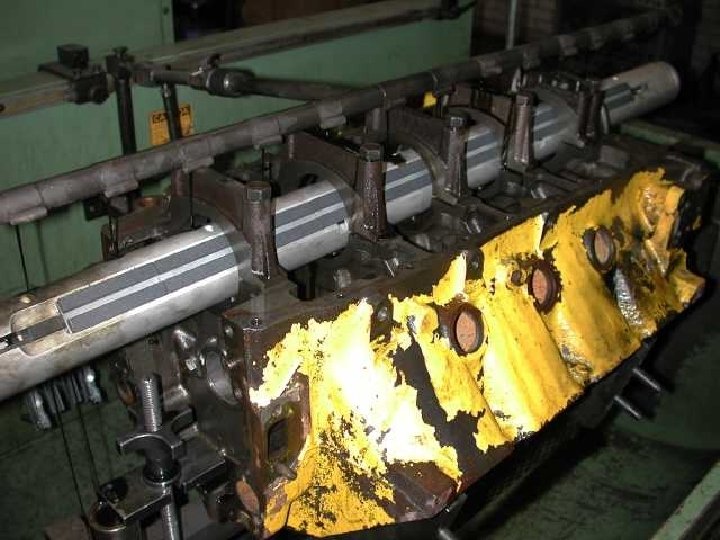

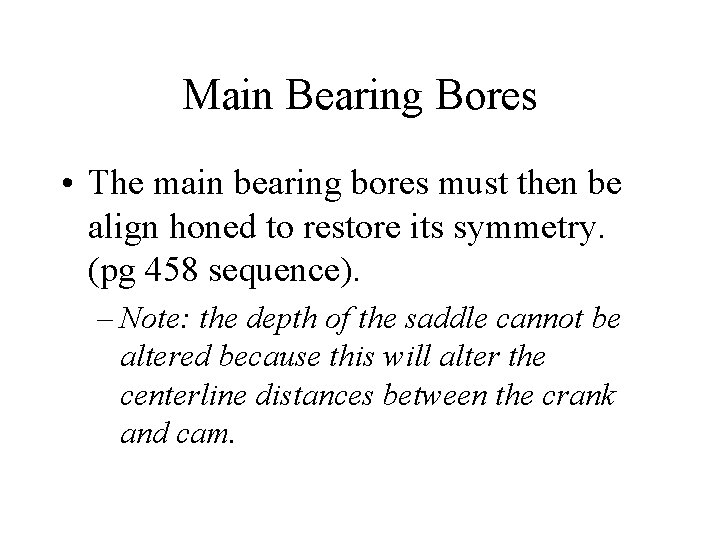

Main Bearing Bores • The main bearing bores must then be align honed to restore its symmetry. (pg 458 sequence). – Note: the depth of the saddle cannot be altered because this will alter the centerline distances between the crank and cam.

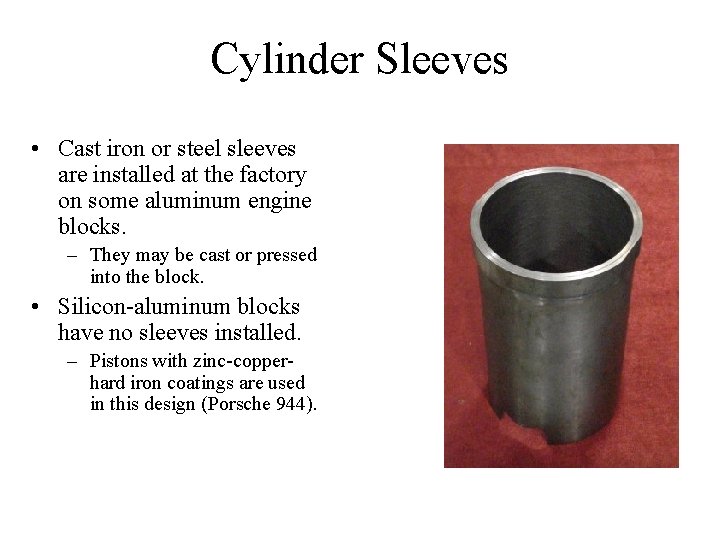

Cylinder Sleeves • Cast iron or steel sleeves are installed at the factory on some aluminum engine blocks. – They may be cast or pressed into the block. • Silicon-aluminum blocks have no sleeves installed. – Pistons with zinc-copperhard iron coatings are used in this design (Porsche 944).

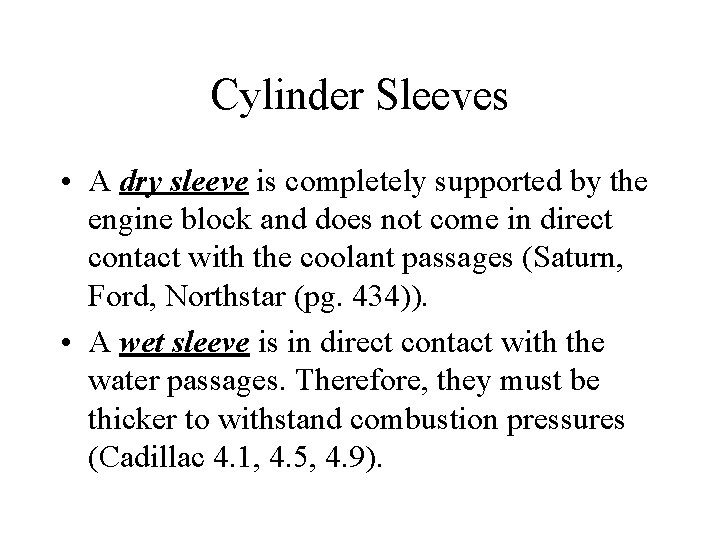

Cylinder Sleeves • A dry sleeve is completely supported by the engine block and does not come in direct contact with the coolant passages (Saturn, Ford, Northstar (pg. 434)). • A wet sleeve is in direct contact with the water passages. Therefore, they must be thicker to withstand combustion pressures (Cadillac 4. 1, 4. 5, 4. 9).

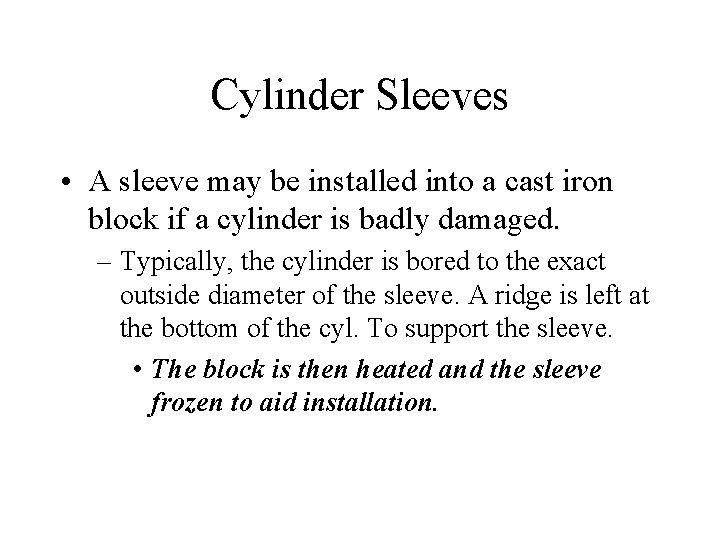

Cylinder Sleeves • A sleeve may be installed into a cast iron block if a cylinder is badly damaged. – Typically, the cylinder is bored to the exact outside diameter of the sleeve. A ridge is left at the bottom of the cyl. To support the sleeve. • The block is then heated and the sleeve frozen to aid installation.

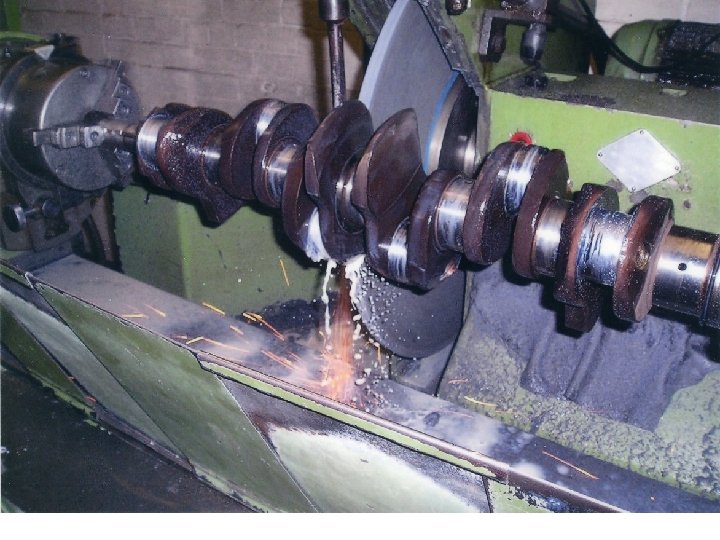

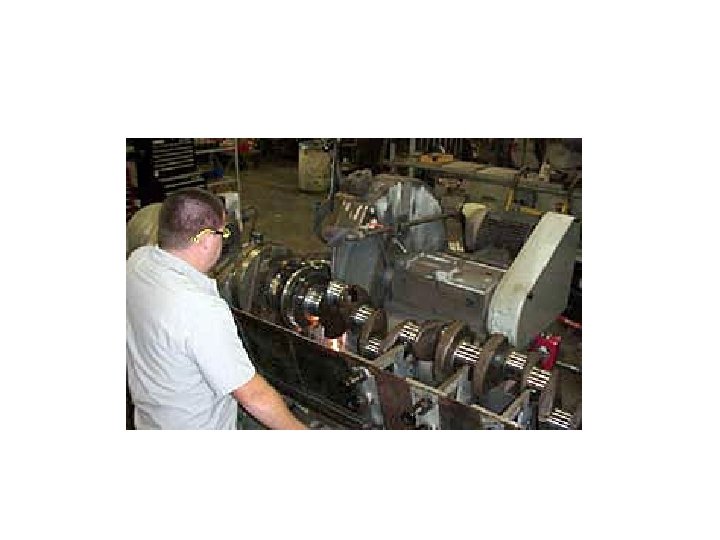

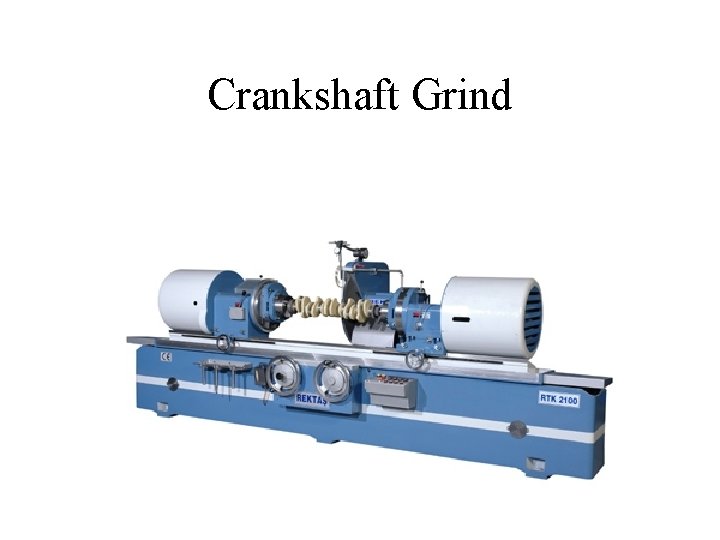

Crankshaft Grind

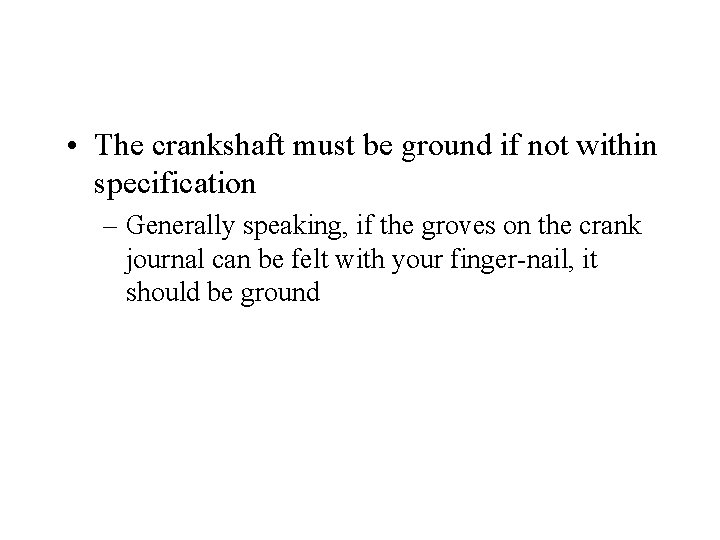

• The crankshaft must be ground if not within specification – Generally speaking, if the groves on the crank journal can be felt with your finger-nail, it should be ground
