Energy Trends 2 Trift bridge 560 long 333
Energy Trends
2
Trift bridge 560’ long 333’ high
Trift glacier 1948
Trift glacier 2006
2 miles since 1948
Do you believe?
Energy Industry 32% Buildings 40% 39% of CO 2 72% electricity Transport 28% Surprised?

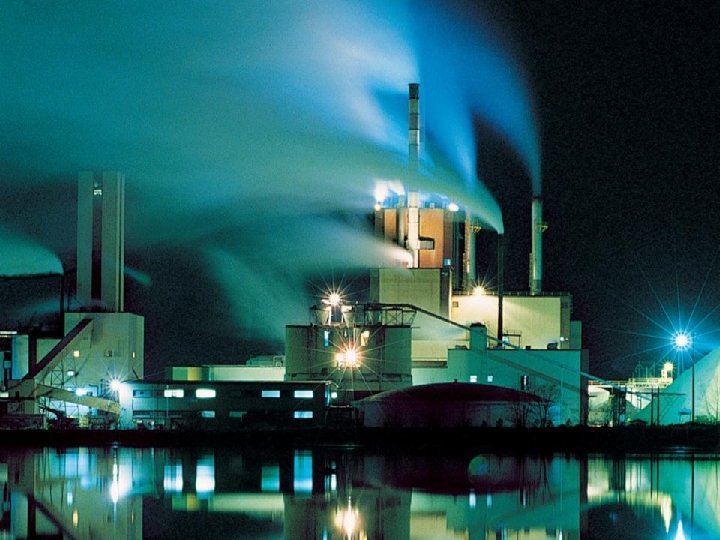

Energy Res 22% Industry 32% Buildings 40% Transport 28% Com 18%
Even if you don’t believe… …believe in hard savings of 15% to 60%
Size of the prize… O&M Controls Lighting Equipment Behavior 7% to 28% 7% to 23% 6% to 25% 3% to 15%
Making the invisible
Making the invisible
Why now?
US average electricity cost - $0. 01 / kwh Electricity pricing 10 9 45% increase 8 7 6 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Commercial natural gas prices - $ / cu ft Natural gas pricing 13 12 11 Highly volatile 10 9 8 7 6 5 4 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Efficiency is the cheapest form of clean power
Net zero energy 20: 20 BEQ LEED Energy Star
Pilot phase 21 buildings 14. 5 M sq ft A- to C grades
LEED Millions of sq ft certified 500 Series 1 400 300 200 100 0 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Energy Star Millions of sq ft certified 500 400 300 200 100 0 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
How?
Intelligent buildings Day lighting Sub-metering Efficient lighting Occupancy sensing Variable speed drives Demand-based ventilation Continuous commissioning Utility automated demand/response Fully integrated building management system
Smart Grid & Demand / Response
What is the Smart Grid?
Use of digital information and controls to improve reliability, security and efficiency of the grid.
Use of smart automation systems that optimize the operation of buildings and homes.
Installation of smart meters to enable real time pricing
Deployment of demand / response
The Problem Energy Demand Energy Cost $2. 00 Spot Market $. 30 Renewables $. 25 Diesel Peaker $. 10 Gas Turbine $. 06 Coal 10: 00 pm 9: 00 pm 8: 00 pm 7: 00 pm 6: 00 pm 5: 00 pm 4: 00 pm 3: 00 pm 2: 00 pm 12: 00 pm 11: 00 am 10: 00 am 9: 00 am 8: 00 am 7: 00 am 6: 00 am $. 04 Hydro
10: 00 pm 9: 00 pm 8: 00 pm 7: 00 pm 6: 00 pm 5: 00 pm 4: 00 pm 3: 00 pm 2: 00 pm 12: 00 pm 1600 11: 00 am 10: 00 am 9: 00 am 1200 8: 00 am 1400 7: 00 am 6: 00 am Building power consumption - kw Efficiency 1800 Original load With energy efficiency 250 k. W reduction 1000 800 600 400 200 0
10: 00 pm 9: 00 pm 8: 00 pm 7: 00 pm 6: 00 pm 5: 00 pm 4: 00 pm 3: 00 pm 2: 00 pm 1: 00 pm 400 12: 00 pm 1600 11: 00 am 10: 00 am 9: 00 am 8: 00 am 1400 7: 00 am 6: 00 am Building power consumption - kw Demand / Response 1800 Original load With energy efficiency 1200 1000 800 600 With demand response 200 0
Auto Demand Response - a utility requests energy curtailment during an anticipated peak period where demand exceeds supply. Utility options are: Purchase power on the spot market Start up old generation plants Build new power plants (very costly) Rolling blackouts Demand / Response Auto DR is an automated way to achieve demand reduction.
Demand response - lowest installed cost GENERATION ASSET INSTALLED COST ($ / k. W) Photovoltaic $ 6, 038 Solar thermal $ 5, 021 Wind offshore $ 3, 851 IGCC w/ CCS $ 3, 496 Nuclear $ 3, 300 IGCC $ 2, 378 Scrubbed coal $ 2, 058 Wind $ 1, 923 Distributed gas – peak $ 1, 645 Distributed generation – base $ 1, 370 Gas plant $ 962 Demand response $ 573
Thank you
