Energy Storage for RE Integration India Smart Grid

Energy Storage for RE Integration India Smart Grid Forum 2016 18 th March 2016

Global Energy Pvt. Ltd. Power Trading Power Generation Coal Trading Holistic Energy Services Energy Advisory & PAT Services Solar EPC & Services 2

GEPL – Many Firsts § 1 st Independent Power Trading company in India, even before the first electricity trade in the world § Executed 1 st inter – state contract for power trading in India in 1992 § 1 st to conceptualize and launch a power exchange in India – India Electron Exchange (IEE) in 2004, in association with the Govt. of Goa, ICICI Bank and TPT Inc, USA § 1 st to successfully trade Wind Power under Open Access § 1 st to sale Solar Energy to Third Party under Open Access mechanism

GEPL’s Energy Storage Milestones/Objectives/Path • Extensive study of various energy storage technologies and applications • Regulatory and Policy recommendations, (educating) to a number of state agencies and utilities on energy storage • Financial analysis of energy storage solutions • Technology Agnostic with focus on getting the best fit solution for energy storage requirements • International Collaborations

Association with Younicos provides integrated Energy Storage Systems combining • Track record and experience: Large installation experience of more than 97 MW across the globe and MW-scale micro-grid test center • Technology agnostic storage system design and cell-level battery knowledge: Use the battery technology that fits best your application • Advanced storage control software: Run several storage services simultaneously and fully automated.

India’s Fuel Mix All India Installed Capacity = 288 GW (As on 18 th Feb, 2016) 8. 4% 60. 9% Hydro Coal 0% 6% 2% Coal 2% 0. 3% 13. 4% Projected All India Installed Capacity = 535 GW (Projection 2022) Hydro 33% 47% Renewable 14. 7% Gas Nuclear Oil Coal Gas Oil Hydro Nuclear Renewable : 175. 2 GW : 24. 5 GW : 0. 9 GW : 42. 6 GW : 5. 7 GW : 38. 8 GW Renewable 11% Coal Gas Oil Hydro Nuclear Renewable Oil : 251 GW : 34 GW : 2 GW : 61 GW : 12 GW : 175 GW

India’s Ambitious RE Targets 2022 Small Hydro Biomass 3% 6% 2016 13% 33% Wind 34% Source: MNRE Solar 57% Wind and Solar – 91% of total RE Capacity

Renewable Energy Impact • Infirm • Unpredictable • Unscheduled generation • Grid instability – frequency and voltage variations • Transmission constraints - excess generation needs additional transmission capacity or else it needs to be curtailed resulting in waste of renewable power. Else thermal power plants need to be laid off to accommodate RE power. • Inefficiency of power system, because of backing down of thermal power plants • Possibility of the California Duck Curve phenomena

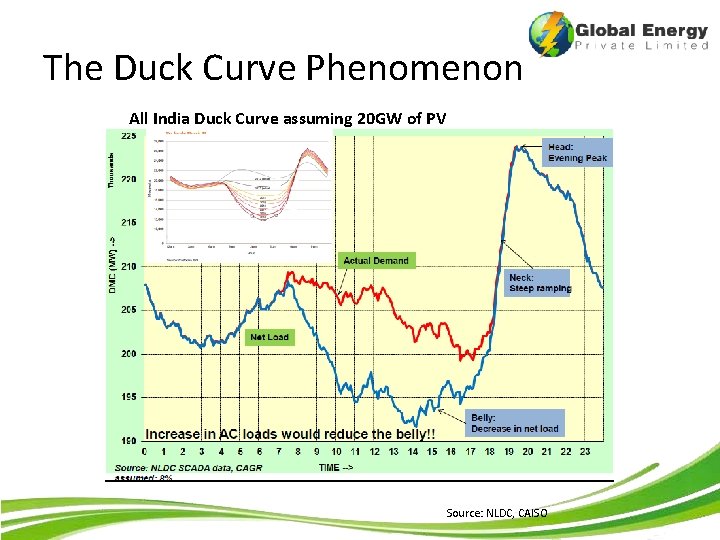

The Duck Curve Phenomenon All India Duck Curve assuming 20 GW of PV Source: NLDC, CAISO

RE Integration – Current Measures Forecasting Strengthen Transmission Balancing Mechanisms Demand Response Regional Power Transactions

RE Integration- Way Ahead Pumped Hydro Electrical/ Battery Energy Storage Chemical Mechanical

Choose the right technology Grid Stability For each application there are many technologies to chose from Power Balancing Energy Balancing

Selecting the appropriate Energy Storage “Solutions” Select as per desired applications Category Grid Stability Power Balancing Energy Balancing Applications • Frequency/ Primary response • Reactive Power/ Voltage Control • PV ramp rate control • Black-start / Islanding • Secondary response • Generation / load management • Short-term load dispatch • • Arbitrage Peak load shifting Peak generation shifting T&D congestion management Other factors Total Life-cycle costs Technical capabilities CAPEX OPEX Usable capacity Response time of Storage system Provide several applications at same time with continuous availability Control Software for grid interaction and quick response

Energy Storage – For Integrating RE to the Grid 1. Dispatchable PV 2. Ramp Rate Control 3. Peak Power Sunny day Cloudy day Peak load: morning and evening “tamed” PV generation Shifted PV generation Noon Peak Shift 15 -50% of daily production on sunny days of PV plants. Noon Reduce fluctuations of PV plants on cloudy days to acceptable limits. Provide peak capacity Morning Evening Provide peak power for 3– 6 hours by charging ESS during off -peak hours. The Younicos storage control software offers these services simultaneously and are fully automated

Energy Storage – System wide usage • • Ensures optimum usage of thermal and renewable generation Increases evacuation capacity for Wind and Solar to achieve renewable targets Reduces transmission and distribution congestion Provides ancillary services

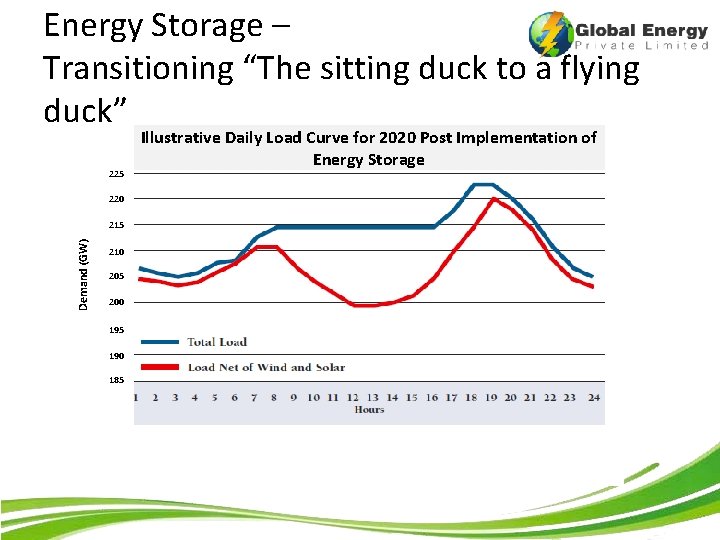

Energy Storage – Transitioning “The sitting duck to a flying duck” 225 220 Demand (GW) 215 210 205 200 195 190 185 Illustrative Daily Load Curve for 2020 Post Implementation of Energy Storage

So teach the duck to fly - JIM LAZAR Thank You Nayyara Hossain Executive Vice President Global Energy Pvt. Ltd. Email: nayyara@globalenergy. net. in Mobile : +91 -8588805716
