Energy Efficiency Potential in Saudi Arabia Building Sector

Energy Efficiency Potential in Saudi Arabia Building Sector Dr. Naif M. Alabbadi SEEC, Director General nabbadi@kacst. edu. sa www. kacst. edu. sa COP-18, Side Event on Demand Side Strategies and Buildings Energy QNNC, Doha, Thursday November 29 th, 2012

Outline Energy flow/Forecast in KSA: (Primary energy and electricity consumption distribution over different sectors, Energy Intensity in comparison to other countries) Energy consumption in KSA buildings: Ø Ø Ø Status of buildings development in KSA. How Electricity is consumed in the different building types in KSA. Examples of electricity saving is KSA buildings. Potential of energy saving in KSA building sector. Policies and regulations towards energy efficient building in KSA Saudi Energy Efficiency Center, SEEC.

Bu co ild 80 ns ing el % o um se ge ectr f t ed cto ne ic he ne r ar ra ity ly te d Energy Flow in KSA Year 2008 2028 Primary Energy, MMBOe/day 3. 5 8. 5 Electricity Peak Demand, GW 37 108

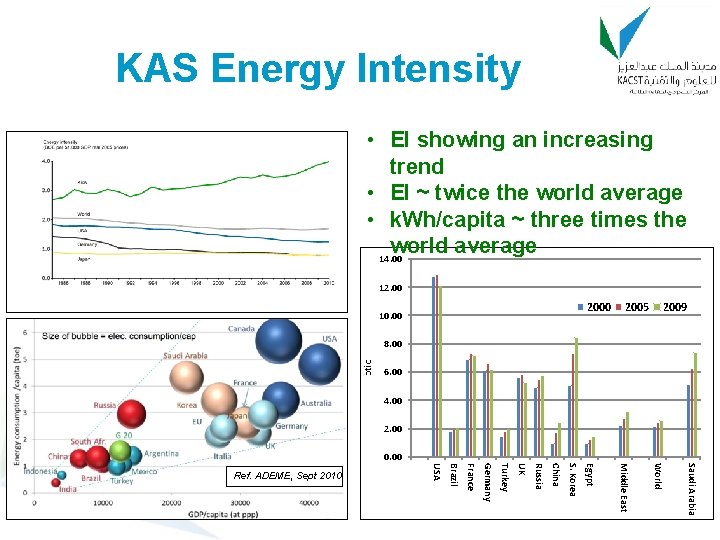

KAS Energy Intensity 12. 00 2000 10. 00 2005 2009 8. 00 6. 00 4. 00 2. 00 0. 00 Saudi Arabia World Middle East Egypt S. Korea China Russia UK Turkey Germany France Brazil USA Ref. ADEME, Sept 2010. Electricity Consumption/capita, 1000 k. Wh • EI showing an increasing trend • EI ~ twice the world average • k. Wh/capita ~ three times the world average 14. 00

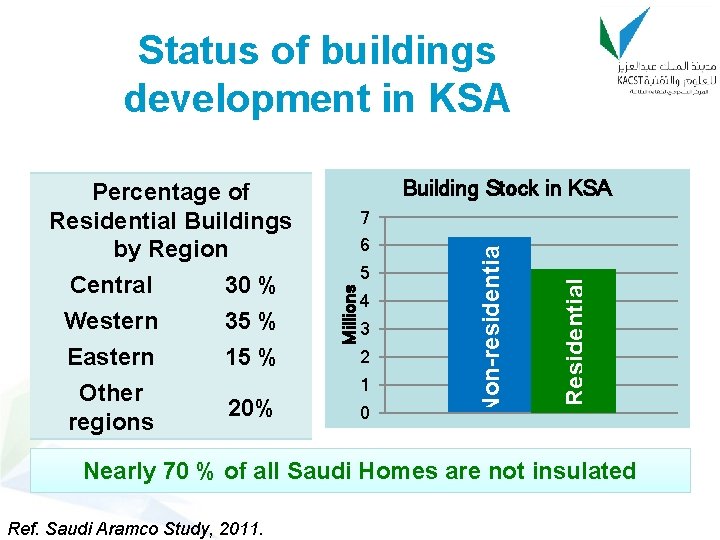

Status of buildings development in KSA 20% 6 5 4 3 2 1 0 Residential 35 % 15 % 7 Non-residential Western Eastern Other regions Building Stock in KSA Millions Percentage of Residential Buildings by Region Central 30 % Nearly 70 % of all Saudi Homes are not insulated Ref. Saudi Aramco Study, 2011.

2010 AC Installations in KSA Ø Total 1, 478, 468 units installed in 2010. Ø 15 types of AC (e. g. window, splits, packaged) Ø 51 manufacturers from 12 countries, 96 brands, 3, 519 models. Ø 9 local manufacturers. Packaged Chiller 2% 1% Window 56% Western Region 25% Split 41% Eastern Region 15% Ref. Saudi Aramco Study, 2011. Others 25% Central Region 35%

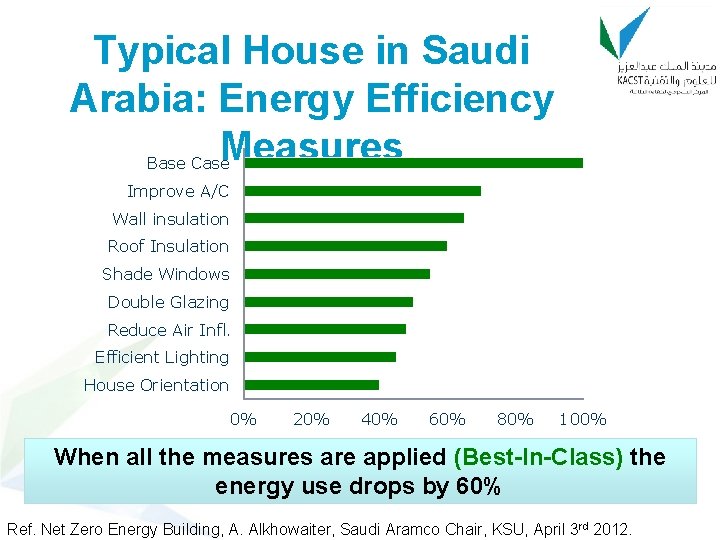

Typical House in Saudi Arabia: Energy Efficiency Measures Base Case Improve A/C Wall insulation Roof Insulation Shade Windows Double Glazing Reduce Air Infl. Efficient Lighting House Orientation 0% 20% 40% 60% 80% 100% When all the measures are applied (Best-In-Class) the energy use drops by 60% Ref. Net Zero Energy Building, A. Alkhowaiter, Saudi Aramco Chair, KSU, April 3 rd 2012.

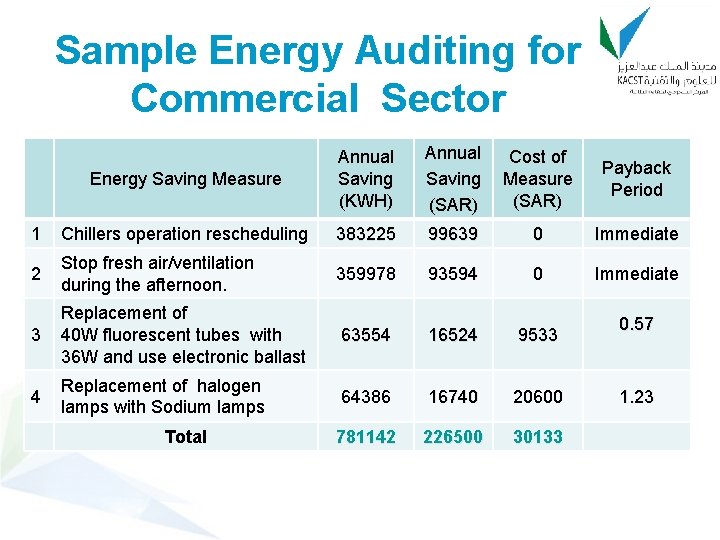

Sample Energy Auditing for Commercial Sector Energy Saving Measure Annual Saving (KWH) Annual Saving (SAR) Cost of Measure (SAR) Payback Period 1 Chillers operation rescheduling 383225 99639 0 Immediate 2 Stop fresh air/ventilation during the afternoon. 359978 93594 0 Immediate 3 Replacement of 40 W fluorescent tubes with 36 W and use electronic ballast 63554 16524 9533 4 Replacement of halogen lamps with Sodium lamps 64386 16740 20600 781142 226500 30133 Total 0. 57 1. 23

Sample Energy Auditing for Industrial Sector Energy Saving Measure Annual saving (SAR) Cost (SAR) Payback period 1 Replacement of magnetic ballast with electronic 314, 308 479, 250 1. 52 2 Use of natural lighting from the roof of the workshop 129, 600 450, 000 3. 4 3 Improve boiler combustion efficiency (adjusting air/fuel ratio) 14, 476 10, 000 4 Maintain pipes’ insulation and insulate exposed valves 4, 164 800 0. 2 462, 600 940, 050 2. 0 Total 0. 7

Sample Energy Auditing for Educational Building Ø Riyadh Technical College, old campus buildings, 2002 -2003. Ø Average annual electricity consumption = 7070 MWh Ø HVAC investment based on incremental cost of efficient system Ø High water cooled investment due to water cost.

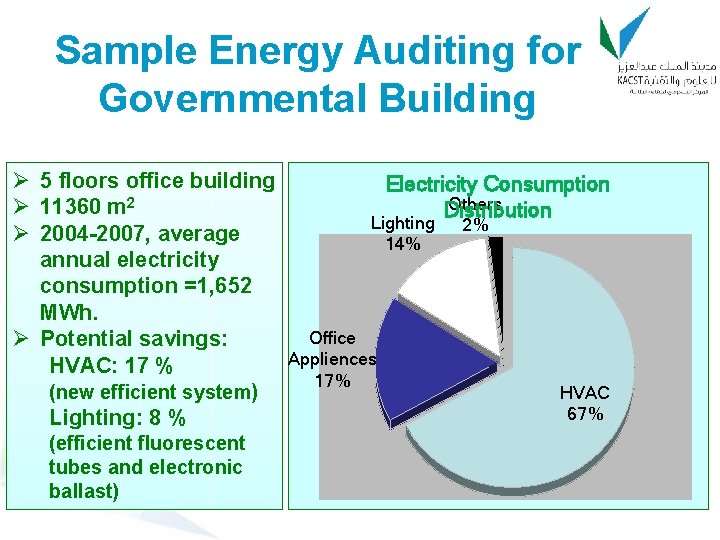

Sample Energy Auditing for Governmental Building Ø 5 floors office building Ø 11360 m 2 Ø 2004 -2007, average annual electricity consumption =1, 652 MWh. Ø Potential savings: HVAC: 17 % (new efficient system) Lighting: 8 % (efficient fluorescent tubes and electronic ballast) Electricity Consumption Others Distribution Lighting 14% Office Appliences 17% 2% HVAC 67%

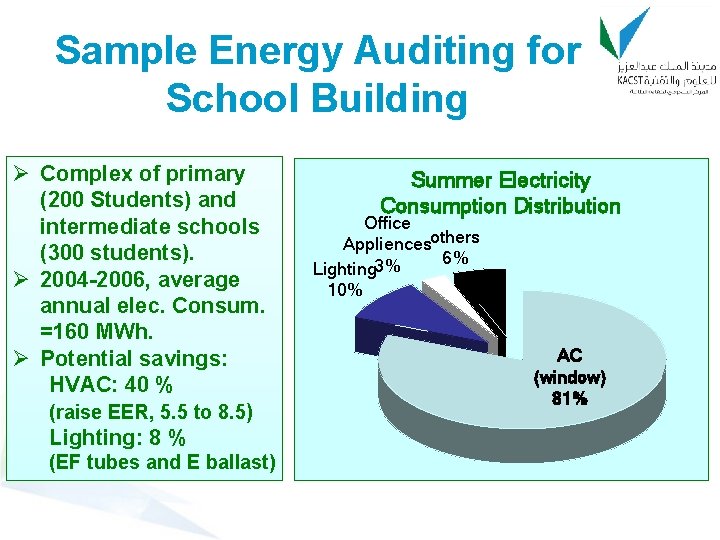

Sample Energy Auditing for School Building Ø Complex of primary (200 Students) and intermediate schools (300 students). Ø 2004 -2006, average annual elec. Consum. =160 MWh. Ø Potential savings: HVAC: 40 % (raise EER, 5. 5 to 8. 5) Lighting: 8 % (EF tubes and E ballast) Summer Electricity Consumption Distribution Office Appliencesothers 6% Lighting 3% 10% AC (window) 81%

Examples of EE Potential in KSA: EE & LM Study 80 70 60 GW -14% by 2021 50 40 30 Annual Benefits 2016 2021 Energy (GWh) 10, 200 (3. 5%) 29, 200 (7. 6%) Peak (MW) 5, 100 (8. 5%) 10, 500 (14. 0%) 3, 000 8, 600 CO 2 (000 tons) 20 2005 2007 2009 2011 2013 Ref. DSM Plan for KSA, ECRA, April 2011. 2015 2017 2019 2021

KSA Energy Supply Chain 4. 0 4. 2 MWh Wells Upstream Terminals & Distribution Downstream Transportation Industrial 3. 6 End User Utilities 1 MWh 1. 1 3. 6 Ref. Net Zero Energy Building, A. Alkhowaiter, Saudi Aramco Chair, KSU, April 3 rd 2012.

Saudi Building Code and S&L • Published in 2009 • Mandatory for public buildings and Voluntary for others • Thermal Insulation enforced for all new building by 2010 www. sbc. gove. sa • Three household appliances • Enforced since April 2010 • Working on ramping up EER and developing mechanism for product control

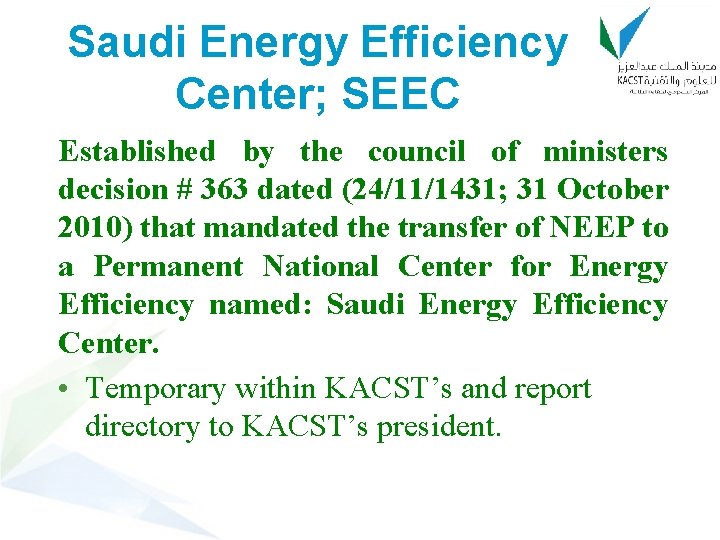

Saudi Energy Efficiency Center; SEEC Established by the council of ministers decision # 363 dated (24/11/1431; 31 October 2010) that mandated the transfer of NEEP to a Permanent National Center for Energy Efficiency named: Saudi Energy Efficiency Center. • Temporary within KACST’s and report directory to KACST’s president.

Saudi Energy Efficiency Center; SEEC • Supervised by a committee composed of representatives from related stakeholders: Ministries of: Petroleum and Minerals Water and Electricity Municipality and rural Affairs Commerce and Industry Transportation Culture and Information Housing Finance (Customs) Presidency of Meteorology and Environment King Abdullah City for Atomic and Renewable Energy Saudi Standards, Metrology and Quality Organization Electricity & Co-Generation Regularity Authority Royal Commission for Jubail and Yanbu Saline Water Conversion Corporation Clean Development Mechanism Committee Saudi Aramco Saudi Electricity Company SABIC Two Private Sector

SEEC’s Mission Support preserving the national energy resources to enhance the national development and economy through the rationalization of energy consumption and improving energy efficiency in order to achieve the lowest possible levels of energy intensity.

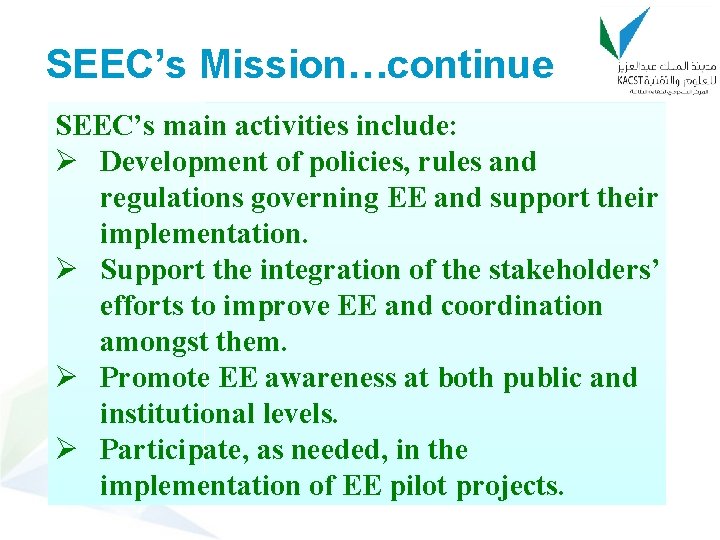

SEEC’s Mission…continue SEEC’s main activities include: Ø Development of policies, rules and regulations governing EE and support their implementation. Ø Support the integration of the stakeholders’ efforts to improve EE and coordination amongst them. Ø Promote EE awareness at both public and institutional levels. Ø Participate, as needed, in the implementation of EE pilot projects.

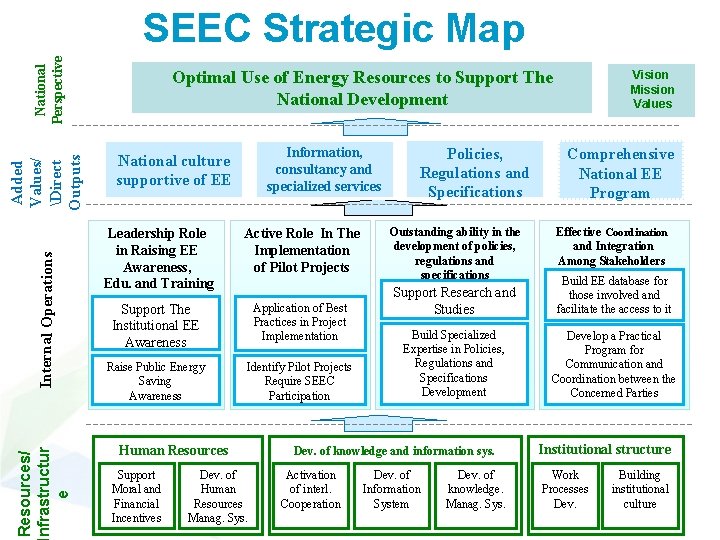

Resources/ nfrastructur e Internal Operations Added Values/ Direct Outputs National Perspective SEEC Strategic Map Optimal Use of Energy Resources to Support The National Development Information, consultancy and specialized services National culture supportive of EE Leadership Role in Raising EE Awareness, Edu. and Training Active Role In The Implementation of Pilot Projects Support The Institutional EE Awareness Application of Best Practices in Project Implementation Raise Public Energy Saving Awareness Identify Pilot Projects Require SEEC Participation Human Resources Support Moral and Financial Incentives Dev. of Human Resources Manag. Sys. Policies, Regulations and Specifications Comprehensive National EE Program Outstanding ability in the development of policies, regulations and specifications and follow-up Support Researchtheand application Effective Coordination and Integration Among Stakeholders Studies Build EE database for those involved and facilitate the access to it Build Specialized Expertise in Policies, Regulations and Specifications Development Develop a Practical Program for Communication and Coordination between the Concerned Parties Dev. of knowledge and information sys. Activation of interl. Cooperation Vision Mission Values Dev. of Information System Dev. of knowledge. Manag. Sys. Institutional structure Work Processes Dev. Building institutional culture

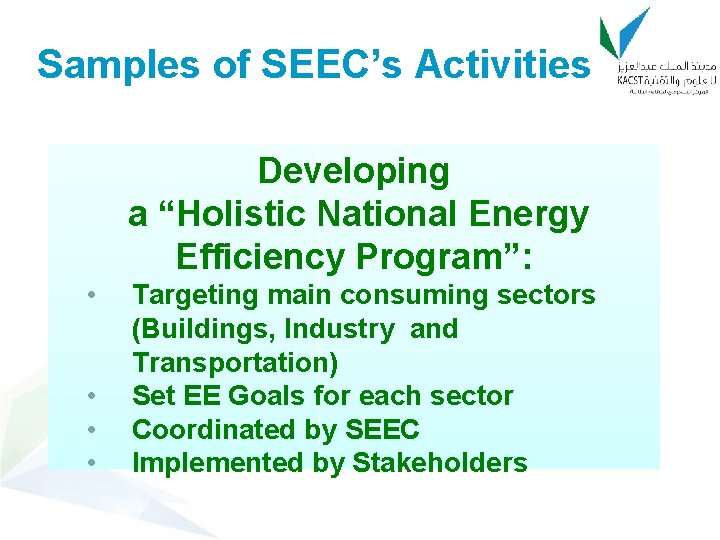

Samples of SEEC’s Activities Developing a “Holistic National Energy Efficiency Program”: • • Targeting main consuming sectors (Buildings, Industry and Transportation) Set EE Goals for each sector Coordinated by SEEC Implemented by Stakeholders

Energy Efficiency Program (EEP) objectives • Improve Kingdom’s energy efficiency in buildings, transportation, and industry • Design the energy efficiency initiatives with their energy savings goals, implementation mechanisms, and enablers • Engage key stakeholders: Government, businesses, and public

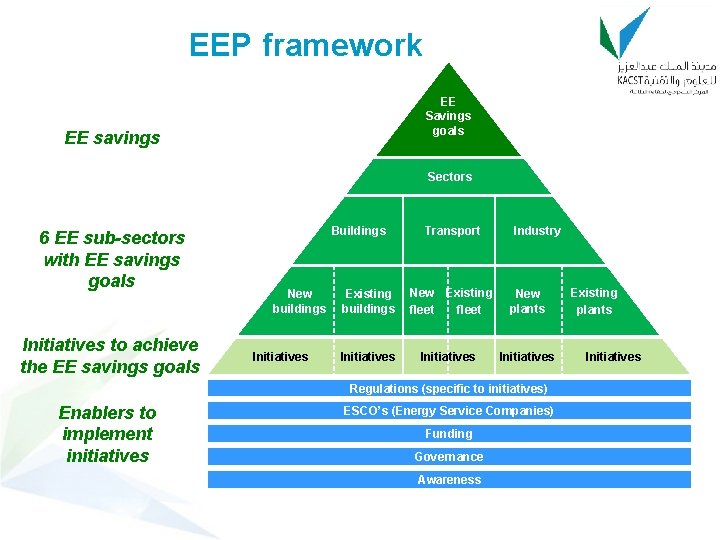

EEP framework EE Savings goals EE savings Sectors 6 EE sub-sectors with EE savings goals Initiatives to achieve the EE savings goals Buildings New buildings Initiatives Transport Industry Existing buildings New Existing fleet New plants Initiatives Regulations (specific to initiatives) Enablers to implement initiatives ESCO’s (Energy Service Companies) Funding Governance Awareness Existing plants Initiatives

Buildings objectives Increase energy efficiency in residential, commercial and governmental buildings by achieving international level of Energy Use Intensity (k. Wh. year / m 2) Lead by example: government buildings Improve & enforce standards of A/C energy efficiency ratios EER Enforce building code on new residential / commercial buildings Mandate thermal insulation Retrofit existing buildings Enhance other white goods energy efficiency standards Phase III Phase I Products initiatives Phase II Buildings initiatives Phase-out incandescent bulbs

Resources/ nfrastructur e Internal Operations Added Values/ Direct Outputs National Perspective SEEC Strategic Map Optimal Use of Energy Resources to Support The National Development Information, consultancy and specialized services National culture supportive of EE Leadership Role in Raising EE Awareness, Edu. and Training Active Role In The Implementation of Pilot Projects Support The Institutional EE Awareness Application of Best Practices in Project Implementation Raise Public Energy Saving Awareness Identify Pilot Projects Require SEEC Participation Human Resources Support Moral and Financial Incentives Dev. of Human Resources Manag. Sys. Policies, Regulations and Specifications Comprehensive National EE Program Outstanding ability in the development of policies, regulations and specifications and follow-up Support Researchtheand application Effective Coordination and Integration Among Stakeholders Studies Build EE database for those involved and facilitate the access to it Build Specialized Expertise in Policies, Regulations and Specifications Development Develop a Practical Program for Communication and Coordination between the Concerned Parties Dev. of knowledge and information sys. Activation of interl. Cooperation Vision Mission Values Dev. of Information System Dev. of knowledge. Manag. Sys. Institutional structure Work Processes Dev. Building institutional culture

Samples of SEEC’s Activities: Elementary School Campaign Energy Efficiency Awareness

Shopping Mall Exhibition Energy Efficiency Awareness

THANK YOU
