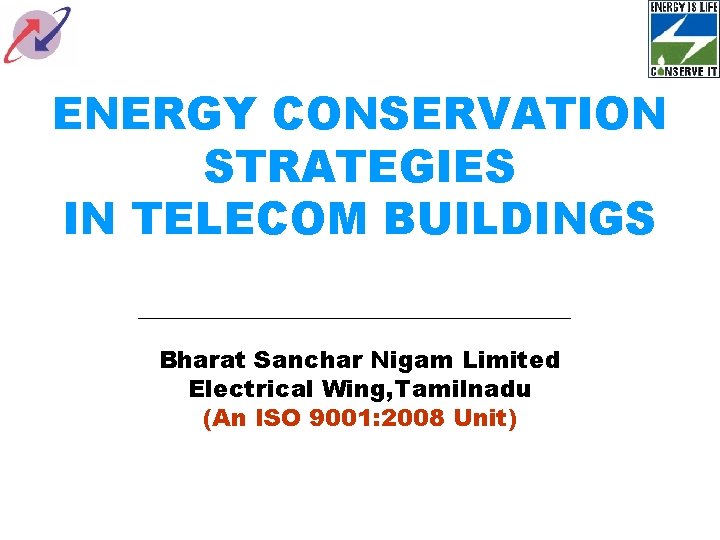

ENERGY CONSERVATION STRATEGIES IN TELECOM BUILDINGS Bharat Sanchar

ENERGY CONSERVATION STRATEGIES IN TELECOM BUILDINGS Bharat Sanchar Nigam Limited Electrical Wing, Tamilnadu (An ISO 9001: 2008 Unit)

Vision: Promoting Efficient use of Electrical Energy and its Conservation. Electrical Wing, BSNL, Tamilnadu 2/24

Energy Conservation Act 2001(came into effect on 1 st March, 2002) provides for Energy Auditing and Energy Conservation for designated consumers. The Act provides grace period of 5 years, i. e. , up to 1 st March, 2007, for creation of infrastructure and thereafter there will be penalties for non-introduction of energy conservation measures. Electrical Wing, BSNL, Tamilnadu 3/24

Energy Conservation Act For buildings having load more than 500 KW, it will be mandatory to appoint qualified energy managers after 1 st March, 2007 The Govt of India has set a target of reducing energy consumption by 30% in Govt. Buildings by 1 st March, 2007 Electrical Wing, BSNL, Tamilnadu 4/24

Energy Policy “ Bharat Sanchar Nigam Ltd, Tamilnadu is committed to Conserve Energy in all its operations. We shall transform Energy Conservation into a strategic business goal and make it as a way of life ” Electrical Wing, BSNL, Tamilnadu 5/24

Goals And Objectives: Make Energy Conservation a mass movement with involvement of all our employees. Monitor and control consumption of energy through Energy Management Groups. To reduce specific energy consumption in all our operations and activities by 5% every year for the next three years by ensuring judicious and effective use of energy. Electrical Wing, BSNL, Tamilnadu 6/24

Goals And Objectives: Recognise efforts of our Staff in Energy Conservation. Share and enrich our experiences on energy conservation with SSAs/Circles. Electrical Wing, BSNL, Tamilnadu 7/24

Today’s Situation: TN Circle Electricity Bill for 2003 -04 - Rs. 94. 7 Crores About 20% of operating and administrative expenses. 30% Savings possible Saving means pure profit Electrical Wing, BSNL, Tamilnadu 8/24

STEPS TAKEN • Core Group formed at Circle level consisting of CGM, PGM(O), PCE(E) and GM(F) • Core Groups formed at SSA levels consisting of PGM/GM, SE/EE, IFA and DET • Core Groups to meet at least once in a quarter to review Energy Conservation Strategies/Measures Electrical Wing, BSNL, Tamilnadu 9/24

Core Group Issues Monitoring Energy Consumption and Energy Bills of all buildings. PF improvement and Contract Demand optimisation. Evolve suitable benchmarking standards for various types of exchanges and comparison of energy consumption between similar capacity exchanges. MIS Reports Electrical Wing, BSNL, Tamilnadu 10/24

Core Group Issues • Increase awareness among employees through slogans, posters, seminars and display of actual energy consumption and energy bills. • Implementation of NO COST/LOW COST measures Electrical Wing, BSNL, Tamilnadu 11/24

Core Group Issues-No Cost Measures • Reduction in illumination levels, reduction in Air-conditioning space, plugging of leakages, filter cleaning of A/C units, temperature setting to 23 deg to 26 deg C and no over cooling. • Replacing of life expired/over sized, energy intensive equipments such as power plants, Air conditioning units. Electrical Wing, BSNL, Tamilnadu 12/24

Core Group Issues-No Cost Measures Surplus units available if any to be used within the SSA. Feedback on proper maintenance of energy intensive equipments, i. e. , Airconditioning and Power Plants and testing energy efficiency of these equipments. Replacement of Fluorescent tubes with compact fluorescent lamps in common areas, lobbies, etc. Electrical Wing, BSNL, Tamilnadu 13/24

Core Group Issues-Low Cost Measures Use of Energy Efficient Devices. Sequential Controllers for A/C units Timers for Exhaust Fans, Compound Lighting and Pumps. Electronic Chokes, Slimline Tubes. Electrical Wing, BSNL, Tamilnadu 14/24

Core Group Issues-Low Cost Measures • Occupancy Sensors for lighting control in Conference Halls and Executive Chambers. • Promote Solar Power for heating, compound lighting and lighting in corridors. Electrical Wing, BSNL, Tamilnadu 15/24

Energy Auditing • At least one building per SSA per quarter. • Energy Auditing started at RGM TTC, Meenambakkam and Tamil Nadu Telecom Complex, Ethiraj Salai, Chennai. Electrical Wing, BSNL, Tamilnadu 16/24

General Tips • Review of Lux Level Requirement and Removal of Excess Lamps/Tubes. Building Orientation/Architectural Features. Establishing baseline Performance Indices. Awareness Campaign. Electrical Wing, BSNL, Tamilnadu 17/24

General Tips-Lighting Switch off all loads and check the Energy meter. If it is still moving, check for leakage loss in wiring and appliances. Keep clean all the lamp fixtures. Excess / Decorative lighting shall be avoided. Avoid group switching of lights for Offices. Use Electronic Chokes T-5/Slimline Tubes Use CFL for Corridors, Common Areas, Toilets. Electrical Wing, BSNL, Tamilnadu 18/24

General Tips-Airconditioning • Avoid direct sunlight in conditioned areas. • North or South side walls are preferable for room to be air-conditioned. • Check thermostats in all AC units for their effectiveness and performance. Setting shall be at 23 deg C. • Check conditioned area air leakages and arrest them. • Ensure Regular Filter Cleaning and Testing of A/C • Replace life-expired A/C units with energy efficient A/C units. Electrical Wing, BSNL, Tamilnadu 19/24

General Tips-Water Pumps/Heaters • Water Pumps: • Use proper specification of motor/pump based on building height and tank size. • Replace old pumps with new and more efficient pumps. • Check and correct leaking lines and taps. • Water Heater: • Ensure good insulation of tank and hot water line. • Thermostat setting at 50 -55 deg. C • Provision of non return valve in cold water line to be ensured. Electrical Wing, BSNL, Tamilnadu 20/24

ENERGY SLOGANS-1 “Energy Saved is Pure Profit” “Wastage of Energy Costs Earth” “Save Energy and Save Environment” “Switch Off the Electrical Appliances when not in Use/When Leaving Room” – “Natural light – Sun Light is free, Use It” – “Switch Off the Computer When Not Required – A PC Monitor Left ON Overnight Wastes Enough Energy to Laser Print 800 Pages of A 4 Size” – “Switch Off the AC At least Half An Hour Before Leaving Office” – – Electrical Wing, BSNL, Tamilnadu 21/24

ENERGY SLOGANS-2 – “Encourage More and More People to Save Energy” – “Service Electrical Equipments at Regular Intervals” – “Save Energy – Save Nature” – “Saving On Electricity Assures BSNL Prosperity” – “Energy Conservation – Nation’s Foundation” – “Conserve Energy – Save Now or Pay Later” – “Energy is Life – Conserve It” Electrical Wing, BSNL, Tamilnadu 22/24

ENERGY SLOGANS-3 – “We Need YOU to Save Electricity” – “Keep Your Future Bright – Turn Off Lights (When you Don’t Need) – “Energy Saved Today is Asset for Future" – “The Less You Burn, The More You Earn” – “Power Saved Is Power Produced” – “When It Is Bright, Switch Off The Light” MIS Report Download Electrical Wing, BSNL, Tamilnadu 23/24
