ENERGY CONSERVATION BUILDING CODE (ECBC) 2017 Energy Efficient Technology and Impact Created E-VIEW GLOBAL (P) LIMITED Anand Bajpai – Project Director anandbajpai@eviewglobal. com 1

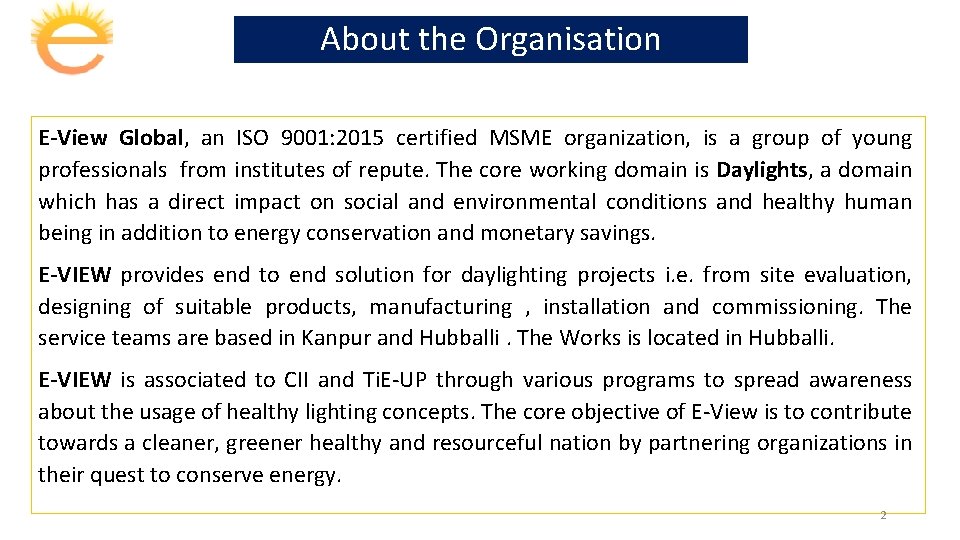

About the Organisation E-View Global, an ISO 9001: 2015 certified MSME organization, is a group of young professionals from institutes of repute. The core working domain is Daylights, a domain which has a direct impact on social and environmental conditions and healthy human being in addition to energy conservation and monetary savings. E-VIEW provides end to end solution for daylighting projects i. e. from site evaluation, designing of suitable products, manufacturing , installation and commissioning. The service teams are based in Kanpur and Hubballi. The Works is located in Hubballi. E-VIEW is associated to CII and Ti. E-UP through various programs to spread awareness about the usage of healthy lighting concepts. The core objective of E-View is to contribute towards a cleaner, greener healthy and resourceful nation by partnering organizations in their quest to conserve energy. 2

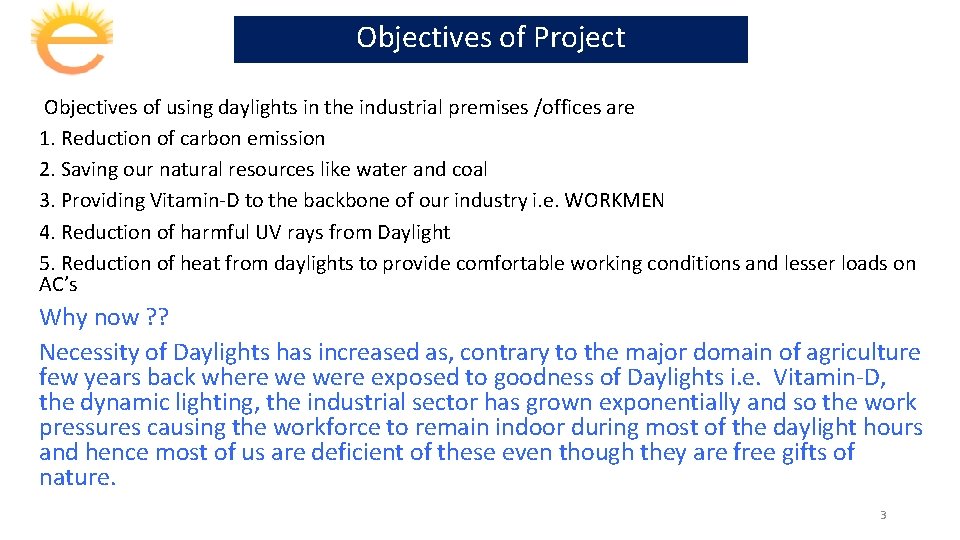

Objectives of Project Objectives of using daylights in the industrial premises /offices are 1. Reduction of carbon emission 2. Saving our natural resources like water and coal 3. Providing Vitamin-D to the backbone of our industry i. e. WORKMEN 4. Reduction of harmful UV rays from Daylight 5. Reduction of heat from daylights to provide comfortable working conditions and lesser loads on AC’s Why now ? ? Necessity of Daylights has increased as, contrary to the major domain of agriculture few years back where we were exposed to goodness of Daylights i. e. Vitamin-D, the dynamic lighting, the industrial sector has grown exponentially and so the work pressures causing the workforce to remain indoor during most of the daylight hours and hence most of us are deficient of these even though they are free gifts of nature. 3

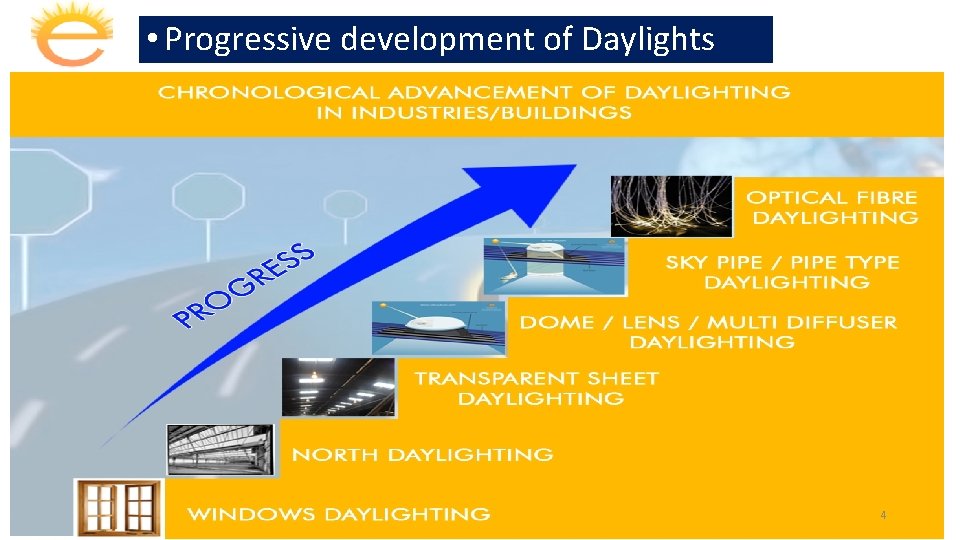

• Progressive development of Daylights 4

Working of Sky. Pipe Daylights PC Dome collects and concentrates ambience day light. PC brought from a multi national company. UV stabilised. Highly reflective tube delivers high light levels despite long tube or overcast for max illumination with reflectance of over 95 to 98+%. Patent of a multinational company Frenzel Multi lens diffuser, diffuses light evenly in wider area. Patent of a Multinational company. Can reduce daytime lighting bill by over 90%. Sky. Pipe is tailored made for each requirement where it is to be installed. 5

Project Presentation Sky. Pipe Sizes available 1. 900 mm, 2. 750 mm, 3. 530 mm, 4. 400 mm, 5. 300 mm 2. Clear Prismatic high light collecting dome 3. Choice of Diffuser material – Prizmatic Lenses, Spectra Bright, Clear Glow, Lacta Glow, Semi Lacta Glow, -: Flat and dome shaped 4. UV stabilised 5. 2 feet Highly reflective tubing 95% + reflectance. 6. Excellent Light and heat control. 7. Light coverage of over 1100 sq. ft. based on roof height and desired lux. 8. Suitable for all types of roofs including with false ceiling. 9. Highly uniform lighting spread. 6

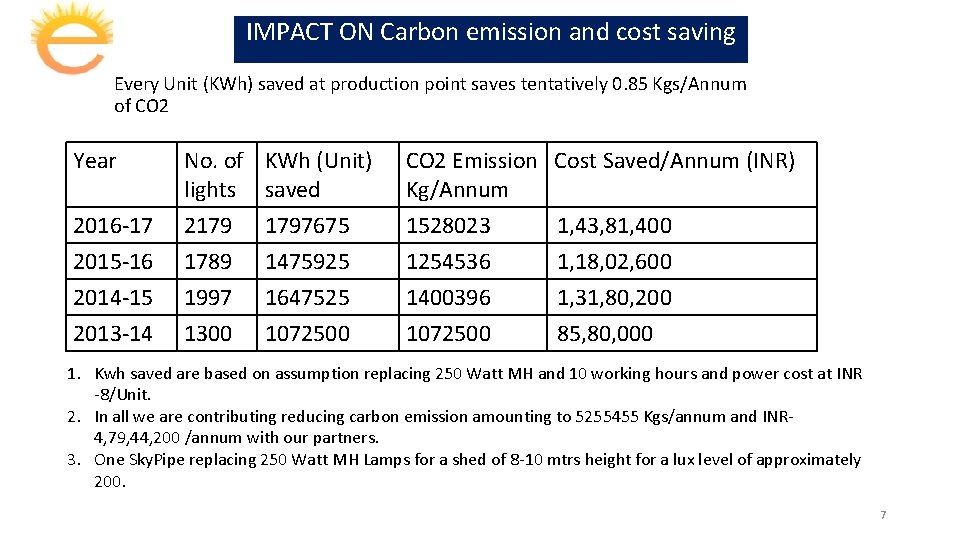

IMPACT ON Carbon emission and cost saving Every Unit (KWh) saved at production point saves tentatively 0. 85 Kgs/Annum of CO 2 Year No. of KWh (Unit) lights saved CO 2 Emission Cost Saved/Annum (INR) Kg/Annum 2016 -17 2015 -16 2014 -15 2013 -14 2179 1789 1997 1300 1528023 1254536 1400396 1072500 1797675 1475925 1647525 1072500 1, 43, 81, 400 1, 18, 02, 600 1, 31, 80, 200 85, 80, 000 1. Kwh saved are based on assumption replacing 250 Watt MH and 10 working hours and power cost at INR -8/Unit. 2. In all we are contributing reducing carbon emission amounting to 5255455 Kgs/annum and INR 4, 79, 44, 200 /annum with our partners. 3. One Sky. Pipe replacing 250 Watt MH Lamps for a shed of 8 -10 mtrs height for a lux level of approximately 200. 7

Impact of Daylight saving on Common People (Illuminating Lives) • KWh Save are based on assumption replacing 250 Watt MH and 10 working hours Year No. of lights KWh saved (Unit saved) No. of home to be lit with 3 TL-36 W, 2 fan 50 watt 2016 -17 2179 1797675 1400 2015 -16 1789 1475925 1155 2014 -15 1997 1647525 1290 2013 -14 1300 1072500 839 8

Impact of Daylight on common People (Healthy Lives) Study by Dr. Joseph Morcela • Did you know Vitamin D deficiency has been linked to cancer, diabetes, osteoporosis, rheumatoid arthritis, inflammatory bowel disease, multiple sclerosis and autism? • And that’s just for starters. Recent studies have also linked this miraculous vitamin to the prevention and potential cure of many other devastating and debilitating conditions including cardiovascular disease, blood pressure issues, high cholesterol levels, neurological system disorders, kidney failure, reproductive system disorders, muscle weakness, obesity, disorders of the skin and even tooth decay. Year No. of lights 2016 -17 2015 -16 2014 -15 2013 -14 2179 1789 1997 1300 Light Coverage Area @360 SQFT) 784440 644040 718920 468000 9

Summing Up IMPACT OF PROJECT Objective of presentation is to redefine our views to estimate the impact on what /whom is more important… From a team of just 3 people in 2010 the steam strength has gone upto 29. We are proud to provide jobs to the people who aren’t highly educated. The philosophy of EView is to develop the skills in people who want to work for their livelihood and provide them the jobs for better and quality living. 10

Summing Up IMPACT OF PROJECT Objective of presentation is to redefine our views to estimate the impact on what /whom is more important… With the passage of time and industrial growth we have forgotten the importance of “healthy human who leads to healthy and successful organization. E View is contributing through Sky. Pipe lights to transfer “The gift of God (natural lighting)to its best creation “HUMAN BEING” Yes other benifits in terms of monetary saving, ROI are there which are measurable but when we all wish to contribute to CSR activities it becomes a unique combination of Energy conservation, resource utilization, CSR and taking care of ourselves. 11

Awards and Recognition at CII and NISS Thank you ! 12

Appreciation from Shri Kirit Somaiyyaji 13

Pictures of Installations 14

Pictures of Installations 15

Pictures of Installations 16

Supporting Partners 1. Mahindra and Mahindra 15. Pidilite 2. Hindustan Uni Lever 16. Arvind Mills 3. Tata motors 17. Cummins 4. Ichapur rifle Factory. 18. Saint Gobin 5. Dumdum Ordinance. 19. Ashok Leyland 6. Bosch 20. Phoenix Mecano 7. Bajaj Auto 21. Hindustan Rubber 8. IFFCO 22. Balmer Lawrie-Van Leer Ltd 9. Essar Oil 23. Sushruta Hospital 10. Apollo 24. KSRTC 11. Sula Wines. 25. UPL 12. Godrej Industries. 26. Zennith Rubber 13. Siemens 27. Schneider. 14. Shree Cement 28. Adani Group…. . 17

Thank you ! 18
