Energy

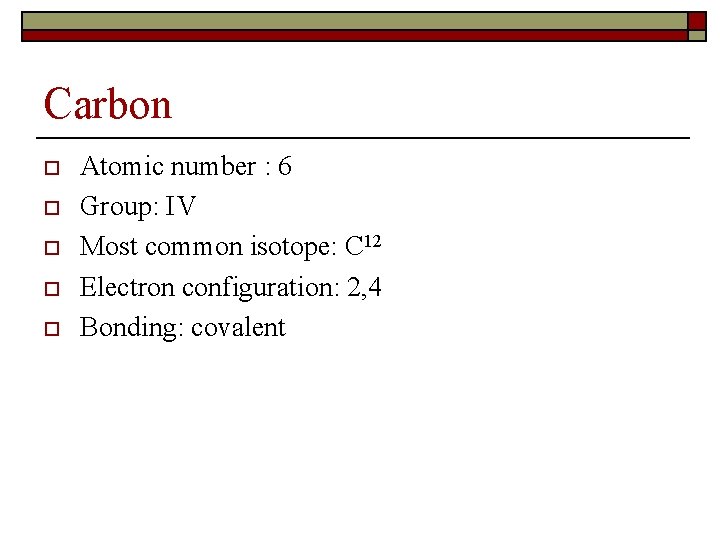

Carbon o o o Atomic number : 6 Group: IV Most common isotope: C 12 Electron configuration: 2, 4 Bonding: covalent

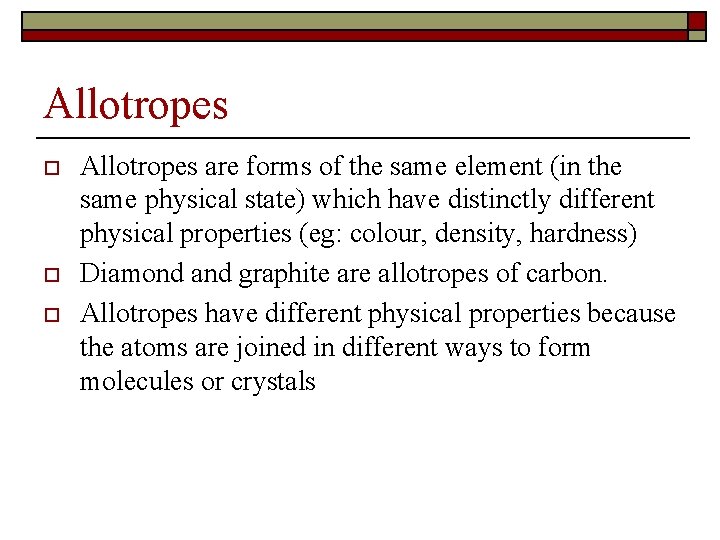

Allotropes o o o Allotropes are forms of the same element (in the same physical state) which have distinctly different physical properties (eg: colour, density, hardness) Diamond and graphite are allotropes of carbon. Allotropes have different physical properties because the atoms are joined in different ways to form molecules or crystals

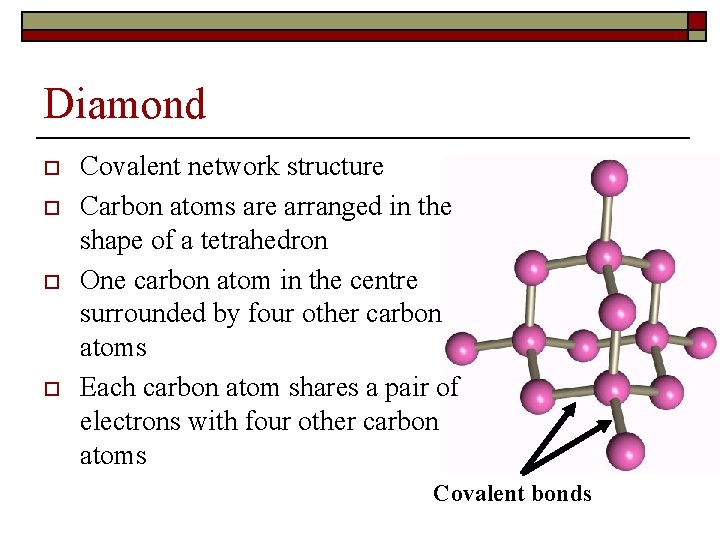

Diamond o o Covalent network structure Carbon atoms are arranged in the shape of a tetrahedron One carbon atom in the centre surrounded by four other carbon atoms Each carbon atom shares a pair of electrons with four other carbon atoms Covalent bonds

Graphite o o Dispersion forces Carbon atoms are arranged in flat parallel layers. Each carbon atom is covalently bonded to three other atoms forming hexagonal rings The fourth electron is delocalised The strong covalent bonds hold the carbon atoms together in the rings, however, bonding between layers is relatively weak and consists of dispersion forces http: //www. everyscience. com/Chemistry/Inorganic/Carbon/a. 1189. php

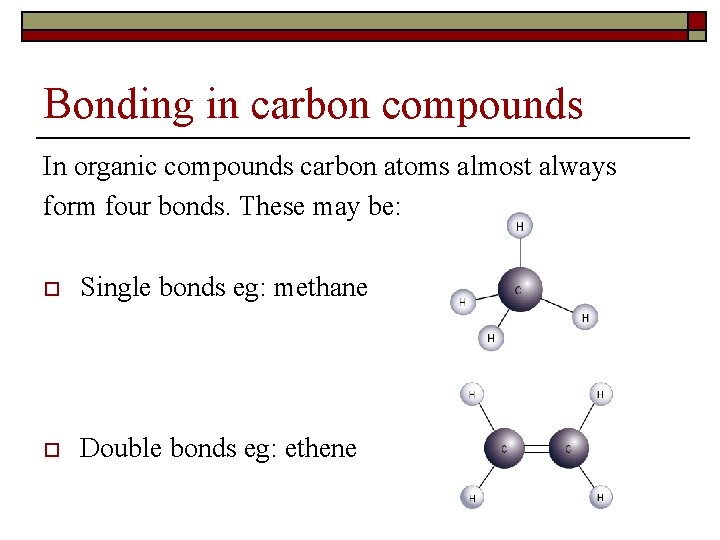

Bonding in carbon compounds In organic compounds carbon atoms almost always form four bonds. These may be: o Single bonds eg: methane o Double bonds eg: ethene

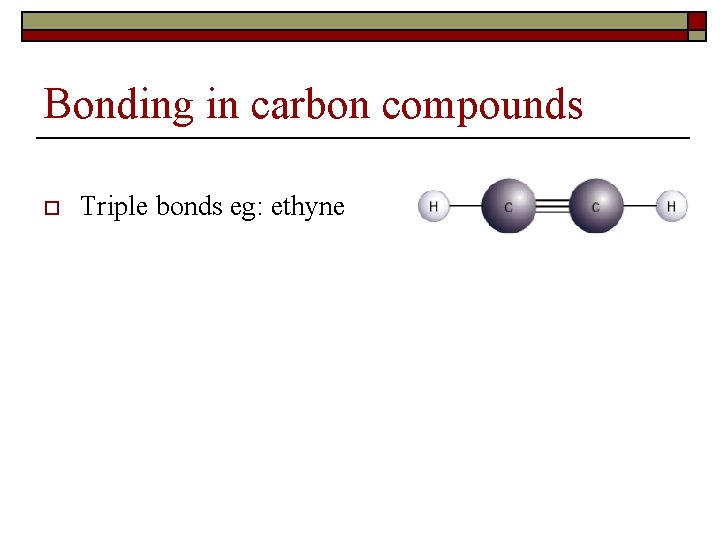

Bonding in carbon compounds o Triple bonds eg: ethyne

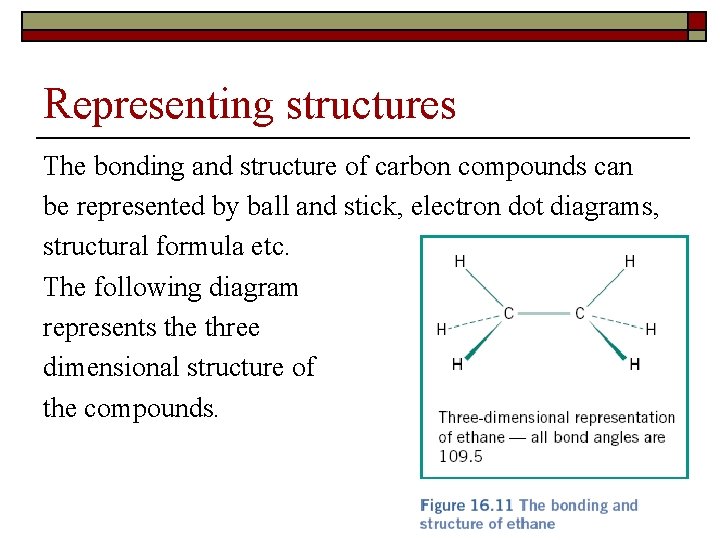

Representing structures The bonding and structure of carbon compounds can be represented by ball and stick, electron dot diagrams, structural formula etc. The following diagram represents the three dimensional structure of the compounds.

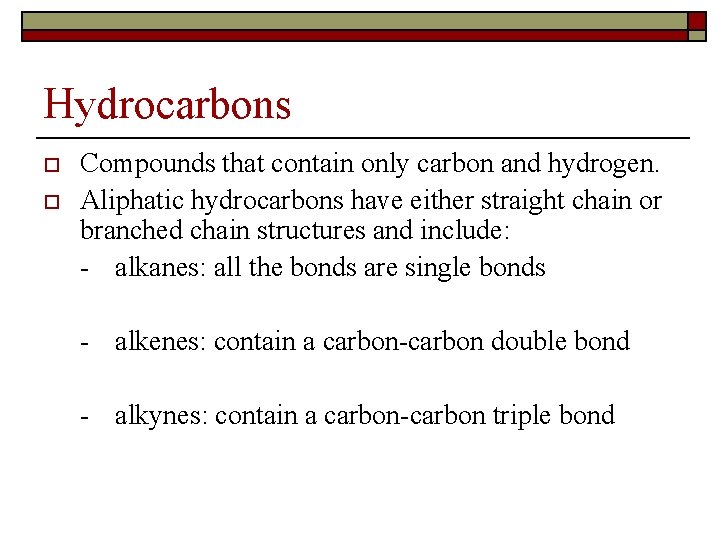

Hydrocarbons o o Compounds that contain only carbon and hydrogen. Aliphatic hydrocarbons have either straight chain or branched chain structures and include: - alkanes: all the bonds are single bonds - alkenes: contain a carbon-carbon double bond - alkynes: contain a carbon-carbon triple bond

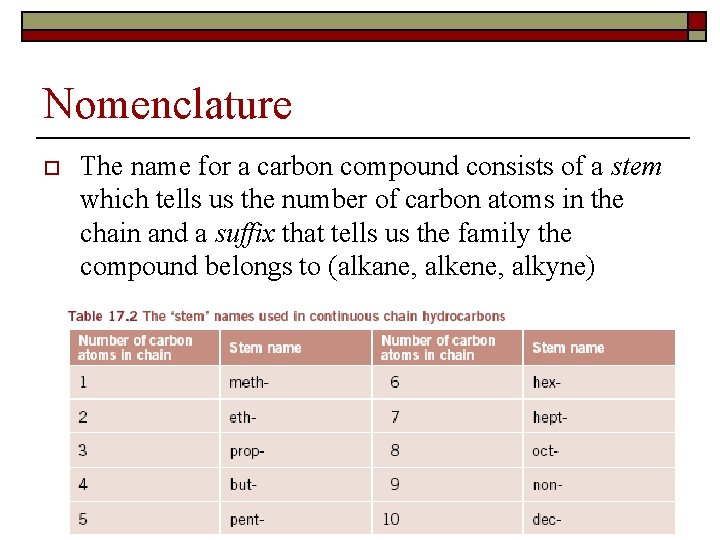

Nomenclature o The name for a carbon compound consists of a stem which tells us the number of carbon atoms in the chain and a suffix that tells us the family the compound belongs to (alkane, alkene, alkyne)

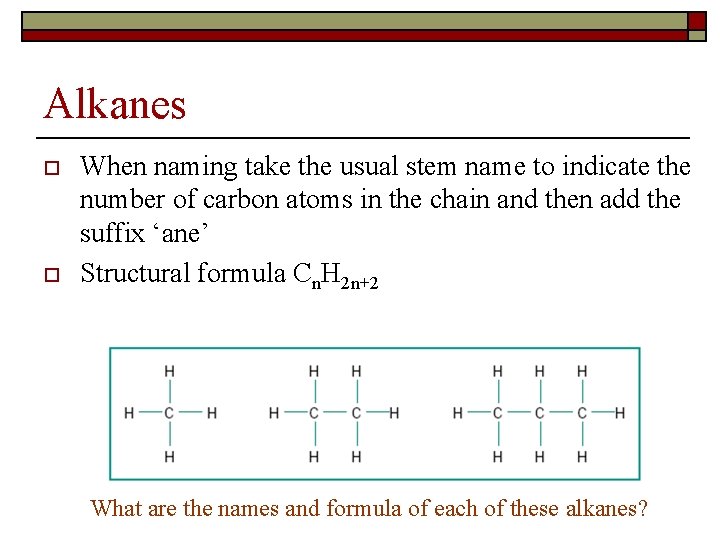

Alkanes o o When naming take the usual stem name to indicate the number of carbon atoms in the chain and then add the suffix ‘ane’ Structural formula Cn. H 2 n+2 What are the names and formula of each of these alkanes?

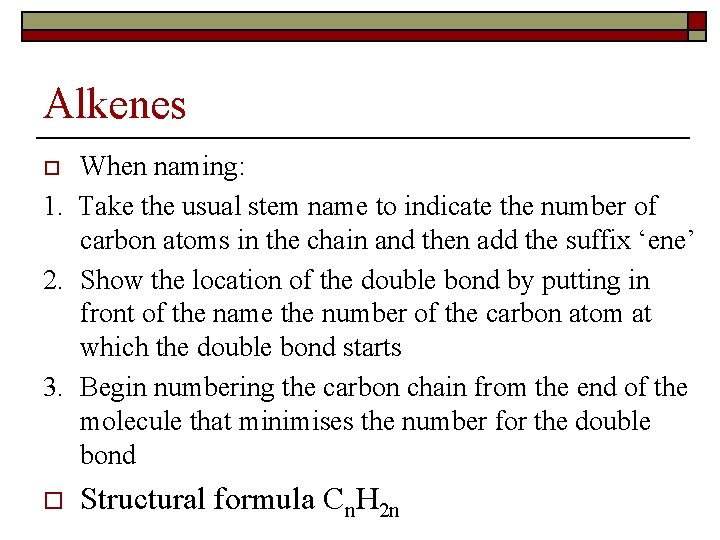

Alkenes When naming: 1. Take the usual stem name to indicate the number of carbon atoms in the chain and then add the suffix ‘ene’ 2. Show the location of the double bond by putting in front of the name the number of the carbon atom at which the double bond starts 3. Begin numbering the carbon chain from the end of the molecule that minimises the number for the double bond o o Structural formula Cn. H 2 n

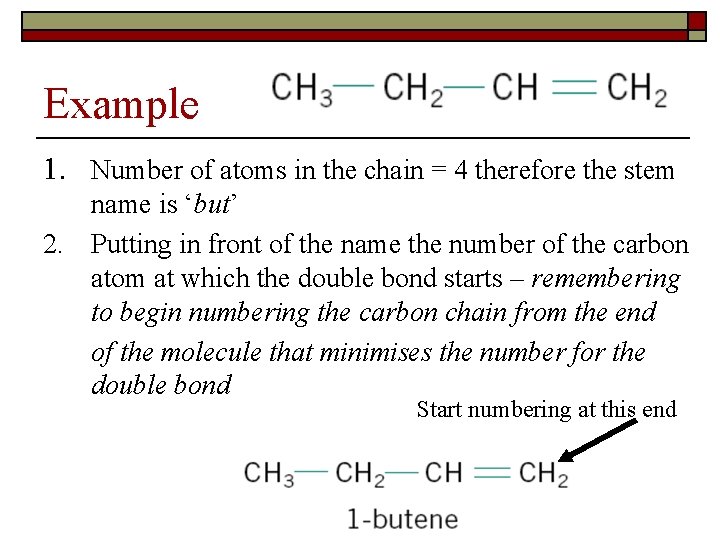

Example 1. Number of atoms in the chain = 4 therefore the stem name is ‘but’ 2. Putting in front of the name the number of the carbon atom at which the double bond starts – remembering to begin numbering the carbon chain from the end of the molecule that minimises the number for the double bond Start numbering at this end

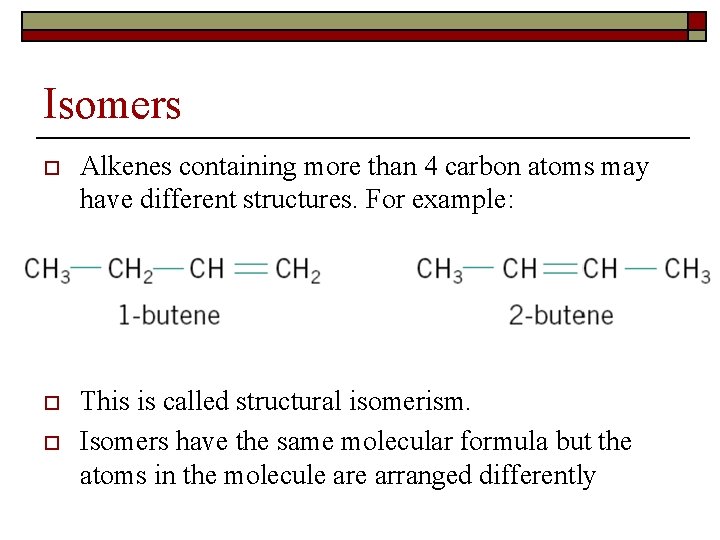

Isomers o Alkenes containing more than 4 carbon atoms may have different structures. For example: o This is called structural isomerism. Isomers have the same molecular formula but the atoms in the molecule arranged differently o
