Encryption 1 way String Encryption Rainbows a k

Encryption 1 -way String Encryption Rainbows (a. k. a. Spectrums) Public Private Key Encryption HTTPS

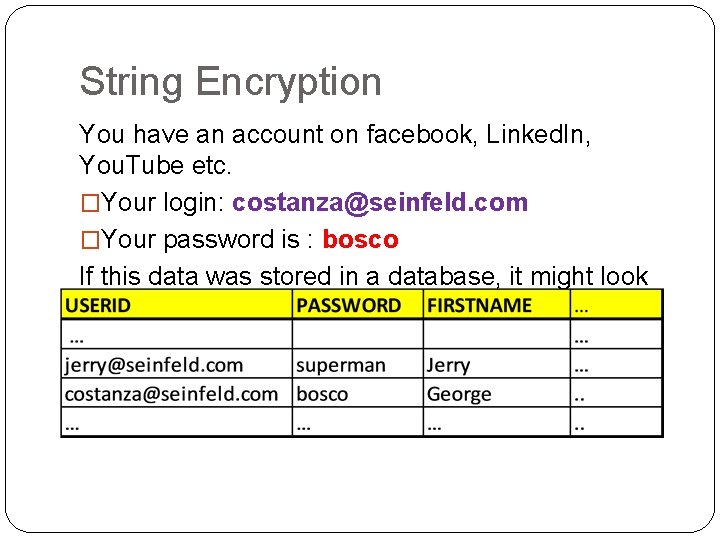

String Encryption You have an account on facebook, Linked. In, You. Tube etc. �Your login: costanza@seinfeld. com �Your password is : bosco If this data was stored in a database, it might look like:

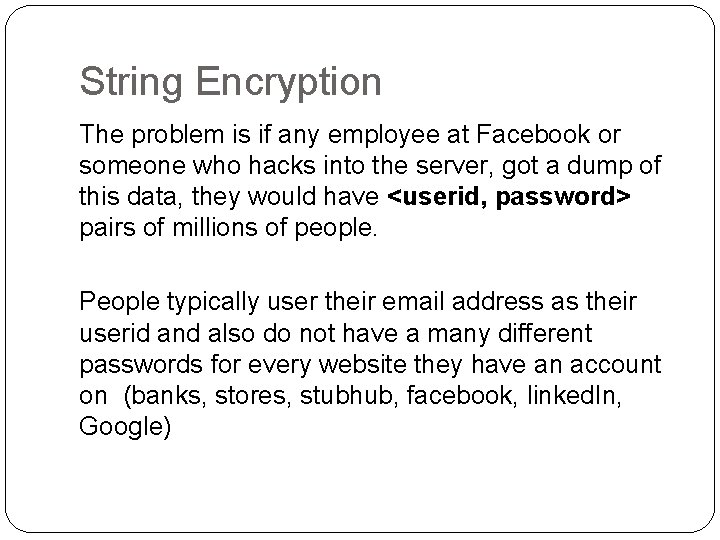

String Encryption The problem is if any employee at Facebook or someone who hacks into the server, got a dump of this data, they would have <userid, password> pairs of millions of people. People typically user their email address as their userid and also do not have a many different passwords for every website they have an account on (banks, stores, stubhub, facebook, linked. In, Google)

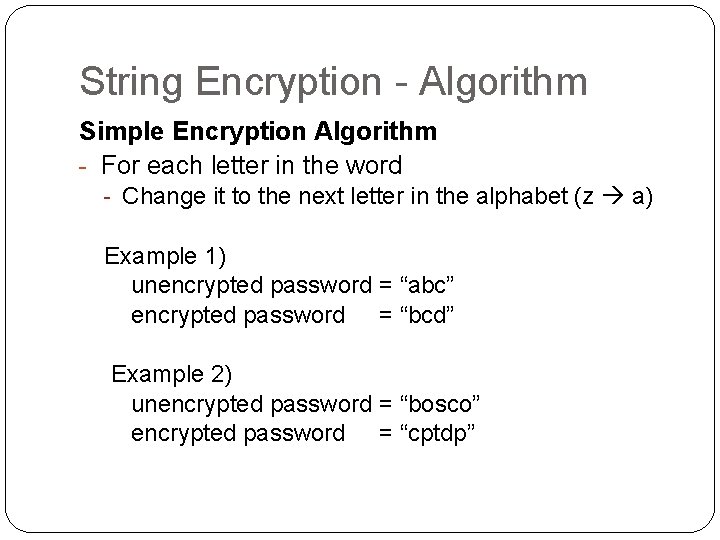

String Encryption - Algorithm Simple Encryption Algorithm - For each letter in the word - Change it to the next letter in the alphabet (z a) Example 1) unencrypted password = “abc” encrypted password = “bcd” Example 2) unencrypted password = “bosco” encrypted password = “cptdp”

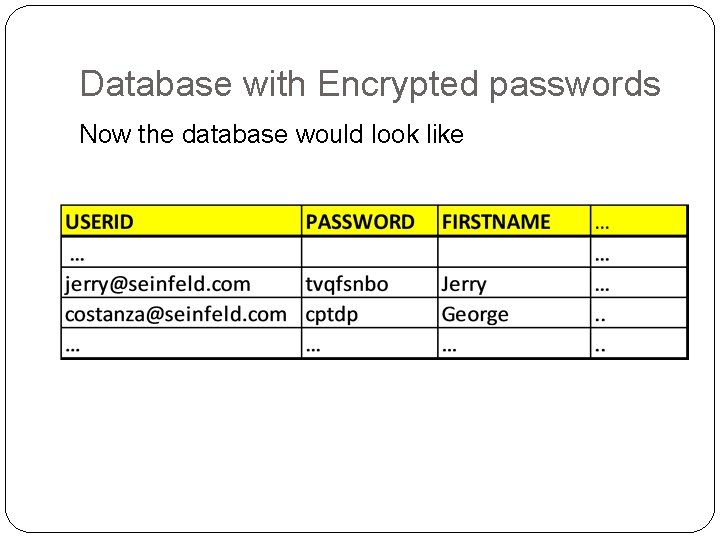

Database with Encrypted passwords Now the database would look like

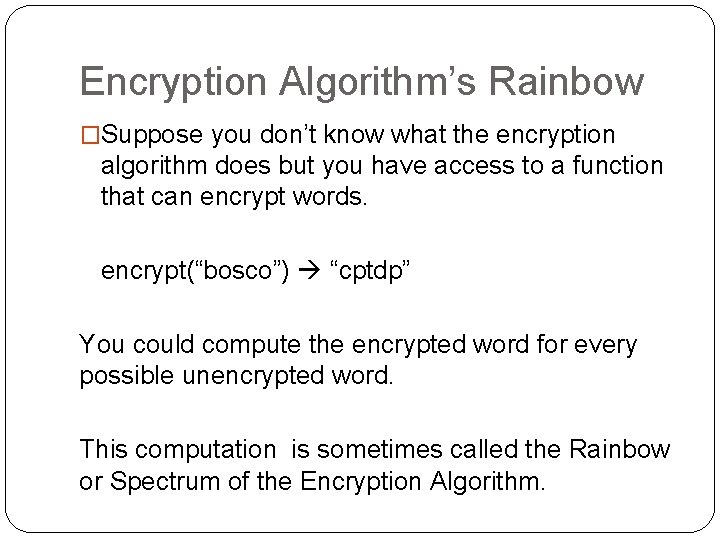

Encryption Algorithm’s Rainbow �Suppose you don’t know what the encryption algorithm does but you have access to a function that can encrypt words. encrypt(“bosco”) “cptdp” You could compute the encrypted word for every possible unencrypted word. This computation is sometimes called the Rainbow or Spectrum of the Encryption Algorithm.

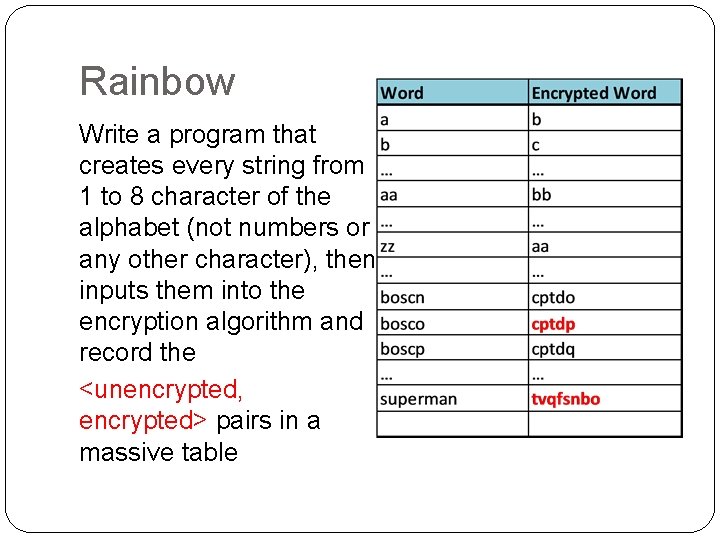

Rainbow Write a program that creates every string from 1 to 8 character of the alphabet (not numbers or any other character), then inputs them into the encryption algorithm and record the <unencrypted, encrypted> pairs in a massive table

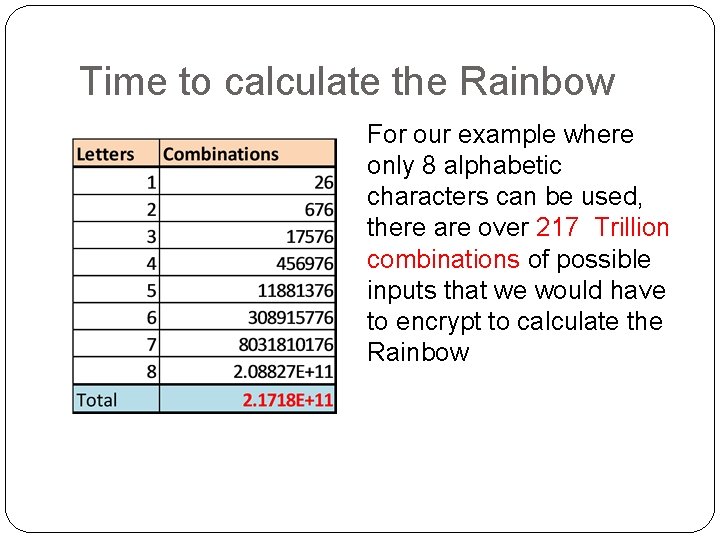

Time to calculate the Rainbow For our example where only 8 alphabetic characters can be used, there are over 217 Trillion combinations of possible inputs that we would have to encrypt to calculate the Rainbow

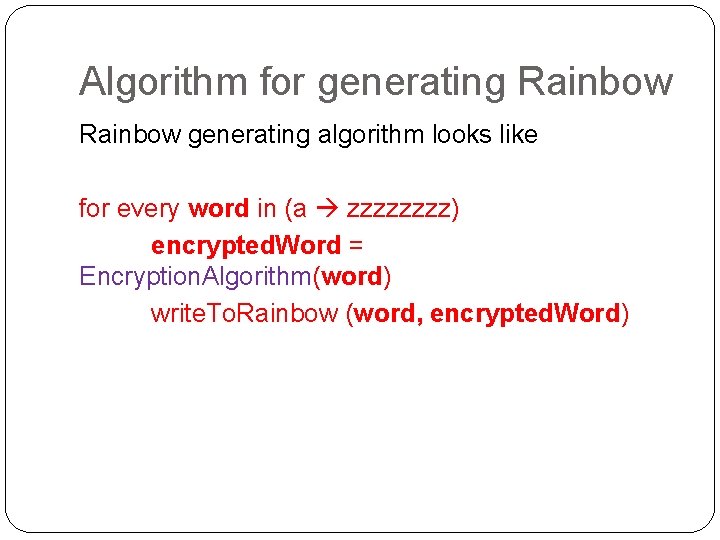

Algorithm for generating Rainbow generating algorithm looks like for every word in (a zzzz) encrypted. Word = Encryption. Algorithm(word) write. To. Rainbow (word, encrypted. Word)

Time and Space for Rainbow Suppose you have the latest processor 10 gigahertz (approx. 10 billion instructions/second) and you have 217 trillion instructions to do, how long would it take? 217 trillion/10 billion = 21, 700 seconds = 6 hours ***Of course months would be more realistic Each <word, Encrypted. Word> pair is 16 characters and there are 217 trillion of them so [(217 trillion) * 16]/1 Gigabyte = 3 Terrabytes

Key (a. k. a Salt) Encryption � The User provided an unencrypted password � The website provides a salt (some word) Example ) password = “bosco” salt = “ 12345” Encrypt (“bosco”, ” 12345”) = “cqvgt” This required 2 things to encrypt a password: 1) The password (only known to the user) 2) The salt (only known to the website) A hacker would have to compute the algorithm rainbow for every salt possible

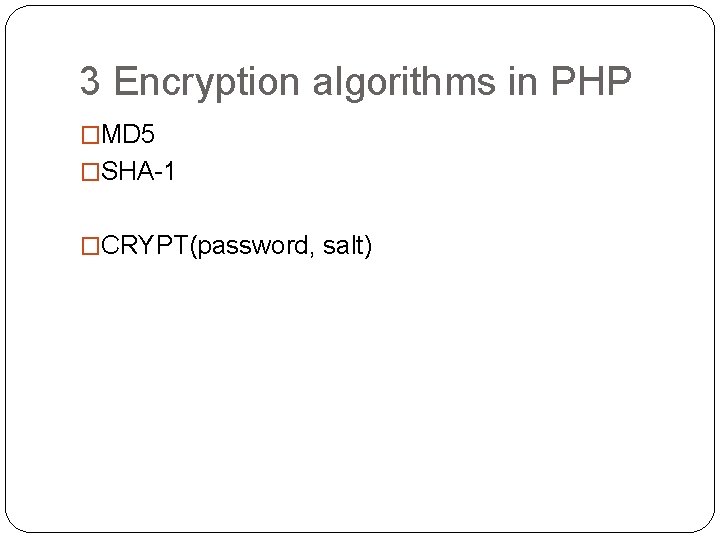

3 Encryption algorithms in PHP �MD 5 �SHA-1 �CRYPT(password, salt)

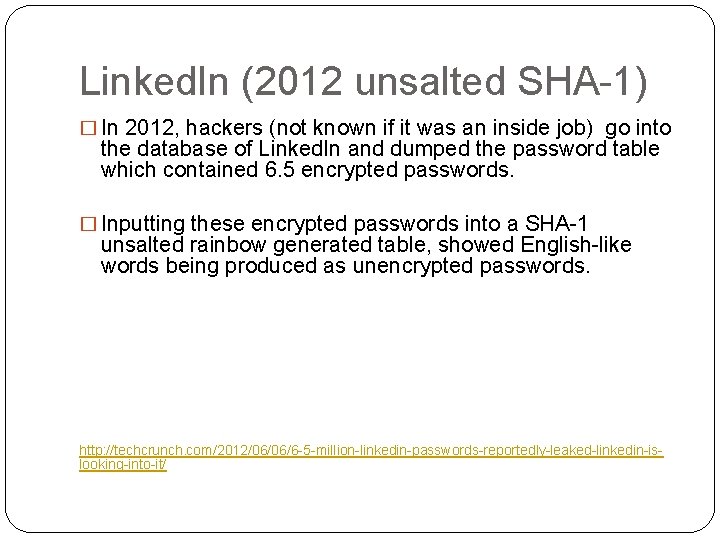

Linked. In (2012 unsalted SHA-1) � In 2012, hackers (not known if it was an inside job) go into the database of Linked. In and dumped the password table which contained 6. 5 encrypted passwords. � Inputting these encrypted passwords into a SHA-1 unsalted rainbow generated table, showed English-like words being produced as unencrypted passwords. http: //techcrunch. com/2012/06/06/6 -5 -million-linkedin-passwords-reportedly-leaked-linkedin-islooking-into-it/

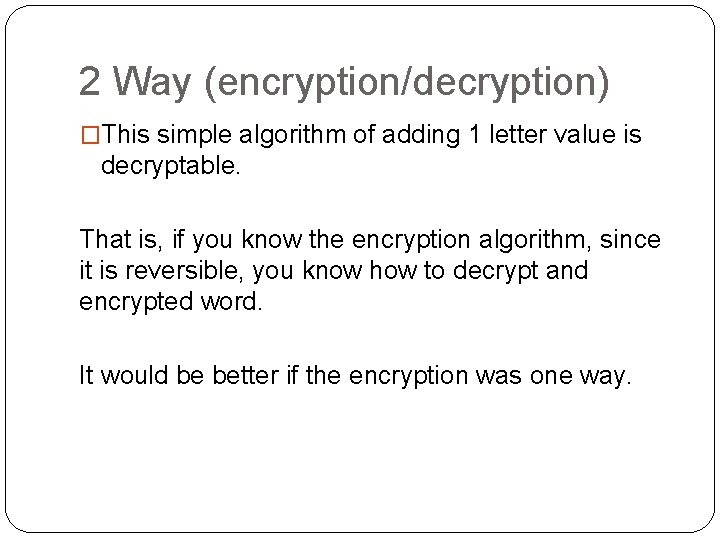

2 Way (encryption/decryption) �This simple algorithm of adding 1 letter value is decryptable. That is, if you know the encryption algorithm, since it is reversible, you know how to decrypt and encrypted word. It would be better if the encryption was one way.

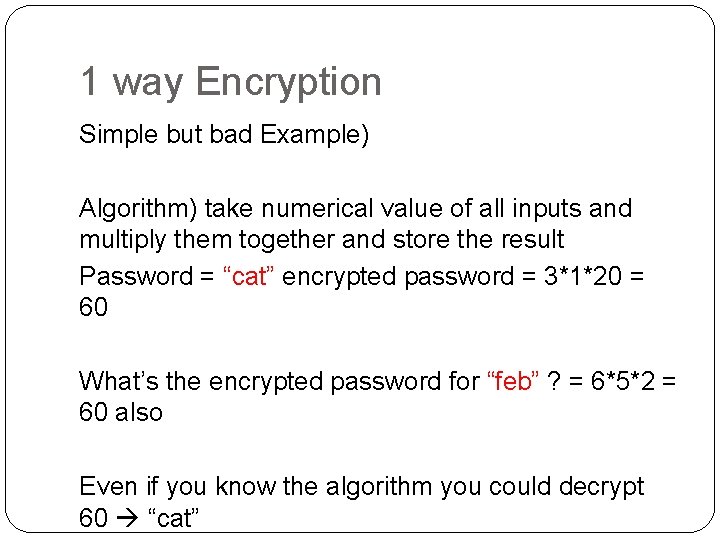

1 way Encryption Simple but bad Example) Algorithm) take numerical value of all inputs and multiply them together and store the result Password = “cat” encrypted password = 3*1*20 = 60 What’s the encrypted password for “feb” ? = 6*5*2 = 60 also Even if you know the algorithm you could decrypt 60 “cat”

Public-Private Key Encryption A Encryption/Decryption public algorithm that all encrypted messages sent to you can only be decrypted by you. You ask the public algorithm for a public key and a private key You know your public and private key values. You publish your public key to anyone who wants to send an encrypted message to you. They encrypt a message using the public algorithm and your public key. You receive the message and decrypt it using you private key.

Public-Private Key Example You request a public key and private key and you get Public key: “+60+20” and Private key “-C” You publish your public key: “+60+20” on you website Someone wants to send you “bosco” encrypted so only you can see: They: Encrypt(“bosco”, “+60+20” ) = “ervfr”. You: Decrypt(“ervfr”, “-C”) = “bosco” Encryption: (+60/+20) = +3 so increment all letters by +3 Decryption –C = -3 so decrement letters by 3 There is a mathematical correlation between the public key and private key Public key: “+30 -3” and Private Key: “+J” would be a valid combination for this encryption/decryption algorithm

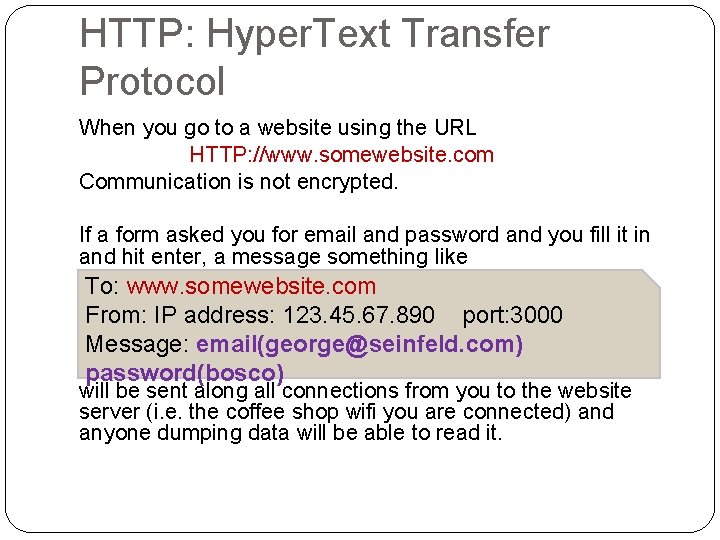

HTTP: Hyper. Text Transfer Protocol When you go to a website using the URL HTTP: //www. somewebsite. com Communication is not encrypted. If a form asked you for email and password and you fill it in and hit enter, a message something like To: www. somewebsite. com From: IP address: 123. 45. 67. 890 port: 3000 Message: email(george@seinfeld. com) password(bosco) will be sent along all connections from you to the website server (i. e. the coffee shop wifi you are connected) and anyone dumping data will be able to read it.

HTTPS: (a. k. a. Secure HTTP) When you go to a website using the URL HTTPS: //www. somesecurewebsite. com Communication is encrypted. If a form asked you for email and password and you fill it in and hit enter, a message something like To: www. somesecurewebsite. com From: IP address: 123. 45. 67. 890 port: 3000 Message: fnbjm(hfpshf#tfjogfme. dpn) qbttxpse(cptdp) Using public key private key encryption, the server sends your web browser it’s public key and encryption algorithm (you don’t even realize it) and your messages are encrypted with it and sent back to the server where the server decrypts it with the servers private key.

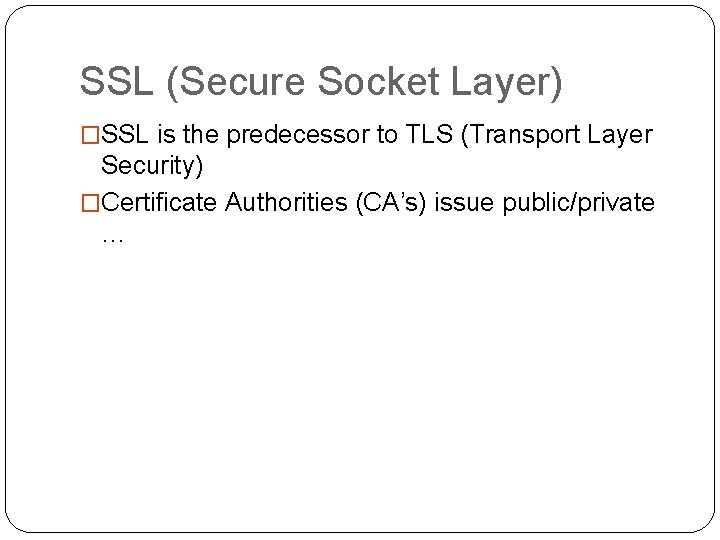

SSL (Secure Socket Layer) �SSL is the predecessor to TLS (Transport Layer Security) �Certificate Authorities (CA’s) issue public/private …
