Enabling Grids for Escienc E Batch Systems and
Enabling Grids for E-scienc. E Batch Systems and the Info (Dynamic) Provider scripts Jan Just Keijser Nikhef Amsterdam www. eu-egee. org EGEE-III INFSO-RI-222667 EGEE and g. Lite are registered trademarks
Outline • • • Generic Info provider (GIP) scripts Current situation Future situation Impact on batch system integration Upgrade path Questions EGEE-III INFSO-RI-222667 Batch System Integration Update – SA 3 All. Hands@Cyprus - May 7 th / 8 th 2009 2
GIP scripts (1) • What are they? – Provide LDIF information about a grid service in accordance to the data model adopted (Glue schema) – It can be used to produce any kind of information for use with LDAP based grid information systems – Dynamic information (es. Running jobs, Free CPUs) is updated by means of GIP plug-ins (from: G. Misurelli, CNAF INFN, I Corso di formazione INFN per amministratori di siti Grid) EGEE-III INFSO-RI-222667 Batch System Integration Update – SA 3 All. Hands@Cyprus - May 7 th / 8 th 2009 3
GIP scripts (2) • Static information is inserted into GIP using a static LDIF file • Which scripts currently exist for dynamic information? – lcg-info-dynamic-{pbs, lsf, condor, sge} These scripts query the underlying batch system directly – lcg-info-dynamic-scheduler Uses a plugin architecture The plugins query the underlying batch system Two types of plugins: lrmsinfo and vomaxjobs • lrmsinfo scripts: lrmsinfo-{pbs, lsf, condor, sge} • vomaxjobs scripts: vomaxjobs-{maui, lsf} EGEE-III INFSO-RI-222667 Batch System Integration Update – SA 3 All. Hands@Cyprus - May 7 th / 8 th 2009 4
Current Situation EGEE-III INFSO-RI-222667 Batch System Integration Update – SA 3 All. Hands@Cyprus - May 7 th / 8 th 2009 5
Future Situation EGEE-III INFSO-RI-222667 Batch System Integration Update – SA 3 All. Hands@Cyprus - May 7 th / 8 th 2009 6
Impact on BSI (1) So how does this affect batch system integration? EGEE-III INFSO-RI-222667 Batch System Integration Update – SA 3 All. Hands@Cyprus - May 7 th / 8 th 2009 7
Impact on BSI (2) • Initially nothing changes for BSI – If no new lrmsinfo and vomaxjobs scripts are written the behaviour is as before • In the new setup there actually less scripts to write and maintain • There will not be a big-bang upgrade but a very phased upgrade path with full backward compatibility • The BSI cookbook will contain information on the new setup only More details: https: //twiki. cern. ch/twiki/bin/view/EGEE/Batch. Systems EGEE-III INFSO-RI-222667 Batch System Integration Update – SA 3 All. Hands@Cyprus - May 7 th / 8 th 2009 8
Upgrade Path (1) This transition will not be a big-bang upgrade but will be phased, e. g, for the batch system 'pbs': 1. a new version of the 'lcg-info-dynamic-scheduler' will be rolled out , with a flag 'use_old_style_output' set. If no new 'lrmsinfo-pbs' and 'vomaxjobs-maui' scripts are installed then the behaviour is as before 2. new versions of the 'lrmsinfo-pbs' and 'vomaxjobs-maui' scripts will be rolled out, but they will still produce old-style output (using a configuration setting) 3. the 'lrmsinfo-pbs' and 'vomaxjobs-maui' scripts will be configured to produce 'new style' output (Protocol_V 2) 4. as the 'lcg-info-dynamic-scheduler' script still has it's configuration setting 'use_old_style_output' set, the GIP will not see anything different EGEE-III INFSO-RI-222667 Batch System Integration Update – SA 3 All. Hands@Cyprus - May 7 th / 8 th 2009 9

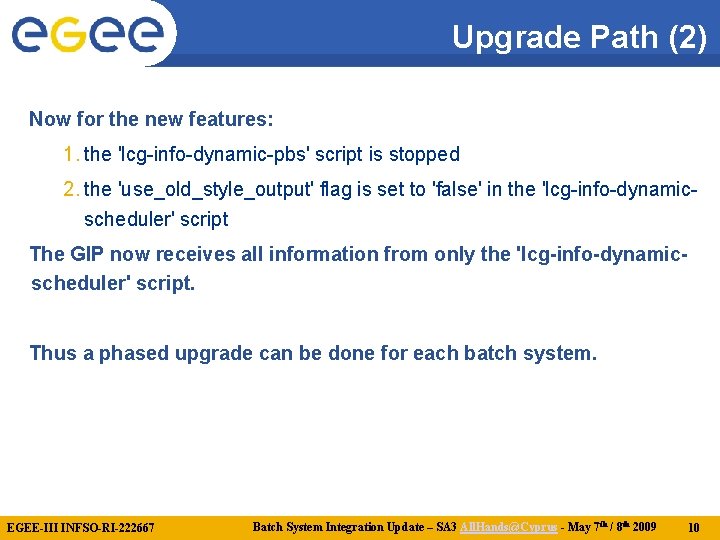

Upgrade Path (2) Now for the new features: 1. the 'lcg-info-dynamic-pbs' script is stopped 2. the 'use_old_style_output' flag is set to 'false' in the 'lcg-info-dynamicscheduler' script The GIP now receives all information from only the 'lcg-info-dynamicscheduler' script. Thus a phased upgrade can be done for each batch system. EGEE-III INFSO-RI-222667 Batch System Integration Update – SA 3 All. Hands@Cyprus - May 7 th / 8 th 2009 10
EGEE-III INFSO-RI-222667 Batch System Integration Update – SA 3 All. Hands@Cyprus - May 7 th / 8 th 2009 11
Questions EGEE-III INFSO-RI-222667 Batch System Integration Update – SA 3 All. Hands@Cyprus - May 7 th / 8 th 2009 12
