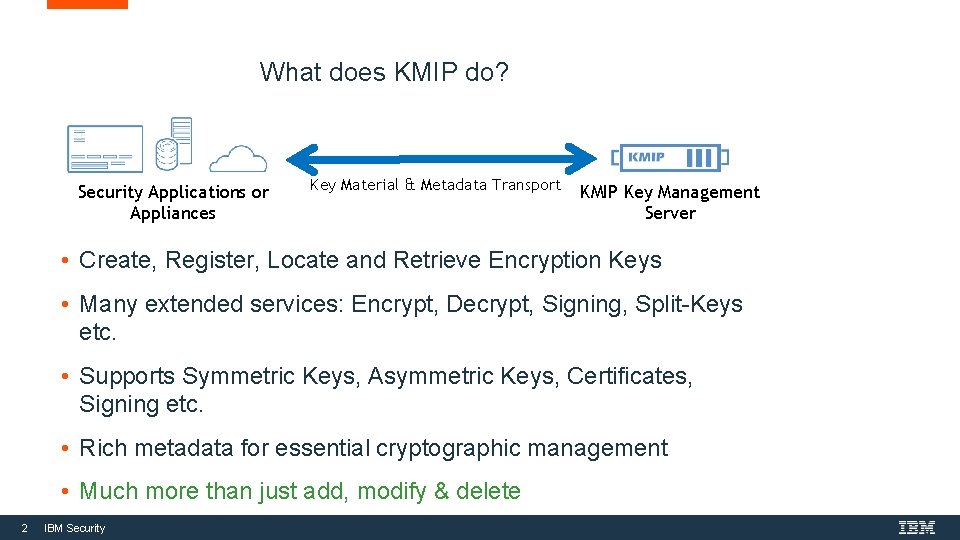

What does KMIP do? Security Applications or Appliances Key Material & Metadata Transport KMIP Key Management Server • Create, Register, Locate and Retrieve Encryption Keys • Many extended services: Encrypt, Decrypt, Signing, Split-Keys etc. • Supports Symmetric Keys, Asymmetric Keys, Certificates, Signing etc. • Rich metadata for essential cryptographic management • Much more than just add, modify & delete 2 IBM Security

KMIP 2018 RSA Interop Demonstration 3 IBM Security

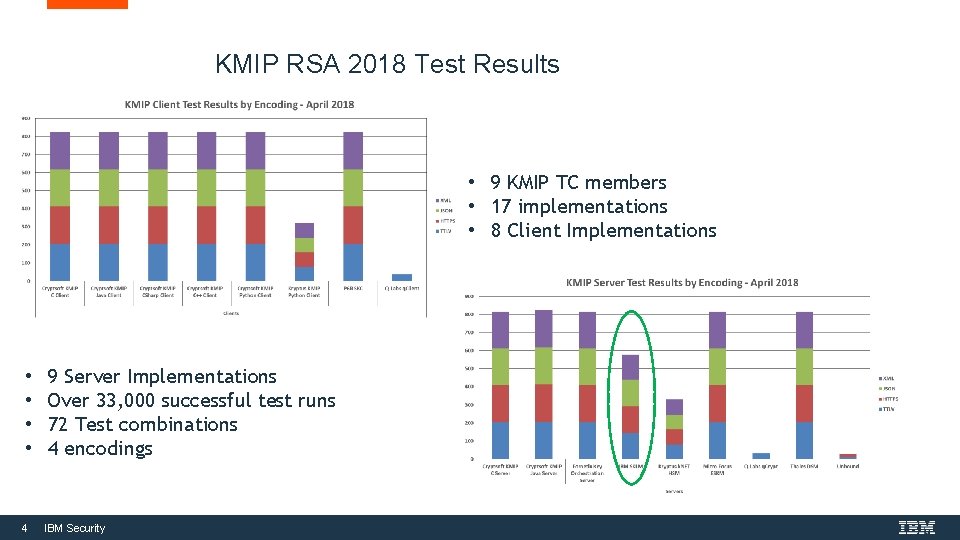

KMIP RSA 2018 Test Results • 9 KMIP TC members • 17 implementations • 8 Client Implementations • • 9 Server Implementations Over 33, 000 successful test runs 72 Test combinations 4 encodings 4 IBM Security

KMIP Deployed in Solutions 5 IBM Security

KMIP Deployed by Organizations 6 IBM Security

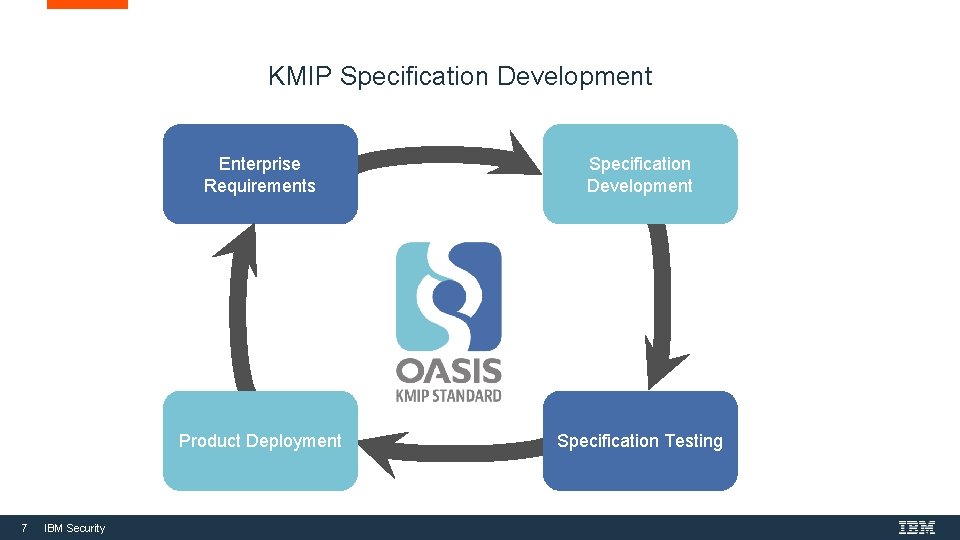

KMIP Specification Development 7 IBM Security Enterprise Requirements Specification Development Product Deployment Specification Testing

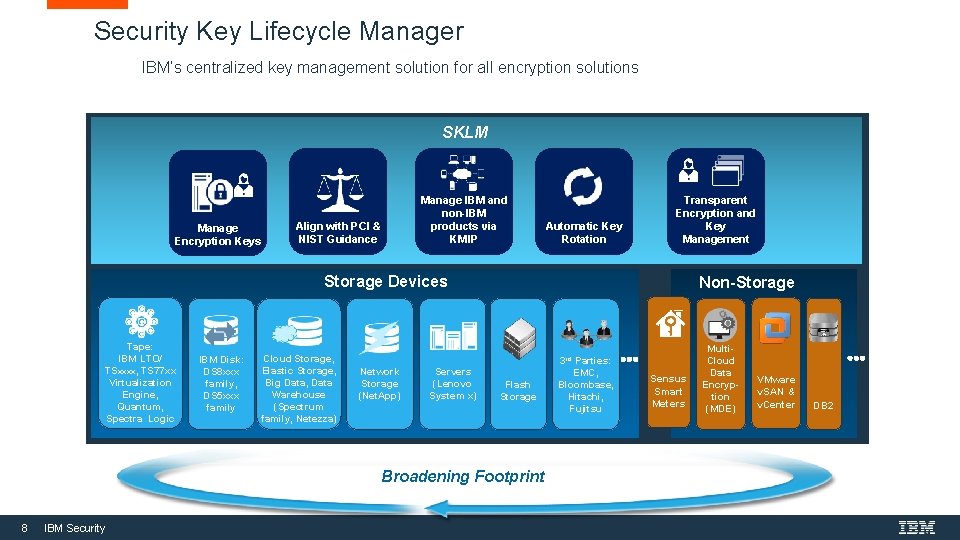

Security Key Lifecycle Manager IBM’s centralized key management solution for all encryption solutions SKLM Manage Encryption Keys Manage IBM and non-IBM products via KMIP Align with PCI & NIST Guidance Automatic Key Rotation Transparent Encryption and Key Management Storage Devices Tape: IBM LTO/ TSxxxx, TS 77 xx Virtualization Engine, Quantum, Spectra Logic IBM Disk: DS 8 xxx family, DS 5 xxx family Cloud Storage, Elastic Storage, Big Data, Data Warehouse (Spectrum family, Netezza) Network Storage (Net. App) Servers (Lenovo System x) Non-Storage Flash Storage Broadening Footprint 8 IBM Security 3 rd Parties: EMC, Bloombase, Hitachi, Fujitsu Sensus Smart Meters Multi. Cloud Data Encryption (MDE) VMware v. SAN & v. Center DB 2

IBM Security Key Lifecycle Manager (SKLM) Self-Encrypting Devices • SKLM is a Key Distribution and Management software solution IBM Security SKLM Enterprise Tape Libraries e. g. TS 11 xx, TS 2 xxx, TS 3 xxx, Databases (e. g. DB 2) • Provides centralized key mgmt for self-encrypting drives (tape, disk) Network storage servers (Net. App) • Light-weight and highly-scalable Smart Meter Infrastructures • SKLM helps customers keep data private, compliant, and encryption keys well-managed Cloud file systems, Elastic Storage, Big Data / Data Warehouse (IBM Spectrum Scale • Expanding support for flash storage, cloud storage, network devices, etc. 9 e. g. DS 8000, DS 5 xxx, IBM Spectrum Accelerate (XIV), … KMIP / IPP SKLM Background • Uses standard protocols (i. e. KMIP: Key Management Interoperability Protocol) Disk Storage Arrays Netezza, etc. ) IBM Flash Storage Software: • VMware v. Sphere • Multi-Cloud Data Encryption

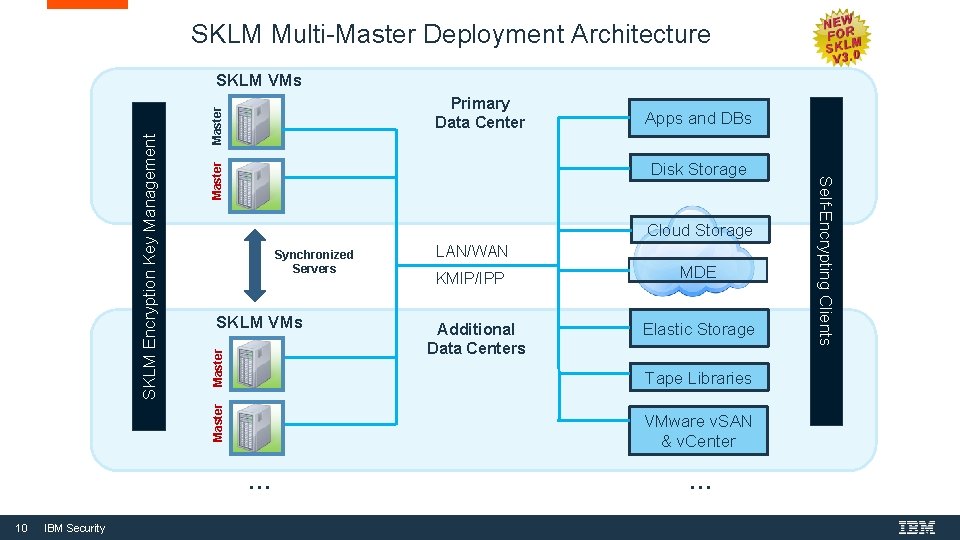

SKLM Multi-Master Deployment Architecture Master Primary Data Center Master Disk Storage Cloud Storage Synchronized Servers Master SKLM VMs Master IBM Security LAN/WAN KMIP/IPP Additional Data Centers MDE Elastic Storage Tape Libraries VMware v. SAN & v. Center … 10 Apps and DBs … Self-Encrypting Clients SKLM Encryption Key Management SKLM VMs

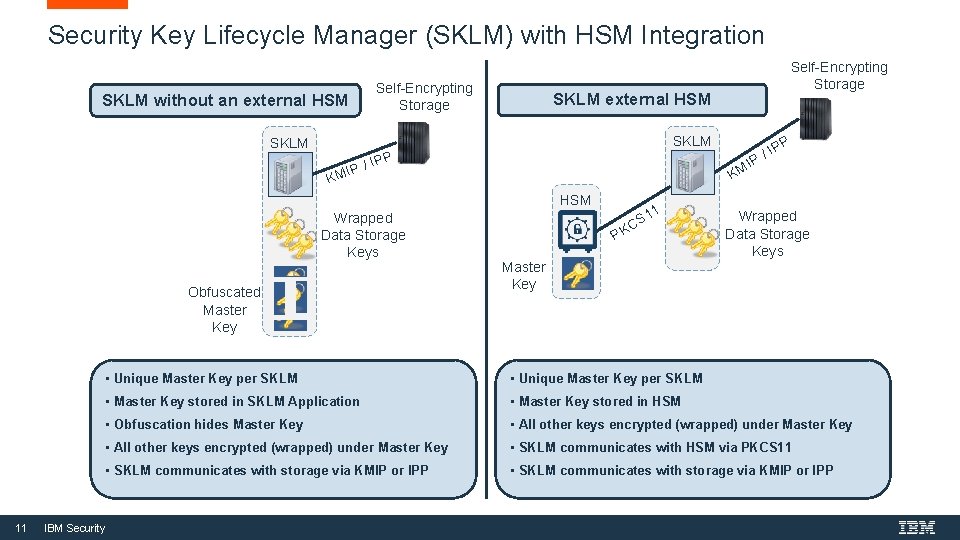

Security Key Lifecycle Manager (SKLM) with HSM Integration SKLM without an external HSM Self-Encrypting Storage SKLM external HSM SKLM IP / KM IPP Wrapped Data Storage Keys Obfuscated Master Key IPP / P I KM HSM 11 Self-Encrypting Storage 1 1 CS PK Master Key Wrapped Data Storage Keys • Unique Master Key per SKLM • Master Key stored in SKLM Application • Master Key stored in HSM • Obfuscation hides Master Key • All other keys encrypted (wrapped) under Master Key • SKLM communicates with HSM via PKCS 11 • SKLM communicates with storage via KMIP or IPP IBM Security

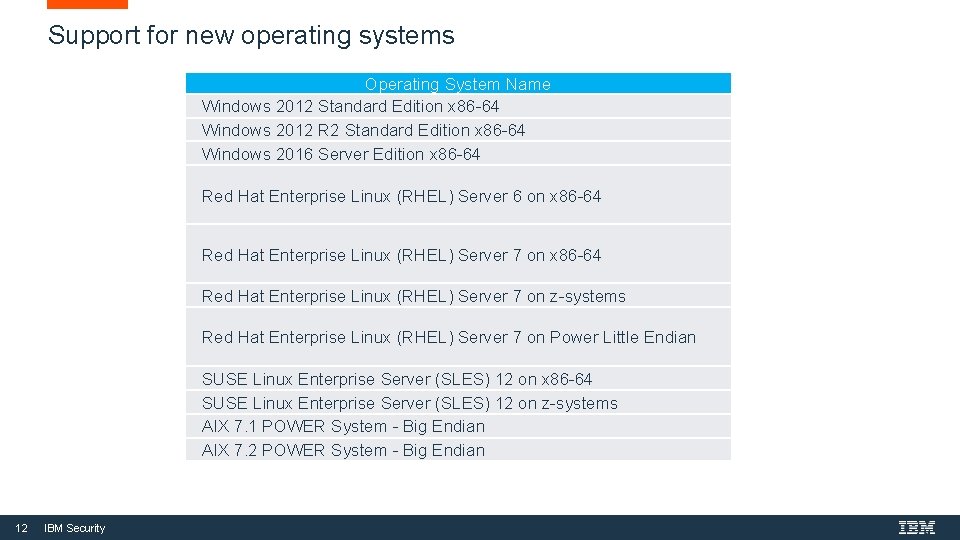

Support for new operating systems Operating System Name Windows 2012 Standard Edition x 86 -64 Windows 2012 R 2 Standard Edition x 86 -64 Windows 2016 Server Edition x 86 -64 Red Hat Enterprise Linux (RHEL) Server 6 on x 86 -64 Red Hat Enterprise Linux (RHEL) Server 7 on z-systems Red Hat Enterprise Linux (RHEL) Server 7 on Power Little Endian SUSE Linux Enterprise Server (SLES) 12 on x 86 -64 SUSE Linux Enterprise Server (SLES) 12 on z-systems AIX 7. 1 POWER System - Big Endian AIX 7. 2 POWER System - Big Endian 12 IBM Security
