EMT 351 Digital IC Design WEEK 9 Synthesis

EMT 351 Digital IC Design WEEK #9 Synthesis of Combinational Logic Prepared by SITI ZARINA MD NAZIRI Sources: SLIDES FROM RIZALAFANDE, CILETTI

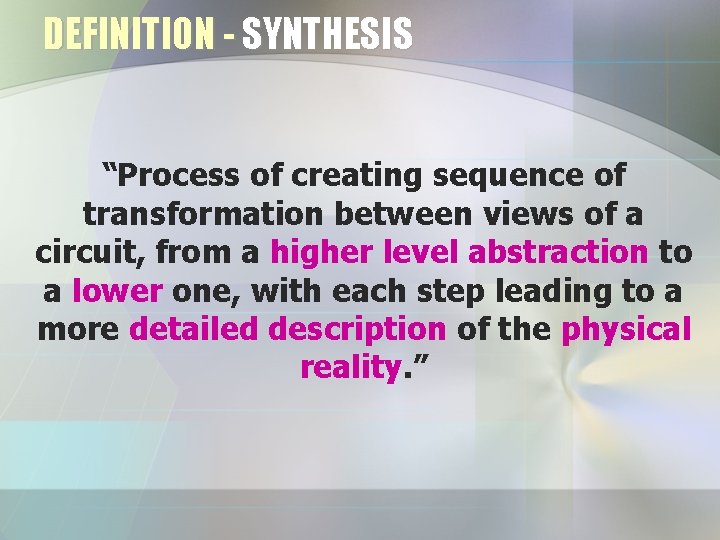

DEFINITION - SYNTHESIS “Process of creating sequence of transformation between views of a circuit, from a higher level abstraction to a lower one, with each step leading to a more detailed description of the physical reality. ”

HDL-BASED SYNTHESIS • HDL–based synthesis provides: – – Alternative to gate-level design Higher level of design abstraction Description of overall architecture Description of functionality • Synthesis tools provide: – Automated gate-level representation – Optimal representation – Architectural exploration

HDL-BASED SYNTHESIS Functional simulation Design entry HDL behavioral model Design verification Timing simulation Physical optimization and implementation PLD FPGA, Arrays Standard cells HDL-based design flow

HDL-BASED SYNTHESIS • Levels of synthesis – Logic synthesis • Boolean description optimal circuit – RTL synthesis • RTL description Boolean description – Behavioral (high-level) synthesis • Algorithmic model of functionality RTL description

HDL-BASED SYNTHESIS – LOGIC SYNTHESIS • Tools which operate on Boolean equations & produce optimal combinational logic according to constraints (e. g. speed, area, power & testability) based on library used

HDL-BASED SYNTHESIS – LOGIC SYNTHESIS Technology libraries Behavioral description TRANSLATION ENGINE Two-level logic functions OPTIMIZATION ENGINE Optimized multi-level logic functions MAPPING ENGINE Technology implementation Synthesis tool organization

HDL-BASED SYNTHESIS – RTL SYNTHESIS • Transforms a behavior described in terms of operations on registers, signals and constraints into an optimal combinational logic and thus map the result into the target technology • RTL description represents either a FSM or a more general machine (data-flow graphs) • In Verilog, the synthesis is represented by language operators & synchronous concurrent assignment to register variables (i. e. non-blocking assignments)

HDL-BASED SYNTHESIS – BEHAVIORAL SYNTHESIS • Tools that synthesize data path elements, control units and memory • A relatively young technology, but successful tools have been developed supporting behavioral synthesis for DSP applications • Poses the great challenge to EDA tools because there are many algorithms still cannot be synthesized easily

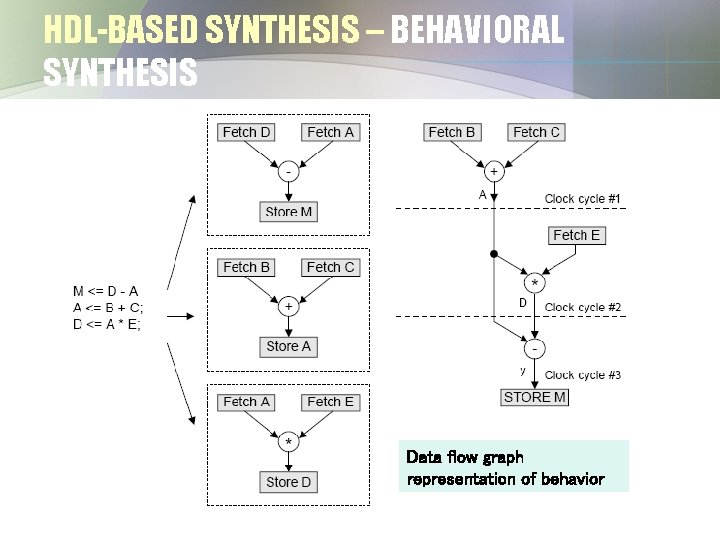

HDL-BASED SYNTHESIS – BEHAVIORAL SYNTHESIS Data flow graph representation of behavior

TECHNOLOGY-INDEPENDENT DESIGN • Describes only the functionality that needs to be synthesized, not time delays • Signals are correct & match the clock boundaries in both behavioral & gate-level realizations – External clock & reset controls all storage element – Inputs to combinational logic are primary inputs or are from storage elements – The combinational logic is assumed to settle in one clock cycle – Outputs may(not) be registered

TECHNOLOGY-INDEPENDENT DESIGN 2 3 4 1 1. External clock & reset controls all storage element 2. Inputs to combinational logic are primary inputs or are from storage elements 3. The combinational logic is assumed to settle in one clock cycle 4. Outputs may(not) be registered

BENEFITS OF SYNTHESIS • Fast generation of the gate-level description from the HDL • Reduced effort to debug the gate-level design • Efficient gate-level implementation • Consistency between RTL and gate-level descriptions • Faster mechanism for re-targeting designs (e. g. FPGAs to cells) • Higher focus of the design effort (Functionality vs. gates and transistors) • Top-down organization with language-based description and documentation

SYNTHESIS METHODOLOGY 1. 2. 3. 4. 5. 6. 7. Focus on the overall functionality Create architectural partition (top-down) Develop unit functional descriptions Validate the design units (bottom-up) Follow a technology-independent design style Synthesize a gate-level realization subject to constraints Conduct post-synthesis performance verification to ensure timing and functionality PRODUCT Technology-specific optimized gate-level realization of the design

SYNTHESIS METHODOLOGY • Synthesis tools must be used EFFECTIVELY: – Follow design methodology – Intelligent partitioning of functionality – Smart HDL descriptive style (to achieve expected results) – Awareness of vendor-specific HDL vocabulary (not all are synthesizable) – Post-synthesis verification of gate-level realization

VENDOR SUPPORT • • Accept source code using the entire Verilog HDL Ignore unsupported usage Time declarations are ignored Delay control (#) is ignored All signals are assumed to be at maximum strength Boolean operations on 'x' and 'z' are forbidden Use only synthesizable constructs Do not instantiate storage elements

VENDOR SUPPORT FULLY supported Verilog constructs • Module instantiation • Name and positional port mapping • input, output, inout port modes • macromodule, module • parameter • integer and reg types • All numeric bases • Identifiers • Continuous assignment • Procedural assignment • Non-blocking assignment • Procedural-continuous assignment • • • case, casex, casez, endcase default disable function, endfunction if, if. . . else. . . if Subranges in referenced identifiers Shift, conditional and concatenation operators Procedural blocks (begin … end) wire, wand, wor, tri supply 0, supply 1 task, endtask (No timing or event controls)

VENDOR SUPPORT PARTIALLY supported Verilog constructs • *, /, % – Both operands must be constants or the second operand must be a power of 2. • for – The loop range must be bound by static variables • fork. . . join – No event control or delay control greater than a clock period <= Cannot mix blocking and non-blocking assignment in same behavior • and, nand, &&, … – May not use explicit ‘x’ or ‘z’ constructs with primitives or operators.

VENDOR SUPPORT IGNORED Verilog constructs • • Intra-assignment (delay and event control operators) scalared, vectored small, medium, large specify. . . endspecify $time weak 1, weak 0, high 1, pull 0, pull 1 $keyword wait

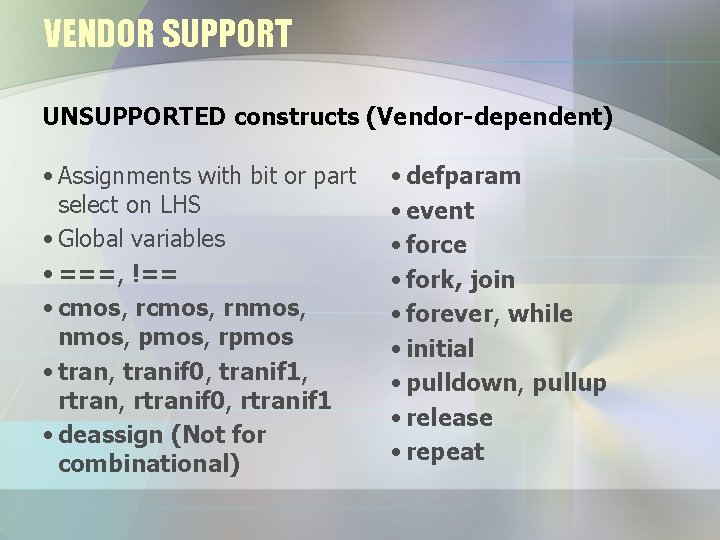

VENDOR SUPPORT UNSUPPORTED constructs (Vendor-dependent) • Assignments with bit or part select on LHS • Global variables • ===, !== • cmos, rnmos, pmos, rpmos • tran, tranif 0, tranif 1, rtranif 0, rtranif 1 • deassign (Not for combinational) • defparam • event • force • fork, join • forever, while • initial • pulldown, pullup • release • repeat

SYNTHESIS OF COMBINATIONAL LOGIC - RULES Logic_inputs(t) COMBINATIONAL LOGIC Logic_outputs(t) Logic_Output(t) = f(Logic_Inputs(t)) • Avoid technology dependent modeling; i. e. implement functionality, not timing • The combinational logic must not have feedback • Specify the output of a combinational behavior for all possible cases of its inputs • Logic that is not combinational will be synthesized as sequential

SYNTHESIS OF COMBINATIONAL LOGIC - STYLES Logic_inputs(t) COMBINATIONAL LOGIC Logic_Output(t) = f(Logic_Inputs(t)) • • • Netlist of primitives User-defined primitives (UDPs) Continuous assignments Cyclic behavior Function or task Interconnected modules Logic_outputs(t)

SYNTHESIS OF COMBINATIONAL LOGIC - STYLES Style 1: Netlist of Primitives • Combinational logic can be synthesized from a netlist of gate-level Verilog primitives • Synthesization by synthesis tool will correct & remove redundant logic provides safety to design module or_nand_1 (enable, x 1, x 2, x 3, x 4, y); input enable, x 1, x 2, x 3, x 4; output y; wire w 1, w 2, w 3; or (w 1, x 2); or (w 2, x 3, x 4); or (w 3, x 4); nand (y, w 1, w 2, w 3, enable); endmodule

SYNTHESIS OF COMBINATIONAL LOGIC - STYLES Style 2: UDPs • Synthesis tool can operate on a UDP to first obtain an equivalent representation in terms of Boolean expressions, and then optimize the logic (only covered by some tools) module …. table // inputs output // a b c 0 1 ? : 0 0 ? : 1 ? 1 : 1 ? 0 : endtable C y 1; 0; A Y B Post-Synthesis

SYNTHESIS OF COMBINATIONAL LOGIC - STYLES Style 3: Continuous Assignments • Synthesis tool translates continuous assignment statement into a set of equivalent Boolean equations which can be optimized simultaneously module or_nand_2 (enable, x 1, x 2, x 3, x 4, y); input enable, x 1, x 2, x 3, x 4; output y; assign y = !(enable & (x 1 | x 2) & (x 3 | x 4)); endmodule

SYNTHESIS OF COMBINATIONAL LOGIC - STYLES Style 4: Cyclic (or Combinational) Behavior • The event control expression must not be edgedependent, and all inputs to the behavior must be included in the event control expression, otherwise a latch will be inferred module or_nand_3 (enable, x 1, x 2, x 3, x 4, y); input enable, x 1, x 2, x 3, x 4; output y; reg y; always @ (enable or x 1 or x 2 or x 3 or x 4) if (enable) y = !((x 1 | x 2) & (x 3 | x 4)); else y = 1; // operand is a constant. endmodule NOTE: An event control expression does not imply synthesis of a clock or a reg

SYNTHESIS OF COMBINATIONAL LOGIC - STYLES Style 5: Function or Task • Functions - Represent combinational logic because the value produced by a function depends only upon the values of its arguments - As a general rule, incomplete case statements and incomplete conditionals should be avoid in order to implement combinational logic • Task - Restrictions is similar to functions, but is more general - However, it must restricted for not using timing control constructs in any procedural code it contains

SYNTHESIS OF COMBINATIONAL LOGIC - STYLES module or_nand_4 (enable, x 1, x 2, x 3, x 4, y); input enable, x 1, x 2, x 3, x 4; output y; module or_nand_5 (enable, x 1, x 2, x 3, x 4, y); input enable, x 1, x 2, x 3, x 4; output y; reg y; assign y = or_nand (enable, x 1, x 2, x 3, x 4); always @ (enable or x 1 or x 2 or x 3 or x 4) or_nand (enable, x 1, x 2, x 3 c, x 4); function or_nand; input enable, x 1, x 2, x 3, x 4; begin or_nand = ~(enable & (x 1 | x 2) & (x 3 | x 4)); endfunction endmodule task or_nand; input enable, x 1, x 2, x 3, x 4; output y; begin y = !(enable & (x 1 | x 2) & (x 3 | x 4)); endtask endmodule Simulation result for both module

SYNTHESIS OF COMBINATIONAL LOGIC - STYLES Style 6: Interconnect Modules • Combinational logic can be created by interconnecting & synthesizing modules that implement combinational logic using any styles mentioned before

SIMULATION & SYNTHESIS EFFICIENCY • The use of procedural-continuous assignment (PCA) (assign. . deassign) reduces the size of the event sensitivity list and improves the simulation efficiency by dynamically changing the sensitivity list • However, some tools do not support PCA for synthesis - two models might be used and switched between simulation and synthesis

SIMULATION & SYNTHESIS EFFICIENCY Simulation friendly (prefered for simulation) Synthesis & simulation friendly (prefered for synthesis) module or_nand_6 (enable, x 1, x 2, x 3, x 4, y); input enable, x 1, x 2, x 3, x 4; output y; reg y; module or_nand_3 (enable, x 1, x 2, x 3, x 4, y); input enable, x 1, x 2, x 3, x 4; output y; reg y; always @ (enable) if (enable) assign y = ~((x 1 | x 2) & (x 3 | x 4)); else assign y = 1; endmodule always @ (enable or x 1 or x 2 or x 3 or x 4) if (enable) y = !((x 1 | x 2) & (x 3 | x 4)); else y = 1; // operand is a constant. endmodule Example: or_nand

TECHNOLOGY MAPPING AND SHARED RESOURCES • Synthesis tools include a technology mapping engine that covers the generic, optimized multi-level Boolean description • Depends on the tool, it may covered basic library cells or more complex ones • If the data flows within the behavior do not conflict, the resource can be shared between one or more paths • This feature is vendor dependent, if the tool does not automatically implement resource sharing, the user must write a Verilog code to force the sharing

THREE-STATE BUFFERS • Verilog language has built-in constructs for modeling and synthesizing the functionality of three-state devices • Three-state devices are controlled by a signal whose value determines whether an input signal is connected to the output • This functionality is important in physical circuits having multiple drivers

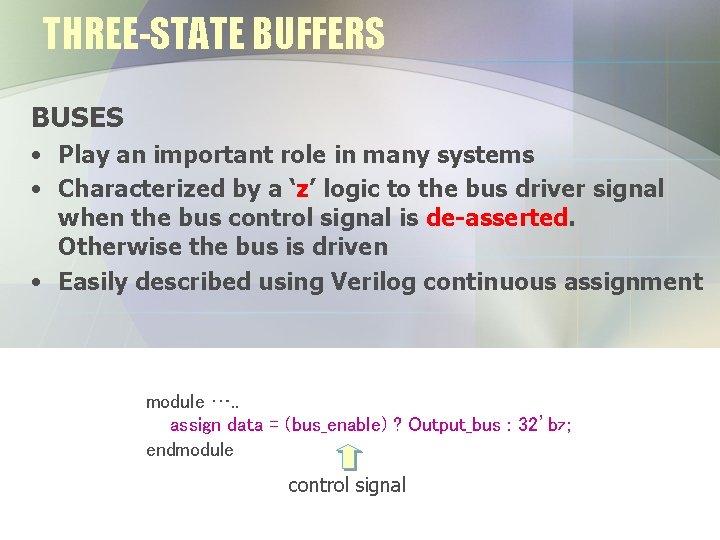

THREE-STATE BUFFERS BUSES • Play an important role in many systems • Characterized by a ‘z’ logic to the bus driver signal when the bus control signal is de-asserted. Otherwise the bus is driven • Easily described using Verilog continuous assignment module …. . assign data = (bus_enable) ? Output_bus : 32’bz; endmodule control signal

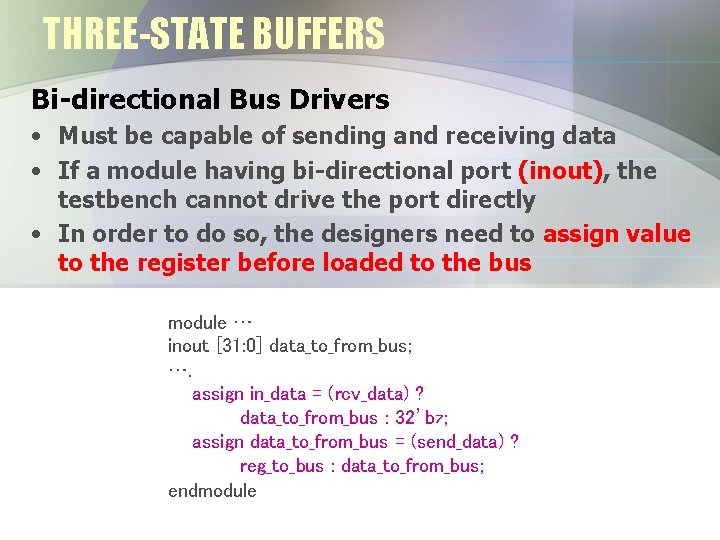

THREE-STATE BUFFERS Bi-directional Bus Drivers • Must be capable of sending and receiving data • If a module having bi-directional port (inout), the testbench cannot drive the port directly • In order to do so, the designers need to assign value to the register before loaded to the bus module … inout [31: 0] data_to_from_bus; …. assign in_data = (rcv_data) ? data_to_from_bus : 32’bz; assign data_to_from_bus = (send_data) ? reg_to_bus : data_to_from_bus; endmodule

THREE-STATE BUFFERS Bus Loading • The speed of a bus to operate is limited by the capacitive loading placed on it by driving and receiving circuits • It is important that Verilog code of a bus circuit be synthesized efficiently • The recommended practice is to multiplex the drivers of a bus so that it can reduce the capacitive loading module …. assign data_to_from_bus = (enab_a) ? Reg_a_to_bus: (enab_b) ? Reg_b_to_bus: 32’bz; endmodule

THREE-STATE OUTPUTS AND DON’T CARES When the output of a module is assigned by a conditional assignment, a variety of results are possible with some leading to three-state outputs module alu_with_z 1…. assign alu_out = (enable == 1) ? Alu_reg: 4’bz; always @ (opcode or data_a or data_b) case (opcode) 3’b 001: alu_reg = data_a | data_b; 3’b 010: alu_reg = data_a ^ data_b; 3’b 110: alu_reg = ~data_b; default: alu_reg = 4’b 0; // alu_with_z 2 has default: alu_reg = 4’bx; endcase endmodule Result of alu_with_z 2 synthesis has simpler realization

SUMMARY • Combinational logic will form its output based on its input • UDPs, continuous assignments, instantiated gates and behaviors that no need memory will be synthesized into combinational logic • Combinational logic easily to synthesize but need to aware about unwanted latches that result from incompletely-specified case statements and conditionals
