Emergency and InterHospital Teleradiology RCR PACS Teleradiology Special
- Slides: 26
Emergency and Inter-Hospital Teleradiology RCR PACS & Teleradiology Special Interest Group
Introductions Marco Crispini n Cypher IT Ltd Personal service company Southampton University Hospitals marco. crispini@nhs. net marco@cypherit. co. uk
What will you gain? Alleviate frustration! Why can’t we use cheap broadband? Understand NHSIA restrictions Identify OUR question, and its answer Handouts to enable DIY Downloads from www. cypherit. co. uk
Outline Network definitions Introduce scenarios Protecting Data Practical Information

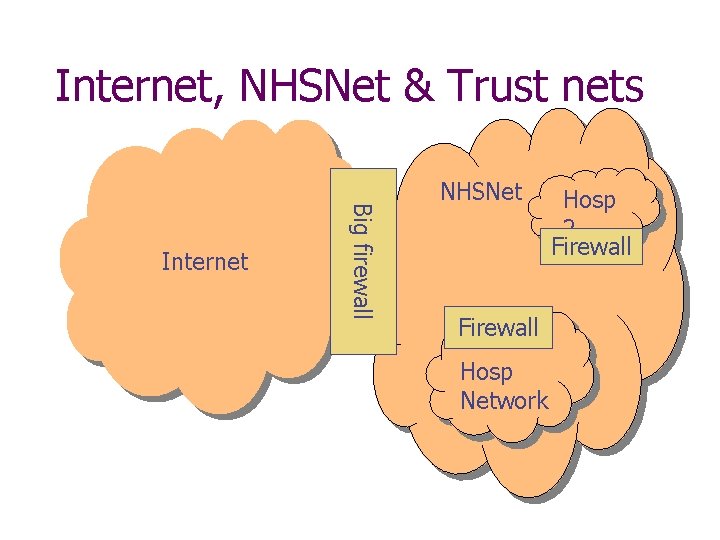

Internet, NHSNet & Trust nets Big firewall Internet NHSNet Firewall Hosp Network Hosp 2 Firewall
NHSIA restrictions Internet Big firewall supplier X NHSNet Firewall Hosp Network Hosp 2 Firewall
How is Remote Support done? Internet NHSNet Big firewall supplier Firewall
Modems NHSNet Big firewall Firewall Hosp network

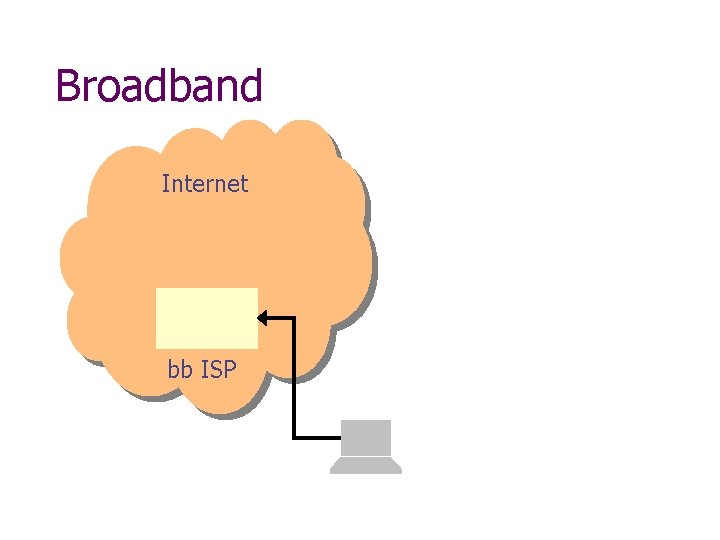

Broadband Internet bb ISP
Question Posed to NHSIA Q. Broadband please? A. Linking networks. Q. Just broadband from internet to consultants’ homes – trusts already have a big pipe out to the internet.
NHSIA Answer Internet NHSNet Big firewall BB ISP Firewall
Alternative Answer Internet bb ISP Big firewall cypherit NHSNet Firewall
Mobility of Alternative PULL images from internet using BB Viewing software if needed
No Broadband Available? Send only key images Compression - image quality vs size Accept a long wait Satellite
Consumer-level Satellite Ordinary modem connection But download direction is routed via satellite link eg web request upload web page downloaded
Consumer-level Satellite Internet cypherit normal ISP sat ISP
Satellite pros and cons Speed Any location Installation cost Dial-up ISP also required Immobile
Taking Stock PUSH to a 3 rd party website Download using broadband
Protecting data DP Act – “appropriate measures” encryption “over any network” Internet? Trust network? NHSNet? Definitely yes
Encryption Options Weak vs strong encryption Win. ZIP is weak encryption NHSIA list of encryption products PGP is free
DICOM send via a firewall Private vs Public IP addresses Network Address Translation (NAT) Your Trust Firewall 83. 10. 5. 1 NHSNet 10. 16. 0. 1
What to ask for Their AE Title Their PUBLIC IP address Their Port number Ping (think submarines!) You need to give them the same
Encrypted Send Encrypt with PGP – no longer DICOM Send using ftp Port number is standard (23) Just requires the PUBLIC IP address
Implications for PACS receipt Workstation vs PACS Unverifieds/Profiling But exam isn’t in your RIS statistics
Summary Better broadband solution for on-call Radiologists Satellite broadband Hospital to hospital teleradiology bb. Rad from Cypher IT Handouts to help you to DIY Digital Imaging Book
Digital Imaging
