EMC Directive
Contents The EMC Directive History Objectives Scope Essential requirements ◦ Harmonised standards ◦ Conformity assessment procedures ◦ Role of Member States ◦ ◦ Application Guide Introduction Decision flow chart Competent body Technical Construction File ◦ Instructions for use ◦ Application of EMCD to machines ◦ Standardisation ◦ ◦ International activities ◦ PECA ◦ MRA EMC Directive 2
The EMC Directive � The ◦ ◦ ◦ ◦ EMC Directive History Objectives Scope Essential requirements Harmonised standards Conformity assessment procedures Role of Member States EMC Directive 3
History The Electromagnetic Compatibility (EMC) Directive 2004/108/EC repeals the previous EMC Directive 89/336/EEC (as amended by Directives 91/263/EEC , 92/31/EEC, 93/68/EEC and 93/97/EEC 7) and maintains the same � Directive published in 1989 � ◦ Transposition into national law by 1 July 1991 ◦ Provisions apply since 1 January 1992 ◦ However a longer transition period was necessary � Directive 92/31/EEC to allow a transitional period until end 1995 ◦ As of 1 January 1996, Member States have abolished national regulations concerning EMC � EMC Directive is a total harmonisation Directive EMC Directive 4
History � 1997: SLIM process: Simpler Legislation for the Internal Market � EMC Directive identified as a candidate � Conclusions of debates: ◦ ◦ ◦ ◦ Clarify the scope; Include ready-made connecting devices; Clarify treatment of fixed installations Enhanced clarity through more detailed essential requirements; Clarification the role of harmonised standards; Simplify the conformity assessment procedure Cut “red tape” by abolishing compulsory third-party intervention Improve market surveillance through better traceability of the manufacturer. EMC Directive 5

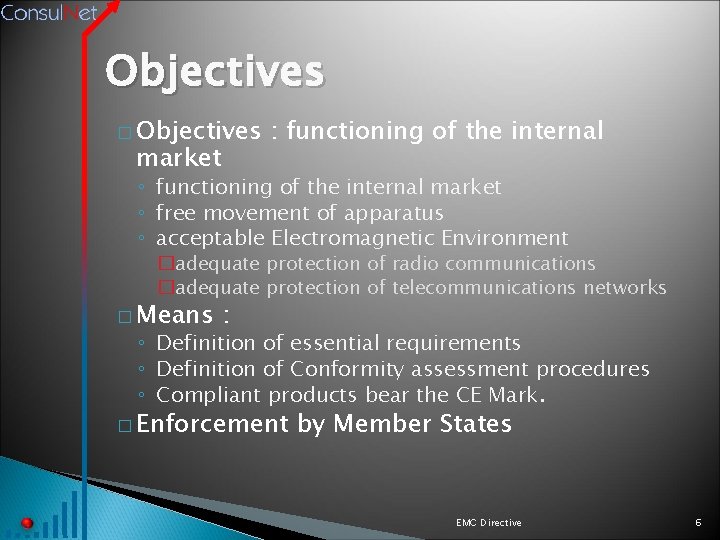

Objectives � Objectives market : functioning of the internal ◦ functioning of the internal market ◦ free movement of apparatus ◦ acceptable Electromagnetic Environment �adequate protection of radio communications �adequate protection of telecommunications networks � Means : ◦ Definition of essential requirements ◦ Definition of Conformity assessment procedures ◦ Compliant products bear the CE Mark. � Enforcement by Member States EMC Directive 6
Scope of the EMCD (I) � Scope (Article 1. 1) : ◦ Apparatus (all definitions are in Article 2) � all electrical and electronic appliances, equipment and installations containing electrical and/ or electronic components ◦ liable to cause electromagnetic disturbance � or ◦ the performance of which is liable to be affected by such disturbance � Excluded equipment is explicitly listed (Article 1. 2) ◦ ◦ ◦ � Covered by the RTTE Directive Other covered by specific directives Aeronautical products, parts ect. Radio amateurs equipment Incapable to generate EM radiation and not sensitive to it when used as intendent Precedence is given to specific Directives, if existing (Article 1. 2) EMC Directive 7
Scope - examples � Clarification of the scope Equipment : ◦ Apparatus � Electrical and electronic appliance � Component � Ready made connecting device ◦ Fixed installation � Machines � Networks � Exclusion of certain equipment ◦ Covered by R&TTE Directive ◦ Covered by specific directives X EMC Directive 8
Essential requirements Protection requirements � � Specific requirements for apparatus � Specific requirements for installations � � Protection requirements unchanged Verification apparatus meets the protection requirements in all configurations without external devices Unique identification of apparatus identification of manufacturer precaution and restriction of use No a priori EMC assessment MS to request compliance EMC Directive 9
Essential requirements (II) � Apparatus, and especially apparatus referred to in Annex III of the EMCD, should be constructed in such a way that it has an adequate level of electromagnetic immunity in the usual electromagnetic compatibility environment where the apparatus is intended to work, so as to allow its unhindered operation taking into account the levels of disturbance generated by apparatus complying with the harmonised standards. � The information required to enable use in accordance with the intended purpose of the apparatus must be contained in the instructions accompanying the apparatus (Article 9. 5). EMC Directive 10
Application Guide � Application ◦ ◦ ◦ ◦ Guide Introduction Decision flow chart Competent body Technical Construction File Instructions for use Application of EMCD to machines Standardisation EMC Directive 11
Introduction � Guide to the application of EMC Directive ◦ Addressed to all parties affected by the Directive ◦ Aid for the interpretation of the Directive ◦ Does not substitute the Directive which is the only legally binding text ◦ Agreed by consensus among Member States' government experts and other parties concerned � Topics ◦ Scope of the Directive ◦ Application to components, finished products, systems and installations ◦ Application to used, second-hand, repaired products and spare parts ◦ Conformity assessment procedures ◦ Competent authorities, competent bodies, notified bodies ◦ Application of the Directive to some specific cases EMC Directive 12
Scope evaluation EMC Directive 13
Classification as apparatus EMC Directive 14
Provisions assignment EMC Directive 15
Instalations EMC Directive 16
Decision flow chart (I) � Definitions ◦ Finished product �Any device or unit of equipment that has a direct function, its own enclosure and – if applicable – ports and connections intended for end users ◦ Direct function �Any function of a component or a finished product which fulfils the intended use specified by the manufacturer in the instructions for use for an end user. This function can be available without further adjustments or connections other than simple ones which can be performed by any person not fully aware of the EMC implications. EMC Directive 17
Decision flow chart (II) � Components ◦ with direct function �the direct function is available without further adjustment, It may be placed on the market as an SCU �if further adjustment is necessary the component must not be placed on the market for end user �examples �plug in cards for computers �programmable logic controllers �lift controls �electric motors �computer disc drives �power supply units �fully subject to all provisions of the EMC Directive 18
Decision flow chart (III) � Components ◦ with direct function �If there is no intention to put the components on the market for final use or distribution �the manufacturer has only to deliver the relevant instruction to enable the operation within the apparatus in which they will be incorporated �no other element of the EMC Directive is mandatory EMC Directive 19
Decision flow chart (IV) � Components ◦ without direct function �examples �resistors, capacitors, coils �diodes, transistors, thyristors, triacs etc. �integrated circuits �cables and cable accessories �all or nothing relays �plugs, sockets, terminal blocks etc. �light emitting diodes, liquid crystals etc. �simple electromechanical thermostats ◦ the EMC Directive does not apply at all EMC Directive 20
Decision flow chart (V) � Finished Products ◦ When intended to be put on the market for final use and distribution �fully subject to all provisions of the EMC Directive ◦ When not intended to be put on the market for final use and distribution �only the relevant instructions have to be delivered to enable the operation within the apparatus in which they will be incorporated �none of the other provisions are mandatory EMC Directive 21
Decision flow chart (VI) � Systems � for the purpose of the EMC Directive system is defined as a combination of several types of equipment, finished products and/or components combined, designed and put together by the same person (system manufacturer) intended to be placed on the market for distribution as a single functional unit for an end user and intended to be installed and operated to perform a specific task EMC Directive 22

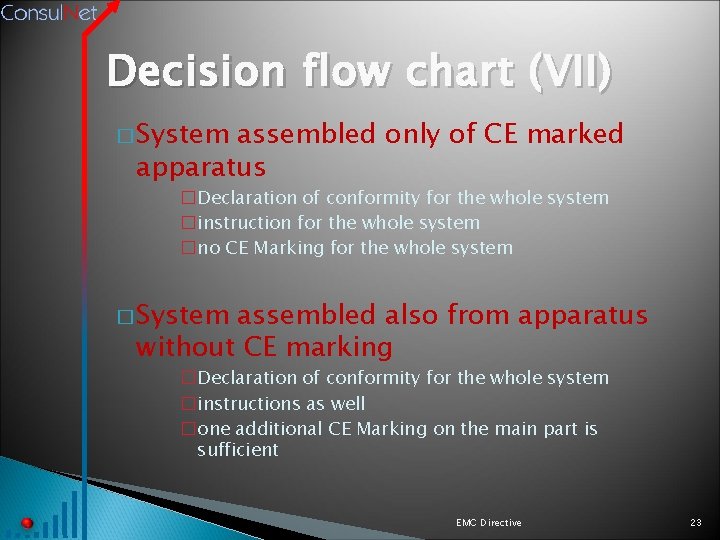

Decision flow chart (VII) � System assembled only of CE marked apparatus �Declaration of conformity for the whole system �instruction for the whole system �no CE Marking for the whole system � System assembled also from apparatus without CE marking �Declaration of conformity for the whole system �instructions as well �one additional CE Marking on the main part is sufficient EMC Directive 23
Decision flow chart (VIII) �Fixed Installations �combination of types of equipment, systems. . . assembled and/or erected by an assembler/installer at a given place to operate together in an expected environment but not to be placed as a SCU on the market � Examples : telecommunication networks, high voltage substations �the installation must comply with the Essential Requirements as defined in Article 4 �such installation cannot enjoy free physical movement and in respect to the EMC Directive there is no need for CE Marking, Declaration of conformity or the intervention of a competent body �the manufacturer must provide clear instructions EMC Directive 24
Competent body (I) Body responsible for issuing technical reports or certificates according to article 10. 2 of the EMC directive � He verifies that the procedures used by the manufacturer to state direct compliance to the directive are correctly applied. � His EMC competence is essential to avoid noncompliant products to be put on the market. � The competent body does not : � ◦ certify conformity of a product ◦ draw Do. C This remains the role of the manufacturer � A competent body is not necessary a test laboratory, but there is no obligation of separation. (Note : Manufacturer's laboratory can be recognized as competent body) � EMC Directive 25

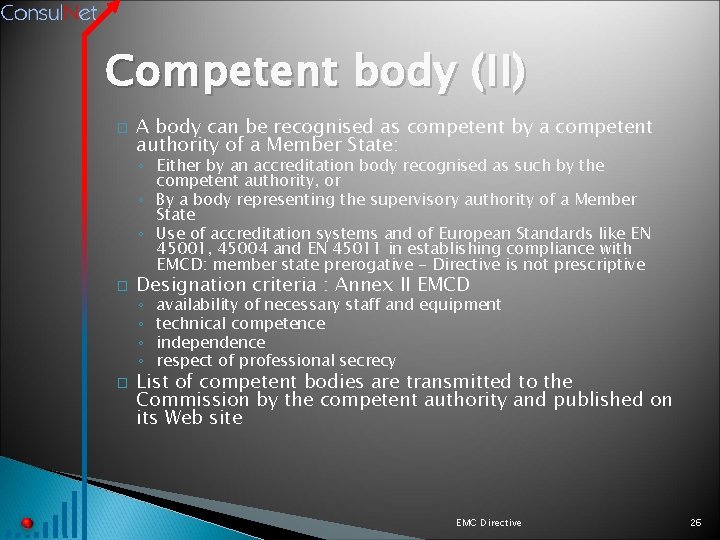

Competent body (II) � A body can be recognised as competent by a competent authority of a Member State: ◦ Either by an accreditation body recognised as such by the competent authority, or ◦ By a body representing the supervisory authority of a Member State ◦ Use of accreditation systems and of European Standards like EN 45001, 45004 and EN 45011 in establishing compliance with EMCD: member state prerogative - Directive is not prescriptive � Designation criteria : Annex II EMCD ◦ ◦ � availability of necessary staff and equipment technical competence independence respect of professional secrecy List of competent bodies are transmitted to the Commission by the competent authority and published on its Web site EMC Directive 26
Technical Construction File � � EMC Directive : "This file shall describe the apparatus, set out the procedures used to ensure conformity of the apparatus with the protection requirements and include a technical report or certificate, one or other obtained from a competent body" Contents ◦ A general description of the product ◦ Design and manufacturing drawings (lay-out diagrams covering components, subassemblies, . . ) ◦ Descriptions and explanations needed for understanding the drawings and diagrams as well as the operational aspects of the product ◦ List of standards applied in whole or in part. Description of solutions to comply with the requirements in cases where standards have not been applied ◦ Design calculations araising from EMC tests ◦ Technical report or certificate issued by competent body ◦ Copy of the declaration of conformity ◦ Copy of the instructions for use EMC Directive 27
Instructions for use � Instructions for use must accompany the apparatus � Must give the following information ◦ Intended conditions for use ◦ Instructions on �Installation �Assembly �Adjustment �Taking into service �Use �Maintenance ◦ Where necessary, warnings about limitations of use EMC Directive 28
Application of EMCD to machines ◦ the EMC Directive is to be applied in parallel with the Directive on machinery �If manufacturer uses only CE marked electrotechnical products and strictly follows instructions, the finished machine may be considered in compliance with the EMC Directive and no further verifications will be needed �Declaration of conformity and instructions for the whole machine must be provided. �no extra CE Marking is mandatory �if the manufacturer of the machine uses non-CEmarked products he has to follow the procedures for systems or installations EMC Directive 29
Standardisation � Types of EMC standards ◦ Basic standards ◦ Generic standards ◦ Product-family and dedicated product standards � Harmonised standards ◦ Elaborated by CEN/CENELEC/ETSI under mandate of Commission ◦ Published in OJEU and give presumption of conformity ◦ Example : Harmonised standards ITE � Emission – harmonics : EN 61000 -3 -2 (only for eqpt for connection to LV supply, up to 16 A) � Emission – voltage fluctuations : EN 61000 -3 -3 (only for eqpt for connection to LV supply, up to 16 A) � RF emission : EN 55022 � Immunity : EN 55024 EMC Directive 30
Standardisation When a new edition (or amendment) is published in the OJEU the list indicates the date of cessation of presumption of conformity of the superseded standard. EMC Directive 31
Harmonised standards � Presumption of conformity with the protection requirements of the Directive in case of compliance with the relevant harmonised standards (Article 6. 2) ◦ Harmonised standards reflect the state of the art for the addressed aspect ◦ List(s) of harmonised standards published in the Official Journal �Official Journal of the European Union C 172 (22 July 2003) � Application of harmonised standards is voluntary (Article 6. 1) ◦ Conformity to be demonstrated according Art 10. 2 EMC Directive 32
Conformity Assessment Procedure EMC Assessment or Application of HS Apparatus Optional report from notified body Product type Technical Documentation D. o. C Name of : manufacturer importer Type : xxx-yyy S/N : 123456 Installation Application of protection requirements EMC Directive 33

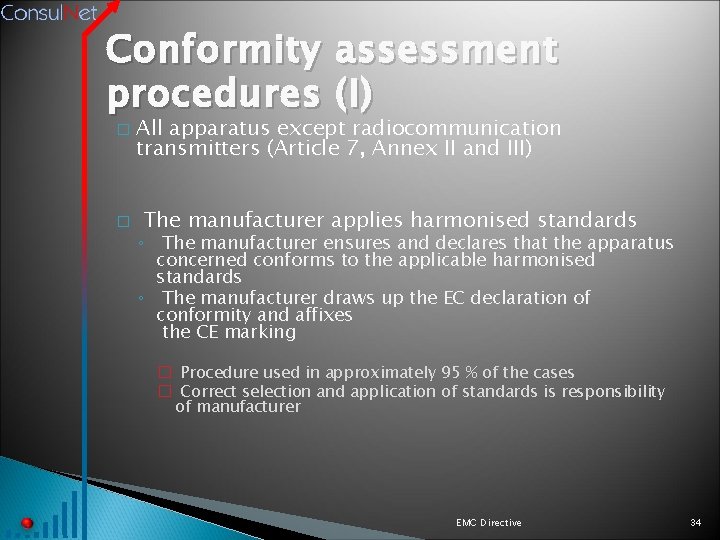

Conformity assessment procedures (I) � � All apparatus except radiocommunication transmitters (Article 7, Annex II and III) The manufacturer applies harmonised standards ◦ The manufacturer ensures and declares that the apparatus concerned conforms to the applicable harmonised standards ◦ The manufacturer draws up the EC declaration of conformity and affixes the CE marking � Procedure used in approximately 95 % of the cases � Correct selection and application of standards is responsibility of manufacturer EMC Directive 34
Conformity assessment procedures (II) � All apparatus except radiocommunication transmitters (Article 7, Annex II and III) � The manufacturer does not apply harmonised standards, or applies them only in part. ◦ The manufacturer ensures and declares that the apparatus satisfies the protection requirements of the EMC Directive. ◦ The manufacturer prepares a Technical Construction File including a technical report or certificate obtained from a Competent Body. ◦ The manufacturer draws up the EC declaration of conformity and affixes the CE marking. � Procedure used in approximately 5 % of the cases � Responsibility for Do. C lies with the manufacturer EMC Directive 35

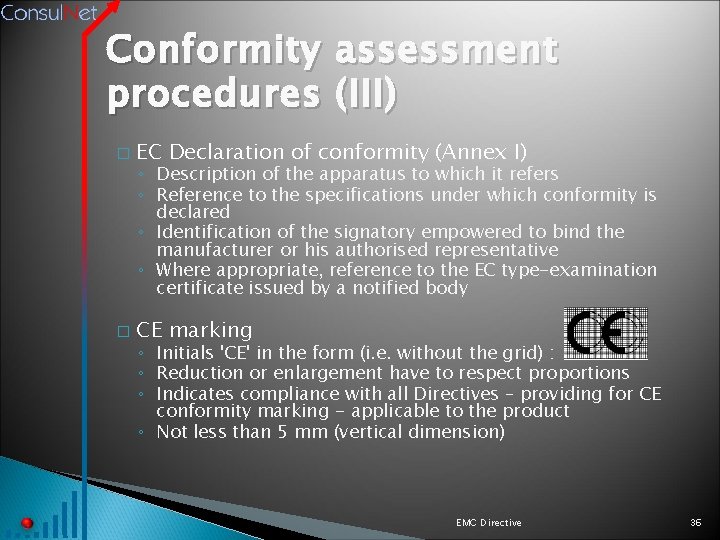

Conformity assessment procedures (III) � EC Declaration of conformity (Annex I) � CE marking ◦ Description of the apparatus to which it refers ◦ Reference to the specifications under which conformity is declared ◦ Identification of the signatory empowered to bind the manufacturer or his authorised representative ◦ Where appropriate, reference to the EC type-examination certificate issued by a notified body ◦ Initials 'CE' in the form (i. e. without the grid) : ◦ Reduction or enlargement have to respect proportions ◦ Indicates compliance with all Directives – providing for CE conformity marking - applicable to the product ◦ Not less than 5 mm (vertical dimension) EMC Directive 36
Summary : EMCD = New Approach Directive New Approach pillar essential requirements of EC directives (EMCD : emission + immunity) reference to technical specifications defined in harmonized standards compliance of products with essential requirements market surveillance (tool for New Approach Directive's enforcement) Stakeholders EU Member States authorities = legislators European standardization bodies Manufacturers + "third" parties National Authorities EMC Directive 37
Role of Member States � � � Member States ensure that only compliant product are put on the EU market (Article 3) : market surveillance. Any non-compliant product to be prohibited, withdrawn from the market or restricted in its free movement ◦ Measure to be notified to the Commission (safeguard clause) � � Member States designate Competent / Notified Bodies and need to apply continual surveillance of these bodies to ensure compliance with the Criteria Assessment criteria notified bodies ◦ ◦ ◦ Availability of personnel and equipment. Technical competence and professional integrity of personnel Independence vs those concerned with the product in question Maintenance of professional secrecy Civil liability insurance EMC Directive 38

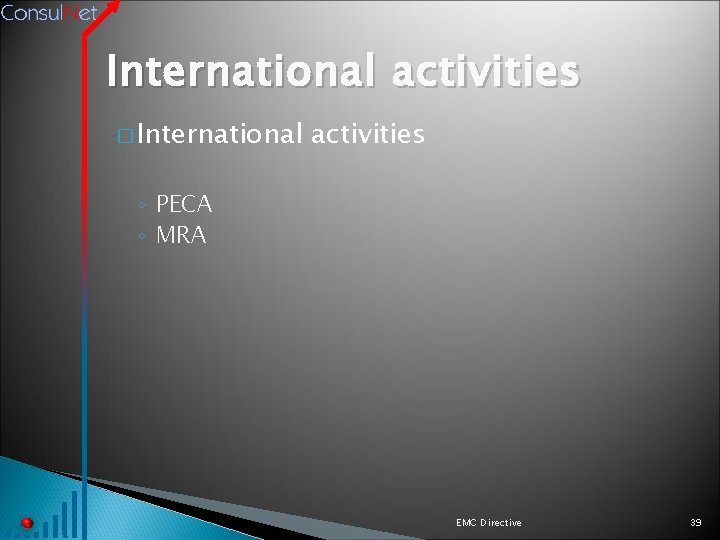

International activities � International activities ◦ PECA ◦ MRA EMC Directive 39

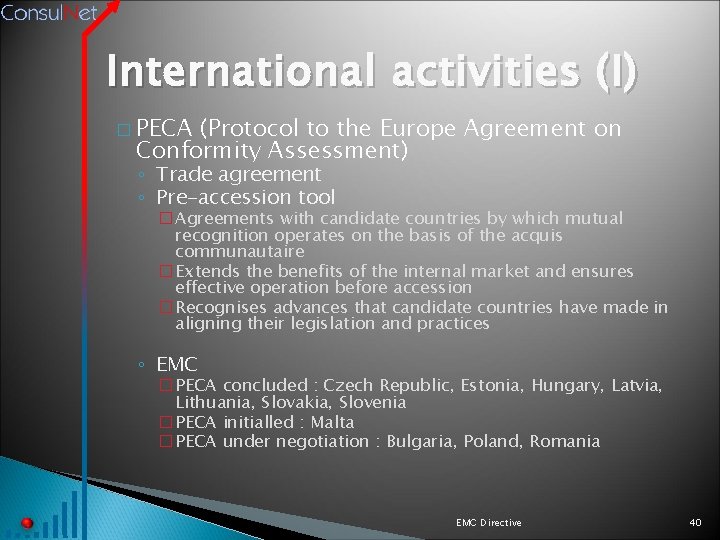

International activities (I) � PECA (Protocol to the Europe Agreement on Conformity Assessment) ◦ Trade agreement ◦ Pre-accession tool �Agreements with candidate countries by which mutual recognition operates on the basis of the acquis communautaire �Extends the benefits of the internal market and ensures effective operation before accession �Recognises advances that candidate countries have made in aligning their legislation and practices ◦ EMC �PECA concluded : Czech Republic, Estonia, Hungary, Latvia, Lithuania, Slovakia, Slovenia �PECA initialled : Malta �PECA under negotiation : Bulgaria, Poland, Romania EMC Directive 40
International activities (II) � MRA (Mutual Recognition Agreements) ◦ Trade agreement �Between Community an a third country which is on a comparable level of thechnical development and have a compatible approach concerning conformity assessment �Based on mutual acceptance of demonstrations of conformity issued by the conformity assessment bodies of one of the Parties of the Agreement in conformity with the legislation of the other Party ◦ EMC �Australia/New Zealand, Canada, Japan, Switzerland, USA EMC Directive 41
Further reading � European Commission DG Enterprise website on the EMC Directive ◦ ◦ ◦ ◦ Directive Guidelines on the application of the Directive Conformity assessment bodies Standardisation Working structure within EU The review of the EMC Directive Frequently asked questions EMC Directive 42
