Embryology: Development of Body Cavity, Serous Membranes and Gut (I) M 1 Gross and Developmental Anatomy 11: 00 -11: 50 AM, January 8, 2009 Dr. Milton M. Sholley Professor of Anatomy and Neurobiology

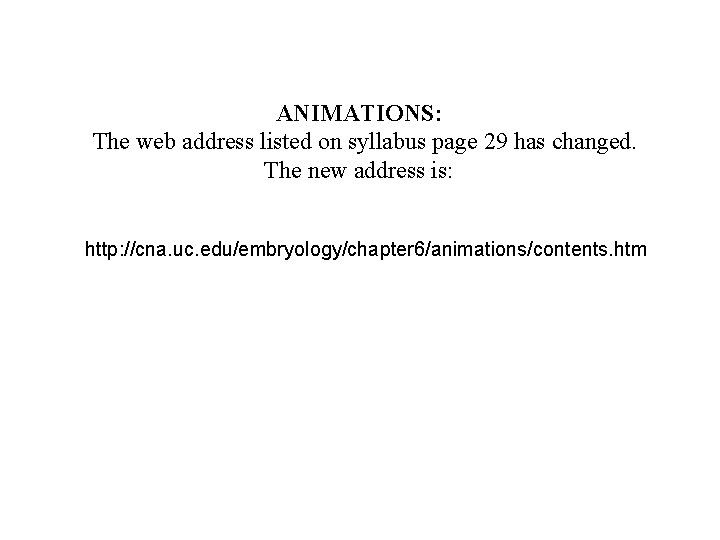

ANIMATIONS: The web address listed on syllabus page 29 has changed. The new address is: http: //cna. uc. edu/embryology/chapter 6/animations/contents. htm

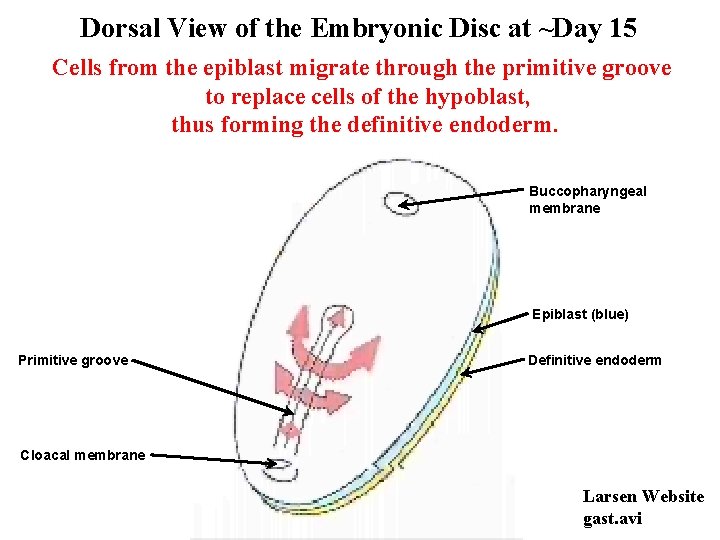

Dorsal View of the Embryonic Disc at ~Day 15 Cells from the epiblast migrate through the primitive groove to replace cells of the hypoblast, thus forming the definitive endoderm. Buccopharyngeal membrane Epiblast (blue) Primitive groove Definitive endoderm Cloacal membrane Larsen Website gast. avi

Dorsal View of the Embryonic Disc The animation will depict ingress of cells from the epiblast through the primitive groove to form the intraembryonic mesoderm (~day 16). Buccopharyngeal membrane The dashed line shows the approximate plane of section used for the cross sectional drawings on syllabus page 32. Primitive groove Epiblast (blue) Cloacal membrane Definitive endoderm Larsen Website gast. avi

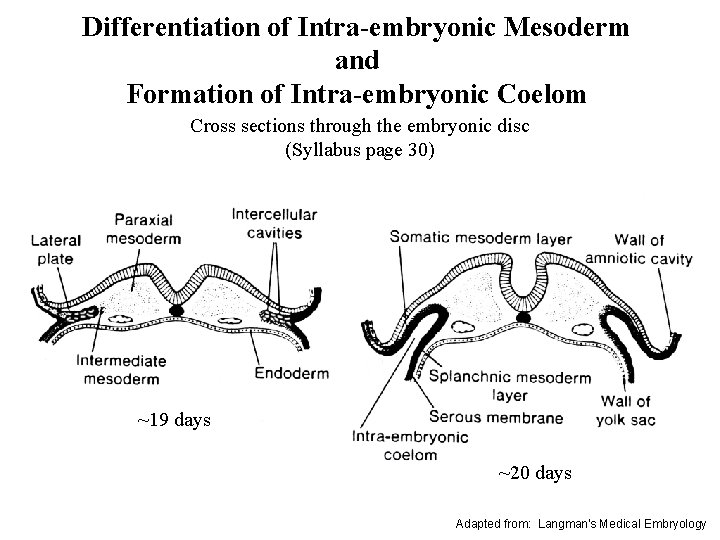

Differentiation of Intra-embryonic Mesoderm and Formation of Intra-embryonic Coelom Cross sections through the embryonic disc (Syllabus page 30) ~19 days ~20 days Adapted from: Langman's Medical Embryology

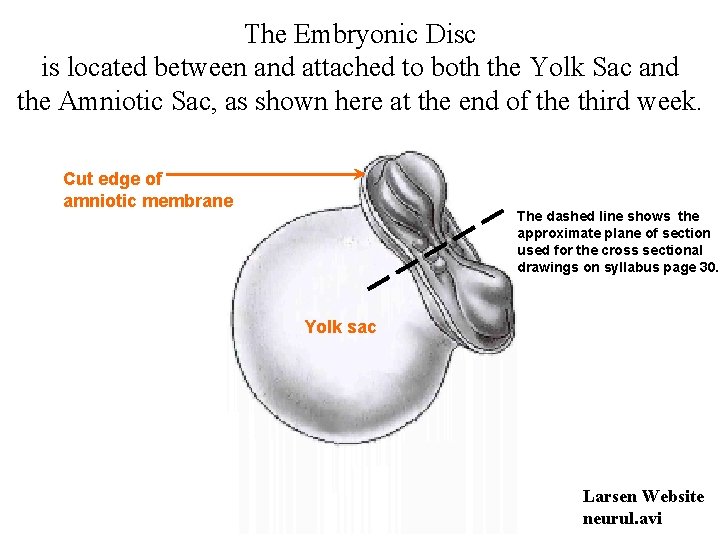

The Embryonic Disc is located between and attached to both the Yolk Sac and the Amniotic Sac, as shown here at the end of the third week. Cut edge of amniotic membrane The dashed line shows the approximate plane of section used for the cross sectional drawings on syllabus page 30. Yolk sac Larsen Website neurul. avi

Differentiation of Intra-embryonic Mesoderm and Formation of Intra-embryonic Coelom Cross sections through the embryonic disc (Syllabus page 30) ~19 days ~20 days Adapted from: Langman's Medical Embryology

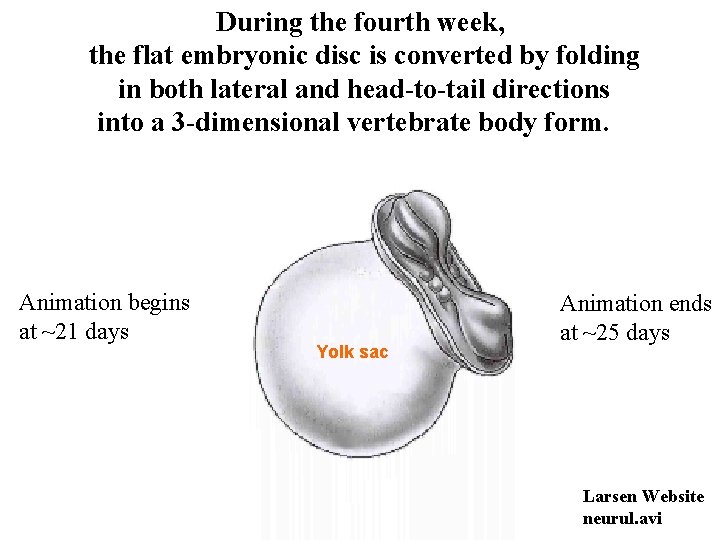

During the fourth week, the flat embryonic disc is converted by folding in both lateral and head-to-tail directions into a 3 -dimensional vertebrate body form. Animation begins at ~21 days Yolk sac Animation ends at ~25 days Larsen Website neurul. avi

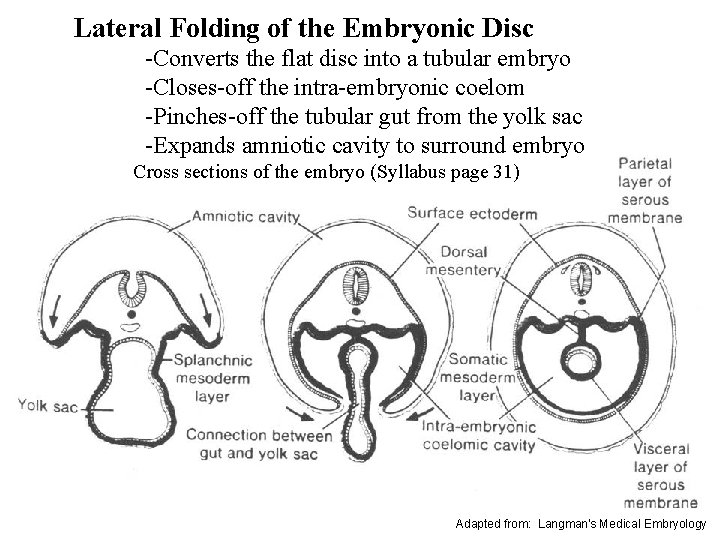

Lateral Folding of the Embryonic Disc -Converts the flat disc into a tubular embryo -Closes-off the intra-embryonic coelom -Pinches-off the tubular gut from the yolk sac -Expands amniotic cavity to surround embryo Cross sections of the embryo (Syllabus page 31) Adapted from: Langman's Medical Embryology

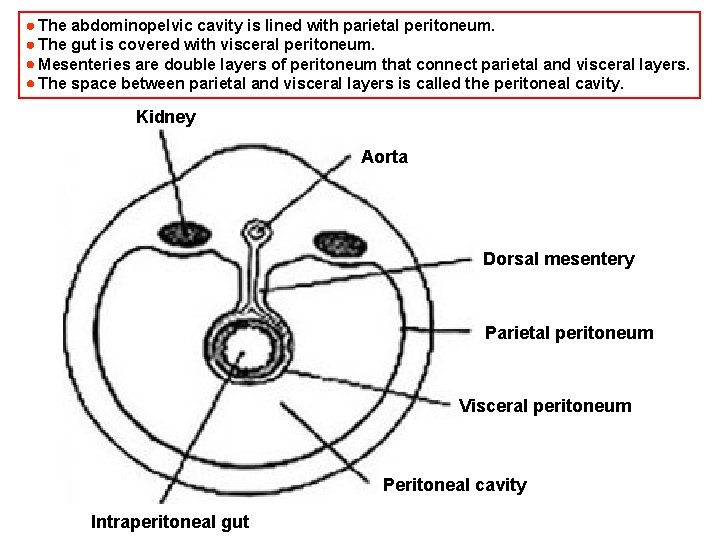

The abdominopelvic cavity is lined with parietal peritoneum. The gut is covered with visceral peritoneum. Mesenteries are double layers of peritoneum that connect parietal and visceral layers. The space between parietal and visceral layers is called the peritoneal cavity. Kidney Aorta Dorsal mesentery Parietal peritoneum Visceral peritoneum Peritoneal cavity Intraperitoneal gut

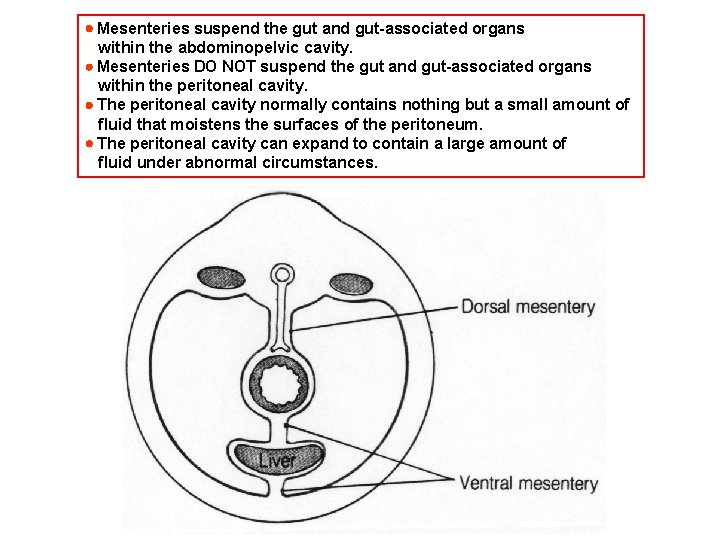

Mesenteries suspend the gut and gut-associated organs within the abdominopelvic cavity. Mesenteries DO NOT suspend the gut and gut-associated organs within the peritoneal cavity. The peritoneal cavity normally contains nothing but a small amount of fluid that moistens the surfaces of the peritoneum. The peritoneal cavity can expand to contain a large amount of fluid under abnormal circumstances.

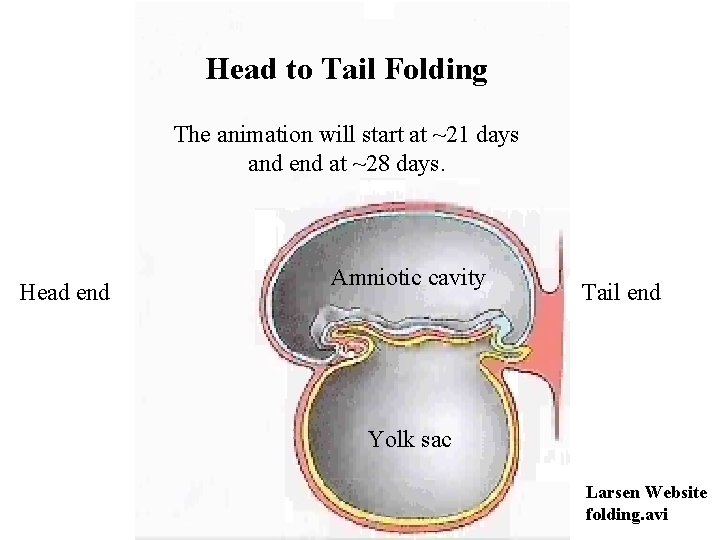

Head to Tail Folding The animation will start at ~21 days and end at ~28 days. Head end Amniotic cavity Tail end Yolk sac Larsen Website folding. avi

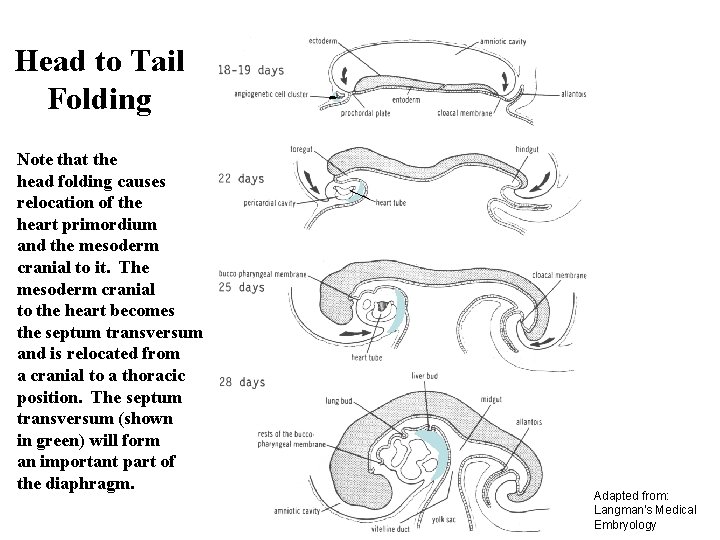

Head to Tail Folding Note that the head folding causes relocation of the heart primordium and the mesoderm cranial to it. The mesoderm cranial to the heart becomes the septum transversum and is relocated from a cranial to a thoracic position. The septum transversum (shown in green) will form an important part of the diaphragm. Adapted from: Langman's Medical Embryology

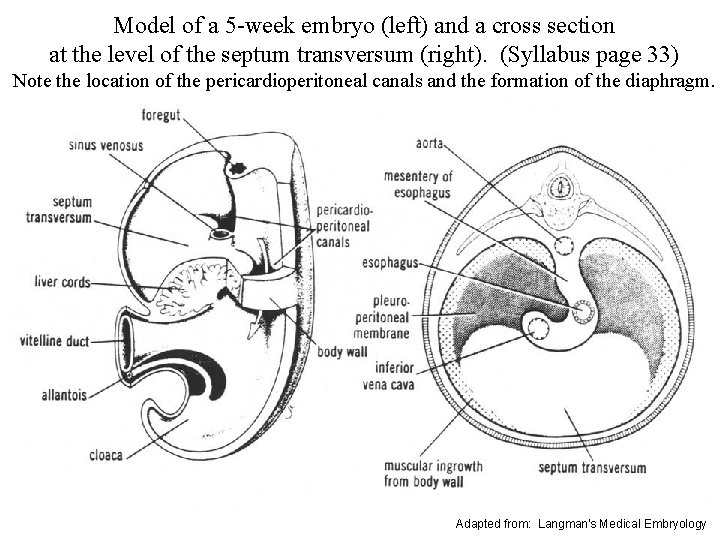

Model of a 5 -week embryo (left) and a cross section at the level of the septum transversum (right). (Syllabus page 33) Note the location of the pericardioperitoneal canals and the formation of the diaphragm. Adapted from: Langman's Medical Embryology

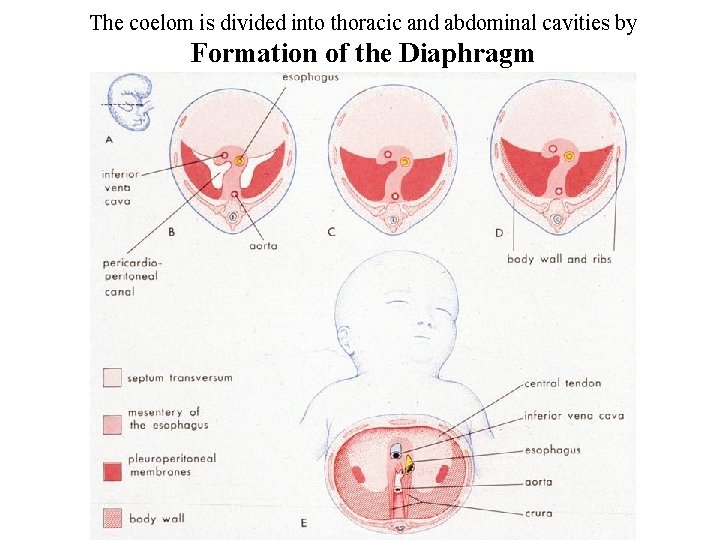

The coelom is divided into thoracic and abdominal cavities by Formation of the Diaphragm

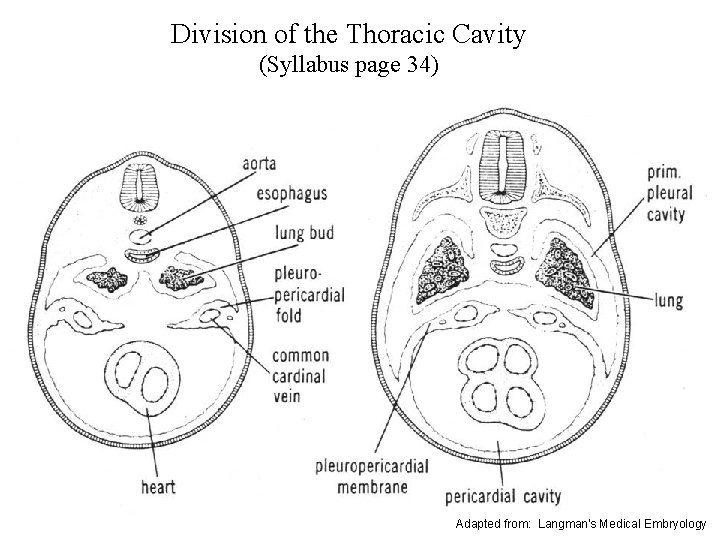

Division of the Thoracic Cavity (Syllabus page 34) Adapted from: Langman's Medical Embryology

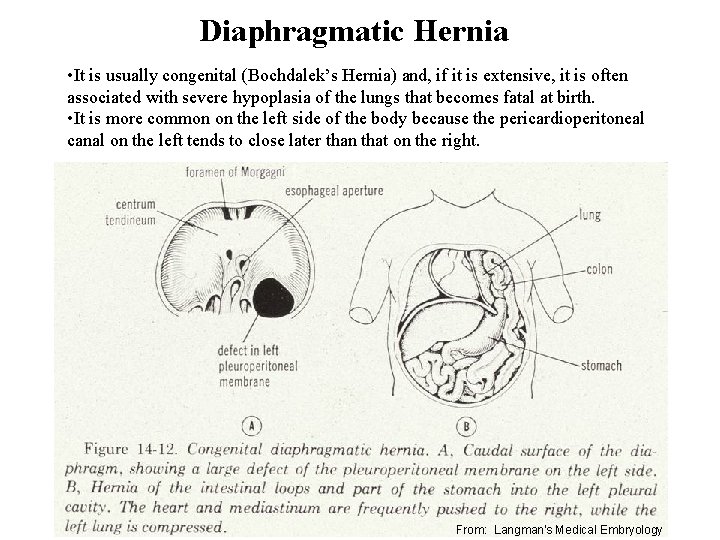

Diaphragmatic Hernia • It is usually congenital (Bochdalek’s Hernia) and, if it is extensive, it is often associated with severe hypoplasia of the lungs that becomes fatal at birth. • It is more common on the left side of the body because the pericardioperitoneal canal on the left tends to close later than that on the right. From: Langman's Medical Embryology

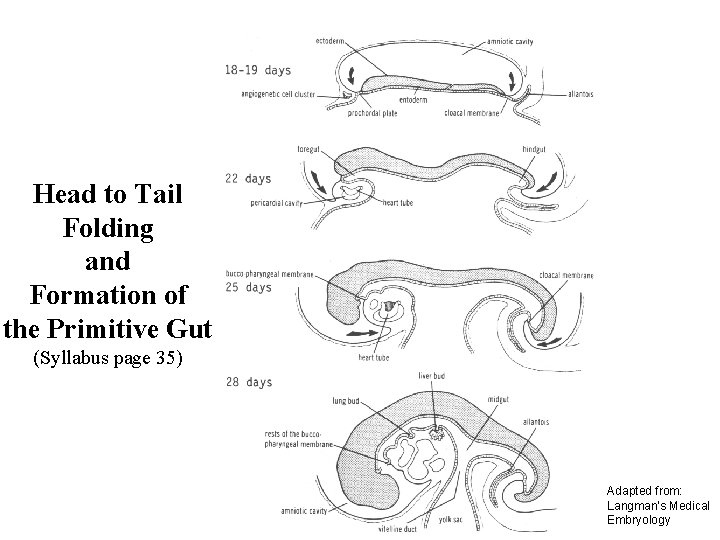

Head to Tail Folding and Formation of the Primitive Gut (Syllabus page 35) Adapted from: Langman's Medical Embryology

Head to Tail Folding The animation will start at ~21 days and end at ~28 days. Head end Amniotic cavity Tail end Yolk sac Larsen Website folding. avi

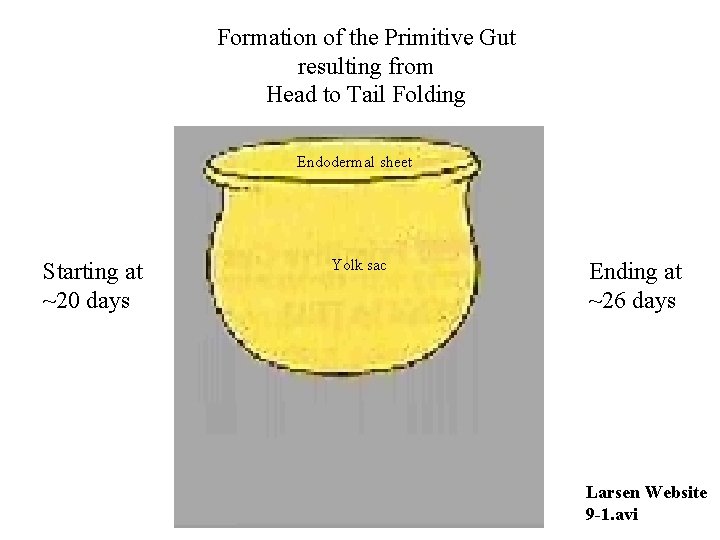

Formation of the Primitive Gut resulting from Head to Tail Folding Endodermal sheet Starting at ~20 days Yolk sac Ending at ~26 days Larsen Website 9 -1. avi

The abdominopelvic cavity is lined with parietal peritoneum. The gut is covered with visceral peritoneum. Mesenteries are double layers of peritoneum that connect parietal and visceral layers. The space between parietal and visceral layers is called the peritoneal cavity. Kidney Aorta Dorsal mesentery Parietal peritoneum Visceral peritoneum Peritoneal cavity Intraperitoneal gut

Mesenteries suspend the gut and gut-associated organs within the abdominopelvic cavity. Mesenteries DO NOT suspend the gut and gut-associated organs within the peritoneal cavity. The peritoneal cavity normally contains nothing but a small amount of fluid that moistens the surfaces of the peritoneum. The peritoneal cavity can expand to contain a large amount of fluid under abnormal circumstances.

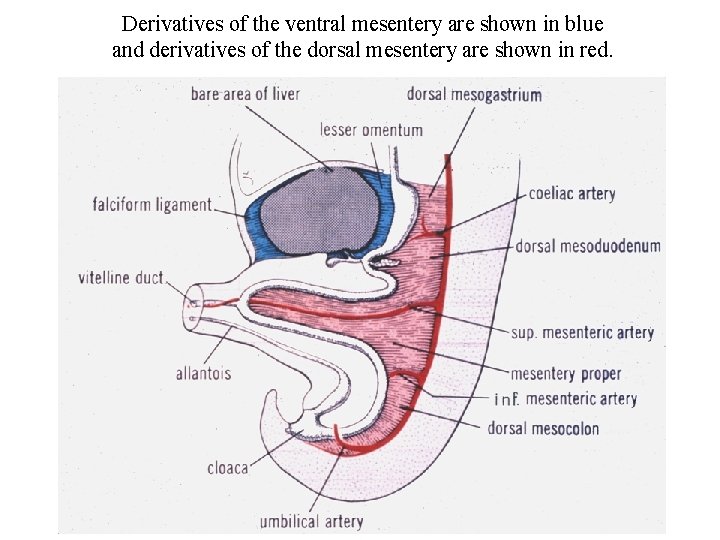

Derivatives of the ventral mesentery are shown in blue and derivatives of the dorsal mesentery are shown in red. From: Langman's Medical Embryology

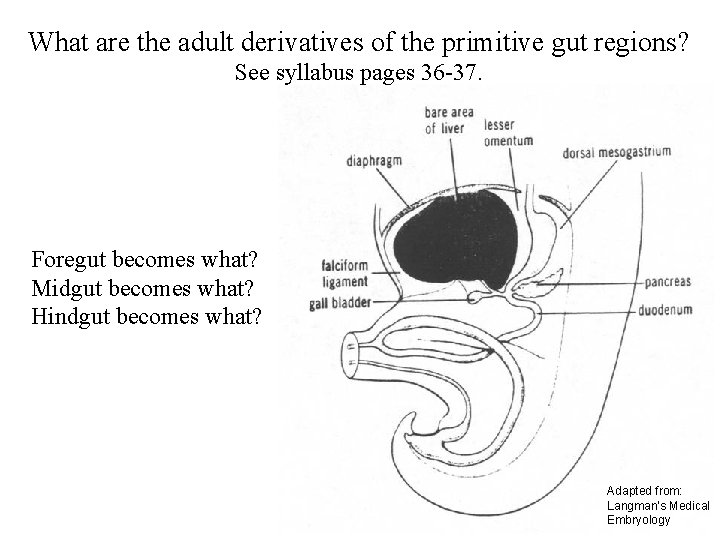

What are the adult derivatives of the primitive gut regions? See syllabus pages 36 -37. Foregut becomes what? Midgut becomes what? Hindgut becomes what? Adapted from: Langman's Medical Embryology

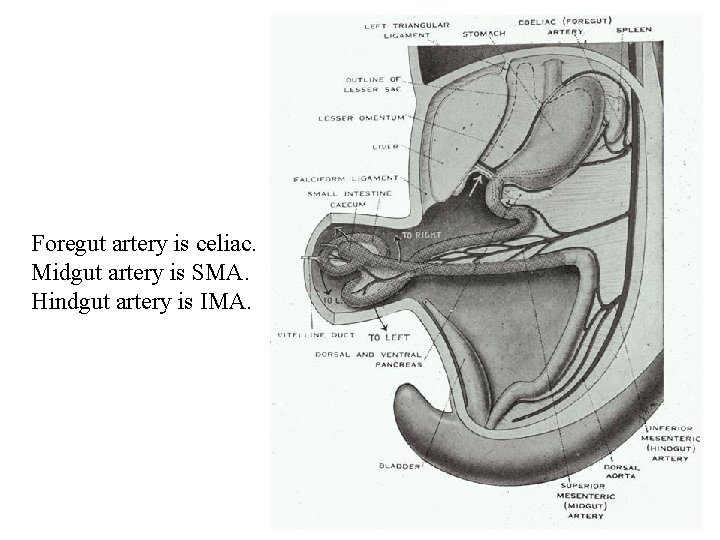

Foregut artery is celiac. Midgut artery is SMA. Hindgut artery is IMA.

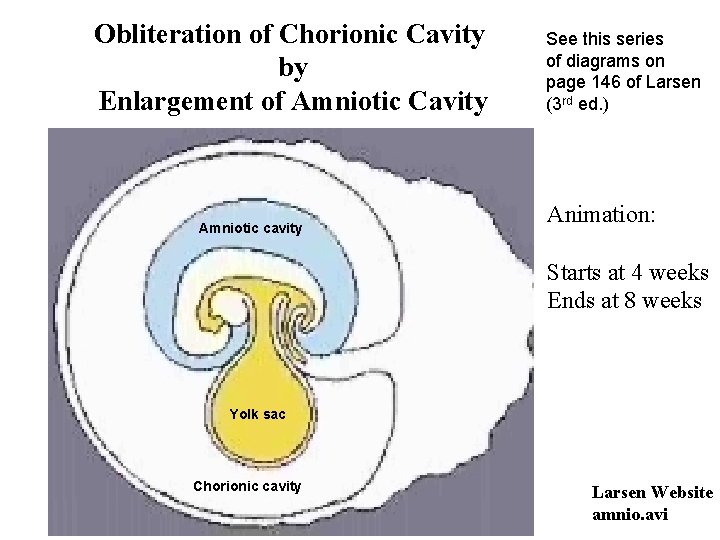

Obliteration of Chorionic Cavity by Enlargement of Amniotic Cavity Amniotic cavity See this series of diagrams on page 146 of Larsen (3 rd ed. ) Animation: Starts at 4 weeks Ends at 8 weeks Yolk sac Chorionic cavity Larsen Website amnio. avi

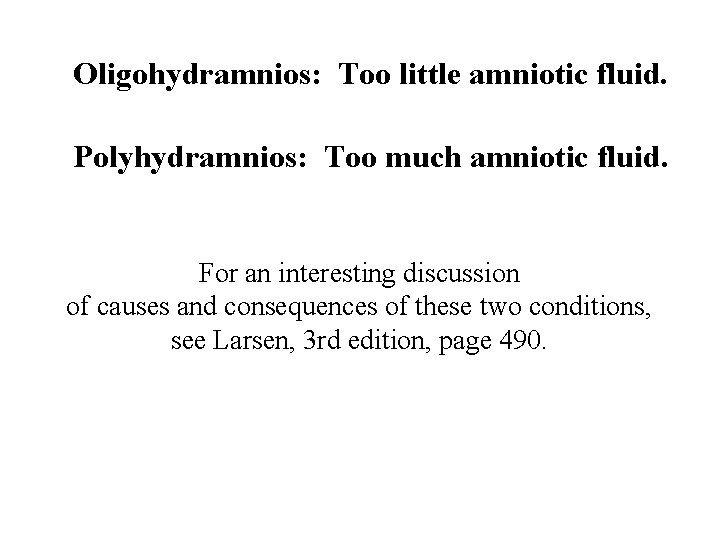

Oligohydramnios: Too little amniotic fluid. Polyhydramnios: Too much amniotic fluid. For an interesting discussion of causes and consequences of these two conditions, see Larsen, 3 rd edition, page 490.
