Embedded Systems Introduction CS 423 Dick Steflik

Embedded Systems Introduction CS 423 Dick Steflik

Embedded Systems Products with included processing elements not general purpose computing platforms Special purpose

Embedded Systems Products with included processing elements not general purpose computing platforms Special purpose computing platforms System On a Chip (So. C) microcontrollers microprocessors ARM RISC - Power. PC INTEL - 808 x Single board computers PC 104 Mini ITX, Pico ITX

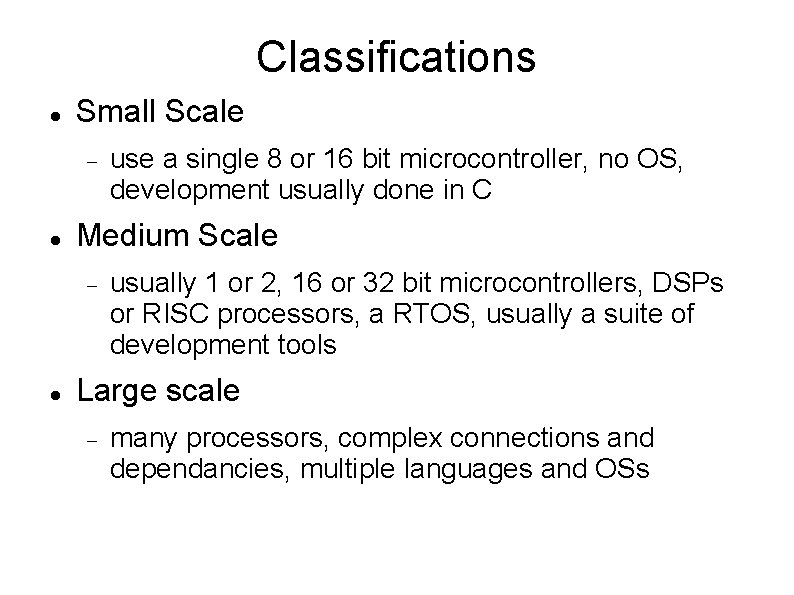

Classifications Small Scale Medium Scale use a single 8 or 16 bit microcontroller, no

Classifications Small Scale Medium Scale use a single 8 or 16 bit microcontroller, no OS, development usually done in C usually 1 or 2, 16 or 32 bit microcontrollers, DSPs or RISC processors, a RTOS, usually a suite of development tools Large scale many processors, complex connections and dependancies, multiple languages and OSs

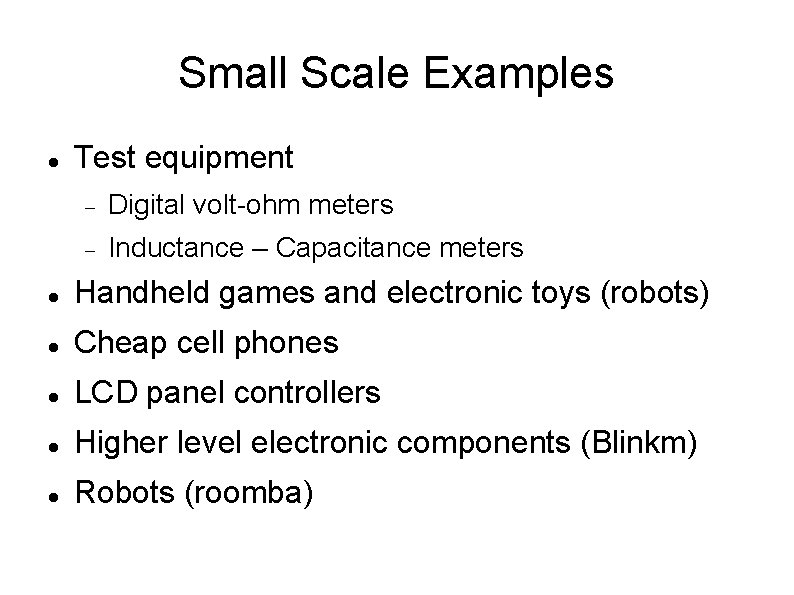

Small Scale Examples Test equipment Digital volt-ohm meters Inductance – Capacitance meters Handheld games

Small Scale Examples Test equipment Digital volt-ohm meters Inductance – Capacitance meters Handheld games and electronic toys (robots) Cheap cell phones LCD panel controllers Higher level electronic components (Blinkm) Robots (roomba)

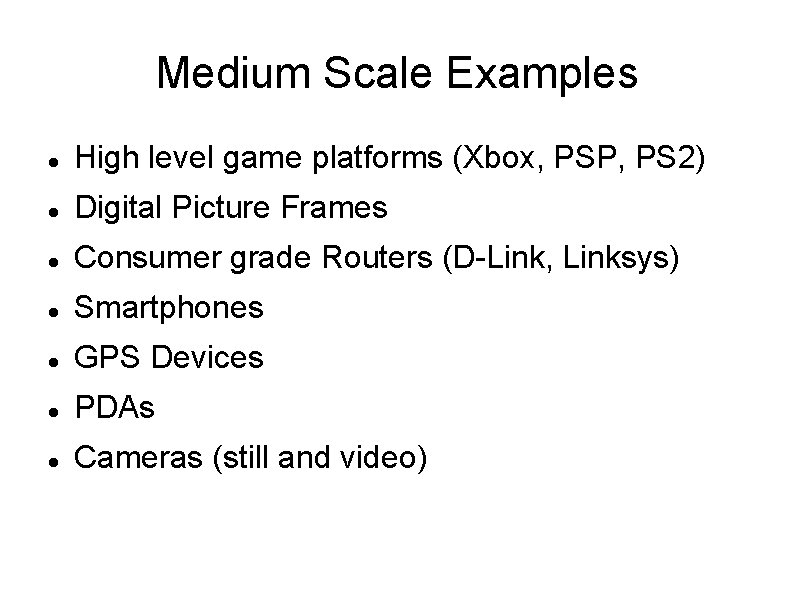

Medium Scale Examples High level game platforms (Xbox, PSP, PS 2) Digital Picture Frames

Medium Scale Examples High level game platforms (Xbox, PSP, PS 2) Digital Picture Frames Consumer grade Routers (D-Link, Linksys) Smartphones GPS Devices PDAs Cameras (still and video)

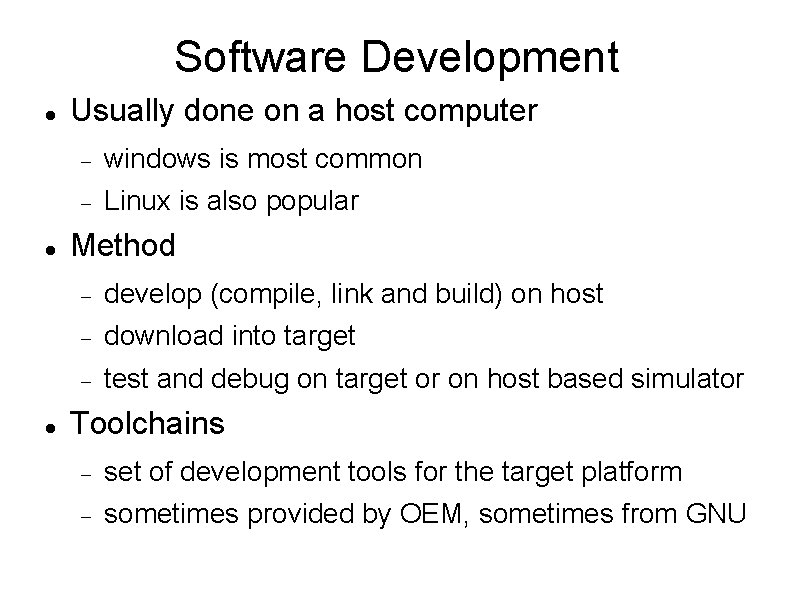

Software Development Usually done on a host computer windows is most common Linux is

Software Development Usually done on a host computer windows is most common Linux is also popular Method develop (compile, link and build) on host download into target test and debug on target or on host based simulator Toolchains set of development tools for the target platform sometimes provided by OEM, sometimes from GNU

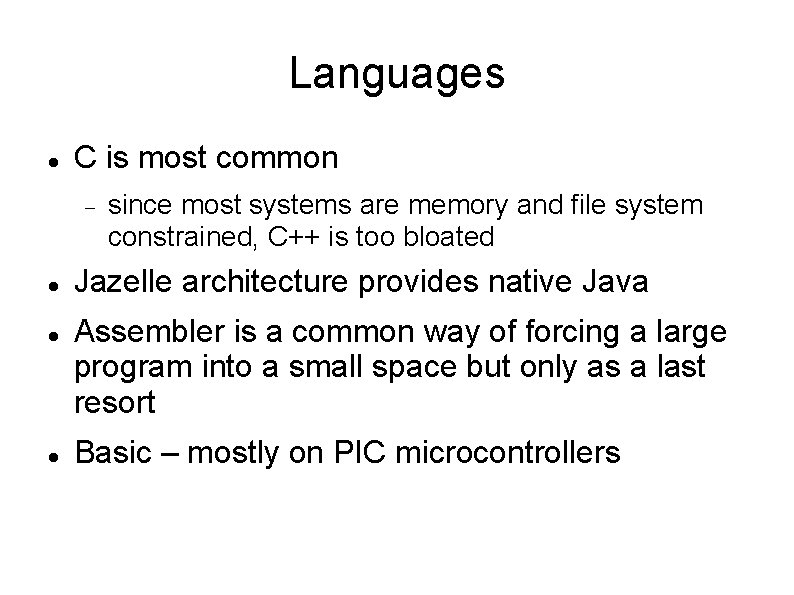

Languages C is most common since most systems are memory and file system constrained,

Languages C is most common since most systems are memory and file system constrained, C++ is too bloated Jazelle architecture provides native Java Assembler is a common way of forcing a large program into a small space but only as a last resort Basic – mostly on PIC microcontrollers
