Embedded Systems Design Though Curriculum Jacqueline Bannister Luke

Embedded Systems Design Though Curriculum Jacqueline Bannister Luke Harvey Jacob Holen Jordan Peterson

Problem Statement The Department of Computer Engineering has found that underclassman students are struggling to see the connection between concepts learned within the curriculum and real world applications. Additionally the curriculum of each course tends to be compartmentalized, therefore not providing a birds eye view of the entire field. This Computer Engineering field encompasses the areas of embedded systems, computer architecture and software systems. Additional Issues: • Little student involvement in clubs related to the program • Students quickly lose interest in the program because of the difficulty of the curriculum and lack of encountering real world applications or design experiences

Need Statement Design an inquiry-based learning module that focuses on the use of course curriculum in the area of embedded systems for the Computer Engineering department. As outlined in the ADEPT proposal this program should: • Motivate students to learn new material • Provide alternate learning methodologies to address different learning styles • Increase the design experience in the computer engineering program • Motivate students to create a community of learners focused around problem solving

System Design - Requirements • Projects must effectively integrate knowledge expected of students for that given year • The courses will define checkpoints and milestones for students while still allowing for a design experience • The proposed modules must engage student interest • Should accommodate for various levels of skill sets and learning styles • Should demonstrate area of embedded systems using robotics application

Course Breakdown

System Design – Sophomore Class

Dry Erase Bot Competition • Goal: Color more squares than opponent in time limit • Avoid obstacles, boundary, enemy robot • Team’s robot designs will be their own choice using given supplies

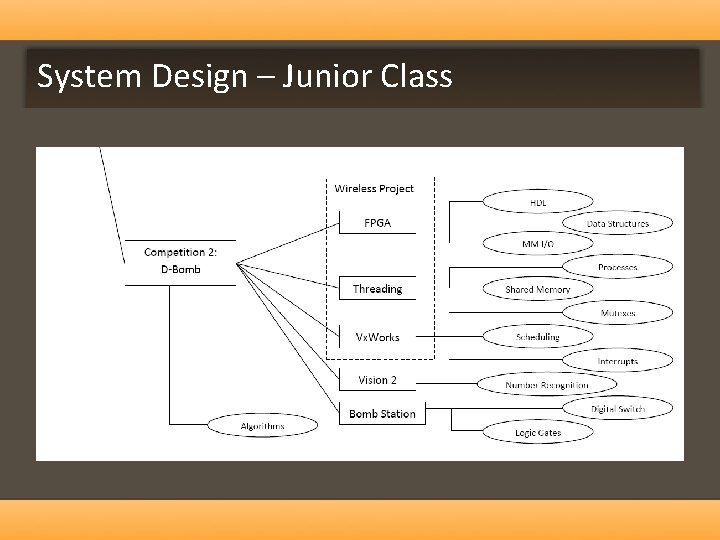

System Design – Junior Class

D-Bomb Robot Competition • Goal: Autonomously find “Bomb” object in a room filled with various obstacles • Avoid obstacles, boundaries, danger • Deactivate “bomb” once located • Map path made around room

Class Outline Introduction to competition Students given tutorials for all components Students loaned a box of components Project milestones due every 3 -4 weeks Final Report Competition

Platform • NI Compact Rio 9073 – – Up to 8 modules Onboard FPGA Heavy Duty Expensive • NI Single Board Compact Rio – – Up to 4 modules Onboard FPGA Not so heavy duty Cheaper

Software/Hardware • NI Lab. VIEW – Real-time – FPGA – Embedded • Libraries • NI Smart Camera – Image Recognition • • • Servos/Linear Actuators IR Sensor Sonar Light Sensor Chassis (body, wheels, etc) Breadboard/Electronics

Cost of components Component Quantity Price Total c. RIO 1 1500 Modules 6 300 -1000 3150 Smart Camera 1 2000 Servo/Stepper 2 20 40 Linear Actuator 2 40 80 DC motor 2 -4 20 60 IR Sensor 1 10 10 Chassis N/A ? ? Compass 1 30 30 Electronics N/A Cheap cheap Wireless 1 N/A

Success Metrics(Test) Execution of course material Each component implemented Prototype robot Assure robots can perform required tasks Experimental Course
