Embedded System Lab. Cognitive SSD: A Deep Learning Engine for In. Storage Data Retrieval S. Liang et al. Usenix ’ 19, ATC, 2019 2020. 05. 11 Presentation by Shin Hojin ghwls 03 s@gmail. com
Embedded System Lab. Content 1. Reference 2. Introduction 3. Background 4. Cognitive SSD System 5. DLG-x Accelerator 6. Evaluation 7. Conclusion 2

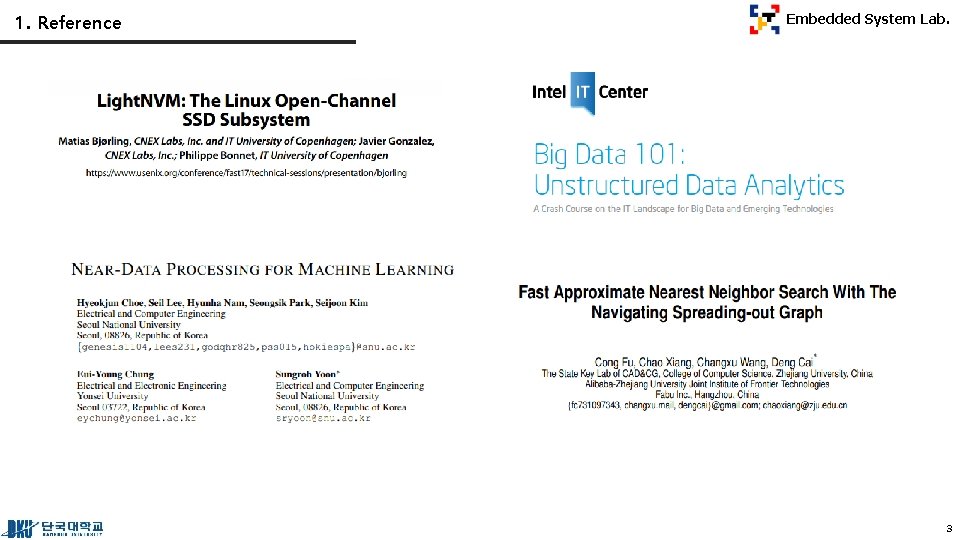

1. Reference Embedded System Lab. 3

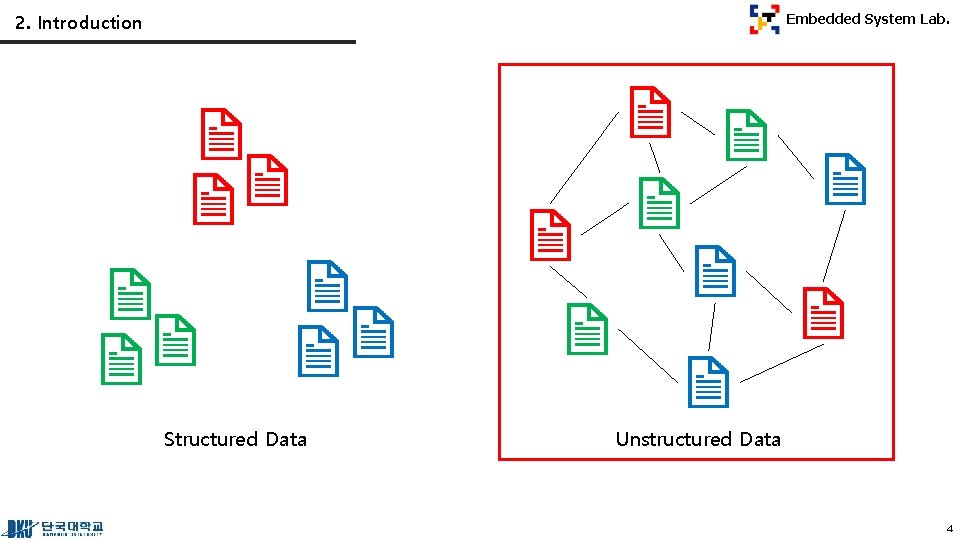

2. Introduction Embedded System Lab. Structured Data Unstructured Data 4
2. Introduction Embedded System Lab. § Unstructured Data § This data occupies to 80% of storage capacity in data centers § It leads to intensive retrieval requests issued by users § Challenge to processing throughput and power consumption § Reduce the total cost of ownership (TCO) of datacenters 80% 5

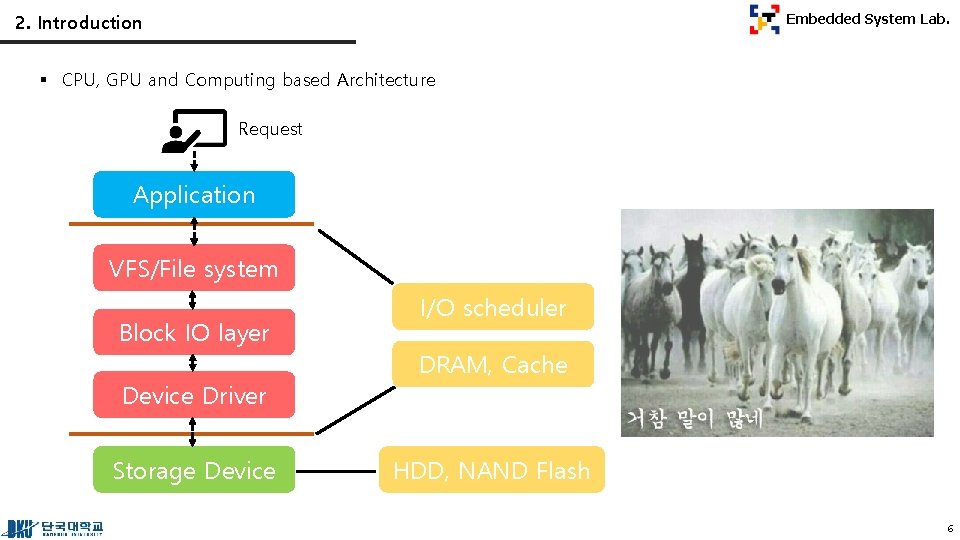

2. Introduction Embedded System Lab. § CPU, GPU and Computing based Architecture Request Application VFS/File system Block IO layer Device Driver Storage Device I/O scheduler DRAM, Cache HDD, NAND Flash 6

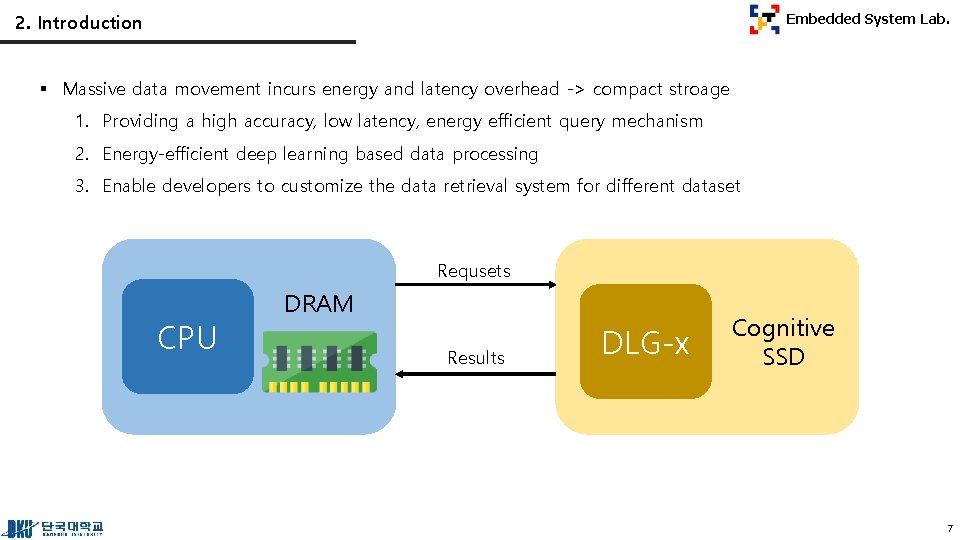

2. Introduction Embedded System Lab. § Massive data movement incurs energy and latency overhead -> compact stroage 1. Providing a high accuracy, low latency, energy efficient query mechanism 2. Energy-efficient deep learning based data processing 3. Enable developers to customize the data retrieval system for different dataset Requsets CPU DRAM Results DLG-x Cognitive SSD 7

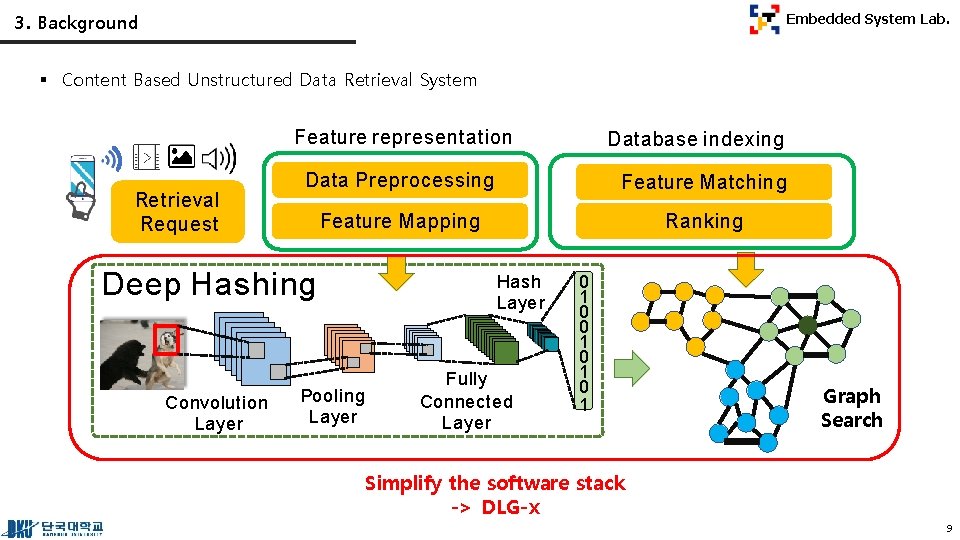

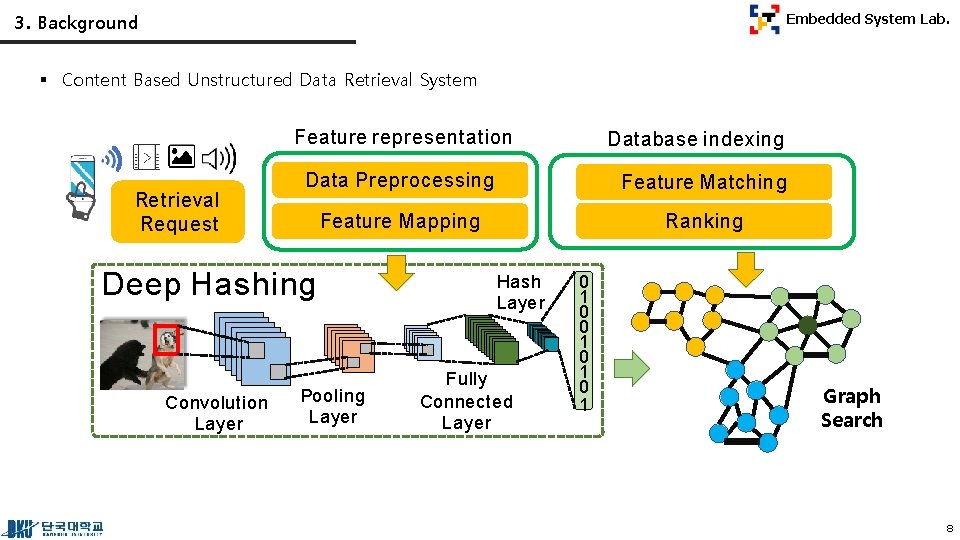

3. Background Embedded System Lab. § Content Based Unstructured Data Retrieval System Feature representation Retrieval Request Data Preprocessing Feature Matching Feature Mapping Ranking Deep Hashing Convolution Layer Database indexing Pooling Layer Hash Layer Fully Connected Layer 0 1 0 1 0 1 Graph Search 8
3. Background Embedded System Lab. § Content Based Unstructured Data Retrieval System Feature representation Retrieval Request Data Preprocessing Feature Matching Feature Mapping Ranking Deep Hashing Convolution Layer Database indexing Pooling Layer Hash Layer Fully Connected Layer 0 1 0 1 0 1 Graph Search Simplify the software stack -> DLG-x 9

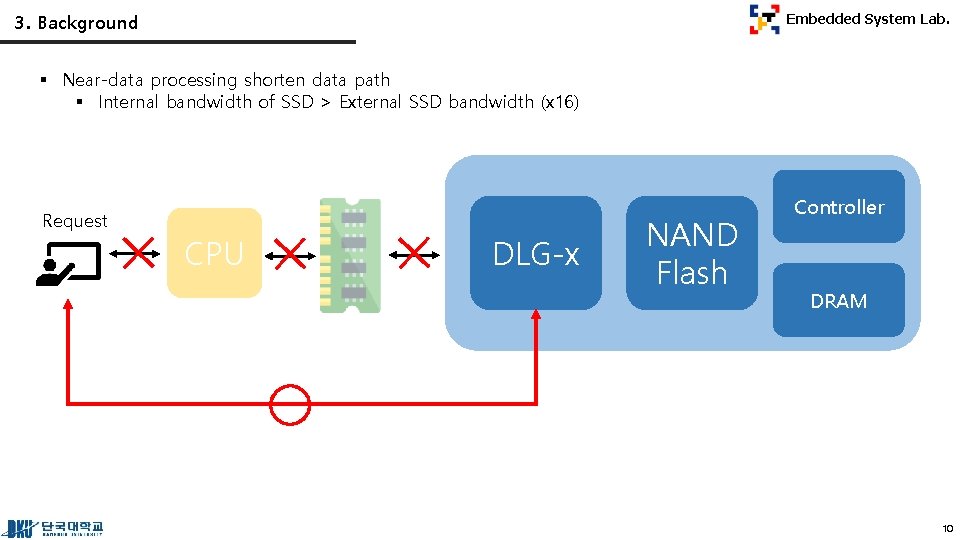

3. Background Embedded System Lab. § Near-data processing shorten data path § Internal bandwidth of SSD > External SSD bandwidth (x 16) Request CPU DLG-x NAND Flash Controller DRAM 10
3. Cognitive SSD System Embedded System Lab. 11

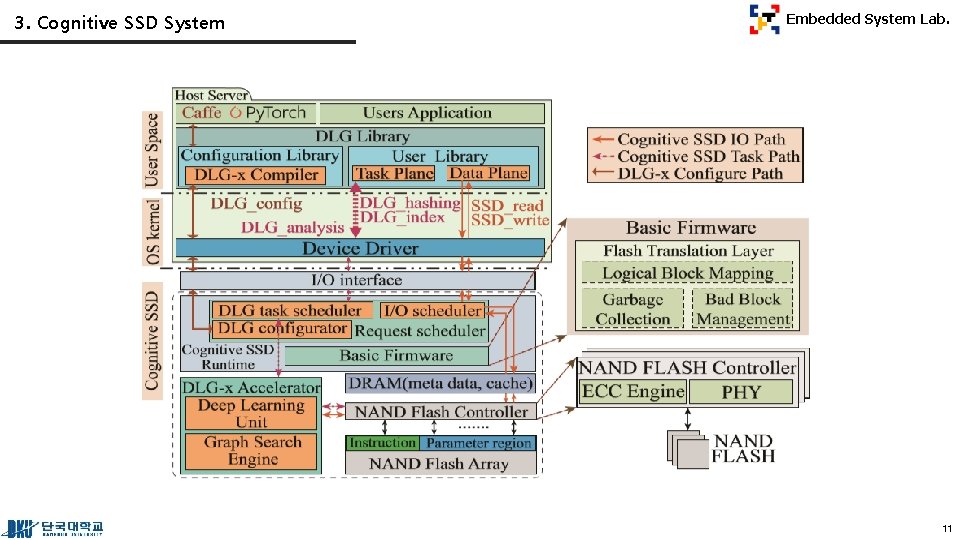

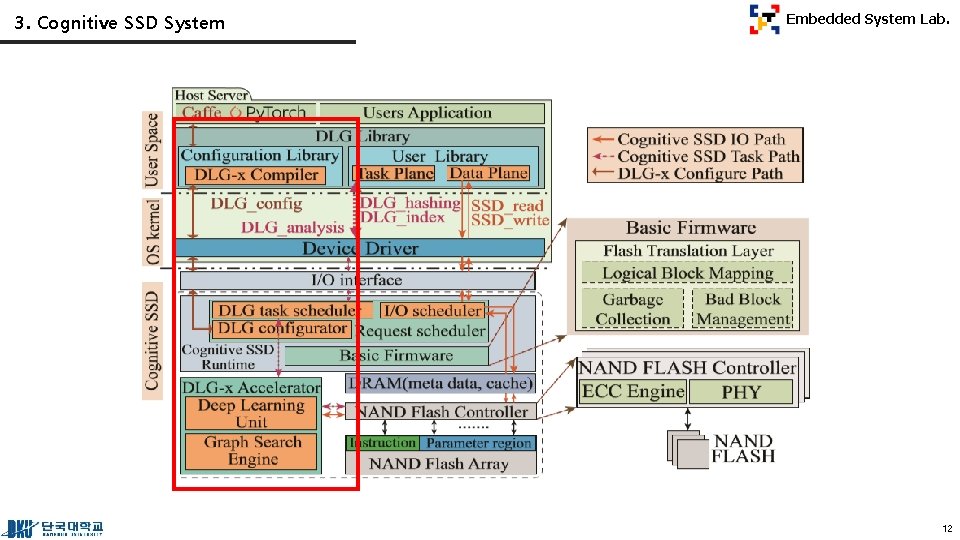

3. Cognitive SSD System Embedded System Lab. 12

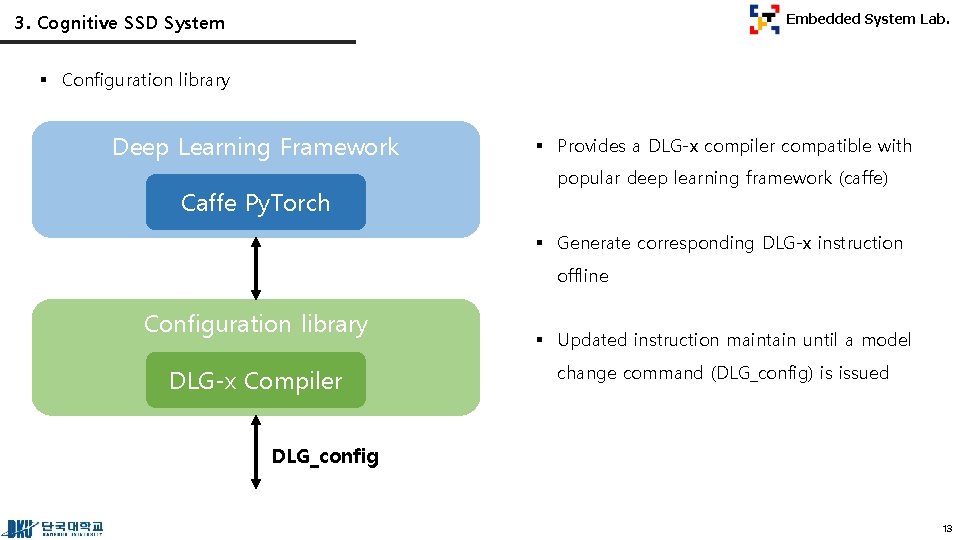

3. Cognitive SSD System Embedded System Lab. § Configuration library Deep Learning Framework Caffe Py. Torch § Provides a DLG-x compiler compatible with popular deep learning framework (caffe) § Generate corresponding DLG-x instruction offline Configuration library DLG-x Compiler § Updated instruction maintain until a model change command (DLG_config) is issued DLG_config 13

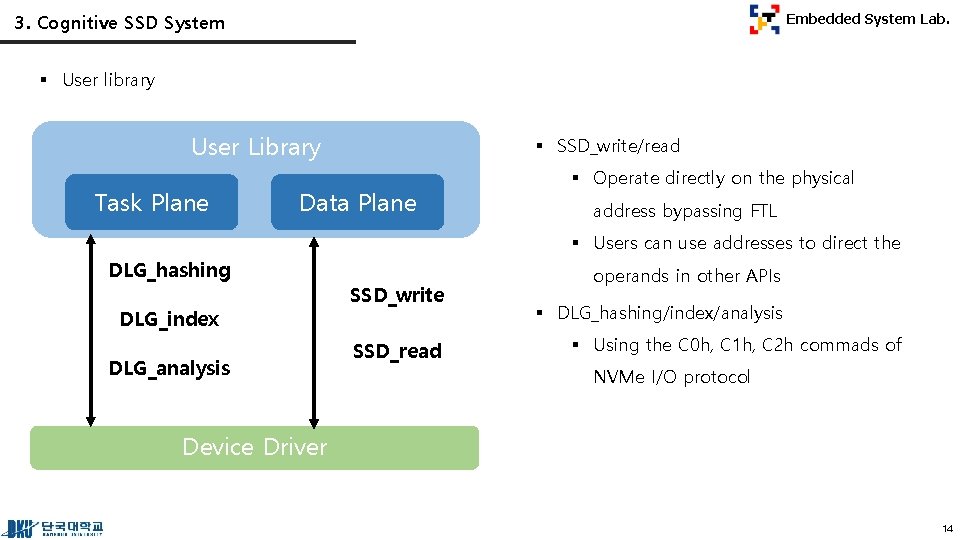

3. Cognitive SSD System Embedded System Lab. § User library User Library Task Plane § SSD_write/read Data Plane § Operate directly on the physical address bypassing FTL § Users can use addresses to direct the DLG_hashing DLG_index DLG_analysis SSD_write SSD_read operands in other APIs § DLG_hashing/index/analysis § Using the C 0 h, C 1 h, C 2 h commads of NVMe I/O protocol Device Driver 14

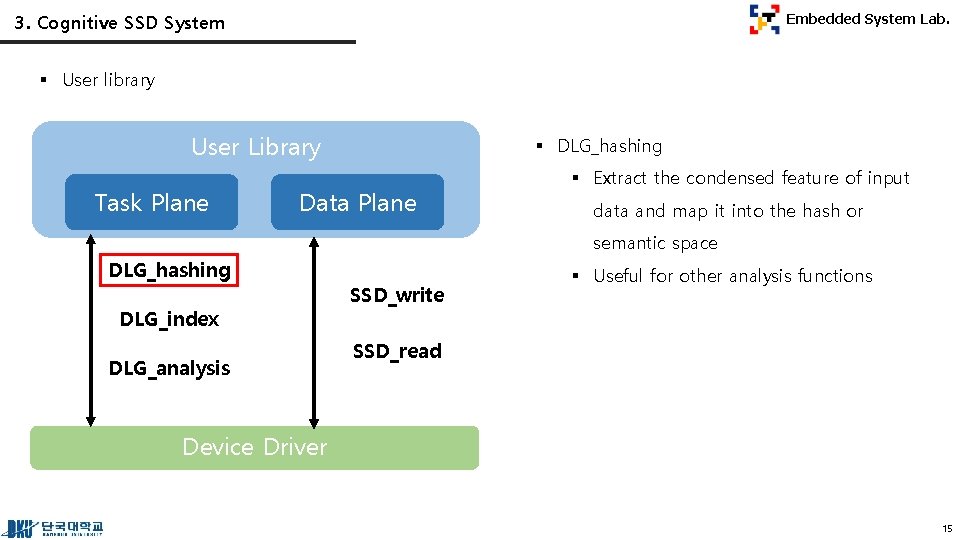

3. Cognitive SSD System Embedded System Lab. § User library User Library Task Plane § DLG_hashing Data Plane § Extract the condensed feature of input data and map it into the hash or semantic space DLG_hashing DLG_index DLG_analysis SSD_write § Useful for other analysis functions SSD_read Device Driver 15

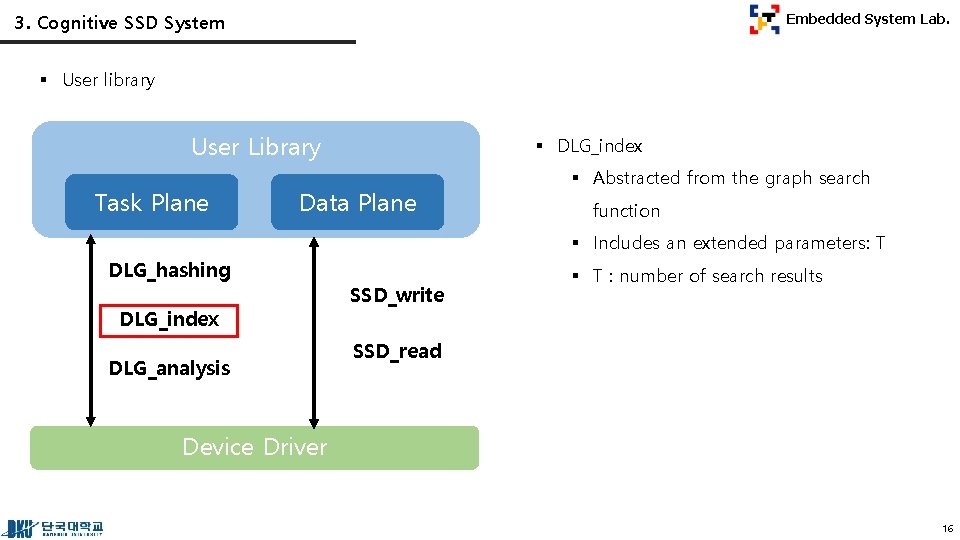

3. Cognitive SSD System Embedded System Lab. § User library User Library Task Plane § DLG_index Data Plane § Abstracted from the graph search function § Includes an extended parameters: T DLG_hashing DLG_index DLG_analysis SSD_write § T : number of search results SSD_read Device Driver 16

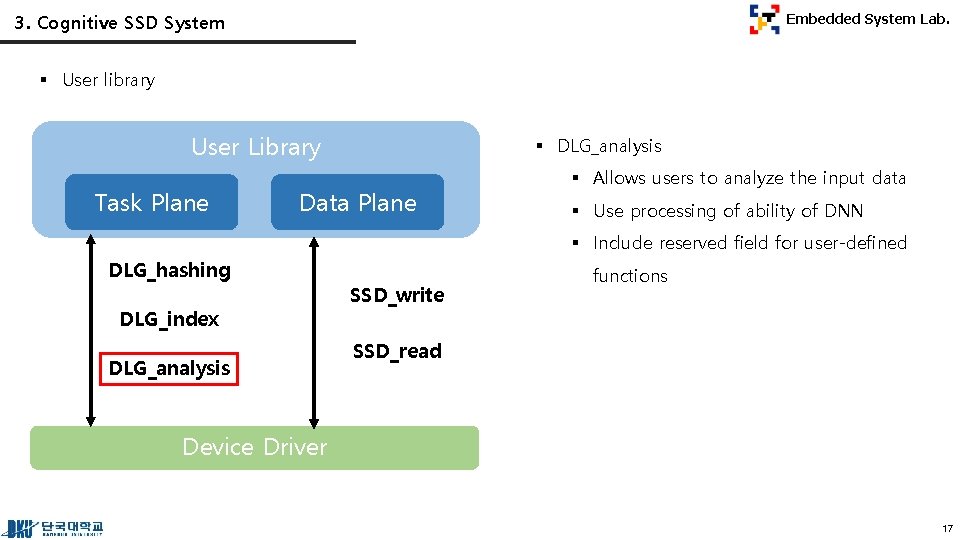

3. Cognitive SSD System Embedded System Lab. § User library User Library Task Plane § DLG_analysis Data Plane § Allows users to analyze the input data § Use processing of ability of DNN § Include reserved field for user-defined DLG_hashing DLG_index DLG_analysis SSD_write functions SSD_read Device Driver 17

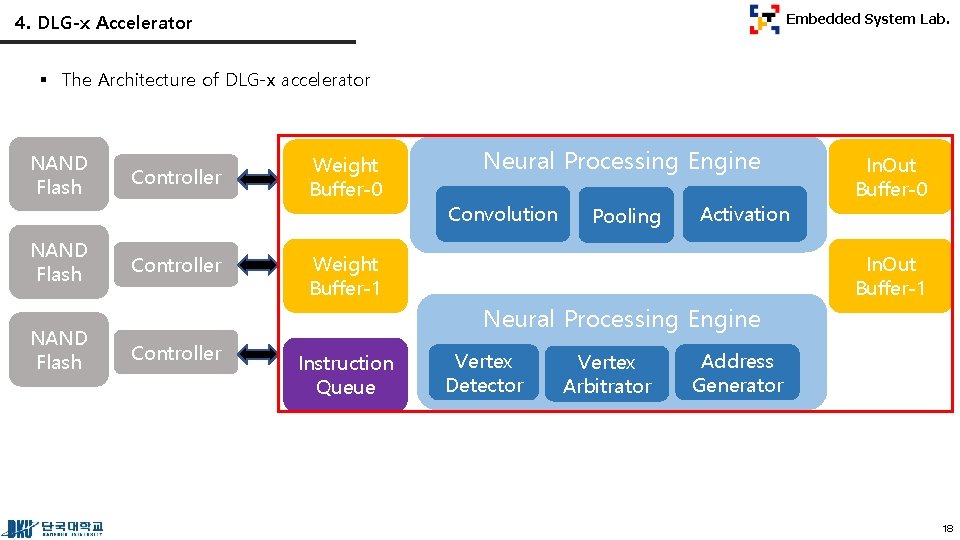

4. DLG-x Accelerator Embedded System Lab. § The Architecture of DLG-x accelerator NAND Flash Controller Weight Buffer-0 Neural Processing Engine Neural Convolution Pooling Activation Weight Buffer-1 In. Out Buffer-0 In. Out Buffer-1 Neural Processing Engine Controller Instruction Queue Vertex Detector Vertex Arbitrator Address Generator 18

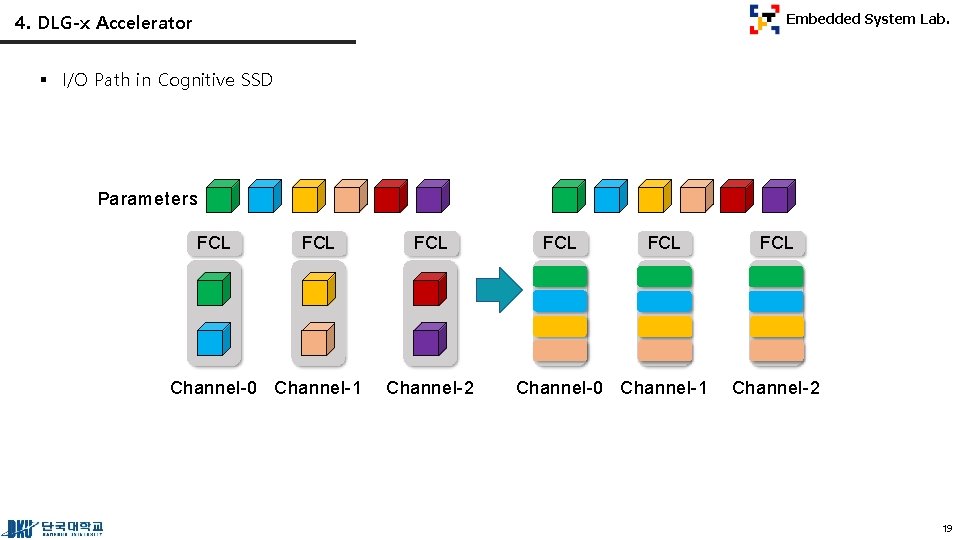

4. DLG-x Accelerator Embedded System Lab. § I/O Path in Cognitive SSD Parameters FCL FCL Channel-0 Channel-1 FCL Channel-2 19

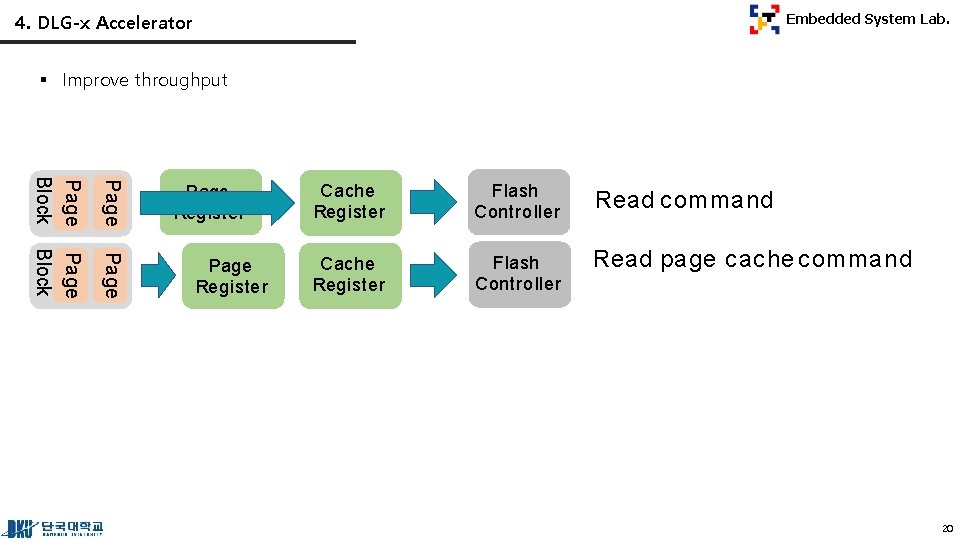

4. DLG-x Accelerator Embedded System Lab. § Improve throughput Page Block Page Register Cache Register Flash Controller Read command Cache Register Flash Controller Read page cache command 20

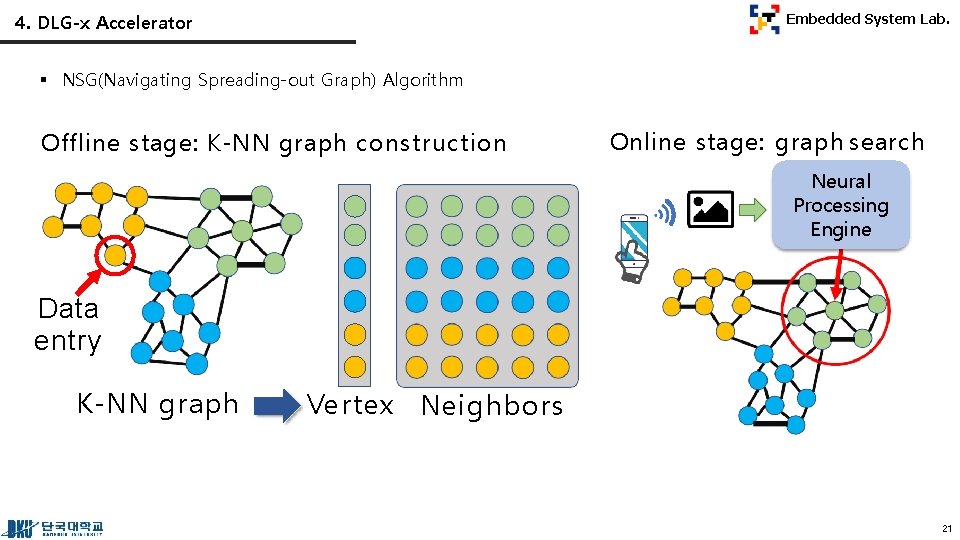

4. DLG-x Accelerator Embedded System Lab. § NSG(Navigating Spreading-out Graph) Algorithm Offline stage: K-NN graph construction Online stage: graph search Neural Processing Engine Data entry K-NN graph Vertex Neighbors 21

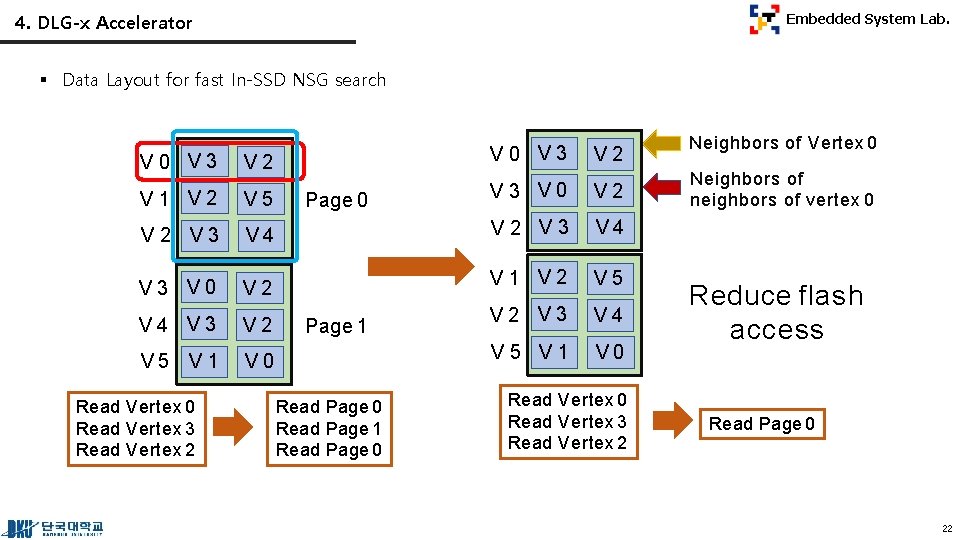

4. DLG-x Accelerator Embedded System Lab. § Data Layout for fast In-SSD NSG search V 2 V 0 V 3 V 2 V 1 V 2 V 5 V 3 V 0 V 2 V 3 V 4 V 3 V 0 V 2 V 1 V 2 V 5 V 4 V 3 V 2 V 3 V 4 V 5 V 1 V 0 V 0 V 3 Read Vertex 0 Read Vertex 3 Read Vertex 2 Page 0 Page 1 Read Page 0 Read Vertex 3 Read Vertex 2 Neighbors of Vertex 0 Neighbors of neighbors of vertex 0 Reduce flash access Read Page 0 22

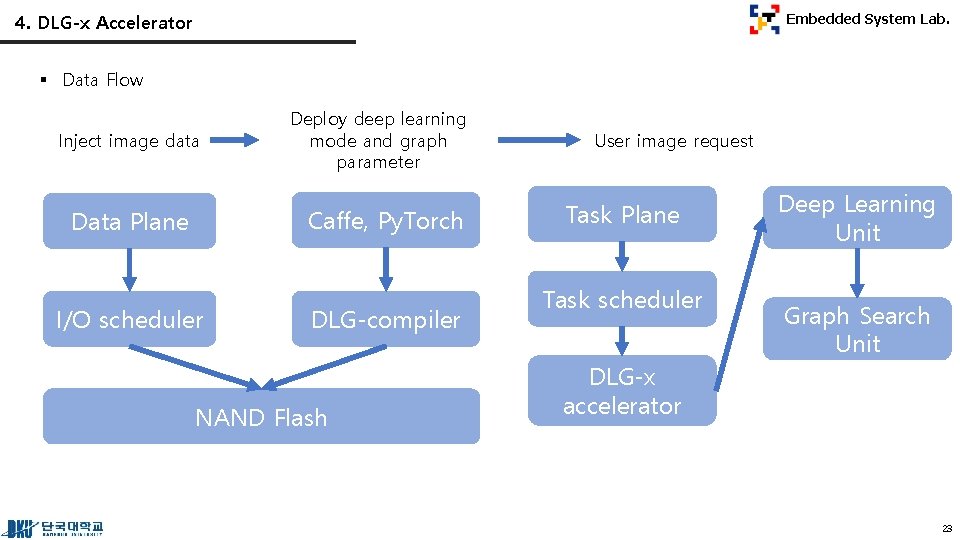

4. DLG-x Accelerator Embedded System Lab. § Data Flow Inject image data Deploy deep learning mode and graph parameter Caffe, Py. Torch Data Plane I/O scheduler DLG-compiler NAND Flash User image request Task Plane Task scheduler Deep Learning Unit Graph Search Unit DLG-x accelerator 23

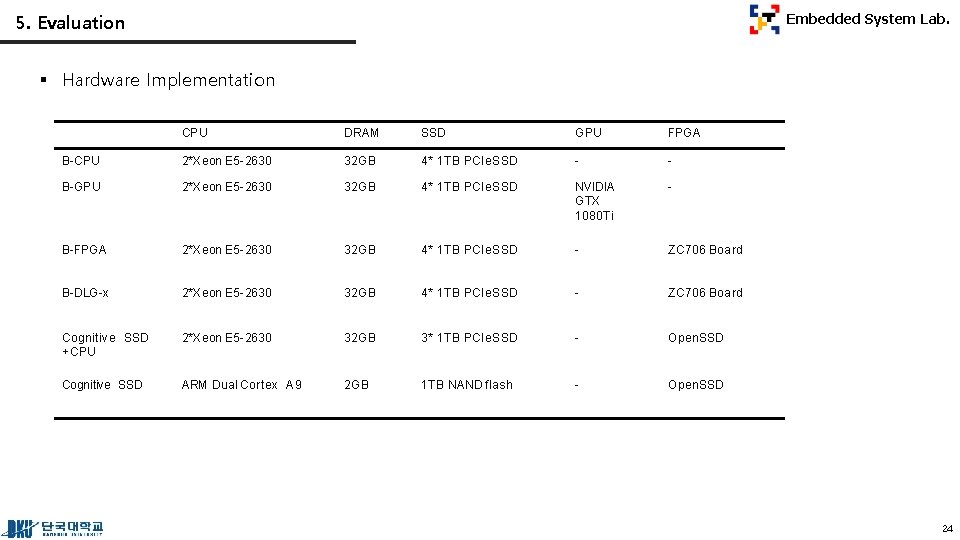

5. Evaluation Embedded System Lab. § Hardware Implementation CPU DRAM SSD GPU FPGA B-CPU 2*Xeon E 5 -2630 32 GB 4* 1 TB PCIe SSD - - B-GPU 2*Xeon E 5 -2630 32 GB 4* 1 TB PCIe SSD NVIDIA GTX 1080 Ti - B-FPGA 2*Xeon E 5 -2630 32 GB 4* 1 TB PCIe SSD - ZC 706 Board B-DLG-x 2*Xeon E 5 -2630 32 GB 4* 1 TB PCIe SSD - ZC 706 Board Cognitive SSD + CPU 2*Xeon E 5 -2630 32 GB 3* 1 TB PCIe SSD - Open. SSD Cognitive SSD ARM Dual Cortex A 9 2 GB 1 TB NAND flash - Open. SSD 24

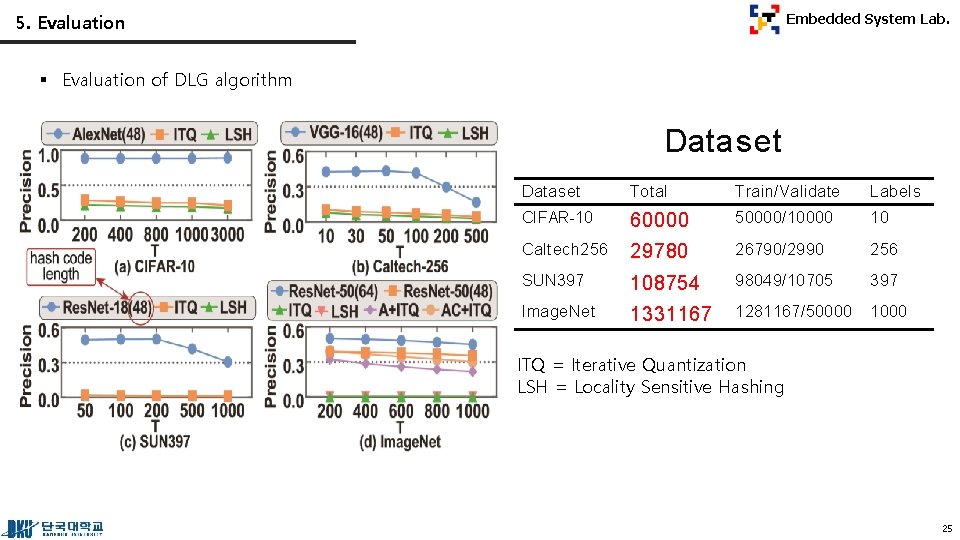

5. Evaluation Embedded System Lab. § Evaluation of DLG algorithm Dataset Total Train/Validate Labels CIFAR-10 60000 50000/10000 10 Caltech 256 29780 26790/2990 256 SUN 397 108754 98049/10705 397 Image. Net 1331167 1281167/50000 1000 ITQ = Iterative Quantization LSH = Locality Sensitive Hashing 25

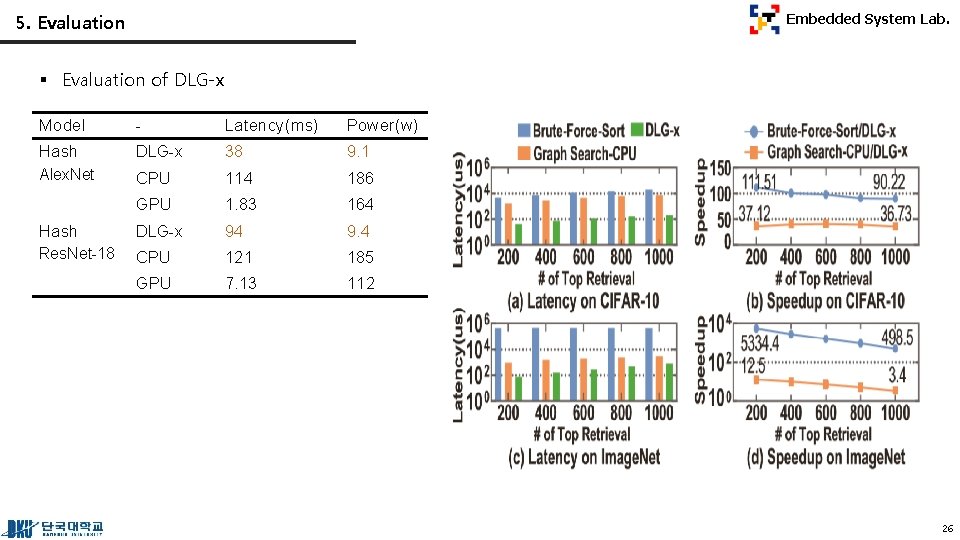

5. Evaluation Embedded System Lab. § Evaluation of DLG-x Model - Latency(ms) Power(w) Hash Alex. Net DLG-x 38 9. 1 CPU 114 186 GPU 1. 83 164 DLG-x 94 9. 4 CPU 121 185 GPU 7. 13 112 Hash Res. Net-18 26

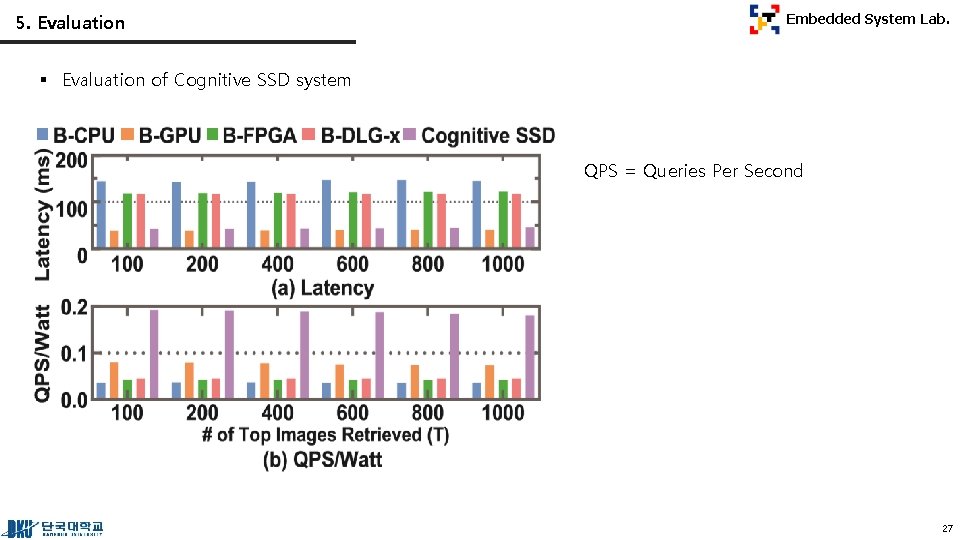

5. Evaluation Embedded System Lab. § Evaluation of Cognitive SSD system QPS = Queries Per Second 27

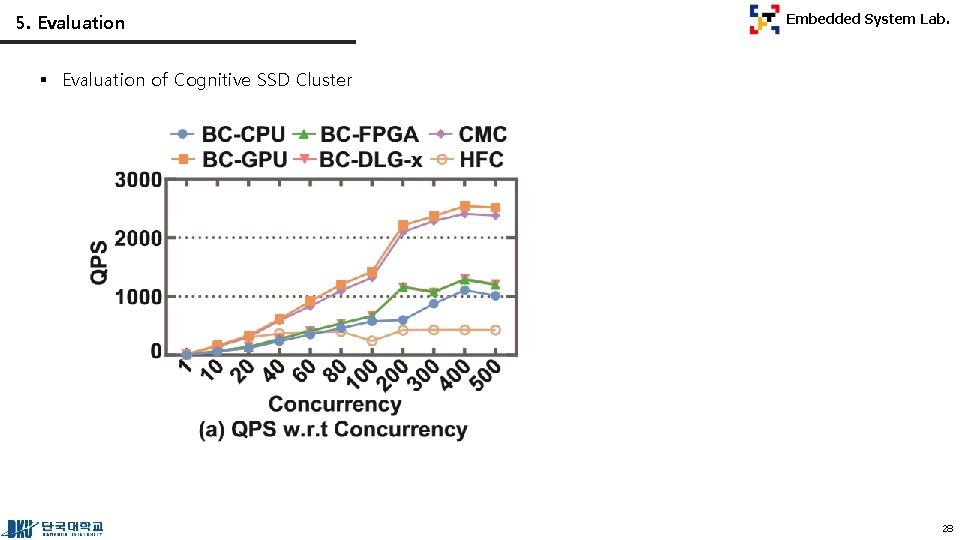

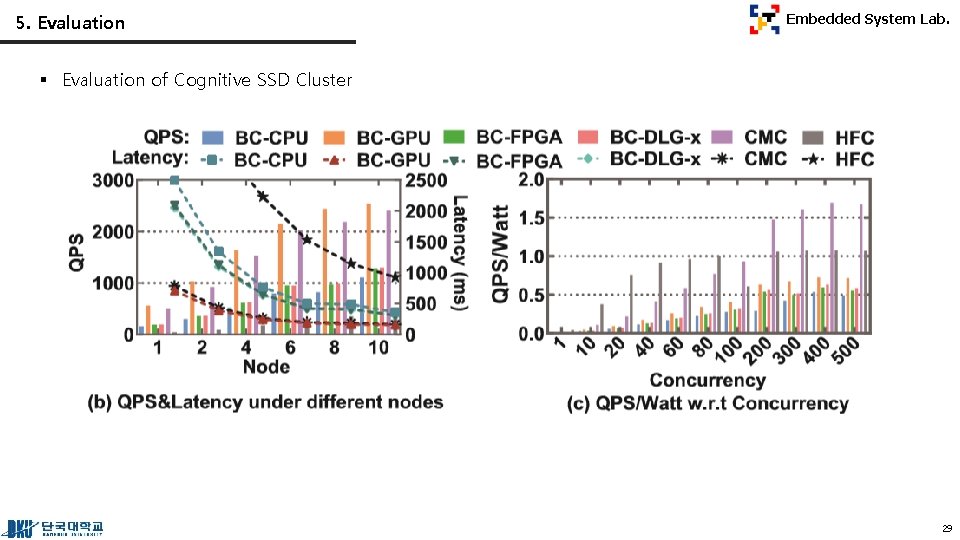

5. Evaluation Embedded System Lab. § Evaluation of Cognitive SSD Cluster 28
5. Evaluation Embedded System Lab. § Evaluation of Cognitive SSD Cluster 29
6. Conclusion Embedded System Lab. § Cognitive SSD provides a more power-efficient solution for unstructured data retrieval § The DLC-x accelerator integrates deep learning and graph search into one chip and directly accesses data from NAND flash without crossing multiple memory hierarchies § FPGA-based prototype evaluations show that Cognitive SSD outperforms other solutions on powerefficiency 30
