Ellipsometry Matt Brown Alicia Allbaugh Electrodynamics II Project

Ellipsometry Matt Brown Alicia Allbaugh Electrodynamics II Project 10 April 2001

Ellipsometry A method of probing surfaces with light.

Introduction n n n History Methodology Theory Types of Ellipsometry Applications Summary

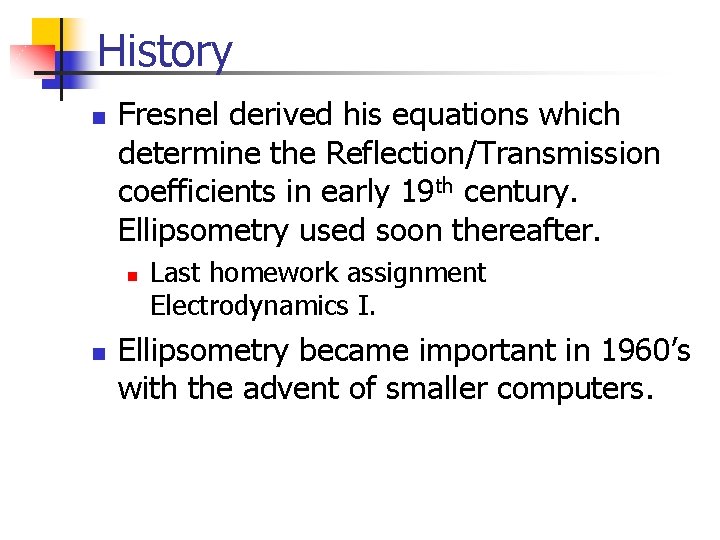

History n Fresnel derived his equations which determine the Reflection/Transmission coefficients in early 19 th century. Ellipsometry used soon thereafter. n n Last homework assignment Electrodynamics I. Ellipsometry became important in 1960’s with the advent of smaller computers.

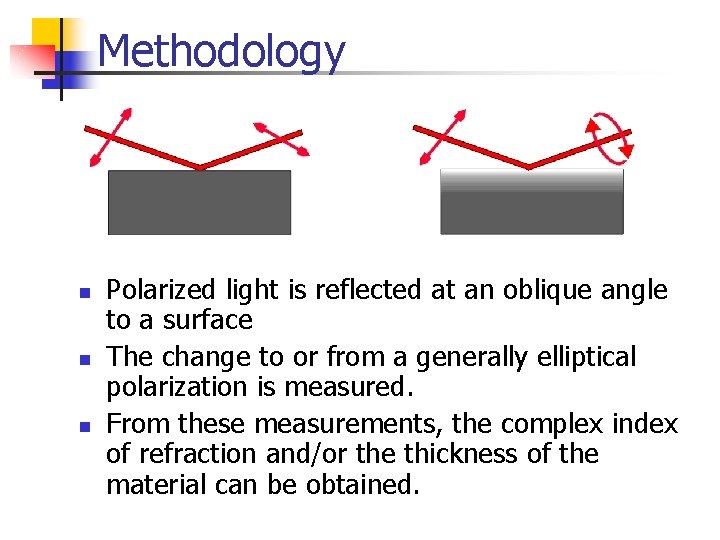

Methodology n n n Polarized light is reflected at an oblique angle to a surface The change to or from a generally elliptical polarization is measured. From these measurements, the complex index of refraction and/or the thickness of the material can be obtained.

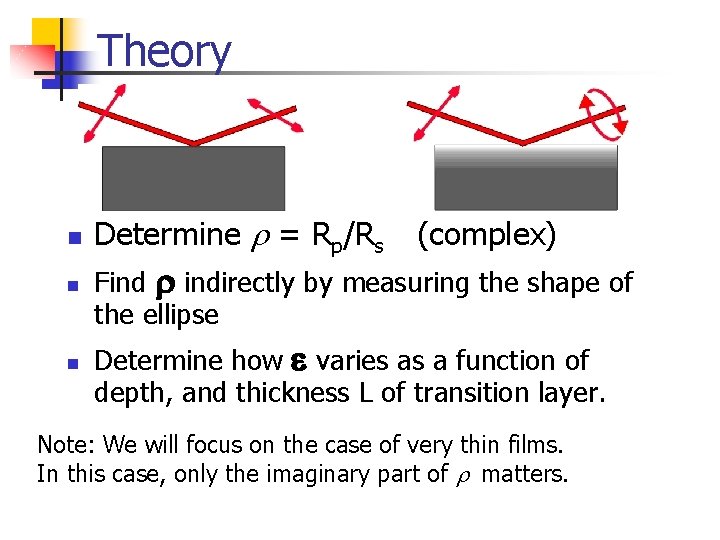

Theory n Determine r = Rp/Rs (complex) n Find r indirectly by measuring the shape of the ellipse n Determine how e varies as a function of depth, and thickness L of transition layer. Note: We will focus on the case of very thin films. In this case, only the imaginary part of r matters.

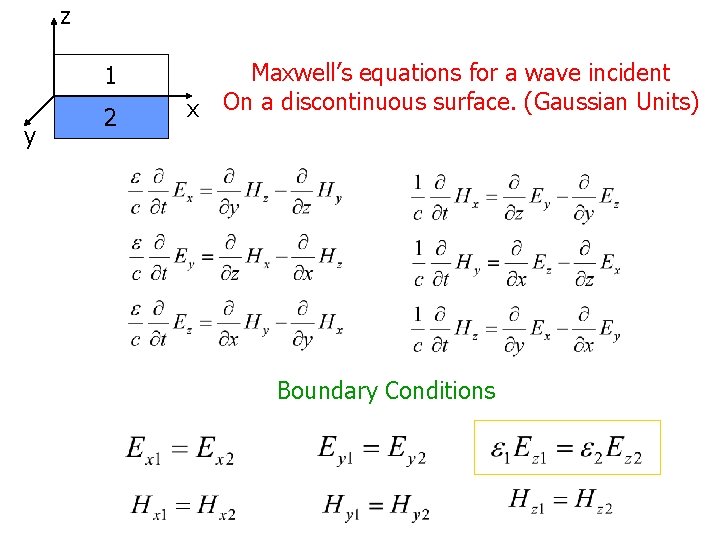

z 1 y 2 x Maxwell’s equations for a wave incident On a discontinuous surface. (Gaussian Units) Boundary Conditions

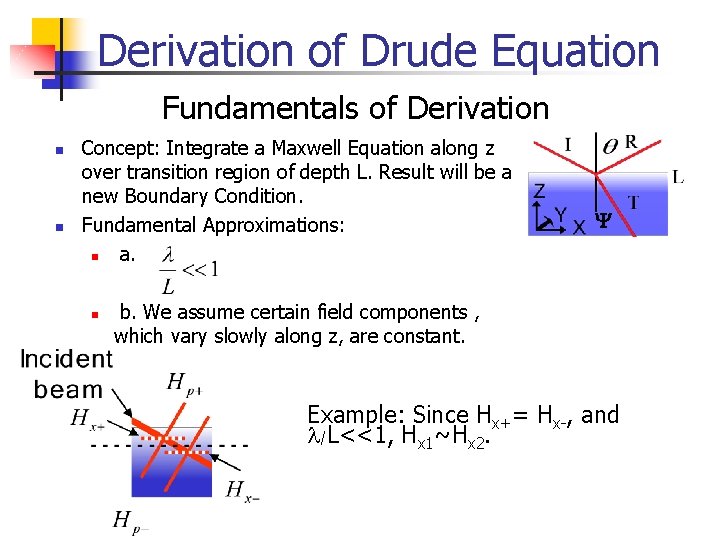

Derivation of Drude Equation Fundamentals of Derivation n n Concept: Integrate a Maxwell Equation along z over transition region of depth L. Result will be a new Boundary Condition. Fundamental Approximations: n a. n Y b. We assume certain field components , which vary slowly along z, are constant. Example: Since Hx+= Hx-, and l/L<<1, Hx 1~Hx 2.

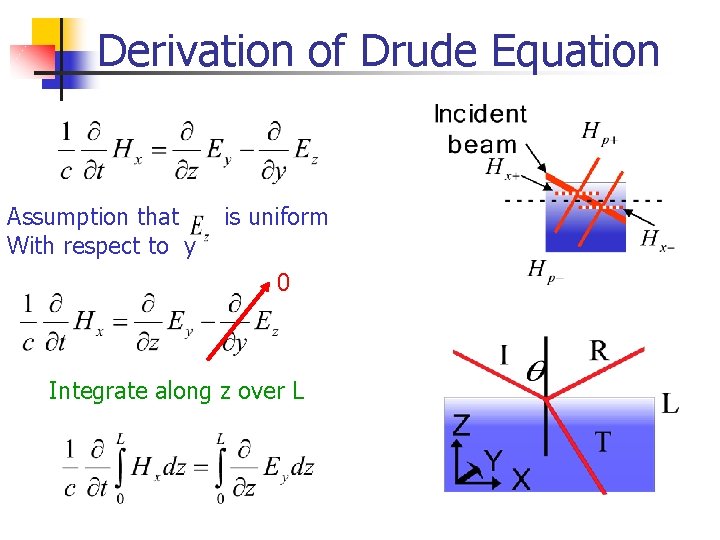

Derivation of Drude Equation Assumption that With respect to y is uniform 0 Integrate along z over L

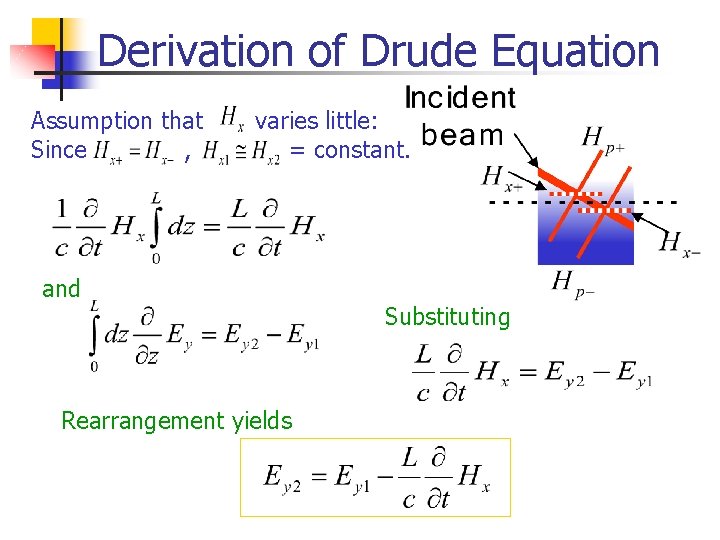

Derivation of Drude Equation Assumption that Since , varies little: = constant. and Rearrangement yields Substituting

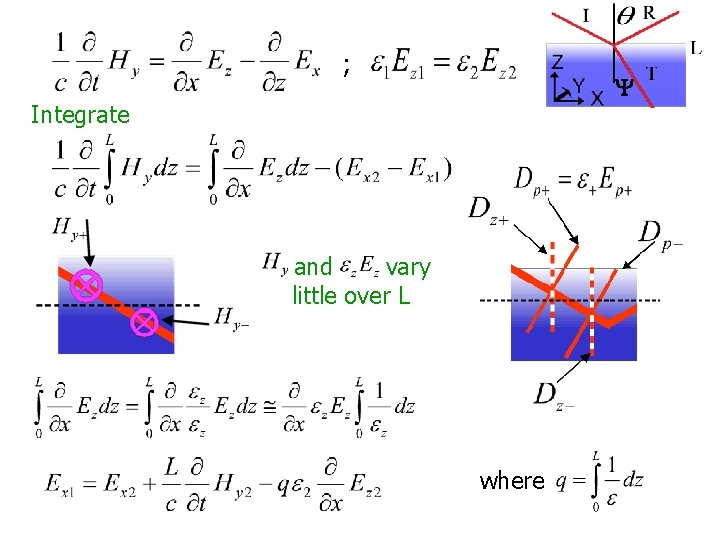

; Y Integrate and vary little over L where

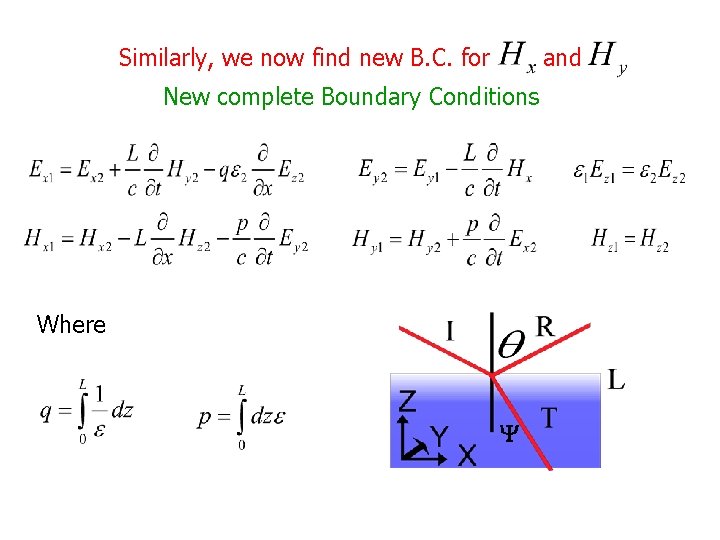

Similarly, we now find new B. C. for and New complete Boundary Conditions Where Y

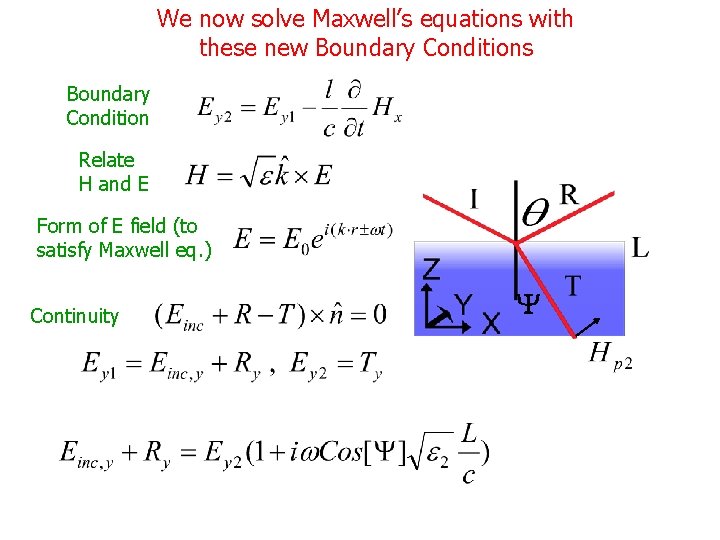

We now solve Maxwell’s equations with these new Boundary Conditions Boundary Condition Relate H and E Form of E field (to satisfy Maxwell eq. ) Continuity Y

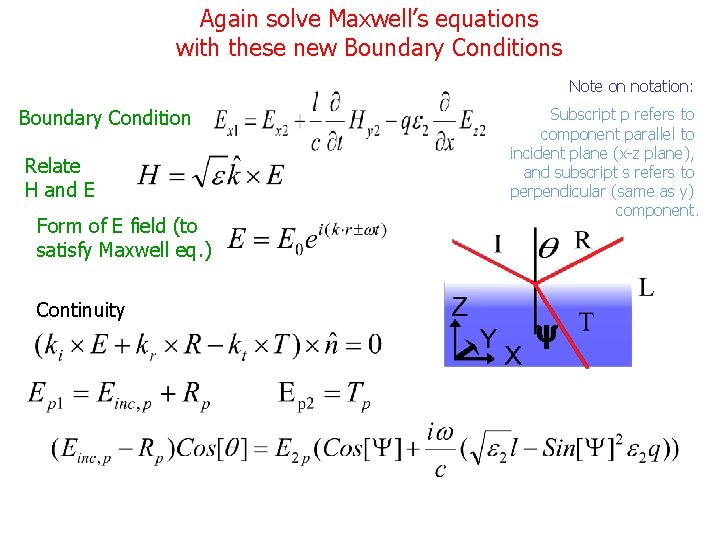

Again solve Maxwell’s equations with these new Boundary Conditions Note on notation: Boundary Condition Relate H and E Form of E field (to satisfy Maxwell eq. ) Continuity Subscript p refers to component parallel to incident plane (x-z plane), and subscript s refers to perpendicular (same as y) component. y

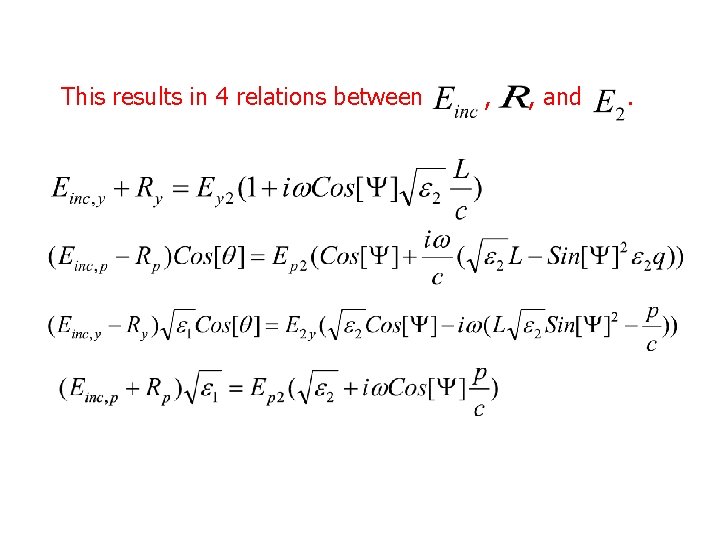

This results in 4 relations between , , and .

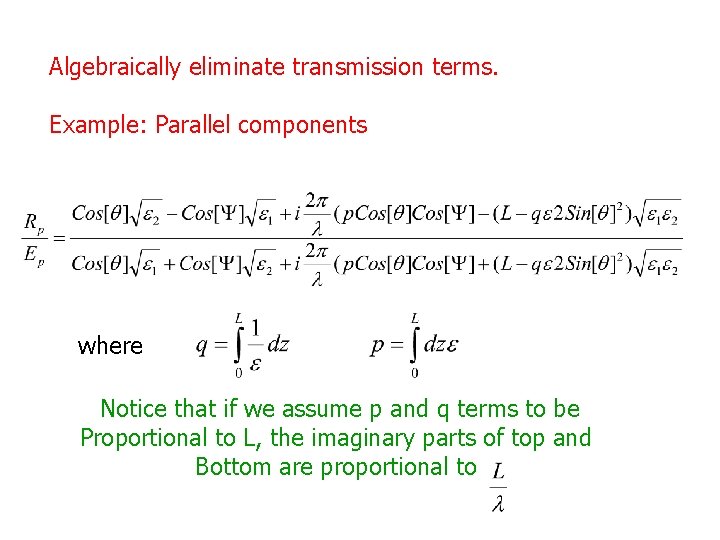

Algebraically eliminate transmission terms. Example: Parallel components where Notice that if we assume p and q terms to be Proportional to L, the imaginary parts of top and Bottom are proportional to

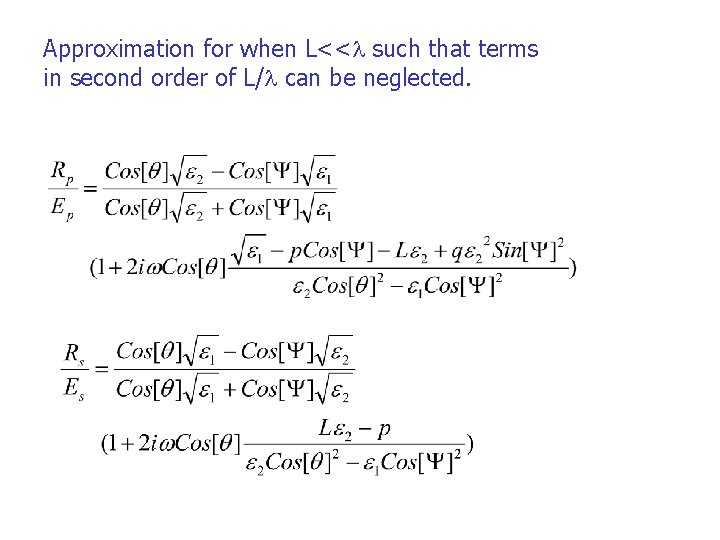

Approximation for when L<<l such that terms in second order of L/l can be neglected.

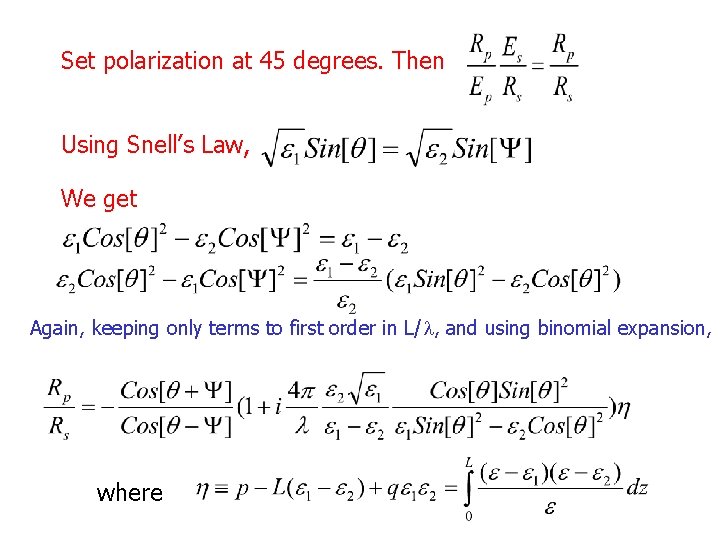

Set polarization at 45 degrees. Then Using Snell’s Law, We get Again, keeping only terms to first order in L/l, and using binomial expansion, where

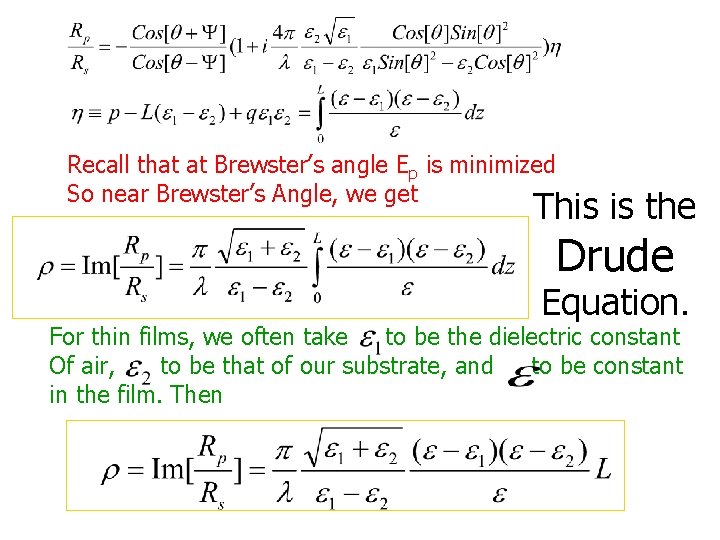

Recall that at Brewster’s angle Ep is minimized So near Brewster’s Angle, we get This is the Drude Equation. For thin films, we often take to be the dielectric constant Of air, to be that of our substrate, and to be constant in the film. Then

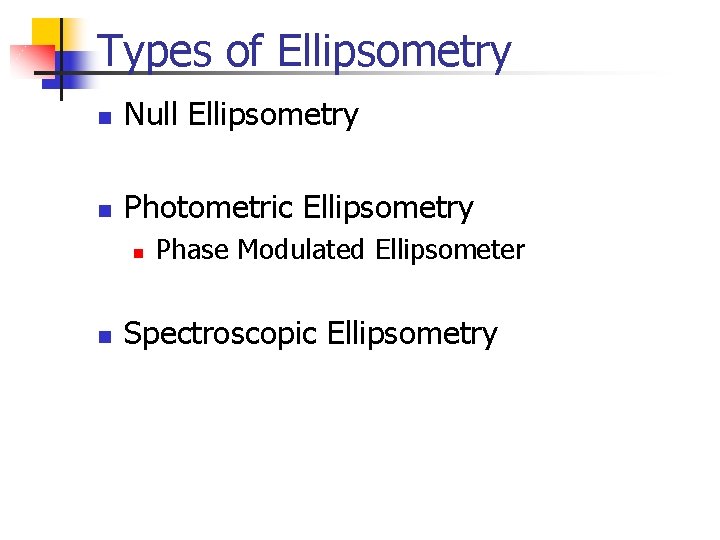

Types of Ellipsometry n Null Ellipsometry n Photometric Ellipsometry n n Phase Modulated Ellipsometer Spectroscopic Ellipsometry

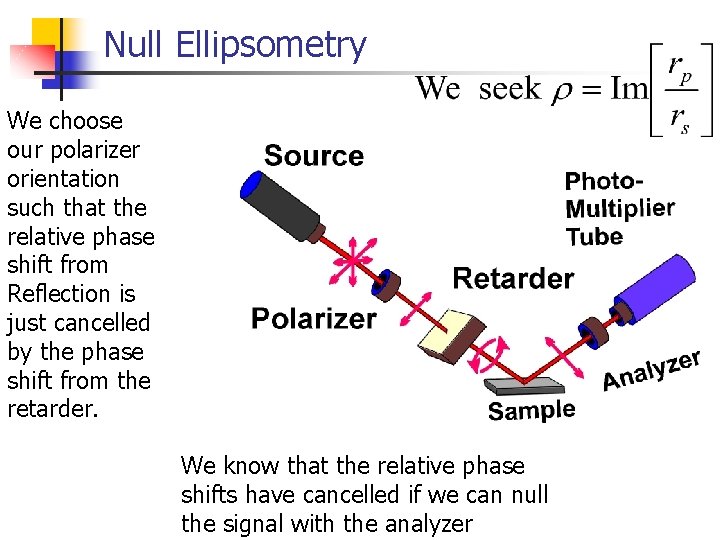

Null Ellipsometry We choose our polarizer orientation such that the relative phase shift from Reflection is just cancelled by the phase shift from the retarder. We know that the relative phase shifts have cancelled if we can null the signal with the analyzer

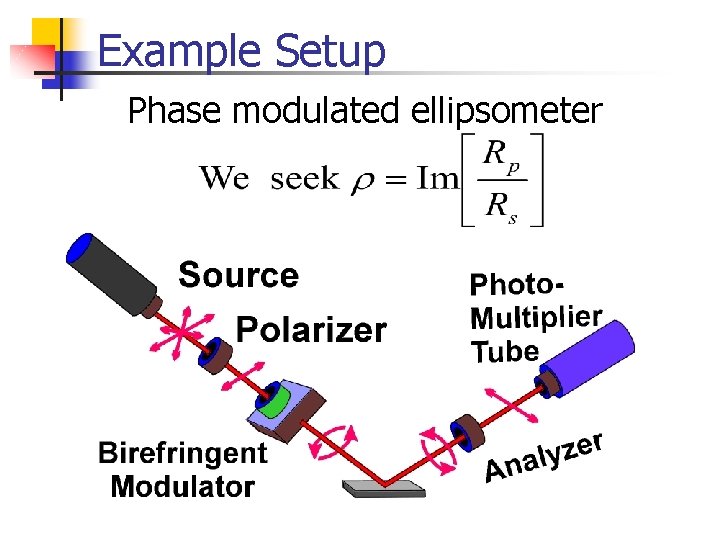

Example Setup Phase modulated ellipsometer

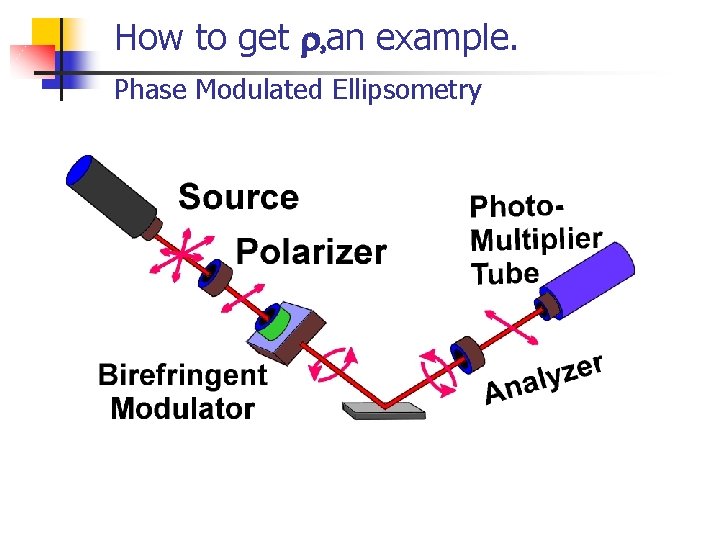

How to get r, an example. Phase Modulated Ellipsometry

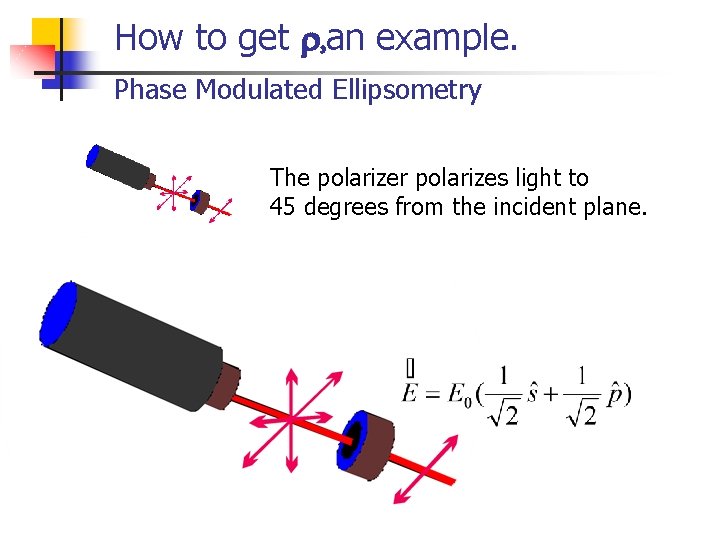

How to get r, an example. Phase Modulated Ellipsometry The polarizer polarizes light to 45 degrees from the incident plane.

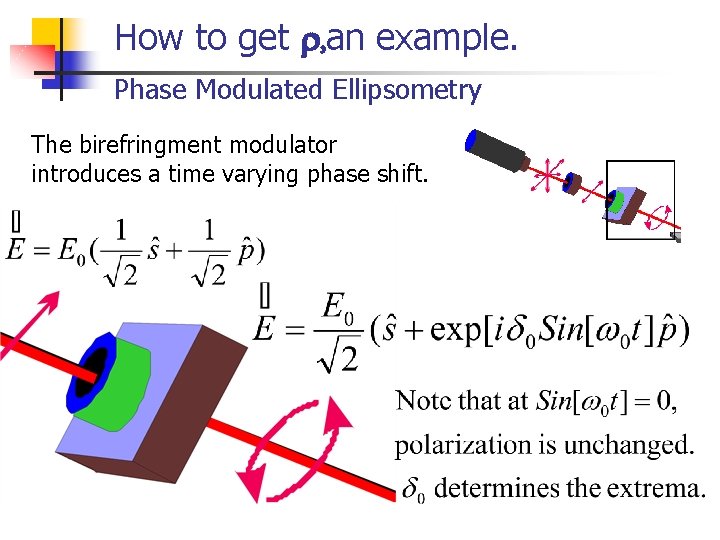

How to get r, an example. Phase Modulated Ellipsometry The birefringment modulator introduces a time varying phase shift.

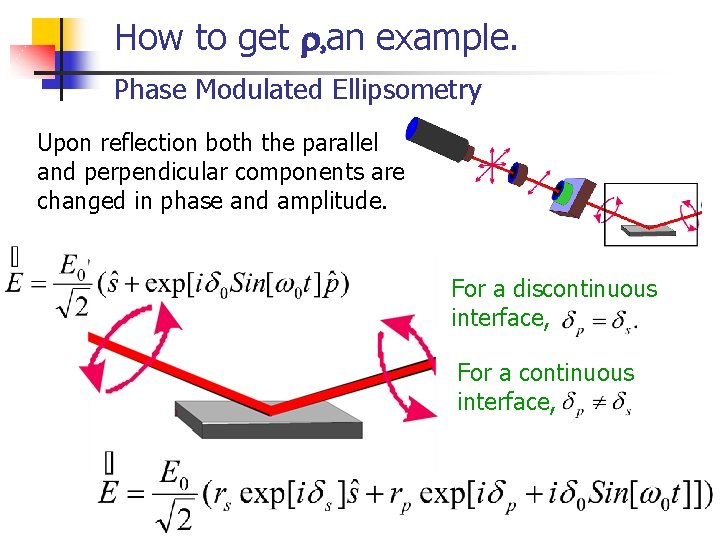

How to get r, an example. Phase Modulated Ellipsometry Upon reflection both the parallel and perpendicular components are changed in phase and amplitude. For a discontinuous interface, For a continuous interface,

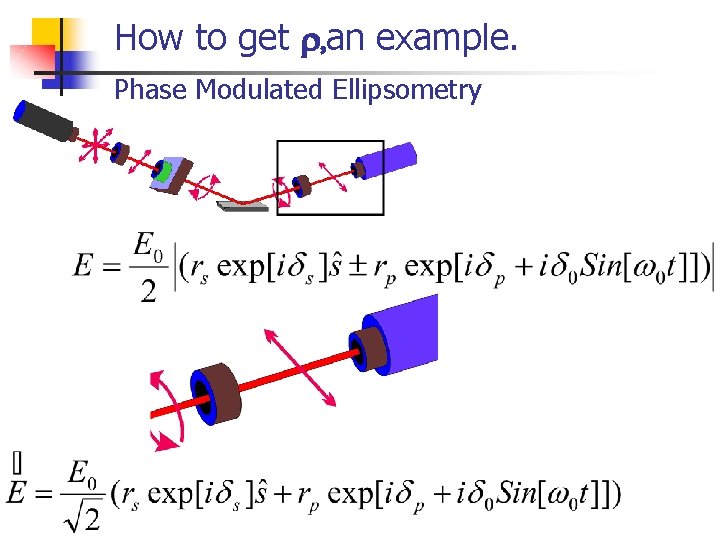

How to get r, an example. Phase Modulated Ellipsometry

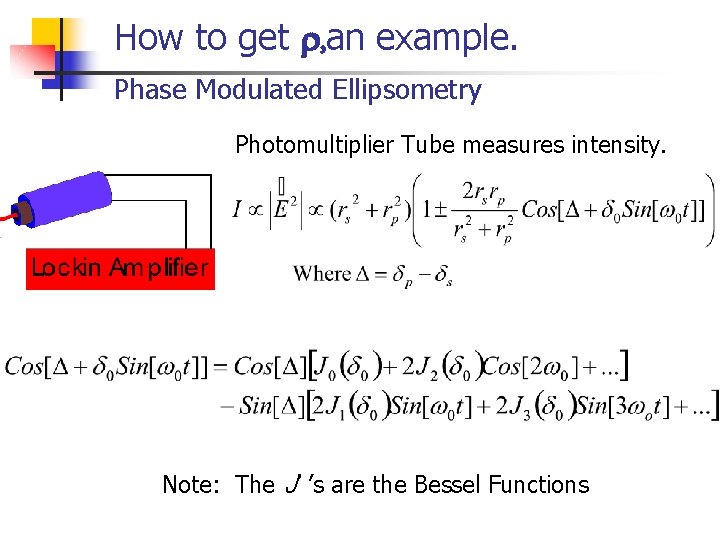

How to get r, an example. Phase Modulated Ellipsometry Photomultiplier Tube measures intensity. Note: The J’’s are the Bessel Functions

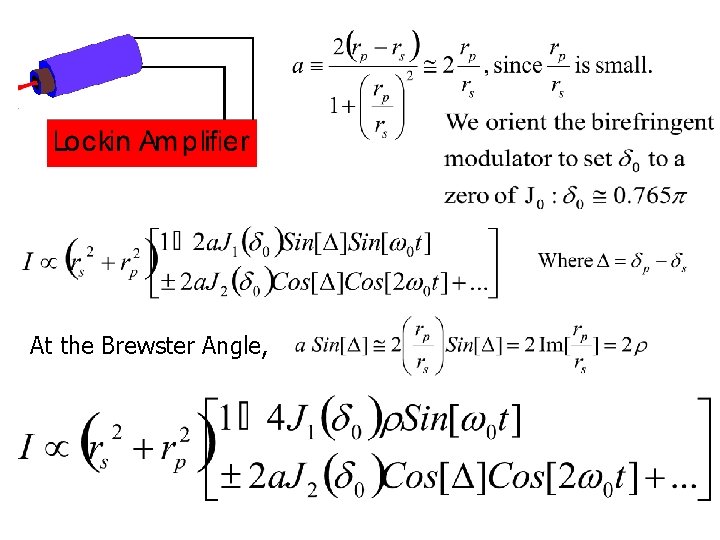

At the Brewster Angle,

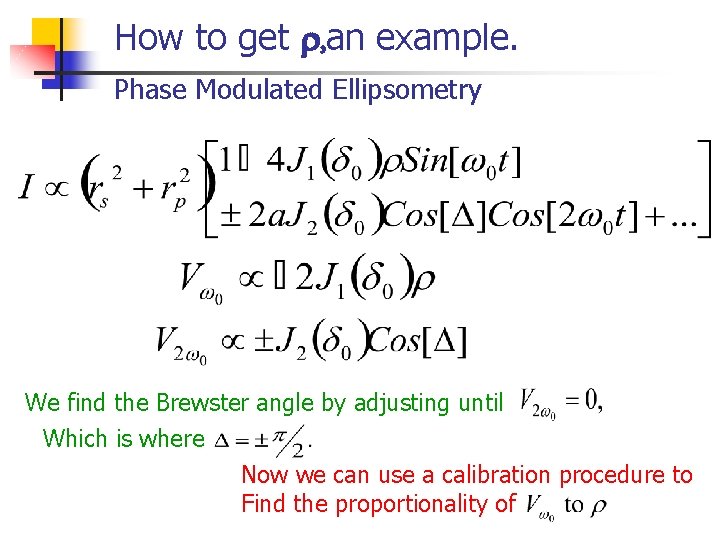

How to get r, an example. Phase Modulated Ellipsometry We find the Brewster angle by adjusting until Which is where Now we can use a calibration procedure to Find the proportionality of

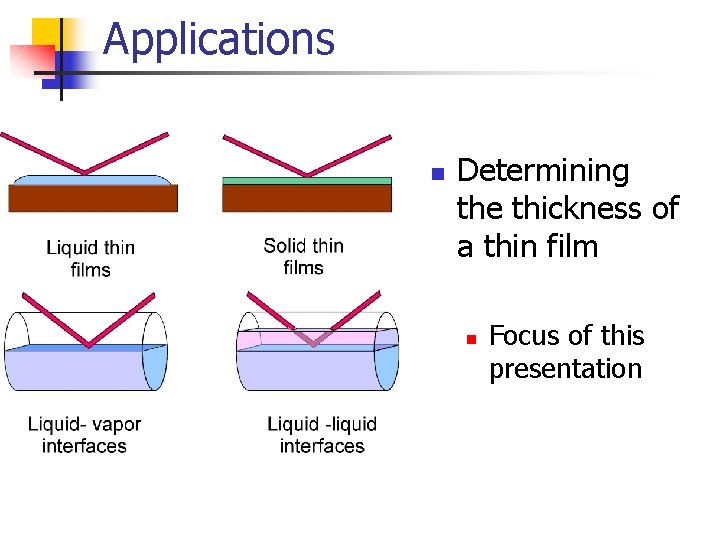

Applications n Determining the thickness of a thin film n Focus of this presentation

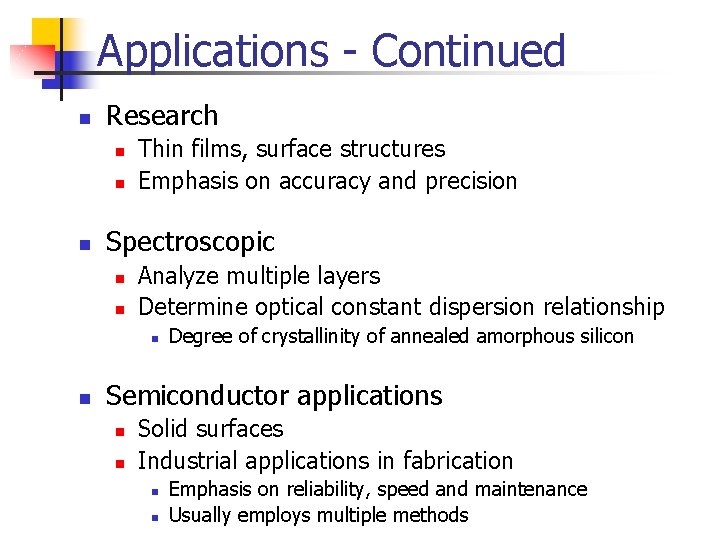

Applications - Continued n Research n n n Thin films, surface structures Emphasis on accuracy and precision Spectroscopic n n Analyze multiple layers Determine optical constant dispersion relationship n n Degree of crystallinity of annealed amorphous silicon Semiconductor applications n n Solid surfaces Industrial applications in fabrication n n Emphasis on reliability, speed and maintenance Usually employs multiple methods

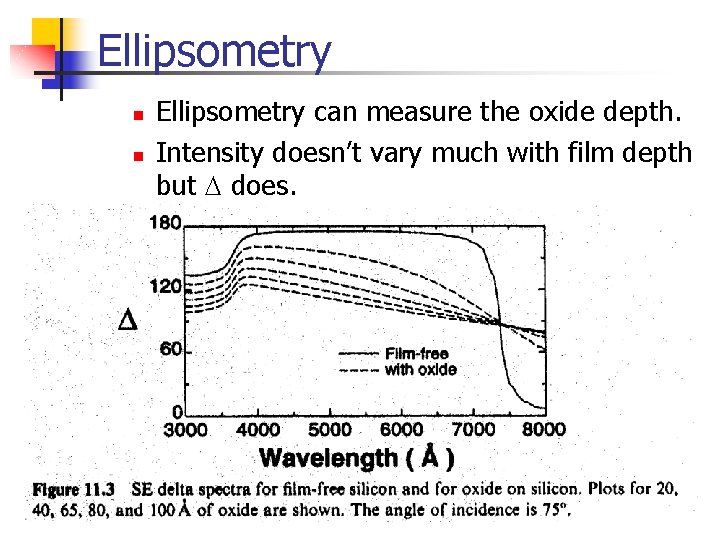

Ellipsometry n n Ellipsometry can measure the oxide depth. Intensity doesn’t vary much with film depth but D does.

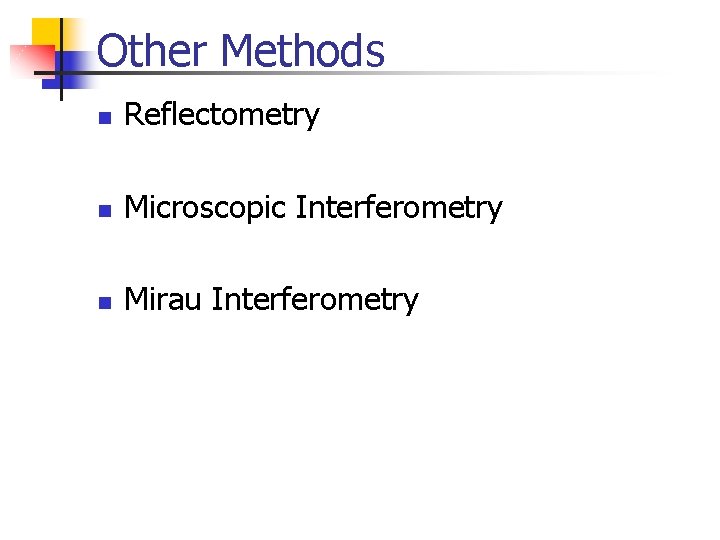

Other Methods n Reflectometry n Microscopic Interferometry n Mirau Interferometry

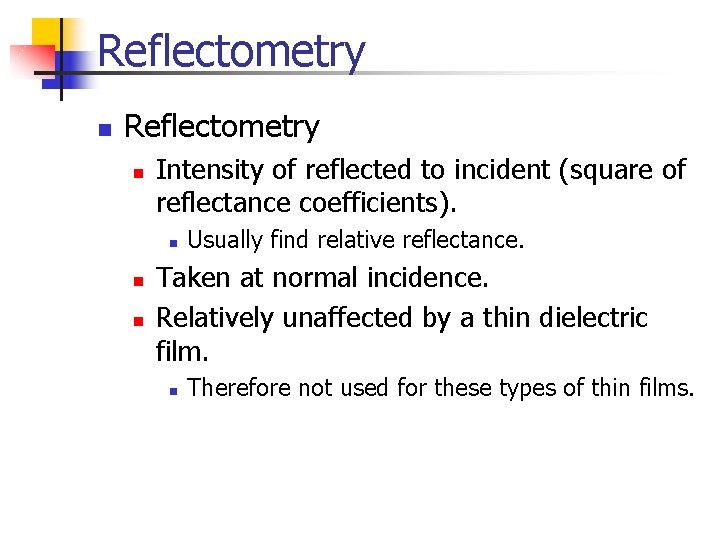

Reflectometry n Intensity of reflected to incident (square of reflectance coefficients). n n n Usually find relative reflectance. Taken at normal incidence. Relatively unaffected by a thin dielectric film. n Therefore not used for these types of thin films.

Ellipsometry n n Ellipsometry can measure the oxide depth. Intensity doesn’t vary much with film depth but D does.

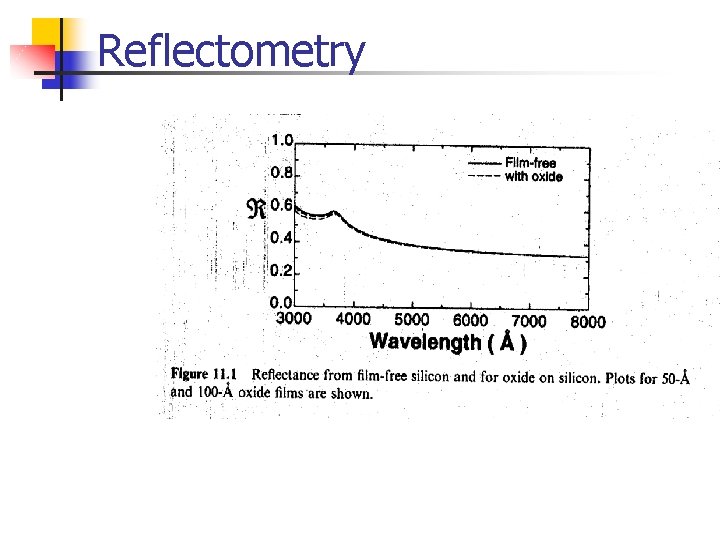

Reflectometry

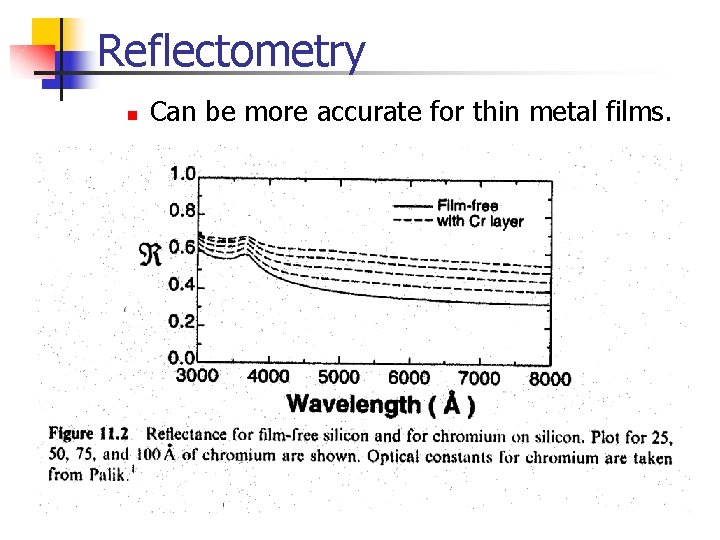

Reflectometry n Can be more accurate for thin metal films.

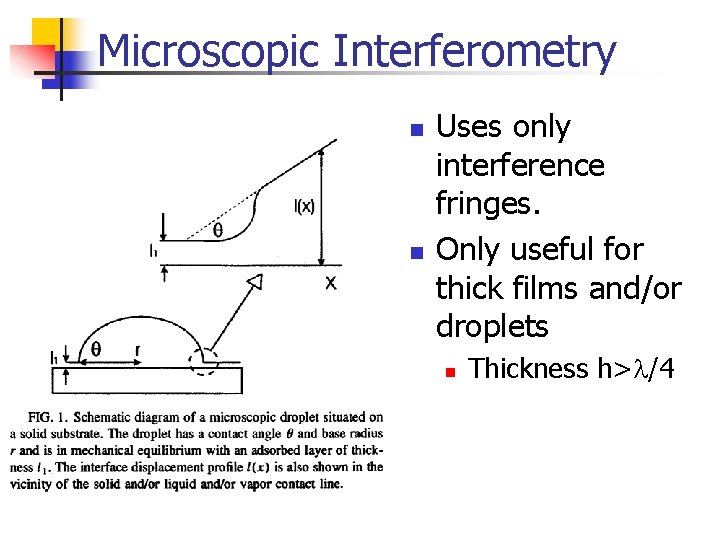

Microscopic Interferometry n n Uses only interference fringes. Only useful for thick films and/or droplets n Thickness h>l/4

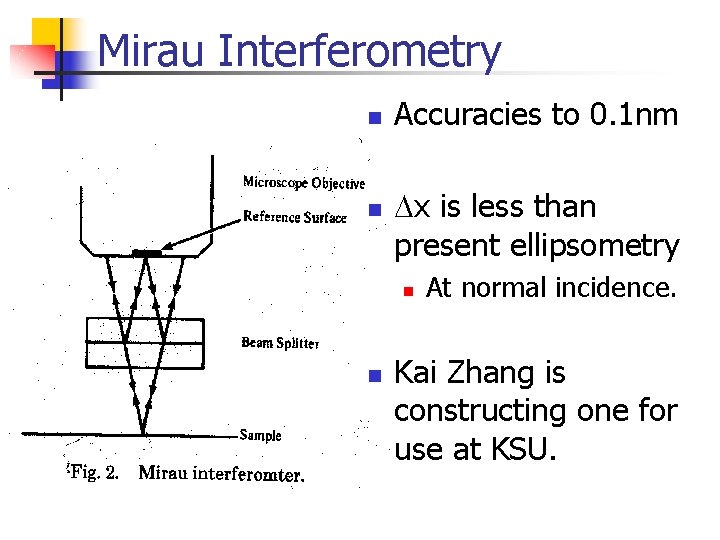

Mirau Interferometry n n Accuracies to 0. 1 nm Dx is less than present ellipsometry n n At normal incidence. Kai Zhang is constructing one for use at KSU.

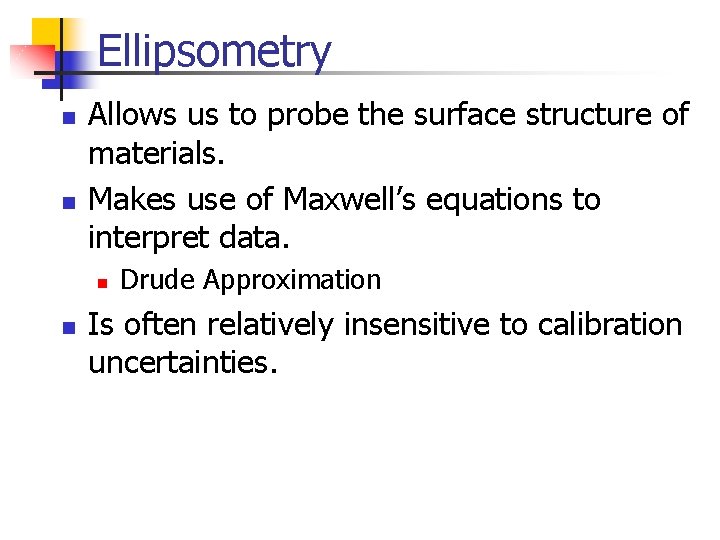

Ellipsometry n n Allows us to probe the surface structure of materials. Makes use of Maxwell’s equations to interpret data. n n Drude Approximation Is often relatively insensitive to calibration uncertainties.

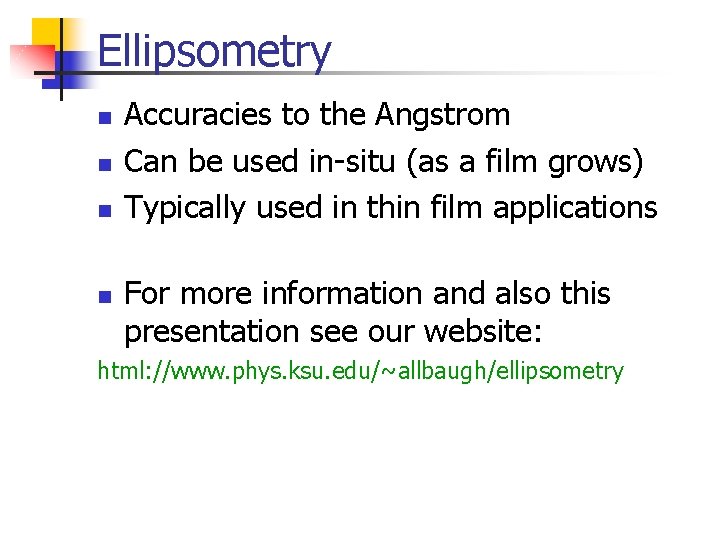

Ellipsometry n n Accuracies to the Angstrom Can be used in-situ (as a film grows) Typically used in thin film applications For more information and also this presentation see our website: html: //www. phys. ksu. edu/~allbaugh/ellipsometry

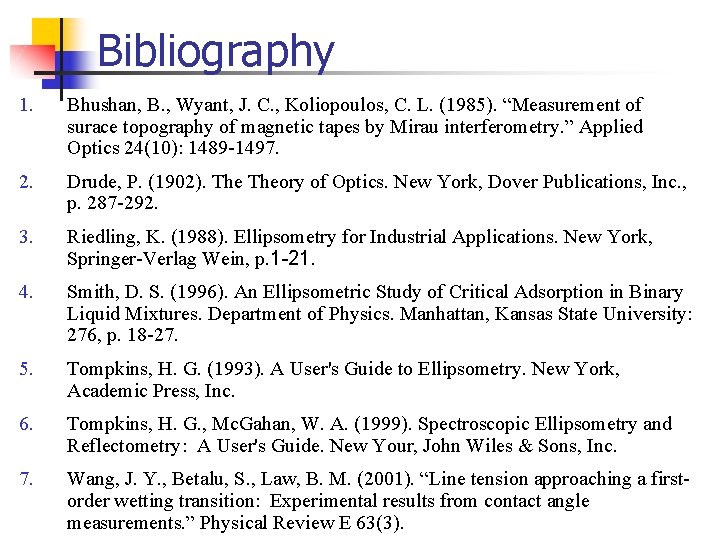

Bibliography 1. Bhushan, B. , Wyant, J. C. , Koliopoulos, C. L. (1985). “Measurement of surace topography of magnetic tapes by Mirau interferometry. ” Applied Optics 24(10): 1489 -1497. 2. Drude, P. (1902). Theory of Optics. New York, Dover Publications, Inc. , p. 287 -292. 3. Riedling, K. (1988). Ellipsometry for Industrial Applications. New York, Springer-Verlag Wein, p. 1 -21. 4. Smith, D. S. (1996). An Ellipsometric Study of Critical Adsorption in Binary Liquid Mixtures. Department of Physics. Manhattan, Kansas State University: 276, p. 18 -27. 5. Tompkins, H. G. (1993). A User's Guide to Ellipsometry. New York, Academic Press, Inc. 6. Tompkins, H. G. , Mc. Gahan, W. A. (1999). Spectroscopic Ellipsometry and Reflectometry: A User's Guide. New Your, John Wiles & Sons, Inc. 7. Wang, J. Y. , Betalu, S. , Law, B. M. (2001). “Line tension approaching a firstorder wetting transition: Experimental results from contact angle measurements. ” Physical Review E 63(3).
