ELISA Enzymelinked Immunosorbent Assay ELISA DirectAntigen detection sample
ELISA ( Enzyme-linked Immuno-sorbent Assay ): 酵素免疫分析法
ELISA 實驗原理 (Direct)Antigen detection 呈色劑 鏈結酵素之 抗體 抗原(sample) Coated 抗體 polystylene

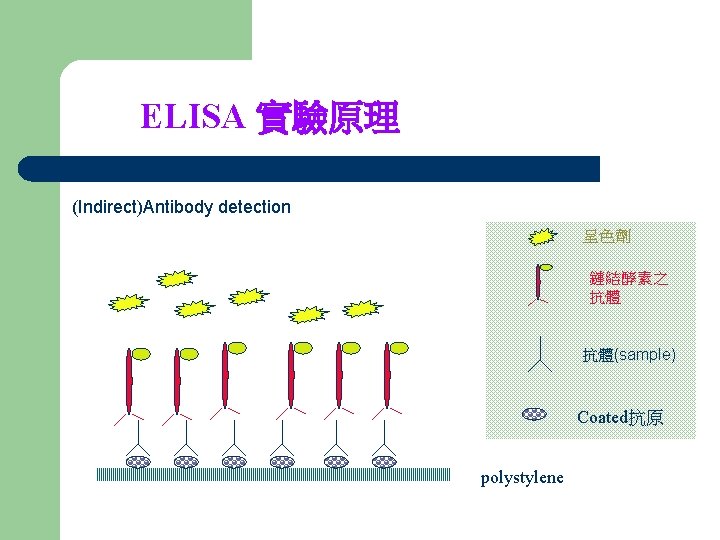

ELISA 實驗原理 (Indirect)Antibody detection 呈色劑 鏈結酵素之 抗體 抗體(sample) Coated抗原 polystylene
Antibody? Name? Host: Mouse Ig. G Label: HRP Host: human Ig. G Virus A Mouse anti-human Ig. G , HRP Labeled Human anti-virus A
ELISA 實驗步驟 • 先將抗原coating在檢測盤的表面上4℃overnight, 再進行blocking buffer處理 • 加入 100 ul sample, incubat 1 hr • 用wash buffer清洗 3次(每次 200 -300 ul) • 加入 100 ul鍵結酵素之抗體, incubate 1 hr • 用wash buffer清洗 3次(每次 200 -300 ul) • 加入 100 ul呈色劑 ( substrate ) • 10 -15 min後,加入 50 ul終止液(stop solution) • ELISA reader進行OD(optical density)判讀
酵素與呈色劑的種類 Enzyme Substrate ABTS(405 nm) HRP(Horseradish Peroxidase) TMB(450 nm) AP(Alkaline Phosphatase) p. NPP(490 nm)

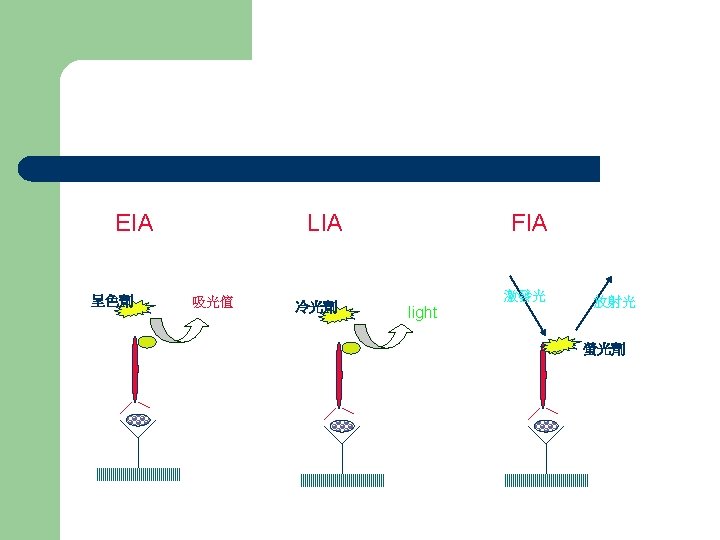

Immunoassay l 酵素免疫分析法( Enzyme Immunoassay ; EIA ) ELISA l 螢光免疫分析法( Fluorescence Immunoassay ; FIA ) l 冷光免疫分析法( Luminescence Immunoassay ; LIA )
ELISA Reader 判讀原理

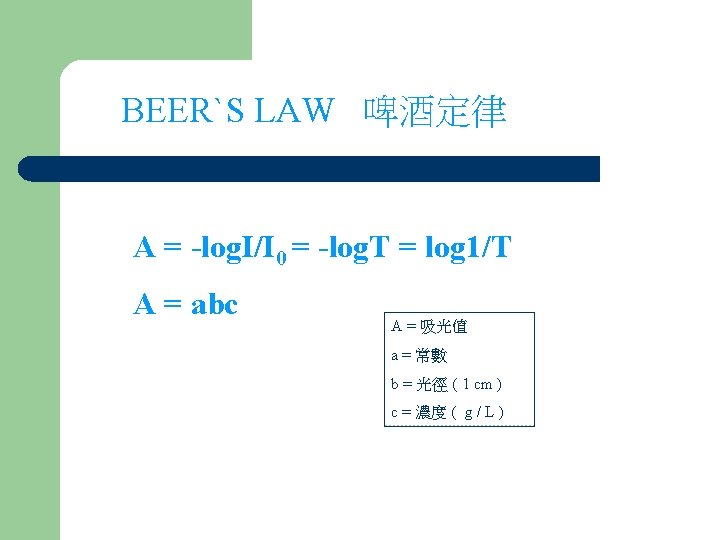

BEER`S LAW Light filter ( I 0) Detector (I) A = -log. I/I 0 = -log. T =log 1/T A: 吸光值 T: 穿透率
原理 利用每一種物質皆有其獨特吸收波峰 如 : Protein 280 nm DNA , RNA 260 nm p. NPP 405 nm TMB 450 nm H 2 O 977 nm
Standard Curve(標準曲線)
應用 1. l l l DNA RNA 定量 260 / 280 Ratio DNA RNA / Phenol Ratio Lowry Protein Quant ( 660 nm ) Bradford Protein Quant ( 595 nm ) BCA Protein Quant ( 562 nm )
應用 2. l l l ß-Galactosidase 定量 ( 420 nm ) NADH ( 340 nm ) ABTS ( 405 nm ) OPD ( 492 nm ) TMB ( 450 nm ) p. NPP ( 405 nm )
Photometry 分類 Spectrophotometer 分光光度計 photometry Filter 濾鏡 ELISA Reader 免疫酵素判讀儀 連續波長
Horizontal Photometry Vessel Absorbing solution Light Source Detector
Vertical Photometry Light Source Absorbing solution Detector
ELISA Reader 基本原理 Data
ELISA Reader酵素免疫分析儀 優點 : l 一次可處理大量sample ( 96 , 384 well plate ) l 應用範圍廣 l 所需sample體積小( 100~200 ul )
ELISA 實驗步驟 (競爭型) 基質 鏈結酵素 之抗體 抗體(sample) Coated抗原 • 取出已coating上抗原的96孔檢測盤 • 加入sample 100 ul , incubate 90 mim • 清洗 ( washing 200 ul)3次 • 加入鍵結酵素之抗體(conjugate) 100 ul , incubate 60 min • 清洗 ( washing 200 ul ) 3次 • 加入基質 ( substrate ) 100 ul 15 min , 使之呈色 • 加入終止液 50 ul • ELISA reader進行450 nm 吸光值判讀
