Eleven Electron Copper Kit Assembly OUTLINE 1 Purpose

Eleven Electron Copper Kit Assembly

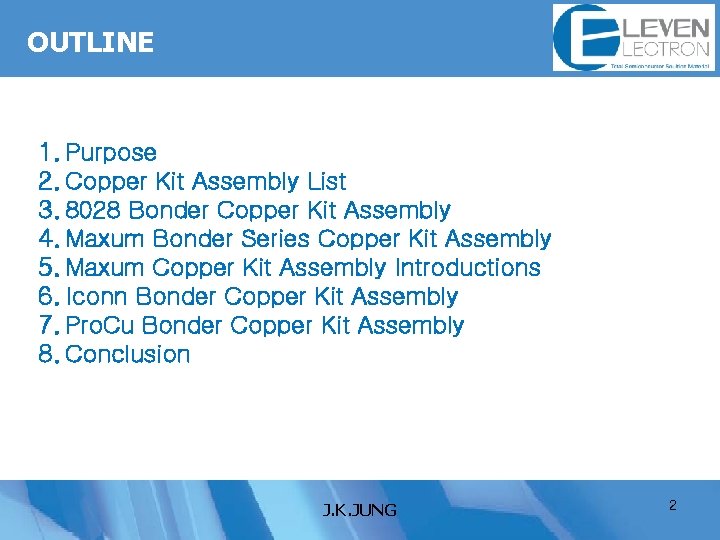

OUTLINE 1. Purpose 2. Copper Kit Assembly List 3. 8028 Bonder Copper Kit Assembly 4. Maxum Bonder Series Copper Kit Assembly 5. Maxum Copper Kit Assembly Introductions 6. Iconn Bonder Copper Kit Assembly 7. Pro. Cu Bonder Copper Kit Assembly 8. Conclusion J. K. JUNG 2

Copper Kit Assembly Purpose Performance 1. Gas tube is closed and prevent oxidation during bonding process, fine pitch especially. 2. Remove gas tube to clean to make good workability 3. Assembly control box to set up copper kit assembly becomes simply and quickly Cost saving Copper kit assembly can cost saving and did not affect quality. Stability To make good FAB(Free Air Ball) and provide stable flow rate continuously. J. K. JUNG 3

Copper Kit Assembly List K&S Wire Bonder Series Accessory for Copper wire 1. 8028 bonder copper kit assembly 2. Maxum series bonder copper kit Maxum series : Maxum I, Maxum II, Maxum plus, Maxum ultra 3. Iconn bonder copper kit assembly 4. Pro. Cu bonder copper kit assembly J. K. JUNG 4

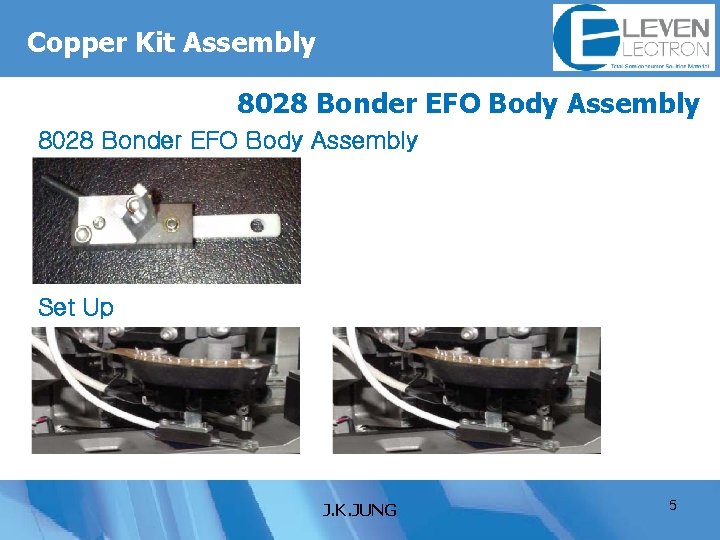

Copper Kit Assembly 8028 Bonder EFO Body Assembly Set Up J. K. JUNG 5

Copper Kit Assembly Maxum Series Bonder EFO Body Assembly Maxum Plus Maxum Ultra J. K. JUNG 6

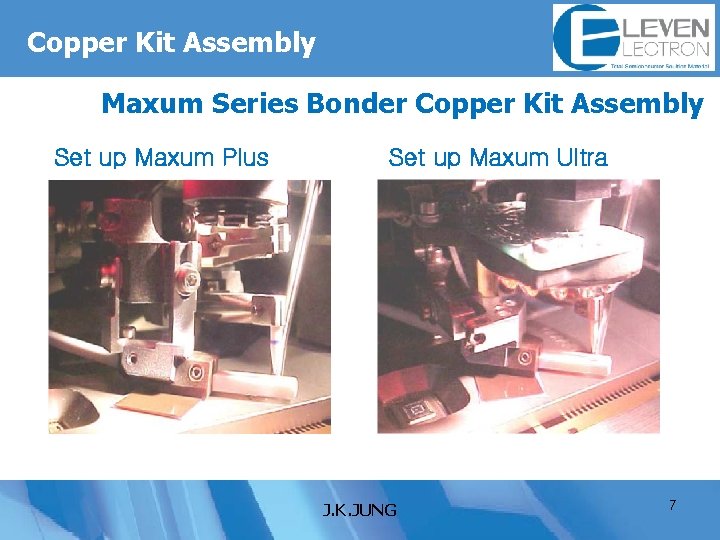

Copper Kit Assembly Maxum Series Bonder Copper Kit Assembly Set up Maxum Plus Set up Maxum Ultra J. K. JUNG 7

Copper Kit Assembly Maxum Series Bonder Copper Kit Assembly Introduction Maxum Series Bonder Copper Kit Assembly Unit J. K. JUNG 8

Copper Kit Assembly Maxum Copper Kit Assembly Introduction Copper Kit Assembly Installation J. K. JUNG 9

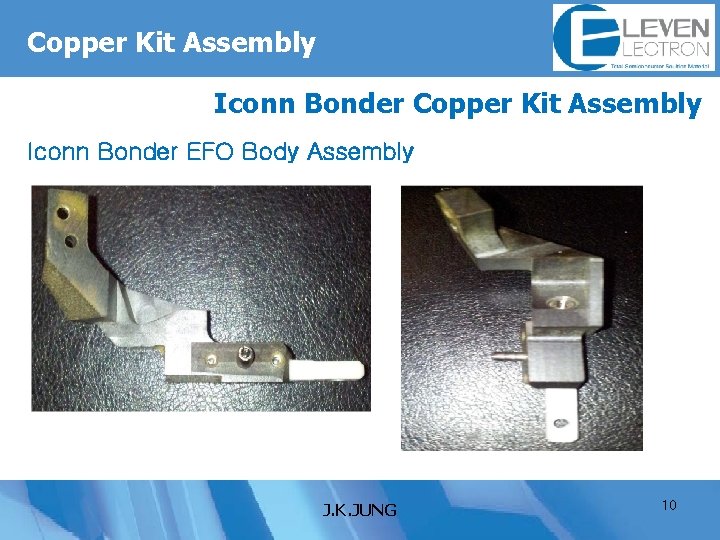

Copper Kit Assembly Iconn Bonder EFO Body Assembly J. K. JUNG 10

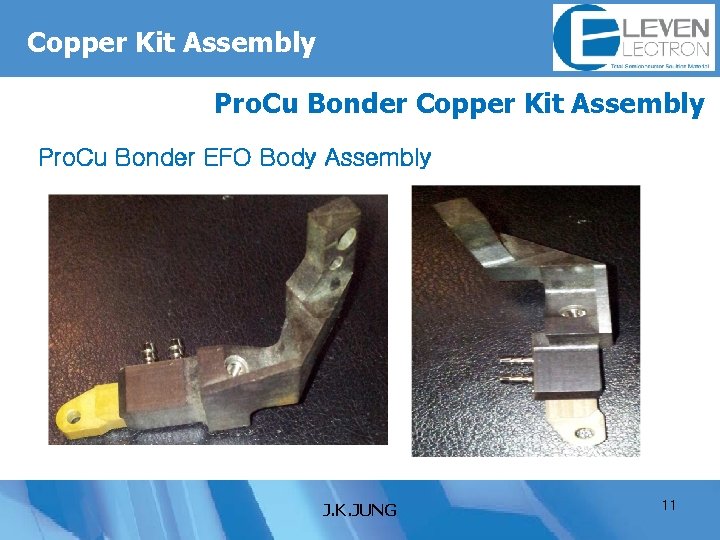

Copper Kit Assembly Pro. Cu Bonder EFO Body Assembly J. K. JUNG 11

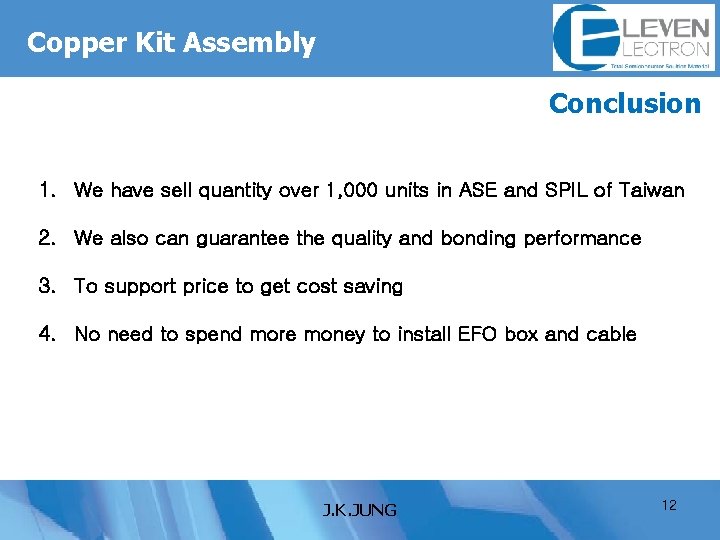

Copper Kit Assembly Conclusion 1. We have sell quantity over 1, 000 units in ASE and SPIL of Taiwan 2. We also can guarantee the quality and bonding performance 3. To support price to get cost saving 4. No need to spend more money to install EFO box and cable J. K. JUNG 12
