ELECTROSTATICS The study of the behavior of stationary

ELECTROSTATICS: The study of the behavior of stationary charges ELECTRIC CHARGE There are two types of electric charge, arbitrarily called positive and negative. Rubbing certain electrically neutral objects together (e. g. , a glass rod and a silk cloth) tends to cause the electric charges to separate. In the case of the glass and silk, the glass rod loses negative charge and becomes positively charged while the silk cloth gains negative charge and therefore becomes negatively charged. After separation, the negative charges and positive charges are found to attract one another.

When a rubber rod is rubbed against fur, electrons are removed from the fur and deposited on the rod. Electrons negative move from - positive fur to the - rubber rod. + + The rod is said to be negatively charged because of an excess of electrons. The fur is said to be positively charged because of a deficiency of electrons.

When a glass rod is rubbed against silk, electrons are removed from the glass and deposited on the silk. glass silk Electrons move from glass to the silk cloth. positive negative - - + + + + The glass is said to be positively charged because of a deficiency of electrons. The silk is said to be negatively charged because of an excess of electrons.

Laboratory devices used to study the existence of two kinds of electric charge. Pith-ball Electroscope Gold-leaf Electroscope

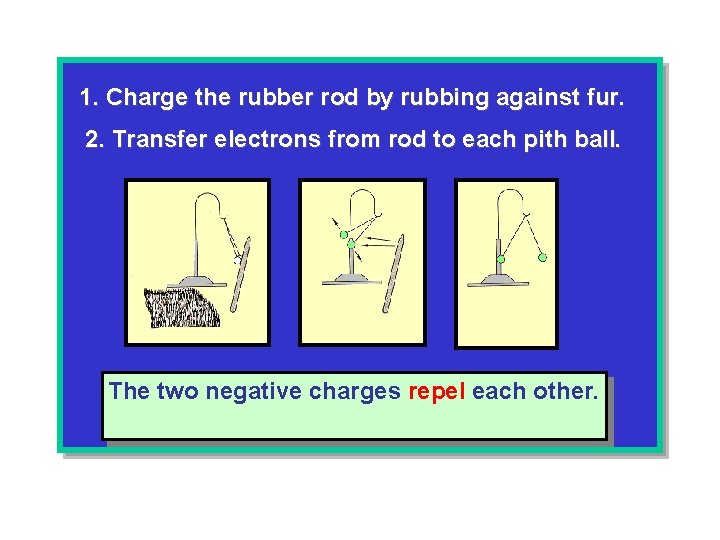

1. Charge the rubber rod by rubbing against fur. 2. Transfer electrons from rod to each pith ball. The two negative charges repel each other.

1. Charge the glass rod by rubbing against silk. 2. Touch balls with rod. Free electrons on the balls move to fill vacancies on the cloth, leaving each of the balls with a deficiency. (Positively charged. ) The two positive charges repel each other.

Rubber glass Attraction fur silk Note that the negatively charged (green) ball is attracted to the positively charged (red) ball. Opposite Charges Attract!

Like charges repel; unlike charges attract. Neg Pos

Charging by Contact Some electrons leave rod and spread over sphere.

Charging by Induction Rod does not touch sphere. It pushes electrons out of the back side of the sphere and down the wire to ground. The ground wire is disconnected to prevent the return of the electrons from ground, then the rod is removed.

The law of conservation of electric charge: "The net amount of electric charge produced in any process is zero. " Another way of saying this is that in any process electric charge cannot be created or destroyed, however, it can be transferred from one object to another. Charged comb attracts neutral bits of paper. Charged comb attracts neutral water molecules.

Applications of Electrostatic Charging Fine mist of negatively charged gold particles adhere to Negatively charged paint positively charged protein on adheres to positively fingerprint. charged metal.

The quantity of charge (q) can be defined in terms of the number of electrons, but the Coulomb (C) is a better unit for later work. The Coulomb: 1 C = 6. 25 x 1018 electrons The charge on a single electron is: 1 electron: e- = -1. 6 x 10 -19 C

The coulomb (selected for use with electric currents) is actually a very large unit for static electricity. It is common to use the metric prefixes. 1 m. C = 1 x 10 -6 C 1 n. C = 1 x 10 -9 C 1 p. C = 1 x 10 -12 C

COULOMB’S LAW Coulomb’s Law states that two point charges exert a force (F) on one another that is directly proportional to the product of the magnitudes of the charges (q) and inversely proportional to the square of the distance (r) between their centers. The equation is: F = electrostatic force (N) q = charge (C) k = 9 x 109 N • m 2/C 2 r = separation between charges (m)

The value of k can also be expressed in terms of the permittivity of free space (εo): 9 x 109 N. m 2/C 2 The proportionality constant (k) can only be used if the medium that separates the charges is a vacuum. If the region between the point charges is not a vacuum then the value of the proportionality constant to be used is determined by dividing k by the dielectric constant (K). For a vacuum K = 1, for distilled water K = 80, and for wax paper K = 2. 25

Problem-Solving Strategies 1. Draw and label a figure indicating positive and negative charges along with the given distances. 2. Draw the force of attraction or repulsion on the given charge on a neat, labeled FBD. 3. Find the resultant force. Important: Do not use the signs of the charges when applying Coulomb's law!

11. 1 Two charges q 1 = - 8 μC and q 2= +12 μC are placed 120 mm apart in the air. What is the resultant force on a third charge q 3 = - 4 μC placed midway between the other charges? FR F 2 q 1 = - 8 x 10 -6 C F 1 q 2= +12 x 10 -6 C q 3 = - 4 x 10 -6 C + 0. 06 m q q q r = 0. 120 m 1 3 2 = 80 N = 120 N FR = 80 + 120 = 200 N, to the right

11. 2 Three charges q 1 = +4 n. C, q 2 = -6 n. C and q 3 = -8 n. C are arranged as shown. Find the resultant force on q 3 due to the other two charges. F 1 FR -9 q 1 = +4 x 10 C q 2= -6 x 10 -9 C F 2 37˚ θ q 3 = -8 x 10 -9 C = 2. 88 x 10 -5 N = 6. 75 x 10 -5 N

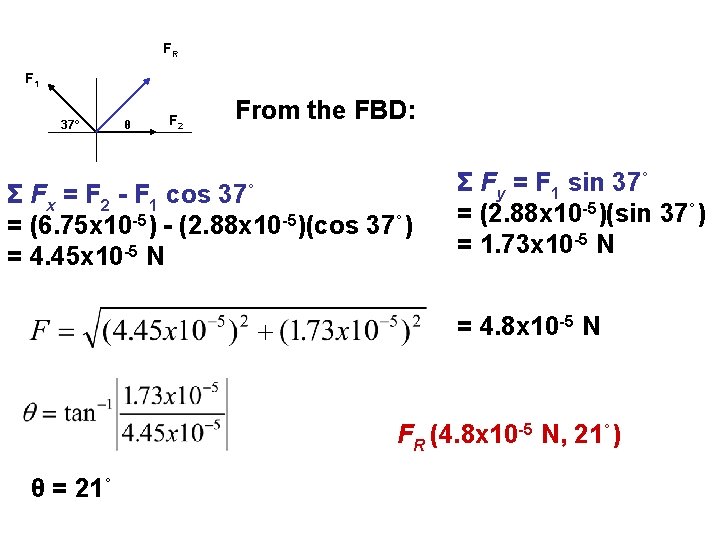

FR F 1 37˚ θ F 2 From the FBD: Σ Fx = F 2 - F 1 cos 37˚ = (6. 75 x 10 -5) - (2. 88 x 10 -5)(cos 37˚) = 4. 45 x 10 -5 N Σ Fy = F 1 sin 37˚ = (2. 88 x 10 -5)(sin 37˚) = 1. 73 x 10 -5 N = 4. 8 x 10 -5 N FR (4. 8 x 10 -5 N, 21˚) θ = 21˚

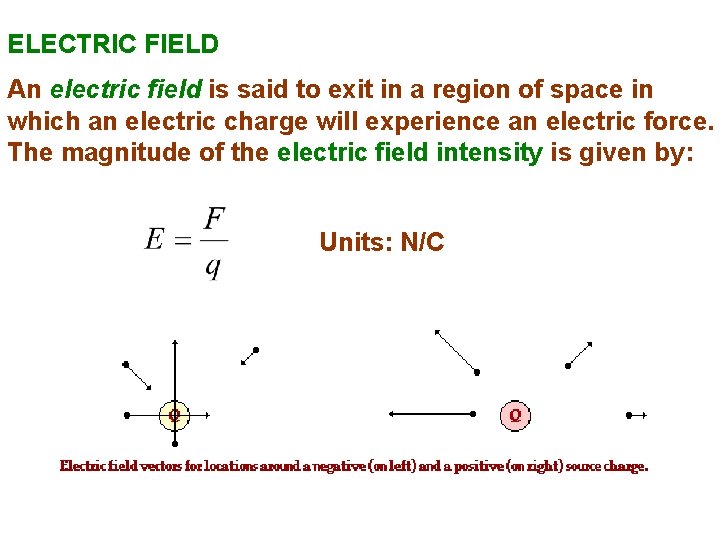

ELECTRIC FIELD An electric field is said to exit in a region of space in which an electric charge will experience an electric force. The magnitude of the electric field intensity is given by: Units: N/C

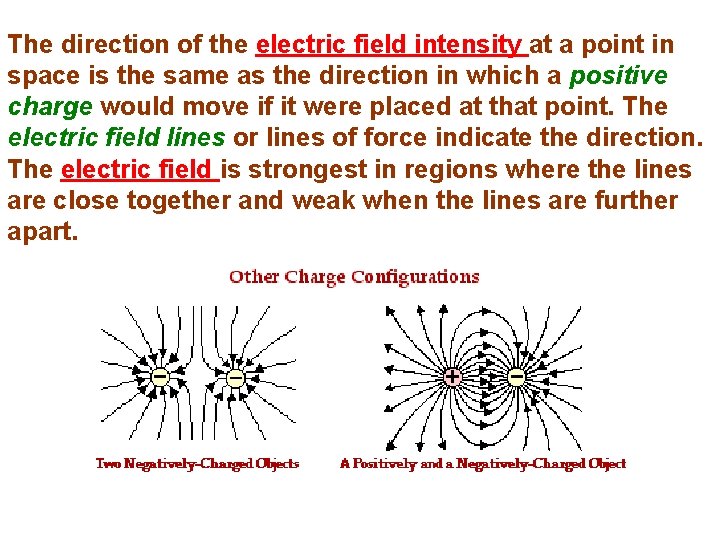

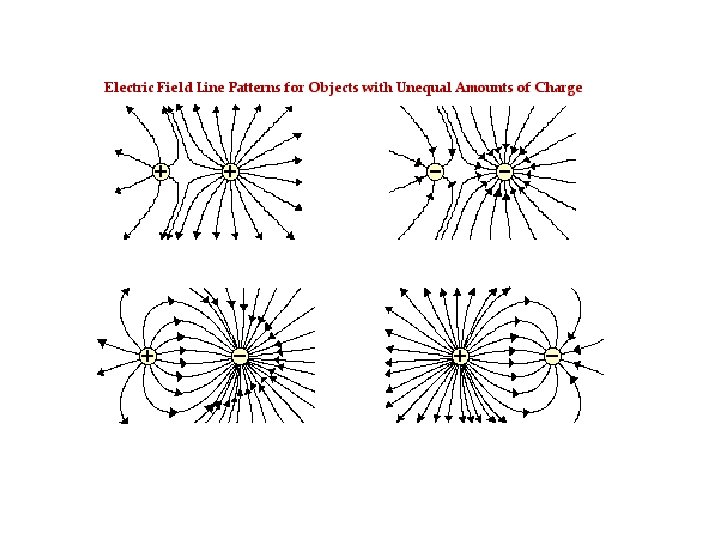

The direction of the electric field intensity at a point in space is the same as the direction in which a positive charge would move if it were placed at that point. The electric field lines or lines of force indicate the direction. The electric field is strongest in regions where the lines are close together and weak when the lines are further apart.

11. 3 The electric field intensity between two plates is constant and directed downward. The magnitude of the electric field intensity is 6 x 104 N/C. What are the magnitude and direction of the electric force exerted on an electron projected horizontally between the two plates? E = 6 x 104 N/C qe = 1. 6 x 10 -19 C F = q. E = 1. 6 x 10 -19 (6 x 104) = 9. 6 x 10 -15 N, upward

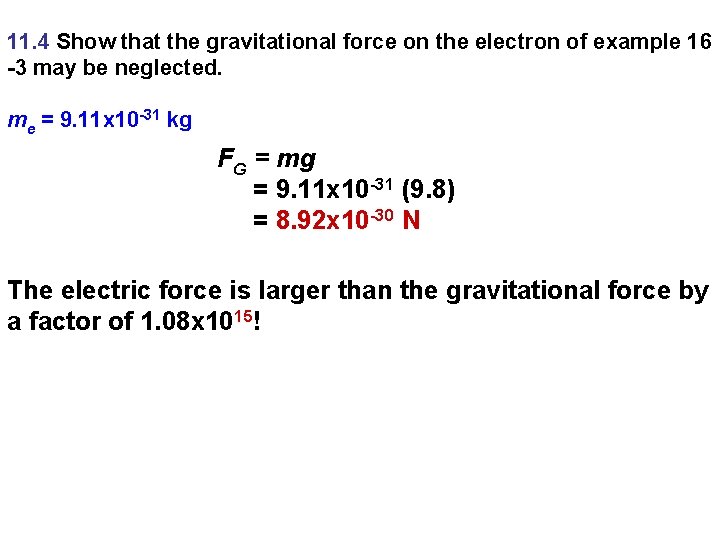

11. 4 Show that the gravitational force on the electron of example 16 -3 may be neglected. me = 9. 11 x 10 -31 kg FG = mg = 9. 11 x 10 -31 (9. 8) = 8. 92 x 10 -30 N The electric force is larger than the gravitational force by a factor of 1. 08 x 1015!

The electric field intensity E at a distance r from a single charge q can be found as follows: Units: N/C

11. 5 What is the electric field intensity at a distance of 2 m from a charge of -12 μC? r = 2 m q = -12 μC = 27 x 103 N/C, towards q

When more than one charge contributes to the field, the resultant field is the vector sum of the contributions from each charge. Units: N/C

11. 6 Two point charges q 1 = -6 n. C and q 2 = +6 n. C, are 12 cm apart, as shown in the figure. Determine the electric field a. At point A q 1 = -6 x 10 -9 C q 2 = +6 x 10 -9 C E 1 ER E 2 = 3. 38 x 104 N/C, left = 8. 44 x 103 N/C, left

E 1 ER E 2 ER = E 1 + E 2 = 3. 38 x 104 + 8. 44 x 103 = 4. 22 x 104 N/C, left

11. 6 Two point charges q 1 = -6 n. C and q 2 = +6 n. C, are 12 cm apart, as shown in the figure. Determine the electric field b. At point B q 1 = -6 x 10 -9 C q 2 = +6 x 10 -9 C E 2 37º θ ER E 1 = 6. 67 x 103 N/C = 2. 4 x 103 N/C

E 2 From vector diagram: 37º θ Σ Ex = - E 2 cos 37˚ = - (2. 4 x 103)(cos 37˚) = -1916. 7 N/C ER E 1 Σ Ey = E 2 sin 37˚- E 1 = (2. 4 x 103)(sin 37˚) - (6. 67 x 103) = - 5225. 6 N/C = 5566 N/C

= 70˚ E 2 37º θ 180˚ + 70˚ = 250˚ ER (5566 N/C, 250˚) ER E 1
